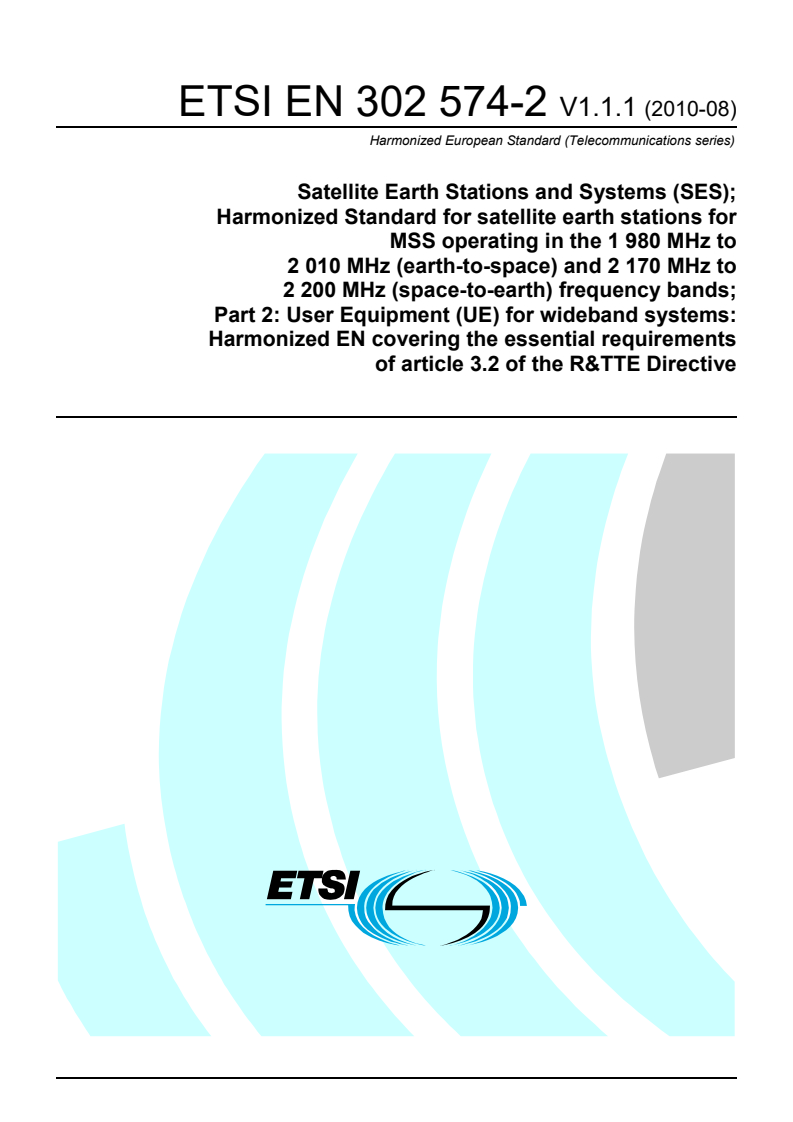

Final draft ETSI EN 302 574-2 V1.1.1 (2010-06)
Harmonized European Standard (Telecommunications series)
Satellite Earth Stations and Systems (SES);
Harmonized Standard for satellite earth stations for
MSS operating in the 1 980 MHz to
2 010 MHz (earth-to-space) and 2 170 MHz to
2 200 MHz (space-to-earth) frequency bands;
Part 2: User Equipment (UE) for wideband systems:
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 1 ----------------------

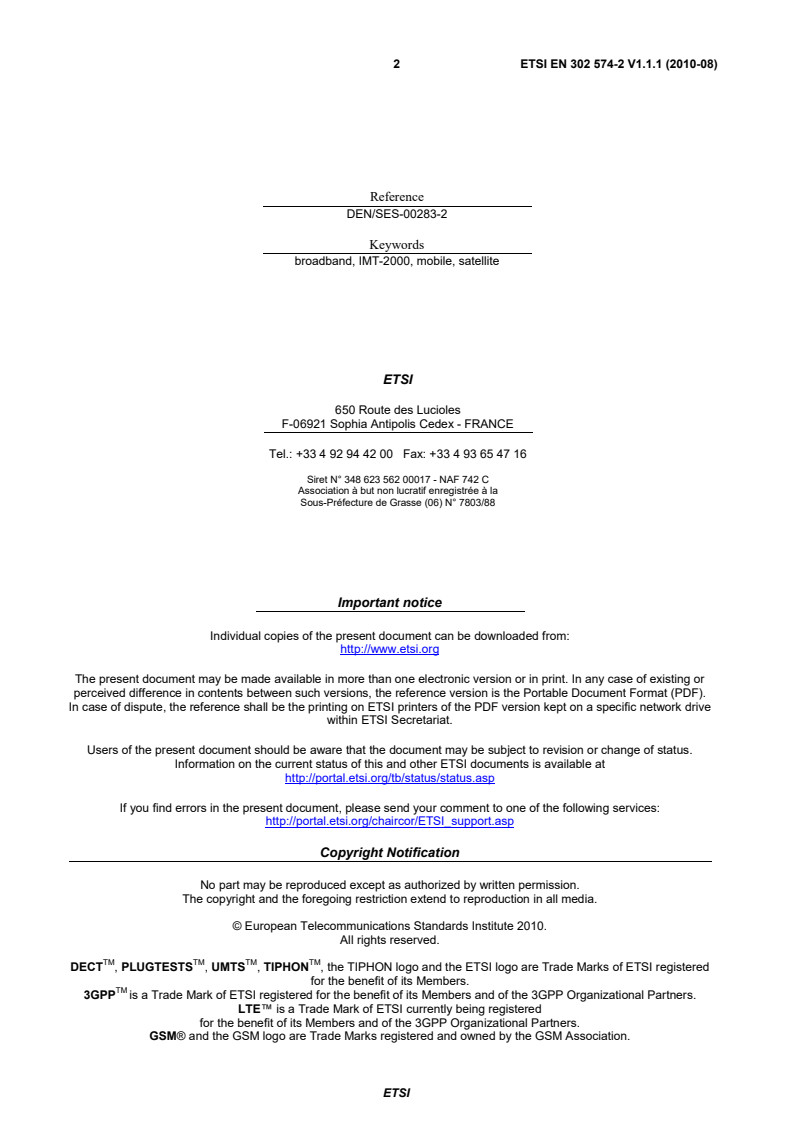

2 Final draft ETSI EN 302 574-2 V1.1.1 (2010-06)
Reference
DEN/SES-00283-2
Keywords
broadband, IMT-2000, mobile, satellite
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI EN 302 574-2 V1.1.1 (2010-06)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Control and monitoring functions . 10
4.2.2.1 Definition . 10
4.2.2.2 Limit . 10
4.2.2.3 Conformance . 11
4.2.3 Maximum output power . 11
4.2.3.1 Definition . 11
4.2.3.2 Limit . 11
4.2.3.3 Conformance . 11
4.2.4 Spectrum emissions mask . 11
4.2.4.1 Definition . 11
4.2.4.2 Limit . 12
4.2.4.3 Conformance . 12
4.2.5 Transmitter spurious emis sions . 12
4.2.5.1 Definition . 12
4.2.5.2 Limits . 12
4.2.5.3 Conformance . 13
4.2.6 Minimum output power . 13
4.2.6.1 Definition . 13
4.2.6.2 Limits . 13
4.2.6.3 Conformance . 13
4.2.7 Adjacent Channel Leakage Power Ratio (ACLR) . 13
4.2.7.1 Definition . 13
4.2.7.2 Limits . 13
4.2.8 Out of synchronization handling of output power . 14
4.2.8.1 Definition . 14
4.2.8.2 Limits . 15
4.2.8.3 Conformance . 15
4.2.9 Receiver Adjacent Channel Selectivity (ACS) . 15
4.2.9.1 Definition . 15
4.2.9.2 Limits . 15
4.2.9.3 Conformance . 15
4.2.10 Blocking characteristics . 16
4.2.10.1 Definition . 16
4.2.10.2 Limits . 16
4.2.10.3 Conformance . 16
4.2.11 Receiver spurious response . 16
4.2.11.1 Definition . 16
4.2.11.2 Limits . 17
ETSI
---------------------- Page: 3 ----------------------
4 Final draft ETSI EN 302 574-2 V1.1.1 (2010-06)
4.2.11.3 Conformance . 17
4.2.12 Receiver intermodulation characteristics . 17
4.2.12.1 Definition . 17
4.2.12.2 Limits . 17
4.2.13 Receiver spurious emissions . 17
4.2.13.1 Definition . 17
4.2.13.2 Limits . 17
4.2.13.3 Conformance . 18
5 Testing for compliance with technical requirements . 18
5.1 Environmental conditions for testing . 18
5.1.1 Specification of the environmental test conditions . 18
5.1.2 Tests under extreme voltage conditions . 19
5.2 Tests frequencies . 19
5.3 Interpretation of the measurement results . 19
5.4 Essential radio test suites . 20
5.4.1 Control and monitoring functions . 20
5.4.1.1 Test method . 20
5.4.2 Maximum output power . 21
5.4.2.1 Method of test . 21
5.4.2.1.1 Initial conditions . 21
5.4.2.1.2 Procedure . 21
5.4.2.2 Test requirements . 21
5.4.3 Spectrum emission mask . 21
5.4.3.1 Method of test . 21
5.4.3.1.1 Initial conditions . 21
5.4.3.1.2 Procedure . 22
5.4.3.2 Test requirements . 22
5.4.4 Transmitter spurious emis sions . 22
5.4.4.1 Method of test . 22
5.4.4.1.1 Initial conditions . 22
5.4.4.1.2 Procedure . 22
5.4.4.2 Test requirements . 22
5.4.5 Minimum output power . 23
5.4.5.1 Method of test . 23
5.4.5.1.1 Initial conditions . 23
5.4.5.1.2 Procedure . 23
5.4.5.2 Test requirements . 23
5.4.6 Adjacent Channel Leakage power Ratio (ACLR) . 23
5.4.6.1 Method of test . 23
5.4.6.1.1 Initial conditions . 23
5.4.6.1.2 Procedure . 23
5.4.6.2 Test requirements . 23
5.4.7 Out of synchronisation handling of output power. 24
5.4.7.1 Method of test . 24
5.4.7.1.1 Initial conditions . 24
5.4.7.1.2 Procedure . 24
5.4.7.2 Test requirements . 24
5.4.8 Adjacent Channel Selectivity (ACS) . 24
5.4.8.1 Method of test . 24
5.4.8.1.1 Initial conditions . 24
5.4.8.1.2 Procedure . 24
5.4.8.2 Test requirements . 25
5.4.9 Blocking characteristics . 25
5.4.9.1 Method of test . 25
5.4.9.1.1 Initial requirements . 25
5.4.9.1.2 Procedure . 26
5.4.9.2 Test requirements . 26
5.4.10 Receiver spurious response . 26
5.4.10.1 Method of test . 26
5.4.10.1.1 Initial conditions . 26
5.4.10.1.2 Procedure . 26
ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI EN 302 574-2 V1.1.1 (2010-06)
5.4.10.2 Test requirements . 26
5.4.11 Receiver intermodulation characteristics . 26
5.4.11.1 Method of test . 26
5.4.11.1.1 Initial conditions . 26
5.4.11.1.2 Procedure . 27
5.4.11.2 Test requirements . 27
5.4.12 Receiver spurious emissions . 27
5.4.12.1 Method of test . 27
5.4.12.1.1 Initial conditions . 27
5.4.12.1.2 Procedure . 27
5.4.12.2 Test requirements . 27
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT) . 28
Annex B (informative): Environmental profile specification . 30
B.1 Introduction . 30
B.2 Temperature . 30
B.3 Voltage . 30
B.4 Test environment . 31
Annex C (informative): The EN title in the official languages . 32
Annex D (informative): Bibliography . 33
History . 34
ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI EN 302 574-2 V1.1.1 (2010-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Satellite Earth Stations and Systems (SES), and is now submitted for the Vote phase of the ETSI standards Two-step
Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [1] of the European Parliament and
of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [1] are summarised in annex A.
The present document is part 2 of a multi-part deliverable covering the Harmonized Standard for satellite earth stations
for MSS operating in the 1 980 MHz to 2 010 MHz (earth-to-space) and 2 170 MHz to 2 200 MHz (space-to-earth)
frequency bands, as identified below:
Part 1: "Complementary Ground Component (CGC) for wideband systems: Harmonized EN covering essential
requirements of article 3.2 of the R&TTE Directive";
Part 2: "User Equipment (UE) for wideband systems: Harmonized EN covering essential requirements of
article 3.2 of the R&TTE Directive";
Part 3: "User Equipment (UE) for narrowband systems: Harmonized EN covering essential requirements of
article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [1]. The modular
structure is shown in EG 201 399 [i.3].
ETSI
---------------------- Page: 6 ----------------------
7 Final draft ETSI EN 302 574-2 V1.1.1 (2010-06)
1 Scope
The present document applies to User Equipment (UE) radio equipment type which has the following characteristics:
• these UEs have both transmit and receive capabilities and operate in an hybrid Satellite/terrestrial network
i.e. a satellite and/or Complementary Ground Component (CGC) network;
• the satellite component is based on GSO;
• these UEs operate with an assigned channel signal bandwidth (CBw) of 1 MHz or greater;
• these UEs may be handset, handheld, portable, vehicle-mounted, host connected, semi-fixed or fixed
equipment, or may be an element in a multi-mode terminal. It may consist of a number of modules with
associated connections and user interface, or may be a self contained single unit;
• if the UE is an element in a multi-mode terminal, unless otherwise stated in the present document, its
requirements apply only to the UE element of the terminal operating in the Mobile Satellite Service (MSS)
frequency bands given in Table 1.
This radio equipment type is capable of operating in all or any part of the frequency bands given in Table 1.
Table 1: Mobile Satellite Service UE frequency bands
Operating band Direction of transmission UE frequency bands
I Transmit 1 980 MHz to 2 010 MHz
Receive 2 170 MHz to 2 200 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial space radio communications and orbital resources so as to avoid harmful interference".
NOTE 1: In addition to the unwanted emission limits defined in clauses 4.2.4 and 4.2.5 of the present document,
additional operational constraints may be required to prevent harmful interference into services operating
in the neighbouring bands outside the operational band defined in Table 1.
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [1] may apply to equipme
...
Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Harmonized European Standard (Telecommunications series)
Satellite Earth Stations and Systems (SES);
Harmonized standard for satellite earth stations for
MSS operating in the 1 980 MHz to
2 010 MHz (earth-to-space) and 2 170 MHz to
2 200 MHz (space to-earth) frequency bands;
Part 2: User Equipment (UE) for wideband systems:
Harmonized EN covering essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Reference
DEN/SES-00283-2
Keywords
broadband, IMT-2000, mobile, satellite
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Control and monitoring functions . 11
4.2.2.1 Definition . 11
4.2.2.2 Limit . 11
4.2.2.3 Conformance . 11
4.2.3 Maximum output power . 11
4.2.3.1 Definition . 11
4.2.3.2 Limit . 12
4.2.3.3 Conformance . 12
4.2.4 Spectrum emissions mask . 12
4.2.4.1 Definition . 12
4.2.4.2 Limit . 12
4.2.4.3 Conformance . 13
4.2.5 Transmitter spurious emis sions . 13
4.2.5.1 Definition . 13
4.2.5.2 Limits . 13
4.2.5.3 Conformance . 14
4.2.6 Minimum output power . 14
4.2.6.1 Definition . 14
4.2.6.2 Limits . 14
4.2.6.3 Conformance . 14
4.2.7 Adjacent Channel Leakage Power Ratio (ACLR) . 14
4.2.7.1 Definition . 14
4.2.7.2 Limits . 14
4.2.8 Out of synchronization handling of output power . 15
4.2.8.1 Definition . 15
4.2.8.2 Limits . 15
4.2.8.3 Conformance . 15
4.2.9 Receiver Adjacent Channel Selectivity (ACS) . 16
4.2.9.1 Definition . 16
4.2.9.2 Limits . 16
4.2.9.3 Conformance . 16
4.2.10 Blocking characteristics . 16
4.2.10.1 Definition . 16
4.2.10.2 Limits . 17
4.2.10.3 Conformance . 17
4.2.11 Receiver spurious response . 17
4.2.11.1 Definition . 17
4.2.11.2 Limits . 17
ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
4.2.11.3 Conformance . 17
4.2.12 Receiver intermodulation characteristics . 18
4.2.12.1 Definition . 18
4.2.12.2 Limits . 18
4.2.13 Receiver spurious emissions . 18
4.2.13.1 Definition . 18
4.2.13.2 Limits . 18
4.2.13.3 Conformance . 19
5 Testing for compliance with technical requirements . 19
5.1 Environmental conditions for testing . 19
5.1.1 Specification of the environmental test conditions . 19
5.1.2 Tests under extreme voltage conditions . 20
5.2 Tests frequencies . 20
5.3 Interpretation of the measurement results . 20
5.4 Essential radio test suites . 21
5.4.1 Control and monitoring functions . 21
5.4.1.1 Test method . 21
5.4.2 Maximum output power . 22
5.4.2.1 Method of test . 22
5.4.2.1.1 Initial conditions . 22
5.4.2.1.2 Procedure . 22
5.4.2.2 Test requirements . 22
5.4.3 Spectrum emission mask . 22
5.4.3.1 Method of test . 22
5.4.3.1.1 Initial conditions . 22
5.4.3.1.2 Procedure . 23
5.4.3.2 Test requirements . 23
5.4.4 Transmitter spurious emis sions . 23
5.4.4.1 Method of test . 23
5.4.4.1.1 Initial conditions . 23
5.4.4.1.2 Procedure . 23
5.4.4.2 Test requirements . 23
5.4.5 Minimum output power . 24
5.4.5.1 Method of test . 24
5.4.5.1.1 Initial conditions . 24
5.4.5.1.2 Procedure . 24
5.4.5.2 Test requirements . 24
5.4.6 Adjacent Channel Leakage power Ratio (ACLR) . 24
5.4.6.1 Method of test . 24
5.4.6.1.1 Initial conditions . 24
5.4.6.1.2 Procedure . 24
5.4.6.2 Test requirements . 24
5.4.7 Out of synchronisation handling of output power. 25
5.4.7.1 Method of test . 25
5.4.7.1.1 Initial conditions . 25
5.4.7.1.2 Procedure . 25
5.4.7.2 Test requirements . 25
5.4.8 Adjacent Channel Selectivity (ACS) . 25
5.4.8.1 Method of test . 25
5.4.8.1.1 Initial conditions . 25
5.4.8.1.2 Procedure . 25
5.4.8.2 Test requirements . 26
5.4.9 Blocking characteristics . 26
5.4.9.1 Method of test . 26
5.4.9.1.1 Initial requirements . 26
5.4.9.1.2 Procedure . 27
5.4.9.2 Test requirements . 27
5.4.10 Receiver spurious response . 27
5.4.10.1 Method of test . 27
5.4.10.1.1 Initial conditions . 27
5.4.10.1.2 Procedure . 27
ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
5.4.10.2 Test requirements . 27
5.4.11 Receiver intermodulation characteristics . 27
5.4.11.1 Method of test . 27
5.4.11.1.1 Initial conditions . 27
5.4.11.1.2 Procedure . 28
5.4.11.2 Test requirements . 28
5.4.12 Receiver spurious emissions . 28
5.4.12.1 Method of test . 28
5.4.12.1.1 Initial conditions . 28
5.4.12.1.1 Procedure . 28
5.4.12.2 Test requirements . 28
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 29
Annex B: Void . 31
Annex C (informative): Environmental profile specification . 32
C.1 Introduction . 32
C.2 Temperature . 32
C.3 Voltage . 32
C.4 Test environment . 33
Annex D (informative): The EN title in the official languages . 34
Annex E (informative): Bibliography . 35
History . 36
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Satellite Earth Stations and Systems (SES), and is now submitted for the Public Enquiry phase of the ETSI standards
Two-step Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [1] of the European Parliament and
of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
Technical specifications relevant to Directive 1999/5/EC [1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Harmonized Standard for satellite earth stations
for MSS operating in the 1 980 MHz to 2 010 MHz (earth-to-space) and 2 170 MHz to 2 200 MHz (space-to-earth)
frequency bands, as identified below:
Part 1: "Complementary Ground Component (CGC) for wideband systems: Harmonized EN covering essential
requirements of article 3.2 of the R&TTE Directive";
Part 2: "User Equipment (UE) for wideband systems: Harmonized EN covering essential requirements of
article 3.2 of the R&TTE Directive";
Part 3: "User Equipment (UE) for narrowband systems: Harmonized EN covering essential requirements of
article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular
structure is shown in EG 201 399 [i.4].
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
1 Scope
The present document applies to User Equipment (UE) radio equipment type which has the following characteristics:
• these UEs have both transmit and receive capabilities and operate in an hybrid Satellite/terrestrial network i.e.
a satellite and/or Complementary Ground Component (CGC) network,
• the satellite component is based on GSO,
• these UEs operate with an assigned channel signal bandwidth (CBw) of 1 MHz or greater,
• these UEs may be handset, handheld, portable, vehicle-mounted, host connected, semi-fixed or fixed
equipment, or may be an element in a multi-mode terminal. It may consist of a number of modules with
associated connections and user interface, or may be a self contained single unit,
• if the UE is an element in a multi-mode terminal, unless otherwise stated in the present document, its
requirements apply only to the UE element of the terminal operating in the Mobile Satellite Service (MSS)
frequency bands given in Table 1.
This radio equipment type is capable of operating in all or any part of the frequency bands given in Table 1.
Table 1: Mobile Satellite Service UE frequency bands
Operating band Direction of transmission UE frequency bands
Transmit 1 980 MHz to 2 010 MHz
I
Receive 2 170 MHz to 2 200 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial space radio communications and orbital resources so as to avoid harmful interference".
NOTE 1: In addition to the unwanted emission limits defined in clauses 4.2.4 & 4.2.5 of the present document,
additional operational constraints may be required to prevent harmful interference into services operating
in the neighbouring bands outside the operational band defined in Table 1.
In addition to the present document, other ENs that specify technical requirements in respect
...
SLOVENSKI STANDARD
oSIST prEN 302 574-2 V1.1.0:2010
01-januar-2010
6DWHOLWVNH]HPHOMVNHSRVWDMHLQVLVWHPL 6(6 +DUPRQL]LUDQLVWDQGDUG]D
VDWHOLWVNH]HPHOMVNHSRVWDMH]D066NLGHOXMHMRYIUHNYHQþQLKSDVRYLKRG
0+]GR0+] ]HPOMDYHVROMH LQ0+]GR0+] YHVROMH]HPOMD
GHO 8SRUDEQLãNDRSUHPD]DãLURNRSDVRYQHVLVWHPH +DUPRQL]LUDQL(1NL]DMHPD
ELVWYHQH]DKWHYHþOHQDGLUHNWLYH5 77(
Satellite Earth Stations and Systems (SES) - Harmonized standard for satellite earth
stations for MSS operating in the 1 980 MHz to 2 010 MHz (earth-to-space) and 2 170
MHz to 2 200 MHz (space to-earth) frequency bands - Part 2: User Equipment (UE) for
wideband systems: Harmonized EN covering essential requirements of article 3.2 of the
R&TTE Directive
Ta slovenski standard je istoveten z: EN 302 574-2 Version 1.1.0
ICS:
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
oSIST prEN 302 574-2 V1.1.0:2010 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
---------------------- Page: 2 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Harmonized European Standard (Telecommunications series)
Satellite Earth Stations and Systems (SES);
Harmonized standard for satellite earth stations for
MSS operating in the 1 980 MHz to
2 010 MHz (earth-to-space) and 2 170 MHz to
2 200 MHz (space to-earth) frequency bands;
Part 2: User Equipment (UE) for wideband systems:
Harmonized EN covering essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 3 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
2 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Reference
DEN/SES-00283-2
Keywords
broadband, IMT-2000, mobile, satellite
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 4 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
3 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Control and monitoring functions . 11
4.2.2.1 Definition . 11
4.2.2.2 Limit . 11
4.2.2.3 Conformance . 11
4.2.3 Maximum output power . 11
4.2.3.1 Definition . 11
4.2.3.2 Limit . 12
4.2.3.3 Conformance . 12
4.2.4 Spectrum emissions mask . 12
4.2.4.1 Definition . 12
4.2.4.2 Limit . 12
4.2.4.3 Conformance . 13
4.2.5 Transmitter spurious emis sions . 13
4.2.5.1 Definition . 13
4.2.5.2 Limits . 13
4.2.5.3 Conformance . 14
4.2.6 Minimum output power . 14
4.2.6.1 Definition . 14
4.2.6.2 Limits . 14
4.2.6.3 Conformance . 14
4.2.7 Adjacent Channel Leakage Power Ratio (ACLR) . 14
4.2.7.1 Definition . 14
4.2.7.2 Limits . 14
4.2.8 Out of synchronization handling of output power . 15
4.2.8.1 Definition . 15
4.2.8.2 Limits . 15
4.2.8.3 Conformance . 15
4.2.9 Receiver Adjacent Channel Selectivity (ACS) . 16
4.2.9.1 Definition . 16
4.2.9.2 Limits . 16
4.2.9.3 Conformance . 16
4.2.10 Blocking characteristics . 16
4.2.10.1 Definition . 16
4.2.10.2 Limits . 17
4.2.10.3 Conformance . 17
4.2.11 Receiver spurious response . 17
4.2.11.1 Definition . 17
4.2.11.2 Limits . 17
ETSI
---------------------- Page: 5 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
4 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
4.2.11.3 Conformance . 17
4.2.12 Receiver intermodulation characteristics . 18
4.2.12.1 Definition . 18
4.2.12.2 Limits . 18
4.2.13 Receiver spurious emissions . 18
4.2.13.1 Definition . 18
4.2.13.2 Limits . 18
4.2.13.3 Conformance . 19
5 Testing for compliance with technical requirements . 19
5.1 Environmental conditions for testing . 19
5.1.1 Specification of the environmental test conditions . 19
5.1.2 Tests under extreme voltage conditions . 20
5.2 Tests frequencies . 20
5.3 Interpretation of the measurement results . 20
5.4 Essential radio test suites . 21
5.4.1 Control and monitoring functions . 21
5.4.1.1 Test method . 21
5.4.2 Maximum output power . 22
5.4.2.1 Method of test . 22
5.4.2.1.1 Initial conditions . 22
5.4.2.1.2 Procedure . 22
5.4.2.2 Test requirements . 22
5.4.3 Spectrum emission mask . 22
5.4.3.1 Method of test . 22
5.4.3.1.1 Initial conditions . 22
5.4.3.1.2 Procedure . 23
5.4.3.2 Test requirements . 23
5.4.4 Transmitter spurious emis sions . 23
5.4.4.1 Method of test . 23
5.4.4.1.1 Initial conditions . 23
5.4.4.1.2 Procedure . 23
5.4.4.2 Test requirements . 23
5.4.5 Minimum output power . 24
5.4.5.1 Method of test . 24
5.4.5.1.1 Initial conditions . 24
5.4.5.1.2 Procedure . 24
5.4.5.2 Test requirements . 24
5.4.6 Adjacent Channel Leakage power Ratio (ACLR) . 24
5.4.6.1 Method of test . 24
5.4.6.1.1 Initial conditions . 24
5.4.6.1.2 Procedure . 24
5.4.6.2 Test requirements . 24
5.4.7 Out of synchronisation handling of output power. 25
5.4.7.1 Method of test . 25
5.4.7.1.1 Initial conditions . 25
5.4.7.1.2 Procedure . 25
5.4.7.2 Test requirements . 25
5.4.8 Adjacent Channel Selectivity (ACS) . 25
5.4.8.1 Method of test . 25
5.4.8.1.1 Initial conditions . 25
5.4.8.1.2 Procedure . 25
5.4.8.2 Test requirements . 26
5.4.9 Blocking characteristics . 26
5.4.9.1 Method of test . 26
5.4.9.1.1 Initial requirements . 26
5.4.9.1.2 Procedure . 27
5.4.9.2 Test requirements . 27
5.4.10 Receiver spurious response . 27
5.4.10.1 Method of test . 27
5.4.10.1.1 Initial conditions . 27
5.4.10.1.2 Procedure . 27
ETSI
---------------------- Page: 6 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
5 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
5.4.10.2 Test requirements . 27
5.4.11 Receiver intermodulation characteristics . 27
5.4.11.1 Method of test . 27
5.4.11.1.1 Initial conditions . 27
5.4.11.1.2 Procedure . 28
5.4.11.2 Test requirements . 28
5.4.12 Receiver spurious emissions . 28
5.4.12.1 Method of test . 28
5.4.12.1.1 Initial conditions . 28
5.4.12.1.1 Procedure . 28
5.4.12.2 Test requirements . 28
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 29
Annex B: Void . 31
Annex C (informative): Environmental profile specification . 32
C.1 Introduction . 32
C.2 Temperature . 32
C.3 Voltage . 32
C.4 Test environment . 33
Annex D (informative): The EN title in the official languages . 34
Annex E (informative): Bibliography . 35
History . 36
ETSI
---------------------- Page: 7 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
6 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Satellite Earth Stations and Systems (SES), and is now submitted for the Public Enquiry phase of the ETSI standards
Two-step Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [1] of the European Parliament and
of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
Technical specifications relevant to Directive 1999/5/EC [1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Harmonized Standard for satellite earth stations
for MSS operating in the 1 980 MHz to 2 010 MHz (earth-to-space) and 2 170 MHz to 2 200 MHz (space-to-earth)
frequency bands, as identified below:
Part 1: "Complementary Ground Component (CGC) for wideband systems: Harmonized EN covering essential
requirements of article 3.2 of the R&TTE Directive";
Part 2: "User Equipment (UE) for wideband systems: Harmonized EN covering essential requirements of
article 3.2 of the R&TTE Directive";
Part 3: "User Equipment (UE) for narrowband systems: Harmonized EN covering essential requirements of
article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular
structure is shown in EG 201 399 [i.4].
ETSI
---------------------- Page: 8 ----------------------
oSIST prEN 302 574-2 V1.1.0:2010
7 Draft ETSI EN 302 574-2 V1.1.0 (2009-11)
1 Scope
The present document applies to User Equipment (UE) radio equipment type which has the following characteristics:
• these UEs have both transmit and receive capabilities and operate in an hybrid Satellite/terrestrial network i.e.
a satellite and/or Complementary Ground Component (CGC) network,
• the satellite component is based on GSO,
• these UEs operate with an assigned channel signal bandwidth (CBw) of 1 MHz or greater,
• these UEs may be handset, handheld, portab
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
