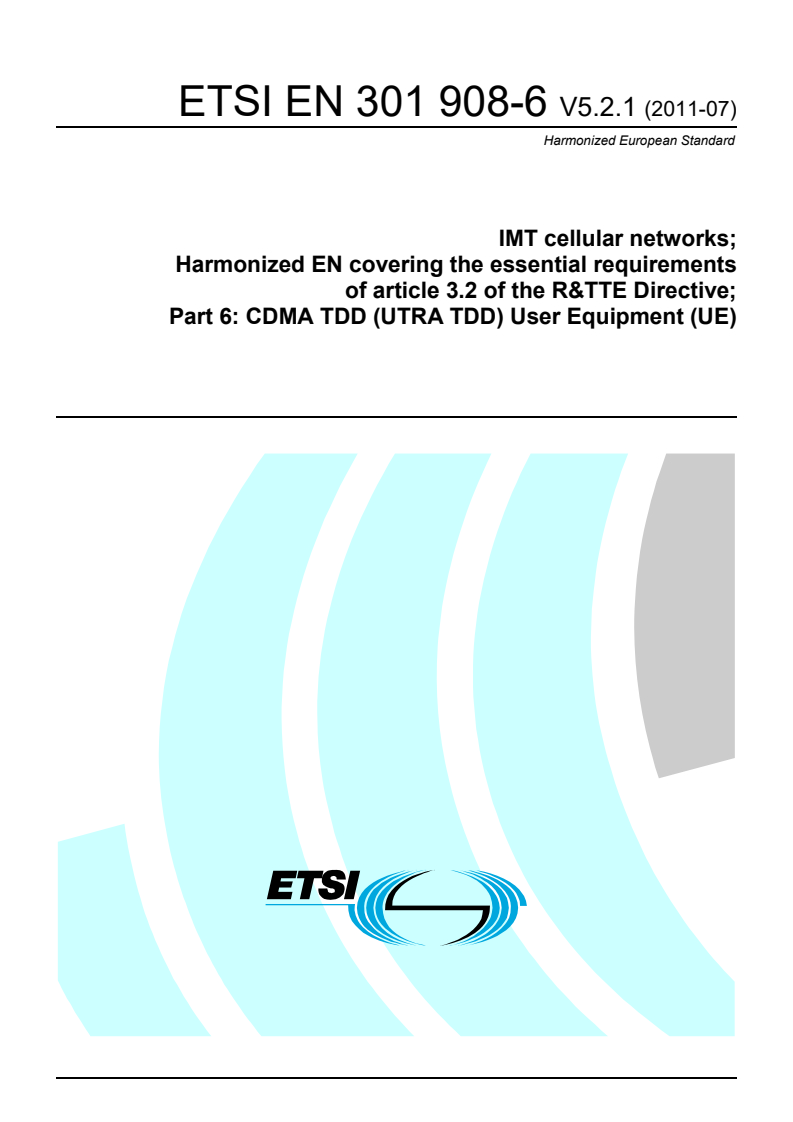

ETSI EN 301 908-6 V5.2.1 (2011-07)
IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 6: CDMA TDD (UTRA TDD) User Equipment (UE)
IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 6: CDMA TDD (UTRA TDD) User Equipment (UE)
REN/MSG-TFES-010-6
Celična omrežja IMT - Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE - 6. del: CDMA TDD (UTRA TDD) (UE)
Ta dokument velja za naslednjo vrsto radijske opreme:
• uporabniško opremo za IMT-2000 CDMA TDD (UTRA FDD).
Ta vrsta radijske opreme je zmožna delovati v vseh ali katerem koli delu frekvenčnega pasu, kot so navedeni v preglednici 1-1.
Komponenta UTRA TDD IMT-2000 CDMA TDD podpira tri možnosti načina TDD s številom pulzov kode 3,84 Mcps, 7,68 Mcps in 1,28 Mcps. Te tri možnosti so imenovane 3,84 Mcps TDD možnost, 1,28 Mcps TDD možnost in 7,68 Mcps TDD možnost v tem vrstnem redu. Zahteve so navedene v različnih točkah, samo če parametri odstopajo. Ta dokument zajema zahteve za:
• uporabniško opremo 3,84 Mcps UTRA TDD možnost za izdaje 99, 4, 5, 6, 7, 8 in 9;
• uporabniško opremo 1,28 Mcps UTRA TDD možnost za izdaje 4, 5, 6, 7,8 in 9;
• uporabniško opremo 7,68 Mcps UTRA TDD možnost za izdajo 7,8 in 9.
Za primer IMB velja samo možnost 3,84 Mcps UTRA TDD.
Ta dokument zajema določbe Direktive 1999/5/EC [i.2] (direktive R&TTE), člena 3.2, ki navaja, da » … radijska oprema je narejena tako, da učinkovito izrablja spekter, razporejen za prizemne/vesoljske radiokomunikacije in orbitalne vire, tako da ne pride do škodljivega motenja«.
Poleg tega dokumenta se preostali EN, ki določajo tehnične zahteve v skladu z bistvenimi zahtevami v drugih delih člena 3 direktive R&TTE [i.2], lahko uporabljajo za opremo v okviru področja uporabe tega dokumenta.
General Information
Standards Content (Sample)

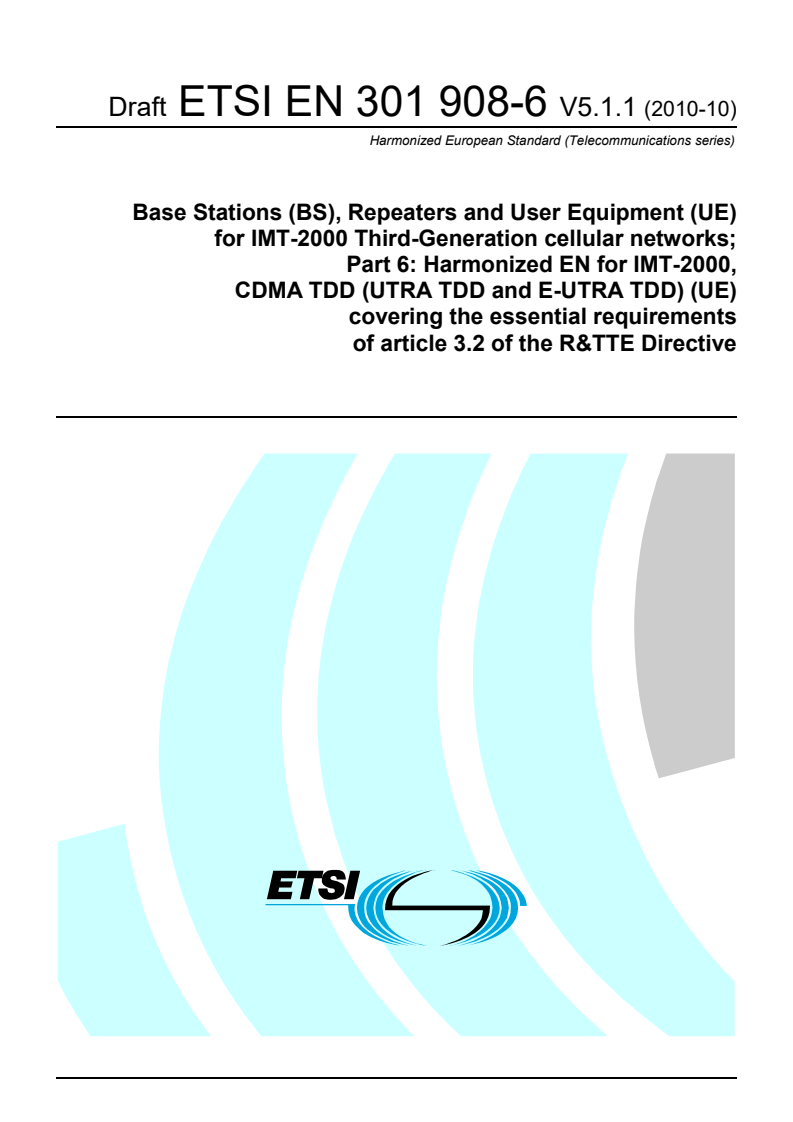

Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
Harmonized European Standard (Telecommunications series)
Base Stations (BS), Repeaters and User Equipment (UE)
for IMT-2000 Third-Generation cellular networks;
Part 6: Harmonized EN for IMT-2000,
CDMA TDD (UTRA TDD and E-UTRA TDD) (UE)
covering the essential requirements
of article 3.2 of the R&TTE Directive

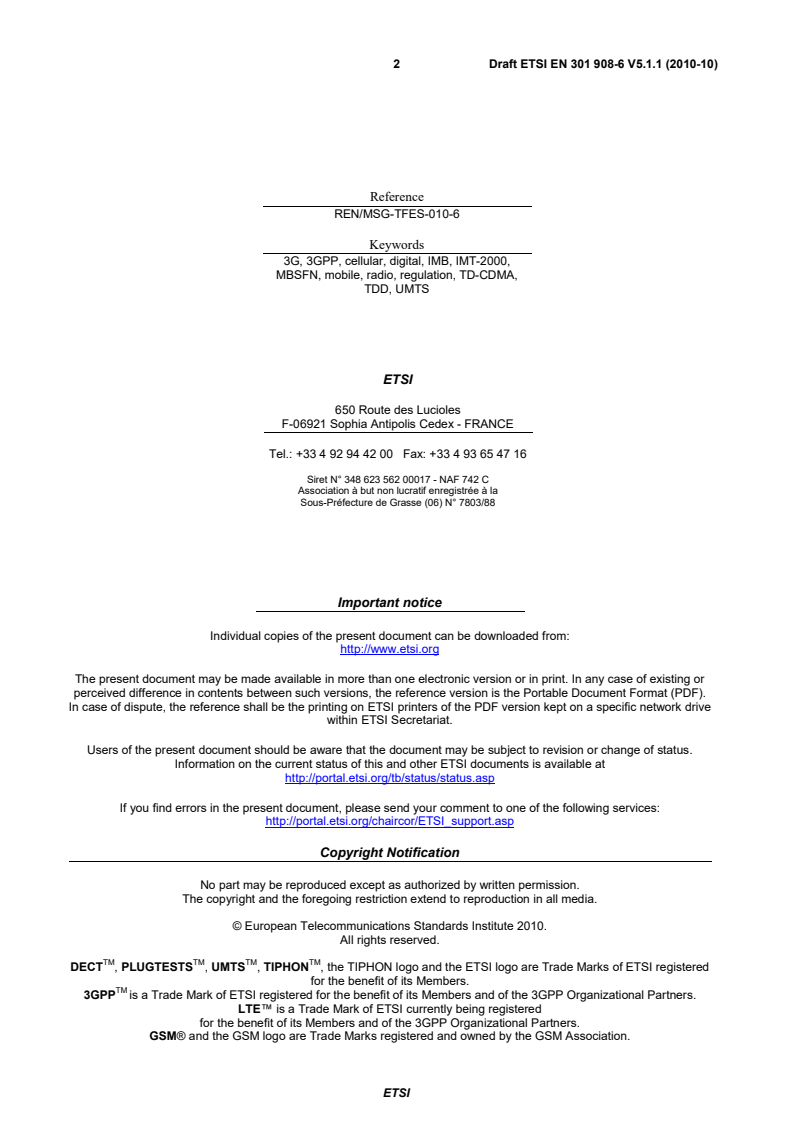

2 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
Reference
REN/MSG-TFES-010-6
Keywords
3G, 3GPP, cellular, digital, IMB, IMT-2000,
MBSFN, mobile, radio, regulation, TD-CDMA,
TDD, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 11
4 Technical requirements specifications . 11
4.1 Environmental profile . 11
4.2 Conformance requirements . 12
4.2.1 Introduction. 12
4.2.2 Spectrum emission mask . 12
4.2.2.1 Definition . 12
4.2.2.1.1 3,84 Mcps TDD option . 12
4.2.2.1.2 1,28 Mcps TDD option . 12
4.2.2.1.3 7,68 Mcps TDD option . 12
4.2.2.2 Limits . 13
4.2.2.2.1 3,84 Mcps TDD option . 13
4.2.2.2.2 1,28 Mcps TDD option . 13
4.2.2.2.3 7,68 Mcps TDD option . 14
4.2.2.3 Conformance . 14
4.2.3 Transmitter spurious emis sions . 14
4.2.3.1 Definition . 14
4.2.3.2 Limits . 14
4.2.3.2.1 3,84 Mcps TDD option . 14
4.2.3.2.2 1,28 Mcps TDD option . 15
4.2.3.2.3 7,68 Mcps TDD option . 15
4.2.3.3 Conformance . 16
4.2.4 Maximum output power . 16
4.2.4.1 Definition . 16
4.2.4.2 Limits . 16
4.2.4.3 Conformance . 16
4.2.5 Minimum transmit output power . 16
4.2.5.1 Definition . 16
4.2.5.2 Limits . 16
4.2.5.2.1 3,84 Mcps TDD option . 16
4.2.5.2.2 1,28 Mcps TDD option . 16
4.2.5.2.3 7,68 Mcps TDD option . 16
4.2.5.3 Conformance . 16
4.2.6 Receiver spurious emissions . 16
4.2.6.1 Definition . 16
4.2.6.2 Limits . 17
4.2.6.2.1 3,84 Mcps TDD option . 17
4.2.6.2.2 1,28 Mcps TDD option . 17
4.2.6.2.3 7,68 Mcps TDD option . 17
4.2.6.3 Conformance . 18
4.2.7 Receiver blocking characteristics . 18
4.2.7.1 Definition . 18
4.2.7.2 Limits . 18
ETSI
4 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
4.2.7.2.1 3,84 Mcps TDD option . 18
4.2.7.2.2 1,28 Mcps TDD option . 19
4.2.7.2.3 7,68 Mcps TDD option . 20
4.2.7.3 Conformance . 21
4.2.8 Receiver intermodulation characteristics . 21
4.2.8.1 Definition and applicability . 21
4.2.8.2 Limits . 21
4.2.8.2.1 3,84 Mcps TDD option . 21
4.2.8.2.2 1,28 Mcps TDD option . 21
4.2.8.2.3 7,68 Mcps TDD option . 21
4.2.8.3 Conformance . 22
4.2.9 Receiver spurious response . 22
4.2.9.1 Definition . 22
4.2.9.2 Limits . 22
4.2.9.2.1 3,84 Mcps TDD option . 22
4.2.9.2.2 1,28 Mcps TDD option . 22
4.2.9.2.3 7,68 Mcps TDD option . 23
4.2.9.3 Conformance . 23
4.2.10 Receiver adjacent channel selectivity . 23
4.2.10.1 Definition . 23
4.2.10.2 Limits . 23
4.2.10.2.1 3,84 Mcps TDD option . 23
4.2.10.2.2 1,28 Mcps TDD option . 23
4.2.10.2.3 7,68 Mcps TDD option . 24
4.2.10.3 Conformance . 24
4.2.11 Out-of-synchronization handling of output power . 24
4.2.11.1 Definition . 24
4.2.11.2 Limit . 24
4.2.11.2.1 3,84 Mcps TDD option . 24
4.2.11.2.2 1,28 Mcps TDD option . 25
4.2.11.2.3 7,68 Mcps TDD option . 26
4.2.11.3 Conformance . 27
4.2.12 Transmitter adjacent channel leakage power ratio . 28
4.2.12.1 Definition . 28
4.2.12.2 Limits . 28
4.2.12.2.1 3,84 Mcps TDD option . 28
4.2.12.2.2 1,28 Mcps TDD option . 28
4.2.12.2.3 7,68 Mcps TDD option . 28
4.2.12.3 Conformance . 28
5 Testing for compliance with technical requirements . 29
5.1 Environmental conditions for testing . 29
5.2 Interpretation of the measurement results . 29
5.3 Essential radio test suites . 30
5.3.1 Spectrum emission mask . 30
5.3.1.1 Method of test . 30
5.3.1.1.1 Initial conditions . 30
5.3.1.1.2 Procedure . 31
5.3.1.2 Test requirements . 31
5.3.2 Transmitter spurious emis sions . 31
5.3.2.1 Method of test . 31
5.3.2.1.1 Initial conditions . 31
5.3.2.1.2 Procedure . 31
5.3.2.2 Test requirements . 32
5.3.3 Maximum output power . 32
5.3.3.1 Method of test . 32
5.3.3.1.1 Initial conditions . 32
5.3.3.1.2 Procedure . 32
5.3.3.2 Test requirements . 32
5.3.4 Minimum transmit output power . 32
5.3.4.1 Method of test . 32
5.3.4.1.1 Initial conditions . 32
ETSI
5 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
5.3.4.1.2 Procedure . 33
5.3.4.2 Test requirements . 33
5.3.5 Receiver spurious emissions . 33
5.3.5.1 Method of test . 33
5.3.5.1.1 Initial conditions . 33
5.3.5.1.2 Procedure . 34
5.3.5.2 Test requirements . 34
5.3.6 Receiver blocking characteristics . 35
5.3.6.1 Method of test . 35
5.3.6.1.1 Initial conditions . 35
5.3.6.1.2 Procedure . 35
5.3.6.2 Test requirements . 36
5.3.7 Receiver intermodulation characteristics . 36
5.3.7.1 Method of test . 36
5.3.7.1.1 Initial conditions . 36
5.3.7.1.2 Procedure . 36
5.3.7.2 Test requirements . 36
5.3.8 Receiver spurious response . 36
5.3.8.1 Method of test . 36
5.3.8.1.1 Initial conditions . 36
5.3.8.1.2 Procedure . 37
5.3.8.2 Test requirements . 37
5.3.9 Receiver adjacent channel selectivity . 37
5.3.9.1 Method of test . 37
5.3.9.1.1 Initial conditions . 37
5.3.9.1.2 Procedure . 37
5.3.9.2 Test requirements . 38
5.3.10 Out-of-synchronization handling of output power . 38
5.3.10.1 Method of test . 38
5.3.10.1.1 Initial conditions . 38
5.3.10.1.2 Procedure . 38
5.3.10.2 Test requirements . 39
5.3.11 Transmitter adjacent channel leakage power ratio . 39
5.3.11.1 Method of test . 39
5.3.11.1.1 Initial conditions . 39
5.3.11.1.2 Procedure . 39
5.3.11.2 Test requirements . 40
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
Annex B (normative): Environmental profile . 43
B.1 General . 43
B.1.1 Introduction . 43
B.1.2 Temperature . 43
B.1.3 Voltage . 43
B.1.4 Test environment . 44
Annex C (informative): The EN title in the official languages . 45
Annex D (informative): Bibliography . 46
History . 47
ETSI
6 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Mobile Standards Group (MSG), and is now submitted for the Public Enquiry phase of the ETSI standards Two-step
Approval Procedure.
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Union referencing the Directive 1999/5/EC [i.2] of the European Parliament and of the
Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition
of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 6 of a multi-part deliverable covering the Base Stations (BS), Repeaters and User
Equipment (UE) for IMT-2000 Third-Generation cellular networks, as identified below:
Part 1: "Harmonized EN for IMT-2000, introduction and common requirements, covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 2: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (UE) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 3: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 4: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (UE) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 5: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (BS) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 6: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (UE) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 7: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (BS) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
ETSI
7 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (Repeaters)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (UE) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 14: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 15: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD
Repeaters) covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "Harmonized EN for Multi-Standard Radio (UTRA, E-UTRA, GSM/EDGE) Base Stations (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 19: "Harmonized EN for IMT-2000 OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 20: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 21: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 22: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
1 Scope
The present document applies to the following radio equipment type:
• User equipment for IMT-2000 CDMA TDD (UTRA TDD and E-UTRA TDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: IMT-2000 CDMA TDD service frequency bands
UTRA TDD Band Direction of transmission IMT-2000 CDMA TDD service operating bands
a Transmit and Receive 1 900 MHz to 1 920 MHz
Transmit and Receive 2 010 MHz to 2 025 MHz
d Transmit and Receive 2 570 MHz to 2 620 MHz
The UTRA TDD component of IMT-2000 CDMA TDD supports three options of the TDD mode with the chip rates of
3,84 Mcps, 7,68 Mcps and 1,28 Mcps. These three options are called the 3,84 Mcps TDD option, the 1,28 Mcps TDD
option and the 7,68 Mcps TDD option respectively. The requirements are listed in different clauses only if the
parameters deviate. The present document covers requirements for:
• 3,84 Mcps UTRA TDD option user equipment for Release 99, 4, 5, 6, 7, 8 and 9;
• 1,28 Mcps UTRA TDD option user equipment for Release 4, 5, 6, 7, 8 and 9;
• 7,68 Mcps UTRA TDD option user equipment for Release 7, 8 and 9;
• E-UTRA TDD user equipment for Release 8 and 9.
For the case of IMB, only the 3,84 Mcps UTRA TDD option shall apply.
The present document covers the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2, which states
that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio
communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site: http://www.newapproach.org/.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Void.
ETSI
9 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
[2] ETSI TS 125 102 (V8.6.0): "Universal Mobile Telecommunications System (UMTS); User
Equipment (UE) radio transmission and reception (TDD) (3GPP TS 25.102 version 8.6.0
Release 8)".
[3] ETSI TS 134 108 (V8.9.0): "Universal Mobile Telecommunications System (UMTS); LTE;
Common test environments for User Equipment (UE); Conformance testing (3GPP TS 34.108
version 8.9.0 Release 8)".
[4] ETSI TS 134 109 (V8.0.0): "Universal Mobile Telecommunications System (UMTS); LTE;
Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109
version 8.0.0 Release 8)".
[5] ETSI TS 134 122 (V8.4.0): "Universal Mobile Telecommunications System (UMTS); Terminal
conformance specification, Radio transmission and reception (TDD) (3GPP TS 34.122
version 8.4.0 Release 8)".
[6] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[7] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[8] ETSI EN 301 908-1 (V5.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular
networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements,
covering the essential requirements of article 3.2 of the R&TTE Directive".
[9] ETSI EN 301 908-13 (V5.1.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation
cellular networks; Part 13: Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio
Access (E-UTRA) (UE) covering the essential requirements of article 3.2 of the R&TTE
Directive".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 100 028 (V1.4.1) (all parts): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
chip rate: rate of "chips" (modulated symbols after spreading) per second
data rate: rate of the user information, which must be transmitted over the Air Interface
EXAMPLE: Output rate of the voice codec.
ETSI
10 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
environmental profile: range of environmental conditions under which the equipment within the scope of the present
document is required to comply with the provisions of the present document
maximum output power: measure of the maximum power supported by the UE (i.e. the actual power as would be
measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode, where the period of measurement shall be a transmit timeslot excluding the guard period unless otherwise stated
MBSFN-only UE: UE operable in receive mode only (for the purpose of MBSFN reception)
mean power: when applied to a CDMA modulated signal this is the power (transmitted or received) in a bandwidth of
at least (1 + α) times the chip rate of the radio access mode, where the period of measurement shall be a transmit
timeslot excluding the guard period unless otherwise stated
node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment
nominal maximum output power: nominal power defined by the UE power class
operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA TDD
operates
NOTE: The operating band(s) for a UTRA TDD UE is declared by the manufacturer according to the
designations in table 1-1. Operating bands for UTRA are designated with Roman numerals, while the
corresponding operating bands for E-UTRA are designated with Arabic numerals.
RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a
bandwidth equal to the chip rate of the radio access mode
3.2 Symbols
For the purposes of the present document, the following symbols apply:
α roll-off factor of the root-raised cosine filter, α = 0,22
Δf separation between the carrier frequency and the centre of the measuring filter
DPCH_Ec average energy per PN chip for DPCH
DPCH_Ec
ratio of the average energy per PN chip of the DPCH to the total transmit power spectral density of
I
or
the downlink at the BS antenna connector
Σ DPCH_Ec
ratio of the sum of DPCH_Ec for one service in case of multicode to the total transmit power
I
or
spectral density of the downlink at the BS antenna connector
NOTE: For UEs supporting only MBSFN reception, the DL reference measurement channel specified in
clause A.2.9 [2] is used. For the purposes of clause 4, the term ΣDPCH_Ec refers to the sum of the energy
of the physical channels comprising the DL reference measurement channel in use, irrespective of its
particular physical channel type (DPCH or not)
F Frequency of unwanted signal
uw
NOTE: This is specified in bracket in terms of an absolute frequency(s) or frequency offset from the assigned
channel frequency.
I the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized
oac
to the chip rate) of the adjacent frequency channel as measured at the UE antenna connector
I the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized
oc
to the chip rate) of a band limited white noise source (simulating interference from cells, which are
not defined in a test procedure) as measured at the UE antenna connector
I the total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate
or
and normalized to the chip rate) of the downlink signal at the BS antenna connector
ETSI
11 Draft ETSI EN 301 908-6 V5.1.1 (2010-10)
ˆ
I the received power spectral density of the downlink signal as measured at the UE antenna
or
connector
Iouw mean power (modulated)
Qout quality level threshold
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage power Ratio
...
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 6: CDMA TDD (UTRA TDD) User Equipment (UE)
2 ETSI EN 301 908-6 V5.2.1 (2011-07)
Reference
REN/MSG-TFES-010-6
Keywords
3G, 3GPP, cellular, digital, IMB, IMT, IMT-2000,
MBSFN, mobile, radio, regulation, TD-CDMA,
TDD, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 908-6 V5.2.1 (2011-07)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 11
4 Technical requirements specifications . 11
4.1 Environmental profile . 11
4.2 Conformance requirements . 11
4.2.1 Introduction. 12
4.2.2 Spectrum emission mask . 12
4.2.2.1 Definition . 12
4.2.2.1.1 3,84 Mcps TDD option . 12
4.2.2.1.2 1,28 Mcps TDD option . 12
4.2.2.1.3 7,68 Mcps TDD option . 12
4.2.2.2 Limits . 13
4.2.2.2.1 3,84 Mcps TDD option . 13
4.2.2.2.2 1,28 Mcps TDD option . 13
4.2.2.2.3 7,68 Mcps TDD option . 14
4.2.2.3 Conformance . 14
4.2.3 Transmitter spurious emis sions . 14
4.2.3.1 Definition . 14
4.2.3.2 Limits . 14
4.2.3.2.1 3,84 Mcps TDD option . 14
4.2.3.2.2 1,28 Mcps TDD option . 15
4.2.3.2.3 7,68 Mcps TDD option . 15
4.2.3.3 Conformance . 16
4.2.4 Maximum output power . 16
4.2.4.1 Definition . 16
4.2.4.2 Limits . 16
4.2.4.3 Conformance . 16
4.2.5 Minimum transmit output power . 16
4.2.5.1 Definition . 16
4.2.5.2 Limits . 16
4.2.5.2.1 3,84 Mcps TDD option . 16
4.2.5.2.2 1,28 Mcps TDD option . 16
4.2.5.2.3 7,68 Mcps TDD option . 16
4.2.5.3 Conformance . 16
4.2.6 Receiver spurious emissions . 16
4.2.6.1 Definition . 16
4.2.6.2 Limits . 17
4.2.6.2.1 3,84 Mcps TDD option . 17
4.2.6.2.2 1,28 Mcps TDD option . 17
4.2.6.2.3 7,68 Mcps TDD option . 17
4.2.6.3 Conformance . 18
4.2.7 Receiver blocking characteristics . 18
4.2.7.1 Definition . 18
4.2.7.2 Limits . 18
ETSI
4 ETSI EN 301 908-6 V5.2.1 (2011-07)
4.2.7.2.1 3,84 Mcps TDD option . 18
4.2.7.2.2 1,28 Mcps TDD option . 19
4.2.7.2.3 7,68 Mcps TDD option . 20
4.2.7.3 Conformance . 21
4.2.8 Receiver intermodulation characteristics . 21
4.2.8.1 Definition and applicability . 21
4.2.8.2 Limits . 21
4.2.8.2.1 3,84 Mcps TDD option . 21
4.2.8.2.2 1,28 Mcps TDD option . 21
4.2.8.2.3 7,68 Mcps TDD option . 21
4.2.8.3 Conformance . 22
4.2.9 Receiver spurious response . 22
4.2.9.1 Definition . 22
4.2.9.2 Limits . 22
4.2.9.2.1 3,84 Mcps TDD option . 22
4.2.9.2.2 1,28 Mcps TDD option . 22
4.2.9.2.3 7,68 Mcps TDD option . 23
4.2.9.3 Conformance . 23
4.2.10 Receiver adjacent channel selectivity . 23
4.2.10.1 Definition . 23
4.2.10.2 Limits . 23
4.2.10.2.1 3,84 Mcps TDD option . 23
4.2.10.2.2 1,28 Mcps TDD option . 23
4.2.10.2.3 7,68 Mcps TDD option . 24
4.2.10.3 Conformance . 24
4.2.11 Out-of-synchronization handling of output power . 24
4.2.11.1 Definition . 24
4.2.11.2 Limit . 24
4.2.11.2.1 3,84 Mcps TDD option . 24
4.2.11.2.2 1,28 Mcps TDD option . 25
4.2.11.2.3 7,68 Mcps TDD option . 26
4.2.11.3 Conformance . 27
4.2.12 Transmitter adjacent channel leakage power ratio . 28
4.2.12.1 Definition . 28
4.2.12.2 Limits . 28
4.2.12.2.1 3,84 Mcps TDD option . 28
4.2.12.2.2 1,28 Mcps TDD option . 28
4.2.12.2.3 7,68 Mcps TDD option . 28
4.2.12.3 Conformance . 28
5 Testing for compliance with technical requirements . 29
5.1 Environmental conditions for testing . 29
5.2 Interpretation of the measurement results . 29
5.3 Essential radio test suites . 30
5.3.1 Spectrum emission mask . 30
5.3.1.1 Method of test . 30
5.3.1.1.1 Initial conditions . 30
5.3.1.1.2 Procedure . 31
5.3.1.2 Test requirements . 31
5.3.2 Transmitter spurious emis sions . 31
5.3.2.1 Method of test . 31
5.3.2.1.1 Initial conditions . 31
5.3.2.1.2 Procedure . 31
5.3.2.2 Test requirements . 32
5.3.3 Maximum output power . 32
5.3.3.1 Method of test . 32
5.3.3.1.1 Initial conditions . 32
5.3.3.1.2 Procedure . 32
5.3.3.2 Test requirements . 32
5.3.4 Minimum transmit output power . 32
5.3.4.1 Method of test . 32
5.3.4.1.1 Initial conditions . 32
ETSI
5 ETSI EN 301 908-6 V5.2.1 (2011-07)
5.3.4.1.2 Procedure . 33
5.3.4.2 Test requirements . 33
5.3.5 Receiver spurious emissions . 33
5.3.5.1 Method of test . 33
5.3.5.1.1 Initial conditions . 33
5.3.5.1.2 Procedure . 34
5.3.5.2 Test requirements . 34
5.3.6 Receiver blocking characteristics . 35
5.3.6.1 Method of test . 35
5.3.6.1.1 Initial conditions . 35
5.3.6.1.2 Procedure . 35
5.3.6.2 Test requirements . 36
5.3.7 Receiver intermodulation characteristics . 36
5.3.7.1 Method of test . 36
5.3.7.1.1 Initial conditions . 36
5.3.7.1.2 Procedure . 36
5.3.7.2 Test requirements . 36
5.3.8 Receiver spurious response . 36
5.3.8.1 Method of test . 36
5.3.8.1.1 Initial conditions . 36
5.3.8.1.2 Procedure . 37
5.3.8.2 Test requirements . 37
5.3.9 Receiver adjacent channel selectivity . 37
5.3.9.1 Method of test . 37
5.3.9.1.1 Initial conditions . 37
5.3.9.1.2 Procedure . 37
5.3.9.2 Test requirements . 38
5.3.10 Out-of-synchronization handling of output power . 38
5.3.10.1 Method of test . 38
5.3.10.1.1 Initial conditions . 38
5.3.10.1.2 Procedure . 38
5.3.10.2 Test requirements . 39
5.3.11 Transmitter adjacent channel leakage power ratio . 39
5.3.11.1 Method of test . 39
5.3.11.1.1 Initial conditions . 39
5.3.11.1.2 Procedure . 39
5.3.11.2 Test requirements . 40
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
Annex B (normative): Environmental profile . 43
B.1 General . 43
B.1.1 Introduction . 43
B.1.2 Temperature . 43
B.1.3 Voltage . 43
B.1.4 Test environment . 44
Annex C (informative): The EN title in the official languages . 45
Annex D (informative): Bibliography . 46
History . 47
ETSI
6 ETSI EN 301 908-6 V5.2.1 (2011-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The title and reference to the present document are intended to included in the publication in the Official Journal of the
European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 6 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 ETSI EN 301 908-6 V5.2.1 (2011-07)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA FDD) (Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates
Date of adoption of this EN: 4 July 2011
Date of latest announcement of this EN (doa): 31 October 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2012
Date of withdrawal of any conflicting National Standard (dow): 30 April 2013
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 ETSI EN 301 908-6 V5.2.1 (2011-07)
1 Scope
The present document applies to the following radio equipment type:
• User equipment for IMT-2000 CDMA TDD (UTRA TDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: IMT-2000 CDMA TDD service frequency bands
UTRA TDD Band Direction of transmission IMT-2000 CDMA TDD service operating bands
a Transmit and Receive 1 900 MHz to 1 920 MHz
Transmit and Receive 2 010 MHz to 2 025 MHz
d Transmit and Receive 2 570 MHz to 2 620 MHz
The UTRA TDD component of IMT-2000 CDMA TDD supports three options of the TDD mode with the chip rates of
3,84 Mcps, 7,68 Mcps and 1,28 Mcps. These three options are called the 3,84 Mcps TDD option, the 1,28 Mcps TDD
option and the 7,68 Mcps TDD option respectively. The requirements are listed in different clauses only if the
parameters deviate. The present document covers requirements for:
• 3,84 Mcps UTRA TDD option user equipment for Releases 99, 4, 5, 6, 7, 8 and 9;
• 1,28 Mcps UTRA TDD option user equipment for Releases 4, 5, 6, 7, 8 and 9;
• 7,68 Mcps UTRA TDD option user equipment for Releases 7, 8 and 9.
For the case of IMB, only the 3,84 Mcps UTRA TDD option applies.
The present document covers the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2, which states
that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio
communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site: http://www.newapproach.org/.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 125 102 (V9.4.0): "Universal Mobile Telecommunications System (UMTS); User
Equipment (UE) radio transmission and reception (TDD) (3GPP TS 25.102 version 9.4.0
Release 9)".
ETSI
9 ETSI EN 301 908-6 V5.2.1 (2011-07)
[3] ETSI TS 134 108 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); LTE;
Common test environments for User Equipment (UE); Conformance testing (3GPP TS 34.108
version 9.2.0 Release 9)".
[4] ETSI TS 134 109 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); LTE;
Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109
version 9.2.0 Release 9)".
[5] ETSI TS 134 122 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); Terminal
conformance specification; Radio transmission and reception (TDD) (3GPP TS 34.122
version 9.2.0 Release 9)".
[6] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[7] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[8] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive Part 1: Introduction and common
requirements".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 100 028 (V1.4.1) (all parts): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
chip rate: rate of "chips" (modulated symbols after spreading) per second
data rate: rate of the user information, which is transmitted over the Air Interface
EXAMPLE: Output rate of the voice codec.
environmental profile: range of environmental conditions under which the equipment within the scope of the present
document is required to comply with the provisions of the present document
maximum output power: measure of the maximum power supported by the UE (i.e. the actual power as would be
measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode, where the period of measurement is a transmit timeslot excluding the guard period unless otherwise stated
MBSFN-only UE: UE operable in receive mode only (for the purpose of MBSFN reception)
ETSI
10 ETSI EN 301 908-6 V5.2.1 (2011-07)
mean power: when applied to a CDMA modulated signal this is the power (transmitted or received) in a bandwidth of
at least (1 + α) times the chip rate of the radio access mode, where the period of measurement is a transmit timeslot
excluding the guard period unless otherwise stated
node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment
nominal maximum output power: nominal power defined by the UE power class
operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA TDD
operates
NOTE: The operating band(s) for a UTRA TDD UE is declared by the manufacturer according to the
designations in table 1-1. Operating bands for UTRA are designated with Roman numerals, while the
corresponding operating bands for E-UTRA are designated with Arabic numerals.
RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a
bandwidth equal to the chip rate of the radio access mode
3.2 Symbols
For the purposes of the present document, the following symbols apply:
α roll-off factor of the root-raised cosine filter, α = 0,22
Δf separation between the carrier frequency and the centre of the measuring filter
DPCH_Ec average energy per PN chip for DPCH
DPCH_Ec
ratio of the average energy per PN chip of the DPCH to the total transmit power spectral density of
I
or
the downlink at the BS antenna connector
Σ DPCH_Ec
ratio of the sum of DPCH_Ec for one service in case of multicode to the total transmit power
I
or
spectral density of the downlink at the BS antenna connector
NOTE: For UEs supporting only MBSFN reception, the DL reference measurement channel specified in
clause A.2.9 [2] is used. For the purposes of clause 4, the term ΣDPCH_Ec refers to the sum of the energy
of the physical channels comprising the DL reference measurement channel in use, irrespective of its
particular physical channel type (DPCH or not).
F Frequency of unwanted signal
uw
NOTE: This is specified in bracket in terms of an absolute frequency(s) or frequency offset from the assigned
channel frequency.
I the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized
oac
to the chip rate) of the adjacent frequency channel as measured at the UE antenna connector
I the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized
oc
to the chip rate) of a band limited white noise source (simulating interference from cells, which are
not defined in a test procedure) as measured at the UE antenna connector
I the total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate
or
and normalized to the chip rate) of the downlink signal at the BS antenna connector
ˆ
I the received power spectral density of the downlink signal as measured at the UE antenna
or
connector
I mean power (modulated)
ouw
Q quality level threshold
out
ETSI
11 ETSI EN 301 908-6 V5.2.1 (2011-07)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BER Bit Error Ratio
BS Base Station
CDMA Code Division Multiple Access
CRC Cyclic Redundancy Check
CW Continuous Wave (unmodulated signal)
DCH Dedicated CHannel
DL Down Link (forward link)
DPCH Dedicated Physical CHannel
EMC Electro-Magnetic Compatibility
ERM Electro-Magnetic Compatibility and Radio Spectrum Matters
EUT Equipment Under Test
E-UTRA Evolved Universal Terrestrial Radio Access
FDD Frequency Division Duplexing
IMB Integrated Mobile Broadcast
MBMS Multimedia Broadcast and Multicast Service
MBSFN MBMS over a Single Frequency Network
MSG Mobile Standards Group
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
RRC Root-Raised Cosine
SS System Simulator
TDD Time Division Duplexing
TFCI Transport Format Combination Indicator
TFES Task Force for European Standards for IMT
TH Temperature High
TL Temperature Low
TS Time Slot
TTE Telecommunications Terminal Equipment
TX Transmitter
UARFCN UTRA Absolute Radio Frequency Channel Number
UE User Equipment
UL Uplink (reverse link)
UTRA Universal Terrestrial Radio Access
VH Voltage High
VL Voltage Low
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the user
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For details on how a supplier declares the environmental profile see annex B.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band, band (a) and (d), are
shared between systems of the IMT family or systems having compatible characteristics.
ETSI
12 ETSI EN 301 908-6 V5.2.1 (2011-07)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of the R&TTE Directive for IMT User Equipment eight essential
parameters in addition to those in EN 301 908-1 [8] have been identified. Table 4.2.1-1 provides a cross reference
between these eight essential parameters and the corresponding eleven technical requirements within the scope of the
present document.
To fulfil an essential parameter the compliance with all the corresponding technical requirements in table 4.2.1-1 must
be verified. For the case of an MBSFN-only UE the technical requirements in clauses 4.2.6, 4.2.7, 4.2.8, 4.2.9 and
4.2.10 shall ap
...
Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 6: CDMA TDD (UTRA TDD) User Equipment (UE)
2 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
Reference
REN/MSG-TFES-010-6
Keywords
3G, 3GPP, cellular, digital, IMB, IMT, IMT-2000,
MBSFN, mobile, radio, regulation, TD-CDMA,
TDD, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 11
4 Technical requirements specifications . 11
4.1 Environmental profile . 11
4.2 Conformance requirements . 11
4.2.1 Introduction. 12
4.2.2 Spectrum emission mask . 12
4.2.2.1 Definition . 12
4.2.2.1.1 3,84 Mcps TDD option . 12
4.2.2.1.2 1,28 Mcps TDD option . 12
4.2.2.1.3 7,68 Mcps TDD option . 12
4.2.2.2 Limits . 13
4.2.2.2.1 3,84 Mcps TDD option . 13
4.2.2.2.2 1,28 Mcps TDD option . 13
4.2.2.2.3 7,68 Mcps TDD option . 14
4.2.2.3 Conformance . 14
4.2.3 Transmitter spurious emis sions . 14
4.2.3.1 Definition . 14
4.2.3.2 Limits . 14
4.2.3.2.1 3,84 Mcps TDD option . 14
4.2.3.2.2 1,28 Mcps TDD option . 15
4.2.3.2.3 7,68 Mcps TDD option . 15
4.2.3.3 Conformance . 16
4.2.4 Maximum output power . 16
4.2.4.1 Definition . 16
4.2.4.2 Limits . 16
4.2.4.3 Conformance . 16
4.2.5 Minimum transmit output power . 16
4.2.5.1 Definition . 16
4.2.5.2 Limits . 16
4.2.5.2.1 3,84 Mcps TDD option . 16
4.2.5.2.2 1,28 Mcps TDD option . 16
4.2.5.2.3 7,68 Mcps TDD option . 16
4.2.5.3 Conformance . 16
4.2.6 Receiver spurious emissions . 16
4.2.6.1 Definition . 16
4.2.6.2 Limits . 17
4.2.6.2.1 3,84 Mcps TDD option . 17
4.2.6.2.2 1,28 Mcps TDD option . 17
4.2.6.2.3 7,68 Mcps TDD option . 17
4.2.6.3 Conformance . 18
4.2.7 Receiver blocking characteristics . 18
4.2.7.1 Definition . 18
4.2.7.2 Limits . 18
ETSI
4 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
4.2.7.2.1 3,84 Mcps TDD option . 18
4.2.7.2.2 1,28 Mcps TDD option . 19
4.2.7.2.3 7,68 Mcps TDD option . 20
4.2.7.3 Conformance . 21
4.2.8 Receiver intermodulation characteristics . 21
4.2.8.1 Definition and applicability . 21
4.2.8.2 Limits . 21
4.2.8.2.1 3,84 Mcps TDD option . 21
4.2.8.2.2 1,28 Mcps TDD option . 21
4.2.8.2.3 7,68 Mcps TDD option . 21
4.2.8.3 Conformance . 22
4.2.9 Receiver spurious response . 22
4.2.9.1 Definition . 22
4.2.9.2 Limits . 22
4.2.9.2.1 3,84 Mcps TDD option . 22
4.2.9.2.2 1,28 Mcps TDD option . 22
4.2.9.2.3 7,68 Mcps TDD option . 23
4.2.9.3 Conformance . 23
4.2.10 Receiver adjacent channel selectivity . 23
4.2.10.1 Definition . 23
4.2.10.2 Limits . 23
4.2.10.2.1 3,84 Mcps TDD option . 23
4.2.10.2.2 1,28 Mcps TDD option . 23
4.2.10.2.3 7,68 Mcps TDD option . 24
4.2.10.3 Conformance . 24
4.2.11 Out-of-synchronization handling of output power . 24
4.2.11.1 Definition . 24
4.2.11.2 Limit . 24
4.2.11.2.1 3,84 Mcps TDD option . 24
4.2.11.2.2 1,28 Mcps TDD option . 25
4.2.11.2.3 7,68 Mcps TDD option . 26
4.2.11.3 Conformance . 27
4.2.12 Transmitter adjacent channel leakage power ratio . 28
4.2.12.1 Definition . 28
4.2.12.2 Limits . 28
4.2.12.2.1 3,84 Mcps TDD option . 28
4.2.12.2.2 1,28 Mcps TDD option . 28
4.2.12.2.3 7,68 Mcps TDD option . 28
4.2.12.3 Conformance . 28
5 Testing for compliance with technical requirements . 29
5.1 Environmental conditions for testing . 29
5.2 Interpretation of the measurement results . 29
5.3 Essential radio test suites . 30
5.3.1 Spectrum emission mask . 30
5.3.1.1 Method of test . 30
5.3.1.1.1 Initial conditions . 30
5.3.1.1.2 Procedure . 31
5.3.1.2 Test requirements . 31
5.3.2 Transmitter spurious emis sions . 31
5.3.2.1 Method of test . 31
5.3.2.1.1 Initial conditions . 31
5.3.2.1.2 Procedure . 31
5.3.2.2 Test requirements . 32
5.3.3 Maximum output power . 32
5.3.3.1 Method of test . 32
5.3.3.1.1 Initial conditions . 32
5.3.3.1.2 Procedure . 32
5.3.3.2 Test requirements . 32
5.3.4 Minimum transmit output power . 32
5.3.4.1 Method of test . 32
5.3.4.1.1 Initial conditions . 32
ETSI
5 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
5.3.4.1.2 Procedure . 33
5.3.4.2 Test requirements . 33
5.3.5 Receiver spurious emissions . 33
5.3.5.1 Method of test . 33
5.3.5.1.1 Initial conditions . 33
5.3.5.1.2 Procedure . 34
5.3.5.2 Test requirements . 34
5.3.6 Receiver blocking characteristics . 35
5.3.6.1 Method of test . 35
5.3.6.1.1 Initial conditions . 35
5.3.6.1.2 Procedure . 35
5.3.6.2 Test requirements . 36
5.3.7 Receiver intermodulation characteristics . 36
5.3.7.1 Method of test . 36
5.3.7.1.1 Initial conditions . 36
5.3.7.1.2 Procedure . 36
5.3.7.2 Test requirements . 36
5.3.8 Receiver spurious response . 36
5.3.8.1 Method of test . 36
5.3.8.1.1 Initial conditions . 36
5.3.8.1.2 Procedure . 37
5.3.8.2 Test requirements . 37
5.3.9 Receiver adjacent channel selectivity . 37
5.3.9.1 Method of test . 37
5.3.9.1.1 Initial conditions . 37
5.3.9.1.2 Procedure . 37
5.3.9.2 Test requirements . 38
5.3.10 Out-of-synchronization handling of output power . 38
5.3.10.1 Method of test . 38
5.3.10.1.1 Initial conditions . 38
5.3.10.1.2 Procedure . 38
5.3.10.2 Test requirements . 39
5.3.11 Transmitter adjacent channel leakage power ratio . 39
5.3.11.1 Method of test . 39
5.3.11.1.1 Initial conditions . 39
5.3.11.1.2 Procedure . 39
5.3.11.2 Test requirements . 40
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
Annex B (normative): Environmental profile . 43
B.1 General . 43
B.1.1 Introduction . 43
B.1.2 Temperature . 43
B.1.3 Voltage . 43
B.1.4 Test environment . 44
Annex C (informative): The EN title in the official languages . 45
Annex D (informative): Bibliography . 46
History . 47
ETSI
6 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This final draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile
Standards Group (MSG), and is now submitted for the Vote phase of the ETSI standards Two-step Approval Procedure.
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The title and reference to the present document are intended to included in the publication in the Official Journal of the
European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 6 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA FDD) (Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
1 Scope
The present document applies to the following radio equipment type:
• User equipment for IMT-2000 CDMA TDD (UTRA TDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: IMT-2000 CDMA TDD service frequency bands
UTRA TDD Band Direction of transmission IMT-2000 CDMA TDD service operating bands
a Transmit and Receive 1 900 MHz to 1 920 MHz
Transmit and Receive 2 010 MHz to 2 025 MHz
d Transmit and Receive 2 570 MHz to 2 620 MHz
The UTRA TDD component of IMT-2000 CDMA TDD supports three options of the TDD mode with the chip rates of
3,84 Mcps, 7,68 Mcps and 1,28 Mcps. These three options are called the 3,84 Mcps TDD option, the 1,28 Mcps TDD
option and the 7,68 Mcps TDD option respectively. The requirements are listed in different clauses only if the
parameters deviate. The present document covers requirements for:
• 3,84 Mcps UTRA TDD option user equipment for Releases 99, 4, 5, 6, 7, 8 and 9;
• 1,28 Mcps UTRA TDD option user equipment for Releases 4, 5, 6, 7, 8 and 9;
• 7,68 Mcps UTRA TDD option user equipment for Releases 7, 8 and 9.
For the case of IMB, only the 3,84 Mcps UTRA TDD option applies.
The present document covers the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2, which states
that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio
communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site: http://www.newapproach.org/.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 125 102 (V9.4.0): "Universal Mobile Telecommunications System (UMTS); User
Equipment (UE) radio transmission and reception (TDD) (3GPP TS 25.102 version 9.4.0
Release 9)".
ETSI
9 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
[3] ETSI TS 134 108 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); LTE;
Common test environments for User Equipment (UE); Conformance testing (3GPP TS 34.108
version 9.2.0 Release 9)".
[4] ETSI TS 134 109 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); LTE;
Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109
version 9.2.0 Release 9)".
[5] ETSI TS 134 122 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); Terminal
conformance specification; Radio transmission and reception (TDD) (3GPP TS 34.122
version 9.2.0 Release 9)".
[6] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[7] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[8] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive Part 1: Introduction and common
requirements".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 100 028 (V1.4.1) (all parts): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
chip rate: rate of "chips" (modulated symbols after spreading) per second
data rate: rate of the user information, which is transmitted over the Air Interface
EXAMPLE: Output rate of the voice codec.
environmental profile: range of environmental conditions under which the equipment within the scope of the present
document is required to comply with the provisions of the present document
maximum output power: measure of the maximum power supported by the UE (i.e. the actual power as would be
measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode, where the period of measurement is a transmit timeslot excluding the guard period unless otherwise stated
MBSFN-only UE: UE operable in receive mode only (for the purpose of MBSFN reception)
ETSI
10 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
mean power: when applied to a CDMA modulated signal this is the power (transmitted or received) in a bandwidth of
at least (1 + α) times the chip rate of the radio access mode, where the period of measurement is a transmit timeslot
excluding the guard period unless otherwise stated
node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment
nominal maximum output power: nominal power defined by the UE power class
operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA TDD
operates
NOTE: The operating band(s) for a UTRA TDD UE is declared by the manufacturer according to the
designations in table 1-1. Operating bands for UTRA are designated with Roman numerals, while the
corresponding operating bands for E-UTRA are designated with Arabic numerals.
RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a
bandwidth equal to the chip rate of the radio access mode
3.2 Symbols
For the purposes of the present document, the following symbols apply:
α roll-off factor of the root-raised cosine filter, α = 0,22
Δf separation between the carrier frequency and the centre of the measuring filter
DPCH_Ec average energy per PN chip for DPCH
DPCH_Ec
ratio of the average energy per PN chip of the DPCH to the total transmit power spectral density of
I
or
the downlink at the BS antenna connector
Σ DPCH_Ec
ratio of the sum of DPCH_Ec for one service in case of multicode to the total transmit power
I
or
spectral density of the downlink at the BS antenna connector
NOTE: For UEs supporting only MBSFN reception, the DL reference measurement channel specified in
clause A.2.9 [2] is used. For the purposes of clause 4, the term ΣDPCH_Ec refers to the sum of the energy
of the physical channels comprising the DL reference measurement channel in use, irrespective of its
particular physical channel type (DPCH or not).
F Frequency of unwanted signal
uw
NOTE: This is specified in bracket in terms of an absolute frequency(s) or frequency offset from the assigned
channel frequency.
I the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized
oac
to the chip rate) of the adjacent frequency channel as measured at the UE antenna connector
I the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized
oc
to the chip rate) of a band limited white noise source (simulating interference from cells, which are
not defined in a test procedure) as measured at the UE antenna connector
I the total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate
or
and normalized to the chip rate) of the downlink signal at the BS antenna connector
ˆ
I the received power spectral density of the downlink signal as measured at the UE antenna
or
connector
I mean power (modulated)
ouw
Q quality level threshold
out
ETSI
11 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BER Bit Error Ratio
BS Base Station
CDMA Code Division Multiple Access
CRC Cyclic Redundancy Check
CW Continuous Wave (unmodulated signal)
DCH Dedicated CHannel
DL Down Link (forward link)
DPCH Dedicated Physical CHannel
EMC Electro-Magnetic Compatibility
ERM Electro-Magnetic Compatibility and Radio Spectrum Matters
EUT Equipment Under Test
E-UTRA Evolved Universal Terrestrial Radio Access
FDD Frequency Division Duplexing
IMB Integrated Mobile Broadcast
MBMS Multimedia Broadcast and Multicast Service
MBSFN MBMS over a Single Frequency Network
MSG Mobile Standards Group
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
RRC Root-Raised Cosine
SS System Simulator
TDD Time Division Duplexing
TFCI Transport Format Combination Indicator
TFES Task Force for European Standards for IMT
TH Temperature High
TL Temperature Low
TS Time Slot
TTE Telecommunications Terminal Equipment
TX Transmitter
UARFCN UTRA Absolute Radio Frequency Channel Number
UE User Equipment
UL Uplink (reverse link)
UTRA Universal Terrestrial Radio Access
VH Voltage High
VL Voltage Low
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the user
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For details on how a supplier declares the environmental profile see annex B.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band, band (a) and (d), are
shared between systems of the IMT family or systems having compatible characteristics.
ETSI
12 Final draft ETSI EN 301 908-6 V5.2.1 (2011-05)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of the R&TTE Directive for IMT User Equipment eight essential
parameters in addition to those in EN 301 908-1 [8] have been identified. Table 4.2.1-1 provides
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 6: CDMA TDD (UTRA TDD) User Equipment (UE)33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 301 908-6 Version 5.2.1SIST EN 301 908-6 V5.2.1:2011en01-september-2011SIST EN 301 908-6 V5.2.1:2011SLOVENSKI
STANDARD
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 2
Reference REN/MSG-TFES-010-6 Keywords 3G, 3GPP, cellular, digital, IMB, IMT, IMT-2000, MBSFN, mobile, radio, regulation, TD-CDMA, TDD, UMTS ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 3 Contents Intellectual Property Rights . 6 Foreword . 6 Introduction . 7 1 Scope . 8 2 References . 8 2.1 Normative references . 8 2.2 Informative references . 9 3 Definitions, symbols and abbreviations . 9 3.1 Definitions . 9 3.2 Symbols . 10 3.3 Abbreviations . 11 4 Technical requirements specifications . 11 4.1 Environmental profile . 11 4.2 Conformance requirements . 11 4.2.1 Introduction. 12 4.2.2 Spectrum emission mask . 12 4.2.2.1 Definition . 12 4.2.2.1.1 3,84 Mcps TDD option . 12 4.2.2.1.2 1,28 Mcps TDD option . 12 4.2.2.1.3 7,68 Mcps TDD option . 12 4.2.2.2 Limits . 13 4.2.2.2.1 3,84 Mcps TDD option . 13 4.2.2.2.2 1,28 Mcps TDD option . 13 4.2.2.2.3 7,68 Mcps TDD option . 14 4.2.2.3 Conformance . 14 4.2.3 Transmitter spurious emissions . 14 4.2.3.1 Definition . 14 4.2.3.2 Limits . 14 4.2.3.2.1 3,84 Mcps TDD option . 14 4.2.3.2.2 1,28 Mcps TDD option . 15 4.2.3.2.3 7,68 Mcps TDD option . 15 4.2.3.3 Conformance . 16 4.2.4 Maximum output power . 16 4.2.4.1 Definition . 16 4.2.4.2 Limits . 16 4.2.4.3 Conformance . 16 4.2.5 Minimum transmit output power . 16 4.2.5.1 Definition . 16 4.2.5.2 Limits . 16 4.2.5.2.1 3,84 Mcps TDD option . 16 4.2.5.2.2 1,28 Mcps TDD option . 16 4.2.5.2.3 7,68 Mcps TDD option . 16 4.2.5.3 Conformance . 16 4.2.6 Receiver spurious emissions . 16 4.2.6.1 Definition . 16 4.2.6.2 Limits . 17 4.2.6.2.1 3,84 Mcps TDD option . 17 4.2.6.2.2 1,28 Mcps TDD option . 17 4.2.6.2.3 7,68 Mcps TDD option . 17 4.2.6.3 Conformance . 18 4.2.7 Receiver blocking characteristics . 18 4.2.7.1 Definition . 18 4.2.7.2 Limits . 18 SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 4 4.2.7.2.1 3,84 Mcps TDD option . 18 4.2.7.2.2 1,28 Mcps TDD option . 19 4.2.7.2.3 7,68 Mcps TDD option . 20 4.2.7.3 Conformance . 21 4.2.8 Receiver intermodulation characteristics . 21 4.2.8.1 Definition and applicability . 21 4.2.8.2 Limits . 21 4.2.8.2.1 3,84 Mcps TDD option . 21 4.2.8.2.2 1,28 Mcps TDD option . 21 4.2.8.2.3 7,68 Mcps TDD option . 21 4.2.8.3 Conformance . 22 4.2.9 Receiver spurious response . 22 4.2.9.1 Definition . 22 4.2.9.2 Limits . 22 4.2.9.2.1 3,84 Mcps TDD option . 22 4.2.9.2.2 1,28 Mcps TDD option . 22 4.2.9.2.3 7,68 Mcps TDD option . 23 4.2.9.3 Conformance . 23 4.2.10 Receiver adjacent channel selectivity . 23 4.2.10.1 Definition . 23 4.2.10.2 Limits . 23 4.2.10.2.1 3,84 Mcps TDD option . 23 4.2.10.2.2 1,28 Mcps TDD option . 23 4.2.10.2.3 7,68 Mcps TDD option . 24 4.2.10.3 Conformance . 24 4.2.11 Out-of-synchronization handling of output power . 24 4.2.11.1 Definition . 24 4.2.11.2 Limit . 24 4.2.11.2.1 3,84 Mcps TDD option . 24 4.2.11.2.2 1,28 Mcps TDD option . 25 4.2.11.2.3 7,68 Mcps TDD option . 26 4.2.11.3 Conformance . 27 4.2.12 Transmitter adjacent channel leakage power ratio . 28 4.2.12.1 Definition . 28 4.2.12.2 Limits . 28 4.2.12.2.1 3,84 Mcps TDD option . 28 4.2.12.2.2 1,28 Mcps TDD option . 28 4.2.12.2.3 7,68 Mcps TDD option . 28 4.2.12.3 Conformance . 28 5 Testing for compliance with technical requirements . 29 5.1 Environmental conditions for testing . 29 5.2 Interpretation of the measurement results . 29 5.3 Essential radio test suites . 30 5.3.1 Spectrum emission mask . 30 5.3.1.1 Method of test . 30 5.3.1.1.1 Initial conditions . 30 5.3.1.1.2 Procedure . 31 5.3.1.2 Test requirements . 31 5.3.2 Transmitter spurious emissions . 31 5.3.2.1 Method of test . 31 5.3.2.1.1 Initial conditions . 31 5.3.2.1.2 Procedure . 31 5.3.2.2 Test requirements . 32 5.3.3 Maximum output power . 32 5.3.3.1 Method of test . 32 5.3.3.1.1 Initial conditions . 32 5.3.3.1.2 Procedure . 32 5.3.3.2 Test requirements . 32 5.3.4 Minimum transmit output power . 32 5.3.4.1 Method of test . 32 5.3.4.1.1 Initial conditions . 32 SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 5 5.3.4.1.2 Procedure . 33 5.3.4.2 Test requirements . 33 5.3.5 Receiver spurious emissions . 33 5.3.5.1 Method of test . 33 5.3.5.1.1 Initial conditions . 33 5.3.5.1.2 Procedure . 34 5.3.5.2 Test requirements . 34 5.3.6 Receiver blocking characteristics . 35 5.3.6.1 Method of test . 35 5.3.6.1.1 Initial conditions . 35 5.3.6.1.2 Procedure . 35 5.3.6.2 Test requirements . 36 5.3.7 Receiver intermodulation characteristics . 36 5.3.7.1 Method of test . 36 5.3.7.1.1 Initial conditions . 36 5.3.7.1.2 Procedure . 36 5.3.7.2 Test requirements . 36 5.3.8 Receiver spurious response . 36 5.3.8.1 Method of test . 36 5.3.8.1.1 Initial conditions . 36 5.3.8.1.2 Procedure . 37 5.3.8.2 Test requirements . 37 5.3.9 Receiver adjacent channel selectivity . 37 5.3.9.1 Method of test . 37 5.3.9.1.1 Initial conditions . 37 5.3.9.1.2 Procedure . 37 5.3.9.2 Test requirements . 38 5.3.10 Out-of-synchronization handling of output power . 38 5.3.10.1 Method of test . 38 5.3.10.1.1 Initial conditions . 38 5.3.10.1.2 Procedure . 38 5.3.10.2 Test requirements . 39 5.3.11 Transmitter adjacent channel leakage power ratio . 39 5.3.11.1 Method of test . 39 5.3.11.1.1 Initial conditions . 39 5.3.11.1.2 Procedure . 39 5.3.11.2 Test requirements . 40 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 41 Annex B (normative): Environmental profile . 43 B.1 General . 43 B.1.1 Introduction . 43 B.1.2 Temperature . 43 B.1.3 Voltage . 43 B.1.4 Test environment . 44 Annex C (informative): The EN title in the official languages . 45 Annex D (informative): Bibliography . 46 History . 47
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group (MSG). The present document has been produced by ETSI in response to mandate M/284 from the European Commission issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The title and reference to the present document are intended to included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2]. See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A. The present document is part 6 of a multi-part deliverable covering the essential requirements under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT cellular networks, as identified below: Part 1: "Introduction and common requirements"; Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)"; Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)"; Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)"; Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)"; Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)"; Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)"; Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)"; Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 13:
"Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)"; SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 7 Part 14:
"Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)"; Part 15:
"Evolved Universal Terrestrial Radio Access (E-UTRA FDD) (Repeaters)"; Part 16:
"Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 17:
"Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 18:
"E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)"; Part 19:
"OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)"; Part 20:
"OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)"; Part 21:
"OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)"; Part 22:
"OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates Date of adoption of this EN: 4 July 2011 Date of latest announcement of this EN (doa): 31 October 2011 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 April 2012 Date of withdrawal of any conflicting National Standard (dow): 30 April 2013
Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The modular structure is shown in EG 201 399 [i.3]. SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 8 1 Scope The present document applies to the following radio equipment type: • User equipment for IMT-2000 CDMA TDD (UTRA TDD). This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1. Table 1-1: IMT-2000 CDMA TDD service frequency bands UTRA TDD Band Direction of transmission IMT-2000 CDMA TDD service operating bands a Transmit and Receive 1 900 MHz to 1 920 MHz Transmit and Receive 2 010 MHz to 2 025 MHz d Transmit and Receive 2 570 MHz to 2 620 MHz
The UTRA TDD component of IMT-2000 CDMA TDD supports three options of the TDD mode with the chip rates of 3,84 Mcps, 7,68 Mcps and 1,28 Mcps. These three options are called the 3,84 Mcps TDD option, the 1,28 Mcps TDD option and the 7,68 Mcps TDD option respectively. The requirements are listed in different clauses only if the parameters deviate. The present document covers requirements for: • 3,84 Mcps UTRA TDD option user equipment for Releases 99, 4, 5, 6, 7, 8 and 9; • 1,28 Mcps UTRA TDD option user equipment for Releases 4, 5, 6, 7, 8 and 9; • 7,68 Mcps UTRA TDD option user equipment for Releases 7, 8 and 9. For the case of IMB, only the 3,84 Mcps UTRA TDD option applies. The present document covers the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2, which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present document. NOTE: A list of such ENs is included on the web site: http://www.newapproach.org/. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] Void. [2] ETSI TS 125 102 (V9.4.0): "Universal Mobile Telecommunications System (UMTS); User Equipment (UE) radio transmission and reception (TDD) (3GPP TS 25.102 version 9.4.0
Release 9)". SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 9 [3] ETSI TS 134 108 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); LTE; Common test environments for User Equipment (UE); Conformance testing (3GPP TS 34.108 version 9.2.0 Release 9)". [4] ETSI TS 134 109 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); LTE; Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109 version 9.2.0 Release 9)". [5] ETSI TS 134 122 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); Terminal conformance specification; Radio transmission and reception (TDD) (3GPP TS 34.122 version 9.2.0 Release 9)". [6] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold". [7] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat". [8] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive Part 1: Introduction and common requirements". 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. [i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to the production of Harmonized Standards for application under the R&TTE Directive". [i.4] ETSI TR 100 028 (V1.4.1) (all parts): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: chip rate: rate of "chips" (modulated symbols after spreading) per second data rate: rate of the user information, which is transmitted over the Air Interface EXAMPLE: Output rate of the voice codec. environmental profile: range of environmental conditions under which the equipment within the scope of the present document is required to comply with the provisions of the present document maximum output power: measure of the maximum power supported by the UE (i.e. the actual power as would be measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access mode, where the period of measurement is a transmit timeslot excluding the guard period unless otherwise stated MBSFN-only UE: UE operable in receive mode only (for the purpose of MBSFN reception) SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 10 mean power: when applied to a CDMA modulated signal this is the power (transmitted or received) in a bandwidth of at least (1 + α) times the chip rate of the radio access mode, where the period of measurement is a transmit timeslot excluding the guard period unless otherwise stated node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment nominal maximum output power: nominal power defined by the UE power class operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA TDD operates NOTE: The operating band(s) for a UTRA TDD UE is declared by the manufacturer according to the designations in table 1-1. Operating bands for UTRA are designated with Roman numerals, while the corresponding operating bands for E-UTRA are designated with Arabic numerals. RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a bandwidth equal to the chip rate of the radio access mode 3.2 Symbols For the purposes of the present document, the following symbols apply: α roll-off factor of the root-raised cosine filter, α = 0,22 Δf separation between the carrier frequency and the centre of the measuring filter
DPCH_Ec average energy per PN chip for DPCH orIDPCH_Ec ratio of the average energy per PN chip of the DPCH to the total transmit power spectral density of the downlink at the BS antenna connector orIDPCH_EcΣ ratio of the sum of DPCH_Ec for one service in case of multicode to the total transmit power spectral density of the downlink at the BS antenna connector NOTE: For UEs supporting only MBSFN reception, the DL reference measurement channel specified in clause A.2.9 [2] is used. For the purposes of clause 4, the term ΣDPCH_Ec refers to the sum of the energy of the physical channels comprising the DL reference measurement channel in use, irrespective of its particular physical channel type (DPCH or not). Fuw Frequency of unwanted signal NOTE: This is specified in bracket in terms of an absolute frequency(s) or frequency offset from the assigned channel frequency. Ioac the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized to the chip rate) of the adjacent frequency channel as measured at the UE antenna connector Ioc the power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized to the chip rate) of a band limited white noise source (simulating interference from cells, which are not defined in a test procedure) as measured at the UE antenna connector Ior the total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and normalized to the chip rate) of the downlink signal at the BS antenna connector orIˆ the received power spectral density of the downlink signal as measured at the UE antenna connector Iouw mean power (modulated) Qout quality level threshold SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 11 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: ACLR Adjacent Channel Leakage power Ratio ACS Adjacent Channel Selectivity BER Bit Error Ratio BS Base Station CDMA Code Division Multiple Access CRC Cyclic Redundancy Check CW Continuous Wave (unmodulated signal) DCH Dedicated CHannel DL Down Link (forward link) DPCH Dedicated Physical CHannel EMC Electro-Magnetic Compatibility ERM Electro-Magnetic Compatibility and Radio Spectrum Matters EUT Equipment Under Test E-UTRA Evolved Universal Terrestrial Radio Access FDD Frequency Division Duplexing IMB Integrated Mobile Broadcast MBMS Multimedia Broadcast and Multicast Service MBSFN MBMS over a Single Frequency Network MSG Mobile Standards Group R&TTE Radio and Telecommunications Terminal Equipment RF Radio Frequency RRC Root-Raised Cosine SS System Simulator TDD Time Division Duplexing TFCI Transport Format Combination Indicator TFES Task Force for European Standards for IMT TH Temperature High TL Temperature Low TS Time Slot TTE Telecommunications Terminal Equipment TX Transmitter UARFCN UTRA Absolute Radio Frequency Channel Number UE User Equipment UL Uplink (reverse link) UTRA Universal Terrestrial Radio Access VH Voltage High VL Voltage Low 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the user equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the declared operational environmental profile. For details on how a supplier declares the environmental profile see annex B. 4.2 Conformance requirements The requirements in the present document are based on the assumption that the operating band, band (a) and (d), are shared between systems of the IMT family or systems having compatible characteristics. SIST EN 301 908-6 V5.2.1:2011
ETSI ETSI EN 301 908-6 V5.2.1 (2011-07) 12 4.2.1 Introduction To meet the essential requirement under article 3.2 of the R&TTE Directive for IMT User Equipment eight essential parameters in addition to those in EN 301 908-1 [8] have been identified. Table 4.2.1-1 provides a cross reference between these eight essential parameters and the corresponding eleven technical requirements within the scope of the present document. To fulfil an essential parameter the compliance with all the corresponding technical requirements in table 4.2.1-1 must be verified. For the case of an MBSFN-only UE the technical requirements in clauses 4.2.6, 4.2.7, 4.2.8, 4.2.9 and 4.2.10 shall apply. Table 4.2.1-1: Cross reference Essential parameter Corresponding technical requirement Spectrum emissions mask 4.2.2 Spectrum emissions mask 4.2.12 Transmitter adjacent channel leakage power ratio Conducted spurious emissions in
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
