ETSI EN 305 550-2 V1.1.1 (2011-07)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 40 GHz to 246 GHz frequency range; Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 40 GHz to 246 GHz frequency range; Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
DEN/ERM-TG28-0421-2
Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) - Naprave kratkega dosega (SRD) - Radijska oprema, ki se uporablja v frekvenčnem območju od 40 GHz do 246 GHz - 2. del: Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE
Ta dokument velja za naslednje glavne vrste opreme naprav kratkega dosega:
• splošne naprave kratkega dosega, vključno z alarmi, telekomando, telemetrijo, splošni prenos podatkov itd.
Te vrste radijske opreme so zmožne delovati v dovoljenih frekvenčnih pasovih v razponu od 40 GHz do 246 GHz, kot je določeno v Preglednici 1:
• bodisi s povezavo z radiofrekvenčnim (RF) izhodom in namensko anteno bodisi z vgrajeno anteno;
• za vse vrste modulacij.
Preglednica 1 prikazuje seznam frekvenčnih pasov, kot je določeno v priporočilu CEPT/ERC 70-03 [i.3], znanim na datum objave tega dokumenta.
OPOMBA 1: Preglednica 1 predstavlja najbolj splošno izvedeno postavko v državah članicah CEPT [i.3], vendar se ne sme predpostavljati, da so vsi opredeljeni pasovi na voljo v vseh državah. Prav tako se predvideva, da se lahko te frekvence uporabijo v točkah [i.6], [i.7] in [i.8] v prihodnosti.
OPOMBA 2: Poleg tega je trebe opozoriti, da so lahko drugi frekvenčni pasovi na voljo v državi v frekvenčnem razponu od 40 GHz do 246 GHz, ki ga zajema ta dokument. Glej priporočilo CEPT/ERC 70-03 [i.1], kot se izvaja z državnimi radijskimi vmesniki (NRI) ali dodatnimi NRI, kjer je ustrezno.
OPOMBA 3: Na neharmoniziranih parametrih lahko državni upravni organi naložijo določene pogoje, kot so na primer vrsta modulacije, frekvenca, ločevanje kanala/frekvence, maksimalna moč oddajanja oddajnika, obratovalni cikel in vključitev avtomatskih naprav za izklop oddajnikov, ki se zahtevajo za izdajo individualnih pravic za uporabo spektra ali za splošno avtorizacijo ali pa za uporabo z »licenčno izjemo«, kot velja večinoma za naprave kratkega dosega.
Ta dokument zajema stalne postaje, mobilne postaje in prenosne postaje.
General Information
Buy Standard
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices (SRD) - Radio equipment to be used in the 40 GHz to 246 GHz frequency range - Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:EN 305 550-2 Version 1.1.1SIST EN 305 550-2 V1.1.1:2011en01-september-2011SIST EN 305 550-2 V1.1.1:2011SLOVENSKI
STANDARD
SIST EN 305 550-2 V1.1.1:2011
ETSI EN 305 550-2 V1.1.1 (2011-07)Harmonized European Standard Electromagnetic compatibilityand Radio spectrum Matters (ERM);Short Range Devices (SRD);Radio equipment to be usedin the 40 GHz to 246 GHz frequency range;Part 2: Harmonized EN covering the essential requirementsof article 3.2 of the R&TTE Directive SIST EN 305 550-2 V1.1.1:2011

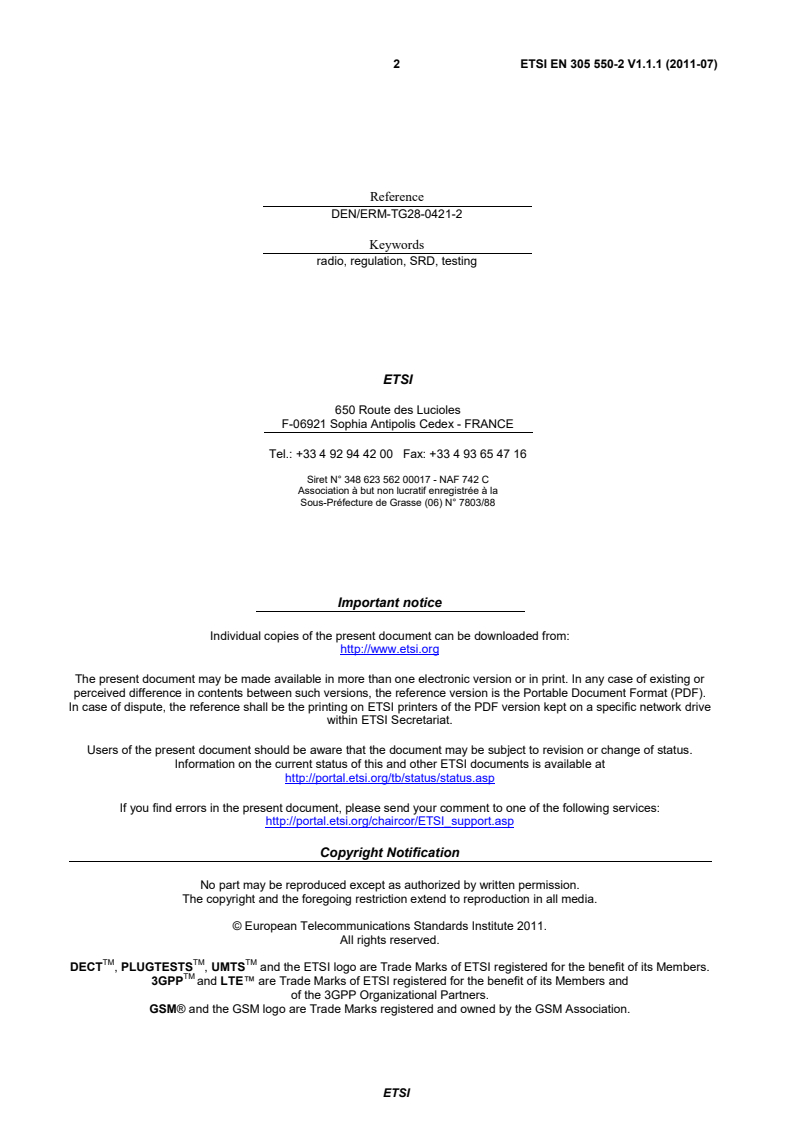

ETSI ETSI EN 305 550-2 V1.1.1 (2011-07) 2
Reference DEN/ERM-TG28-0421-2 Keywords radio, regulation, SRD, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 305 550-2 V1.1.1:2011
ETSI ETSI EN 305 550-2 V1.1.1 (2011-07) 3 Contents Intellectual Property Rights . 4 Foreword . 4 Introduction . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 7 2.2 Informative references . 7 3 Definitions, symbols and abbreviations . 7 3.1 Definitions . 7 3.2 Symbols . 7 3.3 Abbreviations . 7 4 Technical requirements specifications . 8 4.1 Environmental profile . 8 4.2 Conformance requirements . 8 4.2.1 Transmitter requirements . 8 4.2.1.1 Spectral power density . 8 4.2.1.2 RF output power . 8 4.2.1.3 Permitted range of operating frequencies . 8 4.2.1.4 Unwanted emissions in the spurious domain . 8 4.2.2 Receiver requirements . 8 4.2.2.1 Unwanted emissions. 8 5 Testing for compliance with technical requirements . 9 5.1 Description of testing for compliance with technical requirements . 9 5.1.1 Environmental conditions for testing . 9 5.1.1.1 Normal and extreme test-conditions. 9 5.1.1.2 Test power source . 9 5.1.2 Choice of samples for test suites . 9 5.2 Interpretation of the measurement results . 9 5.3 Essential transmitter test suites . 9 5.3.1 Spectral power density . 9 5.3.2 RF output power . 10 5.3.3 Permitted range of operation frequencies . 10 5.3.4 Unwanted emissions in the spurious domain . 10 5.4 Essential receiver test suites . 10 5.4.1 unwanted radiated components . 10 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 11 Annex B (informative): The EN title in the official languages . 13 Annex C (informative): Bibliography . 14 History . 15
SIST EN 305 550-2 V1.1.1:2011
ETSI ETSI EN 305 550-2 V1.1.1 (2011-07) 4 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document is a new standard that takes advantage of technical developments within the SRD industry. In particular this includes the development in technologies which makes applications in the higher frequency range possible. The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC (as amended) [i.1] laying down a procedure for the provision of information in the field of technical standards and regulations. The title and reference to the present document are intended to included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2]. See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A. The present document is part 2 of a multi-part deliverable covering Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 40 GHz to 246 GHz frequency range, as identified below: Part 1: "Technical characteristics and test methods"; Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
National transposition dates Date of adoption of this EN: 28 June 2011 Date of latest announcement of this EN (doa): 30 September 2011 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 March 2012 Date of withdrawal of any conflicting National Standard (dow): 31 March 2013
SIST EN 305 550-2 V1.1.1:2011
ETSI ETSI EN 305 550-2 V1.1.1 (2011-07) 5 Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The modular structure is shown in EG 201 399 [i.4]. SIST EN 305 550-2 V1.1.1:2011
ETSI ETSI EN 305 550-2 V1.1.1 (2011-07) 6 1 Scope The present document applies to the following Short Range Device major equipment types: • Generic Short Range Devices, including alarms, telecommand, telemetry, data transmission in general, etc. These radio equipment types are capable of operating in thefrequency bands within the 40 GHz to 246 GHz range as specified in table 1: • either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna; • for all types of modulation. Table 1 shows a list of the frequency bands as designated in the CEPT/ERC Recommendation 70-03 [i.3] as known at the date of publication of the present document. NOTE 1: Table 1 represents the most widely implemented position within the CEPT countries [i.3], but it should not be assumed that all designated bands are available in all countries. It is also foreseen that these frequencies may be implemented in [i.6], [i.7] and [i.8] in the future. Table 1: Short Range Devices within the 40 GHz to 246 GHz frequency range Frequency Bands Applications Notes 57 GHz to 66 GHz Non-specific SRD CEPT-ECC and European Commission regulatory implementation is under discussion. 61,0 GHz to 61,5 GHz Non-specific SRD
122 GHz to 123 GHz Non-specific SRD
244 GHz to 246 GHz Non-specific SRD
NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the frequency range 40 GHz to 246 GHz covered by the present document. the CEPT/ERC Recommendation 70-03 [i.3] as implemented through National Radio Interfaces (NRI) and additional NRI as relevant. NOTE 3: On non-harmonize
...
Draft ETSI EN 305 550-2 V1.1.1 (2010-06)
Harmonized European Standard (Telecommunications series)
Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD);
Radio equipment to be used
in the 40 GHz to 246 GHz frequency range;
Part 2: Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 305 550-2 V1.1.1 (2010-06)
Reference
DEN/ERM-TG28-0421-2
Keywords
radio, regulation, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 305 550-2 V1.1.1 (2010-06)
Contents
Intellectual Property Rights . 4
Foreword . 4
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Technical requirements specifications . 8
4.1 Environmental profile . 8
4.2 Conformance requirements . 8
4.2.1 Transmitter requirements . 8
4.2.1.1 Spectral power density . 8
4.2.1.2 RF output power . 8
4.2.1.3 Permitted range of operating frequencies . 8
4.2.1.4 Unwanted emissions in the spurious domain . 8
4.2.2 Receiver requirements . 8
4.2.2.1 Unwanted emissions. 8
5 Testing for compliance with technical requirements . 9
5.1 Description of testing for compliance with technical requirements . 9
5.1.1 Environmental conditions for testing . 9
5.1.1.1 Normal and extreme test-conditions. 9
5.1.1.2 Test power source . 9
5.1.2 Choice of samples for test suites . 9
5.2 Interpretation of the measurement results . 9
5.3 Essential transmitter test suites . 9
5.3.1 Spectral power density . 9
5.3.2 RF output power . 10
5.3.3 Permitted range of operation frequencies . 10
5.3.4 Unwanted emissions in the spurious domain . 10
5.4 Essential receiver test suites . 10
5.4.1 unwanted radiated components . 10
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 11
Annex B (informative): The EN title in the official languages . 13
History . 14
ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 305 550-2 V1.1.1 (2010-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase
of the ETSI standards Two-step Approval Procedure.
The present document is a new standard that takes advantage of technical developments within the SRD industry. In
particular this includes the development in technologies which makes applications in the higher frequncy range
possible.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC (as amended) [i.1] laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [i.2] of the European Parliament
and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
For non EEA countries the present document may be used for regulatory (type approval) purposes.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 2 of a multi-part deliverable covering Electromagnetic compatibility and Radio spectrum
Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 40 GHz to 246 GHz frequency range,
as identified below:
Part 1: "Technical characteristics and test methods";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 305 550-2 V1.1.1 (2010-06)
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.4].
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 305 550-2 V1.1.1 (2010-06)
1 Scope
The present document applies to the following Short Range Device major equipment types:
• Generic Short Range Devices, including alarms, telecommand, telemetry, data transmission in general, etc.
These radio equipment types are capable of operating in thefrequency bands within the 40 GHz to 246 GHz range as
specified in table 1:
• either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna;
• for all types of modulation.
Table 1 shows a list of the frequency bands as designated in the CEPT/ERC Recommendation 70-03 [i.3] as known at
the date of publication of the present document.
NOTE 1: Table 1 represents the most widely implemented position within the CEPT countries [i.3], but it should
not be assumed that all designated bands are available in all countries. It is also foreseen that these
frequencies may be implemented in [i.6] and [i.7] in the future.
Table 1: Short Range Devices within the 40 GHz to 246 GHz frequency range
Frequency Bands Applications Notes
57 GHz to 66 GHz Non-specific SRD Pending due to dec. in WGFM#68 (Riga) work
ongoing in SRDMG
Implementation in [i.3] under discussion
61,0 GHz to 61,5 GHz Non-specific SRD
122 GHz to 123 GHz Non-specific SRD
244 GHz to 246 GHz Non-specific SRD
NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the
frequency range 40 GHz to 246 GHz covered by the present document. the CEPT/ERC Recommendation
70-03 [i.3] as implemented through National Radio Interfac
...
