IEC 61784-2-10:2023

Industrial networks - Profiles - Part 2-10: Additional real-time fieldbus profiles based on ISO/IEC/IEEE 8802-3 - CPF 10

IEC 61784-2-10:2023 defines Communication Profile Family 10 (CPF 10). CPF 10 specifies a Real-Time Ethernet (RTE) communication profile (CP) and related network components based on the IEC 61158 series (Type 17), ISO/IEC/IEEE 8802-3 and other standards.
For each RTE communication profile, this document also specifies the relevant RTE performance indicators and the dependencies between these RTE performance indicators.

Réseaux industriels - Profils - Partie 2-10: Profils de bus de terrain supplémentaires pour les réseaux en temps réel fondés sur l’ISO/IEC/IEEE 8802-3 - CPF 10

l’IEC 61784-2-10:2023 définit la famille de profils de communication 10 (CPF 10). La CPF 10 spécifie un profil de communication (CP) Ethernet en temps réel (RTE, Real-Time Ethernet) et des composants de réseau associés basés sur la série IEC 61158 (Type 17), l’ISO/IEC/IEEE 8802-3 et d’autres normes.
Pour chaque profil de communication RTE, le présent document spécifie également les indicateurs de performance RTE correspondants et les dépendances entre ces indicateurs de performance RTE.

General Information

• Status: Published
• Publication Date: 21-Mar-2023
• ICS: 35.100.20 - Data link layer
• ICS: 35.240.50 - IT applications in industry
• Technical Committee: SC 65C - Industrial networks
• Drafting Committee: WG 9 - TC 65/SC 65C/WG 9
• Current Stage: PPUB - Publication issued
• Start Date: 31-Mar-2023
• Completion Date: 22-Mar-2023

Relations

• Replaces: IEC 61784-2:2019 - Industrial communication networks - Profiles - Part 2: Additional fieldbus profiles for real-time networks based on ISO/IEC/IEEE 8802-3
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 61784-2-10
®

Edition 1.0 2023-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial networks – Profiles –
Part 2-10: Additional real-time fieldbus profiles based on ISO/IEC/IEEE 8802-3 –
CPF 10

Réseaux industriels – Profils –
Partie 2-10: Profils de bus de terrain supplémentaires pour les réseaux en temps
réel fondés sur l’ISO/IEC/IEEE 8802-3 – CPF 10

IEC 61784 2-10:2023-03(en-fr)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2023 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].


A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.


Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC Products & Services Portal - products.iec.ch

---------------------- Page: 2 ----------------------

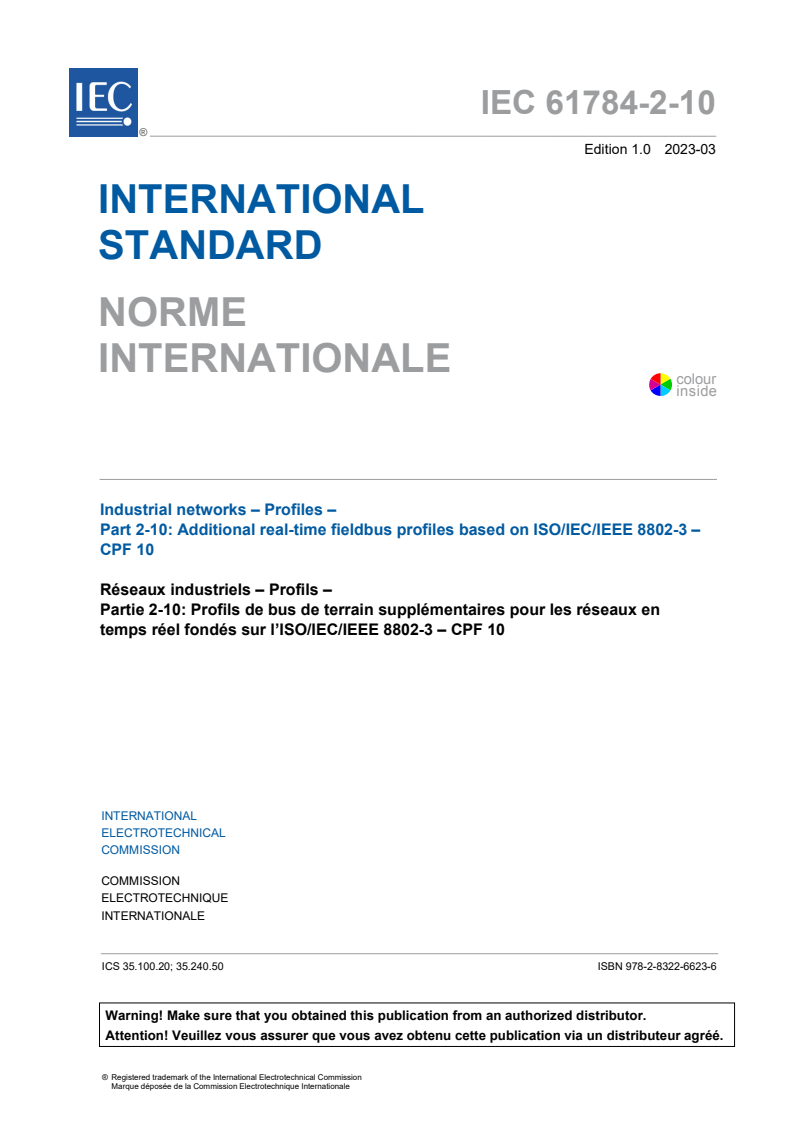

IEC 61784-2-10

®


Edition 1.0 2023-03




INTERNATIONAL



STANDARD




NORME


INTERNATIONALE
colour

inside










Industrial networks – Profiles –

Part 2-10: Additional real-time fieldbus profiles based on ISO/IEC/IEEE 8802-3 –

CPF 10



Réseaux industriels – Profils –

Partie 2-10: Profils de bus de terrain supplémentaires pour les réseaux en


temps réel fondés sur l’ISO/IEC/IEEE 8802-3 – CPF 10













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 35.100.20; 35.240.50 ISBN 978-2-8322-6623-6




Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------

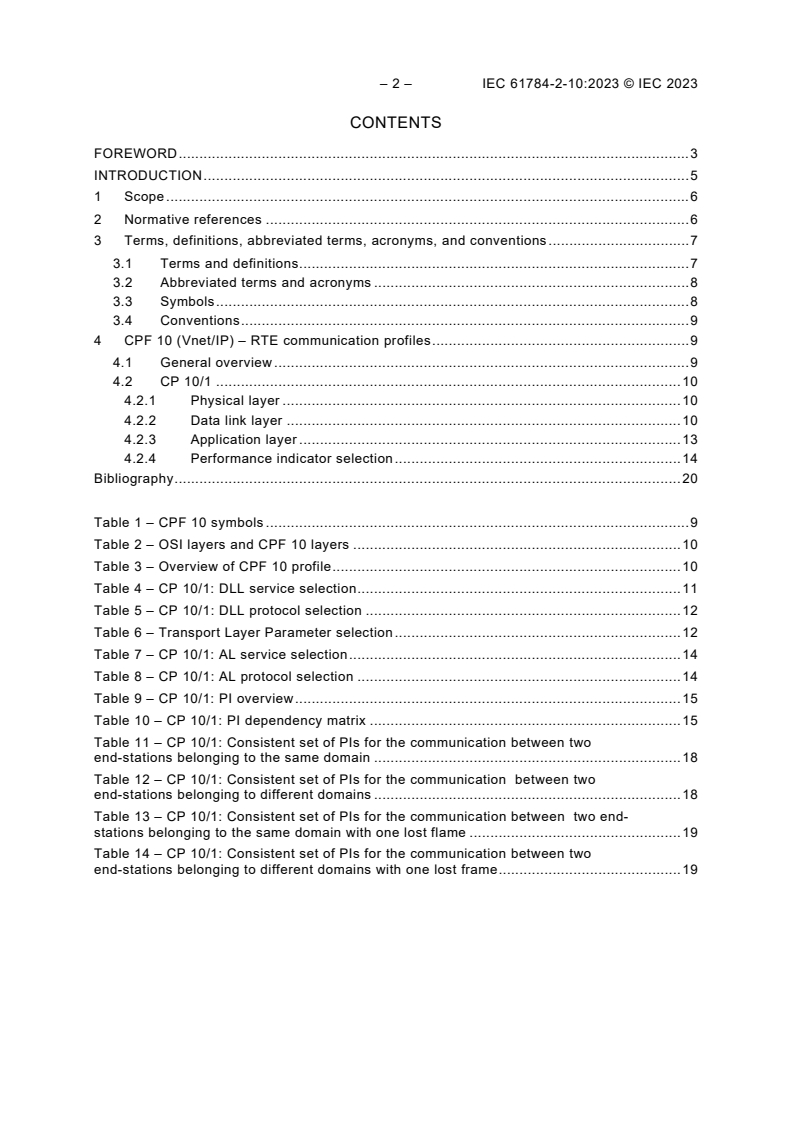

– 2 – IEC 61784-2-10:2023 © IEC 2023
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, abbreviated terms, acronyms, and conventions . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms and acronyms . 8
3.3 Symbols . 8
3.4 Conventions . 9
4 CPF 10 (Vnet/IP) – RTE communication profiles . 9
4.1 General overview . 9
4.2 CP 10/1 . 10
4.2.1 Physical layer . 10
4.2.2 Data link layer . 10
4.2.3 Application layer . 13
4.2.4 Performance indicator selection . 14
Bibliography . 20

Table 1 – CPF 10 symbols . 9
Table 2 – OSI layers and CPF 10 layers . 10
Table 3 – Overview of CPF 10 profile . 10
Table 4 – CP 10/1: DLL service selection . 11
Table 5 – CP 10/1: DLL protocol selection . 12
Table 6 – Transport Layer Parameter selection . 12
Table 7 – CP 10/1: AL service selection . 14
Table 8 – CP 10/1: AL protocol selection . 14
Table 9 – CP 10/1: PI overview . 15
Table 10 – CP 10/1: PI dependency matrix . 15
Table 11 – CP 10/1: Consistent set of PIs for the communication between two
end-stations belonging to the same domain . 18
Table 12 – CP 10/1: Consistent set of PIs for the communication between two
end-stations belonging to different domains . 18
Table 13 – CP 10/1: Consistent set of PIs for the communication between two end-
stations belonging to the same domain with one lost flame . 19
Table 14 – CP 10/1: Consistent set of PIs for the communication between two
end-stations belonging to different domains with one lost frame . 19

---------------------- Page: 4 ----------------------
IEC 61784-2-10:2023 © IEC 2023 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

INDUSTRIAL NETWORKS –
PROFILES –

Part 2-10: Additional real-time fieldbus profiles
based on ISO/IEC/IEEE 8802-3 –
CPF 10

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Attention is drawn to the fact that the use of some of the associated protocol types is restricted
by their intellectual-property-right holders. In all cases, the commitment to limited release of
intellectual-property-rights made by the holders of those rights permits a layer protocol type to
be used with other layer protocols of the same type, or in other type combinations explicitly
authorized by their respective intellectual property right holders.
NOTE Combinations of protocol types are specified in the IEC 61784-1 series and the IEC 61784-2 series.
IEC 61784-2-10 has been prepared by subcommittee 65C: Industrial networks, of IEC technical
committee 65: Industrial-process measurement, control and automation. It is an International
Standard.
This first edition, together with the other parts of the same series, cancels and replaces the
fourth edition of IEC 61784-2 published in 2019. This first edition constitutes a technical revision.

---------------------- Page: 5 ----------------------
– 4 – IEC 61784-2-10:2023 © IEC 2023
This edition includes the following significant technical changes with respect to
IEC 61784-2:2019:
a) split of the original IEC 61784-2 into several subparts, one subpart for the material of a
generic nature, and one subpart for each Communication Profile Family specified in the
original document.
The text of this International Standard is based on the following documents:
Draft Report on voting
65C/1209/FDIS 65C/1237/RVD

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 61784-2 series, published under the general title
Industrial networks – Profiles – Part 2: Additional real-time fieldbus profiles based on
ISO/IEC/IEEE 8802-3, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 6 ----------------------
IEC 61784-2-10:2023 © IEC 2023 – 5 –
INTRODUCTION
The IEC 61784-2 series provides additional Communication Profiles (CP) to the existing
Communication Profile Families (CPF) of the IEC 61784-1 series and additional CPFs with one
or more CPs. These profiles meet the industrial automation market objective of identifying Real-
Time Ethernet (RTE) communication networks coexisting with ISO/IEC/IEEE 8802-3 –
commonly known as Ethernet. These RTE communication networks use provisions of
ISO/IEC/IEEE 8802-3 for the lower communication stack layers and additionally provide more
predictable and reliable real-time data transfer and means for support of precise
synchronization of automation equipment.
More specifically, these profiles help to correctly state the compliance of RTE communication
networks with ISO/IEC/IEEE 8802-3, and to avoid the spreading of divergent implementations.
Adoption of Ethernet technology for industrial communication between controllers and even for
communication with field devices promotes the use of Internet technologies in the field area.
This availability would be unacceptable if it causes the loss of features required in the field area
for industrial communication automation networks, such as:
• real-time,
• synchronized actions between field devices like drives,
• efficient, frequent exchange of very small data records.
These new RTE profiles can take advantage of the improvements of Ethernet networks in terms
of transmission bandwidth and network span.
Another implicit but essential requirement is that the typical Ethernet communication
capabilities, as used in the office world, are fully retained, so that the software involved remains
applicable.
The market is in need of several network solutions, each with different performance
characteristics and functional capabilities, matching the diverse application requirements. RTE
performance indicators, whose values will be provided with RTE devices based on
communication profiles specified in the IEC 61784-2 series, enable the user to match network
devices with application-dependent performance requirements of an RTE network.

---------------------- Page: 7 ----------------------
– 6 – IEC 61784-2-10:2023 © IEC 2023
INDUSTRIAL NETWORKS –
PROFILES –

Part 2-10: Additional real-time fieldbus profiles
based on ISO/IEC/IEEE 8802-3 –
CPF 10



1 Scope
This part of IEC 61784-2 defines Communication Profile Family 10 (CPF 10). CPF 10 specifies
a Real-Time Ethernet (RTE) communication profile (CP) and related network components based
on the IEC 61158 series (Type 17), ISO/IEC/IEEE 8802-3 and other standards.
For each RTE communication profile, this document also specifies the relevant RTE
performance indicators and the dependencies between these RTE performance indicators.
NOTE 1 All CPs are based on standards or draft standards or International Standards published by the IEC or on
standards or International Standards established by other standards bodies or open standards processes.
NOTE 2 The RTE communication profiles use ISO/IEC/IEEE 8802-3 communication networks and its related
network components and in some cases amend those standards to obtain RTE features.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
NOTE All parts of the IEC 61158 series, as well as the IEC 61784-1 series and the IEC 61784-2 series, are
maintained simultaneously. Cross-references to these documents within the text therefore refer to the editions as
dated in this list of normative references.
IEC 61158 (all parts), Industrial communication networks – Fieldbus specifications
IEC 61158-3-17:2007, Industrial communication networks – Fieldbus specifications – Part 3-17:
Data-link layer service definition – Type 17 elements
IEC 61158-4-17:2007, Industrial communication networks – Fieldbus specifications – Part 4-17:
Data-link layer protocol specification – Type 17 elements
IEC 61158-5-17:2007, Industrial communication networks – Fieldbus specifications – Part 5-17:
Application layer service definition – Type 17 elements
IEC 61158-6-17:2007, Industrial communication networks – Fieldbus specifications – Part 6-17:
Application layer protocol specification – Type 17 elements
IEC 61784-2-0:2023, Industrial networks – Profiles – Part 2-0: Additional real-time fieldbus
profiles based on ISO/IEC/IEEE 8802-3 – General concepts and terminology
ISO/IEC 8802-2, Information technology – Telecommunications and information exchange
between systems – Local and metropolitan area networks – Specific requirements – Part 2:
Logical link control

---------------------- Page: 8 ----------------------
IEC 61784-2-10:2023 © IEC 2023 – 7 –
ISO/IEC/IEEE 8802-3, Telecommunications and exchange between information technology
systems – Requirements for local and metropolitan area networks – Part 3: Standard for
Ethernet
IEEE Std 802-2014, IEEE Standard for Local and Metropolitan Area Networks: Overview and
Architecture
IEEE Std 802.1AB-2016, IEEE Standard for Local and metropolitan area networks – Station and
Media Access Control Connectivity Discovery
IEEE Std 802.1AS-2020, IEEE Standard for Local and Metropolitan Area Networks – Timing
and Synchronization for Time-Sensitive Applications
IEEE Std 802.1Q-2018, IEEE Standard for Local and Metropolitan Area Networks – Bridges and
Bridged Networks
IETF RFC 768, J. Postel, User Datagram Protocol, August 1980, available at
https://www.rfc-editor.org/info/rfc768 [viewed 2022-02-18]
IETF RFC 791, J. Postel, Internet Protocol, September 1981, available at
https://www.rfc-editor.org/info/rfc791 [viewed 2022-02-18]
IETF RFC 792, J. Postel, Internet Control Message Protocol, September 1981, available at
https://www.rfc-editor.org/info/rfc792 [viewed 2022-02-18]
IETF RFC 793, J. Postel, Transmission Control Protocol, September 1981, available at
https://www.rfc-editor.org/info/rfc793 [viewed 2022-02-18]
IETF RFC 2236, W. Fenner, Internet Group Management Protocol, Version 2, November 1997,
available at https://www.rfc-editor.org/info/rfc2236 [viewed 2022-02-18]
3 Terms, definitions, abbreviated terms, acronyms, and conventions
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61784-2-0,
ISO/IEC/IEEE 8802-3, IEEE Std 802-2014, IEEE Std 802.1AB-2016, IEEE Std 802.1AS-2020,
IEEE Std 802.1Q-2018 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1.1
domain
part of the network consisting of one or two subnetwork(s)
Note 1 to entry: Two subnetworks are required to compose a dual-redundant network, and each end-station in the
domain is connected to both of the subnetworks.
3.1.2
router
intermediate equipment that connects two or more subnetworks using a network layer relay
function

---------------------- Page: 9 ----------------------
– 8 – IEC 61784-2-10:2023 © IEC 2023
3.1.3
subnetwork
part of a network that does not contain any routers
Note 1 to entry: A subnetwork consists of end-stations, bridges and segments.
Note 2 to entry: Every end-station included in a subnetwork has the same IP network address.
3.2 Abbreviated terms and acronyms
For the purposes of this document, abbreviated terms and acronyms defined in IEC 61784-2-0
and the following apply.
CP Communication Profile [according to IEC 61784-1-0]
CPF Communication Profile Family [according to IEC 61784-1-0]
IANA Internet Assigned Numbers Authority
ICMP Internet Control Message Protocol (see IETF RFC 792)
IETF Internet Engineering Task Force
IP Internet Protocol (see IETF RFC 791)
IPv4 Internet Protocol version 4 (see IETF RFC 791)
LLDP Link Layer Discovery Protocol (see IEEE Std 802.1AB-2016)
NoS Number of Switches
PI Performance indicator
RSTP Rapid Spanning Tree Algorithm and Protocol (see IEEE Std 802.1Q-2018)
TCP Transmission Control Protocol (see IETF RFC 793)
TOS Type of Service
UDP User Datagram Protocol (see IETF RFC 768)
3.3 Symbols
For the purposes of this document, symbols defined in IEC 61784-2-0 and Table 1 apply.
NOTE Definitions of symbols in this Subclause 3.3 do not use the italic font, as they are already identified as
symbols.

---------------------- Page: 10 ----------------------
IEC 61784-2-10:2023 © IEC 2023 – 9 –
Table 1 – CPF 10 symbols
Symbol Definition Unit
Cdly Cable delay µs
Clen Cable length m
Dlen Length of the complete Ethernet frame bit
DT Delivery time µs
DTlost1 Maximum delivery time with one lost frame for communication between two end- µs
stations belonging to the same domain
Maximum delivery time with one lost frame for communication between two end-
DTlost2 µs
stations belonging to different domains
DTmax1 Maximum delivery time for communication between two end-stations belonging to µs
the same domain
DTmax2 Maximum delivery time for communication between two end-stations belonging to µs
different domains
NoS Number of switches in path from sender to receiver –
Spd Switch delay under not congested condition µs
STTr Receiver stack transversal time including PhL, DLL and AP µs
STTs Sender stack transversal time including PhL, DLL and AP µs
Trate Transfer bit rate Mbit/s

3.4 Conventions
For the purposes of this document, the conventions defined in IEC 61784-2-0 apply.
1
4 CPF 10 (Vnet/IP ) – RTE communication profiles
4.1 General overview
Communication Profile Family 10 (CPF 10) defines communication profiles using the principles,
methodology and model of ISO/IEC 7498-1. In addition, it also follows the three-layer basic
fieldbus reference model described in IEC 61158-1.
The OSI model provides a layered approach to communication standards, whereby the layers
can be developed and modified independently. CPF 10 is based on the three-layer structure,
and each layer of OSI seven layers is mapped onto these three layers as follows.
Functions of the intermediate OSI layers, layers 5, 6 and 7, are consolidated into the Application
layer.
Functions of the intermediate OSI layers, layers 2, 3 and 4, are consolidated into the
data-link layer.
Likewise, some features common to users of the Fieldbus Application layer are provided to
simplify user operation.
Table 2 shows the OSI layers, their functions and the equivalent layers in the CPF10 layer
model.
___________
1
 Vnet/IP is a trade name of Yokogawa Electric Corporation. This information is given for the convenience of users
of this document and does not constitute an endorsement by IEC of the trademark holder or any of its products.
Compliance with this profile does not require use of the trade name. Use of the trade name requires permission
of the trade name holder.

---------------------- Page: 11 ----------------------
– 10 – IEC 61784-2-10:2023 © IEC 2023
Table 2 – OSI layers and CPF 10 layers
OSI layer Function CPF 10 layer
7 Application Translates demands placed on the communication stack into a form Application
understood by the lower layers and vice versa
6 Presentation Converts data to/from standardized network formats
5 Session Synchronizes and manages data
4 Transport Provides transparent reliable data transfer Data-link
3 Network Performs message routing
2 Data-link Controls access to the communication medium. Performs error detection
1 Physical Encodes/decodes signals for transmission/reception in a form appropriate to Physical
the communication medium. Specifies communication media characteristics

Table 3 shows an overview of the communication profile for CPF 10.
Table 3 – Overview of CPF 10 profile
Layer Protocol
Application IEC 61158-6-17
Transport IETF RFC 768 and IEC 61158-4-17
Network IETF RFC 791
Data-link ISO/IEC 8802-2 and ISO/IEC/IEEE 8802-3
Physical ISO/IEC/IEEE 8802-3

4.2 CP 10/1
4.2.1 Physical layer
ISO/IEC/IEEE 8802-3 shall be used.
4.2.2 Data link layer
4.2.2.1 MAC sublayer
ISO/IEC/IEEE 8802-3 shall be used.
4.2.2.2 LLC sublayer
ISO/IEC/IEEE 8802-3 shall be used.
4.2.2.3 Network sublayer
4.2.2.3.1 General
Internet standard IETF RFC 791 and its amendments and successors shall be used.
Internet standard IETF RFC 2236 shall be used to perform multicasting.
4.2.2.3.2 Unicast address
IPv4 class C private address scope shall be used. Each subnetwork of a domain has the
respective IP network address as follows.
IP address for the interface connected to the primary network:

---------------------- Page: 12 ----------------------
IEC 61784-2-10:2023 © IEC 2023 – 11 –
– 192.168.(Domain number).(Host address)
IP address for the interface connected to the secondary network:
– 192.168.128+(Domain number).(Host address)
Each node of a redundant station has a respective IP host address as follows.
– Host address: (Station number) × 2 or (Station number) × 2 + 1
4.2.2.3.3 Group address
IPv4 class D Organization-Local Scope shall be used as group addr
...
