IEC 60794-1-305:2023

Optical fibre cables - Part 1-305: Generic specification - Basic optical cable test procedures - Cable element test methods - Ribbon tear (separability), Method G5

IEC 60794-1-305:2023 describes test procedures to be used in establishing uniform requirements for optical fibre ribbons as optical fibre cable elements for the mechanical property-tear (separability). This document applies to optical fibre cables for use with telecommunication equipment and devices employing similar techniques, and to cables having a combination of both optical fibres and electrical conductors. NOTE Throughout the document, the wording "optical cable" can also include optical fibre units, microduct fibre units, etc.
This test is applicable for edge-bonded ribbons and encapsulated ribbons specified in IEC 60794-1-31, and not intended to be used for partially-bonded ribbons.

Câbles à fibres optiques - Partie 1-305: Spécification générique - Procédures fondamentales d’essai des câbles optiques - Méthodes d’essai des éléments de câble - Déchirure du ruban (séparabilité), Méthode G5

IEC 60794-1-305:2023 décrit les procédures d’essai à utiliser pour établir des exigences uniformes pour les rubans de fibres optiques en tant qu’éléments de câbles à fibres optiques pour la propriété mécanique de déchirement (séparabilité). Le présent document s’applique aux câbles à fibres optiques destinés à être utilisés avec des équipements de communication et des dispositifs utilisant des techniques analogues, ainsi qu’aux câbles constitués à la fois de fibres optiques et de conducteurs électriques. NOTE Tout au long du présent document, l’expression "câble optique" peut également inclure des unités de fibres optiques, des unités de fibres pour microconduits, etc.
Cet essai s’applique aux rubans liés par les bords et aux rubans encapsulés spécifiés dans l’IEC 60794-1-31, et n’est pas destiné à être utilisé pour les rubans partiellement collés.

General Information

• Status: Published
• Publication Date: 03-Jan-2023
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: SC 86A - Fibres and cables
• Current Stage: PPUB - Publication issued
• Start Date: 04-Jan-2023
• Completion Date: 20-Jan-2023

Relations

• Replaces: IEC 60794-1-23:2019 - Optical fibre cables - Part 1-23: Generic specification - Basic optical cable test procedures - Cable element test methods
• Effective Date: 05-Sep-2023

Overview

IEC 60794-1-305:2023 is an international standard published by the International Electrotechnical Commission (IEC) that defines the generic specification for basic optical cable test procedures, specifically focusing on cable element test methods for ribbon tear (separability) using Method G5. This standard is designed to establish uniform requirements for the mechanical property of optical fibre ribbons-the ability of ribbons to be torn or separated accurately without damaging the fibre coatings. It applies to optical fibre cables used in telecommunication equipment and devices, including cables combining optical fibres with electrical conductors.

The test method detailed in IEC 60794-1-305:2023 targets edge-bonded and encapsulated optical fibre ribbons as defined in IEC 60794-1-31. It is not intended for partially-bonded ribbons. The document aims to assure both sufficient tear resistance when fibres are not meant to separate and appropriate separability when fibres require manual separation by hand.

Key Topics

• Scope and Applicability
  Covers testing optical fibre ribbons for separability or tear resistance to guarantee the mechanical integrity and performance of optical cables in telecommunication systems.

• Sample Preparation
  Test samples consist of multiple fibre ribbons, with specimens prepared by separating increasing numbers of fibres (from single fibres up to half the ribbon’s fibres) to be used in tear tests.

• Test Procedure (Method G5)
  Utilizes tensile strength measuring apparatus and a microscope (minimum 100× magnification) to measure tearing force and inspect fibres visually.

  • The fibres are torn at a controlled speed (100–500 mm/min).
  • The force applied over a minimum 50 mm length is recorded continuously.
  • Visual inspection ensures no damage occurs to fibre coatings during separability testing.

• Equipment Requirements
  Precise tensile strength testers with proper clamping and recording capability, as well as microscopes for surface inspection, are essential.

• Reporting and Specification
  The standard outlines details to be specified and reported for consistent documentation of test outcomes and compliance criteria.

Applications

IEC 60794-1-305:2023 is essential for manufacturers, testers, and quality assurance teams involved in:

• Optical Fibre Cable Manufacturing
  To verify ribbon tear performance during design verification and production quality control.

• Telecommunications Industry
  Ensures ribbon cables used in networks function correctly, allowing easy fibre separation without damage during installation and maintenance.

• Optical Network Equipment Providers
  Validates the mechanical compatibility and durability of cable elements integrated within composite optical-electrical cables.

• Research and Development
  Facilitates the development of new ribbon cable designs with improved separability and mechanical robustness by providing a standardized test framework.

Related Standards

• IEC 60794-1-2: Generic specification for basic optical cable test procedures – General guidance applicable across all test methods.
• IEC 60794-1-31: Defines specifications for optical fibre ribbons used as cable elements, providing context for ribbon types tested according to IEC 60794-1-305.
• Previous IEC 60794-1-23: Former multi-test method standard including test Method G5, now superseded to individual documents like IEC 60794-1-305 for clarity and modular use.

Why This Standard Matters

Adhering to IEC 60794-1-305:2023 ensures consistent, reliable testing of optical fibre ribbon separability that:

• Prevents damage to fibre coatings during fibre separation, maintaining optical performance.
• Guarantees uniform product quality across manufacturers worldwide.
• Supports advancements in fibre optic cable technologies with reproducible test results.
• Contributes to the longevity and serviceability of fibre optic networks critical for today's high-speed telecommunications infrastructure.

By implementing the test methods described in this standard, stakeholders can confidently design, manufacture, and deploy optical fibre cables meeting international performance and safety criteria.

Standards Content (Sample)

IEC 60794-1-305 ®
Edition 1.0 2023-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical fibre cables –
Part 1-305: Generic specification – Basic optical cable test procedures – Cable
element test methods – Ribbon tear (separability), Method G5

Câbles à fibres optiques –
Partie 1-305: Spécification générique – Procédures fondamentales d’essai des
câbles optiques – Méthodes d’essai des éléments de câble – Déchirure du ruban
(séparabilité), Méthode G5
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC Products & Services Portal - products.iec.ch

IEC 60794-1-305 ®
Edition 1.0 2023-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical fibre cables –
Part 1-305: Generic specification – Basic optical cable test procedures – Cable

element test methods – Ribbon tear (separability), Method G5

Câbles à fibres optiques –
Partie 1-305: Spécification générique – Procédures fondamentales d’essai des

câbles optiques – Méthodes d’essai des éléments de câble – Déchirure du ruban

(séparabilité), Méthode G5
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.10 ISBN 978-2-8322-6304-4

– 2 – IEC 60794-1-305:2023 © IEC 2023

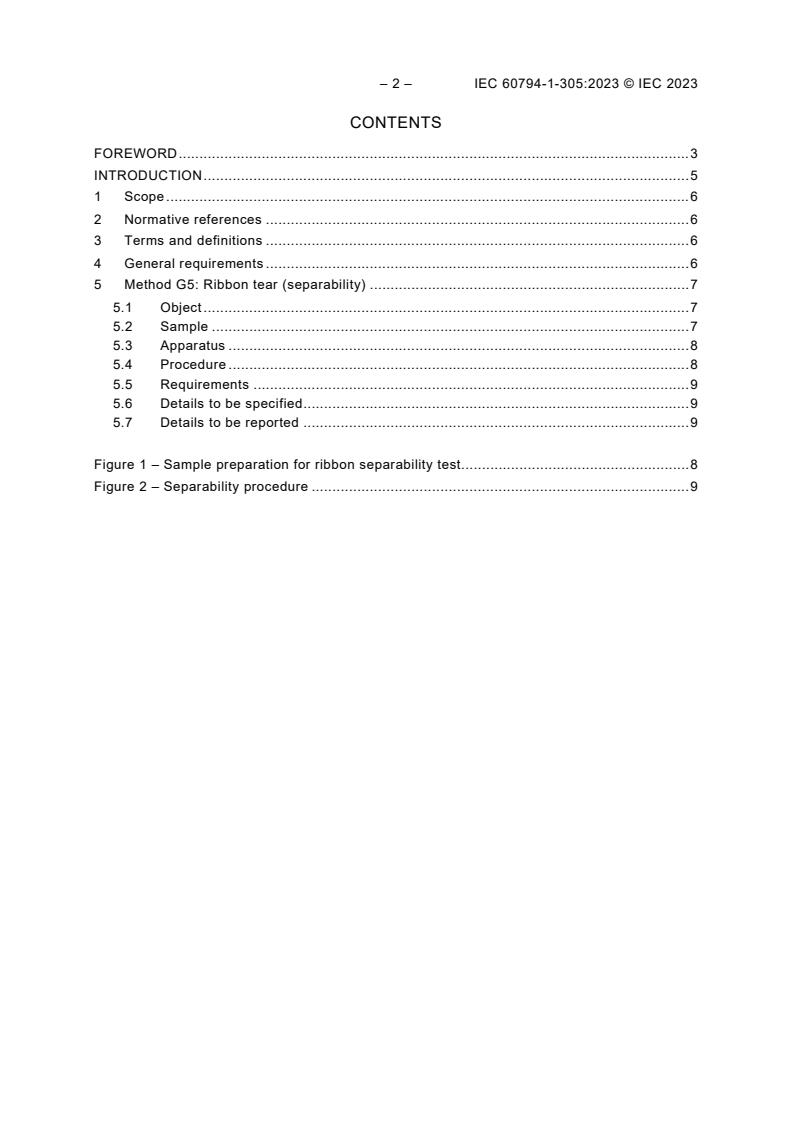

CONTENTS

FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 6
5 Method G5: Ribbon tear (separability) . 7
5.1 Object . 7
5.2 Sample . 7
5.3 Apparatus . 8
5.4 Procedure . 8
5.5 Requirements . 9
5.6 Details to be specified . 9
5.7 Details to be reported . 9

Figure 1 – Sample preparation for ribbon separability test. 8
Figure 2 – Separability procedure . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL FIBRE CABLES –
Part 1-305: Generic specification – Basic optical cable test procedures –
Cable element test methods – Ribbon tear (separability), Method G5

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60794-1-305 has been prepared by subcommittee 86A: Fibres and cables, of IEC technical
committee 86: Fibre optics. It is an International Standard.
This first edition of IEC 60794-1-305 cancels and replaces method G5 of the second edition of
IEC 60794-1-23 published in 2019. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the second
edition of IEC 60794-1-23:2019:
a) the optical cable element test methods contained in IEC 60794-1-23:2019 will now be
individually numbered in the IEC 60794-1-3xx series. Each test method is now considered
to be an individual document rather than part of a multi-test method compendium. Full cross-
reference details are given in IEC 60794-1-2.

– 4 – IEC 60794-1-305:2023 © IEC 2023
The text of this International Standard is based on the following documents:
Draft Report on voting
86A/2249/FDIS 86A/2271/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60794 series, published under the general title Optical fibre cables,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed
that compliance with this document may involve the use of a patent. IEC takes no position
concerning the evidence, validity, and scope of this patent right.
The holder of this patent right has assured IEC that s/he is willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world.
In this respect, the statement of the holder of this patent right is registered with IEC. Information
may be obtained from the patent database available at http://patents.iec.ch.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those in the patent database. IEC shall not be held
responsible for identifying any or all such patent rights.

– 6 – IEC 60794-1-305:2023 © IEC 2023
OPTICAL FIBRE CABLES –
Part 1-305: Generic specification – Basic optical cable test procedures –
Cable element test methods – Ribbon tear (separability), Method G5

1 Scope
This part of IEC 60794 describes test procedures to be used in establishing uniform
requirements for optical fibre ribbons as optical fibre cable elements for the mechanical
property-tear (separability).
This document applies to optical fibre cables for use with telecommunication equipment and
devices employing similar techniques, and to cables having a combination of both optical fibres
and electrical conductors.
NOTE Throughout the document, the wording "optical cable" can also include optical fibre units, microduct fibre
units, etc.
This test is applicable for edge-bonded ribbons and encapsulated ribbons specified in
IEC 60794-1-31, and not intended to be used for partially-bonded ribbons.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60794-1-2, Optical fibre cables – Part 1-2: Generic specification – Basic optical cable test
procedures – General guidance
IEC 60794-1-31, Optical fibre cables – Part 1-31: Generic specification – Optical cable elements
– Optical fibre ribbon
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 General requirements
IEC 60794-1-2 is the reference guide to test methods of all types. It shall be considered for
general requirements and definitions.

5 Method G5: Ribbon tear (separability)
5.1 Object
The purpose of this test is to ensure sufficient tear resistance for ribbons where the fibres are
not required to be separable, or to ensure sufficient separability of the fibres for ribbons where
the fibres are required to be separated. The intention of this test is to be able to tear the ribbon
by hand without damage to the fibre coatings.
5.2 Sample
A number of samples of fibre ribbon, as specified in the detail specification, typically 3 to 5,
shall be selected from the ribbon or ribbons to be tested. The length of each sample shall be
sufficient to provide the number of test specimens as detailed below.
For an n fibre ribbon, n/2 specimens are taken from each of the samples above. Each specimen
shall be 100 mm minimum in length, consistent with Figure 1.
Prepare the n/2 specimens involving increasing numbers of fibres to be separated as a ribbon
unit: that is, a specimen for fibre 1; a specimen for fibres 1 to 2; a specimen for fibres 1 to 3;
etc.
The fibres to be tested are separated with a knife or other suitable method on a suitable length
of no less than 30 mm for clamping, as shown in Figure 1.
For the first sample, the preparation of the test sequence shall consist in separating one fibre
from the other fibres in the ribbon in the first specimen. Then separate a unit of two fibres from
the next specimen. After that, units of three, four, and so on, fibres are separated in the other
specimens, up to a unit of n/2 fibres in the last specimen.
Do the same preparation for all the other samples.
NOTE If n is an odd number, n/2 in the above description is replaced with (n-1)/2.

– 8 – IEC 60794-1-305:2023 © IEC 2023
Dimensions in millimetres
Figure 1 – Sample preparation for ribbon separability test
5.3 Apparatus
The
...
