IEC 61009-2-2:2024
(Main)Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs) - Part 2-2: RCBOs according to classification 4.1.2, 4.1.3, 4.1.4, 4.1.5 and 4.1.6
Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs) - Part 2-2: RCBOs according to classification 4.1.2, 4.1.3, 4.1.4, 4.1.5 and 4.1.6
IEC 61009-2-2:2024 applies to residual current operated circuit-breakers, with integral overcurrent protection, for household and similar uses (hereafter referred to as RCBOs), classified according to IEC 61009-1:2024, 4.1.2, 4.1.3, 4.1.4, 4.1.5 and 4.1.6. RCBOs according to this document are intended for voltages not exceeding 440 V AC with frequencies of 50 Hz, 60 Hz or 50/60 Hz and currents not exceeding 125 A and rated short‑circuit capacities not exceeding 25 000 A for operation at 50 Hz or 60 Hz.
This second edition cancels and replaces the first edition published in 1991. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) harmonization of all clauses between the IEC 61008, IEC 61009 and IEC 60755 series using blocks and modules approach;
b) harmonization of all tables and figures between the IEC 61008, IEC 61009 and IEC 60755 series;
c) terms and definitions are now referred to IEC 62873-2;
d) modification of 4.1 for classification according to supply conditions;
e) modification of Clause 6 for markings of RCBOs with a functional earth (FE);
f) specific tests for operating characteristics of RCBO according to classifications 4.1.2, 4.1.3, 4.1.4, 4.1.5 and 4.1.6;
g) specific test conditions for dielectric properties (9.7), temperature-rise (9.8), electrical and mechanical endurance (9.10), short-circuit tests (9.11), verification of trip-free (9.15), behaviour in the event of loss of the supply voltage (9.17), surge current tests (9.19), reliability (9.20), ageing (9.21) and temporary overvoltage TOV (9.24);
h) additional tests for RCBOs with a terminal connected to the FE: Connecting capacity of FE terminal (9.200); Limitation of standing current in the FE (9.201).
Interrupteurs automatiques à courant différentiel résiduel avec protection contre les surintensités incorporée pour installations domestiques et analogues (DD) - Partie 2-2: DD conformes aux 4.1.2, 4.1.3, 4.1.4, 4.1.5 et 4.1.6
General Information
Buy Standard
Standards Content (Sample)

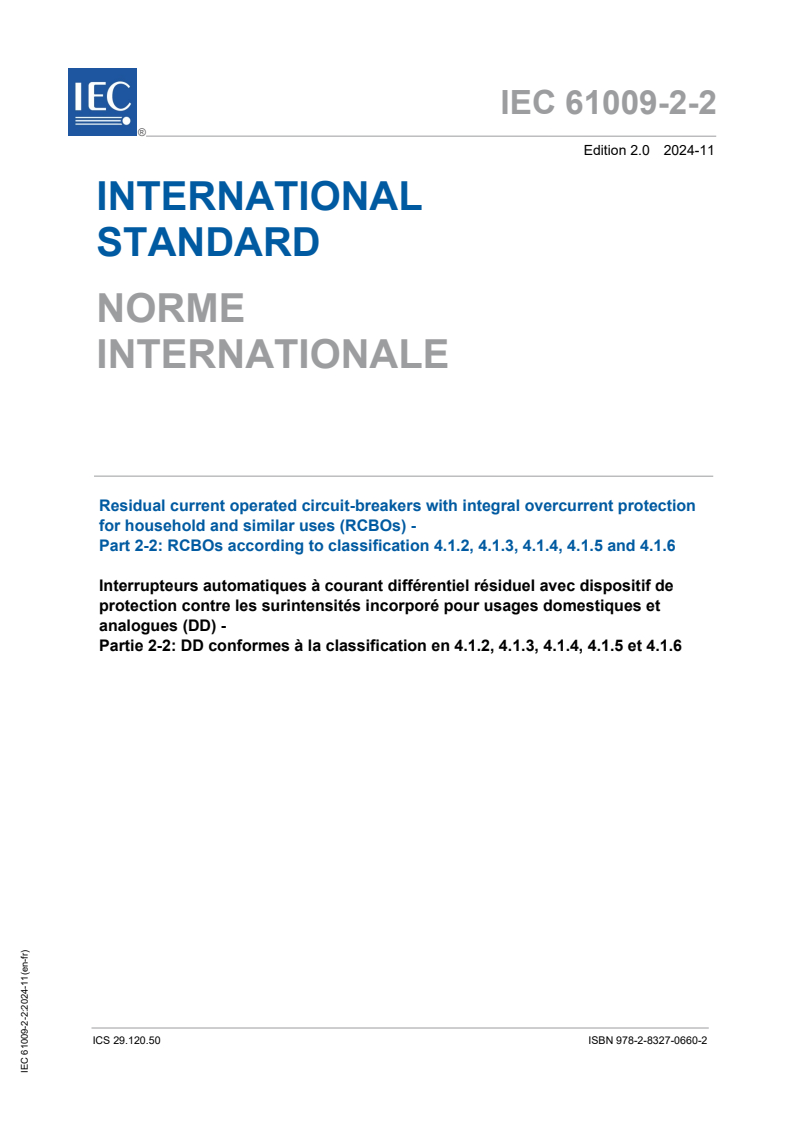

IEC 61009-2-2 ®
Edition 2.0 2024-11
INTERNATIONAL
STANDARD
Residual current operated circuit-breakers with integral overcurrent protection
for household and similar uses (RCBOs) –
Part 2-2: RCBOs according to classification 4.1.2, 4.1.3, 4.1.4, 4.1.5 and 4.1.6
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 61009-2-2 ®
Edition 2.0 2024-11
INTERNATIONAL
STANDARD
Residual current operated circuit-breakers with integral overcurrent protection
for household and similar uses (RCBOs) –
Part 2-2: RCBOs according to classification 4.1.2, 4.1.3, 4.1.4, 4.1.5 and 4.1.6
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.120.50 ISBN 978-2-8327-0013-6
– 2 – IEC 61009-2-2:2024 © IEC 2024

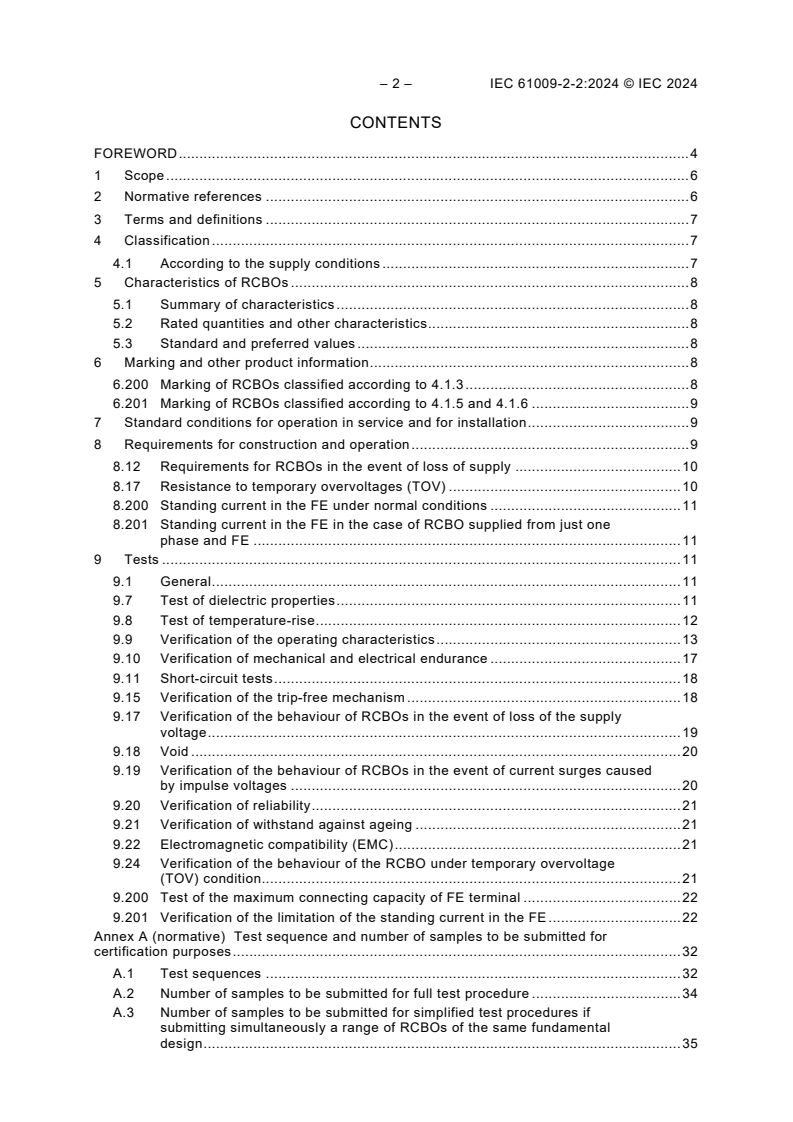

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Classification . 7
4.1 According to the supply conditions . 7
5 Characteristics of RCBOs . 8
5.1 Summary of characteristics . 8
5.2 Rated quantities and other characteristics . 8
5.3 Standard and preferred values . 8
6 Marking and other product information . 8
6.200 Marking of RCBOs classified according to 4.1.3 . 8
6.201 Marking of RCBOs classified according to 4.1.5 and 4.1.6 . 9
7 Standard conditions for operation in service and for installation . 9
8 Requirements for construction and operation . 9
8.12 Requirements for RCBOs in the event of loss of supply . 10
8.17 Resistance to temporary overvoltages (TOV) . 10
8.200 Standing current in the FE under normal conditions . 11
8.201 Standing current in the FE in the case of RCBO supplied from just one
phase and FE . 11
9 Tests . 11
9.1 General . 11
9.7 Test of dielectric properties . 11
9.8 Test of temperature-rise . 12
9.9 Verification of the operating characteristics . 13
9.10 Verification of mechanical and electrical endurance . 17
9.11 Short-circuit tests . 18
9.15 Verification of the trip-free mechanism . 18
9.17 Verification of the behaviour of RCBOs in the event of loss of the supply
voltage . 19
9.18 Void . 20
9.19 Verification of the behaviour of RCBOs in the event of current surges caused
by impulse voltages . 20
9.20 Verification of reliability . 21
9.21 Verification of withstand against ageing . 21
9.22 Electromagnetic compatibility (EMC) . 21
9.24 Verification of the behaviour of the RCBO under temporary overvoltage
(TOV) condition. 21
9.200 Test of the maximum connecting capacity of FE terminal . 22
9.201 Verification of the limitation of the standing current in the FE . 22
Annex A (normative) Test sequence and number of samples to be submitted for
certification purposes . 32
A.1 Test sequences . 32
A.2 Number of samples to be submitted for full test procedure . 34
A.3 Number of samples to be submitted for simplified test procedures if
submitting simultaneously a range of RCBOs of the same fundamental
design . 35

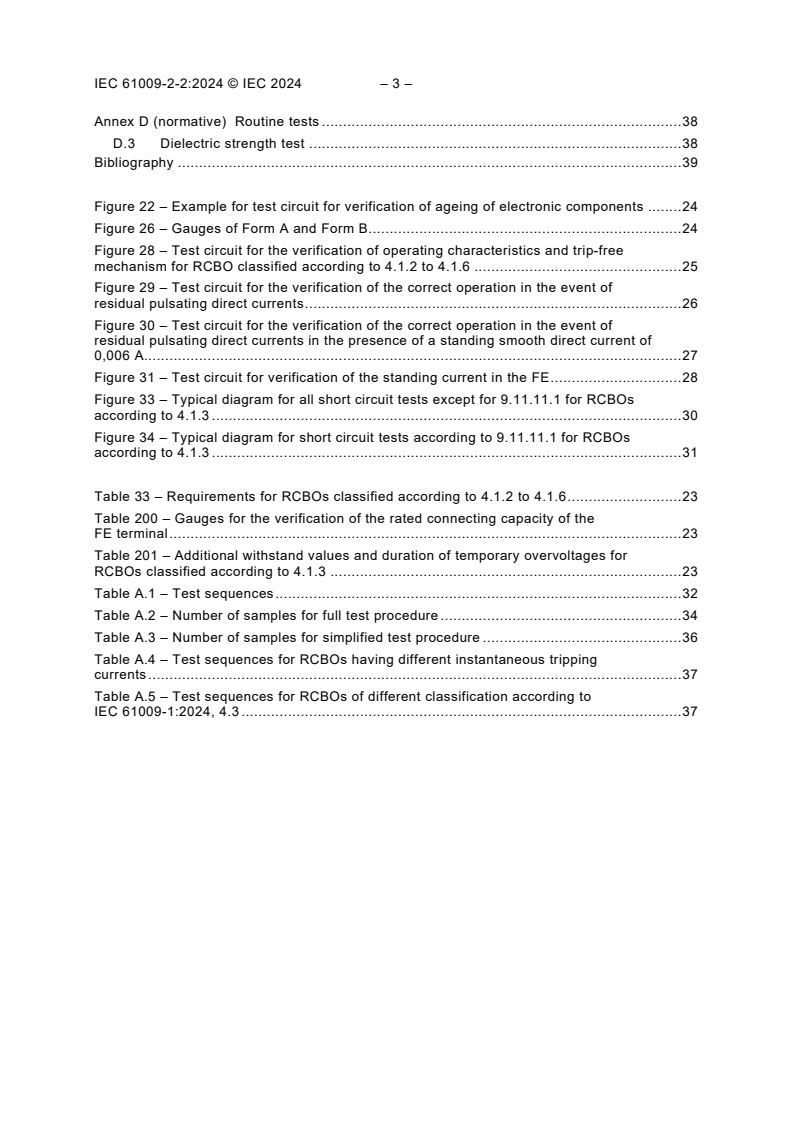

Annex D (normative) Routine tests . 38
D.3 Dielectric strength test . 38
Bibliography . 39
Figure 22 – Example for test circuit for verification of ageing of electronic components . 24
Figure 26 – Gauges of Form A and Form B . 24
Figure 28 – Test circuit for the verification of operating characteristics and trip-free
mechanism for RCBO classified according to 4.1.2 to 4.1.6 . 25
Figure 29 – Test circuit for the verification of the correct operation in the event of
residual pulsating direct currents . 26
Figure 30 – Test circuit for the verification of the correct operation in the event of
residual pulsating direct currents in the presence of a standing smooth direct current of
0,006 A . 27
Figure 31 – Test circuit for verification of the standing current in the FE . 28
Figure 33 – Typical diagram for all short circuit tests except for 9.11.11.1 for RCBOs
according to 4.1.3 . 30
Figure 34 – Typical diagram for short circuit tests according to 9.11.11.1 for RCBOs
according to 4.1.3 . 31
Table 33 – Requirements for RCBOs classified according to 4.1.2 to 4.1.6 . 23
Table 200 – Gauges for the verification of the rated connecting capacity of the
FE terminal . 23
Table 201 – Additional withstand values and duration of temporary overvoltages for
RCBOs classified according to 4.1.3 . 23
Table A.1 – Test sequences . 32
Table A.2 – Number of samples for full test procedure . 34
Table A.3 – Number of samples for simplified test procedure . 36
Table A.4 – Test sequences for RCBOs having different instantaneous tripping
currents . 37
Table A.5 – Test sequences for RCBOs of different classification according to
IEC 61009-1:2024, 4.3 . 37
– 4 – IEC 61009-2-2:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RESIDUAL CURRENT OPERATED CIRCUIT-BREAKERS
WITH INTEGRAL OVERCURRENT PROTECTION
FOR HOUSEHOLD AND SIMILAR USES (RCBOs) –
Part 2-2: RCBOs according to classification
4.1.2, 4.1.3, 4.1.4, 4.1.5 and 4.1.6
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this
...
