Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-7: Examinations and measurements - Wavelength dependence of attenuation and return loss of single mode components

IEC 61300-3-7:2021 describes methods available to measure the wavelength dependence of attenuation and return loss of two-port, single mode passive optical components. It is not, however, applicable to dense wavelength division multiplexing (DWDM) devices. Measurement methods of wavelength dependence of attenuation of DWDM devices are described in IEC 61300-3-29. There are two measurement cases described in this document:
a) measurement of attenuation only;
b) measurement of attenuation and return loss at the same time.
This third edition cancels and replaces the second edition published in 2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) reduction of the number of alternative methods proposed to bring in-line with industry practice;
b) re-statement of the equations for insertion loss and return loss using logarithmic forms more common in the industry;
c) additional recommendations with respect to the creation of fibre terminations;
d) additional discussion on the characterization of the optical sources used in this document;
e) simplification of bi-directional testing;
f) removal of separate return loss only measurement procedures.

Dispositifs d’interconnexion et composants passifs fibroniques - Procédures fondamentales d'essais et de mesures - Partie 3-7: Examens et mesures - Affaiblissement et affaiblissement de réflexion des composants unimodaux en fonction de la longueur d’onde

IEC 61300-3-7:2021 décrit les méthodes disponibles de mesure de l’affaiblissement et de l’affaiblissement de réflexion des composants optiques passifs unimodaux à deux ports en fonction de la longueur d'onde. Elle n’est toutefois pas applicable aux dispositifs de multiplexage par répartition en longueurs d'onde à forte densité (DWDM_dense wavelength division multiplexing). Les méthodes de mesure de l’affaiblissement des dispositifs DWDM en fonction de la longueur d'onde sont décrites dans l’IEC 61300-3-29.
Le présent document décrit deux cas de mesure:
a) mesurage de l’affaiblissement uniquement;
b) mesurage simultané de l’affaiblissement et de l’affaiblissement de réflexion.
Cette troisième édition annule et remplace la deuxième édition parue en 2009. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) réduction du nombre de méthodes alternatives proposées afin de les rendre conformes à la pratique industrielle;
b) nouvel énoncé des équations relatives à la perte d’insertion et à l’affaiblissement de réflexion utilisant des formes logarithmiques plus courantes dans le secteur de l’industrie;
c) recommandations supplémentaires concernant la création de terminaisons de fibres;
d) analyse complémentaire de la caractérisation des sources optiques utilisées dans la présente norme;
d) simplification des essais bidirectionnels;
e) suppression de procédures de mesure distinctes par affaiblissement de réflexion uniquement.

General Information

Status
Published
Publication Date
06-Jul-2021
Current Stage
PPUB - Publication issued
Completion Date
07-Jul-2021
Ref Project

Buy Standard

Standard
IEC 61300-3-7:2021 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-7: Examinations and measurements - Wavelength dependence of attenuation and return loss of single mode components
English and French language
64 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

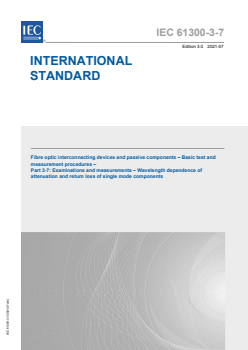

IEC 61300-3-7
