Safety of transformers, reactors, power supply units and combinations thereof - Part 2-23: Particular requirements and tests for transformers and power supply units for construction sites

IEC 61558-2-23:2010 deals with the safety of transformers for construction sites and power supply units incorporating transformers for construction sites. Transformers incorporating electronic circuits are also covered by this standard. This second edition cancels and replaces the first edition published in 2000. It constitutes a technical revision. The main changes consist of updating this Part 2-23 in accordance with IEC 61558-1:2005. This part has the status of a group safety publication in accordance with IEC Guide 104: The preparation of safety publications and the use of basic safety publications and group safety publications. The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 12 months from the date of publication. In the meantime, the previous edition can still be ordered by contacting your local IEC member National Committee or the IEC Central Office.

Sécurité des transformateurs, bobines d'inductance, blocs d'alimentation et des combinaisons de ces élements - Partie 2-23: Règles particulières et essais pour les transformateurs et les blocs d'alimentation pour chantiers

La CEI 61558-2-23:2010 traite de la sécurité des transformateurs pour chantiers et des blocs d'alimentation incorporant des transformateurs pour chantiers. Les transformateurs incorporant des circuits électroniques sont également couverts par la présente norme. Cette deuxième édition annule et remplace la première édition publiée en 2000. Elle constitue une révision technique. Les principales modifications consistent en la mise à jour de la présente partie conformément à la CEI 61558-1:2005. La présente partie a le statut de publication groupée de sécurité conformément au Guide CEI 104: Élaboration des publications de sécurité et utilisation des publications fondamentales de sécurité et publications groupées de sécurité. L'attention des Comités Nationaux est attirée sur le fait que les fabricants des appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire, à la parution d'une publication CEI qu'elle soit nouvelle, modifiée ou révisée, pour mettre les produits en conformité avec les nouvelles exigences et pour s'équiper eux-mêmes afin de réaliser de nouveaux essais ou des essais révisés. Le comité recommande que le contenu de la présente publication soit adopté pour mise en oeuvre au niveau national au plus tôt 12 mois après la date de publication. Pendant ce temps, l'édition précédente peut toujours être commandée auprès du Comité National CEI de votre pays ou auprès du bureau Central de la CEI.

General Information

Status
Published
Publication Date
30-Aug-2010
Current Stage
PPUB - Publication issued
Start Date
31-Aug-2010
Completion Date
31-Aug-2010
Ref Project

Buy Standard

Standard
IEC 61558-2-23:2010 - Safety of transformers, reactors, power supply units and combinations thereof - Part 2-23: Particular requirements and tests for transformers and power supply units for construction sites
English and French language
41 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 61558-2-23
Edition 2.0 2010-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety of transformers, reactors, power supply units and combinations thereof –
Part 2-23: Particular requirements and tests for transformers and power supply
units for construction sites
Sécurité des transformateurs, bobines d’inductance, blocs d'alimentation et des
combinaisons de ces élements –

Partie 2-23: Règles particulières et essais pour les transformateurs et les blocs

d'alimentation pour chantiers
IEC 61558-2-23:2010
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2010 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.

If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub

The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).

It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub

Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available

on-line and also by email.
ƒ Electropedia: www.electropedia.org

The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions

in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical

Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv

If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service

Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI

La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des

normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI

Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez

l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm

Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,

texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.

ƒ Just Published CEI: www.iec.ch/online_news/justpub

Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles

publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org

Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et

définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé

Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm

Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du

Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
---------------------- Page: 2 ----------------------
IEC 61558-2-23
Edition 2.0 2010-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety of transformers, reactors, power supply units and combinations thereof –
Part 2-23: Particular requirements and tests for transformers and power supply
units for construction sites
Sécurité des transformateurs, bobines d’inductance, blocs d'alimentation et des
combinaisons de ces élements –

Partie 2-23: Règles particulières et essais pour les transformateurs et les blocs

d'alimentation pour chantiers
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX
ICS 29.180 ISBN 978-2-88912-162-5
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

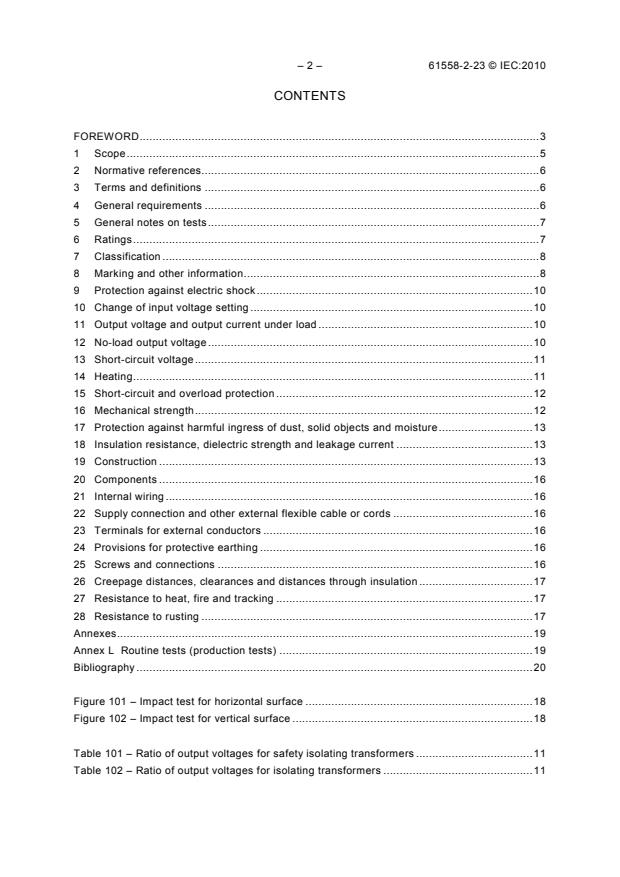

– 2 – 61558-2-23 © IEC:2010
CONTENTS

FOREWORD...........................................................................................................................3

1 Scope...............................................................................................................................5

2 Normative references........................................................................................................6

3 Terms and definitions .......................................................................................................6

4 General requirements .......................................................................................................6

5 General notes on tests......................................................................................................7

6 Ratings.............................................................................................................................7

7 Classification ....................................................................................................................8

8 Marking and other information...........................................................................................8

9 Protection against electric shock.....................................................................................10

10 Change of input voltage setting .......................................................................................10

11 Output voltage and output current under load ..................................................................10

12 No-load output voltage....................................................................................................10

13 Short-circuit voltage........................................................................................................11

14 Heating...........................................................................................................................11

15 Short-circuit and overload protection ...............................................................................12

16 Mechanical strength........................................................................................................12

17 Protection against harmful ingress of dust, solid objects and moisture.............................13

18 Insulation resistance, dielectric strength and leakage current ..........................................13

19 Construction ...................................................................................................................13

20 Components ...................................................................................................................16

21 Internal wiring .................................................................................................................16

22 Supply connection and other external flexible cable or cords ...........................................16

23 Terminals for external conductors ...................................................................................16

24 Provisions for protective earthing ....................................................................................16

25 Screws and connections .................................................................................................16

26 Creepage distances, clearances and distances through insulation ...................................17

27 Resistance to heat, fire and tracking ...............................................................................17

28 Resistance to rusting ......................................................................................................17

Annexes................................................................................................................................19

Annex L Routine tests (production tests) ..............................................................................19

Bibliography ..........................................................................................................................20

Figure 101 – Impact test for horizontal surface ......................................................................18

Figure 102 – Impact test for vertical surface ..........................................................................18

Table 101 – Ratio of output voltages for safety isolating transformers ....................................11

Table 102 – Ratio of output voltages for isolating transformers ..............................................11

---------------------- Page: 4 ----------------------
61558-2-23 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
_____________
SAFETY OF TRANSFORMERS, REACTORS,
POWER SUPPLY UNITS AND COMBINATIONS THEREOF –
Part 2-23: Particular requirements and tests for transformers
and power supply units for construction sites
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61558-2-23 has been prepared by IEC Technical Committee 96:

Transformers, reactors, power supply units, and combinations thereof.

This second edition cancels and replaces the first edition published in 2000. It constitutes a

technical revision. The main changes consist of updating this Part 2-23 in accordance with

IEC 61558-1:2005.

This part has the status of a group safety publication in accordance with IEC Guide 104: The

preparation of safety publications and the use of basic safety publications and group safety

publications.
---------------------- Page: 5 ----------------------
– 4 – 61558-2-23 © IEC:2010
The text of this standard is based on the following documents:
FDIS Report on voting
96/359/FDIS 96/368/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part is intended to be used in conjunction with the latest edition of IEC 61558-1 and its

amendments. It is based on the second edition (2005) of that standard.

This part supplements or modifies the corresponding clauses in IEC 61558-1, so as to convert

that publication into the IEC standard: Particular requirements and tests for transformers and

power supply units for construction sites.

A list of all parts of the IEC 61558 series, under the general title: Safety of transformers,

reactors, power supply units and combinations thereof, can be found on the IEC website.

Future standards in this series will carry the new general title as cited above. Titles of existing

standards in this series will be updated at the time of the next edition.

Where a particular subclause of Part 1 is not mentioned in this part, that subclause applies as

far as is reasonable. Where this part states "addition", "modification" or "replacement", the

relevant text of Part 1 is to be adapted accordingly.
In this part, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– explanatory matter: in smaller roman type.
In the text of this part, the words in bold are defined in Clause 3.

Subclauses, notes, figures and tables additional to those in Part 1 are numbered starting from

101; supplementary annexes are entitled AA, BB, etc.

The committee has decided that the contents of this publication will remain unchanged until the

stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to

the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation

nationally not earlier than 12 months from the date of publication.
---------------------- Page: 6 ----------------------
61558-2-23 © IEC:2010 – 5 –
SAFETY OF TRANSFORMERS, REACTORS,
POWER SUPPLY UNITS AND COMBINATIONS THEREOF –
Part 2-23: Particular requirements and tests for transformers
and power supply units for construction sites
1 Scope
Replacement:

This part of IEC 61558 deals with the safety of transformers for construction sites and

power supply units incorporating transformers for construction sites. Transformers

incorporating electronic circuits are also covered by this standard.
NOTE 1 Safety includes electrical, thermal and mechanical aspects.

Unless otherwise specified, from here onward, the term transformer covers transformers for

construction sites and power supply units incorporating transformers for construction

sites.

This part is applicable to stationary or portable, single-phase or polyphase, air-cooled (natural

or forced) independent or associated transformers, being isolating or safety isolating dry-

type transformers for the use on construction sites. The windings may be encapsulated or

non-encapsulated.

The rated supply voltage does not exceed 1 000 V a.c., and the rated supply frequency and

the internal operating frequencies do not exceed 500 Hz.

This standard used in combination with Part 2-16 for Switch mode power supply units

(SMPS) is also applicable to power supplies with internal operating frequencies higher than

500 Hz. Where the two requirements are in conflict the most severe take precedence

The rated output does not exceed:
– 25 kVA for single-phase transformers;
– 40 kVA for poly-phase transformers.

This part is applicable to transformers without limitation of the rated output subject to an

agreement between the purchaser and the manufacturer.

NOTE 2 Transformers intended to supply distribution networks are not included in the scope.

Isolating transformers and power supply units incorporating isolating transformers for

construction sites have a no-load output voltage and a rated output voltage exceeding 50

V a.c. and not exceeding 250 V a.c.

Safety isolating transformers and power supply units incorporating safety isolating

transformers for construction sites have a no-load output voltage and a rated output

voltage not exceeding 50 V a.c.

NOTE 3 This standard is applicable to transformers for the supply of electricity in locations as specified in

IEC 60364-7-704. The latter also specifies the protection by using an earthed midpoint or starpoint of the output

winding.
---------------------- Page: 7 ----------------------
– 6 – 61558-2-23 © IEC:2010

Transformers and power supply units covered by this part are used in applications where it

is required by the installation rules or by the appliance specification for protection purposes.

When the transformers or power supply units are incorporated into low voltage switchgear

and controlgear assemblies for construction sites as specified in IEC 60439-4, the

additional requirements of IEC 60439-4 will apply to the assembly.

NOTE 4 For transformers filled with liquid dielectric or pulverised material, such as sand, additional requirements

are under consideration.
NOTE 5 Attention is drawn to the following:

– measures to protect the enclosure and the components inside the enclosure against external influences

like fungus, vermin, termites, solar-radiation and icing should also be considered;

– the different conditions for transportation, storage, and operation of the transformers and power supply

units should also be considered;

– additional requirements in accordance with other appropriate standards and national rules may be

applicable to transformers and power supply units intended for use in special environments such as

tropical environment.

NOTE 6 Future technological development of transformers may necessitate a need to increase the upper limit of

the frequencies, until then this standard may be used as a guidance document.
2 Normative references
This clause of Part 1 is applicable except as follows:
Addition:

IEC 60068-2-27, Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock

IEC 60439-4, Low-voltage switchgear and controlgear assemblies – Part 4: Particular

requirements for assemblies for construction sites (ACS)

IEC 61558-1:2005, Safety of power transformers, power supplies, reactors and similar products

– Part 1: General requirements and tests
3 Terms and definitions
This clause of Part 1 is applicable except as follows:
Addition:
3.101
low voltage switchgear and controlgear assembly for construction sites (ACS)

combination of one or several transforming or switching devices with associated control,

measuring, signalling, protective and regulating equipment complete with all their internal

electrical and mechanical connections and structural parts, designed and built for use on all

construction sites, indoors or outdoors.
4 General requirements
This clause of Part 1 is applicable.
---------------------- Page: 8 ----------------------
61558-2-23 © IEC:2010 – 7 –
5 General notes on tests
This clause of Part 1 is applicable.
6 Ratings
This clause of part 1 is applicable except as follows:
Addition:
6.101 The rated output voltage shall not exceed:

– 250 V a.c. for isolating transformers with a non-earthed mid-point (single-phase) or a

non-earthed star-point (three-phase) or delta connection (three-phase) and for power

supply units incorporating such transformers;

– 110 V a.c. for isolating transformers with a mid-point (single-phase) earthed in the

construction or a star-point (three-phase) earthed in the construction and for power

supply units incorporating such transformers;

– 50 V a.c. for safety isolating transformers and for power supply units incorporating

safety isolating transformers.
The rated output voltage shall exceed:

– 50 V a.c. for isolating transformers and for power supply units incorporating isolating

transformers.
Preferred values for the rated output voltage are
– 110 V and 230 V for portable, single-phase isolating transformers;
– 72 V, 110 V and 230 V for other isolating transformers;
– 6 V, 12 V, 24 V, 42 V and 48 V for safety isolating transformers.
6.102 The rated output shall not exceed:
– 25 kVA for single-phase isolating and safety isolating transformers and power
supply units incorporating such transformers;

– 40 kVA for polyphase isolating and safety isolating transformers and power supply

units incorporating such transformers;
Preferred values for the rated output are

– 25 VA, 40 VA, 63 VA, 100 VA, 160 VA, 250 VA, 400 VA, 630 VA, 1 000 VA, 1 600 VA,

– 2 500 VA, 4 000 VA, 6 300 VA, 10 kVA, 16 kVA and 25 kVA for single-phase
transformers;

– 630 VA, 1 000 VA, 1 600 VA, 2 500 VA, 4 000 VA, 6 300 VA, 10 kVA, 16 kVA, 25 kVA

and 40 kVA for poly-phase transformers.

Intermittent duty cycle may be assigned only to portable transformers and power supply

units having a rated output not exceeding 6,3 kVA.
6.103 The rated supply frequency shall not exceed 500 Hz.
6.104 The rated supply voltage shall not exceed 1 000 V a.c.

6.105 Transformers with intermittent duty cycle shall be intended for a rated operating

time of 5 min "on" and a resting time of 15 min "off".
---------------------- Page: 9 ----------------------
– 8 – 61558-2-23 © IEC:2010

6.106 The supply current is limited to a maximum of 125 A, and in the case of flexible cable

or socket outlet, to 63 A.
Compliance with 6.101 to 6.106 is checked by inspection of the marking.
7 Classification
This clause of Part 1 is applicable except as follows:
7.5 Replacement:
According to their duty type:
– continuous duty;
– intermittent duty cycle.
8 Marking and other information
This clause of Part 1 is applicable except as follows:
8.1 h) Replacement:

The transformers shall be marked with one of the graphical symbols shown in 8.11;

8.11 Addition:
Symbol or Explanation or title Identification
graphical symbol
Isolating transformer for construction site, fail-safe IEC 60417-
6010-1
Isolating transformer for construction site, fail- safe, IEC 60417-
safety 6010-2
Isolating transformer for construction site, fail-safe, IEC 60417-
mid-point or star-point earthed 6010-3
---------------------- Page: 10 ----------------------
61558-2-23 © IEC:2010 – 9 –
Symbol or Explanation or title Identification
graphical symbol
Isolating transformer for construction sites, non-short- IEC 60417-
circuit proof 6010-4
Isolating transformer for construction sites, non-short- IEC 60417-
circuit proof, safety 6010-5
Isolating transformer for construction sites, non-short- IEC 60417-
circuit proof, mid-point or star-point earthed 6010-6
Isolating transformer for construction sites, short- IEC 60417-
circuit proof 6010-7
Isolating transformer for construction sites, short- IEC 60417-
circuit proof, safety 6010-8
Isolating transformer for construction sites, short- IEC 60417-
circuit proof, mid-point or star-point earthed 6010-9
---------------------- Page: 11 ----------------------
– 10 – 61558-2-23 © IEC:2010
9 Protection against electric shock
This clause of Part 1 is applicable.
10 Change of input voltage setting
This clause of Part 1 is applicable.
11 Output voltage and output current under load
This clause of Part 1 is applicable.
12 No-load output voltage
This clause of Part 1 is applicable except as follows:
Addition:
12.101 The no-load output voltage shall not exceed:

– 250 V a.c. for isolating transformers with a non-earthed mid-point (single-phase) or a

non-earthed star-point (three-phase) or delta connection (three-phase) and for power

supply units incorporating such transformers;

– 116 V a.c. for isolating transformers with a mid-point (single-phase) earthed in the

construction or a star-point (three-phase) earthed in the construction and for power

supply units incorporating such transformers;

– 50 V a.c. for safety isolating transformers and for power supply units incorporating

safety isolating transformers.

For independent transformers, the no-load output voltage limitation applies even

when output windings, not intended for interconnection, are connected in series.
The no-load output voltage shall exceed:

– 50 V a.c. for isolating transformers and power supply units incorporating isolating

transformers.

12.102 The difference between the no-load output voltage and the output voltage under

load shall not be excessive.

Compliance with the requirements of 12.101 and 12.102 is checked by measuring the no-load

output voltage at the ambient temperature when the transformer is connected to the rated

supply voltage at the rated supply frequency.

The difference between the no-load output voltage measured in this clause and the output

voltage under load measured during the test of Clause 11, expressed as a percentage of the

latter voltage, shall not exceed the values shown in Table 101 or Table 102.
U – U
no-load
load
NOTE The ratio is defined as follows: × 100 %
load
---------------------- Page: 12 ----------------------
61558-2-23 © IEC:2010 – 11 –
Table 101 – Ratio of output voltages for safety isolating transformers
Type of transformer Ratio between no-load output voltage and output
Rated output voltage under load
VA %
Inherently short-circuit proof transformers:
-up to and including 63 100
-over 63 up to and including 630 50
-over 630 20
Other transformers:
-up to and including 10 100
-over 10 up to and including 25 50
-over 25 up to and including 63 20
-over 63 up to and including 250 15
-over 250 up to and including 630 10
-over 630 5
Table 102 – Ratio of output voltages for isolating transformers
Rated output Ratio between no-load output voltage and output
voltage under load
VA %
All type of transformers:
-up to and including 63 20
-over 63 up to and including 250 15
-over 250 up to and including 630 10
-over 630 5

For single phase transformers with earthed midpoint, the voltage between any pole of the

no - load output voltage
⎛ ⎞
output circuit and earth shall not exceed the ± 2,5 %.
⎜ ⎟
⎝ ⎠

For three phase transformers with earthed star-point, the voltage between any pole of the

no - load output voltage
⎛ ⎞
output circuit and earth shall not exceed the ⎜ ⎟ ± 2,5 %.
⎝ ⎠
13 Short-circuit voltage
This clause of Part 1 is applicable.
14 Heating
This clause of Part 1 is applicable.
---------------------- Pa
...
