IEC 61439-5:2023

Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks

IEC 61439-5:2023 is available as IEC 61439-5:2023 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 61439-5:2023 defines the specific requirements for public electricity network distribution assemblies (PENDAs). PENDAs have the following criteria:
- used for the distribution of electrical energy in three phase systems for which the rated voltage does not exceed 1 000 V AC (see Figure 101 for a typical distribution network) and DC systems not exceeding 1 500 V DC;
- stationary;
- open type assemblies are not covered by this document;
- suitable for installation in places where only skilled persons have access for their use, however, outdoor types can be installed in situations that are accessible to ordinary persons
- intended for use in energy distribution in public power grids;
- indoor use: assemblies for installation inside of electric power substations;
- outdoor use: assemblies containing an enclosure suitable for open air installation.
This third edition cancels and replaces the second edition published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) omission of the requirement to conduct mechanical tests at -25 °C when enclosures are made of a metallic material;
b) addition of assumed loading factors generation supplies and electric vehicle charging applications;
c) additional dielectric tests when a PENDA is used in a distribution substation with separate HV and LV earths;
d) further clarification of representative samples for design verification.

Ensembles d'appareillage à basse tension - Partie 5: Ensembles pour réseaux de distribution publique

IEC 61439-5:2023 est disponible sous forme de IEC 61439-5:2023 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 61439-5:2023 définit les exigences spécifiques aux ensembles pour réseaux de distribution publique d'électricité (ERD). Les ERD remplissent les critères suivants:
- ils sont utilisés pour la distribution de l'énergie électrique dans des systèmes triphasés pour lesquels la tension assignée ne dépasse pas 1 000 V en courant alternatif (se reporter à la Figure 101 qui représente un réseau de distribution classique) et des systèmes à courant continu qui ne dépassent pas 1 500 V en courant continu;
- ils sont fixes;
- les ensembles ouverts ne sont pas couverts par le présent document;
- ils sont adaptés à une installation dans des emplacements où seules des personnes qualifiées ont accès pour leur utilisation; cependant, les types pour l'extérieur peuvent être installés dans des endroits accessibles à des personnes ordinaires;
- ils sont destinés à être utilisés dans les réseaux de distribution publique;
- à l'intérieur: ensembles installés à l'intérieur de postes d'alimentation électrique;
- à l'extérieur: ensembles avec une enveloppe adaptée à une installation en plein air.
Cette troisième édition annule et remplace la deuxième édition parue en 2014. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) omission de l'exigence de réalisation d'essais mécaniques à -25 °C lorsque les enveloppes sont en matériau métallique;
b) ajout d'application de charge de véhicules électriques et de production d'énergie avec des facteurs de charge présumés;
c) ajout d'essais diélectriques lorsqu'un ERD est utilisé dans un poste avec terres HT et BT séparées;
d) description plus détaillée des échantillons représentatifs pour la vérification de la conception.

General Information

• Status: Published
• Publication Date: 03-May-2023
• ICS: 29.130.20 - Low voltage switchgear and controlgear
• Technical Committee: SC 121B - Low-voltage switchgear and controlgear assemblies
• Drafting Committee: MT 7 - TC 121/SC 121B/MT 7
• Current Stage: PPUB - Publication issued
• Start Date: 02-Jun-2023
• Completion Date: 05-May-2023

Relations

• Revises: IEC 61439-5:2014 - Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks
• Effective Date: 05-Sep-2023
• Revises: IEC 61439-5:2014/COR1:2015 - Corrigendum 1 - Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 61439-5 ®
Edition 3.0 2023-05
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside

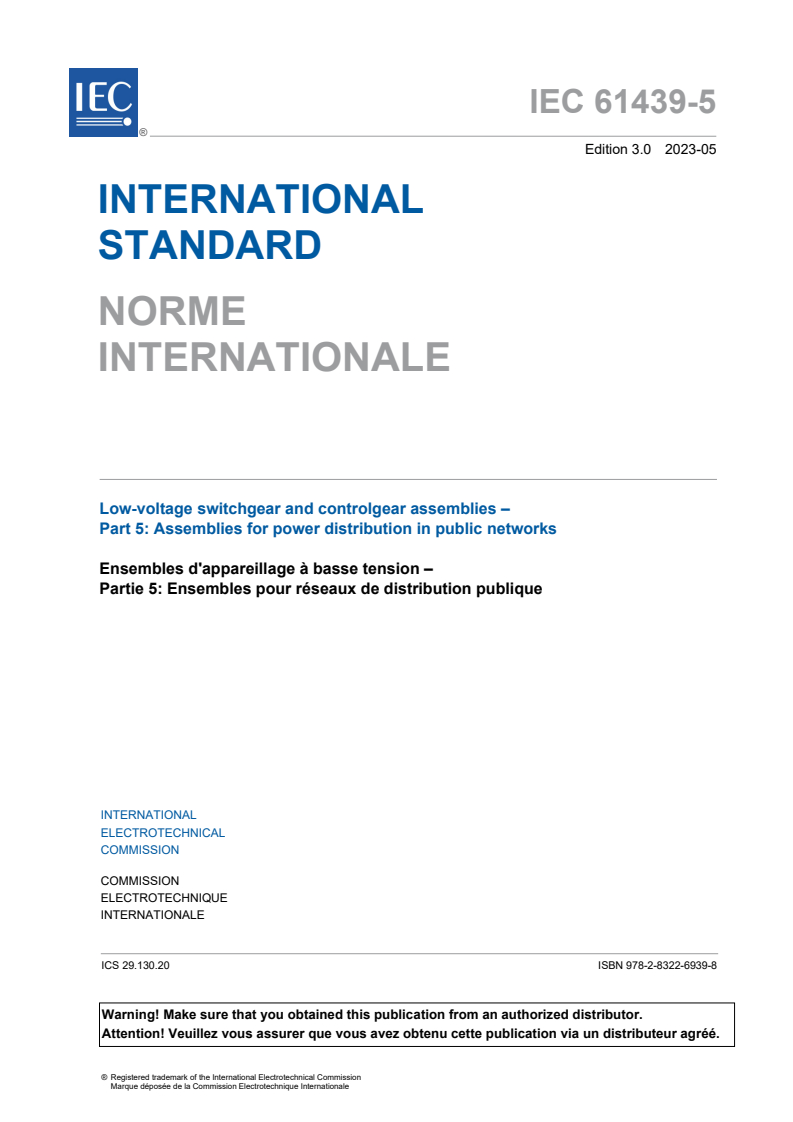

Low-voltage switchgear and controlgear assemblies –
Part 5: Assemblies for power distribution in public networks

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61439-5 ®
Edition 3.0 2023-05
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Low-voltage switchgear and controlgear assemblies –
Part 5: Assemblies for power distribution in public networks
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.130.20 ISBN 978-2-8322-6987-9

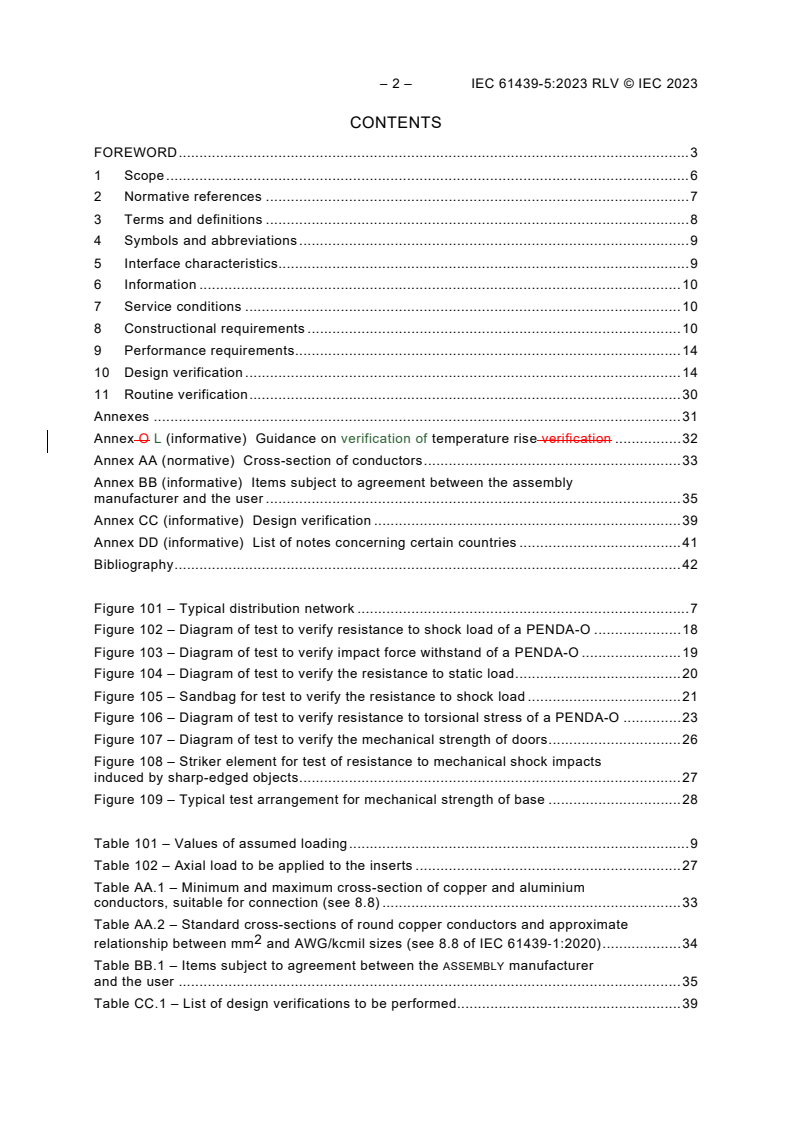

– 2 – IEC 61439-5:2023 RLV © IEC 2023
