IEC 62271-214:2024/COR1:2025
(Corrigendum)Corrigendum 1 - High-voltage switchgear and controlgear - Part 214: Internal arc classification for AC metal-enclosed pole-mounted switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV
Corrigendum 1 - High-voltage switchgear and controlgear - Part 214: Internal arc classification for AC metal-enclosed pole-mounted switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV
Corrigendum 1 - Appareillage à haute tension - Partie 214 : Classification arc interne des appareillages sous enveloppe métallique à courant alternatif de tensions assignées supérieures à 1 kV et inférieures ou égales à 52 kV montées sur poteau
General Information
Relations
Standards Content (Sample)

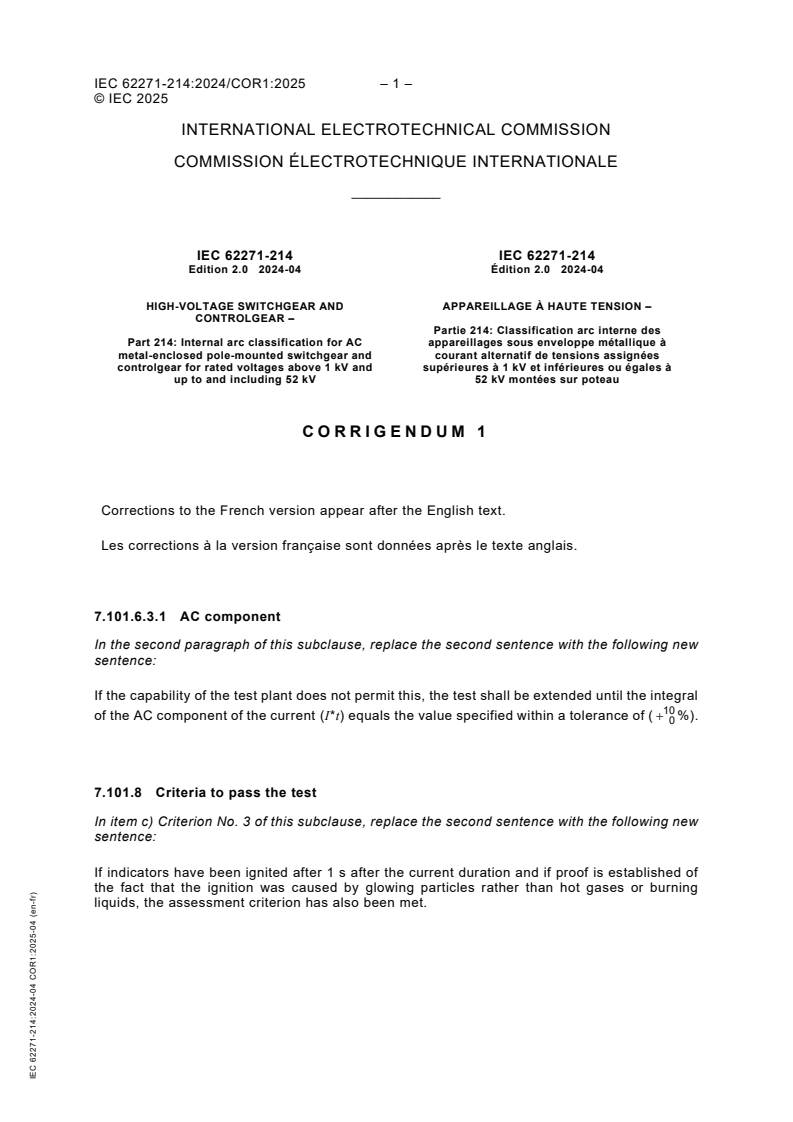

© IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 62271-214 IEC 62271-214
Edition 2.0 2024-04 Édition 2.0 2024-04
HIGH-VOLTAGE SWITCHGEAR AND APPAREILLAGE À HAUTE TENSION –
CONTROLGEAR –
Partie 214: Classification arc interne des
Part 214: Internal arc classification for AC appareillages sous enveloppe métallique à
metal-enclosed pole-mounted switchgear and courant alternatif de tensions assignées
controlgear for rated voltages above 1 kV and supérieures à 1 kV et inférieures ou égales à
up to and including 52 kV 52 kV montées sur poteau
CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.
7.101.6.3.1 AC component
In the second paragraph of this subclause, replace the second sentence with the following new
sentence:
If the capability of the test plant does not permit this, the test shall be extended until the integral
of the AC component of the current (I*t) equals the value specified within a tolerance of (+ %).
7.101.8 Criteria to pass the test
In item c) Criterion No. 3 of this subclause, replace the second sentence wit
...
