Amendment 1 - Electroacoustics - Measurement microphones - Part 2: Primary method for pressure calibration of laboratory standard microphones by the reciprocity technique

Amendement 1 - Electroacoustique - Microphones de mesure - Partie 2: Méthode primaire pour l'étalonnage en pression des microphones étalons de laboratoire par la méthode de réciprocité

General Information

Publication Date
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
Ref Project

Buy Standard

IEC 61094-2:2009/AMD1:2022 - Amendment 1 - Electroacoustics - Measurement microphones - Part 2: Primary method for pressure calibration of laboratory standard microphones by the reciprocity technique
English and French language
13 pages
sale 15% off
sale 15% off

Standards Content (sample)

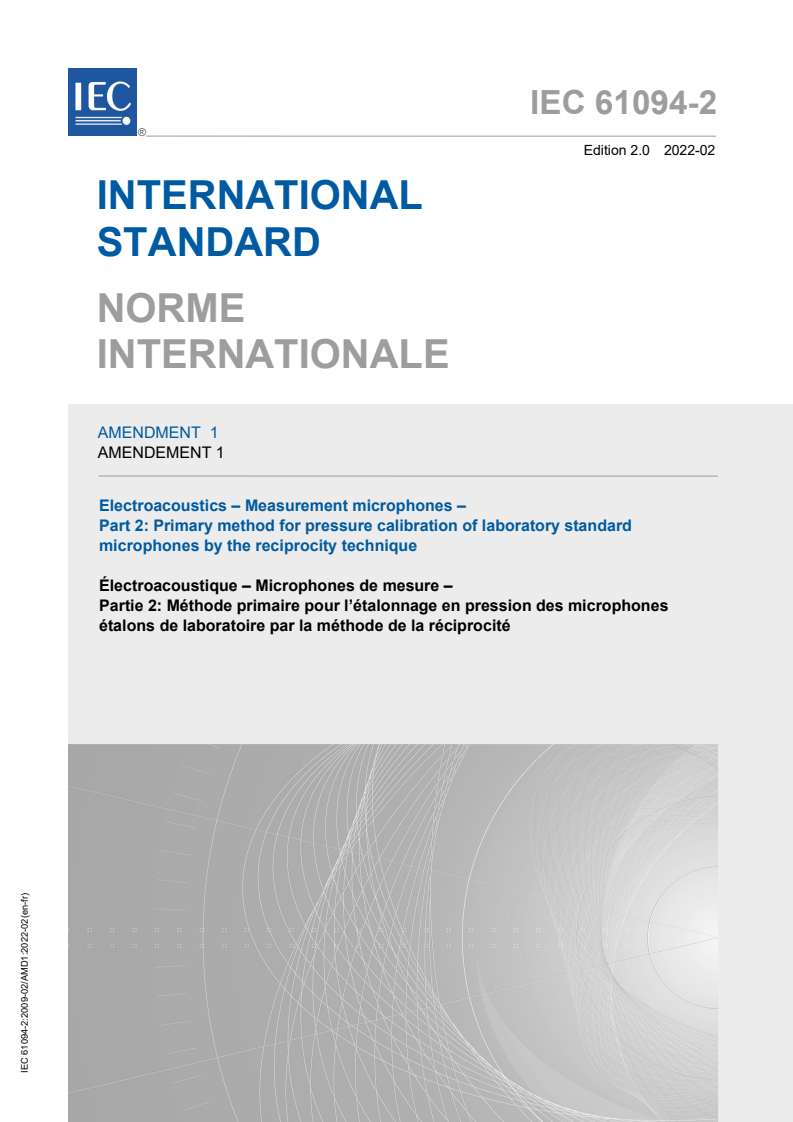

IEC 61094-2
Edition 2.0 2022-02
Electroacoustics – Measurement microphones –
Part 2: Primary method for pressure calibration of laboratory standard
microphones by the reciprocity technique
Électroacoustique – Microphones de mesure –
Partie 2: Méthode primaire pour l’étalonnage en pression des microphones
étalons de laboratoire par la méthode de la réciprocité
IEC 61094-2:2009-02/AMD1:2022-02(en-fr)
---------------------- Page: 1 ----------------------

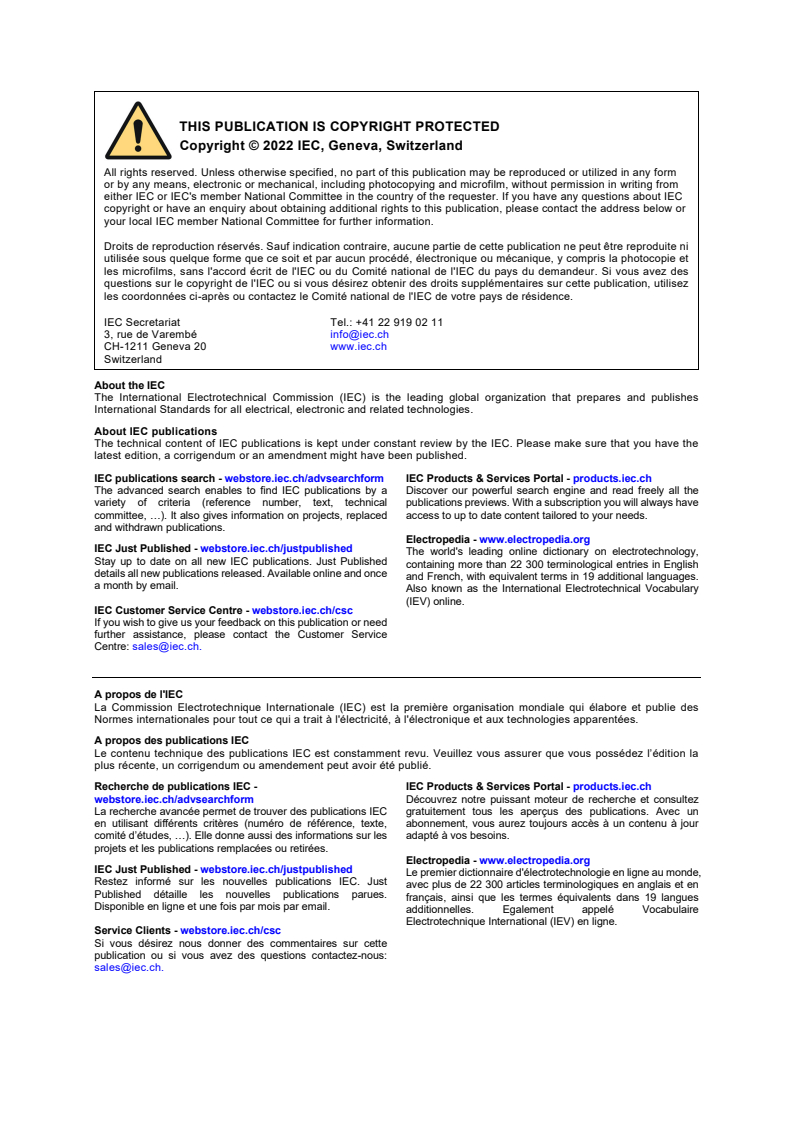

Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé
CH-1211 Geneva 20
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal -

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always have

committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia -
IEC Just Published -
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre -
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur les adapté à vos besoins.

projets et les publications remplacées ou retirées.
Electropedia -
IEC Just Published -
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 300 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 19 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients -
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
---------------------- Page: 2 ----------------------

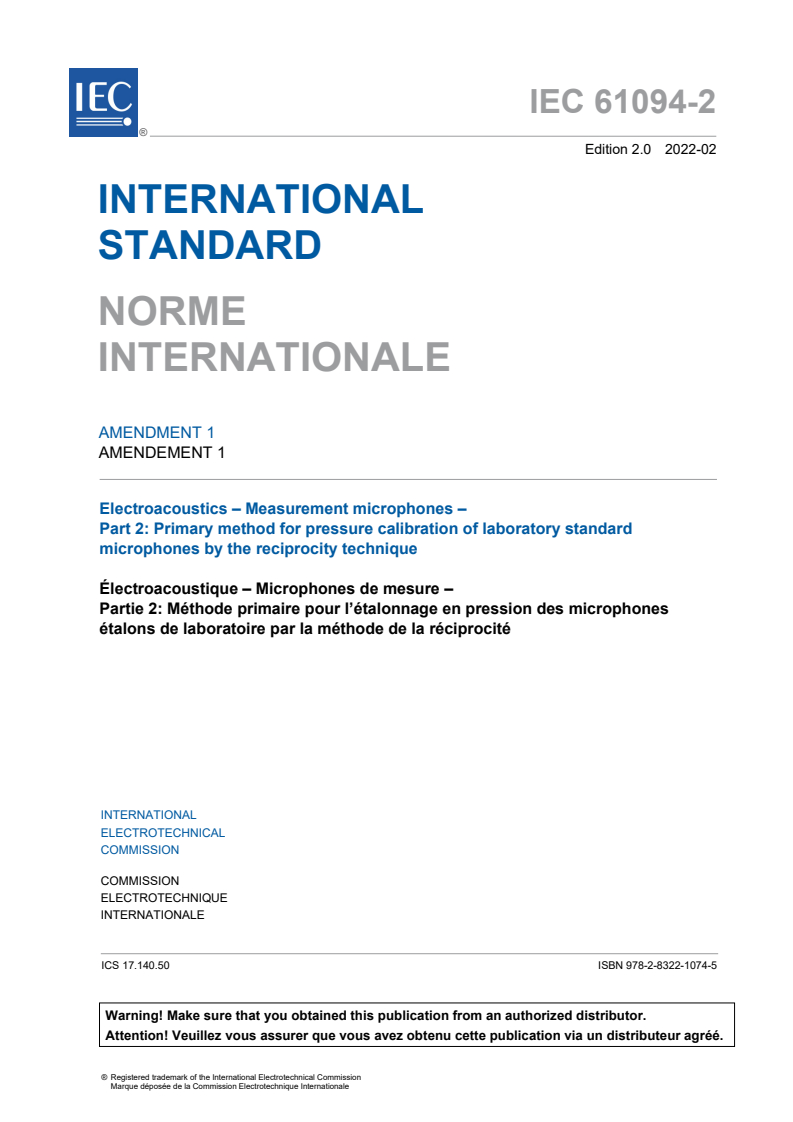

IEC 61094-2
Edition 2.0 2022-02
Electroacoustics – Measurement microphones –
Part 2: Primary method for pressure calibration of laboratory standard
microphones by the reciprocity technique
Électroacoustique – Microphones de mesure –
Partie 2: Méthode primaire pour l’étalonnage en pression des microphones
étalons de laboratoire par la méthode de la réciprocité
ICS 17.140.50 ISBN 978-2-8322-1074-5

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

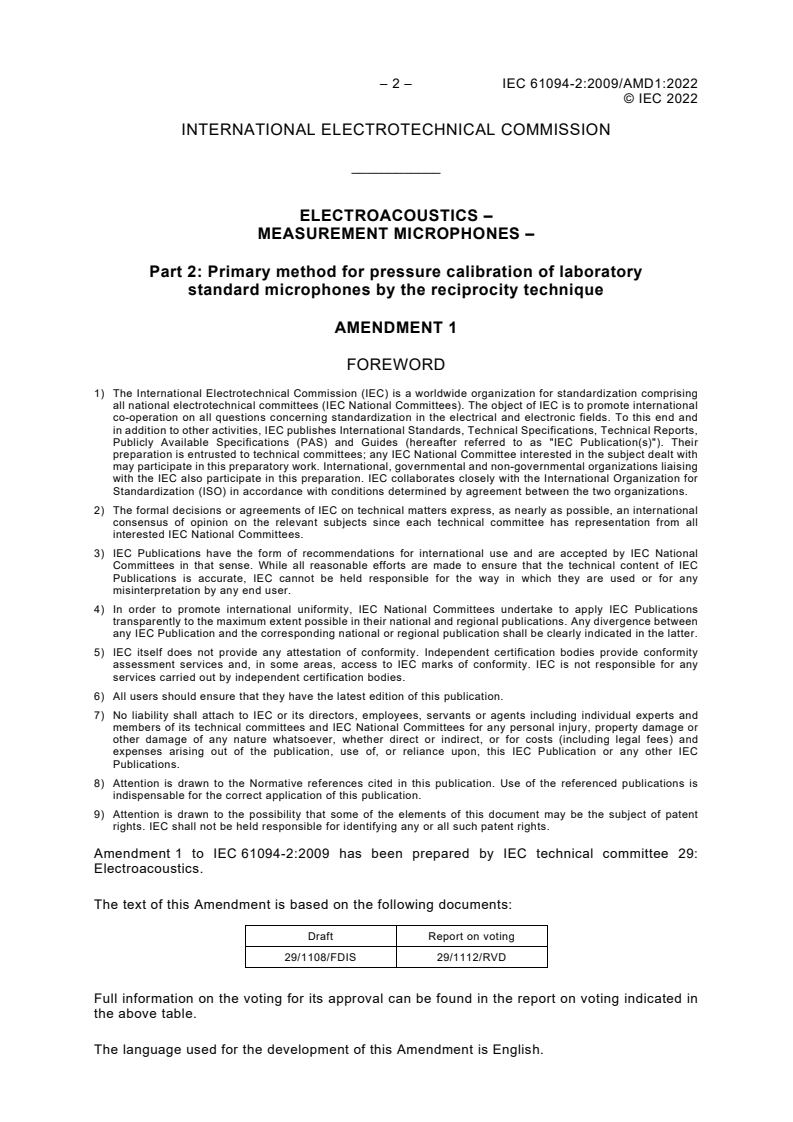

– 2 – IEC 61094-2:2009/AMD1:2022
© IEC 2022
Part 2: Primary method for pressure calibration of laboratory
standard microphones by the reciprocity technique

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC


8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

Amendment 1 to IEC 61094-2:2009 has been prepared by IEC technical committee 29:
The text of this Amendment is based on the following documents:
Draft Report on voting
29/1108/FDIS 29/1112/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this Amendment is English.
---------------------- Page: 4 ----------------------
IEC 61094-2:2009/AMD1:2022 – 3 –
© IEC 2022

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at The main document types developed by IEC are

described in greater detail at

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
5.5 Heat-conduction correction
Add, after the second existing paragraph, the following new paragraph:

At medium frequencies, transmission line theory, Equation (4), is applied to account for plane

wave propagation in the coupler, but the influence of heat conduction at the ends of the coupler

cannot be modelled accurately as impedances at the end surfaces. However, it can be

demonstrated that, at frequencies where the pressure variations in the length direction of the

coupler are moderate, the usable frequency range of the correction factor Δ can be extended

by application of Δ to the cross-sectional area of the coupler, S , for the calculation of the

H 0

acoustic impedance of the plane waves in the coupler, Z = ρc/S and setting α equal to zero

a,0 0
and β equal to ω/c in Equation (4).
Add, after the last existing paragraph, the following notes:

NOTE 1 At the lowest frequencies, application of the correction factor Δ to the cross-sectional area of the coupler

in Equation (4) is effectively the same as application of the factor to the volume in Equation (3).

NOTE 2 The two methods described in this standard for accounting for heat conduction and viscosity are not entirely

consistent at any frequency. However, a transition frequency range can be identified for plane wave couplers used

for reciprocity calibration. Estimates for the frequency range of validity are given in Annex A.

6 Factors influencing the pressure sensitivity of microphones
Add, after the existing 6.5, the following new subclause:
6.6 Influence of leakage

At low frequencies, care should be taken to avoid leakage in the coupler as it affects the

acoustic transfer impedance. Alternatively, a capillary tube can be used as a controlled leakage.

In that case, its effects on the acoustic transfer impedance shall be calculated. Front cavity
Replace "NOTE 1" with "NOTE".
Delete the existing Note 2.
---------------------- Page: 5 ----------------------
– 4 – IEC 61094-2:2009/AMD1:2022
© IEC 2022 Acoustic impedance

Replace the existing second and third paragraphs with the following new paragraph:

At low frequencies, heat conduction in the cavity behind the diaphragm and the pressure-

equalizing tube of the microphone contribute significantly to the acoustic impedance of the

microphone. The acoustic impedance Z of each microphone forms an important part of the

acoustic transfer impedance Z of the system. At high frequencies, errors in the determination

of Z influence the accuracy of the calibration in a complicated way.
Replace "NOTE" with "NOTE 1".
Add, after the existing note, the following new note:

NOTE 2 For type LS1 microphones, heat conduction and pressure equalization result in an increase of the

diaphragm compliance that reaches 20 % to 25 % below the lower limiting frequency. For LS2 microphones, the

increase is 6 % to 9 %.
Table 1 – Uncertainty components

Add, in column "Relevant subclause no.", line "Unintentional coupler/microphone leakage", the

references "6.6;".

Delete, in column "Relevant subclause no.", line "Polarizing voltage", the reference "6.5.3".

Replace, in column "Relevant subclause no.", line "Static pressure corrections", the reference

"6.5" with "6.5.1".

Replace, in column "Relevant subclause no.", line "Temperature corrections", the reference

"6.5" with "6.5.2".
A.1 General
Add, before the last existing paragraph, the following new paragraph:

For plane wave couplers, it can be demonstrated that the low frequency solution correction,

when applied to the cross-sectional area of the coupler, is valid at frequencies where pressure

variations due to wave-motion are moderate, see [A.5]
A.2 Low frequency solution
Replace the existing text with the following new text:

At low frequencies, where the sound pressure can be assumed to be the same at all points in

the coupler, the effect of heat conduction can be considered as an apparent increase in the

coupler volume expressed by a complex correction factor ∆ to the geometrical coupler volume

[A.4], V, in Equation (3) or to the cross-sectional area, S , in Equation (4) with γ = 0 + jωc.

Figures in square brackets refer to Clause A.4.
---------------------- Page: 6 ----------------------
IEC 61094-2:2009/AMD1:2022 – 5 –
© IEC 2022
The correction factor is given by:
∆ = κ − (κ − 1)E
H p

where E is a complex quantity derived from the fundamental solution of the Fourier equation

for heat conduction and which depends on the coupler geometry. For finite cylindrical couplers,

the quantity E is given by
 
 
+∞ +∞ 2
 
p mn,
 2 
mn01 2
 
m+ λ
 n
 2 
 
22 2
λR ++(m 1/ 2) π
n 2
FX1+ ,
m,n P
12+ R
( )
and where
R = I / (2a) is the length to diameter ratio of the coupler;
a is the radius of the coupler in metres (m);

λ are the roots of J (λ ) = 0, see [A.6], for example; J () is the cylindrical Bessel

n 0 n 0
function of the first kind, zero order;
X = A 1/− jV 2 αω/ ;
( )
( )
P t
A is the total area surface of the cavity (m );
α is the thermal diffusivity of the enclosed gas in square metres per second
2 –1
(m ⋅s ).

Tabulated values of ∆ for typical dimensions of couplers are given in Table A.1 as function of

frequency and at reference environmental conditions. The data can be used for validation of

calculation software. The tabulated data given are considered accurate to 0,000 01. The

quantity E converges more quickly at low frequencies and for small dimensions of couplers.

For example, the modulus of ∆ is within 0,001 dB from the values in Table A.1 when calculated

for (m,n) = (100,100) at 1 995,3 Hz for the largest coupler and for (m,n) = (2,2) at 1,995 3 Hz for

the smallest coupler mentioned in Table A.1.

When the quantity ∆ , as calculated from Equation (A.1), is applied to Equation (3), the

calculated transfer admittance is assumed to be valid within 0,003 dB for the modulus and

0,01° for the phase at frequencies where λV> 10 ⋅ . When ∆ is applied to S in Equation (4)

H 0

with γ = 0 + jωc, the calculated transfer admittance is assumed to be valid within 0,003 dB and

0,01° at frequencies where λ > 25l . This corresponds to frequencies approximately in the range

1 000 Hz to 3 450 Hz for plane-wave couplers in the range of dimensions given in Table C.1.

---------------------- Page: 7 ----------------------
– 6 – IEC 61094-2:2009/AMD1:2022
© IEC 2022
Table A.1 – Values for Δ
a = 9,3 mm a = 9,3 mm a = 4,65 mm a = 4,65 mm
I = 18,9 mm I = 11,4 mm I = 10,4 mm I = 5,7 mm
0 0 0 0
Re(Δ ) Im(Δ ) Re(Δ ) Im(Δ ) Re(Δ ) Im(Δ ) Re(Δ ) Im(Δ )

1,995 3 1,117 15 –0,091 65 1,141 80 –0,105 09 1,223 30 –0,134 20 1,278 08 –0,136 63

3,981 1 1,083 28 –0,070 22 1,101 15 –0,082 16 1,159 58 –0,113 26 1,198 79 –0,128 79

7,943 3 1,059 08 –0,052 43 1,071 82 –0,062 13 1,113 96 –0,089 93 1,142 13 –0,105 26

15,849 1,041 87 –0,038 50 1,050 92 –0,046 00 1,080 99 –0,068 69 1,101 39 –0,082 31

31,623 1,029 65 –0,027 95 1,036 08 –0,033 59 1,057 44 –0,051 19 1,071 99 –0,062 26

63,096 1,021 00 –0,020 14 1,025 55 –0,024 30 1,040 70 –0,037 54 1,051 04 –0,046 10

125,89 1,014 87 –0,014 44 1,018 09 –0,017 46 1,028 83 –0,027 23 1,036 16 –0,033 66

251,19 1,010 53 –0,010 31 1,012 81 –0,012 49 1,020 41 –0,019 61 1,025 61 –0,024 35

501,19 1,007 45 –0,007 34 1,009 07 –0,008 91 1,014 45 –0,014 05 1,018 14 –0,017 50

1 000,0 1,005 28 –0,005 22 1,006 42 –0,006 34 1,010 23 –0,010 03 1,012 84 –0,012 52

1 995,3 1,003 74 –0,003 71 1,004 55 –0,004 51 1,007 24 –0,007 14 1,009 09 –0,008 93

NOTE 1 The values given in this table are valid at reference environmental conditions only.

NOTE 2 The zero-frequency value of Δ is κ.
A.3 Broad-band solution
Remove the penultimate existing paragraph.
Replace the existing last paragraph with the following new paragraph:

When calculated with Equation (4) using Equations (A.4) to (A.6), the transfer admittance is

estimated to be valid within 0,003 dB and 0,02° at frequencies where λ < 16l a (the factor 16 is

an empirical factor, expressed in m ). This corresponds to frequencies approximately in the

range 175 Hz to 1 150 Hz for plane-wave couplers in the range of dimensions given in

Table C.1.
A.4 Reference documents
Replace the existing reference [A.4] with the following new reference:

S. Acoustic transfer admittance of cylindrical cavities in infrasonic frequency range,

Metrologia, 2018, Vol. 56, No. 1
Add the following references:

[A.5] OLSEN, E.S., Microphone acoustic impedance in reciprocity calibration of laboratory

standard microphones, Proceedings of Forum Acusticum 2020, Paper 1023, 2020

[A.6] WATSON, G.N. A treatise on the theory of Bessel functions. Cambridge University

Press. Second edition, 1944
---------------------- Page: 8 ----------------------
IEC 61094-2:2009/AMD1:2022 – 7 –
© IEC 2022
Annex E – Methods for determining microphone parameters
E.4 Acoustic impedance of the m

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
