IEC 60282-1:2009/AMD1:2014
(Amendment)Amendment 1 - High-voltage fuses - Part 1: Current-limiting fuses
Amendment 1 - High-voltage fuses - Part 1: Current-limiting fuses
Amendement 1 - Fusibles à haute tension - Partie 1: Fusibles limiteurs de courant
General Information
Relations
Standards Content (Sample)

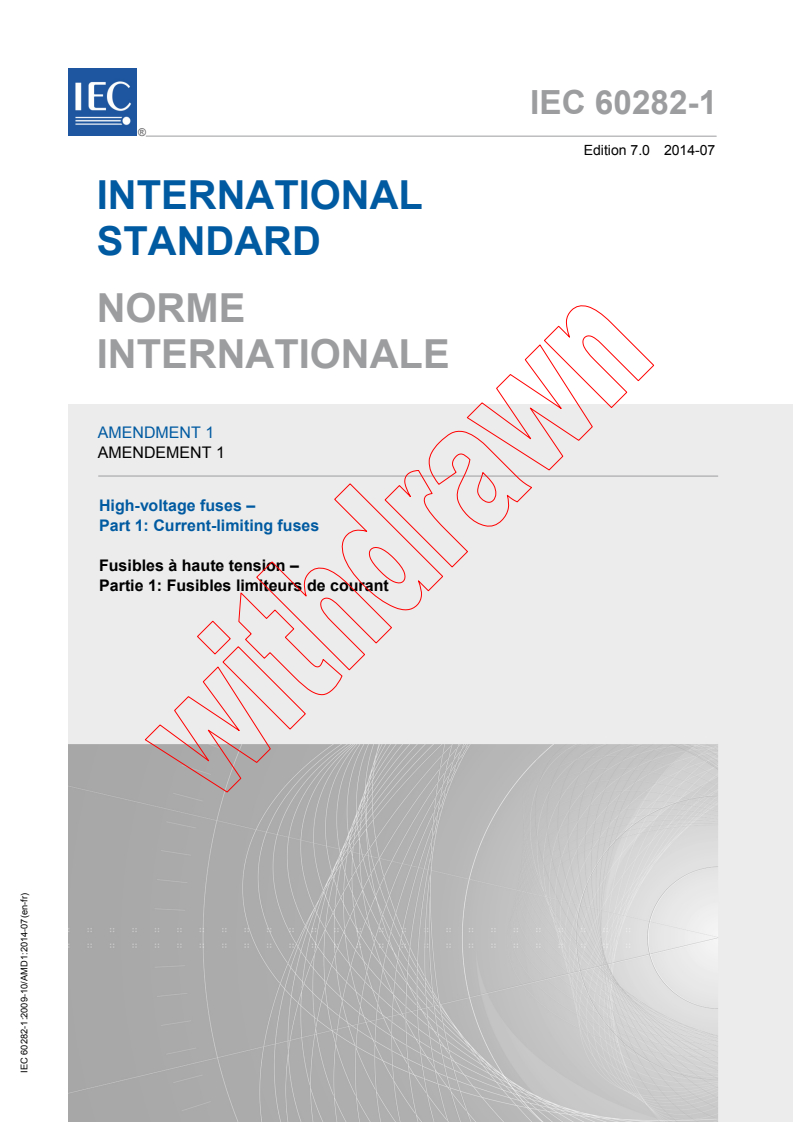

IEC 60282-1 ®
Edition 7.0 2014-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
High-voltage fuses –
Part 1: Current-limiting fuses
Fusibles à haute tension –
Partie 1: Fusibles limiteurs de courant
IEC 60282-1:2009-10/AMD1:2014-07(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des
CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

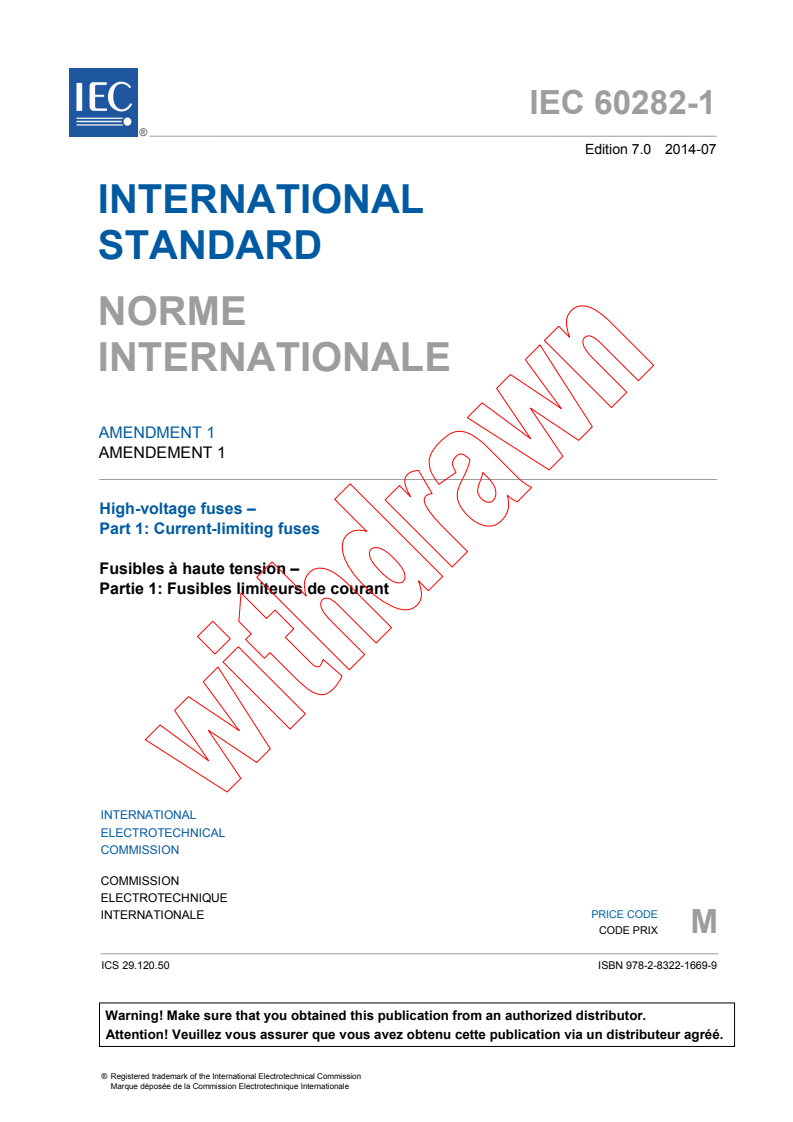

IEC 60282-1 ®
Edition 7.0 2014-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
High-voltage fuses –
Part 1: Current-limiting fuses
Fusibles à haute tension –
Partie 1: Fusibles limiteurs de courant
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.120.50 ISBN 978-2-8322-1669-9

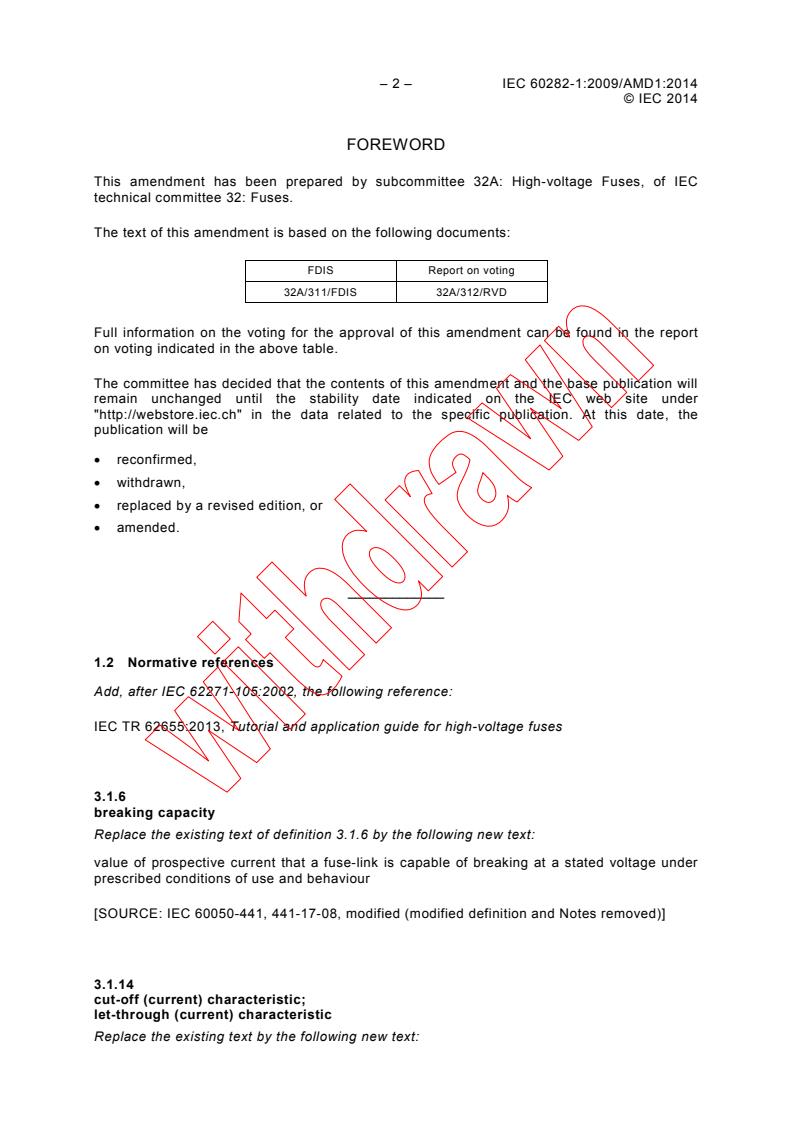

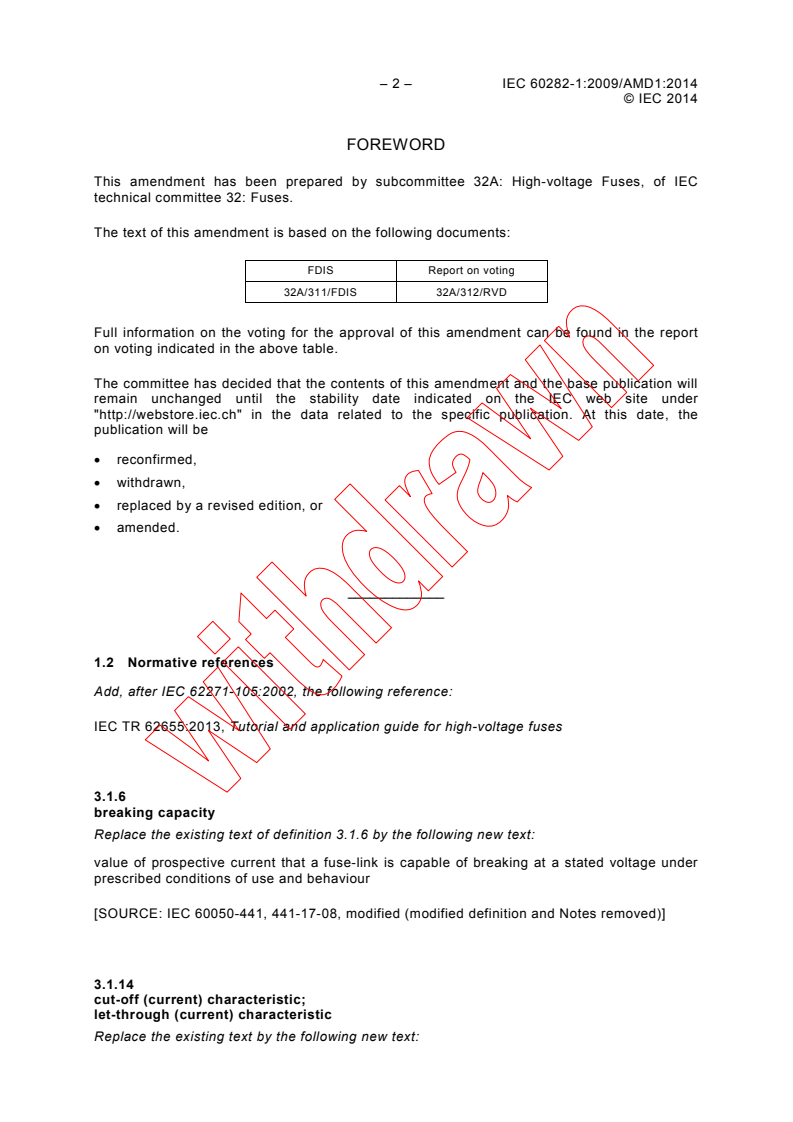

– 2 – IEC 60282-1:2009/AMD1:2014
© IEC 2014
FOREWORD
This amendment has been prepared by subcommittee 32A: High-voltage Fuses, of IEC
technical committee 32: Fuses.
The text of this amendment is based on the following documents:
FDIS Report on voting
32A/311/FDIS 32A/312/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
1.2 Normative references
Add, after IEC 62271-105:2002, the following reference:
IEC TR 62655:2013, Tutorial and application guide for high-voltage fuses
3.1.6
breaking capacity
Replace the existing text of definition 3.1.6 by the following new text:
value of prospective current that a fuse-link is capable of breaking at a stated voltage under
prescribed conditions of use and behaviour
[SOURCE: IEC 60050-441, 441-17-08, modified (modified definition and Notes removed)]
3.1.14
cut-off (current) characteristic;
let-through (current) characteristic
Replace the existing text by the following new text:
© IEC 2014
curve giving the cut-off current as a function of the r.m.s prospective current, under stated
conditions of operation
Note 1: The values of the cut-off currents are the maximum values that can be reached whatever the degree of
asymmetry.
[SOURCE: IEC 60050-441, 441-17-14, modified (modified definition and Note to entry)]
3.1.15
recovery voltage
Replace the existing text of definition 3.1.15 by the following new text:
voltage which appears across the terminals of a fuse after the breaking of the current
Note 1: This voltage may be considered in two successive intervals of time, one during which a transient voltage
exists, followed by a second one during which the power frequency recovery voltage alone exists.
[SOURCE: IEC 60050-441, 441-17-25, modified (modified definition and Note to entry)]
Add the following new definition:
3.1.22
maximum breaking current
maximum value of prospective current that a fuse-link is capable of breaking at a stated
voltage under prescribed conditions of use and behaviour
3.3.2
classes
Replace
"See 9.3.3."
by
"See IEC/TR 62655:2013, 4.2.2."
3.3.4
General-Purpose fuse
Replace the existing definition by the following new defintion:
current-limiting fuse capable of breaking, under specified conditions of use and behaviour, all
currents from the rated maximum breaking current down to a low value equal to the current
that causes melting of the fuse element in 1 h
4.1 General
Replace the existing text of point b)5) by the following new text:
– 4 – IEC 60282-1:2009/AMD1:2014
© IEC 2014
b) 5) Rated minimum breaking current for Back-Up fuses (4.8.2)
4.2 Rated voltage
Replace the existing title and text of 4.2 by the following new title and text (keep the existing
Table 3):
4.2 Rated voltage (U )
r
Voltage used in the designation of the fuse-base or fuse-link, from which the test conditions
are determined.
NOTE 1 This rated voltage represents the highest voltage for equipment (see IEC 60038)
NOTE 2 On three-phase solidly earthed systems, fuses may only be used provided that the highest system
voltage is less than or equal to their rated voltage. On single phase or non-solidly earthed systems, fuses may only
be used provided that the highest system voltage is less than or equal to 87 % of their rated voltage, unless
specific testing has been performed (see IEC/TR 62655:2013, 5.1.3).
The rated voltage of a fuse should be selected from the voltages given in Table 3.
4.3 Rated Insulation level (of a fuse base)
Replace the first two paragraphs of 4.3 by the following new text:
"The voltage values (both power frequency and impulse) that characterise the insulation of
the fuse-base with regard to its capability of withstanding dielectric stresses (see
IEC/TR 62655:2013, 4.5).
Two levels of dielectric withstand are recognised for a fuse-base according to European
practice. These are termed "List 1" and "List 2" and relate to different severities of application
and corresponding different values of test voltage for the dielectric tests
(see IEC/TR 62655:2013, 4.5.2)."
4.6 Rated current of the fuse-link
Replace the existing title and first paragraph of 4.6 by the following new title and text:
4.6 Rated current of the fuse-link (I )
r
The current assigned to the fuse-link that a new clean fuse-link will carry continuously without
exceeding specified temperature rises when mounted on a fuse-base specified by the
manufacturer and connected to the circuit with certain specified conductor sizes and lengths,
at an ambient air temperature of not more than 40 °C (see IEC/TR 62655:2013).
4.7 Temperature-rise limits
Replace the existing Note by the following two new Notes:
NOTE 1 For fuses used in enclosures, see 6.5.3, and IEC/TR 62655:2013, 5.1.1.2 and Annex A.
NOTE 2 Therefore where the term "oil" is used in this standard, any appropriate insulating liquid is covered.
Appropriate insulating liquids are those approved by the fuse manufacturer.
© IEC 2014
Table 6 – Limits of temperature and temperature rise for components and materials
Replace Footnote f with the following new footnote:
f Special consideration should be given with regard to vaporisation and oxidation when low-flash-point oil is
used. The given temperature value may be exceeded for transformer-type applications and/or if synthetic or
other suitable insulating liquids are used (see 7.7.3 and IEC 60076-7).
4.8.1 Rated maximum breaking current
Replace the existing title of 4.8.1 by the following new title and remove the first paragraph:
4.8.1 Rated maximum breaking current (I )
Table 9 – Standard values of rated TRV – Series I
Replace Table 9 with the following new Table:
Basic parameters Derived values
Rated
Peak Time Time Voltage Time Rate
voltage
a b c
voltage coordinate delay coordinate coordinate of rise
U u t t u’ t’ u /t
r c 3 d c 3
kV kV µs µs kV µs kV/µs
3,6 6,2 40 6 2,06 19,4 0,154
7,2 12,4 52 7,8 4,1 25 0,238
12 20,6 60 9 6,9 29 0,345
17,5 30 72 10,8 10 35 0,415
24 41 88 13,2 13,8 42,5 0,47
36 62 108 16,2 20,6 52 0,57
40,5 69 115 17,2 23 55,5 0,60
52 89 132 19.8 29,5 63.8 0,68
72,5 124 168 8,4 41,5 64 0,74
a
t = 0,15 t for U ≤ 52 kV
d 3 r
and t = 0,05 t for U > 52 kV
d 3 r
b
u’ = 1/3 u with u = 1,4 × 1,5 2/3 U
c c r
c
t’ = (0,15 + 1/3) t for U ≤ 52 kV
3 r
and t’ = (0,05 + 1/3) t for U > 52 kV
3 r
Figure 4 – Various stages of the striker travel
Replace AB in the key with the following:
AB Further travel during which the specified energy shall be delivered
– 6 – IEC 60282-1:2009/AMD1:2014
© IEC 2014
Table 11 – Mechanical characteristics of strikers
Replace footnote b with the following new footnote:
b Duration of travel is defined as the time from commencement of arcing to the time when travel OB is reached.
The minimum arcing withstand time of 100 ms (4.15.3) is sufficient to cover this 50 ms plus an additional time
of 50 ms to allow for the switching device operating time.
5.1.1 General
Replace the third paragraph of 5.1.1 with the following new text:
"No tests have been specified to prove the performance of the fuse in the range of currents
below that specified in the breaking tests in 6.6 with respect to its capability to withstand the
current of every possible time/current c
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
