Standards Content (sample)

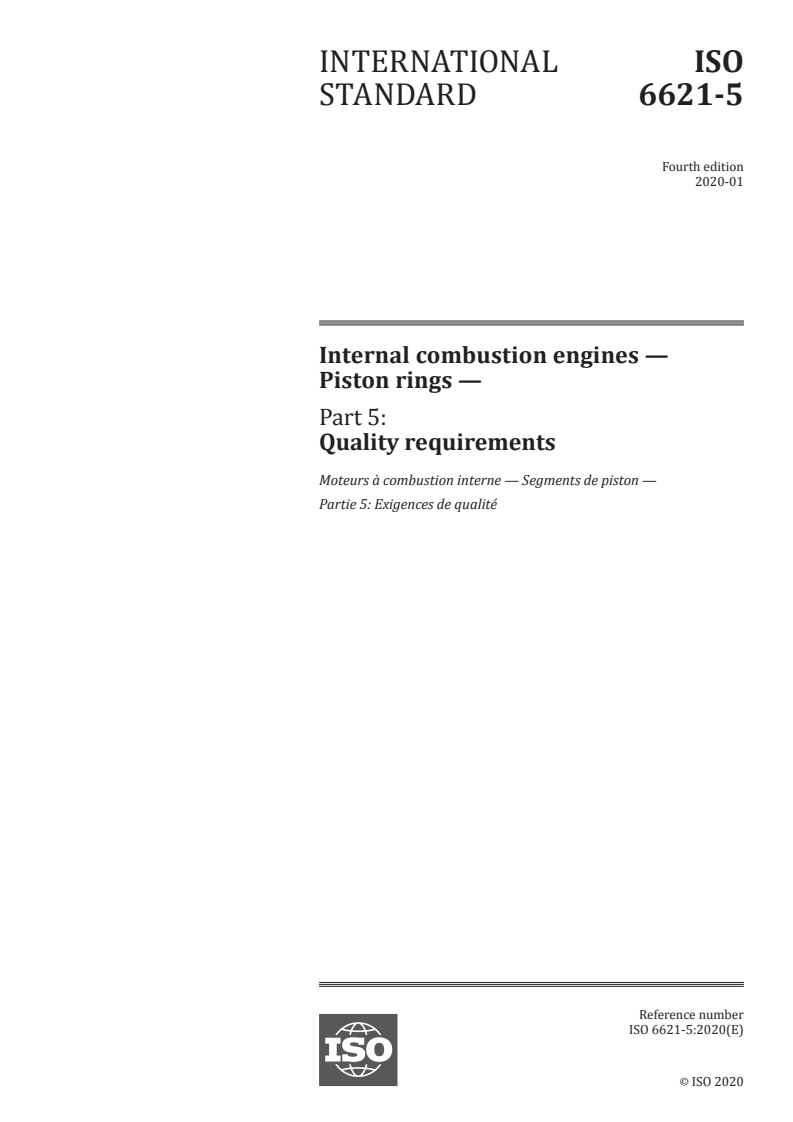

INTERNATIONAL ISO
STANDARD 6621-5
Fourth edition
2020-01
Internal combustion engines —
Piston rings —
Part 5:
Quality requirements
Moteurs à combustion interne — Segments de piston —
Partie 5: Exigences de qualité
Reference number
ISO 6621-5:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO 6621-5:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 6621-5:2020(E)

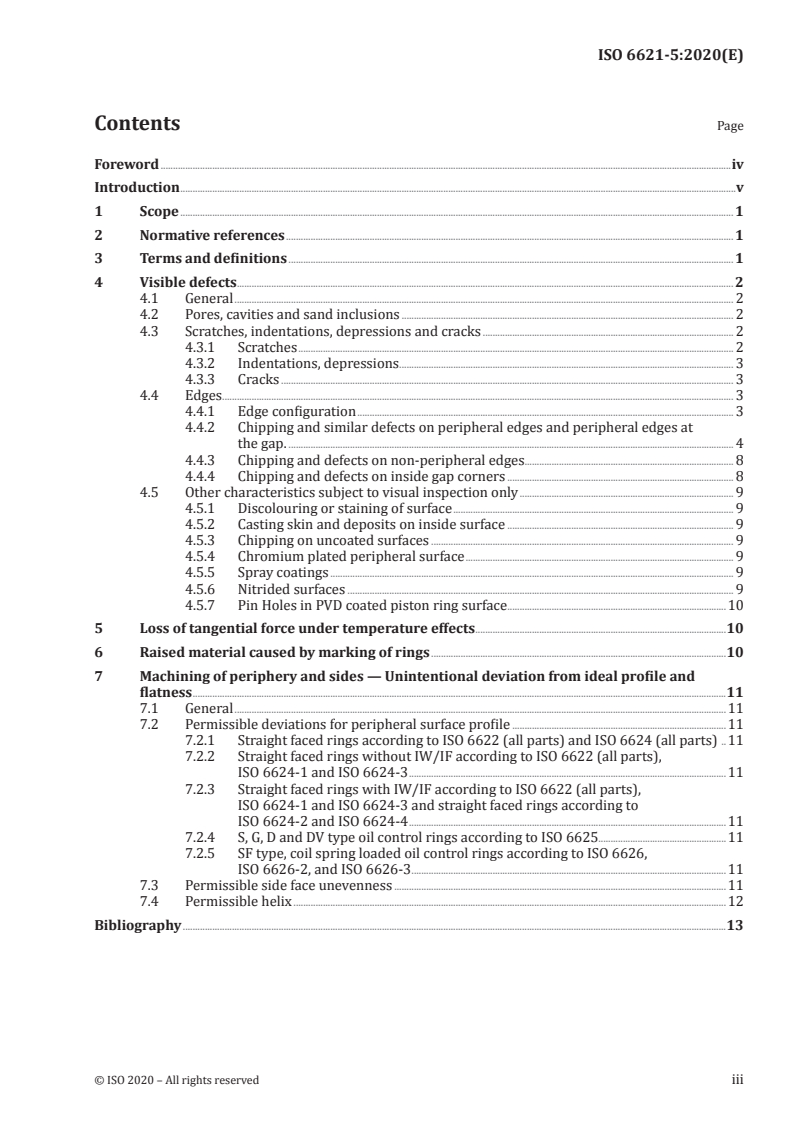

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Visible defects.......................................................................................................................................................................................................... 2

4.1 General ........................................................................................................................................................................................................... 2

4.2 Pores, cavities and sand inclusions ....................................................................................................................................... 2

4.3 Scratches, indentations, depressions and cracks ...................................................................................................... 2

4.3.1 Scratches ................................................................................................................................................................................. 2

4.3.2 Indentations, depressions ........................................................................................................................................ 3

4.3.3 Cracks ........................................................................................................................................................................................ 3

4.4 Edges ................................................................................................................................................................................................................ 3

4.4.1 Edge configuration ......................................................................................................................................................... 3

4.4.2 Chipping and similar defects on peripheral edges and peripheral edges at

the gap. ..................................................................................................................................................................................... 4

4.4.3 Chipping and defects on non-peripheral edges..................................................................................... 8

4.4.4 Chipping and defects on inside gap corners ............................................................................................ 8

4.5 Other characteristics subject to visual inspection only ....................................................................................... 9

4.5.1 Discolouring or staining of surface .................................................................................................................. 9

4.5.2 Casting skin and deposits on inside surface ............................................................................................ 9

4.5.3 Chipping on uncoated surfaces ........................................................................................................................... 9

4.5.4 Chromium plated peripheral surface ............................................................................................................. 9

4.5.5 Spray coatings .................................................................................................................................................................... 9

4.5.6 Nitrided surfaces ............................................................................................................................................................. 9

4.5.7 Pin Holes in PVD coated piston ring surface .........................................................................................10

5 Loss of tangential force under temperature effects ......................................................................................................10

6 Raised material caused by marking of rings ........................................................................................................................10

7 Machining of periphery and sides — Unintentional deviation from ideal profile and

flatness .........................................................................................................................................................................................................................11

7.1 General ........................................................................................................................................................................................................11

7.2 Permissible deviations for peripheral surface profile .......................................................................................11

7.2.1 Straight faced rings according to ISO 6622 (all parts) and ISO 6624 (all parts) ..11

7.2.2 Straight faced rings without IW/IF according to ISO 6622 (all parts),

ISO 6624-1 and ISO 6624-3 .................................................................................................................................11

7.2.3 Straight faced rings with IW/IF according to ISO 6622 (all parts),
ISO 6624-1 and ISO 6624-3 and straight faced rings according to

ISO 6624-2 and ISO 6624-4 .................................................................................................................................11

7.2.4 S, G, D and DV type oil control rings according to ISO 6625....................................................11

7.2.5 SF type, coil spring loaded oil control rings according to ISO 6626,

ISO 6626-2, and ISO 6626-3 ................................................................................................................................11

7.3 Permissible side face unevenness .......................................................................................................................................11

7.4 Permissible helix ................................................................................................................................................................................12

Bibliography .............................................................................................................................................................................................................................13

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 6621-5:2020(E)

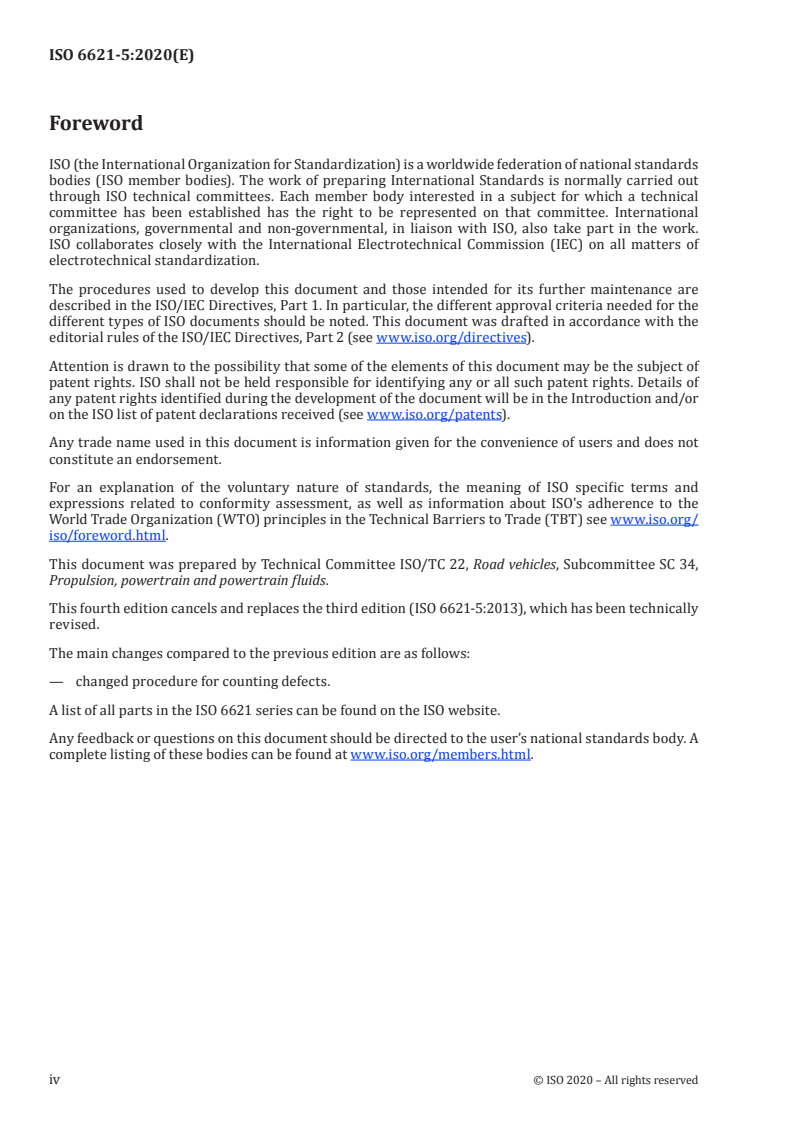

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 34,

Propulsion, powertrain and powertrain fluids.

This fourth edition cancels and replaces the third edition (ISO 6621-5:2013), which has been technically

revised.
The main changes compared to the previous edition are as follows:
— changed procedure for counting defects.
A list of all parts in the ISO 6621 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 6621-5:2020(E)
Introduction

This document is one of a number of series of International Standards dealing with piston rings for

reciprocating internal combustion engines.

The common features and dimensional tables presented in this document constitute a broad range

of variables, and the designer, in selecting a particular ring type, should bear in mind the conditions

under which it will be required to operate. The designer should also refer to the specifications and

requirements of ISO 6621-3 and ISO 6621-4 before completing his selection.

The difficulty of trying to define in absolute terms the quality attainable in normal commercial

manufacture of piston rings is well known. In this document, the commonly encountered aspects of

quality in terms of casting defects and other departures from ideal are quantified. Many minor defects

are clearly quite acceptable; other defects because of size or number are inadmissible.

© ISO 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 6621-5:2020(E)
Internal combustion engines — Piston rings —
Part 5:
Quality requirements
1 Scope

This document specifies quality aspects that can be defined but that are not normally found on a

drawing specification.
It covers the following:
— single-piece piston rings of grey cast iron or steel;

— multi-piece piston rings (oil control rings) consisting of cast iron parts and spring components; and

— single-piece and multi-piece oil control rings of steel, i.e. oil control rings in the form of strip steel

components or steel segments (rails) with spring expander components.

In addition to specifying some of the limits of acceptance relating to inspection measuring principles

(covered by ISO 6621-2), this document also covers those features for which no recognized quantitative

measurement procedures exist and which are only checked visually with normal eyesight (glasses if

worn normally) and without magnification. Such features (superficial defects) are additional to the

standard tolerances of ring width, radial wall thickness and closed gap.

This document does not establish acceptable quality levels (AQL), it being left to manufacturer and

customer to decide the appropriate levels jointly. In this case, the recommendations of ISO 2859-1 are

followed.

This document specifies the quality requirements of piston rings for reciprocating internal combustion

engines for road vehicles and other applications. It is applicable to all such rings of a nominal diameter

from 30 mm up to and including 200 mm.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 6621-1, Internal combustion engines — Piston rings — Part 1: Vocabulary
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 6621-1 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
© ISO 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 6621-5:2020(E)
4 Visible defects
4.1 General

Visible defects are divided into two principle classes as described in 4.2 to 4.5.

The first class covers those defects frequently found in castings and includes such defects as porosity,

sand inclusions, cavities, etc.

The second class of defect covers mechanical abrasions which may occur during forming, machining or

handling of the rings, and includes scratches, dents, chipping, burrs and cracks.

Inspection of piston rings for such defects is generally carried out visually, without magnification, by

inspectors having normal eyesight, corrected if necessary.

It is not intended that every ring be rigorously inspected for size and distribution of defects, but rather

that the values given in the tables and text be used as a general guide. However, in case of doubt, the

values given should be used as the means of judging the quality of the rings.
4.2 Pores, cavities and sand inclusions

Such defects are permissible on uncoated surfaces and edges provided that the values given in Table 1

for size, number and spacing are not exceeded.

Table 1 — Permissible values of size, number and spacing of pores, cavities and sand inclusions

Dimensions in millimetres
Nominal Defect size Number of Spacing of
diameter defects per ring defects
max.
d max. min.
on on other on on other
a b
peripheral surfaces peripheral edges
surface edges
30 ≤ d < 60 0,1 0,3 0,1 0,1 2 4
60 ≤ d < 100 0,15 0,5 0,1 0,2 4 4
100 ≤ d < 150 0,2 0,5 0,1 0,3 6 8
150 ≤ d ≤ 200 0,2 0,8 0,1 0,4 8 8

The defects should not be closer to an edge than one-half of the maximum permissible size of the defect, with a

minimum of 0,2 mm.
Does not apply to inside gap edges of piston rings with internal notch.
Spacing includes defects on adjacent or opposite surfaces.
4.3 Scratches, indentations, depressions and cracks
4.3.1 Scratches
Isolated scratches are permissible provided that:
— no burrs are produced exceeding the permissible values given in 4.4.1.1;
— on turned peripheral surfaces, they are not deeper than the tool marks;
— on non-turned peripheral surfaces, they are not deeper than 0,004 mm;
— on the side faces, they are not deeper than 0,01 mm; and
— on other surfaces, they are not deeper than 0,06 mm.
2 © ISO 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 6621-5:2020(E)
4.3.2 Indentations, depressions
Indentations and depressions are permissible provided that:
— the values given in Table 1 for number and spacing of defects are met;
— no burrs are produced exceeding the permissible values given in 4.4.1.1; and
— they do not exceed the values for size and depth given in Table 2.

Rings of a plated/coated/nitrided type shall not have indentations or depressions on the periphery.

NOTE Indentations arising from hardness measurements on the side faces are acceptable provided that they

do not exceed the limits given in Tables 2 and 11.
4.3.3 Cracks
No cracks are permissible in the base material.

See also 4.5.4 for chromium-plated peripheral surfaces and 4.5.6 for nitrided surfaces.

Table 2 — Permissible size of indentations and depressions
Dimensions in millimetres
Nominal diameter Defect size Depth
d max. max.
on peripheral surface on side face
30 ≤ d < 100 0,3 0,6
1 10 % of corresponding max.
defect size
100 ≤ d ≤ 200 0,5 1
4.4 Edges
4.4.1 Edge configuration

All edges of the piston ring shall be sharp; ideally, they should be free from burrs and from ragged edges,

whether arising from crumbling of material or from deburring. Such conditions are almost impossible

to achieve regularly in volume production and hence both burrs and removal of edge material is

permitted up to the maximum sizes given in 4.4.1.1 and 4.4.1.2.
4.4.1.1 Burrs

Burrs are permitted up to the maximum values given in Table 3. The orientation and direction of burrs

shall relate to the functional surfaces of the piston ring; any burr present should point in the direction

of sliding motion of the ring and not normal to the direction of sliding.
Any burrs r
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
