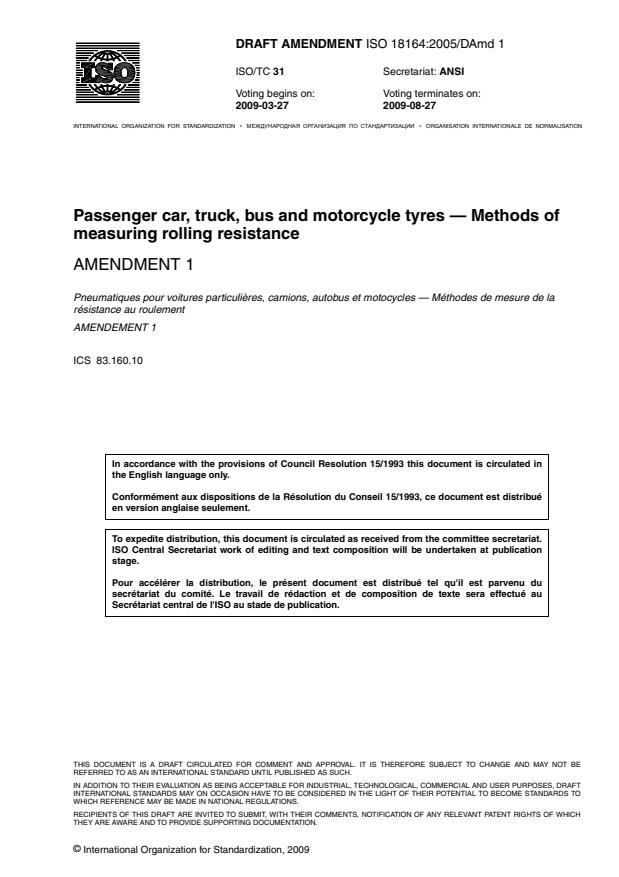

DRAFT AMENDMENT ISO 18164:2005/DAmd 1
ISO/TC 31 Secretariat: ANSI
Voting begins on: Voting terminates on:
2009-03-27 2009-08-27

INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION

Passenger car, truck, bus and motorcycle tyres — Methods of
measuring rolling resistance
AMENDMENT 1

Pneumatiques pour voitures particulières, camions, autobus et motocycles — Méthodes de mesure de la

résistance au roulement
AMENDEMENT 1
ICS 83.160.10

In accordance with the provisions of Council Resolution 15/1993 this document is circulated in

the English language only.

Conformément aux dispositions de la Résolution du Conseil 15/1993, ce document est distribué

en version anglaise seulement.

To expedite distribution, this document is circulated as received from the committee secretariat.

ISO Central Secretariat work of editing and text composition will be undertaken at publication

stage.

Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du

secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au

Secrétariat central de l'ISO au stade de publication.

THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE

REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.

IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT

INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO

WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.

RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH

THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
International Organization for Standardization, 2009
---------------------- Page: 1 ----------------------
ISO 18164:2005/DAmd 1
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall

not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the

unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

Copyright notice

This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted

under the applicable laws of the user's country, neither this ISO draft nor any extract from it may be

reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, photocopying,

recording or otherwise, without prior written permission being secured.

Requests for permission to reproduce should be addressed to either ISO at the address below or ISO's

member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii ISO 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 18164:2005/DAM 1

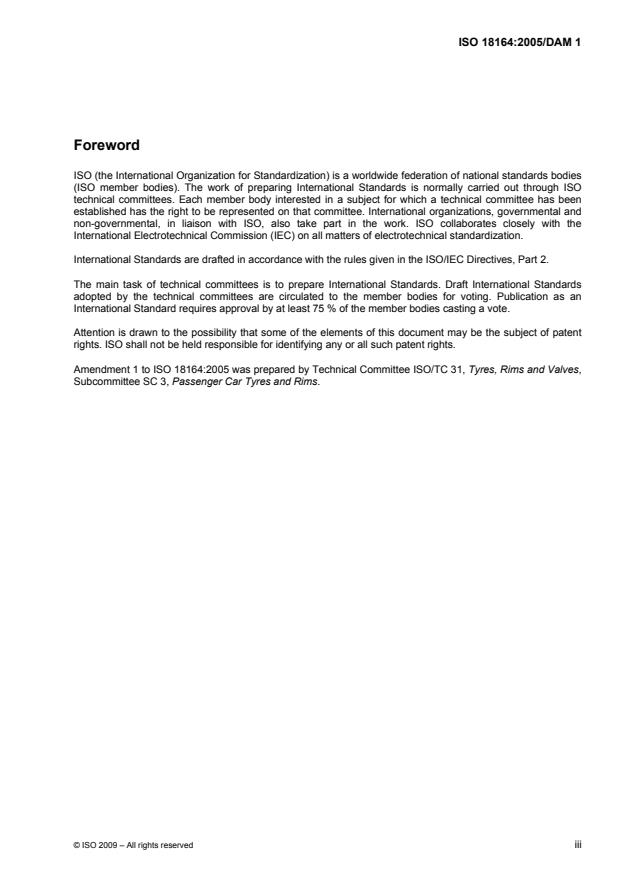

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

Amendment 1 to ISO 18164:2005 was prepared by Technical Committee ISO/TC 31, Tyres, Rims and Valves,

Subcommittee SC 3, Passenger Car Tyres and Rims.
© ISO 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
DRAFT AMENDMENT ISO 18164:2005/DAM 1
Passenger car, truck, bus and motorcycle tyres — Methods of
measuring rolling resistance
AMENDMENT 1
Page 22
Add the following annex before the Bibliography.
Annex D
(normative)
Deceleration method based on time-distance measuring.
D.1 Purpose

This Annex specifies the method of rolling resistance determination by measuring time-distance relation

during deceleration in chosen speed interval. Rolling resistance as a function of speed including value at 80

(or 60 km/h for the tyres with LI 122 and above and speed symbol J and lower) is the result. Time-distance

measuring for the rolling resistance determination excludes the need to measure either deceleration or speed.

D.2 Limitation

This method is alternative to the deceleration method stated in the body of standard for the several constant

speed value. Unless otherwise noted all other aspects of the standard apply.

Test conditions limitation stated by ISO 28580 are also satisfied by this method.

D.3 Measurement and recording

D.3.1 Choose warm up procedure in accordance with ISO 18164 section 7.4 or ISO 28580 section 7.3

depending from desired task.

D.3.2 When the warm up is finished, accelerate the test tyre to the speed 90 km/h during not more than

8 s and provide freely coasting motion from the initial speed to the speed 70 km/h (figure D.1). Do it for the

loaded test machine with wheel-tyre assembly and then for unloaded test machine with tyre-wheel assembly

removed.
© ISO 2009 – All rights reserved 1
---------------------- Page: 4 ----------------------
ISO 18164:2005/DAM 1

NOTE Exclusion: testing speed interval for tyres with LI 122 and above and speed symbol J and lower differs from

stated in D.3.2 and limited from 70 km/h to 50 km/h.

D.3.3 During freely coasting motion according D.3.2 record time-distance relations in discrete form:

t=f(z)
where
t is the time of deceleration from
...
