ISO/IEC 11770-6:2016

Information technology — Security techniques — Key management — Part 6: Key derivation

ISO/IEC 11770-6:2016 specifies key derivation functions, i.e. functions which take secret information and other (public) parameters as input and output one or more "derived" secret keys. Key derivation functions based on MAC algorithms and on hash-functions are specified.

Technologies de l'information — Techniques de sécurité — Gestion de clés — Partie 6: Dérivation de clés

General Information

• Status: Published
• Publication Date: 04-Oct-2016
• ICS: 35.030 - IT Security
• ICS: 35.040 - Information coding
• Technical Committee: ISO/IEC JTC 1/SC 27 - Information security, cybersecurity and privacy protection
• Drafting Committee: ISO/IEC JTC 1/SC 27/WG 2 - Cryptography and security mechanisms
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 19-May-2022

Standards Content (Sample)

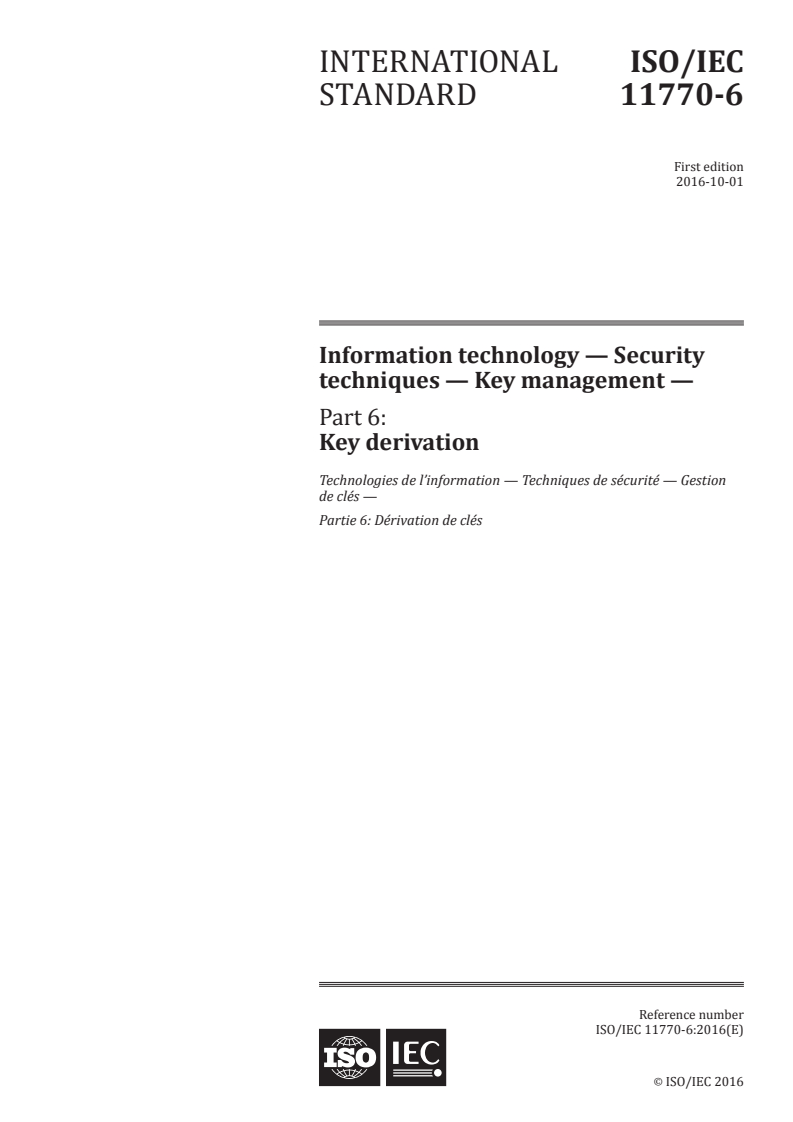

INTERNATIONAL ISO/IEC
STANDARD 11770-6
First edition
2016-10-01
Information technology — Security
techniques — Key management —
Part 6:
Key derivation
Technologies de l’information — Techniques de sécurité — Gestion
de clés —
Partie 6: Dérivation de clés
Reference number
ISO/IEC 11770-6:2016(E)
©
ISO/IEC 2016

---------------------- Page: 1 ----------------------
ISO/IEC 11770-6:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO/IEC 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 11770-6:2016(E)

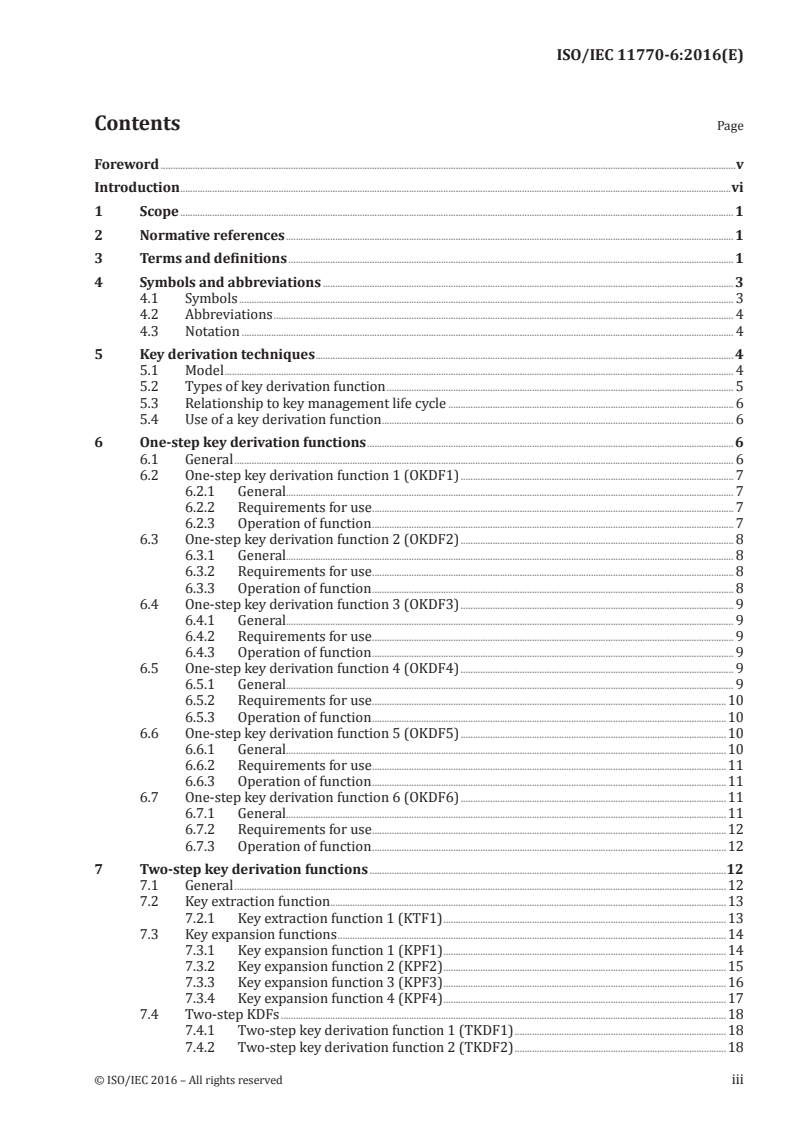

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviations . 3
4.1 Symbols . 3
4.2 Abbreviations . 4
4.3 Notation . 4
5 Key derivation techniques . 4
5.1 Model . 4
5.2 Types of key derivation function . 5
5.3 Relationship to key management life cycle . 6
5.4 Use of a key derivation function . 6
6 One-step key derivation functions . 6
6.1 General . 6
6.2 One-step key derivation function 1 (OKDF1) . 7
6.2.1 General. 7
6.2.2 Requirements for use . 7
6.2.3 Operation of function . 7
6.3 One-step key derivation function 2 (OKDF2) . 8
6.3.1 General. 8
6.3.2 Requirements for use . 8
6.3.3 Operation of function . 8
6.4 One-step key derivation function 3 (OKDF3) . 9
6.4.1 General. 9
6.4.2 Requirements for use . 9
6.4.3 Operation of function . 9
6.5 One-step key derivation function 4 (OKDF4) . 9
6.5.1 General. 9
6.5.2 Requirements for use .10
6.5.3 Operation of function .10
6.6 One-step key derivation function 5 (OKDF5) .10
6.6.1 General.10
6.6.2 Requirements for use .11
6.6.3 Operation of function .11
6.7 One-step key derivation function 6 (OKDF6) .11
6.7.1 General.11
6.7.2 Requirements for use .12
6.7.3 Operation of function .12
7 Two-step key derivation functions .12
7.1 General .12
7.2 Key extraction function .13
7.2.1 Key extraction function 1 (KTF1) .13
7.3 Key expansion functions .14
7.3.1 Key expansion function 1 (KPF1) .14
7.3.2 Key expansion function 2 (KPF2) .15
7.3.3 Key expansion function 3 (KPF3) .16
7.3.4 Key expansion function 4 (KPF4) .17
7.4 Two-step KDFs .18
7.4.1 Two-step key derivation function 1 (TKDF1) .18
7.4.2 Two-step key derivation function 2 (TKDF2) .18
© ISO/IEC 2016 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 11770-6:2016(E)

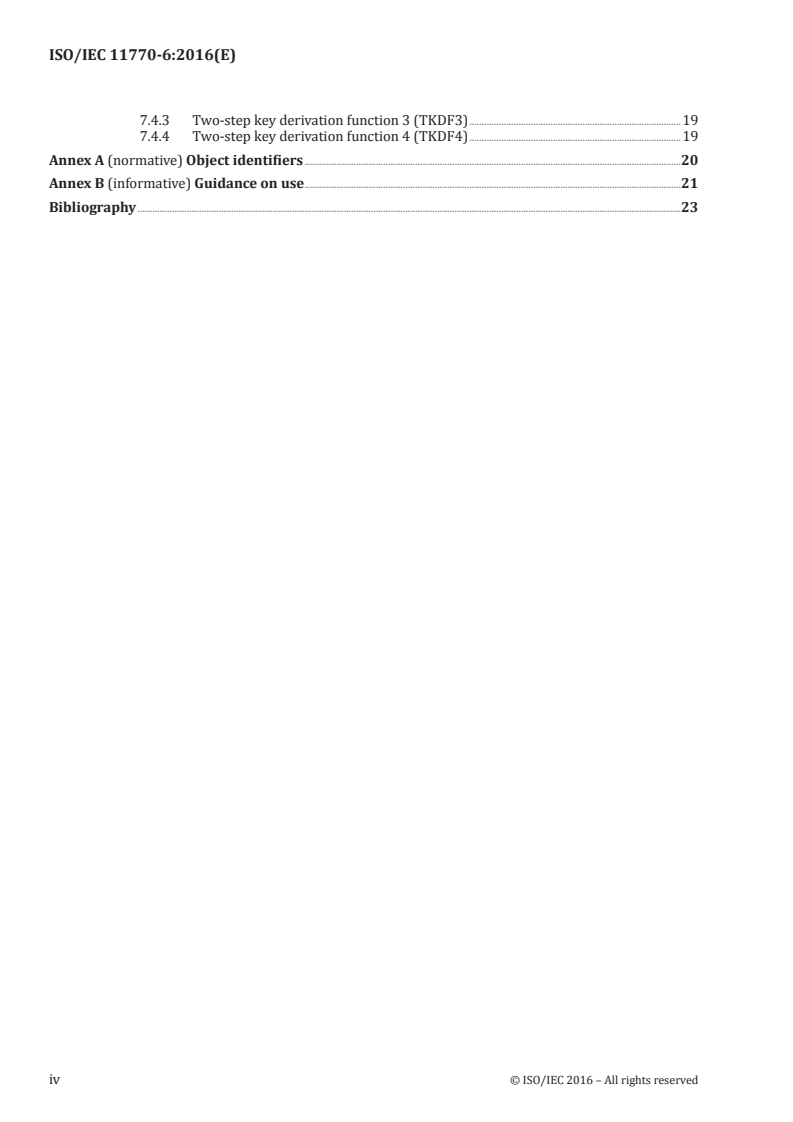

7.4.3 Two-step key derivation function 3 (TKDF3) .19
7.4.4 Two-step key derivation function 4 (TKDF4) .19
Annex A (normative) Object identifiers .20
Annex B (informative) Guidance on use .21
Bibliography .23
iv © ISO/IEC 2016 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 11770-6:2016(E)

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/IEC JTC 1, Information technology, Subcommittee
SC 27, IT Security techniques.
A list of all parts in the ISO/IEC 11770 series can be found on the ISO website.
© ISO/IEC 2016 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/IEC 11770-6:2016(E)

Introduction
The establishment of shared secret cryptographic keys is a fundamental key management service. It
is a prerequisite for the use of a range of symmetric cryptographic techniques, including symmetric
encryption for confidentiality protection, and message authentication codes (MACs) for integrity
protection and data origin authentication. Key derivation techniques enable such keys to be generated
from pre-existing secrets and have a range of possible applications. Two particularly important
applications are as follows.
First, while two (or more) parties might share secret information, this secret information might not
be suitable for immediate use as input to an encryption algorithm or a message authentication code
scheme. For example, the initial secret information might not be distributed randomly across the entire
space of possible values, or an unauthorized third party might have partial information about it. A key
derivation function (or a key extraction function) can be used to resolve this issue by taking the secret
information as input, perhaps together with other non-secret material, and giving a suitable secret key
as output.
Second, a number of secret keys might be required for different purposes, e.g. for different applications
or for input to different cryptographic functions. Again, a key derivation function (or a key expansion
function) can be used to meet this requirement by taking secret information, perhaps together with
other non-secret material, as input, and giving a secret key, or keys, as output. The secret information
might, for example, be shared by two or more parties, and the generated secret keys could then be
used to protect data exchanged between these parties via untrusted channels; alternatively, the secret
information might only be known by a single party, and the generated keys could then be used to
protect data stored by that party in untrusted locations.
This document is concerned with such key derivation techniques. Two general classes of key derivation
techniques are specified, namely one-step and two-step functions, both of which can be used to generate
either a single key or multiple keys. One-step functions transform the input information into one or
more keys in a single operation. Two-step functions first transform the input information into a secret
MAC key, which is then used in the second step (which can be executed multiple times) to generate one
or more secret keys for use in applications.
The choice between one-step and two-step functions depends on two main things: the nature of the
available secret input to the key derivation function, and the way in which the secret input is to be used.
For example, if the available secret input is already in the form of a secret key, then a one-step function
will normally be appropriate. Also, regardless of the nature of the secret input, if the function is to
be used only once with a particular set of secret inputs, then again a one-step function will typically
be appropriate. However, if the secret input is not in the form of a secret key, and the same secret
input is to be used multiple times to generate one or more keys, then a two-step function is likely to
be appropriate, where the first step is performed once to generate a MAC key and the second step is
performed whenever a new key is, or keys are, to be generated from the MAC key.
This document defines a range of one-step key derivation functions. It also defines examples of both key
extraction functions and key expansion functions, where a key extraction function can be combined
with a key expansion function to define a two-step key derivation function.
vi © ISO/IEC 2016 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 11770-6:2016(E)
Information technology — Security techniques — Key
management —
Part 6:
Key derivation
1 Scope
This document specifies key derivation functions, i.e. functions which take secret information and other
(public) parameters as input and output one or more “derived” secret keys. Key derivation functions
based on MAC algorithms and on hash-functions are specified.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 9797 (all parts), Information technology — Security techniques —Message Authentication
Codes (MACs)
ISO/IEC 10118 (all parts), Information technology — Security techniques — Hash-functions
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11770-1 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
entropy
measure of the disorder, randomness or variability in a closed system
Note 1 to entry: The particular measure of entropy that is used in the document is discussed in 5.1.
3.2
hash-function
function which maps strings of bits of variable (but usually upper bounded) length to fixed-length
strings of bits
Note 1 to entry: Cryptographic requirements on hash-functions employed for the purposes of this document are
considered in 6.1.
© ISO/IEC 2016 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/IEC 11770-6:2016(E)

3.3
key derivation function
KDF
function which takes as input a number of parameters, at least one of which shall be secret, and which
gives as output keys appropriate for the intended algorithm(s) and applications
Note 1 to entry: Cryptographic requirements on key derivation functions are specified in 5.1.
Note 2 to entry: Key derivation functions are also sometimes known as “key generating functions.”
3.4
key expansion function
KPF
function which takes as input a number of parameters, at least one of which shall be a secret key, and
which gives as output keys appropriate for the intended algorithm(s) and applications
Note 1 to entry: Cryptographic requirements on key expansion functions are specified in 7.1.
Note 2 to entry: All the KPFs specified in this document are based on a MAC algorithm.
3.5
key extraction function
KTF
function which takes as input a number of parameters, at least one of which shall be secret, and which
gives as output a key suitable for use as input to a key expansion function
Note 1 to entry: Cryptographic requirements on key extraction functions are specified in 7.1.
3.6
message authentication code
MAC
string of bits which is the output of a MAC algorithm
[SOURCE: ISO/IEC 9797-1:2011, 3.9 – modified, Note 1 to entry removed]
3.7
message authentication code algorithm
MAC algorithm
algorithm for computing a function which maps strings of bits and a secret key to fixed-length strings
of bits, satisfying the following two properties:
— for any key and any input string, the function can be computed efficiently;
— for any fixed key, and given no prior knowledge of the key, it is computationally infeasible to
compute the function value on any new input string, even given knowledge of a set of input strings
and corresponding function values, where the value of the ith input string might have been chosen
after observing the value of the first i − 1 function values (for integers i > 1)
Note 1 to entry: A MAC algorithm is sometimes called a “cryptographic check function.”
Note 2 to entry: Computational feasibility depends on the user’s specific security requirements and environment.
Note 3 to entry: Additional cryptographic requirements for MAC algorithms employed for the purposes of this
document are specified in 6.1 and 7.1.
3.8
message authentication code key
MAC key
bit string suitable for use as a key input to a MAC algorithm
2 © ISO/IEC 2016 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 11770-6:2016(E)

3.9
one-step key derivation function
OKDF
key derivation function which operates in a single stage, in contrast to key derivation functions
involving separate key-extraction and key-expansion stages (cf. 3.12)
3.10
salt
value used as input to a key derivation function, a key expansion function or a key extraction function,
which might not be a secret
3.11
secret information
bit string used as input to a KDF or a KTF, which shall be known only to entities which are authorized
to agree upon the key or keys, and possibly to one or more other entities trusted for the purposes of key
establishment
3.12
two-step key derivation function
TKDF
key derivation function which involves two stages, namely the use of a key extraction function followed
by a key expansion function
4 Symbols and abbreviations
4.1 Symbols
a algorithm identifier
b bit string output by a KDF
c counter
f MAC algorithm, where f (d) denotes the MAC obtained when f is given as input the key k and
k
the data d (a bit string)
h hash-function
k secret key
k secret MAC key
m
L bit-length of the output b of a KDF
b
L bit-length of the binary encoding of the counter c
c
L bit-length of the output of the MAC algorithm f used as part of a KDF
f
L bit-length of the output of a hash-function h used as part of a KDF
h
L bit-length of a secret key k
k
p label employed to 1) indicate how a bit string is to be partitioned into one or more keys, and 2)
identify the algorithm(s) with which the resulting key(s) should be used
s secret information
t salt value
© ISO/IEC 2016 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/IEC 11770-6:2016(E)

u auxiliary secret information
y bit string
z bit string
4.2 Abbreviations
KDF key derivation function
KPF key exPansion function
KTF key exTraction function
MAC message authentication code
OKDF one-step KDF
TKDF two-step KDF
4.3 Notation
|| concatenation, where x||y denotes the bit string obtained by concatenating the bit strings x
and y in the order specified
   
... if x is a real number, x denotes the smallest integer greater than or equal to x
   
[.] if x is a bit string, [x] indicates that the inclusion of x is optional
5 Key derivation techniques
5.1 Model
A KDF is a function which can be used to generate one or more secret keys, given a range of possible
inputs. In general, a KDF has the following inputs and outputs.
Inputs:
— Mandatory inputs:
— s secret information possessed by the party or parties using the KDF. It shall be
computationally infeasible for parties not authorized to obtain the keys output from the KDF
to differentiate between values produced using the mechanism employed to generate s and
values selected with sufficient entropy to support the security requirements of the user(s) of
the intended application(s) of the generated key(s) (see B.1.2 for guidance).
NOTE 1 The entropy of a (discrete) random variable X is a mathematical measure of the uncertainty
associated with the possible outcomes of an observation, which serves as an estimate of the information
that may be gained from an observation of X. Entropy is at its highest if all possible outcomes are equally
likely. Entropy is lessened if the distribution on X is such that some outcomes are more likely than others;
entropy is at its lowest (zero) if each observation is certain to be a particular (predetermined) value.
NOTE 2 There are various notions of entropy that are relevant to cryptographic applications, but in this
[5]
document entropy is measured using min-entropy, as defined in ISO/IEC 18031:2011, 3.22 . When the unit
of measurement is bits, the min-entropy of a (discrete) random variable X is the largest value m for which the
m
probability of observing any particular value of X is at most (1/2) . The min-entropy of X is a lower bound
for other commonly used measures of entropy.
NOTE 3 Computational feasibility depends on the user’s specific security requirements and environment.
4 © ISO/IEC 2016 – All rights reserved

---------------------- Page: 10 ----------------------
ISO/IEC 11770-6:2016(E)

— Optional/mechanism-dependent inputs:
— a algorithm identifier employed by the OKDF2 mechanism, which specifies the algorithm
with which the single key it gives as output should be used;
— p label, used with certain KDFs to indicate how the output bit string should be partitioned
into secret keys and the intended use for each such secret key;
— t salt value, i.e. a (not necessarily secret) value that can be used, for example, to make the
generated key(s) specific to a particular application and/or to ensure that the output key(s)
will vary with each execution of a key derivation function; used as a MAC key by the KTF1
mechanism;
— t′ salt value, i.e. a (not necessarily secret) value that is used as a MAC key by the OKDF6
mechanism and used as an initialization value by the KPF3 mechanism;
— u auxiliary secret information possessed by the party or parties using the KDF; the
entropy provided by the choice of u may be used to supplement that provided by the choice of
s, in support of the security requirements of the user(s) of the intended application(s) of the
generated key(s).
Outputs:
— b bit string that is either equal to a single secret key or can be partitioned to obtain a number of
secret keys.
The instantiation of a key derivation function specified in this document requires a number of critical
choices, including the selection of a hash-function or MAC algorithm(s), the type and source of various
input parameters, etc. Appropriate choices will provide assurance that the resulting KDF satisfies the
following requirement.
Given no prior knowledge of s, it shall be computationally infeasible to predict the value of an (as-yet-
unseen) output b with a probability of success that is a significant improvement over simply guessing
either the value of b or the value of s. This shall be the case even when given knowledge of a (bounded)
number of KDF outputs which were computed using the same (unknown) s, but with other (possibly
known and adaptively chosen) input parameters that are not identical to those used to generate b.
NOTE 4 Computational feasibility and the significance of the probability of successfully predicting b depend
on the KDF user’s specific security requirements and environment.
5.2 Types of key derivation function
In this document, two types of KDF are specified.
— One-step KDFs (OKDFs) are KDFs which transform input information into one or more keys in a
single operation.
— Two-step KDFs (TKDFs) are KDFs which transform input information into one or more keys in two
operations. A TKDF consists of a combination of two functions: a key extraction function (KTF), and
a key expansion function (KPF). In some cases, the KTF can be the identity function (i.e. a function
whose output is always the same as the input), i.e. the TKDF is simply a KPF, in which case the
secret information input to the TKDF shall take the form of a MAC key suitable for use with the MAC
algorithm on which the KPF is based.
Six OKDFs (OKDF1 to OKDF6) are specified in Clause 6. In Clause 7, one key extraction function (KTF1),
four key expansion functions (KPF1 to KPF4), and four TKDFs (TKDF1 to TKDF4) are specified, where
the TKDFs are defined as specific combinations of a KTF and a KPF.
The KDFs specified in this document are built upon existing cryptographic functions, namely either
hash-functions, as specified in ISO/IEC 10118 (all parts), or message authentication code algorithms, as
...

DRAFT INTERNATIONAL STANDARD
ISO/IEC DIS 11770-6
ISO/IEC JTC 1/SC 27 Secretariat: DIN
Voting begins on: Voting terminates on:
2015-09-07 2015-12-07
Information technology — Security techniques — Key
management —
Part 6:
Key derivation
Technologies de l’information — Techniques de sécurité — Gestion de clés
ICS: 35.040
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/IEC DIS 11770-6:2015(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO/IEC 2015

---------------------- Page: 1 ----------------------
ISO/IEC DIS 11770-6:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO/IEC 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC DIS 11770-6
Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviations . 3
4.1 Symbols . 3
4.2 Abbreviations . 3
4.3 Notation . 4
5 Key derivation techniques . 4
5.1 Model . 4
5.2 Types of KDF . 5
5.3 Relationship to key management lifecycle . 5
5.4 Use of a KDF . 5
6 One-step key derivation functions . 6
6.1 General . 6
6.2 One-step key derivation function 1 (OKDF1) . 7
6.3 One-step key derivation function 2 (OKDF2) . 7
6.4 One-step key derivation function 3 (OKDF3) . 8
6.5 One-step key derivation function 4 (OKDF4) . 9
6.6 One-step key derivation function 5 (OKDF5) . 10
6.7 One-step key derivation function 6 (OKDF6) . 11
7 Two-step key derivation functions . 12
7.1 General . 12
7.2 Key extraction function . 13
7.2.1 Key extraction function 1 (KTF1) . 13
7.3 Key expansion functions . 14
7.3.1 Key expansion function 1 (KPF1) . 14
7.3.2 Key expansion function 2 (KPF2) . 15
7.3.3 Key expansion function 3 (KPF3) . 16
7.3.4 Key expansion function 4 (KPF4) . 17
7.4 Two-step KDFs . 18
7.4.1 Two-step key derivation function 1 (TKDF1) . 18
7.4.2 Two-step key derivation function 2 (TKDF2) . 18
7.4.3 Two-step key derivation function 3 (TKDF3) . 19
7.4.4 Two-step key derivation function 4 (TKDF4) . 19
Annex A (normative) Object identifiers . 20
Annex B (informative) Guidance on use . 22
B.1 Selection of inputs to a KDF . 22
B.1.1 General . 22
B.1.2 Secret value s . 22
B.1.3 Salt value t . 22
B.2 Encoding techniques . 22
B.3 Applications . 23
B.4 Comparing the mechanisms . 23
Bibliography . 24

© ISO/IEC 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC DIS 11770-6
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 11770-6 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 27, Security techniques.
ISO/IEC 11770 consists of the following parts, under the general title Information technology ― Security
techniques — Key management:
 Part 1: Framework
 Part 2: Mechanisms using symmetric techniques
 Part 3: Mechanisms using asymmetric techniques
 Part 4: Mechanisms based on weak secrets
 Part 5: Group key management
 Part 6: Key derivation
iv © ISO/IEC 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC DIS 11770-6
Introduction
The establishment of shared secret cryptographic keys is a fundamental key management service. It is a
prerequisite for the use of a range of symmetric cryptographic techniques, including symmetric encryption for
confidentiality protection, and message authentication codes (MACs) for integrity protection and data origin
authentication. Key derivation techniques enable such keys to be generated from pre-existing secrets, and
have a range of possible applications. Two particularly important applications are as follows.
Firstly, whilst two (or more) parties might share secret information, this secret information might not be
suitable for immediate use as input to an encryption algorithm or a message authentication code scheme. For
example, the initial secret information might not be distributed randomly across the entire space of possible
values, or an unauthorized third party might have partial information about it. A key derivation function (or a
key extraction function) can be used to resolve this issue by taking the secret information as input, perhaps
together with other non-secret material, and giving a suitable secret key as output.
Secondly, a number of secret keys might be required for different purposes, e.g. for different applications or
for input to different cryptographic functions. Again, a key derivation function (or a key expansion function)
can be used to meet this requirement by taking secret information, perhaps together with other non-secret
material, as input, and giving a secret key, or keys, as output. The secret information might, for example, be
shared by two or more parties, and the generated secret keys could then be used to protect data exchanged
between these parties via untrusted channels; alternatively, the secret information might only be known by a
single party, and the generated keys could then be used to protect data stored by that party in untrusted
locations.
This part of ISO/IEC 11770 is concerned with such key derivation techniques. Two general classes of key
derivation techniques are specified, namely one-step and two-step functions, both of which can be used to
generate either a single key or multiple keys. One-step functions transform the input information into one or
more keys in a single operation. Two-step functions first transform the input information into a secret MAC
key, which is then used in the second step (which can be executed multiple times) to generate one or more
secret keys for use in applications.
The choice between one-step and two-step functions depends on two main things: firstly the nature of the
available secret input to the key derivation function, and secondly the way in which the secret input is to be
used. For example, if the available secret input is already in the form of a secret key, then a one-step function
will normally be appropriate. Also, regardless of the nature of the secret input, if the function is to be used
only once with a particular set of secret inputs, then again a one-step function will typically be appropriate.
However, if the secret input is not in the form of a secret key, and the same secret input is to be used multiple
times to generate one or more keys, then a two-step function is likely to be appropriate, where the first step is
performed once to generate a MAC key and the second step is performed whenever a new key is, or keys are,
to be generated from the MAC key.
This part of ISO/IEC 11770 defines a range of one-step key derivation functions. It also defines examples of
both key extraction functions and key expansion functions, where a key extraction function can be combined
with a key expansion function to define a two-step key derivation function.
© ISO/IEC 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
FINAL COMMITTEE DRAFT INTERNATIONAL
ISO/IEC DIS 11770-6
STANDARD

Information technology ― Security techniques — Key
management — Part 6: Key derivation
1 Scope
This part of ISO/IEC 11770 specifies key derivation functions, i.e. functions which take secret information and
other (public) parameters as input and output one or more 'derived' secret keys. Key derivation functions
based on MAC algorithms and on hash-functions are specified.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 9797 (all parts), Information technology — Security techniques — Message Authentication Codes
(MACs)
ISO/IEC 10118 (all parts), Information technology — Security techniques — Hash-functions
ISO/IEC 11770-1, Information technology — Security techniques — Key management — Part 1: Framework
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11770-1 and the following apply.
3.1
entropy
measure of the disorder, randomness or variability in a closed system
Note 1 to entry: The particular measure of entropy that is used in the document is discussed in clause 5.1.
3.2
hash-function
function which maps strings of bits of variable (but usually upper bounded) length to fixed-length strings of bits
Note 1 to entry: Cryptographic requirements on hash-functions employed for the purposes of this document are
considered in clause 6.1.
3.3
key derivation function
KDF
function which takes as input a number of parameters, at least one of which shall be secret, and which gives
as output keys appropriate for the intended algorithm(s) and applications
Note 1 to entry: Cryptographic requirements on key derivation functions are specified in clause 5.1 of this document.
Note 2 to entry: Key derivation functions are also sometimes known as key generating functions.
© ISO/IEC 2015 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/IEC DIS 11770-6
3.4
key expansion function
KPF
function which takes as input a number of parameters, at least one of which shall be a secret key, and which
gives as output keys appropriate for the intended algorithm(s) and applications
Note 1 to entry: Cryptographic requirements on key expansion functions are specified in clause 7.1 of this document.
Note 2 to entry: All the KPFs specified in this document are based on a MAC algorithm.
3.5
key extraction function
KTF
function which takes as input a number of parameters, at least one of which shall be secret, and which gives
as output a key suitable for use as input to a key expansion function
Note 1 to entry: Cryptographic requirements on key extraction functions are specified in clause 7.1 of this document.
3.6
Message Authentication Code
MAC
string of bits which is the output of a MAC algorithm
[SOURCE: ISO/IEC 9797-1, 3.9]
3.7
Message Authentication Code algorithm
MAC algorithm
algorithm for computing a function which maps strings of bits and a secret key to fixed-length strings of bits,
satisfying the following two properties:
 for any key and any input string, the function can be computed efficiently;
 for any fixed key, and given no prior knowledge of the key, it is computationally infeasible to compute the
function value on any new input string, even given knowledge of a set of input strings and corresponding
function values, where the value of the i th input string might have been chosen after observing the value
of the first i -1 function values (for integers i > 1)
Note 1 to entry: A MAC algorithm is sometimes called a cryptographic check function.
Note 2 to entry: Computational feasibility depends on the user's specific security requirements and environment.
Note 3 to entry: Additional cryptographic requirements for MAC algorithms employed for the purposes of this document
are specified in clauses 6.1 and 7.1.
3.8
Message Authentication Code key
MAC key
bit string suitable for use as a key input to a MAC algorithm
3.9
one-step key derivation function
OKDF
key derivation function which operates in a single stage, in contrast to key derivation functions involving
separate key-extraction and key-expansion stages (cf. 3.12)
3.10
salt
value used as input to a key derivation function, a key expansion function or a key extraction function, which
might not be secret
2 © ISO/IEC 2015 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC DIS 11770-6
3.11
secret information
bit string used as input to a KDF or a KTF, which shall be known only to entities which are authorized to agree
upon the key or keys, and possibly to one or more other entities trusted for the purposes of key establishment
3.12
two-step key derivation function
TKDF
key derivation function which involves two stages, namely the use of a key extraction function followed by a
key expansion function
4 Symbols and abbreviations
4.1 Symbols
a algorithm identifier
b bit string output by a KDF
c counter
f MAC algorithm, where f (d) denotes the MAC obtained when f is given as input the key k and the
k
data d (a bit string)
h hash-function
k secret key
k secret MAC key
m
L bit-length of the output b of a KDF
b
L bit-length of the binary encoding of the counter c
c
L bit-length of the output of the MAC algorithm f used as part of a KDF
f
L bit-length of a hash-function h used as part of a KDF
h
L bit-length of a secret key k
k
p label employed to 1) indicate how a bit string is to be partitioned into one or more keys, and 2)
identify the algorithm(s) with which the resulting key(s) should be used
s secret information
t salt value
u auxiliary secret information
y bit string
z bit string
4.2 Abbreviations
KDF Key Derivation Function
KPF Key exPansion Function
© ISO/IEC 2015 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/IEC DIS 11770-6
KTF Key exTraction Function
MAC Message Authentication Code
OKDF One-step KDF
TKDF Two-step KDF
4.3 Notation
|| concatenation, where x||y denotes the bit string obtained by concatenating the bit strings x and y in
the order specified
. if x is a real number, x denotes the smallest integer greater than or equal to x
[.] if x is a bit string, [x] indicates that the inclusion of x is optional
5 Key derivation techniques
5.1 Model
A KDF is a function which can be used to generate one or more secret keys, given a range of possible inputs.
In general, a KDF has the following inputs and outputs.
Inputs:
 Mandatory inputs:
 s secret information possessed by the party or parties using the KDF, and which shall be
generated from a random source with sufficient entropy to support the security requirements of
the user(s) of the intended application(s) of the generated key(s) (see B.1.2 for guidance).
NOTE 1 The entropy of a (discrete) random variable X is a mathematical measure of the uncertainty
associated with the possible outcomes of an observation, which serves as an estimate of the information
that may be gained from an observation of X. Entropy is at its highest if all possible outcomes are equally
likely. Entropy is lessened if the distribution on X is such that some outcomes are more likely than others;
entropy is at its lowest (zero) if each observation is certain to be a particular (predetermined) value.
NOTE 2 There are various notions of entropy that are relevant to cryptographic applications, but in this
document entropy is measured using min-entropy, as defined in [ISO 18031, 3.22]. When the unit of
measurement is bits, the min-entropy of a (discrete) random variable X is the largest value m for which the
–m
probability of observing any particular value of X is at most 2 . The min-entropy of X is a lower bound for
other commonly used measures of entropy.
 Optional/mechanism-dependent inputs:
 a algorithm identifier employed by the OKDF2 mechanism, which specifies the algorithm with
which its single generated key should be used;
 p label, used with certain KDFs to indicate how the output bit string should be partitioned into
secret keys and the intended use for each such secret key;
 t salt value, i.e. a (not necessarily secret) value that can be used, for example, to make the
generated key(s) specific to a particular application and/or to ensure that the output key(s) will
vary with each execution of a key derivation function; used as a MAC key by the KTF1
mechanism;
 t′ salt value, i.e. a (not necessarily secret) value that is used as a MAC key by the OKDF6
mechanism and used as an initialization value by the KPF3 mechanism
4 © ISO/IEC 2015 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC DIS 11770-6
 u auxiliary secret information possessed by the party or parties using the KDF; the entropy
provided by the choice of u may be used to supplement that provided by the choice of s, in
support of the security requirements of the user(s) of the intended application(s) of the generated
key(s).
Outputs:
 b bit string that is either equal to a single secret key or can be partitioned to obtain a number of secret
keys.
The instantiation of a key derivation function specified in this document requires a number of critical choices,
including the selection of a hash-function or MAC algorithm(s), the type and source of various input
parameters, etc. Appropriate choices will provide assurance that the resulting KDF satisfies the following
requirement.
Given no prior knowledge of s, it shall be computationally infeasible to predict the value of an (as-yet-unseen)
output b with a probability of success that is a significant improvement over simply guessing either the value of
b or the value of s. This shall be the case even when given knowledge of a (bounded) number of KDF outputs
which were computed using the same (unknown) s, but with other (possibly known and adaptively chosen)
input parameters that are not identical to those used to generate b.
NOTE Computational feasibility and the significance of the probability of successfully predicting b depend on the KDF
user's specific security requirements and environment.
5.2 Types of key derivation function
In this part of ISO/IEC 11770 two types of KDF are specified.
 One-step KDFs (OKDFs) are KDFs which transform input information into one or more keys in a single
operation.
 Two-step KDFs (TKDFs) are KDFs which transform input information into one or more keys in two
operations. A TKDF consists of a combination of two functions: a key extraction function (KTF), and a
key expansion function (KPF). In some cases the KTF can be the identity function (i.e. a function whose
output is always the same as the input), i.e. the TKDF is simply a KPF, in which case the secret
information input to the TKDF shall take the form of a MAC key suitable for use with the MAC algorithm
on which the KPF is based.
Six OKDFs (OKDF1-OKDF6) are specified in Clause 6. In Clause 7, one key extraction function (KTF1), four
key expansion functions (KPF1-KPF4), and four TKDFs (TKDF1-TKDF4) are specified, where the TKDFs are
defined as specific combinations of a KTF and a KPF.
The KDFs specified in this part of ISO/IEC 11770 are built upon existing cryptographic functions, namely
either hash-functions, as specified in ISO/IEC 10118, or Message Authentication Code algorithms, as
specified in ISO/IEC 9797.
5.3 Relationship to key management lifecycle
Clause 4 of ISO/IEC 11770-1 specifies a model for key management, including, in 4.3, a model for the
lifecycle of a key. Key derivation forms part of the first step in this lifecycle, namely the Generation step. Key
derivation could also be used in the Active state for a key, when an existing active key is used to generate
additional keys.
5.4 Use of a key derivation function
The inputs to and outputs from a KDF are permitted to take a variety of forms.
© ISO/IEC 2015 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/IEC DIS 11770-6
The secret information s input to a KDF could be an existing secret key, secret information established
between two parties, e.g. using one of the key establishment mechanisms specified in ISO/IEC 11770-2 or
ISO/IEC 11770-3, or any other secret data known by the party or parties using the KDF.
A KDF could be invoked once with particular secret information s to generate either a single secret key or to
generate a number of secret keys. Alternatively it could be invoked multiple times with the same s and
different salt values t to generate a series of secret keys for specific applications. These salt values could take
a range of forms and have varying lengths, even when used with the same secret value s.
Guidance on use is provided in Annex B.
6 One-step key derivation functions
6.1 General
A one-step KDF (an OKDF) is a KDF which is capable of transforming input information into one or more
secret keys in a single phase of operations (in contrast to the separate extraction and expansion phases that
are employed by two-step KDFs). Like all KDFs, an OKDF takes as input secret information together with
other parameters, some or all of which might be public, and gives as output one or more secret keys.
In this Clause 6, six OKDFs (OKDF1-OKDF6) are specified. Five of them (OKDF1-OKDF5) are based on the
use of a cryptographic hash-function chosen from ISO/IEC 10118. The other scheme (OKDF6) is based on
the use of a MAC algorithm selected from ISO/IEC 9797. OKDF2 outputs a single secret key, whereas the
other five functions output a bit string which can be partitioned into multiple secret keys, as required.
A hash-function used by OKDF1-OKDF5 shall satisfy the following three properties:
 it is computationally infeasible to construct two distinct inputs that map to the same output (collision
resistance);
 for a given output, it is computationally infeasible to find an input that maps to this output (preimage
resistance);
 for a given input, it is computationally infeasible to find a second (distinct) input that maps to the same
output (second preimage resistance).
The hash-function employed in an implementation of OKDF1-OKDF5 and/or the method(s) used to encode
the data input to that hash function shall be chosen in a manner that guards against length-extension attacks.
A hash-function h is called "length-extension resistant" if, given the hash value, h(x), of some unknown input x
(and possibly given the length of x as well), it is computationally infeasible to deduce (with non-negligible
probability of success) the value h(x||y) for any non-empty bit string y, unless x itself can be guessed.
Examples of hash-functions that are length-extension resistant include SHA-384 and SHA-512/256, which
output truncated versions of a 512-bit hash value. Length-extension resistance is not requ
...
