Identification cards — ICC-managed devices — Part 1: General framework

ISO/IEC 18328-1:2015 describes the general architecture of an ICC with ICC-managed devices. ISO/IEC 18328-1:2015 is one of a series of International Standards which outlines the content and the boundaries covered and standardised by the other parts of ISO/IEC 18328. The general principle of this part of ISO/IEC 18328 is that all activities regarding the ICC-managed devices are controlled by the card-IC. This principle also applies when ICC-managed devices are outside the card. ISO/IEC 18328-1:2015 is applicable for all kind of cards independent from interface technology for communication.

Cartes d'identification — Dispositifs contrôlés par carte à circuit intégré (ICC) — Partie 1: Cadre général

General Information

Status
Published
Publication Date
02-Dec-2015
Current Stage
9093 - International Standard confirmed
Completion Date
05-May-2021
Ref Project

Buy Standard

Standard
ISO/IEC 18328-1:2015 - Identification cards -- ICC-managed devices
English language
18 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO/IEC 18328-1:2015 - Identification cards -- ICC-managed devices
English language
18 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 18328-1
First edition
2015-12-15
Identification cards — ICC-managed
devices —
Part 1:
General framework
Cartes d’identification — Dispositifs contrôlés par carte à circuit
intégré (ICC) —
Partie 1: Cadre général
Reference number
ISO/IEC 18328-1:2015(E)
©
ISO/IEC 2015

---------------------- Page: 1 ----------------------

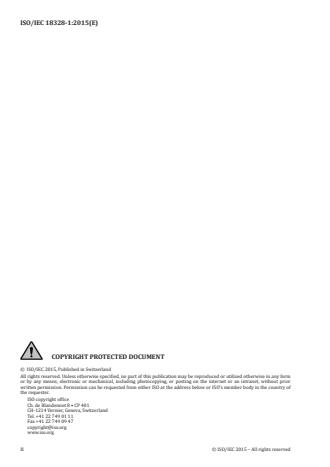

ISO/IEC 18328-1:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 18328-1:2015(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope .1
2 Terms and definitions .1
3 Symbols and abbreviated terms .1
4 Framework for ICC-managed devices .2
4.1 Device categories of ICC-managed devices . 2
4.2 Targeted subjects in the ISO/IEC 18328 series . 2
4.3 System architecture overview . 4
4.4 Logical architecture . 5
Annex A (informative) Device application context .6
Annex B (informative) Use cases .8
Annex C (informative) Usage of legacy card-IC .17
Bibliography .18
© ISO/IEC 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 18328-1:2015(E)

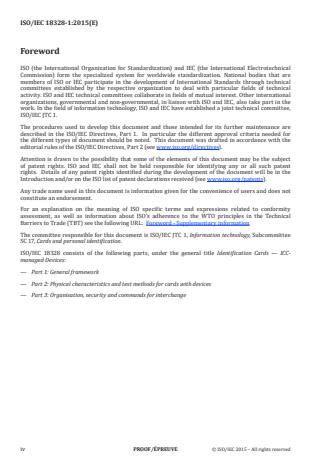

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/IEC JTC 1, Information technology, Subcommittee
SC 17, Cards and personal identification.
ISO/IEC 18328 consists of the following parts, under the general title Identification Cards — ICC-
managed Devices:
— Part 1: General framework
— Part 2: Physical characteristics and test methods for cards with devices
— Part 3: Organisation, security and commands for interchange
iv © ISO/IEC 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 18328-1:2015(E)

Introduction
New upcoming technologies are providing flexible and suitable devices for input and output operations
on ICCs and open a wide area of applications and use cases. Interoperability in current developments of
new projects underlines the need of standardisation.
Integrated Circuit Card (ICC) consists of a card body with an embedded integrated circuit (or several
integrated circuits). International Standards such as ISO/IEC 7816 and ISO/IEC 14443 define the
physical and logical requirements of the ICC, e.g. location of the contacts, size of the card, electrical
signals and communication protocols, security mechanisms, etc.
A lot of new requirements have to be considered when ICC-managed devices are on an ICC. This
also incorporates physical aspects, as well as logical view on this type of card. The needs of useful
applications and their environments have to be also taken into account for the ICC-managed devices
on or in a card body. The nature of the device type leads to different definitions in physical and
logical aspects. The intention of this part of ISO/IEC 18328 is to minimize the technology-dependent
differences and to increase interchange.
This part of ISO/IEC 18328 offers a basic framework of different aspects which allows interoperability
for application of ICC-managed devices on a card or possibly external off the card.
The International Organization for Standardization (ISO) and International Electrotechnical
Commission (IEC) draws attention to the fact that it is claimed that compliance with this part of
ISO/IEC 18328 may involve the use of a patent and their foreign counterparts.
— FR99/09818: Smart card architecture incorporating peripherals
— PCT/EP2011/058914: Bank card with display screen
— PCT/EP2011/059021: Bank card with display screen
— EP2001949522A: Contact-free display peripheral device for contact-free portable object
— WO2009077398, US20100263034, EP2225703, JP2010-538574, KR10-1162443: A method for
authorizing a communication with a portable electronic device, such as an access to an electronic
memory zone corresponding device and system.
ISO and IEC take no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the ISO and IEC that he/she is willing to negotiate licenses
under reasonable and non-discriminatory terms and conditions with applicants throughout the
world. In this respect, the statement of the holder of this patent right is registered with ISO and IEC.
Information may be obtained from:
Gemalto
Intellectual Property and Licensing Department,
6, Rue de la Verrerie,
92197 Meudon Cedex, France
Gemplus
Avenue Pic de Bertagne,
Parc d’Activités de Gémenos BP 100
FR-13881 Gémenos Cedex
ASK SA
Les Boullides,
15, Traverse des Brucs, Sophia Antipolis,
06560 Valbonne, France
© ISO/IEC 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/IEC 18328-1:2015(E)

Attention is drawn to the possibility that some of the elements of this part of ISO/IEC 18328 may be the
subject of patent rights other than those identified above. ISO and IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line databases of patents
relevant to their standards. Users are encouraged to consult the databases for the most up to date
information concerning patents.
vi © ISO/IEC 2015 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 18328-1:2015(E)
Identification cards — ICC-managed devices —
Part 1:
General framework
1 Scope
This part of ISO/IEC 18328 describes the general architecture of an ICC with ICC-managed devices.
This part of ISO/IEC 18328 is one of a series of International Standards which outlines the content and
the boundaries covered and standardised by the other parts of ISO/IEC 18328. The general principle
of this part of ISO/IEC 18328 is that all activities regarding the ICC-managed devices are controlled
by the card-IC. This principle also applies when ICC-managed devices are outside the card. This
part of ISO/IEC 18328 is applicable for all kind of cards independent from interface technology for
communication.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
button
tactile device used as a single input key
2.2
card-IC
integrated circuit with COS
2.3
ICC-managed devices
device or devices whose activities are controlled only by ICC
2.4
keypad
array of several buttons (2.1) organized as one entity
2.5
biometric capture device
sensor whose purpose is to acquire biometric data
Note 1 to entry: See also ISO/IEC 17839.
2.6
electronic display
electronic device to show information
3 Symbols and abbreviated terms
CLF contactless frontend
COS card operating system
NOTE  COS is a logical element for implementation of functionalities defined in ISO/
IEC 7816-4.
© ISO/IEC 2015 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/IEC 18328-1:2015(E)

eID electronic identification
eSE embedded secure element
HCI host controller interface
IC integrated circuit
ICC integrated circuit card
NOTE  An ICC consists of card body (or document, e.g. travel document) and one IC (or sever-
al ICs) with implementation of functionalities defined in ISO/IEC 7816-4. This ICC is inde-
pendent from the physical interface technology.
2
I C inter-integrated circuit
IFD interface device
LED light emitting diode
NFC near field communication
OTP one-time password
PIN personal identification number
SPI serial peripheral interface
SWP single wire protocol
TEE trusted execution environment
UICC universal integrated circuit card
4 Framework for ICC-managed devices
4.1 Device categories of ICC-managed devices
Devices on an ICC mentioned here as ICC-managed devices extend the usage and definitions of a card.
First implementations have shown ICCs using extensions, e.g. keypad, electronic displays, etc. Annex A
outlines a motivation for having a standard for ICC-managed devices.
In general, an ICC-managed device is defined as an electronic device supplementary to the electronic
system on a card, which allows internal transactions and/or transactions with the external world. The
following is a general categorisation in groups seen from the perspective of the ICC:
— devices for input purposes, e.g. button, keypad, microphone, and biometric input sensor;
— devices for output purposes, e.g. display and loudspeaker;
— devices for input/output purposes, e.g. touch-screen;
— devices for communication purposes, e.g. LED, optical sensor, loudspeaker, microphone;
— support devices, e.g. power supplying device.
4.2 Targeted subjects in the ISO/IEC 18328 series
Many card-IC of ICC used today have already ICC-managed devices on the card-IC itself. Examples are
random number generators (RNG) or crypto coprocessors, etc. These on-board devices support the card-
IC and the COS in dedicated use cases. Usually, today, they are proprietarily connected and linked in each
2 © ISO/IEC 2015 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 18328-1:2015(E)

implementation. In this part ISO/IEC 18328, they are out of scope, but it is not excluded in the future to
apply the mechanisms, defined in this series of International Standards also to such on-board devices.
Devices in this part ISO/IEC 18328 are always electronic devices linked to the card-IC. Any information
from or to the device shall be channelled through and controlled by the ICC operating system.
Physical and logical protocols from the physical interfaces of the card-IC of the ICC to the devices are not
covered by this part ISO/IEC 18328. Currently, there are different physical interfaces in ICC in use, e.g.
SPI or I²C interfaces; the definitions applied in this part ISO/IEC 18328shall be independent from any
existing or future interfaces. Concrete implementations of the physical and electrical interfaces from
ICC to any device or buses to the physical device are also out of the scope of this part ISO/IEC 18328.
The wide range of devices with different purposes and the large number of manufactures offering
devices in different technologies and new fast developing technologies require a generic approach
which allows easy adapting of new devices, new manufactures and new technologies in the future. The
definitions in this part ISO/IEC 18328 shall be as flexible as possible to allow the adaptation of new
devices in the future.
This part ISO/IEC 18328 covers all devices connectable to the card-IC including, but not limited to,
power supplying devices, displays, all kind of sensors, microphones, loudspeaker, buttons, keypads, etc.
The list can be extended due to the fact that future developments and needs will arise. Mechanisms to
use electronic devices located outside of the ICC are covered also by this part ISO/IEC 18328. Figure 1
outlines the list of characteristics and mechanisms which shall be standardised within this series of
International Standards.
This part ISO/IEC 18328 defines the required functionality of card operating system and other parts
of software. It covers physical characteristics and test methods and also aspects of coexistence of
technologies for ICC-managed devices.
Definitions of coding required for “trust assessment” of managed data, e.g. warning, font, colour, etc. is
also in the scope of this part ISO/IEC 18328.
The mechanisms described in this part ISO/IEC 18328 are independent from internal capabilities of the
devices.
NOTE Complex devices may have a separate controller or driver to enable its functionality. For example,
an electronic display may have a specific electrical driver which provides and controls the physical signals
to the display.
© ISO/IEC 2015 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/IEC 18328-1:2015(E)

In the scope of ISO/IEC18328-2
In the scope of ISO/IEC18328-3
Physical description of ICC-managed Devices Logical description of ICC-managed devices
Requirements of Use cases
-contact based cards with additional devices
Device control/addressing device description
-contactless cards with addtional devices Device type: input/output
-IC-cards with displays Activation sequence
-cards with biometric capture device Device information: device info template
Coexistence of technologies Device features: device feature template
-location Functionality and commands
-dimension Security and access
Coniguration mechanisms
In the scope of ISO/IEC18328-2 and
Generic device
ISO/IEC 18328-3
EXAMPLES
Touch-screen Power supply unit
Button Electronic display
Keypad Loudspeaker
Biometric input sensor Microphone
Any other device
Figure 1 — Subjects in the ISO/IEC 18328 series
4.3 System architecture overview
The integration of devices into the ICC shall not reduce the functionality of the ICC, especially the
functionality of proximity cards. Possible impacts are in the scope of the other parts of this part
ISO/IEC 18328.
Devices located on different positions on the ICC are always electrically connected to the card-IC. Logical
access to any device on the ICC is entirely under the responsibility of the COS. Figure 2 highlights the
general architecture of ICC with ICC-managed devices.
Locations, physical and logical access, mechanical and electrical requirements, security-related
definitions, etc. are subjects of the other parts of this part ISO/IEC 18328. Some optional features are
outlined in Figure 2, e.g. a piece of software in the COS, so called driver, may handle the electrical access
and bus activities from and to the device units on the ICC. An alternative for legacy systems to the
system architecture on Figure 2 is described in Annex C.
4 © ISO/IEC 2015 – All rights reserved

---------------------- Page: 10 ----------------------


ISO/IEC 18328-1:2015(E)

Device 1
Interface/bus
ICC with card-IC and
APDU-
COS with device
interface
management/driver
Interface/bus
Device n
Figure 2 — System architecture of a card-IC with ICC-managed devices
4.4 Logical architecture
The logical framework shall support any ICC-managed devices used by existing or future applications.
Mechanisms and templates of the framework shall embed the basic operations and data elements/objects
of these applications without restricting their usage or enforcing a redefinition.
Figure 1 outlines some of the projected data templates and mechanisms provided by the operating
system with the purpose to use the expanded functionality within the operating system/applications.
The logical architecture shall also include the usage of electrical devices located outside of the card.
The interchange and security measures for such are the same as for devices on the card. Any access
shall be under the control of the ICC; in case of external devices, an additional functionality for the
external world shall be defined. Security is achieved by application of authenticity and confidentiality
to transported data.
Logical system architecture is detailed in ISO/IEC 18328-3.
Annex B outlines examples of use cases with ICC-managed devices.
© ISO/IEC 2015 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO/IEC 18328-1:2015(E)

Annex A
(informative)

Device application context
A.1 General
Identity-related crimes have spread significantly with the increasing use of cyberspace, where the
process of verification and authentication is less transparent than in an off-line environment. Criminals
and other adversaries often exploit poor identification, authentication and authorization practices, as
well as the infrastructure that the Internet utilizes. Thus, secure identification and authentication has
arguably become the most important single security mechanism.
The classic paradigm for establishing confidence in an identity identifies the following three factors as
the cornerstone of authentication:
— something you know, e.g. a password;
— something you have, e.g. an ICC or a cryptographic key;
— something you are , e.g. a fingerprint or other biometric data.
The strength of authentication mechanisms is largely determined by the number of factors incorporated.
This part ISO/IEC 18328 focuses on multi-factor authentication with one of the factors being a physical
token, such as an ICC or eID document.
For multi-factor authentication, there are two optional inputs to the token known as token activation
data and token input data.
— Token activation data, such as a PIN or biometric data, may be required to activate the token and
permit generation of an authenticator. Token activation data is needed when the token is controlled
through something you know or something you are.
— Token input data, for example, a challenge or a nonce, may be required to generate a token authenticator.
It may be supplied by the user or be a feature of the token itself (e.g. the clock in an OTP device).
A.2 Motivation for biometric capture devices on cards
The use of biometric characteristics for local authentication has many benefits. Example use cases
include “unlocking” conventional authentication tokens, preventing repudiation of registration,
or verifying that the same individual participates in all phases of a registration process. In order to
improve the binding of an authentication token to the token owner, it is beneficial to integrate biometric
capture device in ICC. Typical are fingerprint sensors, combined with on-card fingerprint storage and
fingerprint verification.
— On-card biometrics allow for different modes for card authentication: PIN only, biometrics only, PIN
or biometrics, PIN and biometrics.
— On-card biometrics allow for different modes for user authentication, from one-factor (card only)
over various two-factor combinations up to three-factor authentication: token, PIN and biometrics.
— Biometric credentials are securely stored and processed on the ICC and therefore not susceptible to
service outages or man-in-the-middle attacks.
— Enhanced convenience: biometrics are easier to use and there are no forgotten PIN issues.
6 © ISO/IEC 2015 – All rights reserved

---------------------- Page: 12 ----------------------
ISO/IEC 18328-1:2015(E)

— Enhanced privacy and compliance: biometric credentials never leave the card (no need to store
biometric data in central repositories).
— No infrastructure required for enrolment and verification.
A.3 Motivation for token on ICC
Token is a popular application for ICC with on-card input/output devices. By combination of such
devices, the following use cases are implemented.
— Single-factor one-time password (OTP) Token: Hardware device that generates one-time passwords
based on an embedded secret used as the seed for generation and that does not require activation
through a second factor. Typically, the OTP (e.g. six characters) is displayed permanently on the
device and no user input is required.
— Multi-factor one-time password (OTP) token: Hardware device that generates one-time passwords
which requires activation through a second authentication factor, i.e. something you know or
something you are. The second factor can, for example, be realized via some entry pad or an integral
biometric capture device (e.g. fingerprint). The one-time password is typically displayed on the
device for a short period of time.
— Multi-factor cryptographic token: Hardware device that contains a protected cryptographic key that
requires activation through a second authentication factor, i.e. something you know or something
you are. The second factor can be realized, for example, via some entry pad or an integral biometric
capture device (e.g. fingerprint). Authentication is accomplished by proving possession of the device
and control of the key, which typically results in a cryptographically signed message. Details depend
on the specific cryptographic token and protocol.
Table A.1 characterizes the different popular tokens.
Table A.1 — Key characteristics for these use cases
Device Display Input Elements Remarks
Single-factor OTP token segmented display none on-board power source
required
Multi-factor OTP token segmented display keypad and/or biomet- no on-board power
ric capture device source required
Multi-factor crypto LED keypad and/or biomet- no on-board power
token ric capture device source required
Figure A.1 — Example of a multi-factor OTP token with integrated display and keypad
© ISO/IEC 2015 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO/IEC 18328-1:2015(E)

Annex B
(informative)

Use cases
B.1 PIN verification or PIN input on the ICC
B.1.1 Display user control information
Some applications using ICC as a security element, e.g. signature cards run in unprotected environments
with terminals which may be corrupted. The user of the application is not able to identify the correctness
of the session and the reliability of the terminal. A display on the card may allow the user to control the
authentic input on the terminal keypad when the ICC is able to display the input on the display of the
ICC, because the communication of the terminal with the ICC is normally secured by a secure channel.
The secured and authentic communication channel between IFD and ICC can be checked in this way by
the user and a man-in-the-middle-attack may be avoided.
Same check may be performed by reading of internal information which is stored encrypted on the card
in secured channel. If the card is able to show the plain text on its own display, the user is convinced
that the terminal is trustworthy.
B.1.2 PIN verification on the ICC
Applications on an ICC protect the access to specific functionality or data after a successful verification
of a user PIN or password. Normally, the input is performed on the keypad of the terminal. In addition,
a secure channel is necessary to perform a verify command. High secured applications, e.g. signature
applications, are obliged to use expensive IFD or terminals to allow an authentic input via a special
secured keypad.
All these measures are redundant when an ICC allows the authentic input of a PIN on a keypad located on
the ICC. The terminal has to trigger the application to perform the input of the information on the ICC’s
keypad and perform a verification of the data internally of the ICC without involvement of the terminal.
Both use cases may be combined, e.g. with a touch-screen.
B.1.3 Reference data changing with on-card display and keypad
An ICC with an electronic display and a keypad offers new possibilities for PIN or password change.
This password change is separated in several steps with interactive usage of display and keypad.
The request for the Verification Data and New Reference Data starts with a display message “ENTER
YOUR PIN”. The current value is entered on the keypad and may be temporarily stored in the ICC for later
verification. A process of re-entering this value may be necessary for security reason. For getting the new
reference data, the message “ENTER NEW PIN” is displayed and the new value is entered on the keypad.
The value may be stored in the ICC. The procedure may be also repeated again for security reasons.
After having all information available, the ICC operates the change reference data command.
8 © ISO/IEC 2015 – All rights reserved

---------------------- Page: 14 ----------------------
ISO/IEC 18328-1:2015(E)

User
ICC
IFD
Display Keypad
Request 'Enter your PIN'
PIN Entry
PIN
PIN verify
Result of command
Request 'Enter New PIN'
New PIN entry
New PIN
PIN change
Result of command
Figure B.1 — Reference data changing with on-card display and keypad on ICC
B.2 Temporary numbers
B.2.1 One-time password
An authentication of a user by a remote entity may use PIN or password verification to identify that the
user is in possession of the ICC, e.g. on contactless applications or in applications running over a remote
interface. Most of the applications today are using static passwords/PINs. To increase the security, the
card may use session-related PINs or passwords instead, which are generated within the session on the
ICC. This one-time password may be generated on the card-IC according a specific algorithm and can be
checked on the remote counterpart which has the same knowledge.
The PIN or password is notified temporarily on the display of the ICC and may be used in the course of
the application. Entering the PIN or passwords may be done on the keypad of the IFD or ICC.
B.2.2 Transaction numbers
Instead of a one-time password, some applications use transaction numbers which authenticates the
cardholder. The dynamic transaction numbers notified on the display of the ICC are only available if the
security state allows the access to this functionality. The expected transaction number can be checked
by the remote application.
B.2.3 Card access numbers
A Card Access Number is used to identify the acknowledgement of the user to perform an application,
especially in the contactless case. This number is used to establish the secure channel between the card
and the terminal (see Reference [10]). To prevent misuse (eavesdropping and skimming) and to enhance
the entropy of th
...

INTERNATIONAL ISO/IEC
STANDARD 18328-1
First edition
Identification cards — ICC-managed
devices —
Part 1:
General framework
Cartes d’identification — Dispositifs contrôlés par carte à circuit
intégré (ICC) —
Partie 1: Cadre général
PROOF/ÉPREUVE
Reference number
ISO/IEC 18328-1:2015(E)
©
ISO/IEC 2015

---------------------- Page: 1 ----------------------
ISO/IEC 18328-1:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 18328-1:2015(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope .1
2 Terms and definitions .1
3 Symbols and abbreviated terms .1
4 Framework for ICC-managed devices .2
4.1 Device categories of ICC-managed devices . 2
4.2 Targeted subjects in the ISO/IEC 18328 series . 2
4.3 System architecture overview . 4
4.4 Logical architecture . 5
Annex A (informative) Device application context .6
Annex B (informative) Use cases .8
Annex C (informative) Usage of legacy card-IC .17
Bibliography .18
© ISO/IEC 2015 – All rights reserved PROOF/ÉPREUVE iii

---------------------- Page: 3 ----------------------
ISO/IEC 18328-1:2015(E)

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/IEC JTC 1, Information technology, Subcommittee
SC 17, Cards and personal identification.
ISO/IEC 18328 consists of the following parts, under the general title Identification Cards — ICC-
managed Devices:
— Part 1: General framework
— Part 2: Physical characteristics and test methods for cards with devices
— Part 3: Organisation, security and commands for interchange
iv PROOF/ÉPREUVE © ISO/IEC 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 18328-1:2015(E)

Introduction
New upcoming technologies are providing flexible and suitable devices for input and output operations
on ICCs and open a wide area of applications and use cases. Interoperability in current developments of
new projects underlines the need of standardisation.
Integrated Circuit Card (ICC) consists of a card body with an embedded integrated circuit (or several
integrated circuits). International Standards such as ISO/IEC 7816 and ISO/IEC 14443 define the
physical and logical requirements of the ICC, e.g. location of the contacts, size of the card, electrical
signals and communication protocols, security mechanisms, etc.
A lot of new requirements have to be considered when ICC-managed devices are on an ICC. This
also incorporates physical aspects, as well as logical view on this type of card. The needs of useful
applications and their environments have to be also taken into account for the ICC-managed devices
on or in a card body. The nature of the device type leads to different definitions in physical and
logical aspects. The intention of this part of ISO/IEC 18328 is to minimize the technology-dependent
differences and to increase interchange.
This part of ISO/IEC 18328 offers a basic framework of different aspects which allows interoperability
for application of ICC-managed devices on a card or possibly external off the card.
The International Organization for Standardization (ISO) and International Electrotechnical
Commission (IEC) draws attention to the fact that it is claimed that compliance with this part of
ISO/IEC 18328 may involve the use of a patent and their foreign counterparts.
— FR99/09818: Smart card architecture incorporating peripherals
— PCT/EP2011/058914: Bank card with display screen
— PCT/EP2011/059021: Bank card with display screen
— EP2001949522A: Contact-free display peripheral device for contact-free portable object
— WO2009077398, US20100263034, EP2225703, JP2010-538574, KR10-1162443: A method for
authorizing a communication with a portable electronic device, such as an access to an electronic
memory zone corresponding device and system.
ISO and IEC take no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the ISO and IEC that he/she is willing to negotiate licenses
under reasonable and non-discriminatory terms and conditions with applicants throughout the
world. In this respect, the statement of the holder of this patent right is registered with ISO and IEC.
Information may be obtained from:
Gemalto
Intellectual Property and Licensing Department,
6, Rue de la Verrerie,
92197 Meudon Cedex, France
Gemplus
Avenue Pic de Bertagne,
Parc d’Activités de Gémenos BP 100
FR-13881 Gémenos Cedex
ASK SA
Les Boullides,
15, Traverse des Brucs, Sophia Antipolis,
06560 Valbonne, France
© ISO/IEC 2015 – All rights reserved PROOF/ÉPREUVE v

---------------------- Page: 5 ----------------------
ISO/IEC 18328-1:2015(E)

Attention is drawn to the possibility that some of the elements of this part of ISO/IEC 18328 may be the
subject of patent rights other than those identified above. ISO and IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line databases of patents
relevant to their standards. Users are encouraged to consult the databases for the most up to date
information concerning patents.
vi PROOF/ÉPREUVE © ISO/IEC 2015 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 18328-1:2015(E)
Identification cards — ICC-managed devices —
Part 1:
General framework
1 Scope
This part of ISO/IEC 18328 describes the general architecture of an ICC with ICC-managed devices.
This part of ISO/IEC 18328 is one of a series of International Standards which outlines the content and
the boundaries covered and standardised by the other parts of ISO/IEC 18328. The general principle
of this part of ISO/IEC 18328 is that all activities regarding the ICC-managed devices are controlled
by the card-IC. This principle also applies when ICC-managed devices are outside the card. This
part of ISO/IEC 18328 is applicable for all kind of cards independent from interface technology for
communication.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
button
tactile device used as a single input key
3.2
card-IC
integrated circuit with COS
3.3
ICC-managed devices
device or devices whose activities are controlled only by ICC
3.4
keypad
array of several buttons (3.1) organized as one entity
3.5
biometric capture device
sensor whose purpose is to acquire biometric data
Note 1 to entry: See also ISO/IEC 17839.
3.6
electronic display
electronic device to show information
3 Symbols and abbreviated terms
CLF contactless frontend
COS card operating system
NOTE  COS is a logical element for implementation of functionalities defined in ISO/
IEC 7816-4.
© ISO/IEC 2015 – All rights reserved PROOF/ÉPREUVE 1

---------------------- Page: 7 ----------------------
ISO/IEC 18328-1:2015(E)

eID electronic identification
eSE embedded secure element
HCI host controller interface
IC integrated circuit
ICC integrated circuit card
NOTE  An ICC consists of card body (or document, e.g. travel document) and one IC (or sever-
al ICs) with implementation of functionalities defined in ISO/IEC 7816-4. This ICC is inde-
pendent from the physical interface technology.
2
I C inter-integrated circuit
IFD interface device
LED light emitting diode
NFC near field communication
OTP one-time password
PIN personal identification number
SPI serial peripheral interface
SWP single wire protocol
TEE trusted execution environment
UICC universal integrated circuit card
4 Framework for ICC-managed devices
4.1 Device categories of ICC-managed devices
Devices on an ICC mentioned here as ICC-managed devices extend the usage and definitions of a card.
First implementations have shown ICCs using extensions, e.g. keypad, electronic displays, etc. Annex A
outlines a motivation for having a standard for ICC-managed devices.
In general, an ICC-managed device is defined as an electronic device supplementary to the electronic
system on a card, which allows internal transactions and/or transactions with the external world. The
following is a general categorisation in groups seen from the perspective of the ICC:
— devices for input purposes, e.g. button, keypad, microphone, and biometric input sensor;
— devices for output purposes, e.g. display and loudspeaker;
— devices for input/output purposes, e.g. touch-screen;
— devices for communication purposes, e.g. LED, optical sensor, loudspeaker, microphone;
— support devices, e.g. power supplying device.
4.2 Targeted subjects in the ISO/IEC 18328 series
Many card-IC of ICC used today have already ICC-managed devices on the card-IC itself. Examples are
random number generators (RNG) or crypto coprocessors, etc. These on-board devices support the card-
IC and the COS in dedicated use cases. Usually, today, they are proprietarily connected and linked in each
2 PROOF/ÉPREUVE © ISO/IEC 2015 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 18328-1:2015(E)

implementation. In this part ISO/IEC 18328, they are out of scope, but it is not excluded in the future to
apply the mechanisms, defined in this series of International Standards also to such on-board devices.
Devices in this part ISO/IEC 18328 are always electronic devices linked to the card-IC. Any information
from or to the device shall be channelled through and controlled by the ICC operating system.
Physical and logical protocols from the physical interfaces of the card-IC of the ICC to the devices are not
covered by this part ISO/IEC 18328. Currently, there are different physical interfaces in ICC in use, e.g.
SPI or I²C interfaces; the definitions applied in this part ISO/IEC 18328shall be independent from any
existing or future interfaces. Concrete implementations of the physical and electrical interfaces from
ICC to any device or buses to the physical device are also out of the scope of this part ISO/IEC 18328.
The wide range of devices with different purposes and the large number of manufactures offering
devices in different technologies and new fast developing technologies require a generic approach
which allows easy adapting of new devices, new manufactures and new technologies in the future. The
definitions in this part ISO/IEC 18328 shall be as flexible as possible to allow the adaptation of new
devices in the future.
This part ISO/IEC 18328 covers all devices connectable to the card-IC including, but not limited to,
power supplying devices, displays, all kind of sensors, microphones, loudspeaker, buttons, keypads, etc.
The list can be extended due to the fact that future developments and needs will arise. Mechanisms to
use electronic devices located outside of the ICC are covered also by this part ISO/IEC 18328. Figure 1
outlines the list of characteristics and mechanisms which shall be standardised within this series of
International Standards.
This part ISO/IEC 18328 defines the required functionality of card operating system and other parts
of software. It covers physical characteristics and test methods and also aspects of coexistence of
technologies for ICC-managed devices.
Definitions of coding required for “trust assessment” of managed data, e.g. warning, font, colour, etc. is
also in the scope of this part ISO/IEC 18328.
The mechanisms described in this part ISO/IEC 18328 are independent from internal capabilities of the
devices.
NOTE Complex devices may have a separate controller or driver to enable its functionality. For example,
an electronic display may have a specific electrical driver which provides and controls the physical signals
to the display.
© ISO/IEC 2015 – All rights reserved PROOF/ÉPREUVE 3

---------------------- Page: 9 ----------------------
ISO/IEC 18328-1:2015(E)

In the scope of ISO/IEC18328-2
In the scope of ISO/IEC18328-3
Physical description of ICC-managed Devices Logical description of ICC-managed devices
Requirements of Use cases
-contact based cards with additional devices
Device control/addressing device description
-contactless cards with addtional devices Device type: input/output
-IC-cards with displays Activation sequence
-cards with biometric capture device Device information: device info template
Coexistence of technologies Device features: device feature template
-location Functionality and commands
-dimension Security and access
Coniguration mechanisms
In the scope of ISO/IEC18328-2 and
Generic device
ISO/IEC 18328-3
EXAMPLES
Touch-screen Power supply unit
Button Electronic display
Keypad Loudspeaker
Biometric input sensor Microphone
Any other device
Figure 1 — Subjects in the ISO/IEC 18328 series
4.3 System architecture overview
The integration of devices into the ICC shall not reduce the functionality of the ICC, especially the
functionality of proximity cards. Possible impacts are in the scope of the other parts of this part
ISO/IEC 18328.
Devices located on different positions on the ICC are always electrically connected to the card-IC. Logical
access to any device on the ICC is entirely under the responsibility of the COS. Figure 2 highlights the
general architecture of ICC with ICC-managed devices.
Locations, physical and logical access, mechanical and electrical requirements, security-related
definitions, etc. are subjects of the other parts of this part ISO/IEC 18328. Some optional features are
outlined in Figure 2, e.g. a piece of software in the COS, so called driver, may handle the electrical access
and bus activities from and to the device units on the ICC. An alternative for legacy systems to the
system architecture on Figure 2 is described in Annex C.
4 PROOF/ÉPREUVE © ISO/IEC 2015 – All rights reserved

---------------------- Page: 10 ----------------------


ISO/IEC 18328-1:2015(E)

Device 1
Interface/bus
ICC with card-IC and
APDU-
COS with device
interface
management/driver
Interface/bus
Device n
Figure 2 — System architecture of a card-IC with ICC-managed devices
4.4 Logical architecture
The logical framework shall support any ICC-managed devices used by existing or future applications.
Mechanisms and templates of the framework shall embed the basic operations and data elements/objects
of these applications without restricting their usage or enforcing a redefinition.
Figure 1 outlines some of the projected data templates and mechanisms provided by the operating
system with the purpose to use the expanded functionality within the operating system/applications.
The logical architecture shall also include the usage of electrical devices located outside of the card.
The interchange and security measures for such are the same as for devices on the card. Any access
shall be under the control of the ICC; in case of external devices, an additional functionality for the
external world shall be defined. Security is achieved by application of authenticity and confidentiality
to transported data.
Logical system architecture is detailed in ISO/IEC 18328-3.
Annex B outlines examples of use cases with ICC-managed devices.
© ISO/IEC 2015 – All rights reserved PROOF/ÉPREUVE 5

---------------------- Page: 11 ----------------------
ISO/IEC 18328-1:2015(E)

Annex A
(informative)

Device application context
A.1 General
Identity-related crimes have spread significantly with the increasing use of cyberspace, where the
process of verification and authentication is less transparent than in an off-line environment. Criminals
and other adversaries often exploit poor identification, authentication and authorization practices, as
well as the infrastructure that the Internet utilizes. Thus, secure identification and authentication has
arguably become the most important single security mechanism.
The classic paradigm for establishing confidence in an identity identifies the following three factors as
the cornerstone of authentication:
— something you know, e.g. a password;
— something you have, e.g. an ICC or a cryptographic key;
— something you are , e.g. a fingerprint or other biometric data.
The strength of authentication mechanisms is largely determined by the number of factors incorporated.
This part ISO/IEC 18328 focuses on multi-factor authentication with one of the factors being a physical
token, such as an ICC or eID document.
For multi-factor authentication, there are two optional inputs to the token known as token activation
data and token input data.
— Token activation data, such as a PIN or biometric data, may be required to activate the token and
permit generation of an authenticator. Token activation data is needed when the token is controlled
through something you know or something you are.
— Token input data, for example, a challenge or a nonce, may be required to generate a token authenticator.
It may be supplied by the user or be a feature of the token itself (e.g. the clock in an OTP device).
A.2 Motivation for biometric capture devices on cards
The use of biometric characteristics for local authentication has many benefits. Example use cases
include “unlocking” conventional authentication tokens, preventing repudiation of registration,
or verifying that the same individual participates in all phases of a registration process. In order to
improve the binding of an authentication token to the token owner, it is beneficial to integrate biometric
capture device in ICC. Typical are fingerprint sensors, combined with on-card fingerprint storage and
fingerprint verification.
— On-card biometrics allow for different modes for card authentication: PIN only, biometrics only, PIN
or biometrics, PIN and biometrics.
— On-card biometrics allow for different modes for user authentication, from one-factor (card only)
over various two-factor combinations up to three-factor authentication: token, PIN and biometrics.
— Biometric credentials are securely stored and processed on the ICC and therefore not susceptible to
service outages or man-in-the-middle attacks.
— Enhanced convenience: biometrics are easier to use and there are no forgotten PIN issues.
6 PROOF/ÉPREUVE © ISO/IEC 2015 – All rights reserved

---------------------- Page: 12 ----------------------
ISO/IEC 18328-1:2015(E)

— Enhanced privacy and compliance: biometric credentials never leave the card (no need to store
biometric data in central repositories).
— No infrastructure required for enrolment and verification.
A.3 Motivation for token on ICC
Token is a popular application for ICC with on-card input/output devices. By combination of such
devices, the following use cases are implemented.
— Single-factor one-time password (OTP) Token: Hardware device that generates one-time passwords
based on an embedded secret used as the seed for generation and that does not require activation
through a second factor. Typically, the OTP (e.g. six characters) is displayed permanently on the
device and no user input is required.
— Multi-factor one-time password (OTP) token: Hardware device that generates one-time passwords
which requires activation through a second authentication factor, i.e. something you know or
something you are. The second factor can, for example, be realized via some entry pad or an integral
biometric capture device (e.g. fingerprint). The one-time password is typically displayed on the
device for a short period of time.
— Multi-factor cryptographic token: Hardware device that contains a protected cryptographic key that
requires activation through a second authentication factor, i.e. something you know or something
you are. The second factor can be realized, for example, via some entry pad or an integral biometric
capture device (e.g. fingerprint). Authentication is accomplished by proving possession of the device
and control of the key, which typically results in a cryptographically signed message. Details depend
on the specific cryptographic token and protocol.
Table A.1 characterizes the different popular tokens.
Table A.1 — Key characteristics for these use cases
Device Display Input Elements Remarks
Single-factor OTP token segmented display none on-board power source
required
Multi-factor OTP token segmented display keypad and/or biomet- no on-board power
ric capture device source required
Multi-factor crypto LED keypad and/or biomet- no on-board power
token ric capture device source required
Figure A.1 — Example of a multi-factor OTP token with integrated display and keypad
© ISO/IEC 2015 – All rights reserved PROOF/ÉPREUVE 7

---------------------- Page: 13 ----------------------
ISO/IEC 18328-1:2015(E)

Annex B
(informative)

Use cases
B.1 PIN verification or PIN input on the ICC
B.1.1 Display user control information
Some applications using ICC as a security element, e.g. signature cards run in unprotected environments
with terminals which may be corrupted. The user of the application is not able to identify the correctness
of the session and the reliability of the terminal. A display on the card may allow the user to control the
authentic input on the terminal keypad when the ICC is able to display the input on the display of the
ICC, because the communication of the terminal with the ICC is normally secured by a secure channel.
The secured and authentic communication channel between IFD and ICC can be checked in this way by
the user and a man-in-the-middle-attack may be avoided.
Same check may be performed by reading of internal information which is stored encrypted on the card
in secured channel. If the card is able to show the plain text on its own display, the user is convinced
that the terminal is trustworthy.
B.1.2 PIN verification on the ICC
Applications on an ICC protect the access to specific functionality or data after a successful verification
of a user PIN or password. Normally, the input is performed on the keypad of the terminal. In addition,
a secure channel is necessary to perform a VERIFY command. High secured applications, e.g. signature
applications, are obliged to use expensive IFD or terminals to allow an authentic input via a special
secured keypad.
All these measures are redundant when an ICC allows the authentic input of a PIN on a keypad located on
the ICC. The terminal has to trigger the application to perform the input of the information on the ICC’s
keypad and perform a verification of the data internally of the ICC without involvement of the terminal.
Both use cases may be combined, e.g. with a touch-screen.
B.1.3 Reference data changing with on-card display and keypad
An ICC with an electronic display and a keypad offers new possibilities for PIN or password change.
This password change is separated in several steps with interactive usage of display and keypad.
The request for the Verification Data and New Reference Data starts with a display message “ENTER
YOUR PIN”. The current value is entered on the keypad and may be temporarily stored in the ICC for later
verification. A process of re-entering this value may be necessary for security reason. For getting the new
reference data, the message “ENTER NEW PIN” is displayed and the new value is entered on the keypad.
The value may be stored in the ICC. The procedure may be also repeated again for security reasons.
After having all information available, the ICC operates the change reference data command.
8 PROOF/ÉPREUVE © ISO/IEC 2015 – All rights reserved

---------------------- Page: 14 ----------------------
ISO/IEC 18328-1:2015(E)

User
ICC
IFD
Display Keypad
Request 'Enter your PIN'
PIN Entry
PIN
PIN verify
Result of command
Request 'Enter New PIN'
New PIN entry
New PIN
PIN change
Result of command
Figure B.1 — Reference data changing with on-card display and keypad on ICC
B.2 Temporary numbers
B.2.1 One-time password
An authentication of a user by a remote entity may use PIN or password verification to identify that the
user is in possession of the ICC, e.g. on contactless applications or in applications running over a remote
interface. Most of the applications today are using static passwords/PINs. To increase the security, the
card may use session-related PINs or passwords instead, which are generated within the session on the
ICC. This one-time password may be generated on the card-IC according a specific algorithm and can be
checked on the remote counterpart which has the same knowledge.
The PIN or password is notified temporarily on the display of the ICC and may be used in the course of
the application. Entering the PIN or passwords may be done on the keypad of the IFD or ICC.
B.2.2 Transaction numbers
Instead of a one-time password, some applications use transaction numbers which authenticates the
cardholder. The dynamic transaction numbers notified on the display of the ICC are only available if the
security state allows the access to this functionality. The expected transaction number can be checked
by the remote application.
B.2.3 Card access numbers
A Card Access Number is used to identify the acknowledgement of the user to perform an application,
especially in the contactless case. This number is used to establi
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
