ISO/IEC 30106-2:2020
(Main)Information technology — Object oriented BioAPI — Part 2: Java implementation
Information technology — Object oriented BioAPI — Part 2: Java implementation
This document specifies an interface of a BioAPI Java framework and BioAPI Java BSP, which will mirror the corresponding components, specified in ISO/IEC 30106-1. The semantic equivalent of ISO/IEC 30106-1 is maintained in this document.
Technologies de l'information — Objet orienté BioAPI — Partie 2: Mise en oeuvre Java
General Information
Relations
Standards Content (Sample)
INTERNATIONAL ISO/IEC
STANDARD 30106-2
Second edition
2020-11
Information technology — Object
oriented BioAPI —
Part 2:
Java implementation
Technologies de l'information — Objet orienté BioAPI —
Partie 2: Mise en oeuvre Java
Reference number
©
ISO/IEC 2020
© ISO/IEC 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2020 – All rights reserved

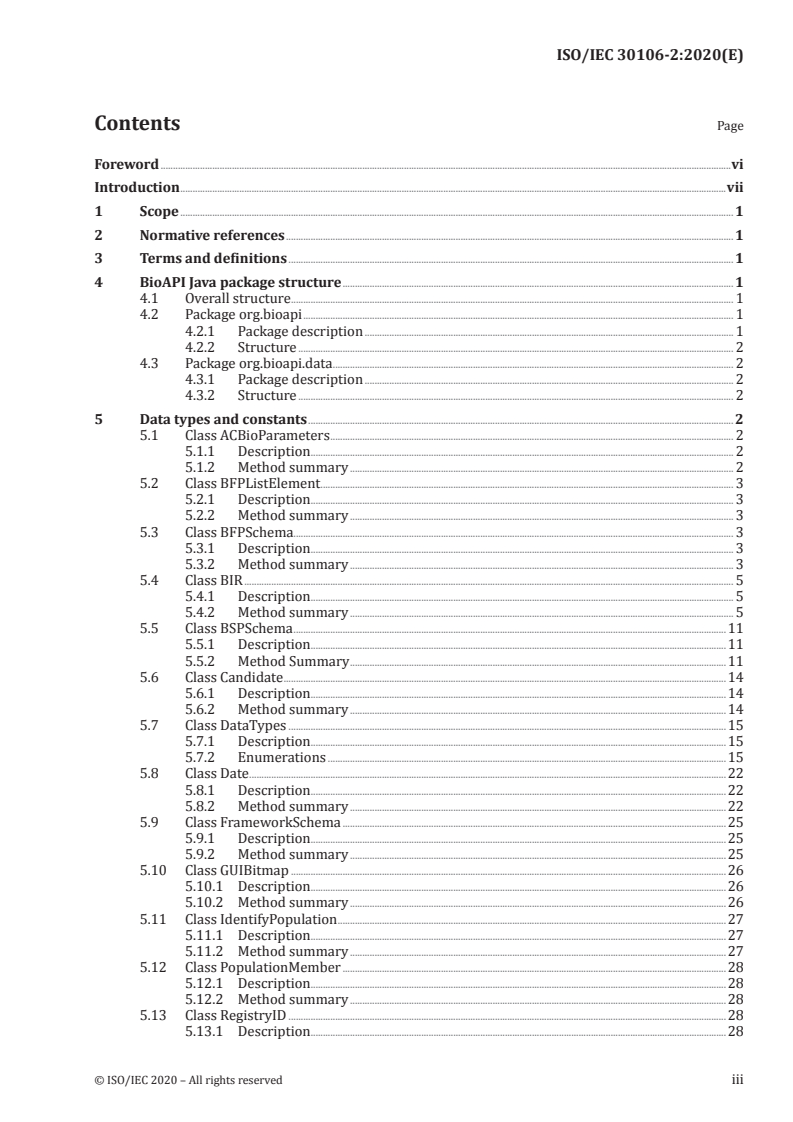

Contents Page
Foreword .vi
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 BioAPI Java package structure . 1
4.1 Overall structure . 1
4.2 Package org.bioapi . 1
4.2.1 Package description . 1
4.2.2 Structure . 2
4.3 Package org.bioapi.data . 2
4.3.1 Package description . 2
4.3.2 Structure . 2
5 Data types and constants . 2
5.1 Class ACBioParameters . 2
5.1.1 Description . . . 2
5.1.2 Method summary . 2
5.2 Class BFPListElement . . 3
5.2.1 Description . . . 3
5.2.2 Method summary . 3
5.3 Class BFPSchema. 3
5.3.1 Description . . . 3
5.3.2 Method summary . 3
5.4 Class BIR . 5
5.4.1 Description . . . 5
5.4.2 Method summary . 5
5.5 Class BSPSchema .11
5.5.1 Description . . .11
5.5.2 Method Summary .11
5.6 Class Candidate .14
5.6.1 Description . . .14
5.6.2 Method summary .14
5.7 Class DataTypes .15
5.7.1 Description . . .15
5.7.2 Enumerations .15
5.8 Class Date .22
5.8.1 Description . . .22
5.8.2 Method summary .22
5.9 Class FrameworkSchema .25
5.9.1 Description . . .25
5.9.2 Method summary .25
5.10 Class GUIBitmap .26
5.10.1 Description . . .26
5.10.2 Method summary .26
5.11 Class IdentifyPopulation .27
5.11.1 Description . . .27
5.11.2 Method summary .27
5.12 Class PopulationMember .28
5.12.1 Description . . .28
5.12.2 Method summary .28
5.13 Class RegistryID .28
5.13.1 Description . . .28
© ISO/IEC 2020 – All rights reserved iii

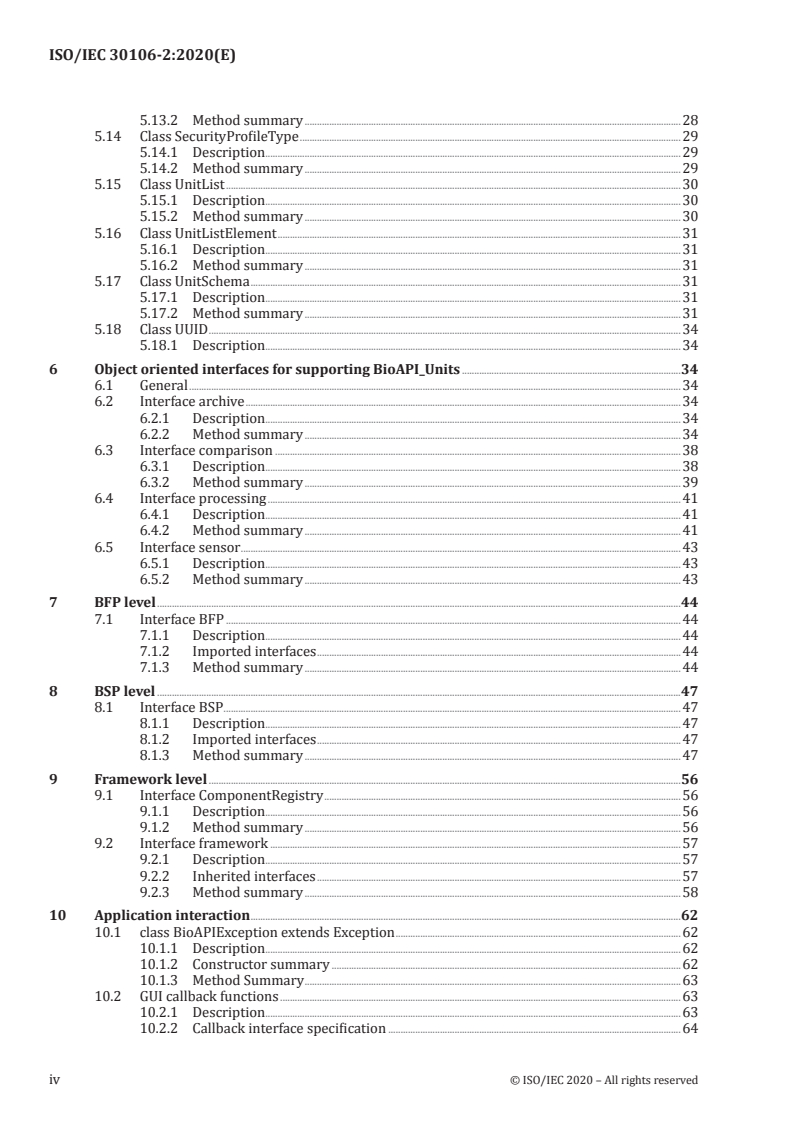

5.13.2 Method summary .28
5.14 Class SecurityProfileType .29
5.14.1 Description . . .29
5.14.2 Method summary .29
5.15 Class UnitList .30
5.15.1 Description . . .30
5.15.2 Method summary .30
5.16 Class UnitListElement .31
5.16.1 Description . . .31
5.16.2 Method summary .31
5.17 Class UnitSchema .31
5.17.1 Description . . .31
5.17.2 Method summary .31
5.18 Class UUID .34
5.18.1 Description . . .34
6 Object oriented interfaces for supporting BioAPI_Units .34
6.1 General .34
6.2 Interface archive .34
6.2.1 Description . . .34
6.2.2 Method summary .34
6.3 Interface comparison .38
6.3.1 Description . . .38
6.3.2 Method summary .39
6.4 Interface processing .41
6.4.1 Description . . .41
6.4.2 Method summary .41
6.5 Interface sensor .43
6.5.1 Description . . .43
6.5.2 Method summary .43
7 BFP level .44
7.1 Interface BFP .44
7.1.1 Description . . .44
7.1.2 Imported interfaces .44
7.1.3 Method summary .44
8 BSP level .47
8.1 Interface BSP .47
8.1.1 Description . . .47
8.1.2 Imported interfaces .47
8.1.3 Method summary .47
9 Framework level .56
9.1 Interface ComponentRegistry .56
9.1.1 Description . . .56
9.1.2 Method summary .56
9.2 Interface framework .57
9.2.1 Description . . .57
9.2.2 Inherited interfaces .57
9.2.3 Method summary .58
10 Application interaction .62
10.1 class BioAPIException extends Exception .62
10.1.1 Description . . .62
10.1.2 Constructor summary .62
10.1.3 Method Summary .63
10.2 GUI callback functions .63
10.2.1 Description . . .63
10.2.2 Callback interface specification .64
iv © ISO/IEC 2020 – All rights reserved
11 BSP Interaction .68
11.1 Interface BSPEventListener .68
11.1.1 Method summary .68
12 BFP Interaction .68
12.1 Interface BFPEnumerationListener .68
12.1.1 Method summary .68
12.2 Interface BFPEventListener .68
12.2.1 Method summary .68
12.3 Interface BFPGUIProgressEventListener .69
12.3.1 Method summary .69
Annex A (informative) Java requirements .70
Annex B (informative) Calling sequence examples and sample code .71
Bibliography .72
© ISO/IEC 2020 – All rights reserved v
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents) or the IEC
list of patent declarations received (see http:// patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 37, Biometrics.
This second edition cancels and replaces the first edition (ISO/IEC 30106-2:2016), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— correction of typing errors;
— addition of AnalyseQuality method.
A list of all parts in the ISO/IEC 30106 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
vi © ISO/IEC 2020 – All rights reserved
Introduction
This document specifies an application programming interface expressed in Java language. Java
is intended to be a simple, general-purpose, object-oriented programming language that is aimed at
enabling programmers to quickly build a wide range of applications for multiple platforms.
This Java implementation allows an easy use of Java BSPs, Java-based application servers or Java applets.
It is therefore the best way to write desktop and web applications/services. This document provides an
advanced and well-designed remote framework.
Although the best practices of Java programming state that variables should be written in lowercase
letters, in the case of symbols, such as BSP or BFPs, they have been retained in uppercase letters.
© ISO/IEC 2020 – All rights reserved vii
INTERNATIONAL STANDARD ISO/IEC 30106-2:2020(E)
Information technology — Object oriented BioAPI —
Part 2:
Java implementation
1 Scope
This document specifies an interface of a BioAPI Java framework and BioAPI Java BSP, which will
mirror the corresponding components, specified in ISO/IEC 30106-1. The semantic equivalent of
ISO/IEC 30106-1 is maintained in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 10646, Information technology — Universal Coded Character Set (UCS)
ISO/IEC 30106-1, Information technology — Object oriented BioAPI — Part 1: Architecture
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 BioAPI Java package structure
4.1 Overall structure
The BioAPI Java interface is divided into several packages. The following is the package structure.
— Package org.bioapi: Contains functionality to manage units, BSPs, BFPs, the Framework and
Applications.
— Package org.bioapi.data: Contains all the data structures.
4.2 Package org.bioapi
4.2.1 Package description
This package contains all the components responsible for managing and executing the functionality of
BioAPI. Component Registry interface is also defined in this package.
© ISO/IEC 2020 – All rights reserved 1
4.2.2 Structure
The description of this package is given explaining a bottom-up structure. In Clause 6, the interfaces
that need to be implemented for each of the Unit types are explained. It is important to note that
such interfaces do not refer to an implemented class by itself, as the accessible class will be either the
Biometric Service Provider (BSP) or the Biometric Function Provider (BFP), but the specifications in
this clause are common to the methods and properties to be added to the implemented BSP and/or BFP
classes.
This will be followed by the specification of the implementation of the BFP (Clause 7) and BSP (Clause 8)
interfaces. These two interfaces provide the lower layer interoperability level, equivalent to the SPI and
BFPI interfaces in ISO/IEC 19784-1.
The higher layer of interoperability level is provided by the specification of the Framework (Clause 9,
with the Framework Interface and the Component Registry) and the Application interaction (Clause 10,
with the specification of the Exceptions and Callback functions). This provides the equivalence to the
API interface in ISO/IEC 19784-1.
4.3 Package org.bioapi.data
4.3.1 Package description
This package contains all data structures required for the implementation of OO BioAPI.
4.3.2 Structure
Several data structures are provided to comply with the requirements specified by this document. The
whole org.bioapi.data package is specified in Clause 5, where all required classes and enumerations are
defined. This has to be complemented to the constants defined in ISO/IEC 30106-1.
5 Data types and constants
5.1 Class ACBioParameters
5.1.1 Description
Provides the information which is used to generate ACBio instances.
5.1.2 Method summary
5.1.2.1 int[] getChallenge()
Description: Return the challenge from the validator of a biometric verification when ACBio is
used. This value shall be sent to the field controlValue of type
ACBioContentInformation in ACBio instances.
Return Value: The challenge from the validator of a biometric verification when ACBio is used.
5.1.2.2 int[] getInitialBPUIOIndexOutput()
Description: Return the initial value of BPU IO index which is to be assigned to the output
from the BioAPI Unit, BFP, or BSP when the ACBio instances are generated. The
range between InitialBPUIOIndexOutput and SupremumBPUIOIndexOutput shall
be divided into the number of BSP Units and BFPs which are inside the BSP, and
assigned to the BSP Units and BSPs.
Return Value: The initial value of BPU IO index.
2 © ISO/IEC 2020 – All rights reserved
5.1.2.3 int[] getSupremumBPUIOIndexOutput()
Description: Return the supremum of BPU IO indexes which are to be assigned to the output
from the BioAPI Unit, BFP, or BSP when the ACBio instances are generated.
Return Value: The supremum of BPU IO index.
5.2 Class BFPListElement
5.2.1 Description
Identifies a BFP by category and UUID. A list is returned by a BSP when queried for the installed BFPs
that it supports.
5.2.2 Method summary
5.2.2.1 UUID getBFPID()
Description: Return the UUID assigned to the BFP.
Return Value: The UUID assigned to the BFP.
5.2.2.2 UnitCategoryType getUnitCategory()
Description: Return the category of the units.
Return Value: The category of the units.
5.2.2.3 void setBFPID(UUID bfpID)
Description: Set the UUID assigned to the BFP.
Parameters: — bfpID: The UUID assigned to the BFP.
5.2.2.4 void setUnitCategory(UnitCategoryType unitCategory)
Description: Set the category of the units.
Parameters: — unitCategory: The category of the units.
5.3 Class BFPSchema
5.3.1 Description
Represents the record in the component registry that defines the properties of the BFP installed in
the system.
5.3.2 Method summary
5.3.2.1 String getBFPDescription()
Description: Return a NULL-terminated string containing a text description of the BFP.
Return Value: A NULL-terminated string containing a text description of the BFP.
© ISO/IEC 2020 – All rights reserved 3
5.3.2.2 Vector getBFPSupportedFormats()
Description: Return a list the data formats that are supported by the BFP.
Return Value: A list the data formats that are supported by the BFP.
5.3.2.3 UUID getBFPUUID()
Description: Return the BFP UUID.
Return Value: The BFP UUID.
5.3.2.4 Vector getFactorsMask()
Description: Return a list of the biometric types supported by the BFP.
Return Value: A list of the biometric types supported by the BFP.
5.3.2.5 byte[] getFWProperty()
Description: Return the address and length of a memory buffer containing the BFP property.
The format and content of the BFP property can either be specified by a vendor
or can be specified in a related standard.
Return Value: The address and length of a memory buffer containing the BFP property.
5.3.2.6 UUID getFWPropertyID()
Description: Return the UUID of the format of the following BFP property.
Return Value: UUID of the format of the following BFP property.
5.3.2.7 String getPath()
Description: Return a pointer to a NULL-terminated string containing the path of the file
containing the BFP executable code, including the filename. The path may be a
URL. This string shall consist of ISO/IEC 10646 characters encoded in UTF-8 (see
ISO/IEC 10646:2017, Annex D). When BFPSchema is used within a function call,
the component that receives the call allocates the memory for the Path schema
element and the calling component frees the memory.
Return Value: A pointer to a NULL-terminated string containing the path of the file containing
the BFP executable code, including the filename.
5.3.2.8 String getProductVersion()
Description: Return the version string of the BFP software.
Return Value: The version string of the BFP software.
5.3.2.9 String getSpecVersion()
Description: Return the major/minor version number of the BioAPI specification to which the
BFP was implemented.
Return Value: The major/minor version number of the BioAPI specification to which the BFP
was implemented.
4 © ISO/IEC 2020 – All rights reserved
5.3.2.10 UnitCategoryType getUnitCategory()
Description: Return the category of the BFP identified by the BFP UUID.
Return Value: The category of the BFP identified by the BFP UUID.
5.3.2.11 String getVendor()
Description: Return a NULL-terminated string containing the name of the BFP vendor.
Return Value: A NULL-terminated string containing the name of the BFP vendor.
5.4 Class BIR
5.4.1 Description
Represents BIRs (Biometric Information Records). It supports ISO/IEC 19785-1 definitions, both for
Simple-BIRs or for Complex-BIRs. The specification of the patron format that shall be used is given in
ISO/IEC 30106-1.
5.4.2 Method summary
5.4.2.1 void birFromByteArray(byte[] record)
Description: Fills in the BIR data from a byte array coded as CBEFF record, as indicated in the
relevant clauses of ISO/IEC 19785-3 and ISO/IEC 19785-4.
Parameters: — record: The byte array containing the CBEFF record.
Exception: If the input parameters are invalid, the format is not supported or operation fails
due to error, BioAPIException (see 10.1).
5.4.2.2 byte[] birToByteArray()
Description: Serializes a BIR record so as to provide it as a byte array representing the CBEFF
information.
Return Value: The byte array containing the CBEFF information.
Exception: If the input parameters are invalid, the format is not supported or operation fails
due to error, BioAPIException (see 10.1).
5.4.2.3 void destroy()
Description: Removes all the information in the current BIR, leaving it empty for a next use.
Exception: None.
5.4.2.4 BiometricSubtype getBDBBiometricSubtype()
Description: Return the BDB biometric subtype.
Return Value: The BDB biometric subtype.
© ISO/IEC 2020 – All rights reserved 5
5.4.2.5 BiometricType getBDBBiometricType()
Description: Return the BDB biometric type.
Return Value: The BDB biometric type.
5.4.2.6 byte[] getBDBChallengeResponse()
Description: Return the BDB challenge response.
Return Value: The BDB challenge response.
5.4.2.7 Date getBDBCreationDate()
Description: Return the BDB creation date.
Return Value: The BDB creation date.
5.4.2.8 byte[] getBDBData()
Description: Return the BDB data array.
Return Value: The BDB data array.
5.4.2.9 RegistryID getBDBFormat()
Description: Return the format of the BDB data.
Return Value: The format of the BDB data.
5.4.2.10 byte[] getBDBIndex()
Description: Return the BDB index.
Return Value: The BDB index.
5.4.2.11 ProcessedLevel getBDBProcessedLevel()
Description: Return the BDB processed level.
Return Value: The BDB processed level.
5.4.2.12 Purpose getBDBPurpose()
Description: Return the BDB purpose.
Return Value: The BDB purpose.
5.4.2.13 byte getBDBQuality()
Description: Return the BDB quality.
Return Value: The BDB quality.
6 © ISO/IEC 2020 – All rights reserved
5.4.2.14 Vector getBDBValidityPeriod()
Description: Return the BDB validity period.
Return Value: The BDB validity period.
5.4.2.15 Date getBIRCreationDate()
Description: Return the BIR creation date.
Return Value: The BIR creation date.
5.4.2.16 byte[] getBIRCreator()
Description: Return the BIR creator array.
Return Value: The BIR creator array.
5.4.2.17 byte[] getBIRIndex()
Description: Return the BIR index.
Return Value: The BIR index.
5.4.2.18 byte[] getBIRAdditionalData()
Description: Return the BIR additionalData.
Return Value: The BIR additionalData.
5.4.2.19 Vector getBIRValidityPeriod()
Description: Return the BIR validity period.
Return Value: The BIR validity period.
5.4.2.20 byte getCBEFFVersion()
Description: Return the version of the CBEFF component.
Return Value: The version of the CBEFF component.
5.4.2.21 RegistryID getPatronFormat()
Description: Return the patron format.
Return Value: The patron format.
5.4.2.22 byte getPatronHeaderVersion()
Description: Return the header version.
Return Value: The header version.
5.4.2.23 byte[] getSBData()
Description: Return the Security Block data array.
Return Value: The Security Block data array.
© ISO/IEC 2020 – All rights reserved 7
5.4.2.24 RegistryID getSBFormat()
Description: Return the Security Block format.
Return Value: The Security Block format.
5.4.2.25 boolean hasBDBEncription()
Description: Return true if the BDB is encrypted, false otherwise.
Return Value: True if the BDB is encrypted, false otherwise.
5.4.2.26 boolean hasBDBIntegrity()
Description: Return true if the BDB has integrity, false otherwise.
Return Value: True if the BDB has integrity, false otherwise.
5.4.2.27 boolean isBIRSigned()
See 5.4.2.29.
5.4.2.28 boolean isQualitySupported()
See 5.4.2.29.
5.4.2.29 boolean isQualityKnown()
Description: Request about each of the abovementioned characteristics of the BIR.
Return Value: True if the characteristic is available, false otherwise.
Exception: None.
5.4.2.30 void setBDBBiometricSubtype(BiometricSubtype bdbBiometricSubtype)
Description: Set the BDB biometric subtype.
Parameters: — bdbBiometricSubtype: The BDB biometric subtype.
5.4.2.31 void setBDBBiometricType(BiometricType bdbBiometricType)
Description: Set the BDB biometric type.
Parameters: — bdbBiometricType: The BDB biometric type.
5.4.2.32 void setBDBChallengeResponse(byte bdbChallengeResponse)
Description: Set the BDB challenge response.
Parameters: — bdbChallengeResponse: The BDB challenge response.
5.4.2.33 void setBDBCreationDate(Date bdbCreationDate)
Description: Set the BDB creation date.
Parameters: — bdbCreationDate: The BDB creation date.
8 © ISO/IEC 2020 – All rights reserved
5.4.2.34 void setBDBEncription(boolean bdbEncription)
Description: Determine if BDB data is encrypted or not.
Parameters: — bdbEncription: True if the BDB is encrypted, false otherwise.
5.4.2.35 void setBDBFormat(RegistryID bdbFormat)
Description: Set the format of the BDB data.
Parameters: — bdbFormat: The format of the BDB data.
5.4.2.36 void setBDBData(byte[] bdbData)
Description: Set the BDB data.
Parameters: — bdbData: The BDB data.
5.4.2.37 void setBDBIndex(byte[] bdbIndex)
Description: Set the BDB index array.
Parameters: — bdbIndex: The BDB index array.
5.4.2.38 void setBDBIntegrity(boolean bdbIntegrity)
Description: Determine if BDB data has integrity or not.
Parameters: — bdbIntegrity: True if the BDB has integrity, false otherwise.
5.4.2.39 void setBDBQuality(byte bdbQuality)
Description: Set the BDB quality.
Parameters: — bdbQuality: The BDB quality.
5.4.2.40 void setBDBProcessedLevel(ProcessedLevel bdbProcessedLevel)
Description: Set the BDB processed level.
Parameters: — bdbProcessedLevel: The BDB processed level.
5.4.2.41 void setBDBPurpose(Purpose bdbPurpose)
Description: Set the BDB purpose.
Parameters: — bdbPurpose: The BDB purpose.
5.4.2.42 void setBDBValidityPeriod(Vector bdbValidityPeriod)
Description: Set the BDB validity period.
Parameters: — bdbValidityPeriod: The BDB validity period.
5.4.2.43 void setBIRCreationDate(Date birCreationDate)
Description: Set the BIR creation date.
Parameters: — birCreationDate: The BIR creation date.
© ISO/IEC 2020 – All rights reserved 9
5.4.2.44 void setBIRCreator(byte[] birCreator)
Description: Set the BIR creator array.
Parameters: — birCreator: The BIR creator array.
5.4.2.45 void setBIRIndex(byte[] birIndex)
Description: Set the BIR index.
Parameters: — birIndex: The BIR index.
5.4.2.46 void setBIRAdditionalData(byte[] birAdditionalData)
Description: Set the BIR additionalData.
Parameters: — birAdditionalData: The BIR additionalData.
5.4.2.47 void setBIRValidityPeriod(Vector birValidityPeriod)
Description: Set the BIR validity period.
Parameters: — birValidityPeriod: The BIR validity period.
5.4.2.48 void setCBEFFVersion(byte cbeffVersion)
Description: Set the version of the CBEFF component.
Parameters: — cbeffVersion: The version of the CBEFF component.
5.4.2.49 void setPatronFormat(RegistryID patronFormat)
Description: Set the patron format.
Parameters: — patronFormat: The patron format.
5.4.2.50 void setPatronHeaderVersion(byte patronHeaderVersion)
Description: Set the header version.
Parameters: — patronHeaderVersion: The header version.
5.4.2.51 void setSBData(byte[] sbData)
Description: Set the SB data.
Parameters: — sbData: The SB data.
5.4.2.52 void setSBFormat(RegistryID sbFormat)
Description: Set the format of the SB data.
Parameters: — sbFormat: The format of the SB data.
10 © ISO/IEC 2020 – All rights reserved
5.5 Class
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
