ISO/TR 19623:2019

Timber structures — Glued laminated timber — Assignment of glued laminated timber characteristic values from laminate properties

This document reviews the methodologies or analytical models that have been used to develop the strength and stiffness of structural glued laminated timber (glulam) from the characteristic properties of lumber laminations. The review is limited to the methodologies used in Europe, the USA, Australia/New Zealand, and Canada as they represent different fundamental philosophies in these areas. As a result, the methodologies are not intended to be combined unless there is clear understanding of the fundamental assumptions adopted by the respective methodologies. NOTE Detailed assumptions used by the respective methodologies are available from the standards listed in the Bibliography.

Structures en bois — Bois lamellé-collé — Valeurs caractéristiques du bois lamellé-collé sur la base des propriétés des lamelles

General Information

• Status: Published
• Publication Date: 18-Jun-2019
• ICS: 91.080.20 - Timber structures
• Technical Committee: ISO/TC 165 - Timber structures
• Drafting Committee: ISO/TC 165/WG 2 - Structural glued wood products
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 14-May-2021

Standards Content (Sample)

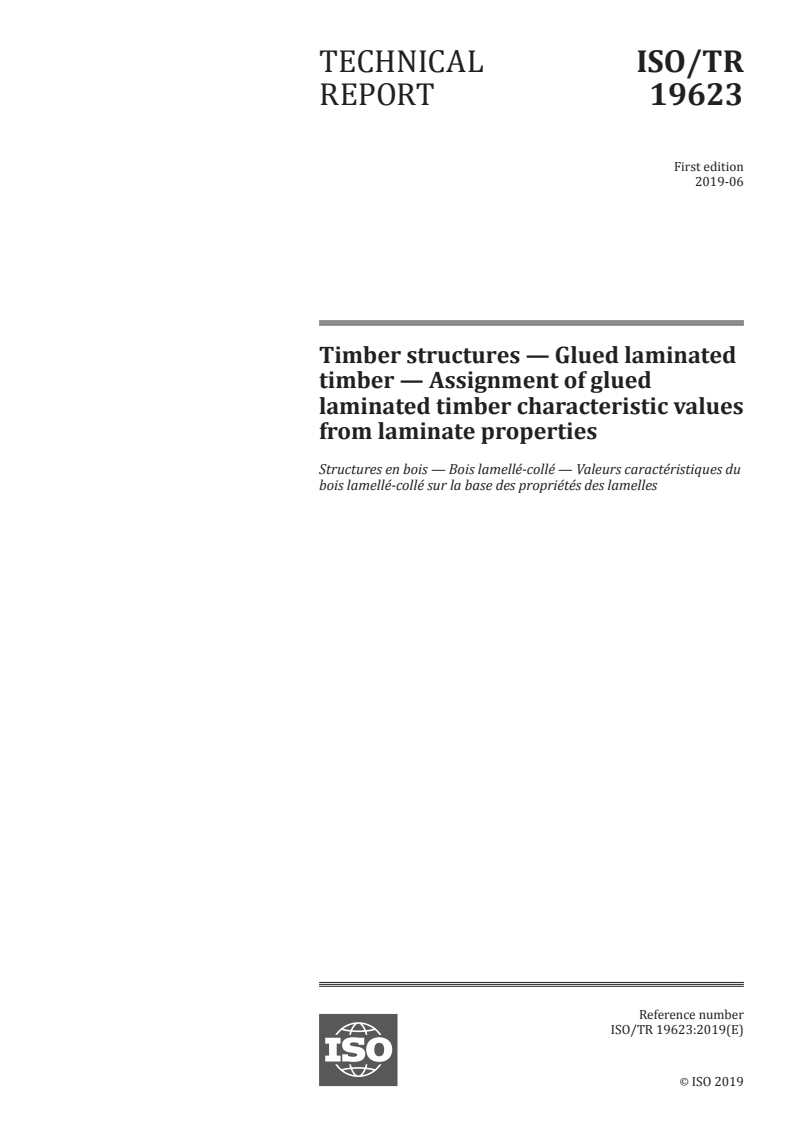

TECHNICAL ISO/TR
REPORT 19623
First edition
2019-06
Timber structures — Glued laminated
timber — Assignment of glued
laminated timber characteristic values
from laminate properties
Structures en bois — Bois lamellé-collé — Valeurs caractéristiques du
bois lamellé-collé sur la base des propriétés des lamelles
Reference number
ISO/TR 19623:2019(E)
©
ISO 2019

---------------------- Page: 1 ----------------------
ISO/TR 19623:2019(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 19623:2019(E)

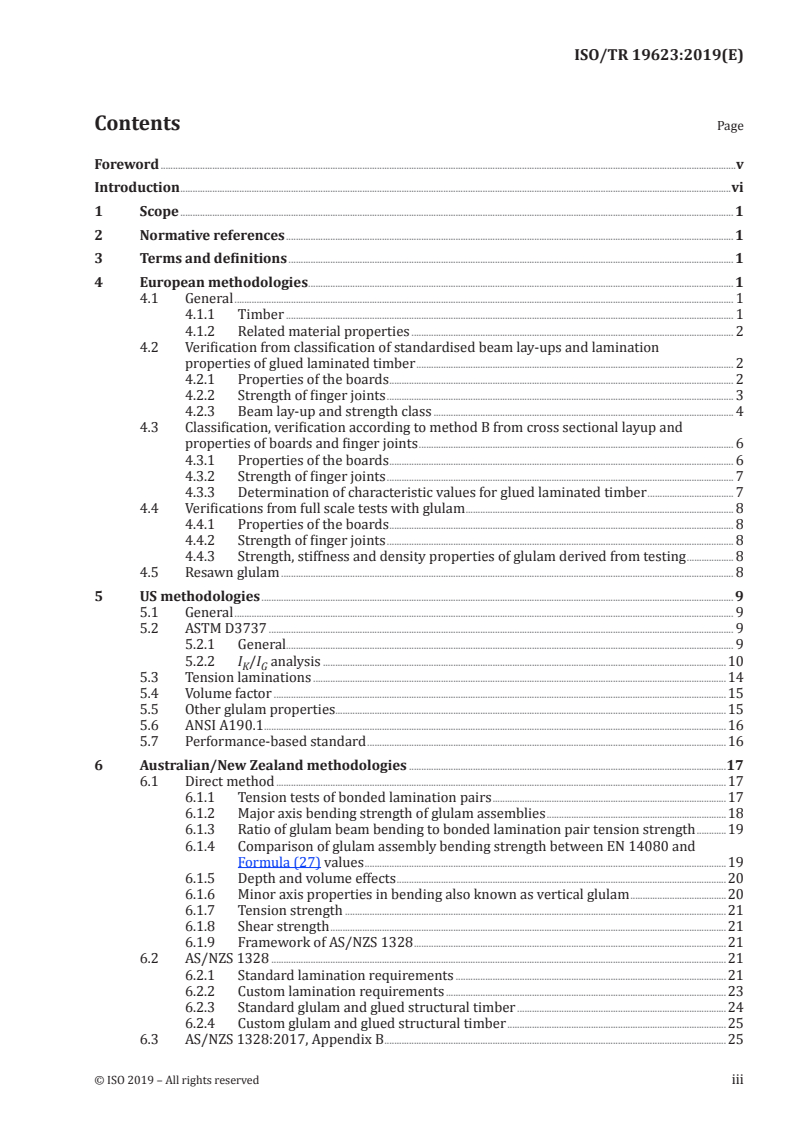

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 European methodologies . 1
4.1 General . 1
4.1.1 Timber . 1
4.1.2 Related material properties . 2
4.2 V erification from classification of standardised beam lay-ups and lamination
properties of glued laminated timber . 2
4.2.1 Properties of the boards . 2
4.2.2 Strength of finger joints . 3
4.2.3 Beam lay-up and strength class . 4
4.3 Classification, verification according to method B from cross sectional layup and
properties of boards and finger joints . 6
4.3.1 Properties of the boards . 6
4.3.2 Strength of finger joints . 7
4.3.3 Determination of characteristic values for glued laminated timber . 7
4.4 Verifications from full scale tests with glulam . 8
4.4.1 Properties of the boards . 8
4.4.2 Strength of finger joints . 8
4.4.3 Strength, stiffness and density properties of glulam derived from testing . 8
4.5 Resawn glulam . 8
5 US methodologies . 9
5.1 General . 9
5.2 ASTM D3737 . 9
5.2.1 General. 9
5.2.2 I /I analysis .10
K G
5.3 Tension laminations .14
5.4 Volume factor .15
5.5 Other glulam properties.15
5.6 ANSI A190.1 .16
5.7 Performance-based standard .16
6 Australian/New Zealand methodologies .17
6.1 Direct method .17
6.1.1 Tension tests of bonded lamination pairs .17
6.1.2 Major axis bending strength of glulam assemblies .18
6.1.3 Ratio of glulam beam bending to bonded lamination pair tension strength .19
6.1.4 Comparison of glulam assembly bending strength between EN 14080 and
Formula (27) values .19
6.1.5 Depth and volume effects .20
6.1.6 Minor axis properties in bending also known as vertical glulam .20
6.1.7 Tension strength .21
6.1.8 Shear strength .21
6.1.9 Framework of AS/NZS 1328 .21
6.2 AS/NZS 1328 .21
6.2.1 Standard lamination requirements .21
6.2.2 Custom lamination requirements .23
6.2.3 Standard glulam and glued structural timber .24
6.2.4 Custom glulam and glued structural timber .25
6.3 AS/NZS 1328:2017, Appendix B .25
© ISO 2019 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 19623:2019(E)

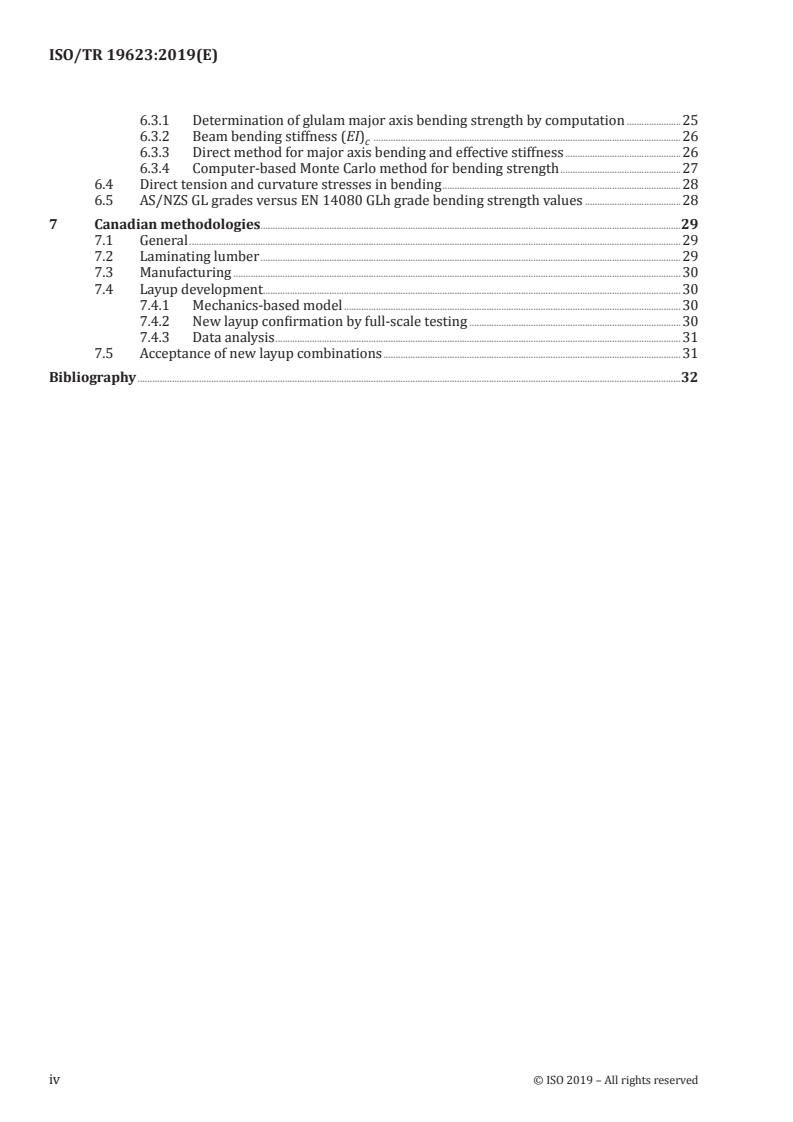

6.3.1 Determination of glulam major axis bending strength by computation .25
6.3.2 Beam bending stiffness (EI) .26
c
6.3.3 Direct method for major axis bending and effective stiffness .26
6.3.4 Computer-based Monte Carlo method for bending strength .27
6.4 Direct tension and curvature stresses in bending .28
6.5 AS/NZS GL grades versus EN 14080 GLh grade bending strength values .28
7 Canadian methodologies.29
7.1 General .29
7.2 Laminating lumber .29
7.3 Manufacturing .30
7.4 Layup development.30
7.4.1 Mechanics-based model .30
7.4.2 New layup confirmation by full-scale testing .30
7.4.3 Data analysis .31
7.5 Acceptance of new layup combinations .31
Bibliography .32
iv © ISO 2019 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 19623:2019(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 165, Timber structures.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
© ISO 2019 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/TR 19623:2019(E)

Introduction
This document was prepared in response to the growing interest in development of the strength
and stiffness of structural glued laminated timber (glulam) from the characteristic values of lumber
laminations.
Since its first introduction in 1890s, glulam has been used in timber construction for over 125 years
with excellent track record of performance. Many countries around the world, which have experience in
glulam construction, have various glulam production capabilities that are supported by methodologies
or analytical models for development of glulam strength and stiffness from the characteristic values
of lumber laminations. This document reviews methodologies from Europe, the USA, Australia/New
Zealand, and Canada that have successfully demonstrated their acceptance through years of practice
and end uses.
This document does not cover all methodologies around the world and is not intended to exclude other
methodologies that can demonstrate their capabilities of correlating the analytical results with the
actual product performance. This document will be updated with those additional methodologies when
their documentation becomes available in the future.
This document promotes the understanding of the differences between methodologies as a first step
toward an international harmonization in the process of assigning glulam characteristic values from
laminate properties.
vi © ISO 2019 – All rights reserved

---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 19623:2019(E)
Timber structures — Glued laminated timber —
Assignment of glued laminated timber characteristic
values from laminate properties
1 Scope
This document reviews the methodologies or analytical models that have been used to develop the
strength and stiffness of structural glued laminated timber (glulam) from the characteristic properties
of lumber laminations. The review is limited to the methodologies used in Europe, the USA, Australia/
New Zealand, and Canada as they represent different fundamental philosophies in these areas. As a
result, the methodologies are not intended to be combined unless there is clear understanding of the
fundamental assumptions adopted by the respective methodologies.
NOTE Detailed assumptions used by the respective methodologies are available from the standards listed in
the Bibliography.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 European methodologies
EN 14080 provides three different routes for producer to classify the glulam and all of them are related
to properties in structural sizes. The glulam standard covers only properties related to nominal 12 %
moisture content (in lamination, joint, and structural specimen tests, moisture content may be 12 ± 3 %
without mandatory adjustments).
4.1 General
Mechanical resistance of glulam is intended to be determined from and declared:
— on the basis of geometrical data (e.g. cross-sectional sizes of laminations and layups) and material
properties (strength, stiffness and density properties of laminations and strength properties of
finger joints); or
— from tests.
4.1.1 Timber
Timber is strength graded according to EN 14081-1.
© ISO 2019 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/TR 19623:2019(E)

4.1.2 Related material properties
The characteristic strength, stiffness and density properties of glulam are verified either:
a) from classifications from layups and lamination properties (this route is a direct result of the
calculation procedure implemented in 4.3);
b) from calculations taking into account the cross-sectional layup and documented properties of
boards and finger joints according to 4.3, or
c) from full scale tests according to 4.4.
The characteristic strength, stiffness and density properties may be declared by reference to a strength
class according to Table 3 or 4 or to a manufacturer’s specific strength class. For glulam having an
asymmetrical layup, “ca” should be added to the class name, e.g. GL28 ca. The class name of resawn
glulam is marked by “s”, e.g. GL24 cs.
The characteristic bending strength should be valid for glulam with a depth h of 600 mm and a
lamination thickness of t = 40 mm. If the lamination thickness is less than 40 mm, the bending strength
may be multiplied by k as given in Formula (1). For lamination thicknesses 40 mm < t ≤ 45 mm, it is not
necessary to take any strength modification into account.
01,

40
 

 
k =min (1)
t

 

10, 5

where t is the lamination thickness, in mm.
The characteristic tensile strength parallel to the grain should be valid for glulam with depth h of
600 mm or width b of 600 mm.
The characteristic tensile strength perpendicular to the grain should be valid for glulam with a stressed
3
volume of 0,01 m .
The 5 %-fractile of a shear modulus or a modulus of elasticity should be estimated from the mean value
by applying the ratio of G /G = 5/6 and E /E = 5/6, respectively.
g,k g,mean 0,g,k 0,g,mean
For glulam members made of at least 10 laminations the product (E G ) may be increased by a
0,g,k g,k
factor k = 1,40.
For rectangular glued laminated timber with depths in bending or widths in tension less than 600 mm,
the characteristic values for f and f may be increased by the factor k given by
m,k t,0,k h
01,

600

 
k =min (2)
h

h  

11,

where h is the depth for bending members or width for tensile members, in mm.
4.2 Verification from classification of standardised beam lay-ups and lamination
properties of glued laminated timber
4.2.1 Properties of the boards
The requirements of the boards given in Table 1 should be fulfilled. The essential material properties
needed for the EN 14080 model are tension strength, modulus of elasticity, and density of the unjointed
laminations and further finger joint tension or bending strength (see Table 1). Laminations up to
T-class T18 can be graded visually according to several European grading standards and then assigned
2 © ISO 2019 – All rights reserved

---------------------- Page: 8 ----------------------
ISO/TR 19623:2019(E)

to T-classes, provided the respective classification reports on the basis of EN 384 exist. (issue of flatwise
and edgewise bending needs to be addressed).
In case no information exists, the effort to group laminations based on tension tests according to
EN 408 into a certain T-class (similar as for C class) is
— 40 specimens from 5 growth areas: no reduction in evaluation, based on mean of the 5 % quantiles
of all 5 samples or 1,2 times of the sample with the lowest 5 % quantile (the lesser value is relevant)
— 40 specimens from 3 growth areas; penalization by factor of 0,89
— 40 specimens from 1 growth area; penalization by 0,77
2
Table 1 — Characteristic strength and stiffness properties for T-classes in N/mm and densities
3
in kg/m for boards or planks for glued laminated timber
a
T-class of boards f E ρ
t,0,l,k t,0,l,mean l,k
T8 (C14) 8 7 000 290
T9 9 7 500 300
T10 (C16) 10 8 000 310
T11 (C18) 11 9 000 320
T12 (C20) 12 9 500 330
T13 (C22) 13 10 000 340
T14 (C24) 14 11 000 350
T14,5 14,5 11 000 350
T15 15 11 500 360
T16 (C27) 16 11 500 370
T18 (C30) 18 12 000 380
T21 (C35) 21 13 000 390
T22 22 13 000 390
T24 (C40) 24 13 500 400
T26 26 14 000 410
T27 (C45) 27 15 000 410
T28 28 15 000 420
T30 (C50) 30 15 500 430
a
The C-classes according to EN 338:2009 meet at least the required values of the respective T-classes.
4.2.2 Strength of finger joints
The declared or necessary finger joint strength values depend on the different glulam classification
approaches.
— For classification approach (A), fixed values need to be met.
— For classification/verification approach (B), i.e. the calculation method, values in a certain bandwidth
can be declared.
The required characteristic values of the flatwise bending strength of finger joints f in laminations
m,j,k
for glulam classification approach (A) should be taken from Table 2 or 3. If the finger joints are tested in
tension the required characteristic value of the tensile strength of finger joints should be taken as
ff= /,14 (3)
t,0,j,km,j,k
© ISO 2019 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/TR 19623:2019(E)

4.2.3 Beam lay-up and strength class
Provided the beam lay-up is in accordance with Table 2 or 3, the glulam fulfils the requirements of a
strength class given in Table 4 or 5.
The zones of the cross section are defined in Figure 1.
Figure 1 — Example of a beam lay-up of combined glulam
— For combined glulam, the outer zones of lamination grades (see Figure 1) should be at least the
proportion given in Table 2, but at least two laminations for glulam with more than 10 laminations
and at least one lamination for glulam with up to 10 laminations.
Table 2 — Beam lay-up of combined glued laminated timber and minimum values for bending
2
strength of finger joints in laminations in N/mm
Glued Outer zones of laminations Intermediate zones of lamina- Inner zone of laminations
laminated tions
timber
Strength Strength Propor- Strength Propor- Strength Propor-
a
class class tion f class tion f class tion f
m,j,k m,j,k m,j,k
2 2 2
[%] [N/mm ] [%] [N/mm ] [%] [N/mm ]
GL 20c T13 2 × 33 21 — — — T8 34 18
GL 22c T13 2 × 33 26 — — — T8 34 18
GL 24c T14 2 × 33 31 — — — T9 34 19
GL 26c T16 2 × 33 34 — — — T11 34 22
GL 28c T18 2 × 25 37 — — — T14 50 28
GL 28c T21 2 × 17 36 — — — T14 66 26
GL 28c T21 2 × 17 38 — — — T13 66 25
GL 28c T21 2 × 25 35 — — — T11 50 22
GL 28c T21 2 × 20 35 T14 2 × 20 28 T11 20 22
GL 28c T22 2 × 20 35 — — — T13 60 25
4 © ISO 2019 – All rights reserved

---------------------- Page: 10 ----------------------
ISO/TR 19623:2019(E)

Table 2 (continued)
Glued Outer zones of laminations Intermediate zones of lamina- Inner zone of laminations
laminated tions
timber
Strength Strength Propor- Strength Propor- Strength Propor-
a
class class tion f class tion f class tion f
m,j,k m,j,k m,j,k
2 2 2
[%] [N/mm ] [%] [N/mm ] [%] [N/mm ]
GL 30c T22 2 × 17 40 — — — T15 66 27
GL 30c T22 2 × 17 41 — — — T14 66 28
GL 30c T22 2 × 20 40 T14 2 × 20 30 T11 20 22
GL 30c T22 2 × 17 42 T14 2 × 23 31 T11 20 22
GL 32c T24 2 × 17 44 — — — T18 66 31
GL 32c T26 2 × 17 45 — — — T14 66 26
GL 32c T26 2 × 10 48 T18 2 × 20 32 T11 40 22
Table 3 — Beam lay-up of homogeneous glued laminated timber and minimum values for
2
bending strength of finger joints in laminations in N/mm
Strength class glued laminated timber Strength class laminations f
m,j,k
GL 20h T10 25
GL 20h T11 22
GL 22h T13 25
GL 24h T14 30
GL 26h T16 33
GL 28h T18 36
GL 30h T21 38
GL 30h T22 37
GL 32h T24 41
GL 32h T26 38
2 3
Table 4 — Characteristic strength and stiffness properties in N/mm and densities in kg/m for
combined glulam
 Glulam strength class
a
Property Symbol GL 20c GL 22c GL 24c GL 26c GL 28c GL 30c GL 32c
Bending strength f 20 22 24 26 28 30 32
m,g,k
Tensile strength f 15 16 17 19 19,5 19,5 19,5
t,0,g,k
f 0,5
t,90,g,k
Compression strength f 18,5 20 21,5 23,5 24 24,5 24,5
c,0,g,k
f 2,5
c,90,g,k
Shear strength
f 3,5
v,g,k
(shear and torsion)
Rolling shear strength f 1,2
r,g,k
Modulus of elasticity E 10 400 10 400 11 000 12 000 12 500 13 000 13 500
0,g,mean
E 8 600 8 600 9 100 10 000 10 400 10 800 11 200
0,g,05
E 300
90,g,mean
E 250
90,g,05
a
Properties given in this table have been calculated on the basis of the layups given in Table 2. If different layups for a
certain strength class lead to different characteristic values the lowest values are given here.
b
Calculated as the weighted mean of the densities of the different lamination zones.
© ISO 2019 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO/TR 19623:2019(E)

Table 4 (continued)
 Glulam strength class
a
Property Symbol GL 20c GL 22c GL 24c GL 26c GL 28c GL 30c GL 32c
Shear-modulus G 650
g,mean
G 540
g,05
Rolling shear modulus G 65
r,g,mean
G 54
r,g,05
b
Density ρ 355 355 365 385 390 390 400
g,k
ρ 390 390 400 420 420 430 440
g,mean
a
Properties given in this table have been calculated on the basis of the layups given in Table 2. If different layups for a
certain strength class lead to different characteristic values the lowest values are given here.
b
Calculated as the weighted mean of the densities of the different lamination zones.
2 3
Table 5 — Characteristic strength and stiffness properties in N/mm and densities in kg/m for
homogeneous glulam
 Glulam strength class
Property Symbol GL 20h GL 22h GL 24h GL 26h GL 28h GL 30h GL 32h
Bending strength f 20 22 24 26 28 30 32
m,g,k
Tensile strength f 16 17,6 19,2 20,8 22,3 24 25,6
t,0,g,k
f 0,5
t,90,g,k
Compression strength f 20 22 24 26 28 30 32
c,0,g,k
f 2,5
c,90,g,k
Shear strength
f 3,5
v,g,k
(shear and torsion)
Rolling shear strength f 1,2
r,g,k
Modulus of elasticity E 8 400 10 500 11 500 12 100 12 600 13 600 14 200
0,g,mean
E 7 000 8 800 9 600 10 100 10 500 11 300 11 800
0,g,05
E 300
90,g,mean
E 250
90,g,05
Shear modulus G 650
g,mean
G 540
g,05
Rolling shear modulus G 65
r,g,mean
G 54
r,g,05
Density ρ 340 370 385 405 425 430 440
g,k
ρ 370 410 420 445 460 480 490
g,mean
4.3 Classification, verification according to method B from cross sectional layup and
properties of boards and finger joints
4.3.1 Properties of the boards
If the boards comply with one of the relevant strength classes, the strength, stiffness and density
properties may be taken from Table 1.
If the boards or planks do not comply with Table 1, the characteristic values of the tensile strength
parallel to the grain f , the mean modulus of elasticity parallel to the grain E and the
t,0,l,k t,0,l,mean
characteristic density ρ should be derived from tests according to EN 408 and calculated in accordance
l,k
with EN 384 as outlined in 4.2.1 (there also specimen numbers are given).
6 © ISO 2019 – All rights reserved

---------------------- Page: 12 ----------------------
ISO/TR 19623:2019(E)

4.3.2 Strength of finger joints
The characteristic flat wise bending strength or tensile strength of the finger joints should be declared
by the glulam manufacturer. The declared strength of finger joints should be verified by tests in
accordance with Annex E of ISO 10983:2014 (30
...
