ISO/TR 80001-2-7:2015
(Main)Application of risk management for IT-networks incorporating medical devices -- Application guidance
Application of risk management for IT-networks incorporating medical devices -- Application guidance
ISO/TR 80001-2-7:2015 is to provide guidance to HDOs on self-assessment of their conformance against IEC 80001‑1.
Application du management du risque aux réseaux des technologies de l'information contenant les dispositifs médicaux -- Conseils pour les applications
General Information
Standards Content (sample)

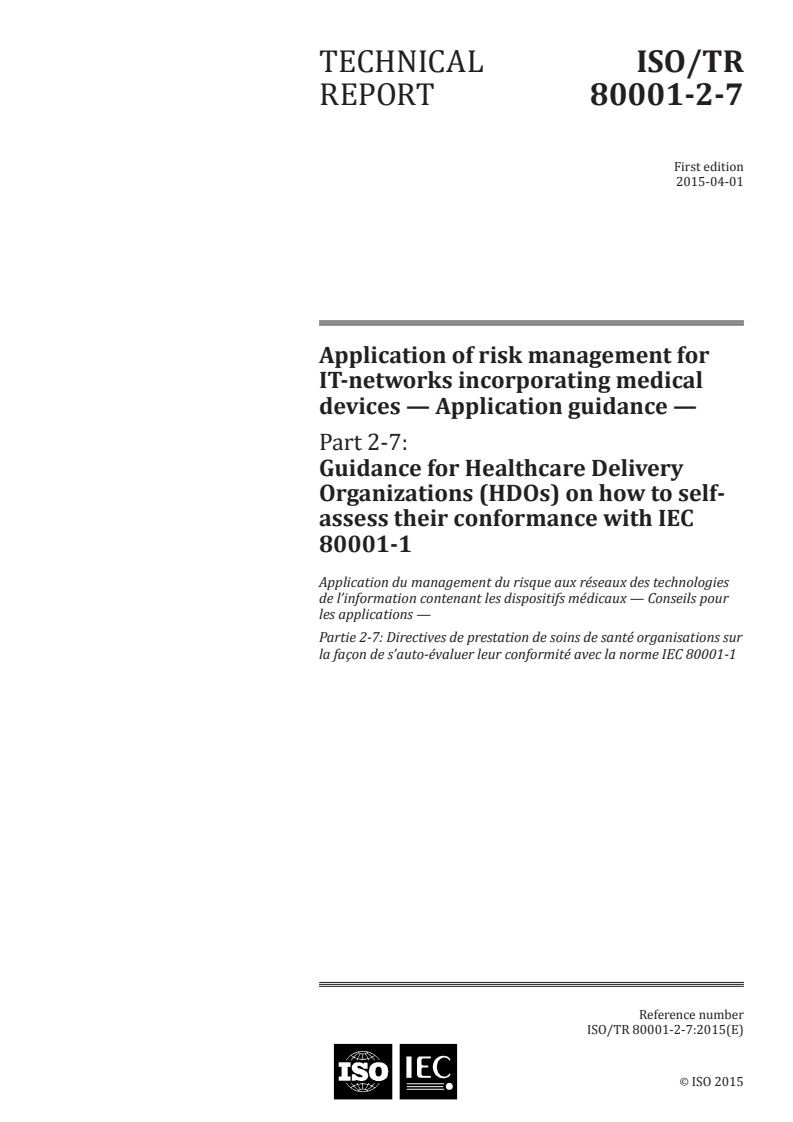

TECHNICAL ISO/TR
REPORT 80001-2-7
First edition
2015-04-01
Application of risk management for
IT-networks incorporating medical
devices — Application guidance —
Part 2-7:
Guidance for Healthcare Delivery
Organizations (HDOs) on how to self-
assess their conformance with IEC
80001-1
Application du management du risque aux réseaux des technologies
de l’information contenant les dispositifs médicaux — Conseils pour
les applications —
Partie 2-7: Directives de prestation de soins de santé organisations sur
la façon de s’auto-évaluer leur conformité avec la norme IEC 80001-1
Reference number
ISO/TR 80001-2-7:2015(E)
ISO 2015
---------------------- Page: 1 ----------------------
ISO/TR 80001-2-7:2015(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 80001-2-7:2015(E)

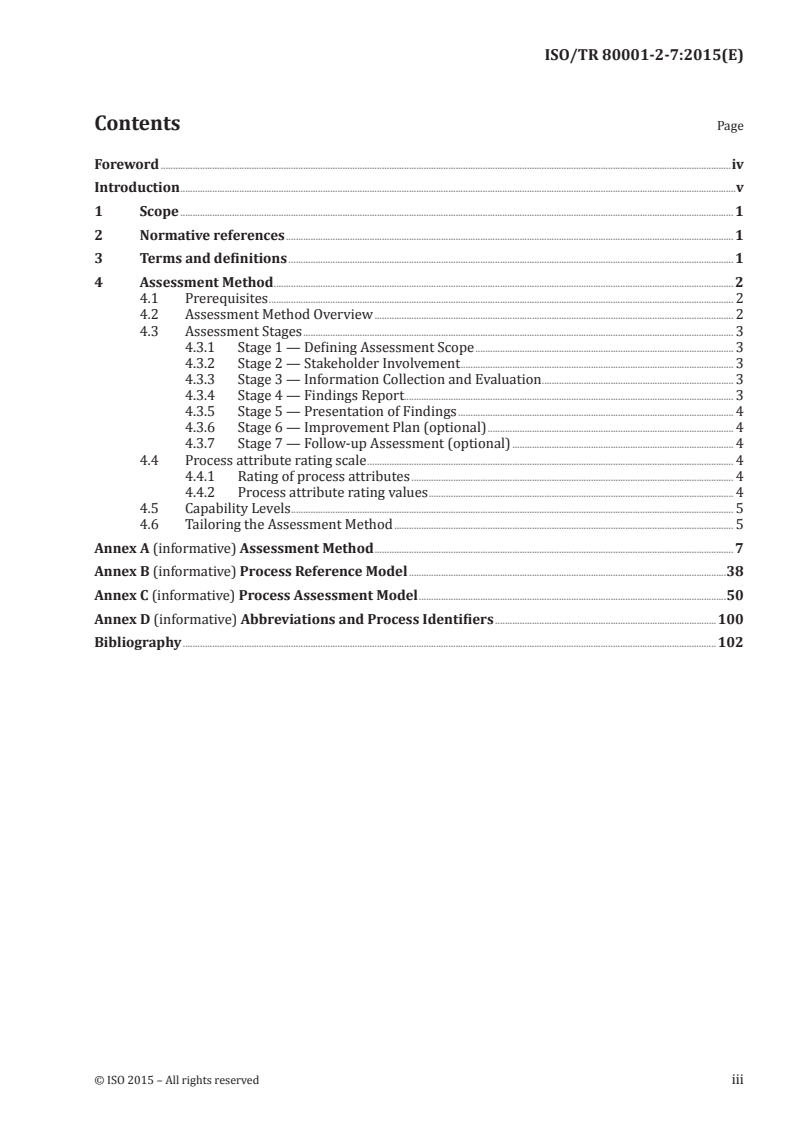

Contents Page
Foreword ........................................................................................................................................................................................................................................iv
Introduction ..................................................................................................................................................................................................................................v
1 Scope ................................................................................................................................................................................................................................. 1
2 Normative references ...................................................................................................................................................................................... 1
3 Terms and definitions ..................................................................................................................................................................................... 1
4 Assessment Method ........................................................................................................................................................................................... 2
4.1 Prerequisites ............................................................................................................................................................................................. 2
4.2 Assessment Method Overview .................................................................................................................................................. 2
4.3 Assessment Stages ............................................................................................................................................................................... 3
4.3.1 Stage 1 — Defining Assessment Scope ......................................................................................................... 3
4.3.2 Stage 2 — Stakeholder Involvement ............................................................................................................... 3
4.3.3 Stage 3 — Information Collection and Evaluation .............................................................................. 3
4.3.4 Stage 4 — Findings Report...................................................................................................................................... 3
4.3.5 Stage 5 — Presentation of Findings ................................................................................................................ 4
4.3.6 Stage 6 — Improvement Plan (optional) .................................................................................................... 4
4.3.7 Stage 7 — Follow-up Assessment (optional) .......................................................................................... 4
4.4 Process attribute rating scale ..................................................................................................................................................... 4
4.4.1 Rating of process attributes ................................................................................................................................... 4
4.4.2 Process attribute rating values ............................................................................................................................ 4
4.5 Capability Levels .................................................................................................................................................................................... 5
4.6 Tailoring the Assessment Method .......................................................................................................................................... 5
Annex A (informative) Assessment Method .................................................................................................................................................. 7
Annex B (informative) Process Reference Model .................................................................................................................................38
Annex C (informative) Process Assessment Model .............................................................................................................................50
Annex D (informative) Abbreviations and Process Identifiers ..........................................................................................100
Bibliography .........................................................................................................................................................................................................................102
© ISO 2015 – All rights reserved iii---------------------- Page: 3 ----------------------
ISO/TR 80001-2-7:2015(E)

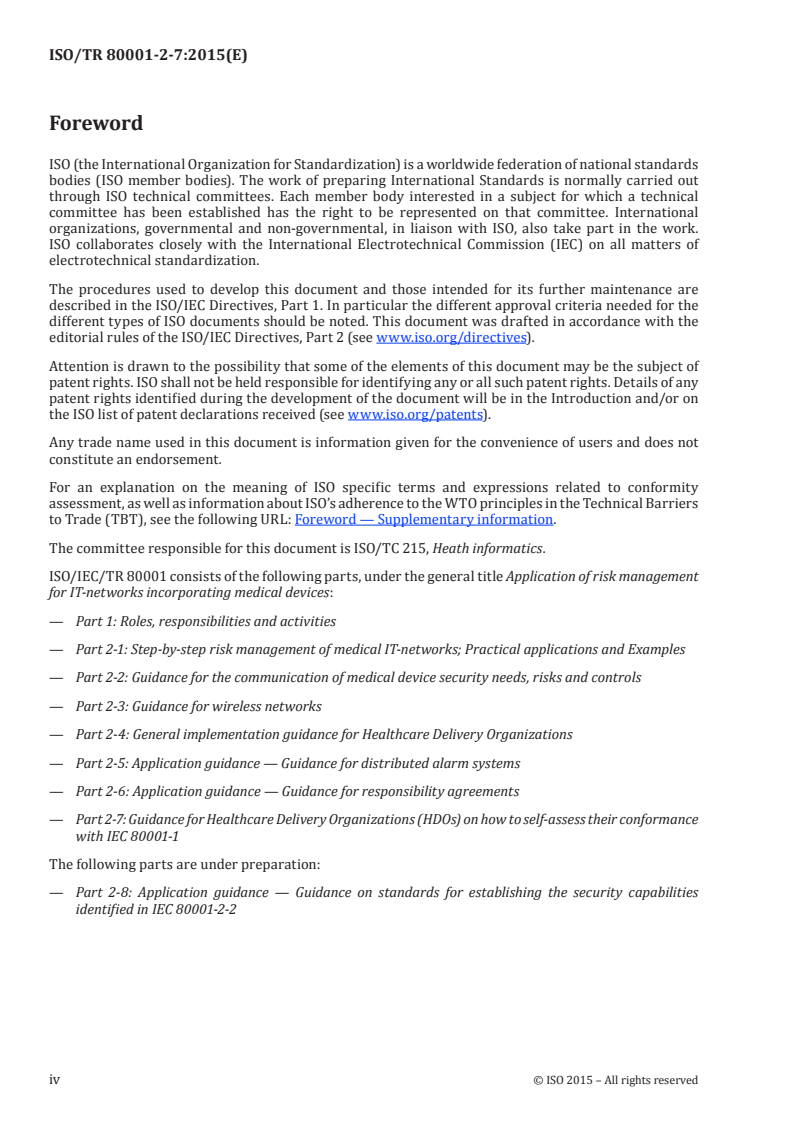

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT), see the following URL: Foreword — Supplementary information.The committee responsible for this document is ISO/TC 215, Heath informatics.
ISO/IEC/TR 80001 consists of the following parts, under the general title Application of risk management
for IT-networks incorporating medical devices:— Part 1: Roles, responsibilities and activities
— Part 2-1: Step-by-step risk management of medical IT-networks; Practical applications and Examples
— Part 2-2: Guidance for the communication of medical device security needs, risks and controls
— Part 2-3: Guidance for wireless networks— Part 2-4: General implementation guidance for Healthcare Delivery Organizations
— Part 2-5: Application guidance — Guidance for distributed alarm systems— Part 2-6: Application guidance — Guidance for responsibility agreements
— Part 2-7: Guidance for Healthcare Delivery Organizations (HDOs) on how to self-assess their conformance
with IEC 80001-1The following parts are under preparation:
— Part 2-8: Application guidance — Guidance on standards for establishing the security capabilities
identified in IEC 80001-2-2iv © ISO 2015 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 80001-2-7:2015(E)
Introduction
This part of ISO/TR 80001 provides guidance for a Healthcare Delivery Organization (HDO) that wishes
to self-assess its implementation of the processes of IEC 80001-1. This part of ISO/TR 80001 can be used
to assess Medical IT-Network projects where IEC 80001-1 has been determined to be applicable. This
part of ISO/TR 80001 provides an exemplar assessment method which includes a set of questions which
can be used to assess the performance of risk management of a Medical IT-Network incorporating a
medical device. This assessment method can be used in its presented form or can be tailored to meet the
needs of a specific HDO. A Process Reference Model (PRM) and an example Process Assessment Model
(PAM) that meet the requirements of ISO/IEC 15504-2 are included in the Appendices of this part of
ISO/TR 80001. The PRM and PAM can be used to provide a standardized basis for tailoring the exemplar
assessment method where required.This part of ISO/TR 80001 can be used in a number of ways including the following.
a) The assessment method can be used to perform an assessment to determine conformance
against IEC 80001-1.b) In instances where conformance has been established, the assessment method can also be used to
assess risk management processes and determine the capability level at which these processes are
being performed.c) Based on the context of the HDO being assessed, the assessment method can be tailored to address
the individual HDO use, needs and concerns.The results of the assessment will highlight any weaknesses within current risk management processes
and can be used as a basis for the improvement of these processes. Where necessary, modification of the
assessment method can be undertaken with reference to the PRM and PAM for IEC 80001-1 which are
also included in this part of ISO/TR 80001. This approach allows for a lightweight assessment approach
to which more rigour can be added if required. For example, a re-assessment may be required in
instances where an initial assessment revealed weaknesses in the current risk management processes
and improvements have subsequently been made which require re-assessment to assess their impact
on conformance. A re-assessment may also be performed in instances where confirmation is required
that process improvement measures which have been undertaken have resulted in the achievement of
a higher capability level.This part of ISO/TR 80001 provides the following:
— guidance for a HDO to self-assess implementation of the processes of IEC 80001-1;
— an exemplar assessment method which— includes a set of questions,
— can be used to assess the performance of risk management of a Medical IT-Network incorporating
a medical device,— can be used in its presented form, and
— can be tailored on a standardised basis using the included PRM and PAM;
— a PRM that meet the requirements of ISO/IEC 15504-2;
— an example PAM that meet the requirements of ISO/IEC 15504-2.
NOTE This part of ISO/TR 80001 contains original material that is © 2013, Dundalk Institute of Technology,
Ireland. Permission is granted to ISO and IEC to reproduce and circulate this material, this being without prejudice
to the rights of Dundalk Institute of Technology to exploit the original text elsewhere.
© ISO 2015 – All rights reserved v---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 80001-2-7:2015(E)
Application of risk management for IT-networks
incorporating medical devices — Application guidance —
Part 2-7:
Guidance for Healthcare Delivery Organizations (HDOs) on
how to self-assess their conformance with IEC 80001-1
1 Scope
The purpose of this part of ISO/TR 80001 is to provide guidance to HDOs on self-assessment of their
conformance against IEC 80001-1.The purpose of this part of ISO/TR 80001 is to
a) provide guidance to HDOs on self-assessment of their conformance against IEC 80001-1,
b) provide an exemplar assessment method which can be used by HDOs in varying contexts to assess
themselves against IEC 80001-1,c) define a PRM comprising a set of processes, described in terms of process purpose and outcomes
that demonstrate coverage of the requirements of IEC 80001-1, andd) define a PAM that meets the requirements of ISO/IEC 15504-2 and that supports the performance of
an assessment by providing indicators for guidance on the interpretation of the process purposes and
outcomes as defined in IEC 80001-1 (PRM) and the process attributes as defined in ISO/IEC 15504-2.
This part of ISO/TR 80001 does not introduce any requirements in addition to those expressed in
IEC 80001-1.2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
Members of ISO and IEC maintain registers of currently valid International Standards.
IEC 80001-1:2010, Application of Risk Management for IT-Networks incorporating Medical Devices — Part
1: Roles, responsibilities and activitiesISO/IEC 15504-1, Information technology — Process assessment — Part 1: Concepts and vocabulary
ISO/IEC 15504-2:2003, Information technology — Process assessment — Part 2: Performing an assessment
3 Terms and definitionsFor the purposes of this document, the terms and definitions given in ISO/IEC 15504-1 and IEC 80001-1
apply.© ISO 2015 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/TR 80001-2-7:2015(E)
4 Assessment Method
4.1 Prerequisites
In order to perform an assessment, an assessor is required. When performing an assessment, it is
preferable to have more than one assessor. In cases where the assessment is performed by more than
one assessor, a lead assessor should be nominated. The need for multiple assessors is determined by
the context of the HDO and the system under assessment. The context of the HDO and the scope of the
assessment also determine the need for the modification of the presented exemplar assessment method.
In addition, to performing the assessment, the assessor should consider interacting with all relevant
risk management stakeholders both those internal and external to the HDO. The assessor should also
have access to all relevant materials related to the performance of risk management activities.
4.2 Assessment Method OverviewThe use of an assessment method allows assessments to be performed in a consistent and repeatable
manner. The assessment method which is presented in this part of ISO/TR 80001 is based on the
processes and practices as defined in the PRM and PAM which are presented in the appendices of this
part of ISO/TR 80001. Figure 1 shows the 14 processes and their respective process categories which
are contained in the PAM. The PAM, which can be found in Annex C, provides a full description of these
processes including the activities (base practices) which must be performed to successfully achieve the
purpose of the process. The assessment method consists of an approach to performing the assessment
and a set of questions which allows the assessor to collect objective evidence to support an assessment of
how each of the activities are being performed (and support the assignment of a capability rating to each
process). On the basis of the evidence gathered during the assessment, the strengths and weaknesses
of the processes can be identified and recommendations can be made to improve risk management
practices and conformance with IEC 80001-1.PAM Processes:
Medical IT Network Risk Management
Change Release Management & Configuraon
Process Group (MRM)
Management Process Group (CRCM)
MRM.1Medical IT Network Risk Management Process
CRCM.1 Change Release & Configuraon Management
MRM.1.1Risk Analysis & Evaluaon
MRM.1.2 Risk Control CRCM.2 Decision on how to apply Risk Management
MRM.1.3ResidualRisk
CRCM.3 Go Live
Live Network Risk Management Process Group (LNRM)
LNRM.1 Monitoring
LNRM.2 Event Management
Medical IT Network Documentaon and Planning
Process Group (MDP)
MDP.1Medical IT Network Planning MDP.4RiskManagement Policy
MDP.2 Medical IT Network DocumentaonMDP.5 OrganisaonalRisk Management Process
MDP.3ResponsibilityAgreements
Figure 1 — PAM Processes — Assessment Method
2 © ISO 2015 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/TR 80001-2-7:2015(E)
4.3 Assessment Stages
In order to produce a repeatable and consistent approach to assessment, the assessment is carried out
in a number of stages. A seven-stage procedure for the performance of the assessment has been defined.
Each of the stages is described in the following sections of this clause:4.3.1 Stage 1 — Defining Assessment Scope
This is the initial planning stage of the assessment. During this stage of the assessment, the lead assessor
meets with Top management and the scope of the assessment is defined. This stage can be used to define
to which Medical IT-Networks IEC 80001-1 is applicable. The system (or IT network modification project)
which is to be the focus of the assessment is defined and the context of the system is understood. Risk
management stakeholders should be identified. Risk management stakeholders are both internal (e.g.
clinical engineering) and external (e.g. medical device manufacturers) to the HDO. The lead assessor
should ensure that Top management sponsors the assessment and that all relevant risk management
stakeholders are available to participate for the duration of the assessment process.
4.3.2 Stage 2 — Stakeholder InvolvementHaving secured the commitment of all relevant risk management stakeholders to participate in the
assessment process, the lead assessor meets with risk management stakeholders to explain the
assessment method. The lead assessor explains the agreed scope of the assessment and explains how
the assessment is to be conducted and how findings from the assessment are to be communicated. As
risk management stakeholders consist of members from a cross disciplinary team, the lead assessor
ensures that all stakeholders are clear on what their participation in the assessment involves.
A sample template which can be used to record the information collected in stages 1 and 2 of the
assessment process is provided in A.2.2.4.3.3 Stage 3 — Information Collection and Evaluation
During this stage of the assessment, the lead assessor interviews various risk management stakeholders
using a set of scripted questions (for the exemplar assessment questions, see A.1) and evaluates the
responses. Group interviews should be used where possible to gain an understanding of risk management
processes from varying stakeholder perspectives. A combination of individual and group interviews
may be used. To facilitate the recording of the responses, a second assessor may be used to take notes
on the interviews. Additional questions may be required if clarification is necessary. The assessor uses
the questions to promote discussion on risk management practices which are currently in place. At
this stage, the lead assessor can also inspect work products related to risk management activities and
evaluate these work products on the basis of the assessment questions.A sample template which can be used to record the information collected during the interviews which
are performed in stage 3 of the assessment process is provided in A.2.3.4.3.4 Stage 4 — Findings Report
A findings report is drafted based on the data gathered during stage 3. The lead assessor reviews the
interview notes and evaluates the responses to the scripted questions and any available work products.
Having reviewed the evidence gathered during the assessment, the lead assessor generates a rating
for the response to the questions based on the Process Attribute Rating Scale as detailed in 4.4. In the
case of an assessment to assess conformance, the findings report should state whether conformance
to the standard (based on an assessment of all 14 processes) has been achieved. On the basis of the
evidence gathered during the assessment, the lead assessor identifies strengths and weaknesses
within the current risk management practices. The lead assessor includes in the findings report a set of
recommendations to address identified issues and which can be implemented in order to improve risk
management practices and facilitate the improvement of risk management processes.
A sample template which can be used to draft the findings report which is prepared during stages 3 of
the assessment process is provided in A.2.3.© ISO 2015 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/TR 80001-2-7:2015(E)
4.3.5 Stage 5 — Presentation of Findings
The findings report is presented by the lead assessor to Top management and risk management stakeholders
who have taken part in the assessment. At this stage, a date for a reassessment can be agreed.
Stages 1 to 5 above complete the assessment process. Where a follow-up assessment is required, stages
6 and 7 below can be performed. A reassessment can be used to confirm that the recommendations for
improvements to the risk management process have improved risk management processes as envisaged.
4.3.6 Stage 6 — Improvement Plan (optional)Having allowed time for the findings report to be read and understood, the lead assessor meets with
Top management and risk management stakeholders to review the findings of the report. On the basis of
the report, a plan for improvements to the risk management process is agreed. The plan should include
specific improvement objectives and discussion and timelines for the implementation of the identified
improvements.4.3.7 Stage 7 — Follow-up Assessment (optional)
A follow-up assessment can be performed to ensure that improvements to the risk management
processes have been implemented. The reassessment, if required, can be performed on the same
project or on a similar Medical IT-Network project to assess if improvements to the process have
been made and the impact of these improvements. For example, a reassessment can be initiated in
instances where conformance was not determined to have been achieved in the previous assessment
and improvements have been made to address the weaknesses. The reassessment determines if the
implemented improvements have achieved conformance. A reassessment can also be initiated to
confirm that improvements (identified and implemented as a result of the previous assessment) have
resulted in the achievement of a higher capability level for a specific process or processes. The scope of
the reassessment depends on the weaknesses highlighted in the previous assessment and as such can
address all processes or a subset of processes.4.4 Process attribute rating scale
4.4.1 Rating of process attributes
When performing an assessment of the capability of risk management processes, each of the base
practices is reviewed using objective evidence gathered during assessment interviews and through
examination of work products. On the basis of this review, each of the base practices can be assigned a
rating. The capability level of the process is based on the average rating of the base practices related to
the process. ISO/IEC 15504-2 defines six capability levels from Level 0 (Incomplete Process) to Level 5
(Optimizing Process) and defines attributes of the process that are associated with the achievement of
each of the capability levels. An assessment of conformance seeks to confirm that all processes are being
performed at Capability Level 1 (Performed Process). For achievement of Capability Level 1, it must
be determined during the assessment that risk management processes (as defined within the PAM in
Annex C) are being performed in a manner that the purpose of all processes has been achieved. Process
performance and capability attributes as defined in ISO/IEC 15504-2 are discussed in detail in C.2.2.3,
Table C.1. When performing an assessment of risk management processes at all capability levels, the
process attribute rating scale as defined in ISO/IEC 15504-2 should be used.The extent of achievement of a process attribute is measured using an ordinal scale of measurement as
defined 4.4.2.4.4.2 Process attribute rating values
The ordinal rating scale defined below shall be used to express the levels of achievement (process
attribute rating values) of the process attributes.N Not achieved
4 © ISO 2015 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/TR 80001-2-7:2015(E)
There is little or no evidence of achievement of the defined attribute in the assessed process.
P Partially achievedThere is some evidence of an approach to, and some achievement of, the defined attribute in the assessed
process. Some aspects of achievement of the attribute may be unpredictable.L Largely achieved
There is evidence of a systematic approach to, and significant achievement of, the defined attribute in
the assessed process. Some weakness related to this attribute may exist in the assessed process.
F Fully achievedThere is evidence of a complete and systematic approach to, and full achievement of, the defined attribute
in the assessed process. No significant weaknesses related to this attribute exist in the assessed process.
The ordinal points defined above shall be understood in terms of a percentage scale representing extent
of achievement.The corresponding values shall be:
N Not achieved 0 to 15 % achievement
P Partially achieved >15 % to 50 % achievement
L Largely achieved >50 % to 85 % achievement
F Fully achieved >85 % to 100 % achievement
4.5 Capability Levels
The exemplar assessment method which is provided in this part of ISO/TR 80001 allows HDO’s to assess
their current risk management processes. The focus of the exemplar assessment method is to allow for
an assessment to be performed to identify areas of the risk management processes which are not being
performed in accordance with the requirements of IEC 80001-1 (i.e. processes which have not achieved
level 1 capability) and allow recommendations to be made to allow for a level 1 capability level to be
achieved. The exemplar assessment method uses a set of scripted questions, each of which are related
to specific base practices as outlined in the PAM, to review risk management processes and identify any
weaknesses within the current processes in line with the achievement of level 1 capability. Through
the identification of weaknesses in the current process and the implementation of recommendations to
address these weaknesses, capability levels upper than 1 may be achieved. The exemplar assessment
method provided can also be used to assess against capability levels upper than 1 through the use of the
capability level assessment as outlined in the PAM in Annex C which contains a full explanation of all
capability levels and the associated assessment indicators which can be reviewed in assessing against
capability levels upper than level 1.4.6 Tailoring the Assessment Method
The exemplar assessment method as outlined in this part of ISO/TR 80001 provides a sample set of
questions for use in the assessment of IEC 80001-1 risk management processes. The set of questions
provided is intended as a guide who can then be tailored for use in a specific HDO context. The questions
should be reviewed on the basis of the context of the HDO in question and amendments made to take
into account any variation that are specific to the HDO. The exemplar questions which are provided are
based on the base practices as outlined within the PAM in Annex C. To tailor the assessment method
questions, the base practices on which the questions are based should be reviewed by the assessor. The
questions can then be modified, removed, or additional questions added as required by the individual
context of the HDO. The assessor should ensure that they are fully aware of the HDO context in order
to tailor the questions appropriately. The assessor should also ensure that the questions continue to be
related to the base practices as described in the PAM. As the base practices within the PAM describe
© ISO 2015 – All rights reserved 5---------------------- Page: 10 ----------------------
ISO/TR 80001-2-7:2015(E)
high level activities that shall be performed in
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
