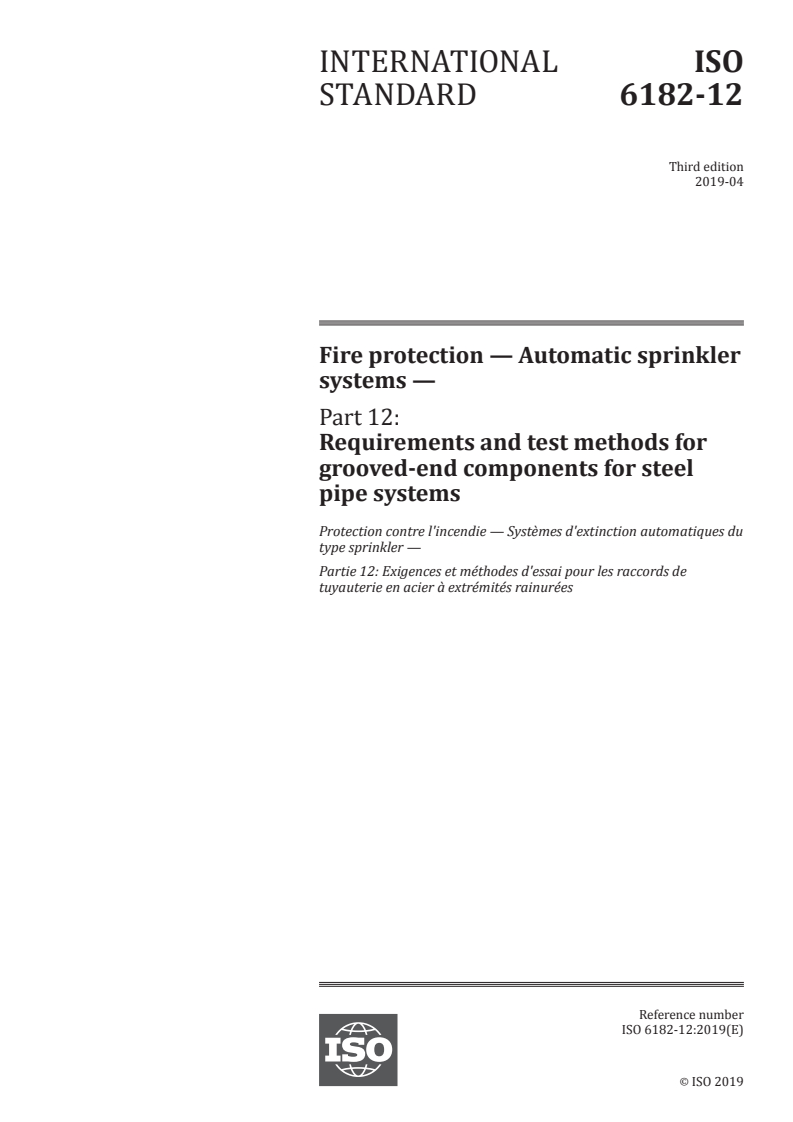

INTERNATIONAL ISO
STANDARD 6182-12
Third edition
2019-04
Fire protection — Automatic sprinkler
systems —
Part 12:
Requirements and test methods for
grooved-end components for steel
pipe systems
Protection contre l'incendie — Systèmes d'extinction automatiques du
type sprinkler —
Partie 12: Exigences et méthodes d'essai pour les raccords de
tuyauterie en acier à extrémités rainurées
Reference number
ISO 6182-12:2019(E)
©
ISO 2019
---------------------- Page: 1 ----------------------
ISO 6182-12:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 6182-12:2019(E)

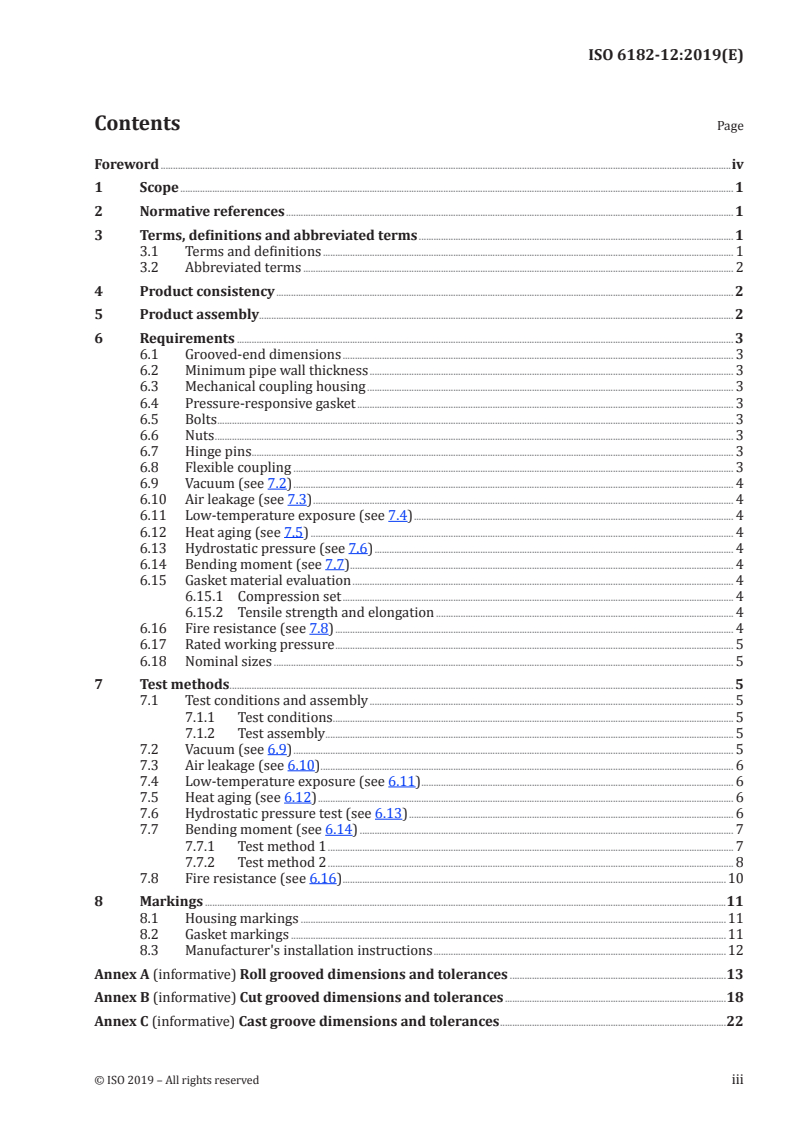

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 2
4 Product consistency . 2
5 Product assembly. 2
6 Requirements . 3
6.1 Grooved-end dimensions . 3
6.2 Minimum pipe wall thickness . 3
6.3 Mechanical coupling housing . 3
6.4 Pressure-responsive gasket . 3
6.5 Bolts . 3
6.6 Nuts . 3
6.7 Hinge pins . 3
6.8 Flexible coupling . 3
6.9 Vacuum (see 7.2) . 4
6.10 Air leakage (see 7.3) . 4
6.11 Low-temperature exposure (see 7.4) . 4
6.12 Heat aging (see 7.5) . 4
6.13 Hydrostatic pressure (see 7.6) . 4
6.14 Bending moment (see 7.7) . 4
6.15 Gasket material evaluation . 4
6.15.1 Compression set . 4
6.15.2 Tensile strength and elongation . 4
6.16 Fire resistance (see 7.8) . 4
6.17 Rated working pressure . 5
6.18 Nominal sizes . 5
7 Test methods . 5
7.1 Test conditions and assembly . 5
7.1.1 Test conditions. 5
7.1.2 Test assembly . 5
7.2 Vacuum (see 6.9) . 5
7.3 Air leakage (see 6.10) . 6
7.4 Low-temperature exposure (see 6.11) . 6
7.5 Heat aging (see 6.12) . 6
7.6 Hydrostatic pressure test (see 6.13) . 6
7.7 Bending moment (see 6.14) . 7
7.7.1 Test method 1 . 7
7.7.2 Test method 2 . 8
7.8 Fire resistance (see 6.16) .10
8 Markings .11
8.1 Housing markings .11
8.2 Gasket markings .11
8.3 Manufacturer's installation instructions .12
Annex A (informative) Roll grooved dimensions and tolerances .13
Annex B (informative) Cut grooved dimensions and tolerances .18
Annex C (informative) Cast groove dimensions and tolerances .22
© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 6182-12:2019(E)

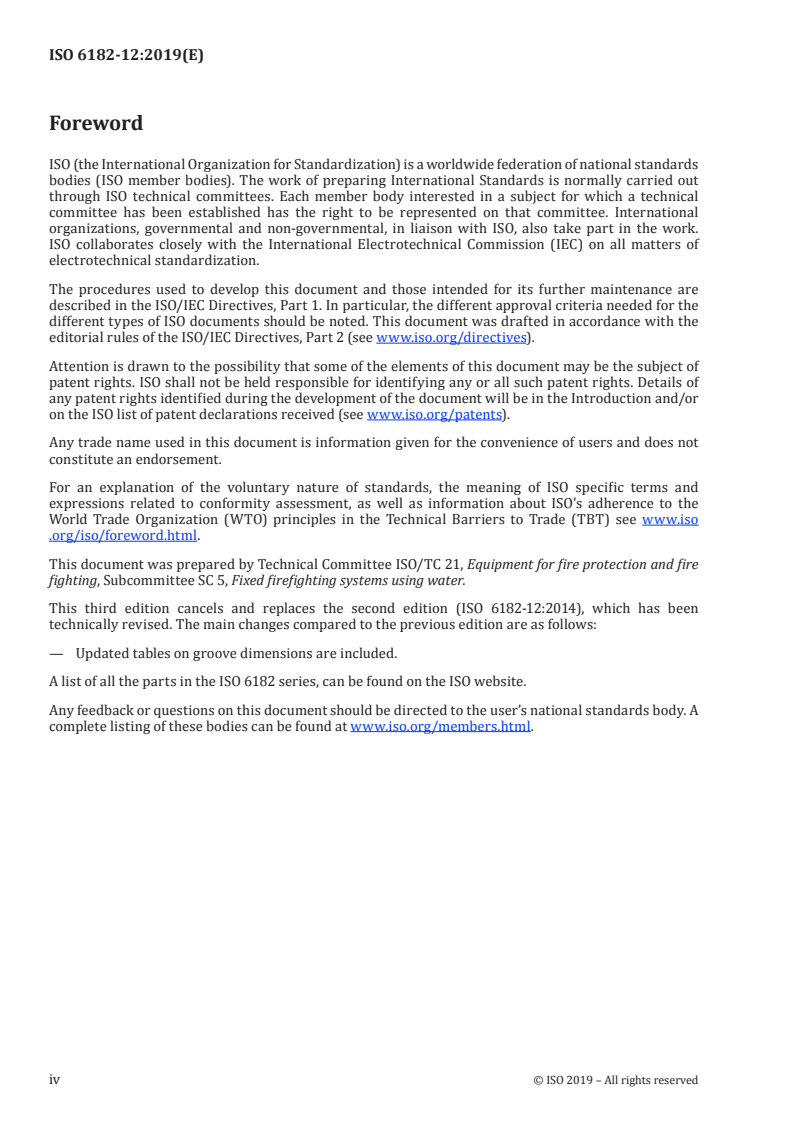

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire
fighting, Subcommittee SC 5, Fixed firefighting systems using water.
This third edition cancels and replaces the second edition (ISO 6182-12:2014), which has been
technically revised. The main changes compared to the previous edition are as follows:
— Updated tables on groove dimensions are included.
A list of all the parts in the ISO 6182 series, can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 6182-12:2019(E)
Fire protection — Automatic sprinkler systems —
Part 12:
Requirements and test methods for grooved-end
components for steel pipe systems
1 Scope
This document specifies performance requirements, grooving dimensions, test methods and marking
requirements for couplings used in the joining of grooved steel tubes, pipes, grooved-end fittings and
other grooved-end components up to 300 DN nominal diameter.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 37, Rubber, vulcanized or thermoplastic — Determination of tensile stress-strain properties
ISO 188, Rubber, vulcanized or thermoplastic — Accelerated ageing or heat resistance tests
ISO 898-1:2013, Mechanical properties of fasteners made of carbon steel and alloy steel — Part 1: Bolts,
screws and studs
ISO 898-2:2012, Mechanical properties of fasteners — Part 2: Nuts with specified proof load values —
Coarse thread
ISO 1083:2018, Spheroidal graphite cast irons — Classification
ISO 4200:1991, Plain end steel tubes, welded and seamless — General tables of dimensions and masses per
unit length
ASTM A47/A47M-99 (2004), Standard Specification for Ferritic Malleable Iron Castings
ASTM A183, Standard Specification for Carbon Steel Track Bolts and Nuts
ASTM A536-84 (2004), Standard Specification for Ductile Iron Castings
ASTM A563-07a, Standard Specification for Carbons and Alloy Steel Nuts
ASTM B633-07, Standard Specification for Electrodeposited Coatings of Zinc on Iron and Steel
ASTM D395-03, Standard Test Methods for Rubber Property — Compression Set
EN 12329, Corrosion protection of metals — Electrodeposited coatings of zinc with supplementary
treatment on iron or steel
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
© ISO 2019 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 6182-12:2019(E)
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp
3.1.1
grooved-end components
pipe, tubes, fittings and other devices that are used to form grooved mechanical coupling joints
3.1.2
mechanical coupling
device consisting of two or more housings, fasteners such as bolts and nuts and a pressure-responsive
gasket, used to mechanically join grooved-end components (3.1.1) to form a sealed joint
3.1.3
flexible mechanical coupling
mechanical coupling forming a sealed joint in which there is limited angular, axial and rotational
movement without overstressing the pipe joint
Note 1 to entry: See 6.8.
3.1.4
rigid mechanical coupling
mechanical coupling forming a sealed joint in which there is essentially no free angular, axial or
rotational movement
3.1.5
reducing mechanical coupling
mechanical coupling used to join grooved-end components (3.1.1) of different outside diameters (ODs)
3.1.6
mechanical coupling housing
structural parts of a mechanical coupling (3.1.2) that mechanically fit onto grooved-end components
(3.1.1) to provide physical restraint and enclosure of the gasket
3.1.7
pressure-responsive gasket
gasket that improves its seal with the application of pressure, i.e. additional pressure results in
additional force between the gasket and the surface to which it is sealing
3.1.8
rated working pressure
maximum service pressure at which a grooved piping system is intended to operate
3.2 Abbreviated terms
OD outside diameter
4 Product consistency
It shall be the responsibility of the manufacturer to implement a quality-control programme to ensure
that production consistency meets the requirements of this document in the same manner as the
originally tested samples.
5 Product assembly
Product assembly shall be in accordance with the installation instructions in 8.3.
2 © ISO 2019 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 6182-12:2019(E)
6 Requirements
6.1 Grooved-end dimensions
6.1.1 Grooved ends shall be dimensionally compatible with the coupling.
NOTE See Annexes A, B and C for typical dimensions.
6.2 Minimum pipe wall thickness
6.2.1 Grooved-end pipe couplings tested in accordance with 7.7.1 shall be tested with pipes according
to ISO 4200:1991, Table 1, range D. Pipes with a higher wall thickness may be used if this corresponds to
the minimum wall thickness specified by the manufacturer.
6.2.2 Grooved-end pipe couplings tested in accordance with 7.7.2 shall be tested with pipe having the
minimum nominal wall thickness specified in the manufacturer's installation instructions.
6.3 Mechanical coupling housing
The casting materials of the housings shall be ductile iron in accordance with ISO 1083:2018,
Grade 400-15; ASTM A536-84(2004), Grade 65-45-12 or malleable iron in accordance with ASTM A47/
A47M-99(2004), Grade 32510 or 32518; or material having at least equivalent strength and corrosion
resistance.
6.4 Pressure-responsive gasket
Materials for the coupling gaskets shall be ethylene-propylene diene monomer-rubber (EPDM), nitrile,
silicone rubber or other elastomeric materials suitable for the intended service.
6.5 Bolts
Oval neck track head bolts shall be in accordance with ISO 898-1:2013, minimum Class 8.8, heavy hex
bolts in accordance with ASTM A183 or other bolts which prevent rotation and have a minimum tensile
2
strength of 800 N/mm . Bolts shall be zinc plated in accordance with ASTM B633-07, SC1, or EN 12329,
or be of a material that provides at least equivalent corrosion resistance.
6.6 Nuts
Nuts shall be hexagon nuts in accordance with ISO 898-2:2012, minimum Class 8, or heavy (large)
hexagon nuts in accordance with ASTM A563-07a, Grade B or equivalent. Nuts shall be zinc plated
in accordance with ASTM B633-07, SC1, or EN 12329, or be of a material that provides at least the
equivalent corrosion resistance.
6.7 Hinge pins
Hinge pins, if provided, shall be a ferrous material, zinc plated in accordance with ASTM B633-07,
Class FE/ZN5, or EN 12329, or be of a material that provides at least the equivalent corrosion resistance.
6.8 Flexible coupling
A flexible mechanical coupling shall permit axial displacement, rotation and at least 1° of angular
movement for pipe diameter sizes less than 200 OD and 0,5° for pipe diameter sizes 200 OD and greater
without inducing harm on the joint when tested in accordance with 7.7.
© ISO 2019 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 6182-12:2019(E)
6.9 Vacuum (see 7.2)
The coupling assembly shall maintain a vacuum of 0,08 MPa (0,8 bar) for a period of 5 min without
leakage when tested in accordance with 7.2.
6.10 Air leakage (see 7.3)
The coupling assembly shall show no evidence of air leakage when tested in accordance with 7.3.
6.11 Low-temperature exposure (see 7.4)
The coupling assembly shall show no evidence of air leakage when tested in accordance with 7.4.
6.12 Heat aging (see 7.5)
The coupling assembly shall show no evidence of air leakage or cracking of the gasket when tested in
accordance with 7.5.
6.13 Hydrostatic pressure (see 7.6)
The coupling assembly shall show no evidence of leakage, fracture or rupture when tested in accordance
with 7.6.
6.14 Bending moment (see 7.7)
The coupling assembly shall show no evidence of fracture or rupture or evidence of water leakage when
tested in accordance with 7.7.1 or 7.7.2.
6.15 Gasket material evaluation
6.15.1 Compression set
Compression set shall not exceed 25 % when tested in accordance with ASTM D395-03, method B.
6.15.2 Tensile strength and elongation
6.15.2.1 Gasket materials shall have the following properties when tested in accordance with ISO 37:
a) for silicone rubber (having poly-organo-siloxan as its constituent characteristics), a minimum
tensile strength of 3,4 MPa (34 bar) and a minimum ultimate elongation of 100 %; or
b) for natural rubber and a synthetic rubber other than silicone rubber, a minimum tensile strength of
10,3 MPa (103 bar) and a minimum ultimate elongation of 150 %, or a minimum tensile strength of
15,2 MPa (152 bar) and a minimum ultimate elongation of 100 %.
6.15.2.2 When tested in accordance with ISO 188, the physical properties of the gasket material after
oven ageing at 100 °C for 70 h shall be at least 60 % of the as-received tensile strength and elongation
values. Any change in the hardness shall not exceed 5 % of the as-received value.
6.16 Fire resistance (see 7.8)
The design of the coupling system should be such that a joint shall not leak in excess of single drops, i.e.
not in form of flowing water or water spray, after a fire test in accordance with 7.8.
NOTE In some countries this test is not mandatory.
4 © ISO 2019 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 6182-12:2019(E)
6.17 Rated working pressure
The rated working pressure of a coupling shall not be less than 1,2 MPa (12 bar).
6.18 Nominal sizes
The size of a coupling shall be in accordance with the pipe sizes given in ISO 4200.
7 Test methods
7.1 Test conditions and assembly
7.1.1 Test conditions
All tests shall be performed at an ambient temperature of (24 ± 5) °C, if not otherwise specified. Unless
otherwise specified, the tolerance for all testing parameters shall be ±5 %.
7.1.2 Test assembly
Unless otherwise specified, the test assembly shall consist of two sections of piping, each at least
150 mm long fitted with end caps. See Figure 1. The test coupling shall be assembled in accordance with
the manufacturer's installation instructions.
7.2 Vacuum (see 6.9)
7.2.1 The test assembly (see Figure 1) shall be equipped with a vacuum gauge to permit visual
verification of the actual vacuum being applied.
7.2.2 Using a suitable vacuum pump, the test assembly shall be subjected to an internal vacuum
pressure of 0,08 MPa (0,8 bar), and then isolated by closing shut off valves located between the test
sample and the vacuum pump. The 0,08 MPa (0,8 bar) vacuum pressure may be re-established, if
necessary, following an appropriate stabilization period.
7.2.3 Once the vacuum pressure has been established, there shall be no increase of more than 0,01 MPa
(0,1 bar) below relative ambient pressure during the 5 min test period.
Key
1 pipe section
2 pipe coupling
a
Pipe tap provided in the end.
Figure 1 — Test assembly
© ISO 2019 – All rights reserved 5
---------------------- Page: 9 ----------------------
ISO 6182-12:2019(E)
7.3 Air leakage (see 6.10)
7.3.1 The test assembly (see Figure 1) shall be equipped with pressure measuring equipment to permit
visual verification of the internal pressure being applied.
7.3.2 The air pressure shall then be increased to 0,3 MPa (3 bar) and held for 5 min and then soapy
water or leakage test fluid applied.
CAUTION — Pneumatic pressure testing requires appropriate safety precautions.
7.3.3 There shall be no loss of air pressure of more than 0,01 MPa (0,1 bar) observed by pressure
measuring equipment or evidence of leakage during a 5 min test period.
7.4 Low-temperature exposure (see 6.11)
7.4.1 The test assembly (see Figure 1) shall be equipped with a pressure gauge to permit visual
verification of the pressure being applied.
7.4.2 Water to the depth of 3 mm shall be added to the horizontal assembly. The assembly and water
shall be at an ambient temperature of (24 ± 5) °C. The assembly shall then be pressurized with air to
0,3 MPa (3 bar), sealed, checked for leakage as specified in 7.3.2, and then placed in a chamber at −40 °C
in the horizontal position for a period of 24 h. Following the exposure, the assembly shall be restored to
ambient temperature.
CAUTION — Pneumatic pressure testing requires appropriate safety precautions.
7.4.3 The air pressure in the assembly shall be observed to return to 0,3 MPa (3 bar) within 24 h.
There shall be no loss of air pressure of more than 0,01 MPa (0,1 bar).
7.5 Heat aging (see 6.12)
7.5.1 The test assembly (see Figure 1) shall be initially pressurized to 0,3 MPa (3 bar) to check for
leakage as specified in 7.3.2, then depressurized and placed in the oven at 135 °C for 45 days.
CAUTION — Pneumatic pressure testing requires appropriate safety precautions.
7.5.2 Following exposure, the assembly shall be conditioned at an ambient temperature of (24 ± 5) °C
for a minimum of 24 h. The test assembly shall then be submerged in water and pressurized with air to
0,3 MPa (3 bar) for 5 min.
CAUTION — Pneumatic pressure testing requires appropriate safety precautions.
7.5.3 There shall be no loss of air pressure observed by the formation of air bubbles at the test coupling
during the 5 min test period.
7.5.4 The test assembly shall be disassembled and the gasket shall not crack when two diametrically
opposite points are squeezed together by hand until they touch. Gaskets intended for use with components
200 OD and larger shall also not crack when opposite sides are twisted by hand into a half turn.
7.6 Hydrostatic pressure test (see 6.13)
7.6.1 The test assembly (see Figure 1) shall be filled with water and purged of any entrapped air.
CAUTION — Hydrostatic pressure testing requires appropriate safety precautions.
6 © ISO 2019 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 6182-12:2019(E)
7.6.2 Hydrostatic pressure shall be increased at a rate not exceeding 2,0 MPa/min (20 bar/min) until
an internal pressure level equal to four times the rated working pressure is attained. This pressure shall
be maintained for 5 min.
7.6.3 There shall be no leakage, rupture or joint failure throughout the 5 min test period.
7.7 Bending moment (see 6.14)
7.7.1 Test method 1
7.7.1.1 The test assembly shall consist of two sections of piping each a minimum of 750 mm long fitted
with end caps. The test coupling shall be assembled in accordance with the manufacturer's installation
instructions. The bolt pads of the coupling shall be installed horizontally (see Figure 2).
Dimensions in millimetres (inches)
Key
1 pipe section
2 pipe coupling
3 test load (with a maximum contact width or diameter of 30 mm when applied by hydraulic cylinder or similar)
4 support
5 pipe tap
6 pan, 200 · 400 · 60, SS, thickness 2
Figure 2 — Test method 1 bending moment test assembly
7.7.1.2 The bending moment test assembly shall be equipped with a pressure gauge to permit visual
verification of the internal pressure being applied.
7.7.1.3 The test assembly shall be filled with water and purged of any entrapped air. Hydrostatic
pressure shall be applied to the test assembly and maintained at four times the rated working pressure
of the joint for the duration of the test.
CAUTION — Hydrostatic pressure testing requires appropriate safety precautions.
© ISO 2019 – All rights reserved 7
---------------------- Page: 11 ----------------------
ISO 6182-12:2019(E)
7.7.1.4 A bending moment in accordance with Table 1 shall be applied to the coupling joint and held
for a minimum of 10 min.
During this period of time the test force may decrease. However, as soon as the test force drops below
75 % of the force required for generating the bending moment according to Table 1, the test force is
increased again to the required level for generating the bending moment according to Table 1.
7.7.1.5 There shall be no leakage, rupture or joint failure throughout the test period.
7.7.1.6 If the intention is to consider the coupling as a flexible grooved-end coupling-in conformance
with 6.8, the required angular displacement shall be observed at a bending moment not exceeding 25 %
of the values given in Table 1.
a
Table 1 — Test method 1 — Applied bending moments
Size of coupling Applied bending moment
mm N·m
25 350
32 644
40 858
50 1 000
65 1 280
80 1 950
100 2 940
125 6 130
150 8 830
200 19 080
250 31 800
300 52 560
a
For reducing couplings the dimension of the smaller
nominal diameter shall apply for the determination of the
bending moment.
7.7.2 Test method
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
