Information technology — Metadata Registries Interoperability and Bindings (MDR-IB) — Part 1: Framework, common vocabulary, and common provisions for conformance

The ISO/IEC 20944 series of International Standards provides the bindings and their interoperability for metadata registries, such as those specified in the ISO/IEC 11179 series of International Standards. ISO/IEC 20944-1:2013 contains an overview, framework, common vocabulary, and common provisions for conformance for the ISO/IEC 20944 series of International Standards.

Technologies de l'information — Interopérabilité et liaisons des registres de métadonnées (MDR-IB) — Partie 1: Cadre d'applications, vocabulaire commun et dispositions communes de conformité

General Information

Status
Published
Publication Date
07-Jan-2013
Current Stage
9093 - International Standard confirmed
Completion Date
01-Jul-2019
Ref Project

Buy Standard

Standard
ISO/IEC 20944-1:2013 - Information technology -- Metadata Registries Interoperability and Bindings (MDR-IB)
English language
92 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 20944-1
First edition
2013-01-15
Information technology — Metadata
Registries Interoperability and Bindings
(MDR-IB) —
Part 1:
Framework, common vocabulary, and
common provisions for conformance
Technologies de l'information — Interopérabilité et liaisons des registres
de métadonnées (MDR-IB) —
Partie 1: Cadre d'applications, vocabulaire commun et dispositions
communes de conformité




Reference number
ISO/IEC 20944-1:2013(E)
©
ISO/IEC 2013

---------------------- Page: 1 ----------------------
ISO/IEC 20944-1:2013(E)

COPYRIGHT PROTECTED DOCUMENT


©  ISO/IEC 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2013 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 20944-1:2013(E)
Contents Page
Foreword . iv
Introduction . v
1  Scope . 1
1.1  General . 1
1.2  Overview of concepts . 2
2  Normative references . 3
3  Terms and definitions . 4
3.1  Terms and definitions from ISO/IEC Guide 2 . 4
3.2  Terms and definitions from ISO/IEC Directives, Part 2 . 8
3.3  Terms and definitions from ISO/IEC JTC 1 Directives . 9
3.4  Terms and definitions from ISO 704 . 9
3.5  Terms and definitions from ISO 1087-1 . 9
3.6  Terms and definitions from ISO/IEC 2382-1, fundamental terms . 10
3.7  Terms and definitions from ISO/IEC 2382-4, organization of data . 15
3.8  Terms and definitions from ISO/IEC 2382-5, representation of data . 21
3.9  Terms and definitions from ISO/IEC 2382-6, preparation and handling of data . 21
3.10  Terms and definitions from ISO/IEC 2382-7, computer programming . 24
3.11  Terms and definitions from ISO/IEC 2382-8, security . 26
3.12  Terms and definitions from ISO/IEC 2382-9, data communications . 33
3.13  Terms and definitions from ISO/IEC 2382-15, programming languages . 37
3.14  Terms and definitions from ISO/IEC 2382-17, databases . 38
3.15  Terms and definitions from ISO/IEC 2382-18, distributed data processing . 44
3.16  Terms and definitions from ISO/IEC TR 10000-1 . 44
3.17  Terms and definitions from ISO/IEC 11404 . 45
3.18  Terms and definitions from ISO/IEC 11179 . 46
3.19  Terms and definitions from ISO/IEC 13886 . 47
3.20  Terms and definitions from ISO/IEC 19501 . 49
3.21  Terms and definitions particular to this document . 49
3.22  Acronyms, initialisms, and abbreviations . 71
4  Conformance . 72
4.1  Conformance level . 73
4.2  Profiles, derived standards, subset standards, superset standards, and extensions . 73
4.3  Strictly conforming implementations . 73
4.4  Conforming implementations . 73
4.5  Conformance labels . 74
5  Derived normative documents, profiles, extensions . 74
5.1  Derived normative document (derived standard) . 74
5.2  General principles of a profile . 74
5.3  Extensions . 75
Annex A (informative) Using ISO/IEC 20944 as building blocks for metadata and data interchange . 77
Annex B (informative) Rationale . 80
Annex C (normative) Conformance labels . 84
Index of definitions . 85

© ISO/IEC 2013 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 20944-1:2013(E)

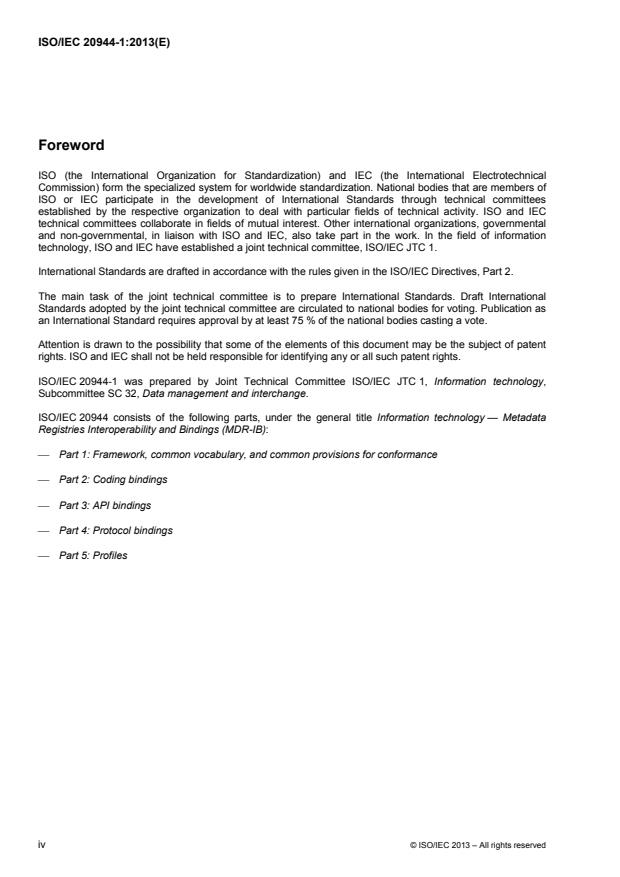

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 20944-1 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 32, Data management and interchange.
ISO/IEC 20944 consists of the following parts, under the general title Information technology — Metadata
Registries Interoperability and Bindings (MDR-IB):
 Part 1: Framework, common vocabulary, and common provisions for conformance
 Part 2: Coding bindings
 Part 3: API bindings
 Part 4: Protocol bindings
 Part 5: Profiles
iv © ISO/IEC 2013 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 20944-1:2013(E)
Introduction
ISO/IEC 20944 provides the bindings and their interoperability for metadata registries, such as those specified
in ISO/IEC 11179.
This part of ISO/IEC 20944 contains an overview, framework, common vocabulary, and common provisions
for conformance for ISO/IEC 20944. In the context of increasing metadata and data interoperability
harmonization, four methodologies have been employed to simplify the tasks and to reduce risk.
The first methodology employed is the treating of data (and metadata) interoperability as a series of layered
technical specifications (e.g., standards), from application-independent layers to application-specific layer(s).
The second methodology employed is the simplification of interoperability specializations, also known as
bindings. Rather than independently developing each separate method of representation and access [codings,
application programming interfaces (APIs), protocols], a common, harmonized approach is taken where each
binding is derived in a consistent two-step process:
 Step #1 is choosing from the categories of coding, API, protocol (or combination), which themselves are
derived from a common data model and navigation method.
 Step #2 is to derive the specific binding from its general binding, e.g., the XML coding binding
(ISO/IEC 20944-2:2012, Clause 12) and other (specific) coding bindings are derived from the generic
coding binding (ISO/IEC 20944-2:2012, Clauses 1-10); the C API binding (ISO/IEC 20944-3:2012,
Clause 11), the Java API binding (ISO/IEC 20944-3:2012, Clause 12), and the other API bindings are
derived from the generic API binding (ISO/IEC 20944-3:2012, Clauses 1-10). Because these bindings
have a well-defined derivation, the bindings are harmonized, i.e., there is commonality in meaning and
interpretation across the bindings. Thus, the complexity of adding and harmonizing a new (coding, API,
protocol) binding is greatly simplified.
The third methodology employed is the use of rule-based bindings to simplify the normative wording of the
standards. A rule-based binding is a binding that is specified by a general set of rules (in contrast to
application-specific normative wording). For example, the XML coding binding is based upon a set of
transformation rules (in contrast to specifying a specific DTD or XML schema).
The fourth methodology involves the harmonization of bindings within a category. For example, the XML
coding binding is intended to be harmonized with the ASN.1 coding binding; the C API binding is intended to
be harmonized with the Java API binding, etc.

© ISO/IEC 2013 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 20944-1:2013(E)

Information technology — Metadata Registries Interoperability
and Bindings (MDR-IB) —
Part 1:
Framework, common vocabulary, and common provisions for
conformance
1 Scope
1.1 General
ISO/IEC 20944 is a series of International Standards that describe codings, APIs, and protocols for interacting
with an ISO/IEC 11179 metadata registry (MDR).
This part of ISO/IEC 20944 provides the overview, framework, common vocabulary, and common provisions
1
for conformance for ISO/IEC 20944. It addresses the following data interoperability features :
 a common framework for variety control: harmonized concepts for conforming implementations and strictly
conforming implementations;
2 3
 harmonized provisions, such as mandatory requirements and optional requirements , and their
consistent application across all bindings of ISO/IEC 20944;
 harmonized and consistent treatment of data elements with varying data obligation attributes (e.g.,
mandatory, conditional, optional, extended) and varying data longevity attributes (e.g., in-use, obsolete,
reserved, etc.).
This part of ISO/IEC 20944 also includes a rationale that guided its development. The rationale also discusses
the harmonized use of profiles (e.g., subsets, supersets, changes, etc.) of the data structure and data
elements.

1
The concept of data interoperability applies to metadata when metadata is treated as data, e.g., metadata item
attributes (as specified by ISO/IEC 11179-3) that are transferred or exchanged. The concept of data interoperability is
different from metadata interoperability (agreement upon the meaning of descriptive data), which is outside the scope of
ISO/IEC 20944.
2
In the context of this part of ISO/IEC 20944, the term mandatory requirement is defined as in ISO/IEC Guide 2:2004,
subclause 7.5.1: a requirement of a normative document that must necessarily be fulfilled in order to comply with that
document. There is no implication that the aforementioned requirement is compulsory by law or regulation. This kind
of mandatory requirement is also known as an exclusive requirement.
3
ISO/IEC Guide 2:2004, subclause 7.5.2 defines the term optional requirement, which includes the following note: An
optional requirement may be either: a) one of two or more alternative requirements; or b) an additional requirement that
must be fulfilled only if applicable and that may otherwise be disregarded.
© ISO/IEC 2013 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/IEC 20944-1:2013(E)
1.2 Overview of concepts
1.2.1 Metadata vs. data
4
Metadata is descriptive data about objects . The essential characteristics of metadata include: it is descriptive
data, and that it is descriptive about something. For example, if P is data and PQ represents the descriptive
relationship such that P describes Q, then P is metadata about Q. If there is no relationship from P to Q, then
P is no longer metadata (i.e., P is merely data) because metadata is always relative to the object of
description. Or stated differently, P only becomes metadata once its descriptive relationship to Q is
established. Thus, it is impossible to determine, independent of context and relationships, that any piece of
data is actually also metadata. The implications are: (1) because metadata is data, it can be exchanged like
other data, but (2) to remain metadata, the exchange must include the associated context and relationships.
ISO/IEC 20944 simply treats everything as data — whether it is used as metadata is outside the scope of
5
ISO/IEC 20944. Although metadata is just data, ISO/IEC 20944 also provides reification and navigation of
these contexts and relationships that are particular to metadata (and atypical for common data sets).
NOTE ISO/IEC 20944-5 provides a mapping and a profile such that ISO/IEC 20944 bindings may be used to
interchange metadata contained in ISO/IEC 11179 metadata registries, e.g., an application may connect to, access, read,
and use metadata from an ISO/IEC 11179 metadata registry.
1.2.2 Metadata and data interoperability
The successful interchange of data is dependent upon mutual agreement of interchange participants. Some
key requirements for successful data interchange include (from lower implementation details to higher level
abstractions):
 The syntax determines how data is coded (structured) and encoded (represented). Codings include
specifications for organizing data structures (e.g., How are records represented? Is tagging embedded or
implied?). Encodings include specifications for representation of datatypes (e.g., are numbers represented
as a string of characters or a string of bits?).
EXAMPLE 1 In XML, "the temperature is 17°" might be coded as a tagged element "17" that
is encoded as 15 UTF-8 characters, the encoding would be the ordering of the bits within the octet, e.g., little endian
vs. big endian.
EXAMPLE 2 In the programming language C, "the temperature is 17°" might be coded as a single binary octet
{ uint8_t temp = 17; }, and encoded as a two's complement big-endian 16-bit integer.
 The semantics define the meaning of the data. Several kinds of descriptive techniques are possible, such
as using ISO/IEC 11179-3 for describing data. Additional technical specifications, such as standards, may
be used in conjunction with the ISO/IEC 11179-3 description of data.
EXAMPLE 3 The statement "the temperature is 17°" might not be descriptive enough because (1) it does not
convey units of measure, e.g., Celsius or Fahrenheit; and (2) it does not convey what is being measured, e.g.,
temperature sensor #289. Both these features are part of the semantic description that comprises an
ISO/IEC 11179-3 Data Element.
 Application-specific behavior is determined by the context of the data.
EXAMPLE 4 The statement "temperature is 17°C at sensor #289" may have different meanings depending upon
the application. In a telemetry application, the statement "temperature is 17°C at sensor #289" might represent data to
be recorded and analyzed, such as updating low, average, and high values in a set of time-series data. In contrast, in
a heating, ventilation, and air conditioning (HVAC) application, the statement "temperature is 17°C at sensor #289"
might represent a signal that causes heating units to turn on automatically.

4
For example, metadata may be descriptive data about other data.
5
Reification is to transform into data, e.g., a relationship between datums is transformed into data itself.
2 © ISO/IEC 2013 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 20944-1:2013(E)
Of the three issues above, ISO/IEC 20944 concerns itself with the syntax, i.e., the bindings (codings, APIs,
and protocols) for data interchange.
Regarding the semantics, the ISO/IEC 11179 series is a primary tool for specifying semantics, via descriptive
6
data, for data interchange. This descriptive data is known as metadata. The descriptive data (metadata) may
also be interchanged via the ISO/IEC 20944 series. However, in this case the ISO/IEC 20944 series is being
used for a different purpose: descriptive data interchange (i.e., metadata interchange) rather than data
interchange. It is possible to have separate data and metadata interchanges, and to use the ISO/IEC 20944
series independently for each interchange.
Neither ISO/IEC 20944 nor ISO/IEC 11179 specify application-specific requirements and functionality.
1.2.3 Achieving metadata and data interoperability and harmonization
Interoperability with a metadata registry can be achieved in various ways. ISO/IEC 20944 provides a
framework within which several approaches can be standardized. All interoperability requires some kind of
interface, and associated bindings, between two or more participating functional units. A binding provides a
concrete mapping of a functional unit to an interface. Three categories of bindings are supported by
ISO/IEC 20944:
 codings, which deal with the formalized representation of information;
 APIs, which specify a binding in programming terms;
 protocols, which specify formalized communications.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC Guide 2, Standardization and related activities — General vocabulary
ISO/IEC JTC1 Directives, 5th edition
ISO/IEC 704:2000, Terminology work — Principles and methods
ISO/IEC 1087-1:2000, Terminology work — Vocabulary — Part 1: Theory and application
ISO/IEC 2382 (all parts), Information technology — Vocabulary
ISO/IEC TR 10000-1, Information technology — Framework and taxonomy of International Standardized
Profiles — Part 1: General principles and documentation framework
ISO/IEC 10241:1992, International terminology standards — Preparation and layout
ISO/IEC 11179 (all parts), Information technology — Metadata registries (MDR)
ISO/IEC 11404:2007, Information technology — General-Purpose Datatypes (GPD)
ISO/IEC 13886:1996, Information technology — Language-Independent Procedure Calling (LIPC)
ISO/IEC 14977:1996, Information technology — Syntactic metalanguage — Extended BNF
ISO/IEC 19501:2005, Information technology — Open Distributed Processing — Unified Modeling Language
(UML) Version 1.4.2

6
Additional semantics may be described by or supplanted with unstructured descriptive text and/or layering of
additional standards and specifications.
© ISO/IEC 2013 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/IEC 20944-1:2013(E)
3 Terms and definitions
For the purposes of this document, the following terms, abbreviations, and definitions apply.
3.1 Terms and definitions from ISO/IEC Guide 2
Definitions are taken verbatim from ISO/IEC Guide 2 unless otherwise stated in a following note.
3.1.1 Standardization
3.1.1.1
standardization
activity of establishing, with regard to actual or potential problems, provisions for common and repeated use,
aimed at the achievement of the optimum degree of order in a given context
NOTE 1 In particular, the activity consists of the processes of formulating, issuing and implementing standards.
NOTE 2 Important benefits of standardization are improvement of the suitability of products, processes and services for
their intended purposes, prevention of barriers to trade and facilitation of technological cooperation.
3.1.1.2
level of standardization
geographical, political or economic extent of involvement in standardization
3.1.1.3
consensus
general agreement, characterized by the absence of sustained opposition to substantial issues by any
important part of the concerned interests and by a process that involves seeking to take into account the
views of all parties concerned and to reconcile any conflicting arguments
3.1.2 Aims of standardization
3.1.2.1
fitness for purpose
ability of a product, process or service to serve a defined purpose under specific conditions
3.1.2.2
compatibility
suitability of products, processes or services for use together under specific conditions to fulfil relevant
requirements without causing unacceptable interactions
3.1.2.3
interchangeability
ability of one product, process or service to be used in place of another to fulfil the same requirements
NOTE The functional aspect of interchangeability is called "functional interchangeability", and the dimensional aspect
"dimensional interchangeability".
3.1.2.4
variety control
selection of the optimum number of sizes or types of products, processes or services to meet prevailing needs
NOTE Variety control is usually concerned with variety reduction.
4 © ISO/IEC 2013 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 20944-1:2013(E)
3.1.3 Normative documents
3.1.3.1
normative document
document that provides rules, guidelines or characteristics for activities or their results
NOTE 1 The term "normative document" is a generic term that covers such documents as standards, technical
specifications, codes of practice and regulations.
NOTE 2 A "document" is to be understood as any medium with information recorded on or in it.
NOTE 3 The terms for different kinds of normative documents are defined considering the document and its content as
a single entity.
3.1.3.2
standard
document, established by consensus and approved by a recognized body, that provides, for common and
repeated use, rules, guidelines or characteristics for activities or their results, aimed at the achievement of the
optimum degree of order in a given context
NOTE Standards should be based on the consolidated results of science, technology and experience, and aimed at
the promotion of optimum community benefits.
3.1.3.3
international standard
standard that is adopted by an international standardizing/standards organization and made available to the
public
3.1.3.4
regional standard
standard that is adopted by a regional standardizing/standards organization and made available to the public
3.1.3.5
national standard
standard that is adopted by a national standards body and made available to the public
3.1.3.6
provincial standard
standard that is adopted at the level of a territorial division of a country and made available to the public
3.1.3.7
prestandard
document that is adopted provisionally by a standardizing body and made available to the public in order that
the necessary experience may be gained from its application on which to base a standard
3.1.3.8
technical specification
document that prescribes technical requirements to be fulfilled by a product, process or service
NOTE 1 A technical specification should indicate, whenever appropriate, the procedure(s) by means of which it may be
determined whether the requirements given are fulfilled.
NOTE 2 A technical specification may be a standard, a part of a standard or independent of a standard.
3.1.3.9
regulation
document providing binding legislative rules, that is adopted by an authority
3.1.3.10
technical regulation
regulation that provides technical requirements, either directly or by referring to or incorporating the content of
a standard, technical specification or code of practice
© ISO/IEC 2013 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/IEC 20944-1:2013(E)
NOTE A technical regulation may be supplemented by technical guidance that outlines some means of compliance
with the requirements of the regulation, i.e. deemed-to-satisfy provision.
3.1.4 Harmonization of standards
3.1.4.1
harmonized standards
equivalent standards
standards on the same subject approved by different standardizing bodies, that establish interchangeability of
products, processes and services, or mutual understanding of test results or information provided according to
these standards
NOTE Within this definition, harmonized standards might have differences in presentation and even in substance, e.g.
in explanatory notes, guidance on how to fulfil the requirements of the standard, preferences for alternatives and varieties.
3.1.4.2
unified standards
harmonized standards that are identical in substance but not in presentation
3.1.4.3
identical standards
harmonized standards that are identical in both substance and presentation
NOTE 1 Identification of the standards may be different.
NOTE 2 If in different languages, the standards are accurate translations.
3.1.4.4
comparable standards
standards on the same products, processes or services, approved by different standardizing bodies, in which
different requirements are based on the same characteristics and assessed by the same methods, thus
permitting unambiguous comparison of differences in the requirements
NOTE Comparable standards are not harmonized (or equivalent) standards.
3.1.5 Content of normative documents
3.1.5.1
provision
expression of normative wording that takes the form of a statement, an instruction, a recommendation or a
requirement
NOTE These types of provision are distinguished by the form of wording they employ; e.g. instructions are expressed
in the imperative mood, recommendations by the use of the auxiliary "should" and requirements by the use of the auxiliary
"shall".
3.1.5.2
statement
provision that conveys information
3.1.5.3
instruction
provision that conveys an action to be performed
3.1.5.4
recommendation
provision that conveys advice or guidance
6 © ISO/IEC 2013 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/IEC 20944-1:2013(E)
3.1.5.5
requirement
provision that conveys criteria to be fulfilled
3.1.5.6
exclusive requirement
mandatory requirement (deprecated)
requirement of a normative document that must necessarily be fulfilled in order to comply with that document
NOTE The term "mandatory requirement" should be used to mean only a requirement made compulsory by law or
regulation.
3.1.5.7
optional requirement
requirement of a normative document that must be fulfilled in order to comply with a particular option permitted
by that document
NOTE An optional requirement may be either: (1) one of two or more alternative requirements; or (2) an additional
requirement that must be fulfilled only if applicable and that may otherwise be disregarded.
3.1.5.8
deemed-to-satisfy provision
provision that indicates one or more means of compliance with a requirement of
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
