Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 20574
First edition
2019-04
Road vehicles — Durability test
method for starter motor for stop and
start system
Véhicules routiers — Méthodes de test d'endurance pour les
démarreur stop and start system
Reference number
ISO 20574:2019(E)
©
ISO 2019

---------------------- Page: 1 ----------------------
ISO 20574:2019(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 20574:2019(E)

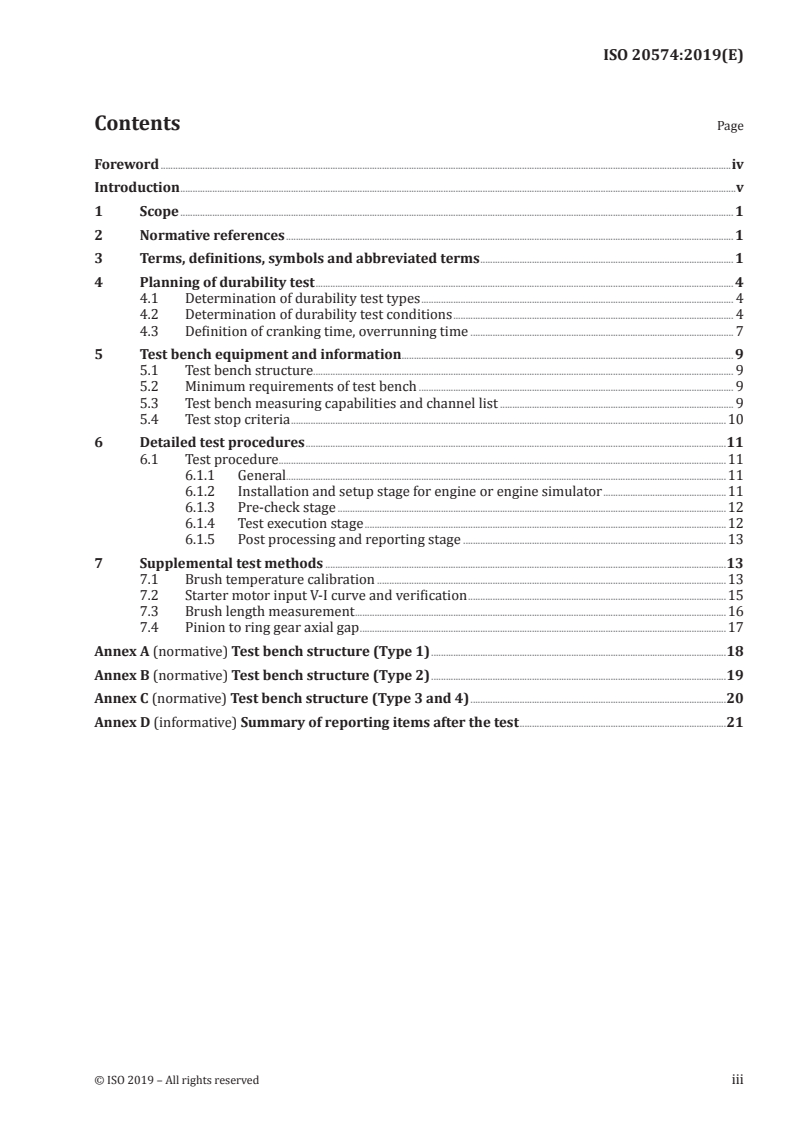

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, symbols and abbreviated terms . 1
4 Planning of durability test . 4
4.1 Determination of durability test types . 4
4.2 Determination of durability test conditions . 4
4.3 Definition of cranking time, overrunning time . 7
5 Test bench equipment and information. 9
5.1 Test bench structure . 9
5.2 Minimum requirements of test bench . 9
5.3 Test bench measuring capabilities and channel list . 9
5.4 Test stop criteria .10
6 Detailed test procedures .11
6.1 Test procedure .11
6.1.1 General.11
6.1.2 Installation and setup stage for engine or engine simulator .11
6.1.3 Pre-check stage .12
6.1.4 Test execution stage .12
6.1.5 Post processing and reporting stage .13
7 Supplemental test methods .13
7.1 Brush temperature calibration .13
7.2 Starter motor input V-I curve and verification .15
7.3 Brush length measurement .16
7.4 Pinion to ring gear axial gap .17
Annex A (normative) Test bench structure (Type 1) .18
Annex B (normative) Test bench structure (Type 2) .19
Annex C (normative) Test bench structure (Type 3 and 4) .20
Annex D (informative) Summary of reporting items after the test .21
© ISO 2019 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 20574:2019(E)

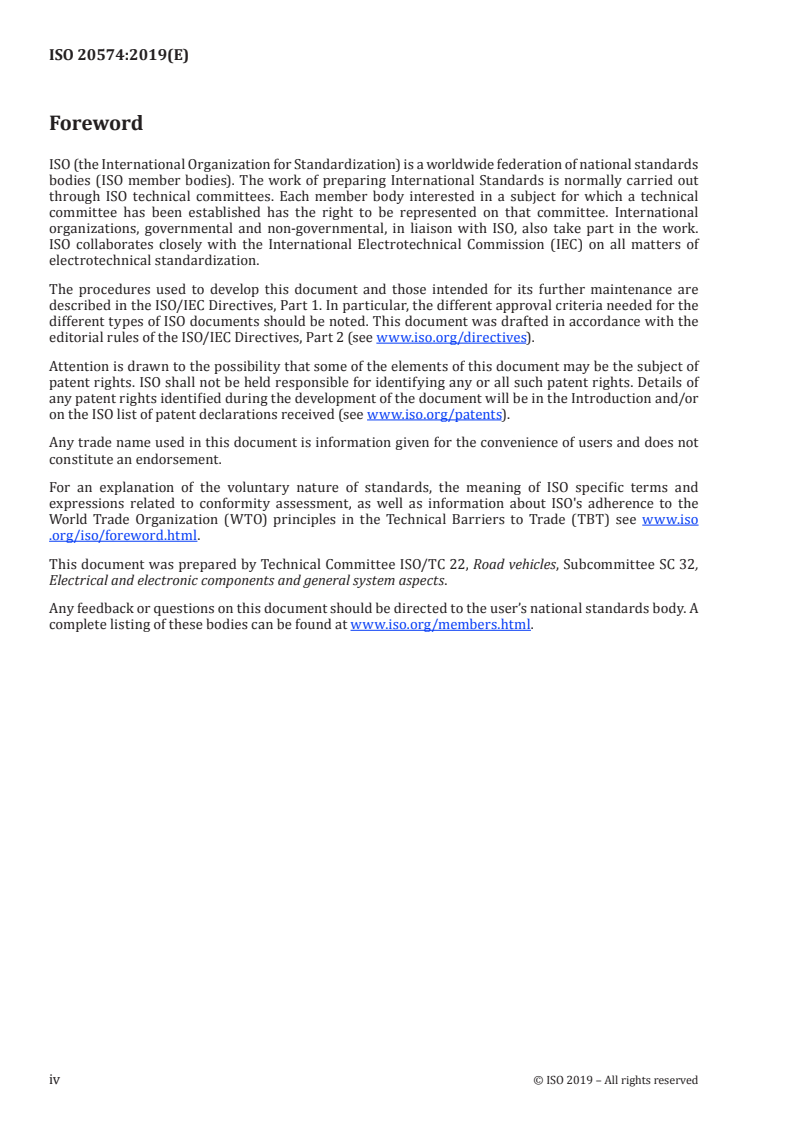

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 32,
Electrical and electronic components and general system aspects.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 20574:2019(E)

Introduction
Stop and start systems contribute to fuel saving by stopping the engine when its operation is not
needed, and to start the engine automatically when its operation is needed. The more frequent starting
of the engine requires higher durability of the starter motor. Since there is no standard to evaluate the
durability of starter motors for stop and start systems, individual specifications are used by engine
and/or vehicle manufacturers and starter motor manufacturers. Because the stop and start systems
require much more frequent starter motor operations, the testing period is much longer compared to
conventional starter motors.
In addition to engine and/or vehicle manufacturers and starter motor manufacturers, testing companies
also began to conduct tests. In order to carry out the time-consuming test accurately and to use the test
results effectively, the test procedure in this document includes how to summarize the test results.
© ISO 2019 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 20574:2019(E)
Road vehicles — Durability test method for starter motor
for stop and start system
1 Scope
This document defines requirements and recommendations for starter motor durability testing of
12 V start systems for internal combustion engines. This includes test methods, test procedures and
capabilities of test benches.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 8856, Road vehicles — Electrical performance of starter motors — Test methods and general
requirements
3 Terms, definitions, symbols and abbreviated terms
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
stop and start system
system to stop the engine when its operation is not needed, and to start the engine automatically when
its operation is needed
3.2
manual start
event when the engine is started manually by the driver
3.3
automatic start
event when the engine is started by the stop and start system automatically
3.4
dummy starter motor
starter motor used for installation purpose only
3.5
calibration starter motor
starter motor used for calibration of test condition, which is equipped for measuring temperatures of
its components
3.6
engine simulator
device which simulates engine behaviour during engine start
© ISO 2019 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 20574:2019(E)

3.7
battery simulator
electrical power supply equipment which simulates battery behaviour
3.8
engine mount
mechanical frame to support engine and gearbox
3.9
number of test start cycles
counted durability test start cycles
3.10
remaining brush length
length of brush after the test
3.11
usable brush length
length of brush that is available to be consumed
3.12
initial brush length
length of brush before starting the test
3.13
vehicle manufacturer
company which designs and produces vehicles
3.14
engine manufacturer
company which designs and produces internal combustion engines
3.15
starter motor manufacturer
company which designs and produces starter motors
3.16
cranking
condition in which the starter motor rotates the engine
3.17
overrunning
condition in which the engine rotates the starter motor pinion before starter motor OFF
3.18
engine ECU
electronic control unit for controlling internal combustion engine operation
3.19
starter solenoid
electromagnetic component of starter motor to move pinion and to switch electric motor
3.20
bi-control solenoid
starter solenoid which is able to control separately pinion movement and to switch electric motor
3.21
bench controller
device which is capable of controlling required test bench functions
2 © ISO 2019 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 20574:2019(E)

3.22
nominal power
P
nom
power declared by the starter motor manufacturer corresponding to the maximum power output at the
reference temperature when determined according to ISO 8856
3.23
battery internal and line resistance
R
BL
sum of power supply (battery or battery simulator) internal resistance and total resistance of external
line (positive and negative sides and connections)
3.24
device under test
DUT
starter motor used for durability test
3.25
change of mind
CoM
start event before complete engine stall
3.26
starter motor voltage
U
STR
voltage at battery terminal of starter motor
3.27
starter motor current
I
STR
current drawn by starter motor
3.28
starter motor open circuit voltage
U
0_STR
voltage at starter motor terminals without electrical load
3.29
virtual starter motor voltage
U
0_STR_v
virtual starter motor voltage at I = 0A derived from V-I curve
STR
3.30
battery internal resistance
R
B
power supply (battery or battery simulator) resistance
3.31
line resistance
R
L
total resistance of external line (positive and negative sides and connections)
3.32
front end accessory drive
FEAD
equipment driven by belt which is connected to engine
© ISO 2019 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 20574:2019(E)

3.33
starter motor temperature at control point
T
control
temperature measured at defined control point location
EXAMPLE At starter motor yoke surface.
3.34
temperature of starter motor brush
T
brush
temperature measured inside of starter motor brush
3.35
pinion to ring gear axial gap
d
prg
axial distance from front surface of pinion to ring gear at rest condition
3.36
starter motor input curve
V-I curve
straight line calculated from starter motor voltage vs starter motor current diagram defining starter
motor input conditions
4 Planning of durability test
4.1 Determination of durability test types
The durability test is performed with an engine simulator or an engine. The following test types can be
selected. See Table 1 for comparison of each test type.
1) Engine, using bench controller to control fuel/spark to specifically achieve pre-determined
cranking time and overrunning time (see Table 3).
2) Engine, using its engine ECU to control the test parameters.
3) Engine simulator, using engine waveform data provided by engine and/or vehicle manufacturers as
input to simulator (for cranking time, overrunning time, or torque) (see Table 3).
4) Engine simulator, using synthetic pattern or engine simulation model where starter motor
manufacturer or engine and/or vehicle manufacturers define values for torque, cranking and
overrunning behaviour (see Table 3).
Table 1 — Overview of test types
Test type Starter load Starter load characteristic Reference
1 Engine Engine using bench controller Annex A
2 Engine using engine ECU Annex B
3 Engine Simulator Engine simulation using engine waveform Annex C
data
4 Engine simulation using synthetic pattern Annex C
4.2 Determination of durability test conditions
The starter motor manufacturer and engine and/or vehicle manufacturers should define the test
conditions according to the test planning matrix shown in Table 2.
4 © ISO 2019 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 20574:2019(E)

The following items should be specifically considered:
1) In case of engine simulator, multiple starter motors can be tested simultaneously with the same ring
gear. In that case, the orientation of the starter motors deviate from those of the target application.
Hence, the usage of multiple starter motors shall correspond to the test purpose (e.g. verification of
brush durability but not verification of pinion and ring gear durability).
2) The starter motor manufacturer and engine and/or vehicle manufacturers should agree starter
motor temperature level during the durability test. Different approaches to define temperature
level are established.
For example:
— test at maximum brush temperature defined by starter motor manufacturer;
— test at maximum brush temperature derived from vehicle real drive cycle; and
— test at an average brush temperature derived from brush temperature distributions of vehicle
real drive cycle.
Each approach covers different testing purposes such as focusing on thermal stress, test duration,
mechanical loads or balanced field representation.
3) The starter motor manufacturer and engine and/or vehicle manufacturers should define the test
pass criteria and define test stop criteria according to Table 6.
4) Additional test conditions may be defined and shall be documented in test planning matrix.
For example:
— always using “100 % new” battery for every test;
— testing with maximum pinion to ring gear axial gap; and
— number and orientation of starter motors mounted to engine simulator ring gear.
Table 2 — Test planning matrices
Test planning matrix (1/3) Reference
Test type (test type #1 to #4) 4.1
Target test duration (number of test start cycles)
Test sequence         x[M/S] +   x[A/S] +   x[CoM] +   x[A/S] +   x[CoM]
t                      s t                      s
1 2 Table 3
Manual start [M/S] t                      s t                      s
3 4
including
−1
NOTE 1
t                      s n                   min
5 1
t                      s t                      s Table 3 includ-
6 7

ing NOTE 2
Automatic start [A/S] t                      s t                      s
8 9
−1
t                     s n                   min
10 2
−1 −1
n                   min n                   min
3 4
CoM start [CoM] Table 3
t                     s
11
© ISO 2019 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 20574:2019(E)

Table 2 (continued)
Engine information / Reference engine information for engine simulator
Engine manufacturer
Engine family or engine code
Engine ECU software version
Fuel type
3
Number of cylinders Displacement cm
FEAD components Exist /Not exist
FEAD belt tension N
Additional engine load Alternator operation Yes / No
Dual mass flywheel Exist / Not Exist
Others
        °C < T
cool
Coolant temperature (T )
cool

Maximum        °C
Oil type
Engine coolant and oil
        °C < T
oil
Oil temperature (T )
oil
Maximum         °C
Others
Number of teeth
Ring gear information Module
Others
Gearbox Type
Cranking waveform data (test
type 3) or synthetic pattern (test Specify the agreed data Table 3
type 4) in case of engine simulator
Test planning matrix (2/3) Reference
DUT information
Starter motor manufacturer
Starter motor family
Starter motor nominal power (P )                            kW ISO 8856
nom

Number of pinion teeth
Bi-control solenoid (Yes/No) 3.20
Others
Electric power supply (Battery or battery simulator)
Specify V-I graph or mathematical expres-
Starter motor input V-I curve
sion based on target vehicle or application 7.2
(U , R )
0_STR_v BL
measurement
Battery manufacturer, manufac-
tured date and size or battery
simulator type

Battery nominal voltage                                     V
Battery internal resistance (R )                               mΩ ( °C)
B
Line resistance (R )                             mΩ (  °C)
L
Tolerances for R , R , R and
B L BL

U
o_STR_v
Others
6 © ISO 2019 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 20574:2019(E)

Table 2 (continued)
Others
Pinion to ring gear axial gap d                                     mm Figure 6
prg
Temperature at control point                  ±          °C
7.1
Location of control point
Agreed brush temperature limit
                               °C
7.1

Brush temperature measurement

position
Brush length initial check method 7.3
Starter motor input condition to
measure starter motor output per- Specify the agreed condition ISO 8856
formance
Starter performance after the test Agreed criteria ISO 8856
Test pass criteria 4.2
Test stop criteria 5.4
Reporting items Specify reporting items Annex D
Others
Test planning matrix (3/3) Reference
Data monitoring and recording : No / Yes, if yes define the data monitoring and record-

ing rate
Monitoring Recording
Battery voltage (optional) 5.3
Battery current (optional) 5.3
Starter motor voltage 5.3
Starter motor current 5.3
Starter motor input V-I curve 5.3

(U , R )
0_STR_v BL
Solenoid voltage 5.3

Solenoid current (optional) 5.3
Engine rotational frequency 5.3
Test start cycle count 5.3
Temperature at control point 5.3
Engine coolant temperature 5.3
Engine oil temperature 5.3
Others (specify) 5.3
4.3 Definition of cranking time, overrunning time
In the event that the engine ECU (or engine data) is not used in the setup (test types 1, 3 and 4, see
Table 1), it shall be necessary to decide and setup specific values for cranking time, or overrunning time
(see Table 3).
In that case, Table 2 should be used to help starter motor manufacturer and engine and/or vehicle
manufacturers to reach agreement on the necessary parameters as a part of the planning phase.
© ISO 2019 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO 20574:2019(E)

Table 3 — Parameters of each engine start
Manual start Automatic start Change of mind (CoM) start
t  time, in seconds
−1
n Engine rotational frequency, in min
t Cranking time of manual start
1
t Overrunning time of manual start
2
t Starter motor ON time of manual start
3
t Engine or engine simulator ON time of manual start
4
t Start cycle time of manual start (from start to restart)
5
t Cranking time of automatic start
6
t Overrunning time of automatic start
7
t Starter motor ON time of automatic start
8
t Engine or engine simulator ON time of automatic start
9
t Start cycle time of automatic start (from start to restart)
10
t Starter motor ON time from engine OFF timing of CoM start
11
n Engine rotational frequency at starter motor OFF timing of manual start
1
n Engine rotational frequency at starter motor OFF timing of automatic start
2
n Engine rotational frequency at the starter motor reengagement of CoM start
3
n Engine rotational frequency at starter motor OFF timing of CoM start
4
In Table 3, the following parameters are selected as follows:
— For manual start, in addition to t , either t or n shall be specified.
1 2 1
— For automatic start, in addition to t , either t or n shall be specified.
6 7 2
— For CoM start, in addition to automatic start parameters, either t or n shall be specified.
11 3
— While keeping starter motor ON time constant, t and/or t are adjustable if the defined temperature
5 10
at control point cannot be reached by adjusting the cooling system (see 7.1).
8 © ISO 2019 – All rights reserved

---------------------- Page: 13 ----------------------
ISO 20574:2019(E)

— In case of bi-control solenoid type starter motor, individual consultation shall be agreed between
engine and/or vehicle manufacturer and starter motor manufacturer is needed as to how to
operate them.
5 Test bench equipment and information
5.1 Test bench structure
Test bench structures are shown in Annex A, Annex B and Annex C, depending if testing will be done
with an engine, or an engine simulator.
5.2 Minimum requirements of test bench
Each test bench shall have capability shown in Table 4.
Table 4 — Minimum requirements of test bench
Contents/function Minimum requirements of test bench
Engine The engine or the test bench respectively shall provide engine mount, starter
motor mount, exhaust system, cooling system for engine, fuel supply, cooling sys-
tem for gear box, safety function and action (e.g. fire prevention, oxygen monocar-
bide detection, battery gas detection, short circuit detection/protection)
Engine simulator The engine simulator shall provide starter motor mount including adjustment ca-
pability of d (see Figure 6), electrical motor including braking function
prg
Bench controller The bench controller shall be able to:
— count all test start cycles for manual start/automatic start/CoM/total
— provide detection of test stop criteria and shut down functions (see 5.4)
— logically link multiple measurement values and times and to take
appropriate action
— control flexible starting patterns of program
— send signals to brake and throttle for vehicle simulation (if engine ECU is used)
— activate test bench relays to control starter solenoid and battery charger ON
and OFF timing (additional control is required in case of bi-control solenoid
type starter motor)
Battery management System shall be able to use specified battery with charging system including re-
system (if actual battery quired safety system. Battery charger shall be OFF during actual cranking event
is used)
System shall be able to continuously monitor V-I curve and control charging current
Battery simulator Battery simulator shall be able to provide agreed V-I curve and peak current
Line resistance R Line resistance (positive or negative) shall be adjustable to achieve specified V-I
L
characteristics
Data monitoring Test bench shall have a capability to record and store measurement data for each
test start cycle
Starter motor cooling Test bench shall have a starter motor cooling system to maintain temperature at
system control point during the test (Switch off cooling system or increase cooling capabil-
ity when temperature is out of range)
5.3 Test bench measuring capabilities and channel list
The capability of the test equipment shall enable the parameters to be measured within the accuracy
definition regarding the maximum value of the measurement range shown in Table 5 throughout the
© ISO 2019 – All rights reserved 9

---------------------- Page: 14 ----------------------
ISO 20574:2019(E)

whole test procedure. The channels to be monitored and recorded shall be documented in the test
planning matrix (see Table 2, 3/3).
Table 5 — Measurement channel list and capability of equipment
Channel name Range Sampling rate Accuracy Reference
Battery voltage (option- U 0 V to 30 V 1 000 Hz ±1 % of max range Annex A, B, C
BAT
al)
Battery current (option- I 0 A to 1 500 A 1 000 Hz ±1,5 % of max range Annex A, B, C
BAT
al)
Starter motor voltage U 0 V to 30 V 1 000 Hz ±1 % of max range Annex A, B, C
STR
Starter motor current I 0 A to 1 500 A 1 000 Hz ±1 % of max range Annex A, B, C
STR
Starter solenoid voltage U 0 A to 30 V 1 000 Hz ±1 % of max range Annex A, B, C
Sol1
Starter solenoid current I 0 A to 200 A 1 000 Hz ±1 % of max range Annex A, B, C
sol1
(optional)
−1
Engine rotational fre- n −1 000 min to 1 000 Hz ±2 % of max range na
−1
quency 4 000 min
Test start cycle count N 0 to 500 000 N.A. ±1 na
Starter motor compo- NA 0 °C to 200 °C 1Hz ±2,5 K na
nent temperature
0 °C to 400 °C
(brush temperature
measurement)
a
Engine oil temperature T 0 °C to 200 °C 1 Hz ±2,5 K na
oil
Engine coolant temper- T 0 °C to 200 °C 1 Hz ±2,5 K na
cool
b
ature
−1
NOTE Measuring engine rotational frequency from −1 000 to 0 min is necessary for CoM starts.
a,b
Engine oil temperature and/or engine coolant temperature shall be measured and monitored.
5.4 Test stop criteria
Table 6 shows example items of test stop criteria. Criteria shall be agreed between engine and/or
vehicle manufacturers and starter motor manufacturer before test. Test bench shall have capability to
detect test stop criteria including shut down function in case of an error.
Table 6 — Test stop criteria
Test stop criteria Reference
DUT monitoring parameters
Target test duration (number of test start
cycles) :
Number of test start cycles reached
                                    cycles
Abnormal starter motor current condition:
Starter motor current
Us = 0V and I > 0A for       s
ol STR
Temperature at control point exceeds the spec-
Temperature at control point 7.1
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
