ISO/IEC 14543-5-3:2012

Information technology - Home electronic system (HES) architecture - Part 5-3: Intelligent grouping and resource sharing for HES Class 2 and Class 3 - Basic application

ISO/IEC 14543-5-3:2012(E) defines design criteria and application requirements enabled by the relevant application profiles. It also defines required or optional interaction processes, interaction interfaces, software and hardware interfaces and the software framework that may or may not be specified by the existing application profiles related to the IGRS basic applications. It is applicable to computers, household appliances and communication devices that implement media data streaming by wired or wireless means.

Technologies de l'information — Architecture des systèmes électroniques domestiques (HES) — Partie 5-3: Groupement intelligent et partage de ressources pour HES classe 2 et classe 3 — Application de base

General Information

• Status: Published
• Publication Date: 23-Feb-2012
• ICS: 35.200 - Interface and interconnection equipment
• ICS: 35.240.67 - IT applications in building and construction industry
• ICS: 35.240.99 - IT applications in other fields
• Technical Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Drafting Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Current Stage: 9093 - International Standard confirmed
• Start Date: 13-Jul-2018
• Completion Date: 30-Oct-2025

Overview

ISO/IEC 14543-5-3:2012 defines the basic application framework for Intelligent Grouping and Resource Sharing (IGRS) within the Home Electronic System (HES) architecture for HES Class 2 and Class 3 devices. It specifies design criteria, application requirements, and interaction models enabled by IGRS application profiles to support media data streaming over wired or wireless home networks. The standard targets interoperability at the application level for devices such as media servers, media clients (TVs, set-top boxes), computers, household appliances and communication devices that implement digital media forwarding, storage and playback.

Key Topics and Requirements

• IGRS basic application framework: Defines a list of basic applications, operation details (device grouping, service description templates), function definitions and service invocation interfaces.
• Interaction model and conformance: Requires implementations to follow the IGRS interaction model and system design criteria described in Clause 5; conformance guidelines ensure consistent behavior among media clients, servers and recorders.
• Media forwarding, storage and playback: Describes media interaction flows and the required processes for streaming, storage and playback systems (Clause 6).
• Software and hardware interfaces: Specifies required or optional software profiles, invocation interfaces and hardware/network interfaces to enable interoperability (software profile, media formats, network interfaces, media client interfaces).
• IGRS components: Introduces concepts such as the IGRS Dynamic Service Invocation Module (IGRSDSIM), IGRS Services, Media Client (MC) and Media Server (MS).
• Protocol relationships: Aligns with IGRS Core Protocol (Part 5-1) which uses TCP/IP and HTTP as the message exchange framework and references application profiles (AV profile, File profile) for service-level behavior.
• Applicability: Applicable to devices implementing media streaming by wired or wireless means and intended as an implementation guideline to ensure application-level interoperability.

Practical Applications

• Enabling multi-room audio/video streaming and synchronized playback across grouped devices.
• Standardizing discovery, description and invocation of shareable media services in smart homes.
• Implementing media servers (NAS/PC) and media clients (smart TVs, set-top boxes) that interoperate across vendors.
• Supporting developers of home automation, consumer electronics and media applications to create IGRS-compliant products.

Who Should Use This Standard

• Firmware and application developers for consumer electronics, smart TVs, set‑top boxes and NAS devices.
• System integrators and product architects designing home media streaming and resource-sharing solutions.
• Test labs and QA teams validating conformance to IGRS basic application behavior.

Related Standards

• ISO/IEC 14543-5-1 (IGRS Core Protocol) - TCP/IP and HTTP framework
• ISO/IEC 14543-5-21 (AV profile) and 14543-5-22 (File profile) - application profiles referenced by Part 5-3
• Other referenced standards for media formats and network interfaces cited within the standard

Keywords: ISO/IEC 14543-5-3, IGRS, home electronic system, HES Class 2, HES Class 3, media streaming, media server, media client, device grouping, resource sharing, application profiles, digital media forwarding.

Standards Content (Sample)

ISO/IEC 14543-5-3
Edition 1.0 2012-02
INTERNATIONAL
STANDARD
Information technology – Home electronic system (HES) architecture –
Part 5-3: Intelligent grouping and resource sharing for HES Class 2 and Class 3 –
Basic application
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about ISO/IEC copyright or have an enquiry about obtaining additional rights to this
publication, please contact the address below or your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

ISO/IEC 14543-5-3
Edition 1.0 2012-02
INTERNATIONAL
STANDARD
Information technology – Home electronic system (HES) architecture –

Part 5-3: Intelligent grouping and resource sharing for HES Class 2 and Class 3 –

Basic application
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
H
ICS 35.200 ISBN 978-2-88912-898-3

– 2 – 14543-5-3  ISO/IEC:2012(E)

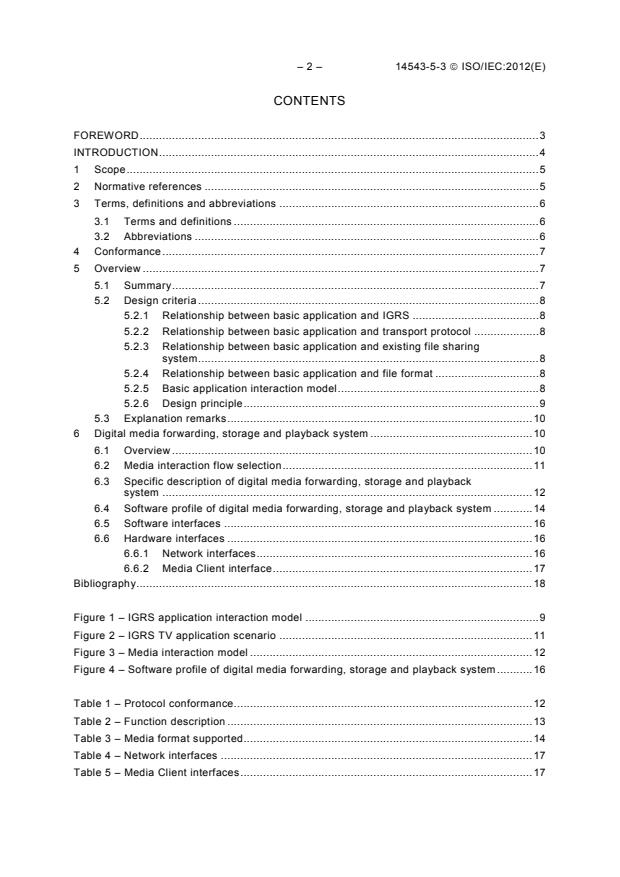

CONTENTS
FOREWORD . 3
INTRODUCTION . 4
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions . 6
3.2 Abbreviations . 6
4 Conformance . 7
5 Overview . 7
5.1 Summary . 7
5.2 Design criteria . 8
5.2.1 Relationship between basic application and IGRS . 8
5.2.2 Relationship between basic application and transport protocol . 8
5.2.3 Relationship between basic application and existing file sharing
system . 8
5.2.4 Relationship between basic application and file format . 8
5.2.5 Basic application interaction model . 8
5.2.6 Design principle . 9
5.3 Explanation remarks . 10
6 Digital media forwarding, storage and playback system . 10
6.1 Overview . 10
6.2 Media interaction flow selection . 11
6.3 Specific description of digital media forwarding, storage and playback
system . 12
6.4 Software profile of digital media forwarding, storage and playback system . 14
6.5 Software interfaces . 16
6.6 Hardware interfaces . 16
6.6.1 Network interfaces . 16
6.6.2 Media Client interface . 17
Bibliography . 18

Figure 1 – IGRS application interaction model . 9
Figure 2 – IGRS TV application scenario . 11
Figure 3 – Media interaction model . 12
Figure 4 – Software profile of digital media forwarding, storage and playback system . 16

Table 1 – Protocol conformance. 12
Table 2 – Function description . 13
Table 3 – Media format supported . 14
Table 4 – Network interfaces . 17
Table 5 – Media Client interfaces . 17

14543-5-3  ISO/IEC:2012(E) – 3 –
INFORMATION TECHNOLOGY –
HOME ELECTRONIC SYSTEM (HES) ARCHITECTURE –

Part 5-3: Intelligent grouping and resource sharing
for HES Class 2 and Class 3 –
Basic application
FOREWORD
1) ISO (International Organization for Standardization) and IEC (International Electrotechnical Commission) form the
specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in
the development of International Standards. Their preparation is entrusted to technical committees; any ISO and
IEC member body interested in the subject dealt with may participate in this preparatory work. International
governmental and non-governmental organizations liaising with ISO and IEC also participate in this preparation.
2) In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
Draft International Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies casting a vote.
3) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC and ISO member bodies.
4) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted
by IEC and ISO member bodies in that sense. While all reasonable efforts are made to ensure that the
technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held responsible for
the way in which they are used or for any misinterpretation by any end user.
5) In order to promote international uniformity, IEC and ISO member bodies undertake to apply IEC, ISO and
ISO/IEC publications transparently to the maximum extent possible in their national and regional publications.
Any divergence between any ISO/IEC publication and the corresponding national or regional publication
should be clearly indicated in the latter.
6) ISO and IEC provide no marking procedure to indicate their approval and cannot be rendered responsible for
any equipment declared to be in conformity with an ISO/IEC publication.
7) All users should ensure that they have the latest edition of this publication.
8) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual experts
and members of their technical committees and IEC or ISO member bodies for any personal injury, property
damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees)
and expenses arising out of the publication of, use of, or reliance upon, this ISO/IEC publication or any other IEC,
ISO or ISO/IEC publications.
9) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
10) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
International Standard ISO/IEC 14543-5-3 was prepared by subcommittee 25: Interconnection
of information technology equipment, of ISO/IEC joint technical committee 1: Information
technology.
The list of all currently available parts of the ISO/IEC 14543 series, under the general title
Information technology – Home electronic system (HES) architecture, can be found on the
IEC web site.
This International Standard has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 14543-5-3  ISO/IEC:2012(E)
INTRODUCTION
ISO/IEC 14543-5, Information technology – Home electronic system (HES) architecture –
Part 5: Intelligent grouping and resource sharing for HES (IGRS), consists of the following
parts:
 IGRS Part 5-1: Core protocol
• Specifies the TCP/IP protocol stack as the basis and the HTTP protocol as the
message-exchanging framework among devices.
• Specifies a series of device and service interaction/invocation standards, including
device and service discovery protocol, device and service description, service
invocation, security mechanisms, etc.
• Specifies core protocols for a type of home network that supports streaming media and
other high-speed data transport within a home.
 IGRS Parts 5-2#: Application profile
• Based on the IGRS Core Protocol.
• Specifies a device and service interaction mechanism, as well as application
interfaces used in IGRS Basic Applications.
• Multiple application profiles are specified, including:
• Part 5-21: AV profile
• Part 5-22: File profile
• Additional application profiles are planned (part numbers to be assigned)
• Part 5-2w: DVD profile
• Part 5-2x: QoS profile
• Part 5-2y: DMCP profile
• Part 5-2z: Universal control profile
 IGRS Part 5-3: Basic application
• Includes an IGRS basic application list.
• Specifies a basic application framework.
• Specifies operation details (device grouping, service description template, etc.),
function definitions and service invocation interfaces.
 IGRS Part 5-4: Device validation
• Specifies a standard method to validate an IGRS-compliant device.
 IGRS Part 5-5: Device type
• Specifies IGRS Device types used in IGRS applications.
 IGRS Part 5-6: Service type
• Specifies basic service types used in IGRS applications.

14543-5-3  ISO/IEC:2012(E) – 5 –
INFORMATION TECHNOLOGY –
HOME ELECTRONIC SYSTEM (HES) ARCHITECTURE –

Part 5-3: Intelligent grouping and resource sharing
for HES Class 2 and Class 3 –
Basic application
1 Scope
This part of ISO/IEC 14543 defines design criteria and application requirements enabled by
the relevant application profiles. It also defines required or optional interaction processes,
interaction interfaces, software and hardware interfaces and the software framework that may
or may not be specified by the existing application profiles related to the IGRS basic
applications.
This part of the ISO/IEC 14543 is applicable to computers, household appliances and
communication devices that implement media data streaming by wired or wireless means.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
ISO/IEC 8802-3:2000, Information technology – Telecommunications and information
exchange between systems – Local and metropolitan area networks – Specific requirements –
Part 3: Carrier sense multiple access with collision detection (CSMA/CD) access method and
physical layer specifications
ISO/IEC 13818-11:2004, Information technology – Generic coding of moving pictures and
associated audio information – Part 11: IPMP on MPEG-2 systems
ISO/IEC 14543-5-1, Information technology – Home electronic system (HES) architecture –
Part 5-1: Intelligent grouping and resource sharing for Class 2 and Class 3 – Core protocol
ISO/IEC 14543-5-6, Information technology – Home electronic system (HES) architecture –
Part 5-6: Intelligent grouping and resource sharing for HES Class 2 and Class 3 – Service
type
ISO/IEC 14543-5-21, Information technology – Home electronic system (HES) architecture –
Part 5-21: Intelligent grouping and resource sharing for HES Class 2 and Class 3 –
Application profile – AV profile
ISO/IEC 14543-5-22, Information technology – Home electronic system (HES) architecture –
Part 5-22: Intelligent grouping and resource sharing for HES Class 2 and Class 3 –
Application profile – File profile
ISO/IEC 15444-4:2004, Information technology – JPEG 2000 image coding system:
Conformance testing
—————————
– 6 – 14543-5-3  ISO/IEC:2012(E)
ISO/IEC 23000-2:2008, Information technology – Multimedia application format (MPEG-A) –
Part 2: MPEG music player application format
ISO/IEC 29341-3-1:2008, Information technology – UPnP Device Architecture – Part 3-1:
Audio Video Device Control Protocol – Audio Video Architecture
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document the following terms and definitions apply.
3.1.1
IGRS dynamic service invocation module
part of the AV application logic to orchestrate the interaction of application services with
respect to the capability of the device or the device group involved and to coordinate the
service invocation sequence between the media server and the media client
NOTE The IGRS dynamic service invocation module should be implemented on a media server, a media client or
another separate device.
3.1.2
IGRS Service
shareable resource encapsulated in an IGRS device by implementing application interfaces
and providing services for other IGRS devices
NOTE An IGRS service has an invocation interface that meets the requirements of the IGRS specification. These
invocation interfaces are described and announced on the network through the IGRS Service Description
Specification.
3.1.3
media client
audio/video device in an IGRS network that possesses multimedia decoding capability
NOTE Examples of media client devices include a TV, a set-top-box, etc. The media client may access content on
the media server as the destination device in an audio/video application.
3.1.4
media server
audio/video device in an IGRS network that possesses storage and computing capabilities
NOTE Examples of a media server device include a PC, a network storage server, etc. The media server may
provide a network interface to other audio/video devices to access content managed by the media server as the
source device in an audio/video application.
3.2 Abbreviations
The following acronyms and abbreviations are used in this standard.

14543-5-3  ISO/IEC:2012(E) – 7 –
BCM Back Channel Message
CIS Content Index Service
CMS Connection Management Service
IGRS Intelligent Grouping and Resource Sharing
IGRSDSIM IGRS Dynamic Service Invocation Module
MC Media Client
MCTMS Media Client Transport Management Service
MS Media Server
MSTMS Media Server Transport Management Service
RMS Rendering Management Service
4 Conformance
This International Standard is intended to be used primarily as an implementation guideline
for developers to ensure interoperability at the application level.
For conformance to this International Standard the following applies.
• The interaction model used in an IGRS media AV basic application shall meet the system
design criteria specified in Clause 5.
• The specific interaction flow process used in an IGRS basic application for digital media
forwarding, storage and playback system shall meet Clause 6.
• Media clients, media recorders and media servers shall be compliant with the relevant
protocols, function descriptions, software profiles, software interfaces (including media
format supported) and hardware interfaces (including physical and networking interfaces)
that enable IGRS digital media forwarding, storage and playback system as specified in
6.3, 6.4, 6.5 and 6.6.
5 Overview
5.1 Summary
An IGRS application, based on the IGRS core protocol and IGRS application profiles, is
classified in two types: IGRS basic application and IGRS extended application. As defined in
ISO/IEC 14543-5-5, IGRS devices can be divided into many different device types according
to usage scenarios. An IGRS basic application, which is directly related to a specific device
type, is a standardized application defined by the IGRS specification that corresponds to a
particular IGRS device function. It is expected that a specific device type on an IGRS device
would result in a standardized IGRS basic application implementation. An IGRS extended
application may be developed by a third party supplier based on the IGRS core protocol and
IGRS application profile. An IGRS extended application conforms to the IGRS standard and is
intended to diversify and to enhance the current IGRS device functionalities.
The IGRS basic application defines application requirements enabled by the relevant
application profiles. It also defines the interaction process and interaction interfaces that may
or may not be specified by the existing application profiles related to these basic applications.
Application manufacturers are allowed to develop their own basic applications independently
based on this standard guideline. However, interoperability shall be achieved among these
various application implementations. Moreover, application manufacturers can also choose to
develop their own extended applications independently, as necessary.
The guidelines of this standard include the following basic applications based on the IGRS
core protocol and application profile:

– 8 – 14543-5-3  ISO/IEC:2012(E)
• digital media forwarding,
• storage,
• a playback system.
This standard defines the application requirement, specific functional description, basic
service description, basic device description, software profile, software interface and
hardware interface for digital media forwarding, storage and a playback system.
5.2 Design criteria
5.2.1 Relationship between basic application and IGRS
The basic application includes two parts: one part specifies the application profile and the
interaction process of the IGRS basic application; the other specifies the functional definition,
interface invocation and service invocation message format of other software tools needed to
ensure interoperability and ease of use. An IGRS application is triggered through the
interactions between one or more IGRS services and one or more IGRS clients invoking IGRS
services. The basic application shall guide users to design integrated applications based on
IGRS protocols.
5.2.2 Relationship between basic application and transport protocol
The basic application does not rely on any specific transport protocols. Therefore, it shall
support any transport protocols such as FTP, HTTP, etc.
5.2.3 Relationship between basic application and existing file sharing system
The basic application defines a set of standard interfaces used in an IGRS network. It does
not pose any restriction on the back-end implementation method. Therefore, the file sharing
system associated with the IGRS basic application cannot only support a proprietary system
developed by users, but also any existing sharing system.
5.2.4 Relationship between basic application and file format
The basic application profile is independent of any specific file format, which means that it
shall support interactions with files of any arbitrary format.
5.2.5 Basic application interaction model
An IGRS application is achieved through interactions between one or more IGRS services and
one or more IGRS clients. Typically, the interaction of an IGRS application is as shown in
Figure 1.
14543-5-3  ISO/IEC:2012(E) – 9 –

IGRS Device 1 IGRS Device 2
Client Service
Function
Function
Invocation
Function
Invocation
Invocation
Interface
Data
Subscription/Query/
Retrieval
Data
Data
Manipulation
Manipulation
Interface
Data
Change Manipulation
Collaborative
Collaborative
Collaboration
Research Dispatch
Dispatch Support
Interface
SOAP
Service Session Management Service Session Management
SOAP
Device Group Management Device Group Management
Device Discovery and Pipe
HTTP Device Discovery and Pipe
Management
Management
TCP/UDP
TCP/IP stack TCP/IP stack
Figure 1 – IGRS application interaction model
5.2.6 Design principle
The following guidelines shall apply.
a) The application scenario shall be clearly described. Through a description of application
scenarios, the users shall obtain valuable user experience information and learn about
reusable operational procedures.
b) Description of specific functions shall be accurate. By describing specific functions, users
shall know which IGRS device is used and what IGRS services and corresponding
interfaces have been invoked.
Collaborative Function
Data
Implementation
Support
– 10 – 14543-5-3  ISO/IEC:2012(E)
c) Basic service and device descriptions shall conform to the IGRS standard.
d) Description of the software profile shall give the users a clear blueprint of the basic
application design.
e) Description of the hardware interface shall be specific so that users shall achieve a
preliminary understanding about the hardware interface design requirements.
5.3 Explanation remarks
This standard presents a guideline for designing basic applications based on the IGRS
protocol. Other basic applications will be added in updated versions.
6 Digital media forwarding, storage and playback system
6.1 Overview
With recent advances in computer and networking technologies, massive amounts of digital
multimedia source
...
