Information technology — Home network resource management — Part 3: Management application

ISO/IEC 30100-3:2016(E) specifies a control and management interface for the integrated home network resources at the top of the interoperability framework specified by ISO/IEC 18012-1. Methods are specified for controlling and managing home network resources through a consistent interface regardless of the underlying home network middleware technologies.

Interconnexion des équipements de technologie de l'information — Gestion du réseau domestique — Partie 3: Titre manque

General Information

Status
Published
Publication Date
13-Apr-2016
Current Stage
6060 - International Standard published
Due Date
20-May-2014
Completion Date
14-Apr-2016
Ref Project

Buy Standard

Standard
ISO/IEC 30100-3:2016 - Information technology -- Home network resource management
English language
34 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

ISO/IEC 30100-3
Edition 1.0 2016-04
INTERNATIONAL
STANDARD

colour
inside
Information technology – Home network resource management –
Part 3: Management application

ISO/IEC 30100-3:2016-04(en)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2016 ISO/IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about
ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address
below or your local IEC member National Committee for further information.


IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.


About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

---------------------- Page: 2 ----------------------
ISO/IEC 30100-3


Edition 1.0 2016-04




INTERNATIONAL



STANDARD









colour

inside










Information technology – Home network resource management –

Part 3: Management application



























INTERNATIONAL

ELECTROTECHNICAL

COMMISSION






ICS 35.200 ISBN 978-2-8322-2904-0



  Warning! Make sure that you obtained this publication from an authorized distributor.

---------------------- Page: 3 ----------------------
– 2 – ISO/IEC 30100-3:2016 © ISO/IEC 2016

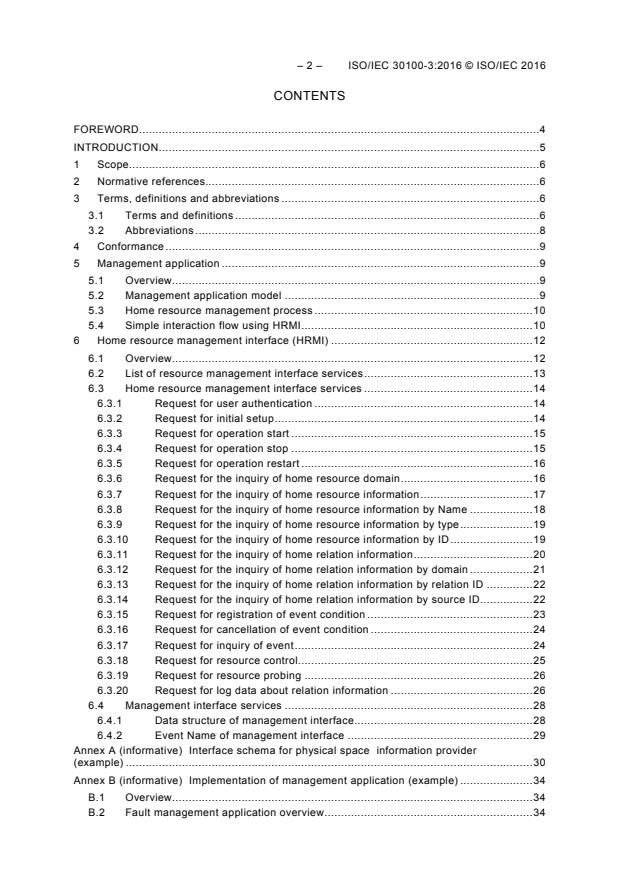

CONTENTS
FOREWORD . 4
INTRODUCTION . 5
1 Scope . 6
2 Normative references. 6
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions . 6
3.2 Abbreviations . 8
4 Conformance . 9
5 Management application . 9
5.1 Overview. 9
5.2 Management application model . 9
5.3 Home resource management process . 10
5.4 Simple interaction flow using HRMI . 10
6 Home resource management interface (HRMI) . 12
6.1 Overview. 12
6.2 List of resource management interface services . 13
6.3 Home resource management interface services . 14
6.3.1 Request for user authentication . 14
6.3.2 Request for initial setup . 14
6.3.3 Request for operation start . 15
6.3.4 Request for operation stop . 15
6.3.5 Request for operation restart . 16
6.3.6 Request for the inquiry of home resource domain . 16
6.3.7 Request for the inquiry of home resource information . 17
6.3.8 Request for the inquiry of home resource information by Name . 18
6.3.9 Request for the inquiry of home resource information by type . 19
6.3.10 Request for the inquiry of home resource information by ID . 19
6.3.11 Request for the inquiry of home relation information . 20
6.3.12 Request for the inquiry of home relation information by domain . 21
6.3.13 Request for the inquiry of home relation information by relation ID . 22
6.3.14 Request for the inquiry of home relation information by source ID. 22
6.3.15 Request for registration of event condition . 23
6.3.16 Request for cancellation of event condition . 24
6.3.17 Request for inquiry of event . 24
6.3.18 Request for resource control. 25
6.3.19 Request for resource probing . 26
6.3.20 Request for log data about relation information . 26
6.4 Management interface services . 28
6.4.1 Data structure of management interface. 28
6.4.2 Event Name of management interface . 29
Annex A (informative) Interface schema for physical space information provider
(example) . 30
Annex B (informative) Implementation of management application (example) . 34
B.1 Overview. 34
B.2 Fault management application overview . 34

---------------------- Page: 4 ----------------------
ISO/IEC 30100-3:2016 © ISO/IEC 2016 – 3 –
B.3 Simple fault diagnosis scenario using HRMI . 35
B.3.1 Initial setup . 35
B.3.2 Resource and relation object information acquisition . 36
B.3.3 Fault diagnosis . 37
B.3.4 Event processing . 37
B.3.5 Fault diagnosis result notify . 38
Bibliography . 39

Figure 1 – Management application model . 10
Figure 2 – Example of simple interaction flow . 11
Figure B.1 – Fault management system configuration . 34
Figure B.2 – Fault management application interfaces . 35
Figure B.3 – Sequence flow of initial setup . 36
Figure B.4 – Destroy and logout procedure . 36
Figure B.5 – Fault diagnosis result procedure . 37
Figure B.6 – Event state change procedure . 38

---------------------- Page: 5 ----------------------
– 4 – ISO/IEC 30100-3:2016 © ISO/IEC 2016
INFORMATION TECHNOLOGY –
HOME NETWORK RESOURCE MANAGEMENT –

Part 3: Management application

FOREWORD
1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)
form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC
participate in the development of International Standards through technical committees established by the
respective organization to deal with particular fields of technical activity. ISO and IEC technical committees
collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental, in
liaison with ISO and IEC, also take part in the work. In the field of information technology, ISO and IEC have
established a joint technical committee, ISO/IEC JTC 1.
2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC National Committees and ISO member bodies.
3) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted
by IEC National Committees and ISO member bodies in that sense. While all reasonable efforts are made to
ensure that the technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held
responsible for the way in which they are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees and ISO member bodies undertake to
apply IEC, ISO and ISO/IEC publications transparently to the maximum extent possible in their national and
regional publications. Any divergence between any ISO, IEC or ISO/IEC publication and the corresponding
national or regional publication should be clearly indicated in the latter.
5) ISO and IEC do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. ISO or IEC are not responsible
for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual experts
and members of their technical committees and IEC National Committees or ISO member bodies for any
personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for
costs (including legal fees) and expenses arising out of the publication of, use of, or reliance upon, this ISO/IEC
publication or any other IEC, ISO or ISO/IEC publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this ISO/IEC publication may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
International Standard ISO/IEC 30100-3 was prepared by subcommittee 25: Interconnection
of information technology equipment, of ISO/IEC joint technical committee 1: Information
technology.
The list of all currently available parts of the ISO/IEC 30100 series, under the general title
Information technology – Home network resource management, can be found on the IEC
website.
This International Standard has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.

---------------------- Page: 6 ----------------------
ISO/IEC 30100-3:2016 © ISO/IEC 2016 – 5 –
INTRODUCTION
The ISO/IEC 30100 series of standards specifies an abstract model for remote management
of home networks conforming to the Home Electronic System (HES) architecture specified in
ISO/IEC 14543-2-1. An HES consists of a collection of devices that are able to interwork via a
common internal network. In a home environment several HES networks may operate
concurrently each with separate control and management methods. This part of
ISO/IEC 30100 specifies the architecture and the base methodology to support applications
that may span multiple different HES networks. Home resource management allows uniform
fault processing, diagnostics and configuration management of HES elements in home
environment.
This standard specifies an architecture for the home network resource management, a home
resource model for transparent system configuration and a diagnostic processing in the home
network.
Currently, ISO/IEC 30100, Information technology – Interconnection of information technology
equipment – Home Network Resource Management, consists of the following parts:
Part 1: Requirements
Part 2: Architecture
Part 3: Management application
ISO/IEC 30100 is applicable to
• a management server located at a home network service provider,
• an apartment complex server, located in an office at the of apartment complex office,
• a home residential gateway or set top box (STB).

---------------------- Page: 7 ----------------------
– 6 – ISO/IEC 30100-3:2016 © ISO/IEC 2016
INFORMATION TECHNOLOGY –
HOME NETWORK RESOURCE MANAGEMENT –

Part 3: Management application



1 Scope
This part of ISO/IEC 30100 specifies a control and management interface for the integrated
home network resources at the top of the interoperability framework specified by
ISO/IEC 18012-1. Methods are specified for controlling and managing home network
resources through a consistent interface regardless of the underlying home network
middleware technologies. Based on the home resource management interface, a management
application specifies HES device control services and fault management services. This part of
ISO/IEC 30100 specifies the communications data formats and functions for messages sent
between the objects of a resource management process and the objects of one or more
management applications.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
ISO/IEC 14543-2-1, Information technology – Home electronic system (HES) architecture –
Part 2-1: Introduction and device modularity
ISO/IEC 18012-1:2004, Information technology – Home electronic system – Guidelines for
product interoperability – Part 1:Introduction
ISO/IEC 30100-2, Information technology – Home network resource management – Part 2:
1
Architecture
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
apartment complex server
computer remotely managing services for residents in a multiunit dwelling
apartment complex office
management facility that provides services for residents in a multiunit dwelling
3.1.2
application
field of use of home resource management process
____________
1
 To be published.

---------------------- Page: 8 ----------------------
ISO/IEC 30100-3:2016 © ISO/IEC 2016 – 7 –
3.1.3
class
set of instances of home resource
3.1.4
device
distinct physical unit on a network that performs a specific function (a set of functions) in a
particular context
Note 1 to entry: A device can either be an end node on the network, or an intermediate node (as in the case of a
network gateway device connecting two distinct physical networks).
3.1.5
domain
range of validity of a resource object
3.1.6
HES entity
logical component that has a specified functionality in the HES architecture
Note 1 to entry: The HES architecture is specified in ISO/IEC 14543-2-1.
3.1.7
HES interoperability framework
collection of standards defining device and network interoperability for homes as specified in
the ISO/IEC 14543 series
3.1.8
home residential gateway
interface between external networks and home networks
3.1.9
home resource
managed object that can be used for home network services
3.1.10
home resource management interface
logical connection point between management application and home resource management
process
3.1.11
home resource management process
element that performs information processing for a particular management application
3.1.12
home resource model
abstract, formal representation of resource objects in a home environment
Note 1 to entry: Resource objects include resource properties, relationships and the operations that can be
performed on them.
3.1.13
home resource provider interface
data transfer between resource information provider and home resource management process
3.1.14
instance
example
Note 1 to entry: This term is used in object-oriented programming.

---------------------- Page: 9 ----------------------
– 8 – ISO/IEC 30100-3:2016 © ISO/IEC 2016
3.1.15
management information
set of components used either in a management application or in a resource management
process
3.1.16
network
interconnected devices sharing a common communications protocol
3.1.17
network middleware
software that links an operating system to a communications protocol
3.1.18
object
abstract element representing device functions and data stored within the device
Note 1 to entry: The functions and data contained within an object (referred to as "properties") can be executed,
read or modified as appropriate for the property by "messages" sent from other objects. A message causes a
"method" within the object to be invoked. This may result in access to an internal data structure or the execution of
a subroutine or both. A value may be returned by the recipient object.
3.1.19
physical space
some arbitrary set of reference co-ordinates of a home resource in the real world
3.1.20
resource information provider
functions for home resource management process to control HES entities
Note 1 to entry: Collects data from HES entities and transfers the collected data to a home resource management
process.
3.1.21
resource object
managed unit located within the resource management process specified by the home
resource model
Note 1 to entry: The resource object includes methods for accessing the properties of the management process
and/or interacting with other objects. A resource object can contain one or more HES entities.
3.1.22
resource relation object
managing unit located within the resource management process by the home resource model
3.1.23
service
field of use of an HES
3.1.24
set top box
interface between the external service and home equipment
3.2 Abbreviations
AFM Automatic Fault Management
BNF Backus-Naur Form
DM Device Management
HAN Home Area Network

---------------------- Page: 10 ----------------------
ISO/IEC 30100-3:2016 © ISO/IEC 2016 – 9 –
HES Home Electronic System
HNRM Home Network Resource Management
HRMI Home Resource Management Interface
HRPI Home Resource Provider Interface
FMA Fault Management Application
HMAI Home Management Application Interface
RM Remote Management
OSI Open System Interconnection
4 Conformance
In order to claim conformance to this International Standard, the network application and
management software written for managing the home network resources specified in Clause 4
of ISO/IEC 14543-2-1:2006 shall be implemented as follows.
• A home network management application shall be implemented according to the model
specified in Clause 5.
• A home network management application shall implement the interface specified in
Clause 6.
• A home network management process shall implement the interface specified in Clause 6.
5 Management application
5.1 Overview
The home resource management architecture consists of three parts as described in
ISO/IEC 30100-2.
• Resource information provider
• Resource management process
• Management application
A management application is a user process that communicates with a resource management
process via an HRMI. The HRMI provides an interface not only for information retrieval for the
resources and relationships among resources, but also for the control and management of the
resources regardless of the underlying home network middleware technologies.
This standard specifies basic interfaces for the essential home applications such as home
resource auto-configuration, fault management and HES device control service.
5.2 Management application model
Figure 1 illustrates a reference model for the HNRM (home network resource management)
application model with an HRMI.

---------------------- Page: 11 ----------------------
– 10 – ISO/IEC 30100-3:2016 © ISO/IEC 2016
Management
application
Operation requirement
(Security policy)
HRMI
1 Access control: XACML
2 Encryption: XML encryption
3 Signature: XML signature
Home resource
management process

IEC
Figure 1 – Management application model
As shown in Figure 1, the HRMI provides a common interface for all home network resource
management applications. Therefore, the home network resource management application
can be developed to fulfil a requirement to be a stand-alone application or a client-server
application. When the home network management application is designed with a client-server
model, an interface for the server and client shall be specified. The interface is not specified
in this standard. The HRMI interface shall include a resource management process for access
control, encryption and signature as a means for security and privacy protection, as specified
2
in 5.5 of ISO/IEC 30100-2 .
5.3 Home resource management process
The home resource management process collects all information about a resource entity from
at least one resource information provider through pre-defined interfaces. When two or more
dissimilar home area networks are installed and interoperate, the network devices providing
this information shall comply with Clause 6 of ISO/IEC 18012-1:2004. The interface example
for other resources such as network, service and physical space is explained in Annex A. An
implementation example is presented in Annex B.
5.4 Simple interaction flow using HRMI
Figure 2 shows the simple interaction flow between a management application and a resource
management process using the HRMI function. In Figure 2 messages in brackets “[]” are
optional messages. For example, event registration messages are used for registration in
order to receive events of interest. However, when there are no events of interest, this
message is not used.
____________
2
 To be published.

---------------------- Page: 12 ----------------------
ISO/IEC 30100-3:2016 © ISO/IEC 2016 – 11 –
Management
Resource management
application
process

IEC
a
Authentication is required.
Figure 2 – Example of simple interaction flow
While Figure 2 is not suitable for describing all use cases, it illustrates an example of a
procedure for a home network resource management application to handle home network
resources. In Figure 2, the solid line signifies a message for resource management interface
service, and the dashed line signifies output parameters of the requested message. Step 1 to
Step 4 should be performed sequentially, and the others are not. The procedure using the
services listed in 6.2 and specified in 6.3 is as follows.
a) First, a user shall be authenticated in order to determine if he/she has a right to access
the target resources using HRM_user_login". This step fulfills the security requirements
specified in 5.2 by using methods such as SSL/TLS or SSH.
b) After the user authentication process, the setup process with the home network resource
management process starts using “HRM_init” and “HRM_start” sequentially. In the initial
setup process, functions and modules for the resource management process are initialised.
c) When management applications want to receive some specific events, they subscribe to a
list of events related to home network resource management applications using

---------------------- Page: 13 ----------------------
– 12 – ISO/IEC 30100-3:2016 © ISO/IEC 2016
“HRM_reqUserEvent”. Only subscribed events are notified to the applications when they
occur. The unsubscribed events are ignored.
d) When a resource management process collects home network information, it converts the
information as a resource and creates a resource map that generates and analyses the
relationship among resources. When it is generated, the resource management process
notifies to the management application as an event “Event_Map_Constructed”. The
procedures from Step 1 to Step 4 should be carried out sequentially.
e) After a resource management application gets an event of “Event_Map_Constructed”, it is
possible to retrieve and to control all resources and associated relationship information.
The resource information can be retrieved by the domain name, resource name, ID and
relation information (see 6.2) using “HRM_getResourceInfoByID”,
“HRTM_getAllRelationInfoByID”, and “HRM_setAction”. When requested control is
completed, it notifies the applications using “Event_ActionCompleted”.
f) Before a management application ends a session with the resource management process,
it first unregisters all events registered to it using “HRM_unreqUserEvent”.
g) When a management application needs to end, it sends a “HRM_stop” message.
6 Home resource management interface (HRMI)
6.1 Overview
The HRMI (home resource management interface) is used for delivering home resource
information, including resource objects and resource relation objects created and maintained
by the resource management process, to management applications. In addition, it delivers
events or responses from user requests to applications that occurred during the resource
management process.
Through HRMI, a management application obtains information about resource objects and
resource relation objects and requests commands for resource control.
This clause specifies the interface service procedures to be used for management
applications and the detailed descriptions of data types, structures and interface functions for
each procedure.

---------------------- Page: 14 ----------------------
ISO/IEC 30100-3:2016 © ISO/IEC 2016 – 13 –
6.2 List of resource management interface services
No Service name Function description Usage
1 HRM_user_login This service shall be used to authenticate a user. Required
2 HRM_init This service shall be used to initialise the home resource Required
management process.
3 HRM_start This service shal
...
