ISO 15704:2019

Enterprise modelling and architecture - Requirements for enterprise-referencing architectures and methodologies

This document specifies a reference base of concepts and principles for enterprise architectures that enable enterprise development, enterprise integration, enterprise interoperability, human understanding and computer processing. This document further specifies requirements for models and languages created for expressing such enterprise architectures. This document specifies those terms, concepts and principles considered necessary to address stakeholder concerns and to carry out enterprise creation programmes as well as any incremental change projects required by the enterprise throughout the whole life of the enterprise. This document forms the basis by which enterprise architecture and modelling standards can be developed or aligned. This document does not define standard enterprises, standard organizational structures, standard enterprise processes, or standard enterprise data. In addition, this standard does not specify enterprise modelling processes.

Modélisation et architecture d'entreprise — Exigences pour les architectures et les méthodologies de référencement d'entreprise

General Information

• Status: Published
• Publication Date: 16-Dec-2019
• ICS: 25.040.01 - Industrial automation systems in general
• Technical Committee: ISO/TC 184/SC 5 - Interoperability, integration, and architectures for enterprise systems and automation applications
• Drafting Committee: ISO/TC 184/SC 5/WG 1 - Modelling and architecture
• Current Stage: 9060 - Close of review
• Completion Date: 04-Jun-2030

Relations

• Revises: ISO 15704:2000/Amd 1:2005 - Industrial automation systems - Requirements for enterprise-reference architectures and methodologies - Amendment 1: Additional views for user concerns
• Effective Date: 09-Jul-2016
• Revises: ISO 15704:2000 - Industrial automation systems - Requirements for enterprise-reference architectures and methodologies
• Effective Date: 09-Jul-2016

Overview

ISO 15704:2019 - Enterprise modelling and architecture defines a reference base of concepts, principles and requirements for enterprise-referencing architectures and methodologies. The standard is intended to enable consistent enterprise development, integration, interoperability, human understanding and machine processing of enterprise architectures and models. It specifies what enterprise‑referencing models and modelling languages should support, while clarifying that it does not prescribe standard enterprises, organizational structures, processes, data or specific modelling processes.

Key topics and technical requirements

ISO 15704:2019 addresses core technical topics that underpin robust enterprise architecture and enterprise modelling:

• Concepts and principles: foundational terms and principles to capture stakeholder concerns and support enterprise life‑cycle activities (conception, design, operation, change, decommissioning).
• Requirements for models and languages: expressiveness, semantics, syntax, names/labels and glossary requirements for modelling languages used to represent enterprise architectures.
• Model types and views: guidance on enterprise‑referencing models, model views and viewpoints to support human understanding and automated processing.
• Architectural concerns and perspectives: human-, process-, decision-, realization-, technology-, environment‑, lifetime‑ and interoperation‑oriented viewpoints.
• Structuring and behaviour: internal structure, hierarchy, recursion, iteration, and representation of short‑ and long‑term behaviour.
• Interoperation and integration: elements supporting enterprise interoperation, compatibility of structuring approaches and verification/validation orientation.
• Tools, modules and model management: expectations for tool support, modularity and availability/format of model information.
• Alignment with GERAM and other standards: Annex B updates on the Generalized Enterprise Reference Architecture and Methodology (GERAM) and harmonization with standards such as ISO/IEC/IEEE 42010.

Practical applications

ISO 15704:2019 is a practical foundation for:

• Designing and documenting enterprise architectures that support integration and interoperability.
• Defining modelling language requirements and model repositories for enterprise transformation programs.
• Ensuring models support stakeholder communication, model reuse, verification and automated processing.
• Guiding selection or development of EA tools that meet expressiveness and semantic consistency needs.

Typical use cases include supply‑chain integration projects, enterprise transformation and systems-of-systems engineering where consistent architecture references are essential.

Who should use this standard

• Enterprise architects and enterprise modelling teams
• Systems engineers and IT architects focused on interoperability
• Tool vendors and modelling language designers
• Program managers overseeing enterprise change and integration
• Standards developers aligning EA standards and frameworks

Related standards

ISO 15704:2019 forms a basis for aligning enterprise architecture standards and is harmonized with, or related to:

• GERAM (Generalized Enterprise Reference Architecture and Methodology)
• ISO/IEC/IEEE 42010 (architecture descriptions)
• IEC 62264, ISO 15745, ISO/IEC 10746 and other ISO/TC 184/SC 5 outputs

Keywords: ISO 15704:2019, enterprise modelling, enterprise architecture, enterprise interoperability, GERAM, modelling languages, enterprise-referencing architectures.

Standards Content (Sample)

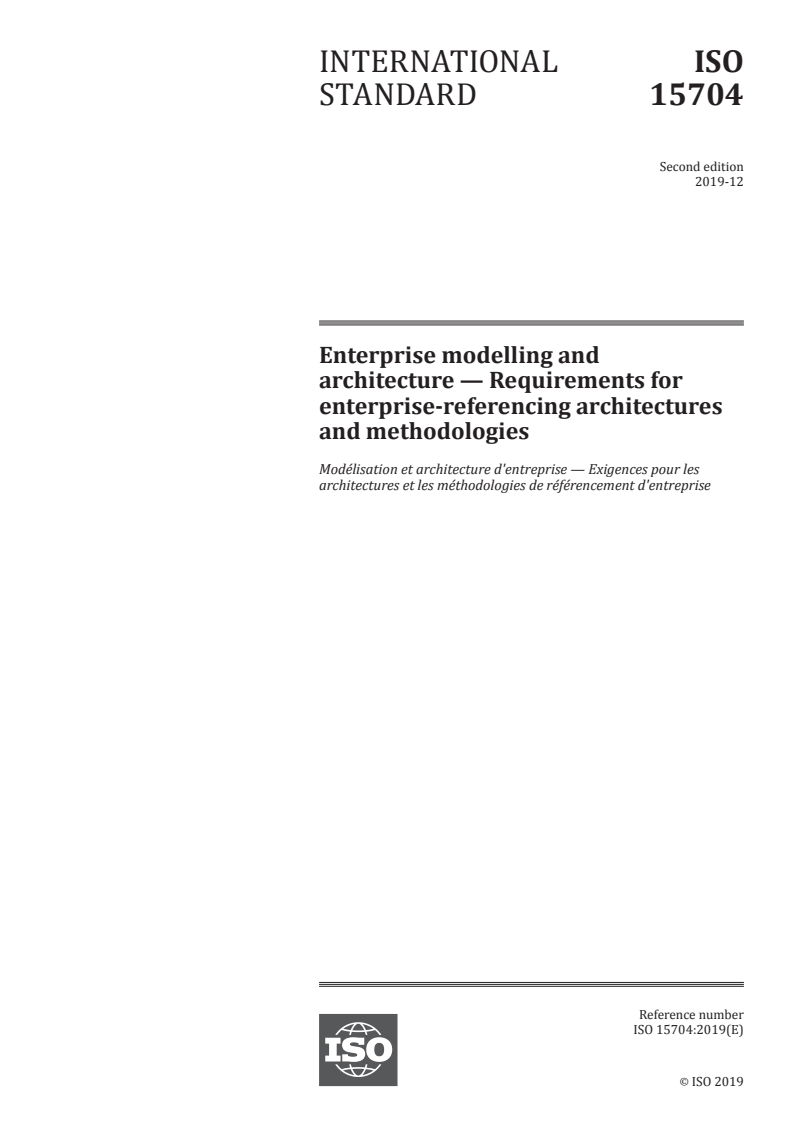

INTERNATIONAL ISO
STANDARD 15704
Second edition
2019-12
Enterprise modelling and
architecture — Requirements for
enterprise-referencing architectures
and methodologies
Modélisation et architecture d'entreprise — Exigences pour les
architectures et les méthodologies de référencement d'entreprise
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

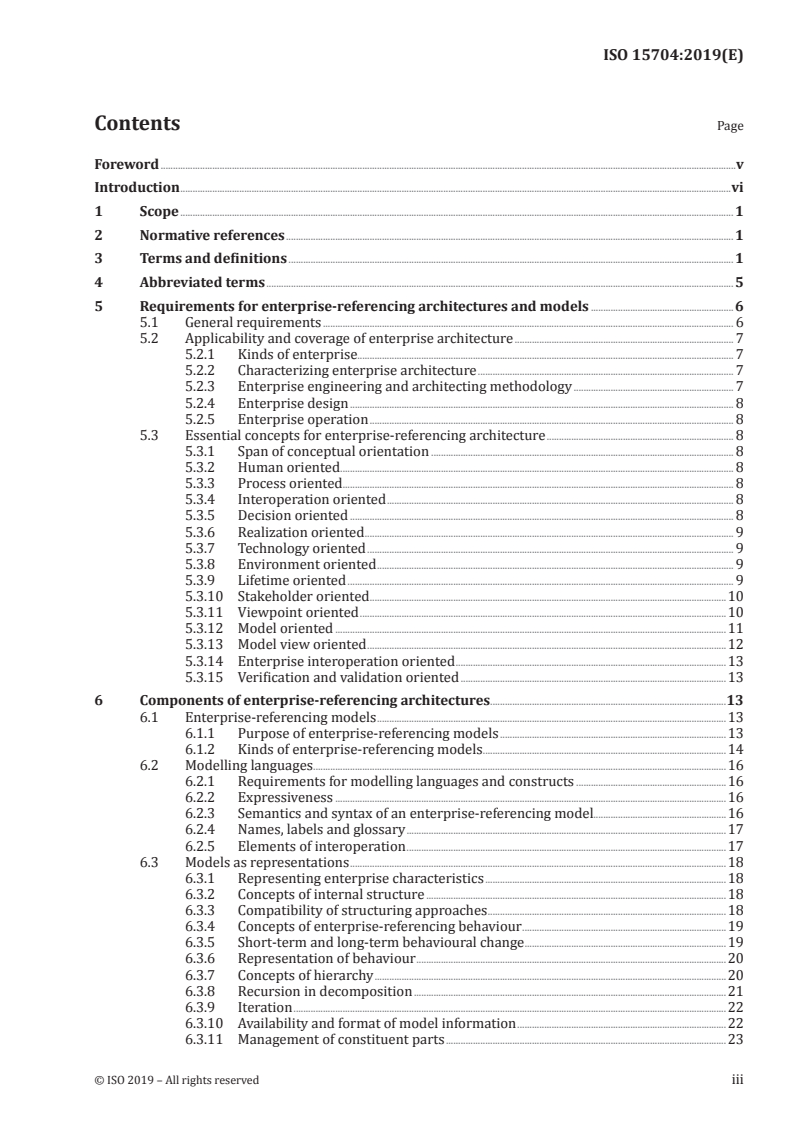

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 5
5 Requirements for enterprise-referencing architectures and models .6
5.1 General requirements . 6
5.2 Applicability and coverage of enterprise architecture . 7
5.2.1 Kinds of enterprise. 7
5.2.2 Characterizing enterprise architecture . 7
5.2.3 Enterprise engineering and architecting methodology . 7
5.2.4 Enterprise design . 8
5.2.5 Enterprise operation . 8
5.3 Essential concepts for enterprise-referencing architecture . 8
5.3.1 Span of conceptual orientation . 8
5.3.2 Human oriented . 8
5.3.3 Process oriented . 8
5.3.4 Interoperation oriented . 8
5.3.5 Decision oriented . 8
5.3.6 Realization oriented . 9
5.3.7 Technology oriented . 9
5.3.8 Environment oriented . 9
5.3.9 Lifetime oriented . 9
5.3.10 Stakeholder oriented . .10
5.3.11 Viewpoint oriented .10
5.3.12 Model oriented .11
5.3.13 Model view oriented .12
5.3.14 Enterprise interoperation oriented .13
5.3.15 Verification and validation oriented .13
6 Components of enterprise-referencing architectures.13
6.1 Enterprise-referencing models .13
6.1.1 Purpose of enterprise-referencing models .13
6.1.2 Kinds of enterprise-referencing models .14
6.2 Modelling languages .16
6.2.1 Requirements for modelling languages and constructs .16
6.2.2 Expressiveness .16
6.2.3 Semantics and syntax of an enterprise-referencing model.16
6.2.4 Names, labels and glossary .17
6.2.5 Elements of interoperation .17
6.3 Models as representations .18
6.3.1 Representing enterprise characteristics .18
6.3.2 Concepts of internal structure .18
6.3.3 Compatibility of structuring approaches .18
6.3.4 Concepts of enterprise-referencing behaviour .19
6.3.5 Short-term and long-term behavioural change .19
6.3.6 Representation of behaviour .20
6.3.7 Concepts of hierarchy .20
6.3.8 Recursion in decomposition .21
6.3.9 Iteration .22
6.3.10 Availability and format of model information .22
6.3.11 Management of constituent parts .23
6.4 Impact of genericity .23
6.4.1 Generic enterprise elements .23
6.4.2 Partial enterprise models .23
6.4.3 Particular enterprise models .23
6.5 Enterprise perspectives and viewpoints .24
6.5.1 Primary concern perspectives .24
6.5.2 Additional concern perspectives .26
6.6 Enterprise-referencing modelling framework .26
6.7 Tools .27
6.8 Modules .27
6.9 Enterprise operational systems .27
6.10 Representation .27

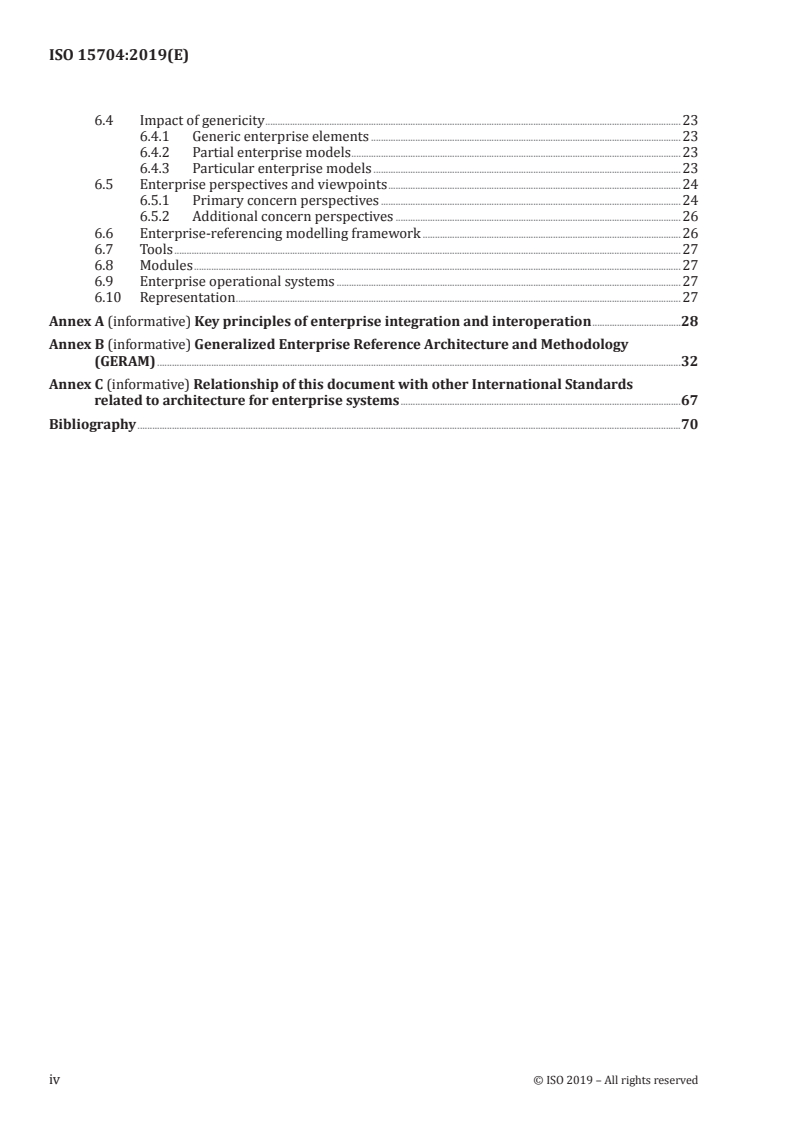

Annex A (informative) Key principles of enterprise integration and interoperation .28
Annex B (informative) Generalized Enterprise Reference Architecture and Methodology
(GERAM) .32
Annex C (informative) Relationship of this document with other International Standards
related to architecture for enterprise systems .67
Bibliography .70
iv © ISO 2019 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 5, Interoperability, integration, and architecture for enterprise systems and automation
applications.
This second edition cancels and replaces the first edition (ISO 15704:2000), which has been technically
revised. It also incorporates the Amendment ISO 15704:2000/Amd.1:2005.
The main changes compared to the previous edition are as follows:
— alignment of terminology for consistency with other standards developed by ISO/TC 184/SC 5;
— incorporation of the rules and guidelines for modelling from ISO 14258 to express enterprise-
referencing architecture methodologies;
— revision of content related to recursive structure and iterative methods;
— redrafting of life history concept to address enterprise change management;
— discussion of modelling dimensions necessary for user views, including the extent of detail and
composite models that span dimensions;
— harmonization with ISO/IEC/IEEE 42010 and other International Standards related to architecture
for enterprise systems;
— inclusion of discussion concerning the relationship of this document with other International
Standards related to architecture for enterprise systems (ISO/IEC 10746, IEC 62264, ISO 15745);
— updating of Annex B on Generalized Enterprise Reference Architecture and Methodology (GERAM)
in accordance with GERAM 1.6.3.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
Introduction
0.1 Rationale for enterprise architectures and models
Industrial and information age enterprises create and modify manufacturing and business operations
to improve performance in local and global markets. In operation they deploy a variety of resources
including people, information systems, automated machinery and business services. Individually and
collectively these resources provide the functional capabilities required to perform manufacturing
and business processes and their constituent activities. The arrangement, targeting and interworking
of resources need to accomplish the enterprise mission, which requires suitable business rules and
organizational structures that enable the enterprise to provide products and services in conformance
with agreed upon criteria.
Enterprises operate under uncertain and changing market and environmental conditions that make
ongoing enterprise engineering beneficial. Enterprises cooperate within a heterogeneous environment
with multiple constituents using different models and systems. In addition, most enterprises operate
within the context of another enterprise with which it interoperates, as with a supply chain or the
parent company. It follows that enterprise personnel have a variety of responsibilities in the conception
and ongoing development of the mission, business rules, manufacturing and business processes,
organizational structures, and supporting resources and services. Because of the complexity involved
in enterprise engineering, invariably it becomes necessary to deploy means of assessing, structuring,
coordinating and supporting these engineering activities, including means for collaboration support
and interoperation.
Generalized enterprise-referencing architecture concerns and components of enterprise modelling
constitute a reference base that provides a generally applicable means of arranging and coordinating
enterprise engineering and associated technology development and deployment projects. By adopting
and adapting such a reference base, enterprise personnel can cooperate in progressing enterprise
engineering projects, improving the enterprise, improving stakeholder's communications and utilizing
enterprise resources. By adopting appropriate tool sets, enterprise personnel can reuse in a practical
way explicit enterprise designs and models to realize the benefits of enterprise engineering on a
continual basis and realize further improvements in enterprise operation.
Such a reference base needs to include capabilities that:
— capture concerns of mission fulfilment stakeholders (manufacturing, transport, service delivery,
etc.) and of business stakeholders;
— describe suitable solutions to identified problems within the enterprise;
— model the whole life history of an enterprise integration project from its initial concept through
development, operation and finally decommissioning or obsolescence; and
— encompass the people, processes, resources and organizations involved in performing, managing,
and controlling the enterprise mission.
From an enterprise engineering perspective, the following distinction is drawn:
— enterprise architecture refers to the arrangement of physical components, logical relationships, and
human interactions involved in the development, implementation and operation for a programme
such as enterprise integration or other enterprise related programme, usually including a set of
projects; and
— system architecture refers to the arrangement of physical components and logical relations of a
system that is a constituent of an enterprise; for example, the computer-control-system part of an
overall enterprise or product.
This document does not present or adopt specific methodologies for creating or using enterprise
architectures or models. The focus is on establishing a reference base capable of supporting specific
enterprise programmes, rather than a design intended to fulfil the stated requirements.
vi © ISO 2019 – All rights reserved

This document identifies an extensive collection of potential artefacts for expressing an enterprise-
referencing architecture and its associated methodologies. Not all of these artefacts will be applicable,
necessary or even desirable for all architecting efforts. The identification of these artefacts assures that
this document meets the needs of the widest possible number of enterprise-referencing architecture
and methodology situations. Users of this document need to assess not only the value of generating an
identified artefact but also the value of maintaining that artefact under the changing circumstances of
the referenced enterprise.
0.2 Rationale for this document
Well-designed standards in the domain of enterprise integration and modelling provide a point of
reference for enterprise architects and designers, thereby significantly reducing the risk of investing
in islands of integration. Where an island does exist, these standards assist the architect or designer to
create the translation necessary for the island to interact within an established context. A standard for
enterprise-referencing models enhances interoperability by establishing the elements that are required
in a model intended to support enterprise architecture.
This document defines concepts, rules and requirements for architecture descriptions that refer to an
enterprise, most often articulated as models, with the intent to guide and constrain other standards
or implementations that do or will exist on the topic. To realize this intent, this document specifies
the concepts to use when producing an enterprise-referencing architecture (see Clause 5) and when
constructing enterprise-referencing models (see Clause 6). This document provides a reference base,
guidelines and constraints for enterprise architecture and models to anyone engaged in enterprise
activities where models are utilized.
0.3 Benefits of this document
The requirements of the reference base for enterprise-referencing architecture and models in this
document allow assessment of an enterprise architecture framework or other approach as well as
associated methodology and languages for completeness with respect to current and future purpose of
the architecture effort. This document will help guide development programmes.
When conforming implementation designs have the same technology areas and nomenclature, or can
map to them readily, the information from one enterprise or process is more readily sharable with
information of another enterprise or process.
The benefit will be most relevant to any group charged with improving an enterprise infrastructure or
its processes. Such a group will find it necessary to either select or create a reference architecture of its
own with terminology that pertains specifically to the company, industry, and culture involved. This
document will help guide that selection or creation.
This document expects users that are:
— enterprise planners, builders, modifiers, and analysts using the requirements to check completeness
of their activity;
— enterprise-referencing model builders using the requirements to assure consistency between
models to enable model interoperability; and
— developers of standards for enterprise representation using the requirements to assure consistency
between their standards and this document.
NOTE While the requirements specified herein cover a broad range of enterprise considerations, many users
find it advantageous to structure the topics considered into a specific framework for their own work. Such a
framework is a methodological choice of the user and goes beyond the scope of this document. Annex B discusses
a framework consistent with this document and other International Standards provide further framework
guidance.
INTERNATIONAL STANDARD ISO 15704:2019(E)
Enterprise modelling and architecture — Requirements for
enterprise-referencing architectures and methodologies
1 Scope
This document specifies a reference base of concepts and principles for enterprise architectures
that enable enterprise development, enterprise integration, enterprise interoperability, human
understanding and computer processing. This document further specifies requirements for models and
languages created for expressing such enterprise architectures.
This document specifies those terms, concepts and principles considered necessary to address
stakeholder concerns and to carry out enterprise creation programmes as well as any incremental
change projects required by the enterprise throughout the whole life of the enterprise. This document
forms the basis by which enterprise architecture and modelling standards can be developed or aligned.
This document does not define standard enterprises, standard organizational structures, standard
enterprise processes, or standard enterprise data. In addition, this standard does not specify enterprise
modelling processes.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
architecture
conceptualization of the form, function, and fitness-for-purpose of an enterprise (3.4) in its environment
(3.9), as embodied in the elements of the enterprise, the relationships between those elements, the
relationship of the enterprise to its environment and the principles guiding the design and evolution of
the enterprise
Note 1 to entry: Since architecture in an enterprise context, e.g. an enterprise architecture, is always conceptual,
the expression of architecture as an architecture description is through models of the enterprise reality to which
the architecture applies. Detailed designs conforming to an enterprise architecture description often take less
abstract forms as they approach enterprise reality.
Note 2 to entry: The notion of fitness-for-purpose distinguishes architecture from other characteristics of design
by adding the obligation of elegance in efficiency and effectiveness to design form and function — a distinguishing
characteristic separating an ad hoc assemblage of parts necessary to conduct an enterprise from an intentional
composition of constituent elements necessary to achieve and sustain superior enterprise performance.
[SOURCE: ISO/IEC/IEEE 42010:2011, 3.2, modified — Content of original definition has been adapted to
the context of this document and Notes to entry have been added.]
3.2
aspect
distinguishing characteristic, manifest by content projection from an integrating enterprise model (3.6)
Note 1 to entry: In this document the term aspect usually refers to a collection of concerns that are better
addressed by looking across various views (3.23), i.e. concerns best addressed by a view across other model
views. The scale and scope of these kinds of broad-based concern collections are poorly handled by a single model
representation but can be effectively rendered by selecting a composite view from existing model view content.
3.3
business process
partially ordered, often nested, set of enterprise (3.4) activities that can be executed to achieve some
desired result in pursuit of a specified objective of an enterprise or a part of an enterprise
3.4
enterprise
human undertaking or venture that has explicit and clearly defined mission (3.13), goals, and objectives
to offer products or services, or to achieve a desired project outcome or business outcome
Note 1 to entry: When in operation, an enterprise functions as a system that realizes the mission through life
cycle activities within a life history.
Note 2 to entry: In this document, “enterprise” refers to concrete (e.g. company, project or extended supply chain
enterprise) or abstract (e.g. virtual enterprise) entities.
Note 3 to entry: One or more organizational unit participates in an enterprise. For an enterprise involving
more than one such unit, each brings various resources (3.21) forward for use, participating to the extent that it
benefits from their involvement, which most often occurs to address some challenge that it is unable to address
on its own.
3.5
enterprise engineering
discipline applied in carrying out any efforts to establish, modify, or reorganize any enterprise (3.4)
Note 1 to entry: An enterprise engineering and architecting methodology provides guidance for efforts to
establish, modify, validate or reorganize an enterprise.
3.6
enterprise model
representation of an enterprise (3.4) as well as entities within an enterprise, their interrelationships,
their decomposition and detailing to the extent necessary to convey what the enterprise intends to
accomplish and how it operates
Note 1 to entry: An enterprise model, which is used to improve the effectiveness and efficiency of the enterprise,
identifies and specifies essential components and elements to any necessary extent of detail, including any
subsystems and constituent models of the enterprise, e.g. an enterprise architecture (3.1) model.
[SOURCE: ISO 19439:2006, 3.23, modified — The words “abstraction of an enterprise domain that
represents enterprise entities” have been replaced with “representation of an enterprise as well as
entities within an enterprise”, the words “what it intends” have been replaced with “what the enterprise
intends”, and Note 1 to entry has been added.]
3.7
enterprise-referencing
applicable to an entity (3.8) that is, or includes, or is part of an enterprise (3.4)
Note 1 to entry: A generic enterprise architecture (3.1), an architecture for a specific enterprise, and an
architecture that includes an enterprise as one of its elements are all enterprise-referencing architectures.
2 © ISO 2019 – All rights reserved

3.8
entity
concrete or abstract thing in the domain under consideration
[SOURCE: ISO 19439:2006, 3.29]
3.9
environment
context that determines the setting and circumstances of technological, business, operational,
organizational, political, regulatory, social, and other critical influences and constraints upon an
enterprise (3.4), which affect or are affected by its development and behaviour, but are not controllable
by the enterprise itself
Note 1 to entry: In the case of a nested enterprise, its environment may be within the larger enterprise.
[SOURCE: ISO/IEC/IEEE 42010:2011, 3.8, modified — Content of original definition has been adapted to
the context of this document, incorporating content from ISO 19439:2006, 3.30, and Note to entry has
been added.]
3.10
framework
structure expressed in diagrams, text and formal rules which relates the elements of an enterprise (3.4)
architecture (3.1) to each other
Note 1 to entry: The purpose of a framework is to guide creation of one or more enterprise architecture
descriptions.
[SOURCE: ISO 19439:2006, 3.31, modified — The words “the components of a conceptual entity” have
been replaced with “the elements of an enterprise architecture”, and Note 1 to entry has been added.]
3.11
genericity
extent to which a concept generalizes entities in a category or group
3.12
life cycle
set of distinguishable phases and steps within phases which an entity (3.8) goes through from its
creation until it ceases to exist
Note 1 to entry: The phases of a nested enterprise (3.4) can be steps within the life cycle of the containing
enterprise.
[SOURCE: ISO 19439:2006, 3.42, modified — Note 1 to entry has been added.]
3.13
life history
actual, recorded and configuration managed sequence of phases and steps within phases that an entity
(3.8) goes through during its lifetime
3.14
mission
characterization of the effect that an enterprise (3.4) expects to achieve through the fulfilment of
functional requests for products or services
3.15
model
representation of certain entities and their characteristics either (a) using a formalism, or (b) using an
established or ad hoc modelling paradigm, approach, or technique
Note 1 to entry: An ad hoc model is more difficult to implement using an established design technique.
Note 2 to entry: A model may be a subset of a broader model.
3.16
model-based
represented using a formalism which has a formal syntax and semantics, usually with a theoretical
basis, and expressible in a symbolic language
Note 1 to entry: Presentation of such models is often graphical but the definition mandates that the graphical
representation be translatable into a symbolic language, thereby constraining interpretation of the graphical
representation.
Note 2 to entry: In order to satisfy specific stakeholder (3.22) concerns, “model-based” is often used as a qualifier
to characterize a kind of design, or practice, e.g. model-based system engineering, model-based design, model-
based specification.
3.17
modelling dimension
conceptual collection of enterprise (3.4) entity (3.8) viewpoints (3.24) related by kinds of architectural
concerns and exhibiting reasonably distinct aggregating coordinates along a continuum
Note 1 to entry: Common modelling dimensions are life cycle, viewpoint, and genericity (3.11).
3.18
organization
distribution of responsibilities and authorities in the enterprise (3.4)
Note 1 to entry: Within an organization, people are often given role titles designating collections of responsibilities
and authorities with roles arranged in an accountability hierarchy.
3.19
perspective
orientation of a stakeholder (3.22) or model (3.15) user relative to an identified domain
Note 1 to entry: A stakeholder's orientation can be formed by stakeholder concerns, as well as by their training,
experience, cultural background, and their motivations.
3.20
reference base
source of information comprising descriptions of generalized enterprise (3.4) architecture (3.1)
concepts, requirements and recommendations
3.21
resource
entity (3.8) that provides some or all of the capabilities required to execute an enterprise (3.4) activity
Note 1 to entry: In this document, resource is used in the system theory sense of entities that provide capabilities
required by the system and are an essential part of the system itself. The resource description includes the
identification and description of consumables (such as energy, air, coolant) that are required to be present in
sufficient quantities to operate the resource. In contrast, material is reserved for process inputs that are required
by the various activities such as raw materials, parts and assemblies.
Note 2 to entry: In this document, the term “resource” applies to non-human entities involved in enterprise entity
operation. The involvement of humans is described by roles they carry out in the enterprise entity operation.
[SOURCE: ISO 19439:2006, 3.60, modified — The word “enterprise” has been deleted at the start of the
definition, the last sentence of Note 1 to entry has been removed, and Note 2 to entry has been added.]
3.22
stakeholder
individual, team, organizational unit, or class thereof, having concerns relative to their perspective (3.19)
about an enterprise (3.4), or its architecture (3.1), or in an architecture entity (3.8) of the enterprise
Note 1 to entry: Typical enterprise stakeholders include enterprise owners, enterprise customers, and enterprise
employees responsible for receiving or delivering either products or services, and those persons or organizations
(3.18) partnering with the enterprise to achieve its mission.
4 © ISO 2019 – All rights reserved

Note 2 to entry: Enterprise architects are stakeholders of the enterprise architecture, but not necessarily
stakeholders of the enterprise itself. A user of enterprise architecture or related models is an enterprise
stakeholder. There can be observers of an enterprise that are not stakeholders for that enterprise.
[SOURCE: ISO/IEC/IEEE 42010:2011, 3.10, modified — Content of original definition has been adapted
to the context of this document and Notes to entry have been added.]
3.23
view
work product expressing a selective perception or representation of a model (3.15), which emphasizes
some specific feature or characteristic and disregards others
[SOURCE: ISO 19439:2006, 3.25, modified — Content of original definition has been adapted to the
context of this document.]
3.24
viewpoint
identification of one or more kind of model (3.15) useful for addressing a collection of related stakeholder
(3.22) concerns
Note 1 to entry: When the term viewpoint is used without any qualifier it refers to the general case. When the
term viewpoint is used with a qualifier, the viewpoint applies to a specific collection of concerns, e.g. operational
viewpoint, capability viewpoint, services viewpoint.
Note 2 to entry: A viewpoint identifies one or more models necessary and sufficient for expressing one or more
enterprise model (3.6) views (3.23) that address the specific collection of related stakeholder concerns.
4 Abbreviated terms
CIM Computer Integrated Manufacturing
CIMOSA Computer Integrated Manufacturing Open Systems Architecture
EA Enterprise Architecture
EAET Enterprise Architecture and Engineering Tool
EAM Enterprise Architecting, Engineering and integration Methodology
EI/EA Enterprise Integration/Enterprise Architecture
EMEIS Enterprise Model Execution and Integration Services
EML Enterprise Modelling Language
EMO Enterprise Module
EM Enterprise Model
EOS Enterprise Operational System
FIRO Function, Information, Resource and Organization
GEM GRAI Evolution Method
GEMC Generic Enterprise Modelling Concept
GERA Generalized Enterprise Reference Architecture
GERAM Generalized Enterprise Reference Architecture and Methodology
GIM GRAI Integrated Methodology
GRAI Graphs with Results and Actions Inter-related
IT Information Technology
ODP Open Distributed Systems
OMG Object Management Group
PEM Partial Enterprise Model
5 Requirements for enterprise-referencing architectures and models
5.1 General requirements
The requirements for enterprise-referencing architectures and models are cast as a framework relying
upon the key principles of enterprise integration and interoperation found in Annex A.
The framework comprises the requirements for enterprise-referencing architectures in Clause 5 and
models with modelling languages and associated methodologies in Clause 6. These architecture and
model requirements assist with planning enterprise integration and interoperation by an individual
or team, which determines and develops a course of action that is complete, accurate, and properly
oriented to future business developments and economy of resources. The planners shall establish the
following objectives among other potential objectives:
a) identify enterprise boundaries and relevant relationships to the environment in which it operates;
b) define present and possible future enterprise objectives;
c) describe significant tasks to perform;
d) identify the necessary kinds and quantity of information;
e) identify relevant enterprise elements and their relationships to enterprise objectives;
f) specify relationships among humans, processes, and equipment for the interoperation considered;
g) specify sufficient management functions and responsibilities;
h) identify relevant economic, cultural, and technological factors;
i) describe the extent of automation-support required;
j) provide modelling that can trace the whole life history of an enterprise entity including entity and
relationship evolution;
k) describe decision-making structures and means for detecting inconsistencies;
l) maintain both human readable and machine processable forms of expression;
m) measure sufficiency and efficiency of enterprise architecting methodology as the extent to which
the enterprise achieves objectives.
Enterprise-referencing architectures and models can address the role of humans, the description of
processes, the identification of information, their relationships, and the representation of all supporting
technologies throughout the life cycle of the enterprise.
Effort applied to the development of architectures, models and views needs to remain cognizant of the
intended objectives and benefits to the enterprise, and to balance the effort required to achieve these
outcomes. Typically, effort will be constrained by cost and/or schedule.
6 © ISO 2019 – All rights reserved

5.2 Applicability and coverage of enterprise architecture
5.2.1 Kinds of enterprise
Enterprise-referencing architectures and the models that represent those architectures should be
suitable for supporting the engineering of manufacturing and business enterprises of many conceivable
sizes or varieties. Supported enterprise entities may be independent enterprises, e.g. companies, or
parts of an enterprise, e.g. divisions, departments, or the business of collaborating and cooperating
enterprises, e.g. supply chains, virtual enterprises, or even the enterprise operational systems or
products. Reference architectures may exist for specific enterprises or systems, e.g. discrete parts
manufacturing, process industries, complex system of systems interactions and behaviours, and
information systems. The breadth and depth of the domain covered by an enterprise-referencing
architecture and its representational models shall be identified clearly.
5.2.2 Characterizing enterprise architecture
A distinguishing characteristic of enterprise architecture arises because of the nature of enterprise
creation and the purpose of the architecture relative to that enterprise. One kind of architecture —
system architecture — relates to the design of a system, e.g., the computer control system part of
an overall enterprise integration project. Another kind of architecture — enterprise architecture —
involves the design of the enterprise that produces that system architecture. Enterprise architecture
enables the creation of the system architecture by structuring the development and implementation of
a project such as an enterprise integration or other enterprise development programme, which includes
the creation of architecture descriptions in support of enterprise products or services.
Any elaboration or derivative of this document as a reference base for enterprise-referencing
architecture and models shall be applicable for each enterprise entity within a specified domain.
The concrete form of an enterprise architecture conceptualization shall be as an architecture
description, such description being suitable to the purpose for which the conceptualization occurs.
NOTE 1 In this document, the appearance of the term “architecture” often means its concrete form as an
architecture description.
NOTE 2 Often one enterprise architecture supports the development and implementation of another
enterprise, which produces its own enterprise architecture in support of the development and implementation
of a product or service. See Annex B for more discussion of enterprise and architecture kinds and relationships
among enterprise architectures.
5.2.3 Enterp
...
