INTERNATIONAL ISO/IEC
STANDARD 7816-13
First edition
2007-03-15
Identification cards — Integrated circuit
cards —
Part 13:
Commands for application management
in a multi-application environment
Cartes d'identification — Cartes à circuit intégré —
Partie 13: Commandes pour la gestion d'application dans un
environnement de plusieurs applications
Reference number
ISO/IEC 7816-13:2007(E)
©
ISO/IEC 2007
---------------------- Page: 1 ----------------------
ISO/IEC 7816-13:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO/IEC 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2007 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 7816-13:2007(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 1
4 Abbreviations and notation . 2
5 Multi-application environment and application life cycle. 2
5.1 Multi-application environment. 2
5.2 Application life cycle . 3
5.3 Memory resource assignment data objects for interoperability. 5
6 Card management service recognition . 6
6.1 Card management service template . 6
6.2 Card management service template retrieval . 7
7 Commands for application management . 7
7.1 APPLICATION MANAGEMENT REQUEST command. 8
7.2 LOAD APPLICATION command . 9
7.3 REMOVE APPLICATION command. 10
7.4 Application management considerations . 11
Annex A (informative) An example of card application management on an independent card
issuer and application provider model. 12
Annex B (informative) A practical example of card application management. 14
Annex C (informative) A further practical example of card application management . 18
Annex D (informative) A further practical example of card application management . 21
Bibliography . 23
© ISO/IEC 2007 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 7816-13:2007(E)

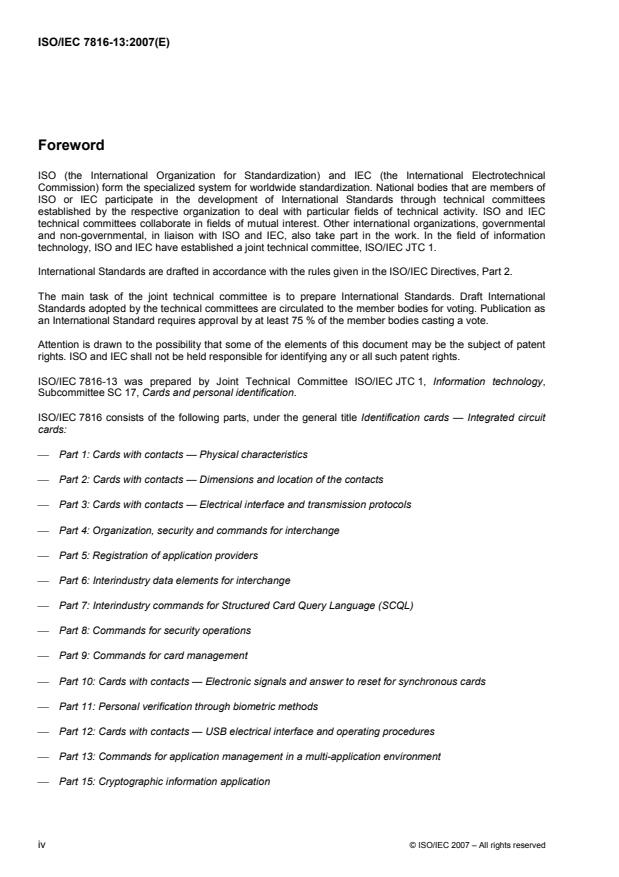

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 7816-13 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and personal identification.
ISO/IEC 7816 consists of the following parts, under the general title Identification cards — Integrated circuit
cards:
⎯ Part 1: Cards with contacts — Physical characteristics
⎯ Part 2: Cards with contacts — Dimensions and location of the contacts
⎯ Part 3: Cards with contacts — Electrical interface and transmission protocols
⎯ Part 4: Organization, security and commands for interchange
⎯ Part 5: Registration of application providers
⎯ Part 6: Interindustry data elements for interchange
⎯ Part 7: Interindustry commands for Structured Card Query Language (SCQL)
⎯ Part 8: Commands for security operations
⎯ Part 9: Commands for card management
⎯ Part 10: Cards with contacts — Electronic signals and answer to reset for synchronous cards
⎯ Part 11: Personal verification through biometric methods
⎯ Part 12: Cards with contacts — USB electrical interface and operating procedures
⎯ Part 13: Commands for application management in a multi-application environment
⎯ Part 15: Cryptographic information application
iv © ISO/IEC 2007 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 7816-13:2007(E)
Introduction
ISO/IEC 7816 is a series of International Standards specifying integrated circuit cards and the use of such
cards for interchange. These cards are identification cards intended for information exchange negotiated
between the outside world and the integrated circuit in the card. As a result of an information exchange, the
card delivers information (computation result, stored data), and/or modifies its content (data storage, event
memorization).
Five parts are specific to cards with galvanic contacts and three of them specify electrical interfaces.
⎯ ISO/IEC 7816-1 specifies physical characteristics for cards with contacts.
⎯ ISO/IEC 7816-2 specifies dimensions and location of the contacts.
⎯ ISO/IEC 7816-3 specifies electrical interface and transmission protocols for asynchronous cards.
⎯ ISO/IEC 7816-10 specifies electrical interface and answer to reset for synchronous cards.
⎯ ISO/IEC 7816-12 specifies electrical interface and operating procedures for USB cards.
All the other parts are independent of the physical interface technology. They apply to cards accessed by
contacts and/or by contactless methods.
⎯ ISO/IEC 7816-4 specifies organization, security and commands for interchange.
⎯ ISO/IEC 7816-5 specifies registration of application providers.
⎯ ISO/IEC 7816-6 specifies interindustry data elements for interchange.
⎯ ISO/IEC 7816-7 specifies commands for structured card query language.
⎯ ISO/IEC 7816-8 specifies commands for security operations.
⎯ ISO/IEC 7816-9 specifies commands for card management.
⎯ ISO/IEC 7816-11 specifies personal verification through biometric methods.
⎯ ISO/IEC 7816-13 specifies commands for application management in a multi-application environment.
⎯ ISO/IEC 7816-15 specifies cryptographic information application.
ISO/IEC 10536 specifies access by close coupling. ISO/IEC 14443 and ISO/IEC 15693 specify access by
radio frequency. Such cards are also known as contactless cards.
© ISO/IEC 2007 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 7816-13:2007(E)
Identification cards — Integrated circuit cards —
Part 13:
Commands for application management in a multi-application
environment
1 Scope
This part of ISO/IEC 7816 specifies commands for application management in a multi-application environment.
These commands cover the entire life cycle of applications in a multi-application integrated circuit card, and
the commands can be used before and after the card is issued to the cardholder. This part of ISO/IEC 7816
does not cover the implementation within the card and/or the outside world.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 7816-4:2005, Identification cards — Integrated circuit cards — Organization, security and commands
for interchange
ISO/IEC 7816-9:2004, Identification cards — Integrated circuit cards — Commands for card management
ISO/IEC 8825-1:2002, Information technology — ASN.1 encoding rules: Specification of Basic Encoding
Rules (BER), Canonical Encoding Rules (CER) and Distinguished Encoding Rules (DER)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
application
structures, data elements and program modules needed for performing a specific functionality
[ISO/IEC 7816-4]
3.2
application provider
entity providing the components that make up an application in the card
[ISO/IEC 7816-4]
3.3
card platform
on-card component responsible for basic card functions
© ISO/IEC 2007 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 7816-13:2007(E)
3.4
card manager application
card application providing card application management functionality and supervising assignment of the card's
resources
4 Abbreviations and notation
AID application identifier
APP application
DF dedicated file
DO data object
ICC integrated circuit card
P1-P2 parameter bytes (inserted for clarity, the dash is not significant)
RID registered application provider identifier
5 Multi-application environment and application life cycle
5.1 Multi-application environment
A multi-application environment in the context of this document has the following characteristics.
a) An application is a uniquely addressable set of functionalities on a multi-application card that provides
data storage and computational services.
b) An application may be added to the card before or after the card is issued to the cardholder.
c) More than one application may be added to the card.
d) The card platform provides mechanisms for managing card resources e.g. memory.
e) The card platform provides a security boundary mechanism for each application to prevent unauthorized
interaction and security violation from any other application on the card.
f) An application provider is an entity that provides services to the cardholder using a card's application and
is responsible for the application's behavior.
g) An application provider for an application on a card may be distinct from the card issuer.
h) The life cycle of an application is independent from the life cycle of any other application in the same card.
i) The life cycle of an application is independent from the life cycle of the card except when the card is in the
termination state, as defined in ISO/IEC 7816-9.
j) All applications shall be at least selectable using the SELECT command by specifying its AID as the DF
name, as defined in ISO/IEC 7816-4.
k) A card manager application shall be present, unique, and selectable using the SELECT command by
specifying its AID as the DF name. Other applications on the card may offer application management
functionality.
2 © ISO/IEC 2007 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 7816-13:2007(E)
l) The default AID of the card manager application is “E8 28 BD 08 0D”.
Figure 1 is a conceptual representation of a possible structure of a multi-application IC card.
Security Boundary
Card Card Card
Card
Application Application Application
Manager
(APP 1) (APP 2) (APP 3)
Application
Card Platform
Figure 1 — Possible structure of a multi-application card
5.2 Application life cycle
A life cycle status shall be associated with each application. An application may use its life cycle status, in
combination with its security attributes, to ensure that any operation it performs complies with that
application's security policy. The card manager application shall provide a life cycle transition path from Non
Existent to Operational Activated state.
The following commands initiate life cycle state transitions:
⎯ APPLICATION MANAGEMENT REQUEST;
⎯ LOAD APPLICATION;
⎯ REMOVE APPLICATION.
Figure 2 is a conceptual representation of the life cycle states and the commands that invoke each state
transition. This diagram shows only the stable (permanent) states an application can reach at the completion
of a life cycle transition. Other, intermediate, states may exist during a life cycle transition (e.g. from Non-
Existent to Creation state) but are not maintained when the process is interrupted.
© ISO/IEC 2007 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 7816-13:2007(E)
[Application Management Request (P1=‘0E’) +] Load(s) Application
[Application Management Request (P1=‘06’) +]
Remove Application (P1=‘03’)
Initialisation
Load(s) Application
state
Application Management Application Management
Request (P1=‘04’) Request (P1= ‘08’)
Remove Application
(P1=‘02’)
[Application Management
Application Management Remove Application
Request (P1=‘02’) +] Operational
Request (P1=‘0C’) (P1=‘07’)
Application Creation Application
Load(s) Application
Activated
Non Existent state Removed
Remove Application (P1=‘06’)
state
Deactivate Activate
File File
Remove Application Remove Application
(P1=‘06’)
(P1=‘07’)
Operational
Deactivated
state
Remove Application (P1=‘01’)
Figure 2 — Application life cycle diagram
NOTE 1 – This diagram reads as follows: for example, after the execution of the APPLICATION MANAGEMENT
REQUEST (P1=“0E”) and LOAD APPLICATION commands, the application is in the Operational Activated life cycle state
i.e. executable and selectable.
NOTE 2 – Squares represent states of the card memory, and circles represent application life cycle states. Dotted circles
represent optional application life cycle states.
NOTE 3 – The ACTIVATE FILE and DEACTIVATE FILE commands are defined in ISO/IEC 7816-9.
Application life cycle states are defined as in Table 1.
The coding of the application life cycle states shall comply with the coding of the life cycle status byte (LCS
byte) defined in ISO/IEC 7816-4.
4 © ISO/IEC 2007 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 7816-13:2007(E)
Table 1 — Application life cycle states
Application Non Existent Application is, from the point of view of the card manager application, not present.
Creation State Application is, from the point of view of the card manager application, present, not
executable, and not selectable.
Initialisation State Application is present, executable with limited functionality, and not selectable.
Operational Activated State Application is present, executable, and selectable.
Operational Deactivated State Application is present, executable with limited functionality, and the SELECT command
returns the warning that the application is deactivated.
Application Removed Application is not present, not selectable, and not executable. The previously assigned
memory resources may be only partially released and reusable.
⎯ Some card platforms may have additional life cycle specific state. Additional states are outside the scope of this
document. If the card supports additional life cycle states and state transitions, they shall not interfere with the life
cycle states and state transitions described in Figure 2.
⎯ States in italics represent card memory states. States in regular characters represent application life cycle states.
5.3 Memory resource assignment data objects for interoperability
A memory resource assignment template (tag “7F65”) describing the assignment of memory resources to an
application may be associated with each application.
Table 2 specifies the memory resource assignment data objects for each type of memory: persistent or
volatile storage, where
⎯ reserved memory is the amount of memory exclusively assigned to an application;
⎯ memory quota is the maximum amount of memory that an application is allowed to request.
A memory resource assignment data object represents an amount of memory resources counted in bytes,
coded as an integer value, see ISO/IEC 8825-1.
Table 2 — Memory resource assignment data objects
Tag Description Requirement
“80” Amount of reserved memory in persistent storage for the application's code. Mandatory
If no separation between code and data is requested, then “80” shall be used to indicate the
reserved amount of persistent storage memory for both application code and data.
“81” Amount of reserved volatile memory at the time of application selection for the application's Optional
data.
“82” Amount of reserved persistent storage memory for the application's data. Optional
If “82” is not present, then “80” indicates the sum of persistent storage memory for both
application code and data.
“83” Amount of memory quota of persistent storage memory for the application's code. Optional
If no separation between code and data is requested, then “83” shall be used to indicate the
memory quota of persistent storage memory for both application code and data.
“84” Amount of memory quota of volatile memory at the time of application selection for the Optional
application's data.
“85” Amount of memory quota of persistent storage for the application's data. Optional
If “85” is not present, then “83” indicates the sum of persistent storage memory for both
application code and data.
⎯ In this context, ISO/IEC JTC1/SC17 reserves any other data object of the context-specific class (first byte from “80”
to “BF”).
© ISO/IEC 2007 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 7816-13:2007(E)
In using the values of the memory resource assignment data objects, the following rules shall apply.
⎯ The assignment of Reserved Memory to an application reduces the memory resources available to other
applications on the card.
⎯ The assignment of Memory Quota to an application does not reduce the memory resources available to
other applications on the card.
⎯ The value of Memory Quota is greater than or equal to the value of Reserved Memory.
⎯ At the time of the successful creation of an application (e.g. transition from Non Existent to Operational
Activated state), the amount of memory assigned to that application is first charged against the Reserved
Memory assigned to that application until it is entirely exhausted. When the application's Reserved
Memory is exhausted, the amount of assigned memory reduces the memory resources available to other
applications on the card as long as it does not exceed the Memory Quota of that application. When either
the Memory Quota is exceeded or the memory resources currently available on the card are exhausted,
the creation of the application fails.
⎯ At the time of successful removal of an application (i.e. transition to Application Removed), the memory
resources available to other applications on the card are augmented by the amount of memory actually
released, and any unused part of the Reserved Memory is reassigned to the memory resources available
to other applications on the card.
6 Card management service recognition
6.1 Card management service template
The card management service template (tag“7F64”) shall be present. Table 3 defines the contents of the card
management service template.
Table 3 — Card management service data objects
Tag Length/ Description Requirement
Format
“80” 2 bytes Card management capabilities supported by the card: the value is a combination Mandatory
of the bits defined in Table 4 and Table 5.
“81” Variable Card management scheme name and version: Object Identifier value (see Mandatory
ISO/IEC 8825-1) indicating the scheme name and version (major and minor)
used to manage the card and its applications.
“82” Variable Card identification procedure indicator: Object Identifier value (see Optional
ISO/IEC 8825-1) indicating the procedure used to identify the card uniquely. It
defines how to access the local identifier on the card e.g. the ICC serial number,
and whether that identifier is globally unique.
“4F” Variable Card manager application AID: Application identifier to select the card manager Optional
application, when different from “E8 28 BD 08 0D”.
⎯ In this context, ISO/IEC JTC 1/SC 17 reserves any other data object of the context-specific class (first byte from
“80” to “BF”).
6 © ISO/IEC 2007 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 7816-13:2007(E)
Table 4 — Card management capabilities: First byte
b8 b7 b6 b5 b4 b3 b2 b1 Value of supported life cycle state transitions
- - - - - - - 1 Non Existent to Creation
- - - - - - 1 - Creation to Initialisation
- - - - - 1 - - Initialisation to Operational Activated
- - - - 1 - - - Creation to Operational Activated
- - - 1 - - - - Non Existent to Operational Activated
- - 1 - - - - - Operational Activated to Operational Deactivated
- 1 - - - - - - Operational Deactivated to Operational Activated
1 - - - - - - - Operational Activated to Application Removed
Table 5 — Card management capabilities: Second byte
b8 b7 b6 b5 b4 b3 b2 b1 Value of Supported life cycle state transitions
0 0 0 - - - - 1 Creation to Application Removed
0 0 0 - - - 1 - Initialisation to Application Removed
0 0 0 - - 1 - - Initialisation to Creation
0 0 0 - 1 - - - Operational Activated to Creation
0 0 0 1 - - - - Operational Deactivated to Application Removed
⎯ Any other value is reserved for future use by ISO/IEC JTC 1/SC 17.
6.2 Card management service template retrieval
Retrieving the card management service template uses the application-independent card services defined by
ISO/IEC 7816-4.
The order in which the different retrieval procedures defined in this clause are to be tried is not defined by this
document. If all procedures described hereafter fail to return the card management service template, the card
does not comply with this document.
Two procedures may apply to retrieve card management service template when the MF or the implicitly
selected application DF is selected:
⎯ reading the EF.ATR, where DO “7F64” may be present;
⎯ with a GET DATA command with P1-P2 set to “7F 64”, which may return the card management service
template in the response data field.
Another procedure may apply and consists of selecting the application with AID “E8 28 BD 08 0D” followed by
a GET DATA command with P1-P2 set to “7F 64”, which may return the card management service template in
the response data field.
7 Commands for application management
After selection of the card manager application and optional authentication procedure, a management
procedure for an application on the card results from the use of one or more of the following three commands:
⎯ APPLICATION MANAGEMENT REQUEST command;
© ISO/IEC 2007 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/IEC 7816-13:2007(E)
⎯ LOAD APPLICATION command;
⎯ REMOVE APPLICATION command.
The card manager application shall support at least the first two commands.
If the card manager application supports a command specified in this clause, at least one option of the
command shall be supported.
A command for application management can be performed only if the security status satisfies the security
conditions defined by the card manager application.
7.1 APPLICATION MANAGEMENT REQUEST command
The APPLICATION MANAGEMENT REQUEST command initiates the management procedure for an
application. The card manager application verifies the application management request information present in
the command data field. This command may be followed by the LOAD APPLICATION command described in
7.2. If memory resource management is supported, the assignment of memory resources to an application as
described in the memory resource assignment template (tag “7F65”) shall comply with the rules defined in
clause 5.3.
Table 6 — APPLICATION MANAGEMENT REQUEST command-response pair
CLA As defined in ISO/IEC 7816-4
INS “40” or “41”
P1 Application life cycle status control according to Table 7
P2 Application management control according to Table 8
L field Number of bytes in the command data field
c
Data field Application management request information whose format and contents are implicitly known by the card
manager application (INS=“40”), or coded in the following data objects (INS=“41”):
AID (tag “4F”) of the target application (mandatory);
Memory resource assignment (tag “7F65”);
One or more digital signature block(s) (tag “7F3D”) containing a digital signature DO (tag “9E”) and
possibly further DOs, e.g. a hash value DO (tag “90”) with the application's code hash;
L field Absent for encoding N = 0, present for encoding N > 0
e e e
Data field Additional information or absent
SW1-SW2 See ISO/IEC 7816-4:2005, Tables 6 and 7 where relevant, e.g. “6982”, “6985”
⎯ Application management request information may contain other data objects, e.g. issuer identification number (tag
“42”), file reference (tag “51”), or discretionary data (tag “53” or “73”).
⎯ Coding of the digital signature block (tag “7F3D”) is outside the scope of this document.
Table 7 — Application life cycle target state control in P1
b8 b7 b6 b5 b4 b3 b2 b1 Meaning
0 0 0 0 0 0 0 0 No information given
0 0 0 0 0 0 1 0 Transition from Non Existent state to Creation state
0 0 0 0 0 1 0 0 Transition from Creation state to Initialisation state
0 0 0 0 0 1 1 0 Transition from Non Existent state to Initialisation state
0 0 0 0 1 0 0 0 Transition from Initialisation state to Operational Activated state
0 0 0 0 1 1 0 0 Transition from Creation state to Operational Activated state
0 0 0 0 1 1 1 0 Transition from Non Existent to Operational Activated state
⎯ Any other value is reserved for future use by ISO/IEC JTC 1/SC 17.
8 © ISO/IEC 2007 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 7816-13:2007(E)
Table 8 — Application management control in P2
b8 b7 b6 b5 b4 b3 b2 b1 Meaning
0 0 0 0 0 0 0 0 No information given
0 0 0 0 0 0 0 1 Verify application management request
0 0 0 0 0 0 1 0 Commit application management request
0 0 0 0 0 0 1 1 Verify and commit application management request
⎯ Any other value is reserved for future use by ISO/IEC JTC 1/SC 17.
7.2 LOAD APPLICATION command
The LOAD APPLICATION command transfers an application to the card. An application may be partitioned
into multiple components and each component may be partitioned into multiple blocks for transmission to the
card. Each LOAD APPLICATION command transfers one block to the card. This command may be preceded
by the APPLICATION MANAGEMENT REQUEST command, see 7.1.
If the LOAD APPLICATION command is preceded by an APPLICATION MANAGEMENT
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
