ISO 14315:1997

Industrial wire screens - Technical requirements and testing

Tissus métalliques préformés ou soudés — Exigences techniques et vérifications

Industrijska žična sita - Tehnične zahteve in preskušanja

General Information

• Status: Published
• Publication Date: 22-Oct-1997
• ICS: 73.120 - Equipment for processing of minerals
• Technical Committee: ISO/TC 24/SC 8 - Test sieves, sieving and industrial screens
• Drafting Committee: ISO/TC 24/SC 8/WG 2 - Industrial wire cloth
• Current Stage: 9093 - International Standard confirmed
• Start Date: 25-Nov-2022
• Completion Date: 13-Dec-2025
• Ref Project: SIST ISO 14315:2000 - Industrial wire screens -- Technical requirements and testing

Overview

ISO 14315:1997 - "Industrial wire screens - Technical requirements and testing" specifies terminology, tolerances, material requirements and test methods for pre‑crimped or pressure‑welded industrial wire screens used for screening operations. It applies to screens made from high‑tensile steel, stainless steel or other weavable metals (not to woven wire cloth covered by ISO 4783‑2). The standard also defines inspection documentation, ordering information and delivery conditions for rolls and cut‑to‑size screening surfaces.

Key topics and technical requirements

• Terminology and geometry: definitions for aperture width (w), wire diameter (d), pitch (p), warp/weft, open screening area and mass per unit area.
• Tolerances on aperture width: two tolerance classes - Y for average aperture deviation (± Y) and X for maximum single‑aperture positive deviation. Specific tolerance values depend on nominal aperture sizes (see standard tables).
• Wire diameter: pre‑weaving tolerances per ISO 4782; after weaving the diameter is untoleranced and must be measured per the test methods in ISO 14315.
• Permissible blemishes: defined maximum number of major manufacturing blemishes per unit area, with separate provisions for cut‑to‑size pieces. Minor blemishes are acceptable unless they affect aperture size or surface quality.
• Screening surface tolerances: dimensional tolerances for rectangular screening surfaces, with and without hook strips (side or end tensioning), including parallelism and hook strip length rules.
• Materials: allowable materials include high‑tensile steel (carbon content 0.37–0.85 %, tensile strength range indicated in the standard), stainless steel (specified by purchaser) or other agreed metals. Calculated mass per unit area is provided (actual mass may be up to 3 % lower).
• Test methods: measurement procedures for wire diameter (micrometer/dial gauge), average aperture (measuring spans of multiple pitches) and maximum aperture size, plus margins to be disregarded at roll edges.
• Inspection documents: statement of compliance, supplier test report, optional inspection certificate, chemical analysis and other agreed tests.
• Ordering and delivery: essential order details (quantity, aperture size, wire diameter, material, weave type, tolerances), roll length/width tolerances, and labelling/packing requirements.

Applications and users

ISO 14315 is used by:

• Manufacturers of industrial wire screens and screen components
• Screening equipment designers and OEMs specifying screening media
• Quality control laboratories performing acceptance testing and inspection
• Purchasers and end‑users in industries performing mechanical screening (mining, aggregates, recycling, mineral processing, chemical and food screening applications) who need clear specifications for performance and interchangeability

Related standards

• ISO 2194 - nominal sizes of apertures
• ISO 4782 - metal wire for wire screens
• ISO 4783‑1 and ISO 4783‑3 - guidance on aperture/wire combinations and preferred combinations for pre‑crimped or pressure‑welded screens
• (Referenced update) ISO 9044 - industrial woven wire cloth

Keywords: ISO 14315:1997, industrial wire screens, aperture width, wire diameter, test methods, tolerances, screening surfaces, hook strips, inspection certificate.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2000
,QGXVWULMVNDåLþQDVLWD7HKQLþQH]DKWHYHLQSUHVNXãDQMD
Industrial wire screens -- Technical requirements and testing
Tissus métalliques préformés ou soudés -- Exigences techniques et vérifications
Ta slovenski standard je istoveten z: ISO 14315:1997
ICS:
73.120 Oprema za predelavo rudnin Equipment for processing of
minerals
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

INTERNATIONAL ISO
STANDARD 14315
First edition
1997-11-01
Industrial wire screens — Technical
requirements and testing
Tissus métalliques préformés ou soudés — Exigences techniques et
vérifications
Reference number
AA

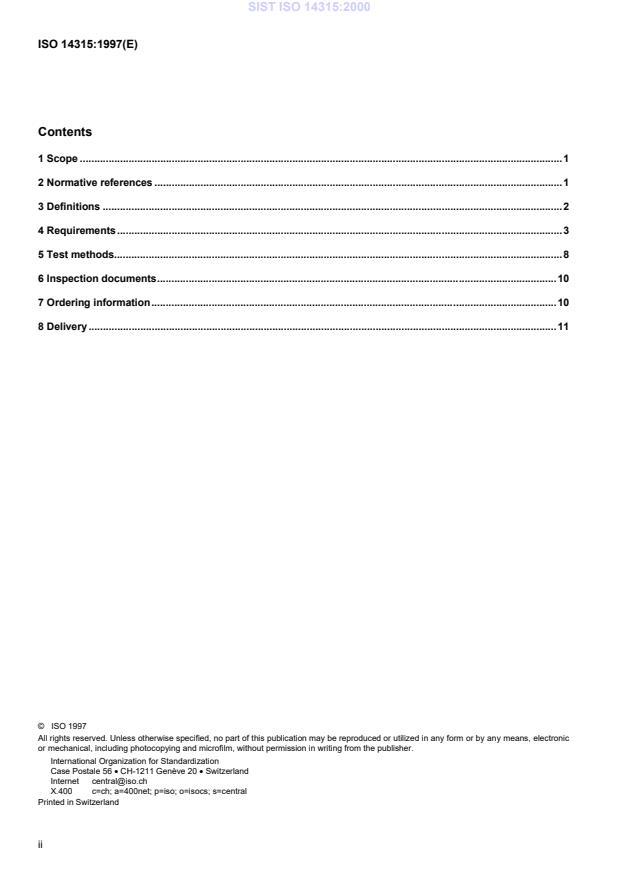

Contents
1 Scope .1
2 Normative references .1
3 Definitions .2
4 Requirements.3
5 Test methods.8
6 Inspection documents.10
7 Ordering information.10
8 Delivery .11
©  ISO 1997
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case Postale 56 • CH-1211 Genève 20 • Switzerland
Internet [e-mail]
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Printed in Switzerland
ii
©
ISO
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
International Standard ISO 14315 was prepared by Technical Committee ISO/TC 24, Sieves, sieving and other
sizing methods, Subcommittee SC 3, Industrial wire screens.
iii
©
INTERNATIONAL STANDARD   ISO ISO 14315:1997(E)
Industrial wire screens – Technical requirements and
testing
1 Scope
This International Standard defines terms regarding metal wire screens for industrial screening purposes and
specifies tolerances, requirements and test methods.
It is applicable to pre-crimped or pressure-welded wire screens in accordance with ISO 4783-3, made of high-
tensile steel, stainless steel or other metal wires.
This International Standard is not applicable to industrial wire cloth in accordance with ISO 4783-2 (see
1)
ISO 9044:— , Industrial woven wire cloth — Technical requirements and testing).
2 Normative references
The following standards contain provisions which, through reference in this text, constitute provisions of this
International Standard. At the time of publication, the editions indicated were valid. All standards are subject to
revision, and parties to agreements based on this International Standard are encouraged to investigate the
possibility of applying the most recent editions of the standards listed below. Members of IEC and ISO maintain
registers of currently valid International Standards.
ISO 2194:1972, Wire screens and plate screens for industrial purposes — Nominal sizes of apertures.
ISO 4782:1989, Metal wire for wire screens and industrial wire cloth.
ISO 4783-1:1989, Industrial wire screens and industrial wire cloth — Guide to the choice of aperture size and wire
diameter combinations — Part 1: Generalities.
ISO 4783-3:1981, Industrial wire screens and industrial wire cloth — Guide to the choice of aperture size and wire
diameter combinations — Part 3: Preferred combinations for pre-crimped or pressure-welded wire screens.

1)  To be published. (Revision of ISO 9044:1990)
©
ISO
Figure 1 — Aperture width, wire diameter and pitch
3 Definitions
For the purposes of this International Standard, the following definitions apply.
3.1 aperture width, w
distance between two adjacent warp or weft wires, measured in the projected plane at mid positions (see figure 1)
3.2 wire diameter, d
diameter of the wire in the wire screen (see figure 1)
NOTE —  The wire diameter may be altered slightly during the manufacturing process of the wire screen.
3.3 pitch, p
1) distance between the middle points of two adjacent wires
2) nominally the sum of the aperture width w and the wire diameter d (see figure 1)
3.4 warp
all wires running lengthwise in the screen as manufactured
3.5 weft
all wires running crosswise in the screen as manufactured
3.6 number of apertures per unit length, n
number of apertures which are counted in a row, one behind the other on a given unit length
3.7 open screening area, A
o
1) percentage of the surface of all the apertures in the total screening surface
2) ratio of the square of the nominal aperture width w and the square of the nominal pitch p
p = (w+d), rounded to a full percentage value:
w
A = 100 (1)
o
()wd+
©
ISO
3.8 type of screen
way in which the warp and weft wires are pre-crimped or connected to each other to form the screen (see
ISO 4783-3:1981, table 1)
3.9 firmness of industrial wire screen
tension existing between the crossing warp and weft wires and which, together with the interlocking, determines the
firmness of the wire screen
NOTE —  It is affected by the tensile strength of the material, by the relationship of w to d, and by the type and the depth of the
crimp.
3.10 mass per unit area, ρ
A
That quantity calculated using the following equation:
df��r
ρ = (2)
A
618,1�+()wd
where
d is the wire diameter, in millimetres;
w is the aperture width, in millimetres;
f is the type conversion factor (see ISO 4783-3:1981, table 1);
ρ is the material density, in kilograms per cubic metre (see ISO 4783-1:1989, table 2).
NOTE —  Equation (2) gives the calculated mass per unit area (kg/m ), although the actual value can be up to 3 % lower.
3.11 major blemishes
production defects which significantly affect the aperture size or surface quality of the wire screen
4 Requirements
For requirements on aperture widths, on the metal wire and on aperture width/wire diameter combinations for wire
screens, see ISO 2194, ISO 4782, ISO 4783-1 and ISO 4783-3.
4.1 Tolerance on wire diameter
Prior to weaving, the tolerance on wire diameter shall be as specified in ISO 4782. The weaving process normally
distorts the wire and affects its diameter. After weaving, the diameter of the wire is untoleranced. The wire diameter
shall be measured as specified in 5.1.
4.2 Tolerances on aperture width
The tolerances on aperture width shall be as given in table 1.
NOTE In the following, the suffix "s" used with the symbols denotes "industrial wire screens".
4.2.1 Tolerance Y : Average aperture size
s
Y is the tolerance of the arithmetical mean value of the aperture widths measured and calculated separately in both
s
warp and weft directions. The arithmetical average aperture size shall not deviate from the nominal size by more
than ± Y .
s
©
ISO
4.2.2 Tolerance X : Maximum aperture size
s
No aperture size shall exceed the nominal size by more than the value X . This is the maximum permissible
s
deviation of a single aperture measured separately in both warp and weft directions.
Since, on the basis of experience, negative deviations of single aperture widths do not affect the screening process,
values for X have only positive deviations.
s
Table 1 — Tolerances on aperture width
Nominal aperture Tolerances on aperture
width w
...

INTERNATIONAL ISO
STANDARD 14315
First edition
1997-11-01
Industrial wire screens — Technical
requirements and testing
Tissus métalliques préformés ou soudés — Exigences techniques et
vérifications
Reference number
AA
Contents
1 Scope .1
2 Normative references .1
3 Definitions .2
4 Requirements.3
5 Test methods.8
6 Inspection documents.10
7 Ordering information.10
8 Delivery .11
©  ISO 1997
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case Postale 56 • CH-1211 Genève 20 • Switzerland
Internet [e-mail]
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Printed in Switzerland
ii
©
ISO
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
International Standard ISO 14315 was prepared by Technical Committee ISO/TC 24, Sieves, sieving and other
sizing methods, Subcommittee SC 3, Industrial wire screens.
iii
©
INTERNATIONAL STANDARD   ISO ISO 14315:1997(E)
Industrial wire screens – Technical requirements and
testing
1 Scope
This International Standard defines terms regarding metal wire screens for industrial screening purposes and
specifies tolerances, requirements and test methods.
It is applicable to pre-crimped or pressure-welded wire screens in accordance with ISO 4783-3, made of high-
tensile steel, stainless steel or other metal wires.
This International Standard is not applicable to industrial wire cloth in accordance with ISO 4783-2 (see
1)
ISO 9044:— , Industrial woven wire cloth — Technical requirements and testing).
2 Normative references
The following standards contain provisions which, through reference in this text, constitute provisions of this
International Standard. At the time of publication, the editions indicated were valid. All standards are subject to
revision, and parties to agreements based on this International Standard are encouraged to investigate the
possibility of applying the most recent editions of the standards listed below. Members of IEC and ISO maintain
registers of currently valid International Standards.
ISO 2194:1972, Wire screens and plate screens for industrial purposes — Nominal sizes of apertures.
ISO 4782:1989, Metal wire for wire screens and industrial wire cloth.
ISO 4783-1:1989, Industrial wire screens and industrial wire cloth — Guide to the choice of aperture size and wire
diameter combinations — Part 1: Generalities.
ISO 4783-3:1981, Industrial wire screens and industrial wire cloth — Guide to the choice of aperture size and wire
diameter combinations — Part 3: Preferred combinations for pre-crimped or pressure-welded wire screens.

1)  To be published. (Revision of ISO 9044:1990)
©
ISO
Figure 1 — Aperture width, wire diameter and pitch
3 Definitions
For the purposes of this International Standard, the following definitions apply.
3.1 aperture width, w
distance between two adjacent warp or weft wires, measured in the projected plane at mid positions (see figure 1)
3.2 wire diameter, d
diameter of the wire in the wire screen (see figure 1)
NOTE —  The wire diameter may be altered slightly during the manufacturing process of the wire screen.
3.3 pitch, p
1) distance between the middle points of two adjacent wires
2) nominally the sum of the aperture width w and the wire diameter d (see figure 1)
3.4 warp
all wires running lengthwise in the screen as manufactured
3.5 weft
all wires running crosswise in the screen as manufactured
3.6 number of apertures per unit length, n
number of apertures which are counted in a row, one behind the other on a given unit length
3.7 open screening area, A
o
1) percentage of the surface of all the apertures in the total screening surface
2) ratio of the square of the nominal aperture width w and the square of the nominal pitch p
p = (w+d), rounded to a full percentage value:
w
A = 100 (1)
o
()wd+
©
ISO
3.8 type of screen
way in which the warp and weft wires are pre-crimped or connected to each other to form the screen (see
ISO 4783-3:1981, table 1)
3.9 firmness of industrial wire screen
tension existing between the crossing warp and weft wires and which, together with the interlocking, determines the
firmness of the wire screen
NOTE —  It is affected by the tensile strength of the material, by the relationship of w to d, and by the type and the depth of the
crimp.
3.10 mass per unit area, ρ
A
That quantity calculated using the following equation:
df��r
ρ = (2)
A
618,1�+()wd
where
d is the wire diameter, in millimetres;
w is the aperture width, in millimetres;
f is the type conversion factor (see ISO 4783-3:1981, table 1);
ρ is the material density, in kilograms per cubic metre (see ISO 4783-1:1989, table 2).
NOTE —  Equation (2) gives the calculated mass per unit area (kg/m ), although the actual value can be up to 3 % lower.
3.11 major blemishes
production defects which significantly affect the aperture size or surface quality of the wire screen
4 Requirements
For requirements on aperture widths, on the metal wire and on aperture width/wire diameter combinations for wire
screens, see ISO 2194, ISO 4782, ISO 4783-1 and ISO 4783-3.
4.1 Tolerance on wire diameter
Prior to weaving, the tolerance on wire diameter shall be as specified in ISO 4782. The weaving process normally
distorts the wire and affects its diameter. After weaving, the diameter of the wire is untoleranced. The wire diameter
shall be measured as specified in 5.1.
4.2 Tolerances on aperture width
The tolerances on aperture width shall be as given in table 1.
NOTE In the following, the suffix "s" used with the symbols denotes "industrial wire screens".
4.2.1 Tolerance Y : Average aperture size
s
Y is the tolerance of the arithmetical mean value of the aperture widths measured and calculated separately in both
s
warp and weft directions. The arithmetical average aperture size shall not deviate from the nominal size by more
than ± Y .
s
©
ISO
4.2.2 Tolerance X : Maximum aperture size
s
No aperture size shall exceed the nominal size by more than the value X . This is the maximum permissible
s
deviation of a single aperture measured separately in both warp and weft directions.
Since, on the basis of experience, negative deviations of single aperture widths do not affect the screening process,
values for X have only positive deviations.
s
Table 1 — Tolerances on aperture width
Nominal aperture Tolerances on aperture
width w width
+X
–Y s
s
mm % %
2,5 5
125 Ä w > 63
63 Ä w > 31,5
31,5 Ä w > 16 3,5 8
16 Ä w > 8 4 10
8 Ä w > 4 5 13
4 Ä w > 2 5 16
2 Ä w Ä 15 20
4.3 Permissible number of major blemishes
4.3.1  Wire screens cannot be produced commercially without there being some manufacturing blemishes. The
manufacturer and the customer shall agree upon the number and nature of major blemishes which are permissible
per unit area of the wire screen. The percentage of yield of the screen shall be agreed o
...
