ISO 6760-1:2024

Optics and photonics - Test method for temperature coefficient of refractive index of optical glasses - Part 1: Minimum deviation method

This document specifies the measurement method used for calculating the temperature coefficient of the refractive index by measuring the refractive index, which changes with the temperature of the optical glass using the minimum deviation method. The intended temperature range for the specified measurement method is –40 °C to +80 °C. The intended wavelength range for the specified measurement method is 365 nm to 1 014 nm. The intended accuracy for the specified measurement method is 1 × 10-6 K-1.

Optique et photonique — Méthode d'essai pour déterminer le coefficient de température de l'indice de réfraction des verres optiques — Partie 1: Méthode de la déviation minimale

General Information

• Status: Published
• Publication Date: 05-May-2024
• ICS: 37.020 - Optical equipment
• Technical Committee: ISO/TC 172/SC 3 - Optical materials and components
• Drafting Committee: ISO/TC 172/SC 3 - Optical materials and components
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 14-Jul-2025
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO 6760-1:2025 - Optics and photonics - Test method for temperature coefficient of refractive index of optical glasses - Part 1: Minimum deviation method
• Effective Date: 24-Aug-2024

Overview

ISO 6760-1:2024 - "Optics and photonics - Test method for temperature coefficient of refractive index of optical glasses - Part 1: Minimum deviation method" defines a standardized laboratory method to measure how the refractive index of optical glass changes with temperature. The standard uses the well-established minimum deviation method (prism-based) to determine the temperature coefficient of refractive index (Δn/ΔT) over a specified temperature and wavelength range, with high metrological accuracy for optical materials and components.

Key topics and technical requirements

• Measurement principle
  • Refractive index is obtained from prism minimum-deviation measurements at two or more temperatures; Δn/ΔT is calculated from the change in refractive index divided by the temperature change.
• Intended ranges and accuracy
  • Temperature range: –40 °C to +80 °C
  • Wavelength range: 365 nm to 1 014 nm
  • Target measurement accuracy: 1 × 10−6 K−1
• Apparatus and environmental controls
  • Use of a goniometer, collimated light source and detector per ISO 21395-1.
  • Specimen prism placed inside a thermal chamber capable of controlled temperature changes and uniformity.
  • Chamber requirements include:
    • Temperature distribution within ±1.0 K during ramping
    • Thermometer accuracy ±0.2 K
    • Ability to achieve vacuum < 10 Pa to make the refractive-index-of-air negligible and avoid condensation
    • Optical windows: quartz parallel plates, wedge ≤ 5 arc sec, flatness λ/10
• Measurement steps
  • Measure apex angle of prism and minimum deviation angle at each temperature (with correction from apparent air measurement to vacuum to obtain absolute refractive index).
  • Calculate absolute and relative refractive-index temperature coefficients and report per the document’s test-report requirements.
• Annexes and alternatives
  • Includes formulas for air refractive index, methods to compute relative refractive index at arbitrary pressure/humidity, a half‑prism alternative (Annex C), interpolation methods and derivations.

Practical applications and users

ISO 6760-1 is relevant for:

• Optical glass manufacturers validating thermo‑optical properties
• Metrology and calibration laboratories performing certified Δn/ΔT measurements
• Optical designers and systems engineers (cameras, microscopes, telescopes, lithography optics) assessing temperature sensitivity of optical assemblies
• R&D and quality assurance teams selecting glass types for stable performance across temperature ranges

Practical benefits include consistent, comparable Δn/ΔT data for lens design, thermal compensation analysis, material selection and contractual test reporting.

Related standards

• ISO 21395-1:2020 - Minimum deviation method for refractive index of optical glasses (measurement procedures and apparatus)
• ISO 21395-2 - V‑block refractometer method (other refractive-index methods referenced in the series)
• ISO 9802 - Definitions related to temperature coefficient terminology

Keywords: ISO 6760-1, temperature coefficient of refractive index, refractive index temperature dependence, optical glass, minimum deviation method, thermal chamber, optical metrology.

Standards Content (Sample)

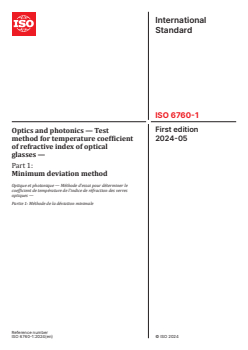

International
Standard
ISO 6760-1
First edition
Optics and photonics — Test
2024-05
method for temperature coefficient
of refractive index of optical
glasses —
Part 1:
Minimum deviation method
Optique et photonique — Méthode d'essai pour déterminer le
coefficient de température de l'indice de réfraction des verres
optiques —
Partie 1: Méthode de la déviation minimale
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

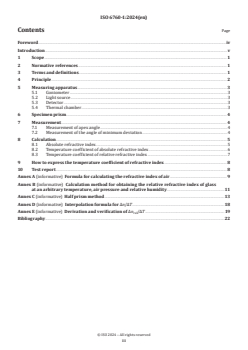

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Measuring apparatus . 3
5.1 Goniometer .3
5.2 Light source .3
5.3 Detector .3
5.4 Thermal chamber .3
6 Specimen prism . 4
7 Measurement . 4
7.1 Measurement of apex angle . .4
7.2 Measurement of the angle of minimum deviation .4
8 Calculation . 5
8.1 Absolute refractive index .5
8.2 Temperature coefficient of absolute refractive index .6
8.3 Temperature coefficient of relative refractive index .7
9 How to express the temperature coefficient of refractive index . 8
10 Test report . 8
Annex A (informative) Formula for calculating the refractive index of air . 9
Annex B (informative) Calculation method for obtaining the relative refractive index of glass
at an arbitrary temperature, air pressure and relative humidity .11
Annex C (informative) Half prism method .13
Annex D (informative) Interpolation formula for Δn/ΔT .18
Annex E (informative) Derivation and verification of Δn /ΔT . 19
rel
Bibliography .22

iii

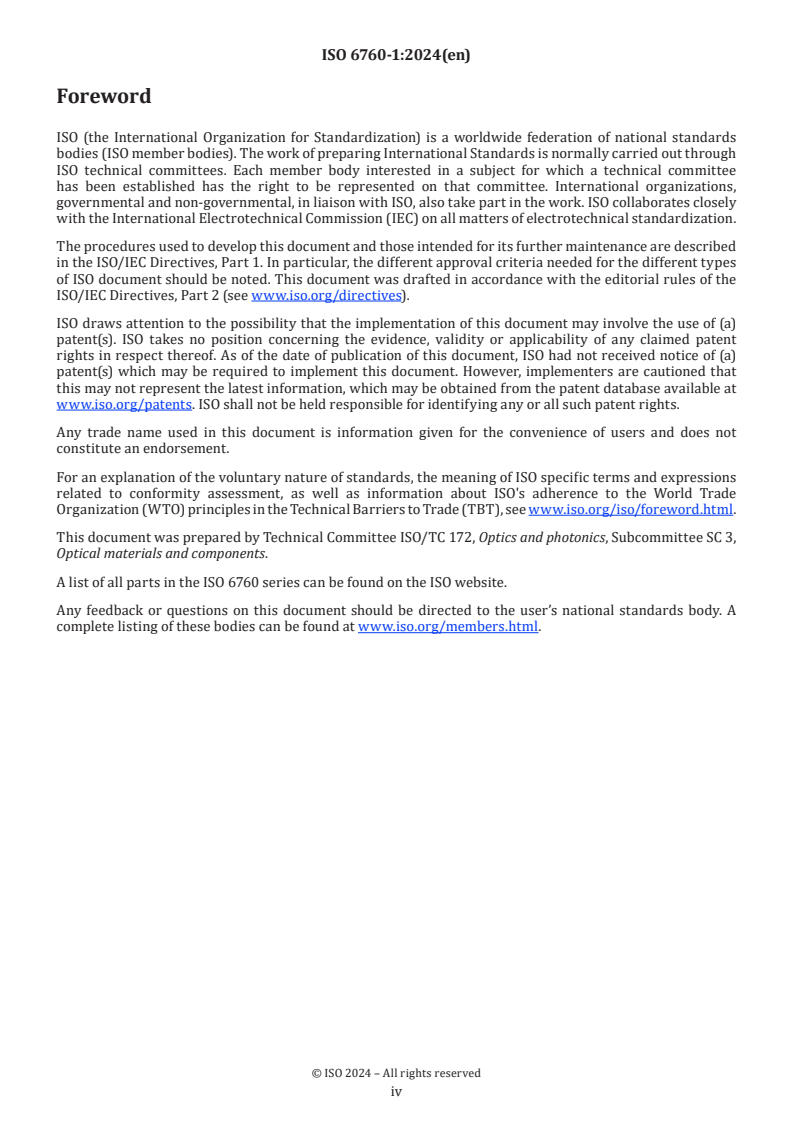

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 172, Optics and photonics, Subcommittee SC 3,
Optical materials and components.
A list of all parts in the ISO 6760 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Optical glass is widely used in optical devices such as cameras, telescopes, and microscopes, and its refractive
index is measured by the minimum deviation method (see ISO 21395-1) and the V-block refractometer
[4]
method (see ISO 21395-2 ). Here, when designing an optical apparatus that requires high resolution, it
is necessary to consider the temperature change of the refractive index of the optical glass in the usage
environment, however up until now, there is no International Standard. In view of the above situation,
this document proposes a method for measuring the temperature coefficient of refractive index of optical
glass with high accuracy, aiming to help mutual understanding of measured value users and contribute to
efficiency and fairness.
v
International Standard ISO 6760-1:2024(en)
Optics and photonics — Test method for temperature
coefficient of refractive index of optical glasses —
Part 1:
Minimum deviation method
1 Scope
This document specifies the measurement method used for calculating the temperature coefficient of the
refractive index by measuring the refractive index, which changes with the temperature of the optical glass
using the minimum deviation method.
The intended temperature range for the specified measurement method is –40 °C to +80 °C.
The intended wavelength range for the specified measurement method is 365 nm to 1 014 nm.
-6 -1
The intended accuracy for the specified measurement method is 1 × 10 K .
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 21395-1:2020, Optics and photonics — Test method for refractive index of optical glasses — Part 1: Minimum
deviation method
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
temperature coefficient of refractive index
ratio of refractive index change to temperature change at a selected wavelength
[2]
Note 1 to entry: Similar to ISO 9802 .
3.2
temperature coefficient of absolute refractive index
Δn /ΔT
abs
ratio of refractive index change in vacuum to temperature change at a selected wavelength
[2]
[SOURCE: ISO 9802:2022 , 3.4.2.3]

3.3
temperature coefficient of relative refractive index
Δn /ΔT
rel
ratio of refractive index change at an air pressure of 1,013 3 × 10 Pa and a relative humidity of 0 % to
temperature change at a selected wavelength
[2] 5
[SOURCE: ISO 9802:2022 , 3.4.2.4, modified — 1,013 3 × 10 Pa and a relative humidity of 0 %.]
Note 1 to entry: This definition of Δn /ΔT is for a specific pressure and humidity. Δn /ΔT can be calculated for any
rel rel
other pressure and humidity by understanding the index of air in those conditions.
3.4
thermal chamber
chamber where the temperature of the specimen can be changed and maintained to a preset temperature
4 Principle
As shown in Figure 1, a specimen prism is placed in a thermal chamber. The temperature of the specimen
prism is changed from T to T or from T to T , and the refractive index of the specimen prism is measured at
1 2 2 1
the temperatures of T and T respectively, in accordance with the method described in ISO 21395-1 to find
1 2
the temperature coefficient of refractive index. Figure 2 shows the concept of calculating this temperature
coefficient of refractive index.
NOTE 1 In this document the term “light” is used to describe not only optical radiation visible to the human eye but
also radiation in the infrared and ultraviolet spectrum.
NOTE 2 In this document, all temperature symbols are represented by "T". The original symbol for temperature in
ISO 80000-5 is "t" or "ϑ " for temperature in Celsius degrees, and "T" for absolute temperature.
NOTE 3 Alternatively the measurement principle according to Annex C can be applied.
Key
1 light source 7 thermal chamber containing the specimen prism
2 collimator 8 specimen prism
3 incident light 9 transmitted light
4 goniometer containing the telescope and detector 10 telescope
5 window 11 detector
6 rotating stage containing the thermal chamber 12 thermometer
Figure 1 — Measurement set-up with thermal chamber

Δn nn−
=
ΔT TT−
Key
X temperature
Y refractive index
T , T temperature of specimen prism
1 2
n refractive index of specimen prism at temperature T
1 1
n refractive index of specimen prism at temperature T
2 2
Figure 2 — Conceptual diagram for calculation of temperature coefficient of refractive index
5 Measuring apparatus
5.1 Goniometer
The goniometer shall be in accordance with ISO 21395-1:2020, 5.2.
5.2 Light source
The light source shall be in accordance with ISO 21395-1:2020, 5.3.
5.3 Detector
The detector shall be in accordance with ISO 21395-1:2020, 5.4.
5.4 Thermal chamber
The thermal chamber shall follow the requirements below. An example of a thermal chamber is shown in
Figure 3. The thermal chamber shall
a) have the ability to change the temperature of the specimen prism between the temperatures to be
measured,
b) have a structure that can maintain the temperature distribution in the specimen within the range of
1,0 K during raising and lowering of the temperature,
c) have a thermometer to measure the temperature of the specimen prism with an accuracy of ±0,2 K or better,
d) have the ability to provide a vacuum with a residual pressure of less than 10 Pa for the purpose of having
a negligible influence of the refractive index of air and of preventing condensation, and
e) have windows made of a parallel plate of quartz glass polished on both sides. The wedge angle between
the parallel polished faces shall not exceed 5 arc sec, the flatness of the parallel polished faces shall be
λ/10 or better.
NOTE Quartz glass is used because it has a high transmittance over a wide wavelength range, a high durability
against temperature changes, and is resistant to breakage.
Key
1 window 7 vacuum gauge
a
2 specimen prism Incident light.
b
3 thermometer Outgoing light.
c
4 thermal conductor specimen holder Leak inlet.
d
5 heating and cooling unit To vacuum pump.
6 three-way valve
Figure 3 — Example of thermal chamber
6 Specimen prism
The specimen prism shall be in accordance with ISO 21395-1:2020, Clause 6.
7 Measurement
7.1 Measurement of apex angle
The apex angle of the specimen prism shall be measured in accordance with ISO 21395-1:2020, 8.2.
7.2 Measurement of the angle of minimum deviation
The angle of minimum deviation of the specimen prism shall be measured at two or more temperatures in
accordance with ISO 21395-1:2020, 8.3.
The bisector of the apex angle, α, is parallel to the bisector of the angle, β, formed by the opposite two-
surface window of the thermal chamber. (See Figure 4)

The degree of vacuum around the specimen prism shall be less than 10 Pa. The minimum deviation angle
should be measured at a temperature within ±0,5 °C with respect to the target temperature.
NOTE 1 Allowable measurement error is an error in the measurement of the refractive index. When the allowable
-6
measurement error is smaller than 0,5 × 10 , the allowable angle difference between the bisectors of α and β is within
-5
2°; when the allowable measurement error is smaller than 0,5 × 10 , the allowable angle difference between the
bisectors of α and β is within 6°.
NOTE 2 The temperature to be measured is arbitrary. Allow sufficient time for the specimen prism to reach a
uniform temperature throughout. In most cases, the temperatures measured are -40 °C, -20 °C, 0 °C, 20 °C, 40 °C, 60 °C
and 80 °C.
8 Calculation
8.1 Absolute refractive index
The absolute refractive index at each temperature of the specimen prism shall be calculated by Formula (1)
(adaptation of ISO 21395-1:2020, Clause 4).
αδ + ()T
 
min,vac
sin
 
 
nT = (1)
()
abs
α
 
sin
 
 2 
where
n (T) is the absolute refractive index of specimen prism at temperature T;
abs
α is the apex angle of the specimen prism;
δ (T) is the minimum deviation angle at temperature T;
min,vac
T is the temperature (°C) of the specimen prism during the measurement (°C).
NOTE In ISO 21395-1 the measurements are performed in air, therefore the refractive index n obtained is the
relative refractive index. In this document, the measurements are performed in vacuum, and therefore the result
obtained by Formula (1) is the absolute refractive index.
Figure 4 shows a schematic drawing of the light path through the thermal chamber windows and the
specimen prism. The internal and external environments are air and vacuum respectively. As a consequence,
light transmitted through a parallel window at non-normal incidence will be deflected.
Consequently the minimum angle of deflection in vacuum δ must be calculated using the correction
min,vac
Formula (2) to the observed angle of minimum deflection in air δ .
min,air
Key
1 light beam 6 bisector of the specimen prism apex angle
2 air condition 7 bisector of angle formed by the opposite two-surface
window of thermal chamber
3 vacuum condition α apex angle
4 window β angle formed by the opposite two-surface window of
thermal chamber
5 specimen prism δ δ , apparent minimum deviation angle in air
1 min,air
δ δ , minimum deviation angle in vacuum
2 min,vac
Figure 4 — Schematic drawing of light path through, input window, prism and output window
The angle of minimum deflection in vacuum δ shall be calculated from the observed angle of minimum
min,vac
deflection in air δmin,air using Formula (2).
δ
  
β
min ,air
δ =×2 arc sinsn ×− in ++ β (2)
 
min ,vac  air 
  
where
n Is the refractive index of air;
air
δ is the minimum deviation angle in vacuum;
min,vac
δ is the apparent minimum deviation angle in air;
min,air
β is the angle formed by the opposite two-surface window of the thermal chamber.
8.2 Temperature coefficient of absolute refractive index
The temperature coefficient of the absolute refractive index between the temperatures of specimen prism
T and T shall be calculated by Formula (3).
1 2
Δn nT() − nT()
absabs 21abs
= (3)
ΔT TT −
where
-1
Δn is the temperature coefficient (K ) of absolute refractive index of the specimen prism;
abs
ΔT
n (T ), n (T ) is the absolute refractive index of the specimen prism at temperature T , T ;
abs 1 abs 2 1 2
T , T are the temperatures of the specimen prism (°C).
1 2
NOTE 1 T , T and T -T (ΔT) are arbitrary. In most cases T and T are the temperatures at 6 points shown in 7.2,
1 2 2 1 1 2
and ΔT is 20 K.
NOTE 2 Alternatively, the absolute temperature coefficient of the absolute refractive index can be calculated using
Formula (D.3).
8.3 Temperature coefficient of relative refractive index
The temperature coefficient of the relative refractive index of the specimen prism between the temperatures
T and T shall be calculated by Formula (4).
1 2
For the calculation of the temperature coefficient of the relative refractive index of the specimen, the
temperature coefficient of the refractive index of air at a pressure of 1,013 25 × 10 Pa a relative humidity of
0 % and the individual temperatures T and T should be used.
1 2
Temperature coefficients of relative refractive index for a number of well-known spectral wavelength lines
are shown in Table 1. For additional wavelengths, the temperature coefficient of relative refractive index can
be calculated using the refractive index of air, obtained by Formula (A.1).
NOTE 1 Formula (4) is an approximation. The derivation and a proof that the approximation is of negligible
influence is given in Annex E.
NOTE 2 The calculation method for determining the relative refractive index of glass at any given temperature,
pressure, and relative humidity is shown in Annex B.
Δn Δn nT() + nT() Δn
relabs absa12bs air
=−  × (4)
ΔT ΔT 2 ΔT
where
Δn
-1
rel
is the temperature coefficient (K ) of relative refractive index of the specimen prism;
ΔT
Δn
-1
abs
is the temperature coefficient (K ) of absolute refractive index of the specimen prism;
ΔT
Δn
air
-1
is the temperature coefficient (K ) of refractive index of air.
ΔT
Table 1 — Temperature coefficient of refractive index of air (air pressure 1,013 25 × 10 Pa, relative
humidity 0 %)
-6
Δn /ΔT(10 /K)
air
in the temperature range of
Wavelength
Spectral line
nm
–40 °C to –20 °C to 0 °C to 20 °C to 40 °C to 60 °C to
20 °C 0 °C 20 °C 40 °C 60 °C 80 °C
i 365,01 –1,40 –1,19 –1,03 –0,90 –0,79 –0,70
h 404,66 –1,38 –1,18 –1,02 –0,89 –0,78 –0,69
g 435,83 –1,38 –1,17 –1,01 –0,89 –0,78 –0,69
F' 479,99 –1,37 –1,17 –1,01 –0,88 –0,77 –0,69
F 486,13 –1,37 –1,17 –1,01 –0,88 –0,77 –0,69

TTabablele 1 1 ((ccoonnttiinnueuedd))
-6
Δn /ΔT(10 /K)
air
i
...
