ISO/IEC 20944-3:2013

Information technology - Metadata Registries Interoperability and Bindings (MDR-IB) - Part 3: API bindings

The ISO/IEC 20944 series of International Standards provides the bindings and their interoperability for metadata registries, such as those specified in the ISO/IEC 11179 series of International Standards. ISO/IEC 20944-3:2013 contains provisions that are common to application programming interface (API) bindings and the API bindings themselves. The API bindings have commonality in their conceptualization of the services provided. Common features include: using a session paradigm to access data; using a parameterized security framework to support a variety of security techniques; using a hierarchical navigation for data access. Bindings for C, Java, and ECMAscript programming languages are provided.

Technologies de l'information — Interopérabilité et liaisons des registres de métadonnées (MDR-IB) — Partie 3: Liaisons API

General Information

• Status: Published
• Publication Date: 07-Jan-2013
• ICS: 35.040 - Information coding
• ICS: 35.040.50 - Automatic identification and data capture techniques
• Technical Committee: ISO/IEC JTC 1/SC 32 - Data management and interchange
• Drafting Committee: ISO/IEC JTC 1/SC 32/WG 2 - MetaData
• Current Stage: 9093 - International Standard confirmed
• Start Date: 03-Dec-2024
• Completion Date: 30-Oct-2025

Overview

ISO/IEC 20944-3:2013 - part of the MDR-IB (Metadata Registries Interoperability and Bindings) series - defines standardized API bindings for interacting with metadata registries (MDRs), such as those specified in ISO/IEC 11179. The standard establishes a common abstract model, service set, security framework, and language-specific bindings (C, Java, ECMAScript) so that portable client programs can access conformant MDR repositories consistently across platforms.

Key Topics and Technical Requirements

• Abstract model and services
  • Defines a common conceptualization of services: session establishment, session parameters, security services, data transfer, and miscellaneous management services.
  • Uses ISO/IEC 13886 notation (language‑independent procedure calling) to describe interfaces.
• Session paradigm
  • APIs are session-based with defined states (initial, ready, authentication‑authorization, data transfer, end) and events (connect, open, close, disconnect, request/response).
• Security framework
  • Parameterized, pluggable security using a Request‑Response Authorization‑Authentication (RRAA) pattern. Implementations can support diverse authentication/authorization technologies without requiring client recompilation.
• Hierarchical navigation
  • Data access uses hierarchical navigation paths based on Uniform Resource Identifiers (RFC 3986). Both absolute and relative paths are supported.
• Language bindings and mappings
  • Detailed datatype and procedure mappings for C, Java, and ECMAScript, including function signatures, return/exception handling, and conformance label prefixes.
• Conformance and administration
  • Specifies an API conformance paradigm, conformance labels, and environment/application conformance considerations to promote interoperability.

Keywords: ISO/IEC 20944-3, MDR-IB, Metadata Registries, API bindings, session paradigm, RRAA, hierarchical URIs, C API, Java API, ECMAScript API.

Practical Applications

• Build portable client libraries and tools that query, navigate, and manage metadata registries across diverse environments.
• Enable interoperability among registry implementations from different vendors by following a common API contract.
• Support data governance and metadata management platforms that need standardized programmatic access to MDRs.
• Integrate MDR access into web applications (ECMAScript), enterprise systems (Java), or system-level tools (C) using the specified bindings.

Who Should Use This Standard

• Software developers and architects implementing MDR clients or registry servers
• Vendors of metadata management, data governance, and cataloguing tools
• Systems integrators and enterprise architects who require portable, standards-based metadata access
• Standards and compliance teams assessing MDR interoperability

Related Standards

• ISO/IEC 20944-1 (Framework and conformance)
• ISO/IEC 20944 series (coding, protocol, profiles)
• ISO/IEC 11179 (metadata registry conceptual model)
• ISO/IEC 13886 (LIPC notation), RFC 3986 (URI syntax), ISO/IEC 9899 (C), ISO/IEC 16262 (ECMAScript)

Using ISO/IEC 20944-3 helps organizations implement robust, interoperable MDR APIs that promote portability, secure access, and consistent metadata navigation.

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 20944-3
First edition
2013-01-15
Information technology — Metadata
Registries Interoperability and Bindings
(MDR-IB) —
Part 3:
API bindings
Technologies de l'information — Interopérabilité et liaisons des registres
de métadonnées (MDR-IB) —
Partie 3: Liaisons API
Reference number
©
ISO/IEC 2013
©  ISO/IEC 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2013 – All rights reserved

Contents Page
Foreword . v
Introduction . vi
1  Scope . 1
2  Normative references . 1
3  Terms and definitions . 1
4  Intended use of this part of ISO/IEC 20944 . 1
5  Abstract model . 2
5.1  General . 2
5.2  Session paradigm . 2
5.3  Security framework . 3
5.4  Hierarchical navigation paths . 3
6  Services . 4
6.1  Use of ISO/IEC 13886 . 4
6.2  Session establishment services . 4
6.3  Session parameter services . 8
6.4  Security services . 9
6.5  Data transfer services . 11
6.6  Miscellaneous . 21
7  Bindings . 26
8  Administration . 26
9  Conformance . 26
9.1  API conformance paradigm . 26
9.2  API application . 26
9.3  API environment . 26
9.4  Conformance labels . 27
10  Reserved for future standardization . 27
11  C API binding . 27
11.1  Datatype mapping . 27
11.2  Function parameter mapping . 28
11.3  Function return mapping . 28
11.4  Function exception mapping . 28
11.5  Procedure call signatures . 28
11.6  Error/exception returns. 36
11.7  Conformance label prefix . 37
12  Java API binding . 37
12.1  Datatype mapping . 37
12.2  Function parameter mapping . 37
12.3  Function return mapping . 38
12.4  Function exception mapping . 38
12.5  Procedure call signatures . 38
12.6  Error/exception returns. 44
12.7  Conformance label prefix . 45
13  ECMAScript API binding . 45
13.1  Datatype mapping . 45
13.2  Function parameter mapping . 45
© ISO/IEC 2013 – All rights reserved iii

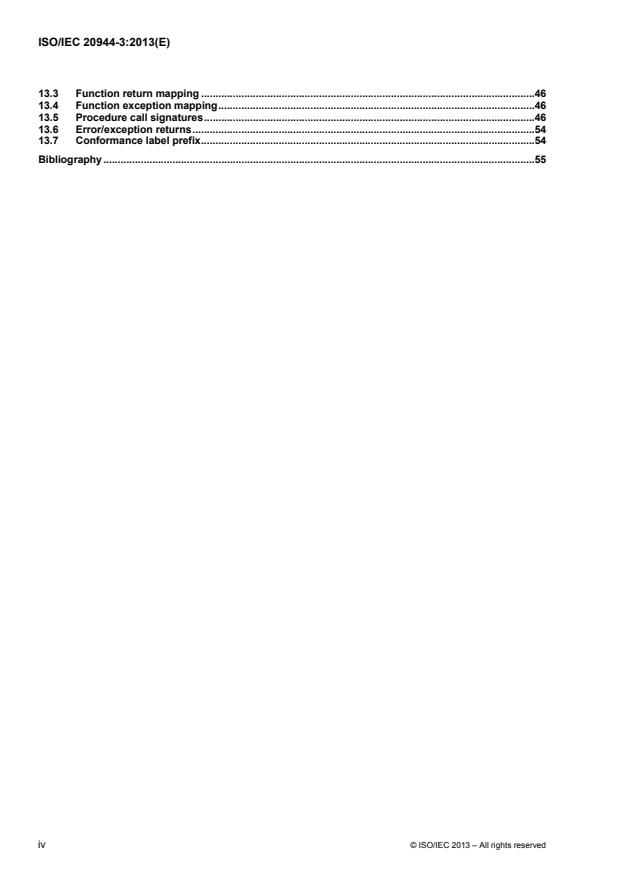

13.3  Function return mapping .46
13.4  Function exception mapping .46
13.5  Procedure call signatures .46
13.6  Error/exception returns .54
13.7  Conformance label prefix .54
Bibliography .55

iv © ISO/IEC 2013 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 20944-3 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 32, Data management and interchange.
ISO/IEC 20944 consists of the following parts, under the general title Information technology — Metadata
Registries Interoperability and Bindings (MDR-IB):
 Part 1: Framework, common vocabulary, and common provisions for conformance
 Part 2: Coding bindings
 Part 3: API bindings
 Part 4: Protocol bindings
 Part 5: Profiles
© ISO/IEC 2013 – All rights reserved v

Introduction
The ISO/IEC 20944 series of International Standards provides the bindings and their interoperability for
metadata registries, such as those specified in the ISO/IEC 11179 series of International Standards.
This part of ISO/IEC 20944 contains provisions that are common to API bindings (Clauses 4-10) and the API
bindings themselves (Clause 11 onward). The API bindings have commonality in their conceptualization of the
services provided. For example, common features include:
 using a session paradigm to access data;
 using a parameterized security framework to support a variety of security techniques;
 using a hierarchical navigation for data access.
Clause 11 and onward are the actual API bindings themselves. The clauses of this part of ISO/IEC 20944 are
organized such that future amendments are possible, which would include additional API bindings.

vi © ISO/IEC 2013 – All rights reserved

INTERNATIONAL STANDARD ISO/IEC 20944-3:2013(E)

Information technology — Metadata Registries Interoperability
and Bindings (MDR-IB) —
Part 3:
API bindings
1 Scope
The ISO/IEC 20944 series of International Standards describes codings, application programming interfaces
(APIs), and protocols for interacting with an ISO/IEC 11179 metadata registry (MDR).
This part of ISO/IEC 20944 specifies provisions that are common across API bindings for the ISO/IEC 20944
series of International Standards, and provides the individual API bindings themselves.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 9899:1999, Programming languages — C
ISO/IEC 11404:2007, Information technology — General-Purpose Datatypes (GPD)
ISO/IEC 13886:1996, Information technology — Language-Independent Procedure Calling (LIPC)
ISO/IEC 16262, Information technology — Programming languages, their environments and system software
interfaces — ECMAScript language specification
ISO/IEC 20944-1:2013, Information technology — Metadata Registries Interoperability and Bindings
(MDR-IB) — Part 1: Framework, common vocabulary, and common provisions for conformance
IETF RFC 3986, Uniform Resource Identifier (URI): Generic Syntax, January 2005
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 20944-1 apply.
4 Intended use of this part of ISO/IEC 20944
The purpose of this part of ISO/IEC 20944 is to provide a common set of services (common API provisions)
and standardized API bindings such that portable programs can be written to access the MDR repositories.
These programs are portable in the sense that the same program should behave similarly across all operating
environments and the same program should be able to access MDR repositories that conform to this
International Standard.
© ISO/IEC 2013 – All rights reserved 1

5 Abstract model
5.1 General
The API bindings have commonality in their conceptualization of data access services. For example, common
features include:
 using a session paradigm to access data
 using a parameterized security framework to support a variety of security techniques
 using a hierarchical navigation for data access

5.2 Session paradigm
The following state diagram describes the different states of the services:

The states are:
 initial state: The initial state of an instance of the API.
 end state: The final state of an instance of the API.
 ready: The API is ready to for service requests.
 authentication-authorization: The API is processing an authentication-authorization request.
 data transfer: The API is processing a data transfer request.
The events are:
 connect: Setting up the initial connection.
 open: Adding more parameters to create a new handle and the context of a current node path for that
handle.
 close: Destroying a handle created by open.
 disconnect: Knocking down a connection.
2 © ISO/IEC 2013 – All rights reserved

 request: A data transfer request.
 response: A data transfer response.
 auth request: An authentication-authorization request.
 auth response: An authentication-authorization response.
5.3 Security framework
The security framework provides a common technique for accessing security services and supports a
common technique for implementing security services.
The common accessing technique uses the Request-Response Authorization-Authentication (RRAA) services.
In the RRAA services, a Request is places for authorization, authentication, or some other security service.
The Request provides the data, as required for the particular RRAA service. The RRAA service then provides
a Response to the request. The services are symmetric in that both the API application (e.g., the program
using the API) and the API environment (e.g., the underlying services and infrastructure) may each make
requests of the other party, i.e., the API application can make requests to the API environment, and the API
environment can make requests to the API application.
The supporting infrastructure should provide a run-time, dynamically configurable selection of RRAA services
such that programs do not need to be recompiled or re-linked to take advantage of a new RRAA services or
new security technologies .
This International Standard makes no requirements for a particular set of security services. The available
services are implementation-defined.
5.4 Hierarchical navigation paths
The API services may access data via hierarchical navigation paths . The navigation paths are based upon
Uniform Resource Identifiers, as defined in RFC 3986. Absolute paths, which start at the top of a repository,
are specified in subclause 3.3 of RFC 3986 under "absolute paths". Relative paths, which are relative to the
current path , are specified in subclause 5 of RFC 3986 under "relative URIs".
The common accessing technique uses the Request-Response Authorization-Authentication (RRAA) services.
In the RRAA services, a Request is places for authorization, authentication, or some other security service.
The Request provides the data, as required for the particular RRAA service. The RRAA service then provides
a Response to the request. The services are symmetric in that both the API application (e.g., the program
using the API) and the API environment (e.g., the underlying services and infrastructure) may each make
requests of the other party, i.e., the API application can make requests to the API environment, and the API
environment can make requests to the API application.

See the white paper "Making Login Services Independent of Authentication Technologies", by Vipin Samar and
Charlie Lai, that was presented at the Third ACM Conference on Computer Communications and Security (1996-03),
which is available at
http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.117.8767&rep=rep1&type=pdf
and the supporting API framework and services of Pluggable Authentication Modules (PAM) at
http://en.wikipedia.org/wiki/Pluggable_Authentication_Modules
A hierarchical navigation path does not imply that the internal structure of data is hierarchical itself.
See Get Path and Put Path services in subclause 6.3.
© ISO/IEC 2013 – All rights reserved 3

6 Services
6.1 Use of ISO/IEC 13886
The notation of ISO/IEC 13886 Language-Independent Procedure Calls is used to describe service interfaces.
6.2 Session establishment services
The following services start up and shut down sessions with the metadata registries.
6.2.1 System information
Synopsis
mdrib_system_info:
procedure
(
in session: mdrib_handle // session handle
)
returns characterstring,
Description
The mdrib_system_info service retrieves implementation-defined newline terminated, name-value pairs
regarding the current configuration, limitations, and parameters of the session in mdrib_handle. If
mdrib_handle is NULL, the information is for all sessions.
The following parameters are available on all implementations:
 "apistyle=xxx", where "xxx" is one of "synchronous" (API always blocks waiting for return), "nonblock" (API
always returns immediately), "interrupt" (API interrupts when complete), "callback" (API performs callback
when complete)
Example
// C/C++ illustration
printf(NULL, "mdrib configuiration:\n%s", mdrib_system_info());

// sample output
maximum_input_string=4095
supported_types=str8,int,char,long
version_info=3.17
version_description="C implementation with LDAP backend"
6.2.2 Configuration
Synopsis
// values accessible via "._system_info" identifier
data_object_identifier_length // Maximum supported data object identifier length
datatype_family_support // List of families supported
identifier_character_family_support // Allowed data object identifier characters
navigation_identifier_max // Maximum hierarchical navigation identifier length
session_max: Maximum number of simultaneous opened sessions
octet_transfer_max: // Maximum octets of data for a data object

// error codes accessible via "._error_family" and "._error_list"
error_family // Name of error code system
error_list // List of error codes and meanings
4 © ISO/IEC 2013 – All rights reserved

Description
The configuration features are accessible via Get and Put services via the identifiers "._system_info",
"._error_family", and "._error_list".
Example
// C/C++ illustration
if ( strcmp(mdrib_get_value_as_str8(NULL,"._error_family",0,0,NULL),"POSIX") == 0 )
{
// Error returns/handling are based upon POSIX standard
// .
}
6.2.3 Connect
Synopsis
mdrib_connect:
procedure
(
in target: characterstring, // repository to connect to
in options: characterstring, // connect options
)
returns mdrib_handle,
Description
Creates a new session to a data repository as named by target, an implementation-defined characterstring.
The options parameter is a whitespace-separated list of name-value pairs that describe an implementation-
defined set of connection options. Whitespace inside double-quoted characterstrings is escaped, i.e., this
whitespace does not function as a name-value separator. If successful, returns a session handle to the
repository, but does not request access (see mdrib_open). If not successful, returns a null session handle.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=\"j k\" option_y=q option_z"); // note: option_x has the value "j k"
if ( sh != NULL )
{
ch = mdrib_open(sh,"postal_address","read-only");
// .
mdrib_close(ch);
// .
mdrib_disconnect(sh);
}
It is possible to combine connect, open, get, and close services in a single line of programming to give a state-less
style of programming:
value = mdrib_get_as_str8( handle = mdrib_open( mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z"), "open options"), "city_name"), mdrib_close(handle);
© ISO/IEC 2013 – All rights reserved 5

6.2.4 Disconnect
Synopsis
mdrib_disconnect:
procedure
(
in session: mdrib_handle // session handle
)
returns (state(success,failure)),

Description
Closes and disconnects a session to a data repository associated with the handle session and all of its child
sessions. Returns success if successful, failure if unsuccessful.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
// . open session threads
// . access metadata
// . close session threads
mdrib_disconnect(sh);
6.2.5 Open
Synopsis
mdrib_open:
procedure
(
in session: mdrib_handle, // session handle
in node: characterstring, // portion of repository to open
in options: characterstring, // open options
)
returns (mdrib_handle),
Description
Opens a child session within a session to data repository, as pointed to by the handle session.
The node parameter is the name of a portion of the repository — a view. If node is the empty string (""), then
the child session is a duplicate session of the parent session. The partitioning and naming of contents of
repositories is implementation-defined.
The options parameter is a whitespace-separated list of name-value pairs that describe a set of options from
the following list:
 "read-only" (or "ro" or "r"): The child session is opened with read-only access.
 "read-write" (or "rw"): The child session is opened with read-write access.
 "read-seq" (or "rs"): The child session is opened with read sequential access. This option may be
followed by the sub-option "ordering=xxx" where "xxx" may be "breadth", "depth",
"alphasort", or "datesort".
 "write-seq" (or "ws"): The child session is opened with write sequential access.
6 © ISO/IEC 2013 – All rights reserved

 "append" (or "a"): The child session is opened for write-append access.
 "inherit" (or ""): The child session inherits the characteristics of the parent session.

If mdrib_open is successful, it returns a handle to the child session. If not successful, it returns a null handle.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( sh != NULL )
{
ch = mdrib_open(sh,"postal_address","read-only");
// .
mdrib_close(ch);
// .
mdrib_disconnect(sh);
}
6.2.6 Close
Synopsis
mdrib_close:
procedure
(
in mdrib_handle: session, // session handle
)
returns (state(success,failure)),

Description
Closes a session associated with the handle session and all of its child sessions. Returns success if
successful, failure if unsuccessful.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( sh != NULL )
{
ch = mdrib_open(sh,"postal_address","read-only");
// .
mdrib_close(ch);
// .
mdrib_disconnect(sh);
}
© ISO/IEC 2013 – All rights reserved 7

6.3 Session parameter services
The following services may be used to modify and retrieve the parameters of the session.
6.3.1 Get path
Synopsis
mdrib_get_path:
procedure
(
in session: mdrib_handle, // session handle
)
returns (characterstring),
Description
Retrieves the current node path for the session mdrib_handle.
If mdrib_get_path is successful, it returns a string containing the current node path; otherwise, error return is
indicated by a return of a null pointer (not an empty string).
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( sh != NULL )
{
// open "postal_address"
ch = mdrib_open(sh,"postal_address","read-only");
// change path to "city"
mdrib_put_path(ch,"city");
// retrieve path, should be "city"
new_path = mdrib_get_path(ch);
if ( new_path != "city" )
{
// error
}
}
6.3.2 Put path
Synopsis
mdrib_put_path:
procedure
(
in session: mdrib_handle, // session handle
in node: characterstring, // portion of repository
)
returns (state(success,failure)),

Description
Changes the current node path to the path specified by node for the session mdrib_handle. If node is a
relative path, then the new path is relative to the previous node path.
8 © ISO/IEC 2013 – All rights reserved

If mdrib_put_path is successful, it returns success, otherwise error return is indicated by a return of failure.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( sh != NULL )
{
// open "postal_address"
ch = mdrib_open(sh,"postal_address","read-only");
// change path to "city"
if ( mdrib_put_path(ch,"city") == -1 )
{
// error
}
// success
}
6.4 Security services
The following services are supported.
6.4.1 Request Authorization/Authentication
Synopsis
mdrib_request_auth:
procedure
(
in session: mdrib_handle, // session handle
in auth_type: characterstring, // auth type
in auth_options: characterstring, // auth options
)
returns (state(success,failure)),

Description
Requests the repository to supply authorization and/or authentication credentials, as pointed to by the handle
session.
The auth_type parameter is a whitespace-separated list of name-value pairs that describe a set of credentials
that are requested from the repository:
 "symmetric": The authorization and/or authentication type is symmetric, i.e., both sides agree on the
same "word", such as a password. The auth_options parameter specifies a list of words to request as
credentials.
 "asymmetric": The authorization and/or authentication type is asymmetric, i.e., both sides agree on a
separate set of "words", such a public key techniques.
 "challenge": Requests a response to the security challenge.
 "identifier": Requests the repository supply a list of identifiers for authentication.
 "operation": Requests the repository supply a list of operations to authorize.
 "nomad": Requests agreement and authorization of a nomadic connection.
© ISO/IEC 2013 – All rights reserved 9

The auth_options parameter is a whitespace-separated list of name-value pairs that describe a set of
authorization and/or authentication options from the following list:
 "password": The password is requested from the repository.
 "key": The key is requested from the repository for asymmetric access.
 "identifier": The identifier is requested from the repository.
 "operation": The operation is requested from the repository.
 "nomad_request_id": The identifier associated with the requestor of the nomadic connection.
 "nomad_response_id": The identifier associated with the respondent of the nomadic connection.
 "nomad_timeout": The timeout associated with the nomadic connection.

If mdrib_request_auth is successful, it returns success, otherwise error return is indicated by a return of failure.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( mdrib_request_auth(sh, "symmetric", "password") !=
"swordfish" )
{
// . error, abort because of password mismatch
return;
}
if ( sh != NULL )
{
ch = mdrib_open(sh,"postal_address","read-only");
// .
mdrib_close(ch);
// .
mdrib_disconnect(sh);
}
6.4.2 Response Authorization/Authentication
Synopsis
mdrib_response_auth:
procedure
(
in session: mdrib_handle, // session handle
in auth_type: characterstring, // auth type
auth_handler(): procedure, // auth handler function
)
returns state(success,failure),

Description
Registers a handler for authorization and/or authentication responses, as requested by the repository pointed
to by the handle session.
The auth_type parameter is a whitespace-separated list of name-value pairs that describe a set of credentials
that are requested from the repository. See 6.4.1 above for a list of auth_type parameters.
The auth_handler parameter a pointer to a handler service. The handler service is called for each
authorization and/or authentication request that matches the type auth_type. The auth_handler service is
10 © ISO/IEC 2013 – All rights reserved

called with at least three parameters: the session handle, the actual auth_type, the auth_option, and zero or
more parameters.
If mdrib_response_auth is successful, it returns success, otherwise error return is indicated by a return of
failure.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
mdrib_response_auth(sh,"symmetric",handler);
if ( sh != NULL )
{
ch = mdrib_open(sh,"postal_address","read-only");
// .
mdrib_close(ch);
// .
mdrib_disconnect(sh);
}
// auth handler: returns a password when requested
characterstring handler
(
mdrib_handle sh,
characterstring auth_type,
characterstring auth_options,
va_list other_parameters
)
{
if ( auth_type == "symmetric" &&
auth_options == "password" )
{
return "swordfish";
}
}
6.5 Data transfer services
The following data transfer are supported.
6.5.1 Get value
Synopsis
mdrib_get_value:
procedure
(
in session: mdrib_handle, // session handle
in octet_offset: integer, // starting offset for transfer
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
in src_identifier: characterstring, // src object name
in dst_object_type: characterstring, // saved value: typeof
out dst_object_ptr: pointer, // saved value: ptr to
)
returns (state(success,failure)),
© ISO/IEC 2013 – All rights reserved 11

Description
Gets a value converted to a particular datatype, as identified by src_identifier. If octet_offset is not -1, the first
octet_offset octets are skipped in the data transfer. If octet_length is not -1, a maximum of octet_length octets
are transferred. The total number of octets transferred is returned in octets_transferred. The dst_object_type
is the datatype of the data object where the data is transferred, and dst_object_ptr points to the destination
data.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
mdrib_type_type value_type; // datatype information
characterstring city_name;
int octet_transferred;
value_type = "characterstring"; // target datatype
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( sh != NULL )
{
// open "postal_address"
ch = mdrib_open(sh,"postal_address","read-only");
success = mdrib_get_value(ch, -1, -1, octet_transferred,
"city", value_type, city_name
);
}
6.5.2 Typed get value
Synopsis
mdrib_get_value_as_str8:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
in octet_offset: integer, // starting offset for transfer
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
)
returns (str8)
raises (bad_conversion),
mdrib_get_value_as_str16:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
in octet_offset: integer, // starting offset for transfer
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
)
returns (str16)
raises (bad_conversion),
mdrib_get_value_as_str32:
procedure
(
12 © ISO/IEC 2013 – All rights reserved

session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
in octet_offset: integer, // starting offset for transfer
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
)
returns (str32)
raises (bad_conversion),
mdrib_get_value_as_int8:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (int8)
raises (bad_conversion),
mdrib_get_value_as_uint8:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (unit8)
raises (bad_conversion),
mdrib_get_value_as_int16:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (int16)
raises (bad_conversion),
mdrib_get_value_as_uint16:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (uint16)
raises (bad_conversion),
mdrib_get_value_as_int32:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (int32)
raises (bad_conversion),
mdrib_get_value_as_uint32:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
© ISO/IEC 2013 – All rights reserved 13

returns (uint32)
raises (bad_conversion),
mdrib_get_value_as_int64:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (int64)
raises (bad_conversion),
mdrib_get_value_as_uint64:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (uint64)
raises (bad_conversion),
mdrib_get_value_as_int128:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (int128)
raises (bad_conversion),
mdrib_get_value_as_uint128:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (uint128)
raises (bad_conversion),
mdrib_get_value_as_real32:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (real32)
raises (bad_conversion),
mdrib_get_value_as_real64:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (real64)
raises (bad_conversion),
mdrib_get_value_as_real80:
procedure
14 © ISO/IEC 2013 – All rights reserved

(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (real80)
raises (bad_conversion),
mdrib_get_value_as_datetime:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (datetime)
raises (bad_conversion),
mdrib_get_value_as_duration:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (duration)
raises (bad_conversion),
mdrib_get_value_as_uri:
procedure
(
session: mdrib_handle, // session handle
src_identifier characterstring, // src object name
)
returns (uri)
raises (bad_conversion),
Description
Gets a value converted to a particular datatype, as identified by src_identifier. The following datatypes are
supported:
 str8: A characterstring of 8-bit characters, i.e., characters with a repertoire of ISO/IEC 8859-1.
 str16: A characterstring of 16-bit characters, i.e., characters with a repertoire of ISO/IEC 10646 Basic
Multilingual Plane (BMP).
 str32: A characterstring of 32-bit characters, i.e., characters with a repertoire of ISO/IEC 10646.
 int8: A signed, 2's complement integer of 8 bits, as described by IEEE 1596.5.
 uint8: An unsigned integer of 8 bits, as described by IEEE 1596.5.
 int16: A signed, 2's complement integer of 16 bits, as described by IEEE 1596.5.
 uint16: An unsigned integer of 16 bits, as described by IEEE 1596.5.
 int32: A signed, 2's complement integer of 32 bits, as described by IEEE 1596.5.
 uint32: An unsigned integer of 32 bits, as described by IEEE 1596.5.
 int64: A signed, 2's complement integer of 64 bits, as described by IEEE 1596.5.
 uint64: An unsigned integer of 64 bits, as described by IEEE 1596.5.
 int128: A signed, 2's complement integer of 128 bits, as described by IEEE 1596.5.
 uint128: An unsigned integer of 128 bits, as described by IEEE 1596.5.

The encoding of 16-bit characters is implementation-defined.
The encoding of 32-bit characters is implementation-defined.
© ISO/IEC 2013 – All rights reserved 15

 real32: An IEC 60559, 32-bit floating point number.
 real64: An IEC 60559, 64-bit floating point number.
 real80: An IEC 60559, 80-bit floating point number.
 datetime: A date-time value.
 duration: A time duration value.
 uri: A uniform resource identifier.

If mdrib_get_value_* is successful, it returns the value associated with src_identifier; otherwise, error returns
are indicated by null pointers for characterstrings, -1 for signed integers, 0 for unsigned integers, and NaN (not
a number) for reals.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
characterstring city_name; // city name in postal address
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( sh != NULL )
{
// open "postal_address"
ch = mdrib_open(sh,"postal_address","read-only");
city_name = mdrib_get_value_as_str8(ch,"city")
}
6.5.3 Put value
Synopsis
integer mdrib_put_value
(
in session: mdrib_handle, // session handle
in src_identifier: characterstring, // src object name
in octet_offset: integer, // starting offset for transfer at destination
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
in src_object_type: characterstring, // source value: typeof
in src_object_ptr: pointer, // source value: ptr to
)
Description
Puts a value in an object named src_identifier. If octet_offset is not -1, the first octet_offset octets are skipped
in the data transfer at the target. If octet_length is not -1, a maximum of octet_length octets are transferred.
The total number of octets transferred is returned in octets_transferred. The src_object_type is the datatype
of the data object where the data is transferred from, and src_object_ptr points to the source data.
Example
// C/C++ illustration
mdrib_handle sh; // session handle
mdrib_handle ch; // child session handle
mdrib_type_type value_type; // datatype information
characterstring city_name = "New York";
value_type = "characterstring"; // target datatype
sh = mdrib_connect("http://xyz.com/repository_2",
"option_x=p option_y=q option_z");
if ( sh != NULL )
16 © ISO/IEC 2013 – All rights reserved

{
// open "postal_address"
ch = mdrib_open(sh,"postal_address","read-write");
status = mdrib_put_value(ch,"city",-1,-1,octet_transferred,
"string", city_name
);
}
6.5.4 Typed put value
Synopsis
mdrib_put_value_as_str8:
procedure
(
session: mdrib_handle, // session handle
in octet_offset: integer, // starting offset for transfer at destination
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
dst_identifier: characterstring, // dst object name
src_value: str8, // src value
)
returns (str8)
raises (bad_conversion),
mdrib_put_value_as_str16:
procedure
(
session: mdrib_handle, // session handle
in octet_offset: integer, // starting offset for transfer at destination
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
dst_identifier: characterstring, // dst object name
src_value: str16, // src value
)
returns (str16)
raises (bad_conversion),
mdrib_put_value_as_str32:
procedure
(
session: mdrib_handle, // session handle
in octet_offset: integer, // starting offset for transfer at destination
in octet_length: integer, // maximum number of octets to transfer
out octet_transferred: integer, // maximum number of octets transferred
dst_identifier: characterstring, // dst object name
src_value: str32, // src value
)
returns (str32)
raises (bad_conversion),
mdrib_put_value_as_int8:
procedure
(
session: mdrib_handle, // session handle
dst_identifier: characterstring, // dst object name
src_value: int8, // src value
)
returns (int8)
raises (bad_conversion),
© ISO/IEC 2013 –
...
