ISO 6569:1981
(Main)Natural gas — Rapid analysis by gas chromatography
Natural gas — Rapid analysis by gas chromatography
Gaz naturel — Analyse rapide par chromatographie en phase gazeuse
General Information
Buy Standard
Standards Content (Sample)
International Standard 6569
INTERNATIONAL ORGANIZATION FOR STANOARDIZATION*ME~YHAPOflHAR OPrAHM3AUMfl il0 CTAHflAPril3AUMM~RGANiSATlON INTERNATIONALE DE NORMALISATION
Natural gas - Rapid analysis by gas chromatography
Gaz naturel - Analyse rapide par chromatographie en phase gazeuse
First edition - 1981-12-15
UDC 665.612.3 : 543.544 Ref. No. IS0 6569-1981 (E)
Descriptors : gas analysis, natural gas, gas chromatographic analysis.
Price based on 5 pages
---------------------- Page: 1 ----------------------

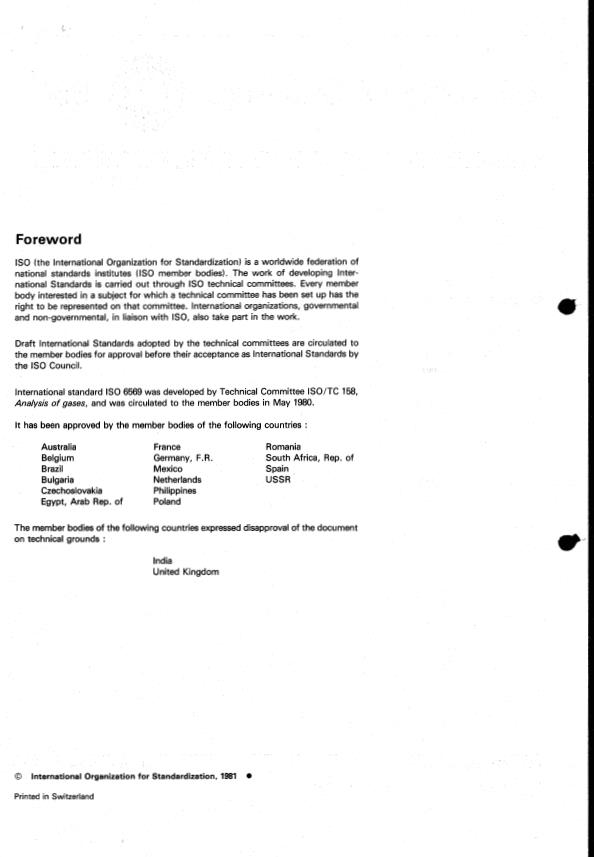

Foreword
IS0 (the International Organization for Standardization) is a worldwide federation of
national standards institutes (IS0 member bodies). The work of developing Inter-
national Standards is carried out through IS0 technical committees. Every member
body interested in a subject for which a technical committee has been set up has the
right to be represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the technical committees are circulated to
the member bodies for approval before their acceptance as International Standards by
the IS0 Council.
International standard IS0 6569 was developed by Technical Committee ISO/TC 158,
Analysis of gases, and was circulated to the member bodies in May 1980.
It has been approved by the member bodies of the following countries :
Australia France Romania
Germany, F.R. South Africa, Rep. of
Belgium
Brazil Mexico Spain
Netherlands USSR
Bulgaria
Czechoslovakia Philippines
Egypt, Arab Rep. of Poland
The member bodies of the following countries expressed disapproval of the document
on technical grounds :
India
United Kingdom
0 International Organization for Standardization, 1981 O
Printed in Switzerland
---------------------- Page: 2 ----------------------
INTERNATIONAL STANDARD IS0 6569-1981 (E)
Natural gas - Rapid analysis by gas chromatography
Table 1
O Introduction
This International Standard describes a simple method for the
Element or compound Range, % molar
rapid analysis of dry natural gas. The method employs an
e 1 to ?O
Nitrogen (N2)
isothermal gas chromatograph fitted with a thermal conduc-
tivity detector. The detector and associated electronic equip- Methane (CHS > 75
ment must have a rapid response; a response time not greater
Carbon dioxide (COS O to 3
than 0,l s is suitable.
0,5 to 10
Ethane (C2Hg)
Propane (C3H8) 0,l to 5
The method provides for the measurement of nitrogen, carbon
Butanes (C4H10) 0,l to 1
dioxide, hydrocarbons having up to four carbon atoms (Cl to
< 1 total
C4) and hydrogen sulphide. It is primarily intended for the Higher hydrocarbons
preliminary examination of samples during exploration and for
0,l to 5
Hydrogen sulphide (H2S)
control purposes before treatment.
IS0 65681) specifies an alternative simple method which
enables the determination of nitrogen, carbon dioxide and
2 References
hydrocarbons having up to 5 carbon atoms (Cl to Cg) in natural
gas. More detailed methods for the analysis of natural gas will
IS0 6142, Gas analysis - Preparation of calibration gas mix-
form the subjects of future International Standards.
tures - Gravimetric method.
IS0 6143, Gas analysis - Determination of composition of
1 Scope and field of application
calibration gas mixtures - Comparison method.
This International Standard specifies a method for the rapid
6,46, Gas analysis - Preparation of calibration gas mix-
analysis of dry natural gas containing less than 1 % (molar) of
*
tures - Manometric method.
hydrocarbons having five or more carbon atoms. It is applicable
for the determination of :
- hydrocarbons having one to four carbon atoms; 3 Materials
- nitrogen;
3.1 Carrier gas.
- carbon dioxide;
- Nature : helium
- hydrogen sulphide.
-
Purity : > 99,9 %
The method does not distinguish between oxygen and nitrogen
and contamination of the samples by air will give an apparently
high value for the nitrogen content. 3.2 Calibration gas mixture.
The components of the mixture shall be 99 % pure or better
The method is generally applicable to test samples containing
(see 6.2.11, except methane which shall be 99,9 % pure.
the elements and compounds given in table 1 in the ranges in-
dicated.
IS0 6568, Naturalgas - Simple analysis by gas chromatography.
1)
1
---------------------- Page: 3 ----------------------

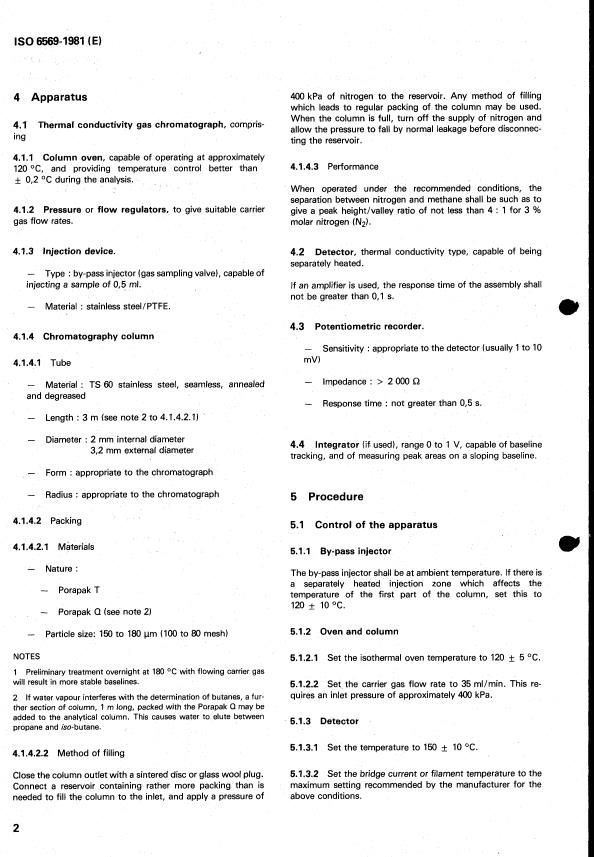

IS0 6569-1981 (E)
400 kPa of nitrogen to the reservoir. Any method of filling
4 Apparatus
which leads to regular packing of the column may be used.
When the column is full, turn off the supply of nitrogen and
4.1 Thermal conductivity gas chromatograph, compris-
allow the pressure to fall by normal leakage before disconnec-
ing
ting the reservoir.
4.1.1 Column oven, capable of operating at approximately
4.1.4.3 Performance
120 OC, and providing temperature control better than
f 0,2 OC during the analysis.
When operated under the recommended conditions, the
separation between nitrogen and methane shall be such as to
4.1.2 Pressure or flow regulators, to give suitable carrier
give a peak heighthalley ratio of not less than 4 : 1 for 3 %
gas flow rates.
molar nitrogen (N2).
4.1.3 Injection device.
4.2 Detector, thermal conductivity type, capable of being
separately heated.
-
Type : by-pass injector (gas sampling valve), capable of
injecting a sample of 0,5 ml.
If an amplifier is used, the response time of the assembly shall
not be greater than 0,l s.
- Material : stainless steel/PTFE.
4.3 Potentiometric recorder.
4.1.4 Chromatography column
-
Sensitivity : appropriate to the detector (usually 1 to 10
mV)
4.1.4.1 Tube
-
Impedance : > 2 O00 !2
- Material : TS 60 stainless steel, seamless, annealed
and degreased
-
Response time : not greater than 0,5 s.
-
Length : 3 m (see note 2 to 4.1.4.2.1)
-
Diameter : 2 mm internal diameter
Integrator (if used), range O to 1 V, capable of baseline
4.4
3,2 mm external diameter
tracking, and of measuring peak areas on a sloping baseline.
-
Form : appropriate to the chromatog
...
Norme internationale 6569
INTERNATIONAL ORGANIZATION FOR STANDARDIZATlON*ME)K;nYHAPOLIHAR OPTAHbl3AUMfl il0 CTAHCIAPTM3AU~bl~RGANlSATlON INTERNATIONALE DE NORMALISATION
Il
en
Gaz naturel - Analyse rapide par chromatographie
phase gazeuse
Natural gas - Rapid analysis by gas chromatography
Première édition - 1981-12-15
CDU 665.612.3 : 543.544 Ref. no : ISO6569-1981 (FI
Descripteurs : analyse de gaz, gaz naturel, méthode chromatographique en phase gazeuse.
Prix basé sur 5 pages
---------------------- Page: 1 ----------------------

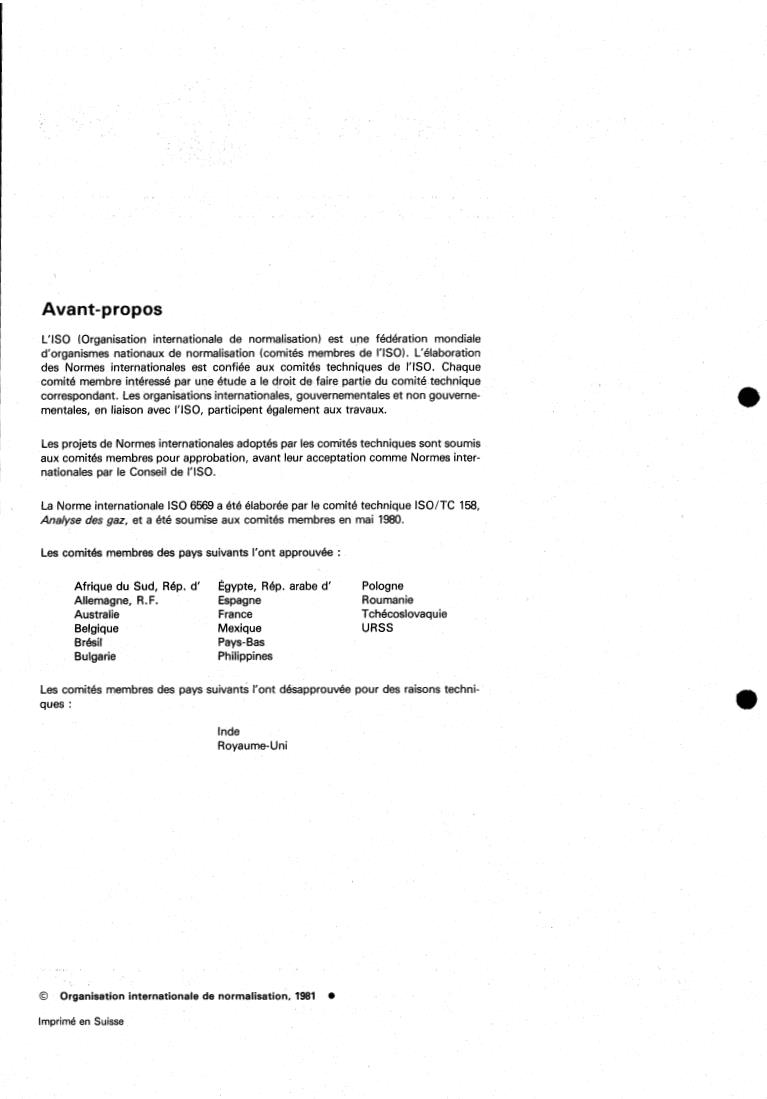

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale
d'organismes nationaux de normalisation (comités membres de I'ISO). L'élaboration
des Normes internationales est confiée aux comités techniques de I'ISO. Chaque
comité membre intéressé par une étude a le droit de faire partie du comité technique
correspondant. Les organisations internationales, gouvernementales et non gouverne-
mentales, en liaison avec I'ISO, participent égaiement aux travaux.
Les projets de Normes internationales adoptés par les comités techniques sont soumis
aux comités membres pour approbation, avant leur acceptation comme Normes inter-
nationales par le Conseil de I'ISO.
La Norme internationale IS0 6"9 a été élaborée par le comité technique ISO/TC 158,
Analyse des gaz, et a été soumise aux comités membres en mai 1980.
Les comités membres des pays suivants l'ont approuvée :
Pologne
Afrique du Sud, Rép. d' Égypte, Rép. arabe d'
Roumanie
Allemagne, R. F. Espagne
Tchécoslovaquie
Australie France
URSS
Belgique Mexique
Brésil Pays-Bas
Bulgarie Philippines
Les comités membres des pays suivants l'ont désapprouvée pour des raisons techni-
ques :
Inde
Royaume-Uni
@ Organisation internationale de normalisation, 1981 O
Imprimé en Suisse
---------------------- Page: 2 ----------------------
_.
NORME INTERNATIONALE
IS0 6569-1981 IF)
Gaz naturel - Analyse rapide par chromatographie en
phase gazeuse
Tableau 1
O Introduction
La présente Norme internationale décrit une méthode simple
Étément ou composé Gamme, % molaire
pour une analyse rapide du gaz naturel. La méthode nécessite
Azote iN2) 1 à 20
un chromatographe isotherme couplé à un catharomètre. Le
détecteur et l'électronique associée doivent avoir une réponse > 75
Méthane (CH41
rapide; une constante de temps inférieure ou égale à O, 1 s est
Dioxyde de carbone (C02) O à3
(.
satisfaisante.
Éthane (C2He) 0,5 à 10
Propane (C3H8) 0,l à 5
Cette méthode permet le dosage de l'azote, du dioxyde de car-
bone, des hydrocarbures comprenant jusqu'à quatre atomes de Butanes (C4H10) 0,l à 1
carbone (Cl à C4) et du sulfure d'hydrogène. Son domaine
Hydrocarbures supérieurs < 1 au total
d'application vise principalement l'examen préliminaire
Sulfure d'hydrogène (H2S) 0.1 à 5
d'échantillons pendant l'exploration et le contrôle avant traite-
ment.
IS0 65681) spécifie une autre méthode d'analyse simple per-
mettant de doser l'azote, le dioxyde de carbone et les hydrocar-
2 Références
bures comprenant jusqu'à 5 atomes de carbone (C, à Cg) dans
le gaz naturel. D'autres méthodes plus détaillées pour l'analyse
IS0 6142, Analyse des gaz - Préparation des mélanges de gaz
du gaz naturel feront l'objet de Normes internationales ultérieu-
pour étalonnage - Méthodes pondérales.
res.
IS0 6143, Analyse des gaz - Détermination de la composition
des mélanges de gaz pour étalonnage - Méthode par compa-
1 Objet et domaine d'application
raison.
La présente Norme internationale spécifie une méthode pour
IS0 6146, Analyse des gaz - Préparation des mélanges de gaz
l'analyse rapide d'un gaz naturel sec contenant moins de 1 %
pour étalonnage - Méthode par voie manométrique.
0 molaire d'hydrocarbures comprenant cinq atomes de carbone
ou plus. Elle est applicable pour le dosage
-
des hydrocarbures comprenant de un à quatre atomes
3 Produits
de carbone;
- de l'azote;
3.1 Gaz vecteur.
- du dioxyde de carbone;
- Nature : hélium
- du sulfure d'hydrogène.
-
Pureté : > 99.9 %
La méthode ne fait pas de distinction entre l'oxygène et l'azote,
de sorte que toute contamination des échantillons par l'air con-
3.2 Mélange de gaz pour étalonnage.
duit à une valeur apparemment élevée de la teneur en azote.
La méthode est généralement applicable à des échantillons Les constituants du mélange doivent être de pureté supérieure
à 99 % (voir 6.2.1 1, à l'exception du méthane qui doit être pur à
contenant les éléments et les composés spécifiés dans le
tableau 1, dans les gammes indiquées. . 99,9 %.
1) IS0 6568, Gaz naturel - Analyse simple par chromatographie en phase gazeuse.
1
---------------------- Page: 3 ----------------------

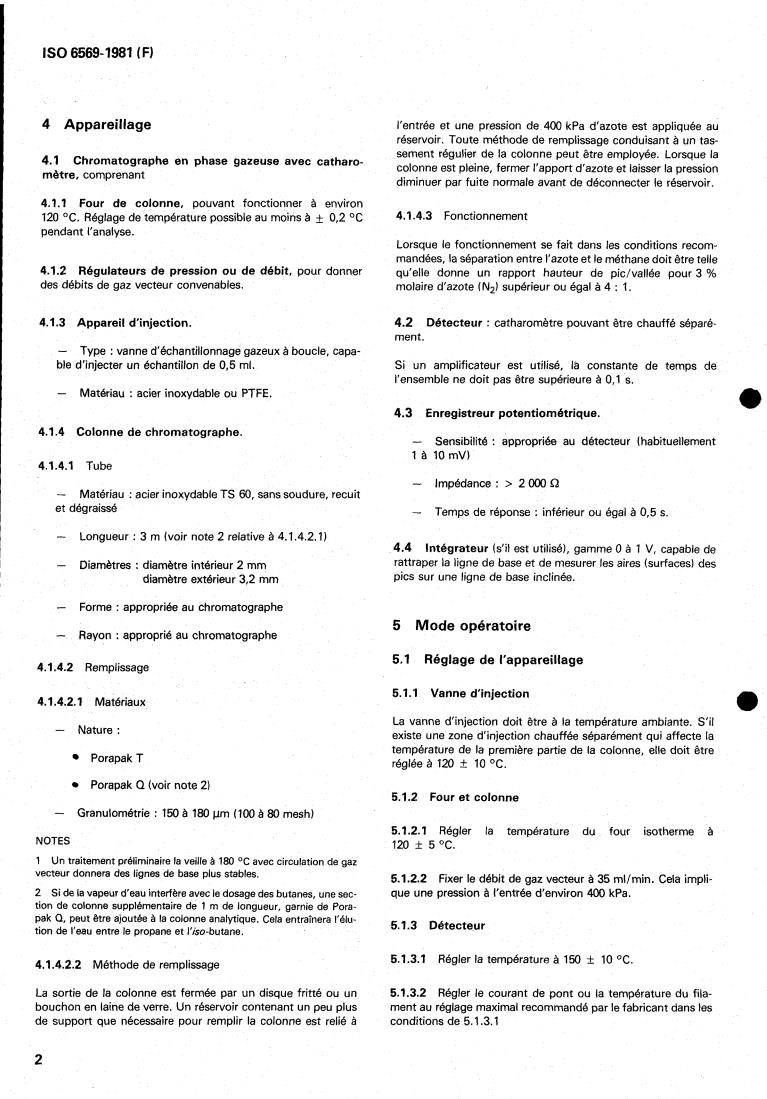

IS0 6569-1981 (FI
l'entrée et une pression de 400 kPa d'azote est appliquée au
4 Appareillage
réservoir. Toute méthode de remplissage conduisant à un tas-
sement régulier de la colonne peut être employée. Lorsque la
4.1
Chromatographe en phase gazeuse avec catharo-
colonne est pleine, fermer l'apport d'azote et laisser la pression
mètre, comprenant
diminuer par fuite normale avant de déconnecter le réservoir.
4.1.1 Four de colonne, pouvant fonctionner à environ
4.1.4.3 Fonctionnement
120 OC. Réglage de température possible au moins à f 0,2 OC
pendant l'analyse.
Lorsque le fonctionnement se fait dans les conditions recom-
mandées, la séparation entre l'azote et le méthane doit être telle
4.1.2 Régulateurs de pression ou de débit, pour donner
qu'elle donne un rapport hauteur de pic/vallée pour 3 ?LO
des débits de gaz vecteur convenables.
molaire d'azote (N2) supérieur ou égal à 4 : 1.
4.2 Détecteur : catharomètre pouvant être chauffé séparé-
4.1.3 Appareil d'injection.
ment.
-
Type : vanne d'échantillonnage gazeux à boucle, capa-
ble d'injecter un échantillon de 0,5 ml. Si un amplificateur est utilisé, I;î constante de temps de
l'ensemble ne doit pas être supérieure à 0,l s.
-
Matériau : acier inoxydable ou PTFE.
4.3 Enregistreur potentiométrique.
4.1.4 Colonne de chromatographe.
-
Sensibilité : appropriée au détecteur (habituellement
1 à 10mV)
4.1.4.1 Tube
- Impédance : > 2 O00 D
-
Matériau : acier inoxydable TS 60, sans soudure, recuit
et dégraissé -
Temps de réponse : inférieur ou égal à 0,5 s.
-
Longueur : 3 m (voir note 2 relative à 4.1.4.2.1)
4.4 Intégrateur (s'il est utilisé), gamme O à 1 V, capable de
- rattraper la ligne de base et de mesurer les aire
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
