INTERNATIONAL STANDARD ISO/IEC 39794-6:2021(E)
Information technology — Extensible biometric data
interchange formats —
Part 6:
Iris image data
1 Scope
This document specifies:
— generic extensible data interchange formats for the representation of iris image data: a tagged
binary data format based on an extensible specification in ASN.1 and a textual data format based on
an XML schema definition that are both capable of holding the same information,
— examples of data record contents,
— application specific requirements, recommendations, and best practices in data acquisition, and
— conformance test assertions and conformance test procedures applicable to this document.
The iris image information is stored as:
— an array of intensity values optionally compressed with ISO/IEC 15948 or ISO/IEC 15444-1, or
— an array of intensity values optionally compressed with ISO/IEC 15948 or ISO/IEC 15444-1 that can
be cropped around the iris, with the iris at the centre, and which can incorporate region-of-interest
masking of non-iris regions.
This document also specifies elements of conformance testing methodology, test assertions, and test
procedures, as applicable to this document.
It establishes:
— test assertions pertaining to the structure of the iris image data format, as specified in Clauses 6, 7,
8 and 9 of this document,
— test assertions pertaining to internal consistency by checking the types of values that may be
contained within each field, and
— semantic test assertions.
The conformance testing methodology specified in this document does not establish:
— tests of other characteristics of biometric products or other types of testing of biometric products
(e.g. acceptance, performance, robustness, security), or
— tests of conformance of systems that do not produce data records conforming to the requirements
of this document.
This document does not establish:
— requirements on the optical specifications of cameras, or
— requirements on photometric properties of iris images, or
— requirements on enrolment processes, workflow and use of iris equipment.
© ISO/IEC 2021 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 39794-6:2021(E)
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 2382-37, Information technology — Vocabulary — Part 37: Biometrics
ISO/IEC 8824-1, Information technology — Abstract Syntax Notation One (ASN.1): Specification of basic
notation — Part 1
ISO/IEC 8825-1, Information technology — ASN.1 encoding rules: Specification of Basic Encoding Rules
(BER), Canonical Encoding Rules (CER) and Distinguished Encoding Rules (DER) — Part 1
ISO/IEC 15444-1, Information technology — JPEG 2000 image coding system — Part 1: Core coding system
ISO/IEC 15948, Information technology — Computer graphics and image processing — Portable Network
Graphics (PNG): Functional specification
ISO/IEC 39794-1, Information technology — Extensible biometric data interchange formats — Part 1:
Framework
W3C Recommendation, XML Schema Part 1: Structures Second Edition, 28 October 2004, http:// www .w3
.org/ TR/ xmlschema -1/
W3C Recommendation, XML Schema Part 2: Datatypes Second Edition, 28 October 2004, http:// www .w3
.org/ TR/ xmlschema -2/
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 2382-37 and
ISO/IEC 39794-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
defocus
image impairment due to the position of the iris (3.4) along the optical axis of the camera away from
the plane or surface of best focus, generally resulting in reduced sharpness (blur) and reduced contrast
3.2
depth of field
distance range relative to the entrance aperture of a capture device over which the iris (3.4) image has
greater than a specified quality with respect to focus
3.3
greyscale
continuous-tone image that has one component, which is pixel intensity
3.4
iris
coloured annular structure in the front portion of the eye comprised of muscular and connective tissue
and pigmented layers, that defines the pupil (3.9) and controls its size
3.5
iris centre
centre of a circle modelling the boundary between iris (3.4) and sclera (3.12)
2 © ISO/IEC 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 39794-6:2021(E)
3.6
iris radius
radius of a circle modelling the boundary between iris (3.4) and sclera (3.12)
3.7
margin
distance in an image from the iris-sclera border, when modelled as a circle, to the closest image border,
expressed in pixels
Note 1 to entry: Throughout this document, margins are defined in terms of the iris radius, R (3.6). When written
as an ordered pair, the order is (horizontal, vertical).
EXAMPLE (0,6R, 0,2R) indicates that for an iris radius of R, there shall be margins of image data 0,6·R to the
right and left of the iris (3.4) and 0,2·R above and below the iris.
3.8
Modulation Transfer Function
MTF
ratio of the image modulation to the object modulation as a function of spatial frequency (3.14)
3.9
pupil
optical opening in the centre of the eye that serves as a variable light aperture and defines the inner
boundary of the iris (3.4)
3.10
pupil centre
average of coordinates of all the pixels lying on the boundary of the pupil (3.9) and the iris (3.4)
3.11
round
mathematical function applied to a number x such that round(x) is the integer that is closest in value to x
3.12
sclera
generally white wall of the eye peripheral to the iris (3.4)
3.13
segmentation
process of determining, within an image containing an iris (3.4), the boundaries between areas
containing visible iris tissue and those that do not
Note 1 to entry: This process is preceded by localization of the iris, and typically followed by cropping or masking
regions that are not iris tissue.
3.14
spatial frequency
measure of the spatial period of a sinusoidal intensity pattern in space, in units of cycles/degree or of
cycles/mm at a given target range
3.15
spatial sampling rate
number of picture elements (pixels) per unit distance in the object plane or per unit angle in the
imaging system
4 Symbols and abbreviated terms
For the purposes of this document, the abbreviations given in ISO/IEC 39794-1 and the following apply.
© ISO/IEC 2021 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 39794-6:2021(E)
JPEG2000 Joint Photographic Experts Group enhanced compression standard for images, as
defined in ISO/IEC 15444
PGM Netpbm greyscale image format
PPM Netpbm colour image format
PNG Portable Network Graphics lossless compression standard for images, as defined in
ISO/IEC 15948
VGA Video Graphics Array image format, having width 640 pixels and height 480 pixels
5 Conformance
A BDB conforms to this document if it satisfies all of the requirements related to:
a) its data structure, data values and the relationships between its data elements as specified
throughout Clauses 6, 7, 8 and Annex A of this document, and
b) the relationship between its data values and the input biometric data from which the biometric
data record was generated as specified throughout Clauses 6, 7, 8 and Annex A of this document.
A system that produces biometric data records is conformant to this document if all biometric data
records that it outputs conform to this document (as defined in points a) to b) above) as claimed in the
ICS associated with that system. A system does not need to be capable of producing biometric data
records that cover all possible aspects of this document, but only those that are claimed to be supported
by the system in the ICS. The test for output record conformance shall be conducted in accordance with
the normative content of Annex C.
A system that uses biometric data records is conformant to this document if it can read, and use for the
purpose intended by that system, all biometric data records that conform to this document (as defined
in points a) to b) above) as claimed in the ICS associated with that system. A system does not need to be
capable of using biometric data records that cover all possible aspects of this document, but only those
that are claimed to be supported by the system in an ICS.
A binary BDB conforms to this document if it satisfies the format requirements with respect to its
structure, with respect to relations among its fields, and with respect to relations between its fields
and the underlying input that are specified within A.1.
An XML document conforms to this document if it satisfies the format requirements with respect to its
structure, with respect to relations among its fields, and with respect to relations between its fields
and the underlying input that are specified within A.2.
6 Iris image content specification
6.1 General
This clause establishes requirements on the semantic content of the images that are allowed by this
document. These requirements relate to the geometric structure, pre-processing, compression protocol,
format and dimensions of the image data. (Guidance on iris image capture is given in Annex D.) Image
data may be uncompressed or compressed. If uncompressed, then it shall be encoded using PGM or PPM
[3]
image format . All uncompressed raw images shall have an 8 bit pixel depth. Images with a pixel depth
other than 8 bits shall be encoded using PNG or JPEG2000.
The remaining subclauses of Clause 6 group these requirements according to the type of image.
As shown in Table 1, four image types are defined according to a hierarchy inherited from an
4 © ISO/IEC 2021 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 39794-6:2021(E)
unconstrained abstract basic iris image. The associated abstract values are provided in subclause 7.3.3.
The requirements of Clause 7 establish the encoding specifications for the image.
NOTE The specifications of image types, compression protocols, formats and cropping dimensions in this
[6]
first edition of this document have been determined by the NIST Interoperable Iris Exchange (IREX-1) study
(2009), which was commissioned for this purpose.
Table 1 — Hierarchy of iris image types
Margins (R:
Width and
Data
iris radius) Data size Compression
Iris Cen-
height
FORMAT NAME encoding
tring
Hori- Vertical kB mode
method
pixels
zontal
IMAGE_TYPE_UNCROPPED no ≥ 0,6R ≥ 0,2R unspecified variable none PGM or
PPM
variable lossless PNG or
JPEG2000
variable lossy JPEG2000
IMAGE_TYPE_VGA no ≥ 0,6R ≥ 0,2R W = 640 307,2 none PGM or
PPM
H = 480
t y pically lossless PNG or
70-140 JPEG2000
variable lossy JPEG2000
IMAGE_TYPE_CROPPED yes =0,6R =0,2R unspecified variable none n/a
t y pically lossless PNG or
40-70 JPEG2000
t y pically lossy (see JPEG2000
8-24 (com- NOTE 4)
pact)
IMAGE_TYPE_CROPPED_ yes =0,6R =0,2R unspecified variable none n/a
AND_MASKED
t y pically lossless PNG or
20-50 JPEG2000
t y pically lossy JPEG2000
2-6
(compact)
NOTE 1 The application of lossy compression to IMAGE_TYPE_UNCROPPED images is not recommended for
images with spatial sampling rate below 10 pixels/mm.
NOTE 2 Typical data sizes for IMAGE_TYPE_CROPPED and IMAGE_TYPE_CROPPED_AND_MASKED assume an
iris of approximately 120 pixels radius. Other sizes are listed as variable to reflect variations in spatial sam-
pling rate and in iris size.
NOTE 3 The use of cropping, masking, or lossy compression can degrade iris recognition accuracy.
NOTE 4 For applications of 1:1 comparison, the compressed IMAGE_TYPE_CROPPED data size can be as low
as 3,5 kB.
6.2 Uncropped iris image
An uncropped iris image shall contain a raster scan image of a single eye. An example is shown in
Figure 1. For an iris radius of R, there shall be margins of image data at least 0,2R above and below the
iris, and at least 0,6R to the right and left of the iris. These margins of image data shall be acquired from
© ISO/IEC 2021 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 39794-6:2021(E)
the actual object being imaged, not synthesized values. It is not assumed that the iris is centred within
the image.
If uncropped image data is compressed, then ideally it should be compressed losslessly. PNG shall not be
used in its interlaced mode. If JPEG2000 is used, image data shall be stored in JPEG2000 format.
The uncropped iris image type shall be identified in the iris record by assigning the abstract value
uncropped to the iris image type element in subclause 7.3.3, as defined in Table 3.
6.3 VGA iris image
A VGA iris image is a special case of the uncropped iris image; the image width shall be 640 pixels and
the image height shall be 480 pixels. An example is shown in Figure 1. Additional constraints of margins
and container are inherited from the uncropped image type in subclause 6.2.
If images are compressed, then images shall be compressed in accordance with either PNG or JPEG2000
for lossless compression, or JPEG2000 for lossy compression.
The VGA iris image type shall be identified in the iris record by assigning the abstract value vGA to the
iris image type element in 7.3.3, as defined in Table 3.
Figure 1 — Example of uncropped iris image or VGA iris image
6.4 Cropped iris image
A cropped version of a rectilinear iris image may be instantiated. This supports moderately compact
storage. It requires a coarse localization of the iris.
The cropped rectilinear image shall contain an iris centred relative to the geometric centre of the raster
representation. An example is shown in Figure 2.
The crop region shall be sized such that a margin 0,6R pixels wide is included on both the right and left
sides of the iris, where R is an estimate of the iris radius. Margins above and below the iris shall include
0,2R pixels. Margin pixels shall represent actual sensor readings, not substitute val
...
FINAL
INTERNATIONAL ISO/IEC
DRAFT
STANDARD FDIS
39794-6
ISO/IEC JTC 1/SC 37
Information technology — Extensible
Secretariat: ANSI
biometric data interchange formats —
Voting begins on:
2020-12-07
Part 6:
Voting terminates on:
Iris image data
2021-02-01
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/IEC FDIS 39794-6:2020(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
©
NATIONAL REGULATIONS. ISO/IEC 2020
---------------------- Page: 1 ----------------------
ISO/IEC FDIS 39794-6:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC FDIS 39794-6:2020(E)

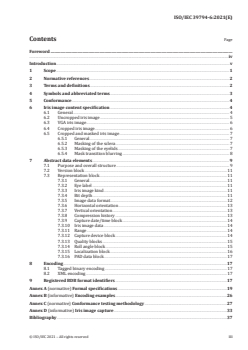

Contents Page
Foreword .
...................................................................................................................................................................................................................................................................iv
Introduction .v
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Symbols and abbreviated terms . 3
5 Conformance . 4
6 Iris image content specification . 4
6.1 General . 4
6.2 Uncropped iris image . 5
6.3 VGA iris image . 6
6.4 Cropped iris image . 6
6.5 Cropped and masked iris image . 7
6.5.1 General. 7
6.5.2 Masking of the sclera . 7
6.5.3 Masking of the eyelids . 7
6.5.4 Mask transition blurring . 8
7 Abstract data elements . 9
7.1 Purpose and overall structure . 9
7.2 Version block .11
7.3 Representation block .11
7.3.1 General.11
7.3.2 Eye label .11
7.3.3 Iris image kind .11
7.3.4 Bit depth .11
7.3.5 Image data format.12
7.3.6 Horizontal orientation .13
7.3.7 Vertical orientation .13
7.3.8 Compression history .13
7.3.9 Capture date/time block .14
7.3.10 Iris image data .14
7.3.11 Range .14
7.3.12 Capture device block .14
7.3.13 Quality blocks .15
7.3.14 Roll angle block .15
7.3.15 Localization block .16
7.3.16 PAD data block .17
8 Encoding .17
8.1 Tagged binary encoding .17
8.2 XML encoding .17
9 Registered BDB format identifiers .17
Annex A (normative) Formal specifications .19
Annex B (informative) Encoding examples .26
Annex C (normative) Conformance testing methodology .27
Annex D (informative) Iris image capture .33
Bibliography .37
© ISO/IEC 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC FDIS 39794-6:2020(E)

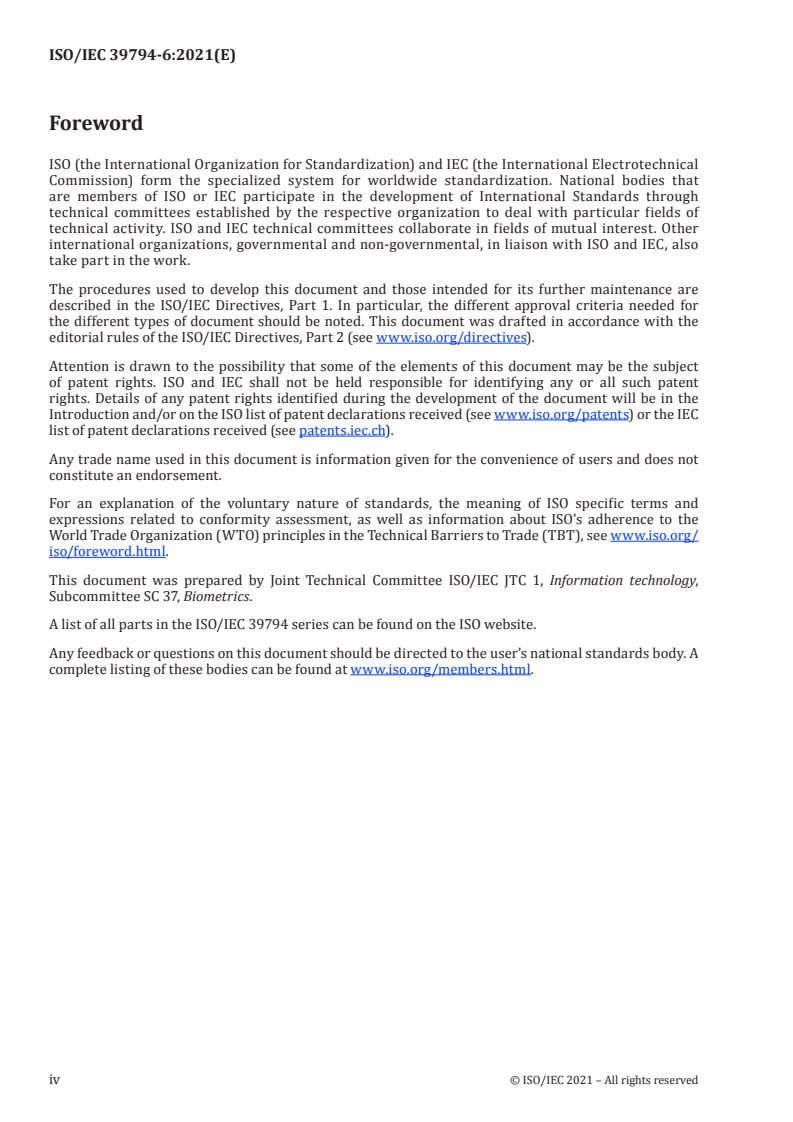

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents) or the IEC
list of patent declarations received (see patents.iec.ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 37, Biometrics.
A list of all parts in the ISO/IEC 39794 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO/IEC 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC FDIS 39794-6:2020(E)
Introduction
The purpose of this document is to define an International Standard for the exchange of iris image
extensible information. This document contains a specific definition of iris image record attribute data
elements, record’s tagged binary and XML encoding extensible formats for storing and transmitting the
iris image and certain attribute data elements, and conformance criteria.
Currently, the exchange of iris information between equipment from different vendors can be achieved
using images of the eye. While some applications can successfully operate with full size uncompressed
rectilinear images, there are others for which this is expensive in terms of storage and bandwidth. This
document therefore also defines compact representations.
Biometric data interchange formats enable the interoperability of different biometric systems. The
first generation of biometric data interchange formats was published between 2005 and 2007 in the
first edition of the ISO/IEC 19794 series. From 2011 onwards, the second generation of biometric data
interchange formats has been published in the second edition of the established parts and the first
edition of some new parts of ISO/IEC 19794. In the second generation of biometric data interchange
formats, new useful data elements such as those related to biometric sample quality have been added,
the header data structures have been harmonized across all parts of the ISO/IEC 19794 series, and an
XML encoding has been added in addition to the binary encoding.
In anticipation of the future need for additional data elements and in order to avoid future compatibility
issues, ISO/IEC JTC 1/SC 37 has developed the ISO/IEC 39794 series of standards as a third generation
of biometric data interchange formats, defining extensible biometric data interchange formats capable
of including future extensions in a defined way. Extensible specifications in ASN.1 (Abstract Syntax
Notation One) and the Distinguished Encoding Rules of ASN.1 form the basis for encoding biometric
data in binary tag-length-value formats. XML schema definitions form the basis for encoding biometric
data in XML (Extensible Markup Language).
Annex A specifies the ASN.1 schema and XML schema of the formal structure description to which
tagged binary encoded and XML encoded iris image extensible records are to conform (respectively).
Annex B provides sample iris image extensible record encodings. Annex C includes normative assertions
for testing conformance of iris image extensible records. Finally, Annex D gives recommendations on
iris image capture.
© ISO/IEC 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/IEC FDIS 39794-6:2020(E)
Information technology — Extensible biometric data
interchange formats —
Part 6:
Iris image data
1 Scope
This document specifies:
— generic extensible data interchange formats for the representation of iris image data: a tagged
binary data format based on an extensible specification in ASN.1 and a textual data format based on
an XML schema definition that are both capable of holding the same information,
— examples of data record contents,
— application specific requirements, recommendations, and best practices in data acquisition, and
— conformance test assertions and conformance test procedures applicable to this document.
The iris image information is stored as:
— an array of intensity values optionally compressed with ISO/IEC 15948 or ISO/IEC 15444-1, or
— an array of intensity values optionally compressed with ISO/IEC 15948 or ISO/IEC 15444-1 that can
be cropped around the iris, with the iris at the centre, and which can incorporate region-of-interest
masking of non-iris regions.
This document also specifies elements of conformance testing methodology, test assertions, and test
procedures, as applicable to this document.
It establishes:
— test assertions pertaining to the structure of the iris image data format, as specified in Clauses 6, 7,
8 and 9 of this document,
— test assertions pertaining to internal consistency by checking the types of values that may be
contained within each field, and
— semantic test assertions.
The conformance testing methodology specified in this document does not establish:
— tests of other characteristics of biometric products or other types of testing of biometric products
(e.g. acceptance, performance, robustness, security), or
— tests of conformance of systems that do not produce data records conforming to the requirements
of this document.
This document does not establish:
— requirements on the optical specifications of cameras, or
— requirements on photometric properties of iris images, or
— requirements on enrolment processes, workflow and use of iris equipment.
© ISO/IEC 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC FDIS 39794-6:2020(E)
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 2382-37, Information technology — Vocabulary — Part 37: Biometrics
ISO/IEC 15444-1, Information technology — JPEG 2000 image coding system — Part 1: Core coding system
ISO/IEC 15948, Information technology — Computer graphics and image processing — Portable Network
Graphics (PNG): Functional specification
ISO/IEC 39794-1, Information technology — Extensible biometric data interchange formats — Part 1:
Framework
W3C Recommendation, XML Schema Part 1: Structures Second Edition, 28 October 2004, http:// www .w3
.org/ TR/ xmlschema -1/
W3C Recommendation, XML Schema Part 2: Datatypes Second Edition, 28 October 2004, http:// www .w3
.org/ TR/ xmlschema -2/
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 2382-37 and
ISO/IEC 39794-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
defocus
image impairment due to the position of the iris (3.4) along the optical axis of the camera away from
the plane or surface of best focus, generally resulting in reduced sharpness (blur) and reduced contrast
3.2
depth of field
distance range relative to the entrance aperture of a capture device over which the iris (3.4) image has
greater than a specified quality with respect to focus
3.3
greyscale
continuous-tone image that has one component, which is pixel intensity
3.4
iris
coloured annular structure in the front portion of the eye comprised of muscular and connective tissue
and pigmented layers, that defines the pupil (3.9) and controls its size
3.5
iris centre
centre of a circle modelling the boundary between iris (3.4) and sclera (3.12)
3.6
iris radius
radius of a circle modelling the boundary between iris (3.4) and sclera (3.12)
2 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC FDIS 39794-6:2020(E)
3.7
margin
distance in an image from the iris-sclera border, when modelled as a circle, to the closest image border,
expressed in pixels
Note 1 to entry: Throughout this document, margins are defined in terms of the iris radius, R (3.6). When written
as an ordered pair, the order is (horizontal, vertical).
EXAMPLE (0,6R, 0,2R) indicates that for an iris radius of R, there shall be margins of image data 0,6·R to the
right and left of the iris (3.4) and 0,2·R above and below the iris.
3.8
Modulation Transfer Function
MTF
ratio of the image modulation to the object modulation as a function of spatial frequency (3.14)
3.9
pupil
optical opening in the centre of the eye that serves as a variable light aperture and defines the inner
boundary of the iris (3.4)
3.10
pupil centre
average of coordinates of all the pixels lying on the boundary of the pupil (3.9) and the iris (3.4)
3.11
round
mathematical function applied to a number x such that round(x) is the integer that is closest in value to x
3.12
sclera
generally white wall of the eye peripheral to the iris (3.4)
3.13
segmentation
process of determining, within an image containing an iris (3.4), the boundaries between areas
containing visible iris tissue and those that do not
Note 1 to entry: This process is preceded by localization of the iris, and typically followed by cropping or masking
regions that are not iris tissue.
3.14
spatial frequency
measure of the spatial period of a sinusoidal intensity pattern in space, in units of cycles/degree or of
cycles/mm at a given target range
3.15
spatial sampling rate
number of picture elements (pixels) per unit distance in the object plane or per unit angle in the
imaging system
4 Symbols and abbreviated terms
For the purposes of this document, the abbreviations given in ISO/IEC 39794-1 and the following apply.
© ISO/IEC 2020 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC FDIS 39794-6:2020(E)
JPEG2000 Joint Photographic Experts Group enhanced compression standard for images, as
defined in ISO/IEC 15444
PGM Netpbm greyscale image format
PPM Netpbm color image format
PNG Portable Network Graphics lossless compression standard for images, as defined in
ISO/IEC 15948
VGA Video Graphics Array image format, having width 640 pixels and height 480 pixels
5 Conformance
A BDB conforms to this document if it satisfies all of the requirements related to:
a) its data structure, data values and the relationships between its data elements as specified
throughout Clauses 6, 7, 8 and Annex A of this document, and
b) the relationship between its data values and the input biometric data from which the biometric
data record was generated as specified throughout Clauses 6, 7, 8 and Annex A of this document.
A system that produces biometric data records is conformant to this document if all biometric data
records that it outputs conform to this document (as defined in points a) to b) above) as claimed in the
ICS associated with that system. A system does not need to be capable of producing biometric data
records that cover all possible aspects of this document, but only those that are claimed to be supported
by the system in the ICS. The test for output record conformance shall be conducted in accordance with
the normative content of Annex C.
A system that uses biometric data records is conformant to this document if it can read, and use for the
purpose intended by that system, all biometric data records that conform to this document (as defined
in points a) to b) above) as claimed in the ICS associated with that system. A system does not need to be
capable of using biometric data records that cover all possible aspects of this document, but only those
that are claimed to be supported by the system in an ICS.
A binary BDB conforms to this document if it satisfies the format requirements with respect to its
structure, with respect to relations among its fields, and with respect to relations between its fields
and the underlying input that are specified within A.1.
An XML document conforms to this document if it satisfies the format requirements with respect to its
structure, with respect to relations among its fields, and with respect to relations between its fields
and the underlying input that are specified within A.2.
6 Iris image content specification
6.1 General
This clause establishes requirements on the semantic content of the images that are allowed by this
document. These requirements relate to the geometric structure, pre-processing, compression protocol,
format and dimensions of the image data. (Guidance on iris image capture is given in Annex D.) Image
data may be uncompressed or compressed. If uncompressed, then it shall be encoded using PGM or PPM
[5]
image format . All uncompressed raw images shall have an 8 bit pixel depth. Images with a pixel depth
other than 8 bits shall be encoded using PNG or JPEG2000.
The remaining subclauses of Clause 6 group these requirements according to the type of image.
As shown in Table 1, four image types are defined according to a hierarchy inherited from an
4 © ISO/IEC 2020 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC FDIS 39794-6:2020(E)
unconstrained abstract basic iris image. The associated abstract values are provided in subclause 7.3.3.
The requirements of Clause 7 establish the encoding specifications for the image.
NOTE The specifications of image types, compression protocols, formats and cropping dimensions in this
[8]
first edition of this document have been determined by the NIST Interoperable Iris Exchange (IREX-1) study
(2009), which was commissioned for this purpose.
Table 1 — Hierarchy of iris image types
Margins (R: iris
Width and
radius) Data size Compression
Iris Cen- Data encoding
height
FORMAT NAME
tring method
Hori-zon- Vertical kB mode
pixels
tal
IMAGE_TYPE_UNCROPPED no ≥ 0,6R ≥ 0,2R unspecified variable none PGM or PPM
variable lossless PNG or
JPEG2000
variable lossy JPEG2000
IMAGE_TYPE_VGA no ≥ 0,6R ≥ 0,2R W = 640 307,2 none PGM or PPM
H = 480 typically 70- lossless PNG or
140 JPEG2000
variable lossy JPEG2000
IMAGE_TYPE_CROPPED yes =0,6R =0,2R unspecified variable none n/a
t y pic a l l y lossless PNG or
40-70 JPEG2000
typically 8-24 lossy (see NOTE 4) JPEG2000
(compact)
I M AG E _T Y PE _ C ROPPE D _ A N D _ yes =0,6R =0,2R unspecified variable none n/a
MASKED
t y pic a l l y lossless PNG or
20-50 JPEG2000
typically 2-6 lossy JPEG2000
(compact)
NOTE 1 The application of lossy compression to IMAGE_TYPE_UNCROPPED images is not recommended for
images with spatial sampling rate below 10 pixels/mm.
NOTE 2 Typical data sizes for IMAGE_TYPE_CROPPED and IMAGE_TYPE_CROPPED_AND_MASKED assume an
iris of approximately 120 pixels radius. Other sizes are listed as variable to reflect variations in spatial sampling
rate and in iris size.
NOTE 3 The use of cropping, masking, or lossy compression can degrade iris recognition accuracy.
NOTE 4 For applications of 1:1 comparison, the compressed IMAGE_TYPE_CROPPED data size can be as low
as 3,5 kB.
6.2 Uncropped iris image
An uncropped iris image shall contain a raster scan image of a single eye. An example is shown in
Figure 1. For an iris radius of R, there shall be margins of image data at least 0,2R above and below the
iris, and at least 0,6R to the right and left of the iris. These margins of image data shall be acquired from
the actual object being imaged, not synthesized values. It is not assumed that the iris is centred within
the image.
If uncropped image data is compressed, then ideally it should be compressed losslessly. PNG shall not be
used in its interlaced mode. If JPEG2000 is used, image data shall be stored in JPEG2000 format.
The uncropped iris image type shall be identified in the iris record by assigning the abstract value
uncropped to the iris image type element in subclause 7.3.3, as defined in Table 3.
© ISO/IEC 2020 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC FDIS 39794-6:2020(E)
6.3 VGA iris image
A VGA iris image is a special case of the uncropped iris image; the image width shall be 640 pixels and
the image height shall be 480 pixels. An example is shown in Figure 1. Additional constraints of margins
and container are inherited from the uncropped image type in subclause 6.2.
If images are compressed, then images shall be compressed in accordance with either PNG or JPEG2000
for lossless compression, or JPEG2000 for lossy compression.
The VGA iris image type shall be identified in the iris record by assigning the abstract value vGA to the
iris image type element in 7.3.3, as defined in Table 3.
Figure 1 — Example of uncropped iris image or VGA iris image
6.4 Cropped iris image
A cropped version of a rectilinear iris image may be instantiated. This supports moderately compact
storage. It requires a coarse localization of the iris.
The cropped rectilinear image shall contain an iris centred relative to the geometric centre of the raster
representation. An example is shown in Figure 2.
The crop region shall be sized such that a margin 0,6R pixels wide
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
