SIST EN 4326:2002

Aerospace series - Heat resisting alloy CO-WH4102 (CoCr28W20Ni5V1) - Filler metal for welding - Wire and rod

This standard specifies the requirements relating to:
Heat resisting alloy CO-WH4102 (CoCr28W20Ni5V1)
Filler metal for welding
Wire and rod
for aerospace applications.
This material is suitable for the manufacture of pre-forms.

Luft- und Raumfahrt - Hochwarmfeste Legierung CO-WH4102 (CoCr28W20Ni5V1) - Schweißzusatz - Draht und Stäbe

Diese Norm legt die Anforderungen an:
Hochwarmfeste Legierung CO-WH4102 (CoCr28W20Ni5V1)
Schweißzusatz
Draht und Stäbe
für Anwendungen in der Luft- und Raumfahrt fest.
Dieser Werkstoff ist für die Herstellung von Vorformen geeignet.

Série aérospatiale - Alliage résistant a chaud CO-WH4102 (CoCr28W20Ni5V1) - Métal d'apport de soudage - Fil et baguette

Aerospace series - Heat resisting alloy CO-WH4102 (CoCr28W20Ni5V1) - Filler metal for welding - Wire and rod

General Information

• Status: Published
• Publication Date: 31-Dec-2001
• ICS: 49.025.15 - Non-ferrous alloys in general
• Technical Committee: SS SPL - Technical Board for the general field
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jan-2002
• Due Date: 01-Jan-2002
• Completion Date: 01-Jan-2002
• Ref Project: EN 4326:2001 - Aerospace series - Heat resisting alloy CO-WH4102 (CoCr28W20Ni5V1) - Filler metal for welding - Wire and rod

Overview

EN 4326:2001 is a European aerospace material standard published by CEN and prepared by AECMA. It covers the heat-resisting filler metal alloy CO-WH4102 (CoCr28W20Ni5V1) in wire and rod forms for welding applications. The standard defines production and delivery conditions relevant to aerospace use and identifies this material as suitable for the manufacture of pre-forms.

Key administrative points:

• Published as a CEN standard and to be implemented as a national standard across CEN member countries.
• Developed within the EN metallic materials series for aerospace applications (see EN 4258 for series organization).

Key Topics

The standard concentrates on designation, production methods and delivery requirements rather than detailed mechanical property tables. Main points include:

• Material designation: Heat resisting alloy CO-WH4102 (CoCr28W20Ni5V1) - a cobalt-chromium-tungsten-nickel-vanadium alloy intended as filler metal for welding.
• Form: Supplied as wire and rod, optimized for welding processes and pre-form manufacture.
• Method of melting: Specified as air melted in the standard.
• Production methods: Cast or extruded production routes are referenced.
• Delivery condition: Supplied cast or extruded and annealed where applicable.
• Inspection and verification: References to tests and inspection requirements are made by cross-reference to other EN aerospace standards rather than repeating all test methods in this document.

Applications

EN 4326:2001 is targeted at aerospace welding and repair operations where heat-resisting filler metals are required. Practical applications include:

• Welding and joining of high-temperature components in aircraft and aerospace systems.
• Manufacture of pre-forms and filler components that require good heat resistance and compatibility with cobalt-chromium-based superalloys.
• Production and supply-chain specification for manufacturers, purchasers and quality managers who need standardized filler metal requirements for aerospace assemblies.

Benefits for users:

• Ensures consistent material designation and supply conditions for CO-WH4102 filler metal.
• Facilitates procurement and quality assurance by referencing harmonized EN requirements.
• Supports traceability and conformity for aerospace manufacturing and repair.

Related Standards

EN 4326:2001 references and works alongside several EN standards in the aerospace metallic materials series. Relevant linked standards include:

• EN 2043 - General requirements for semi-finished product qualification
• EN 3879 - Filler metal for welding - Technical specification
• EN 4258 - General organization of material standardization for aerospace
• EN 4500-3 - Specific drafting rules for heat resisting alloys

For product qualification and detailed test programmes, the standard indicates that qualification shall be agreed between manufacturer and purchaser and refers to EN 2043 and EN 3879 for specific procedures. For procurement or design, reference EN 4326 when specifying CO-WH4102 filler metal in wire or rod form for aerospace welding.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Heat resisting alloy CO-WH4102 (CoCr28W20Ni5V1) - Filler metal for welding - Wire and rodLuft- und Raumfahrt - Hochwarmfeste Legierung CO-WH4102 (CoCr28W20Ni5V1) - Schweißzusatz - Draht und StäbeSérie aérospatiale - Alliage résistant a chaud CO-WH4102 (CoCr28W20Ni5V1) - Métal d'apport de soudage - Fil et baguetteAerospace series - Heat resisting alloy CO-WH4102 (CoCr28W20Ni5V1) - Filler metal for welding - Wire and rod49.025.15Neželezove zlitine na splošnoNon-ferrous alloys in generalICS:Ta slovenski standard je istoveten z:EN 4326:2001SIST EN 4326:2002en01-januar-2002SIST EN 4326:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4326June 2001ICS 49.025.15English versionAerospace series - Heat resisting alloy CO-WH4102(CoCr28W20Ni5V1) - Filler metal for welding - Wire and rodSérie aérospatiale - Alliage résistant à chaud CO-WH4102(CoCr28W20Ni5W1) - Métal d'apport de soudage - Fil etbaguetteLuft- und Raumfahrt - Hochwarmfeste Legierung CO-WH4102 (CoCr28W20Ni5V1) - Schweißzusatz - Draht undStäbeThis European Standard was approved by CEN on 2 May 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4326:2001 ESIST EN 4326:2002

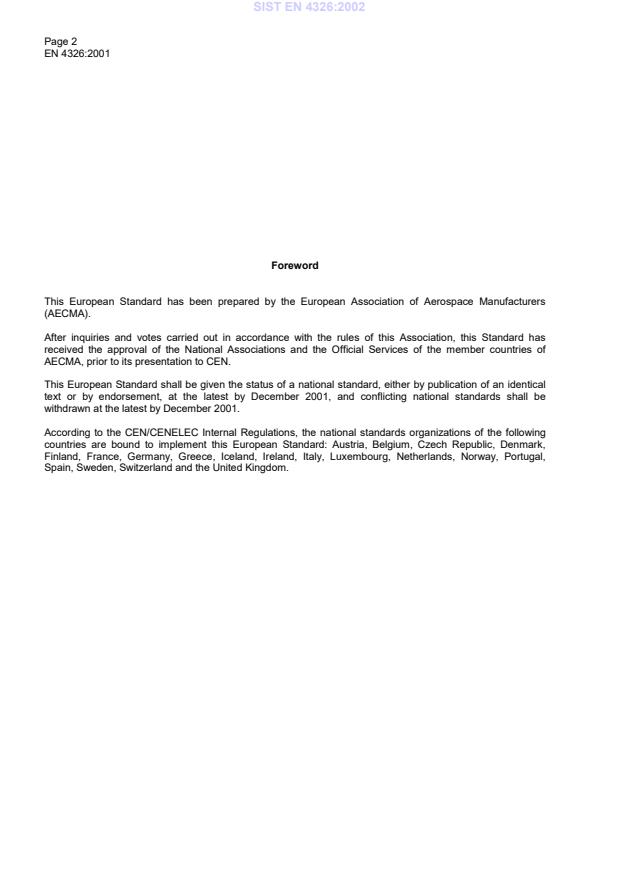

Page 2EN 4326:2001ForewordThis European Standard has been prepared by the European Association of Aerospace Manufacturers(AECMA).After inquiries and votes carried out in accordance with the rules of this Association, this Standard hasreceived the approval of the National Associations and the Official Services of the member countries ofAECMA, prior to its presentation to CEN.This European Standard shall be given the status of a national standard, either by publication of an identicaltext or by endorsement, at the latest by December 2001, and conflicting national standards shall bewithdrawn at the latest by December 2001.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this Eu
...
