SLOVENSKI STANDARD
SIST ETS 300 092-1:1998
01-november-1998
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL ,6'1 'RSROQLOQDVWRULWHY SULND]
LGHQWLWHWH UD]SR]QDYQRVWL NOLþRþHJDSULNOMXþND &/,3 3URWRNROGLJLWDOQH
QDURþQLãNHVLJQDOL]DFLMHãW '66 GHO 6SHFLILNDFLMDSURWRNROD
Integrated Services Digital Network (ISDN); Calling Line Identification Presentation
(CLIP) supplementary service; Digital Subscriber Signalling System No. one (DSS1)
protocol; Part 1: Protocol specification
Ta slovenski standard je istoveten z: ETS 300 092-1 Edition 1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
SIST ETS 300 092-1:1998 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST ETS 300 092-1:1998
---------------------- Page: 2 ----------------------
SIST ETS 300 092-1:1998
EUROPEAN ETS 300 092-1
TELECOMMUNICATION March 1992
STANDARD
Source: ETSI TC-SPS Reference: T/S 46-33C
ICS: 33.080
ISDN, supplementary service
Key words:
Integrated Services Digital Network (ISDN);
Calling Line Identification Presentation (CLIP)
supplementary service;
Digital Subscriber Signalling System No. one (DSS1) protocol;
Part 1: Protocol specification
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1992. All rights reserved.
New presentation - see History box
---------------------- Page: 3 ----------------------

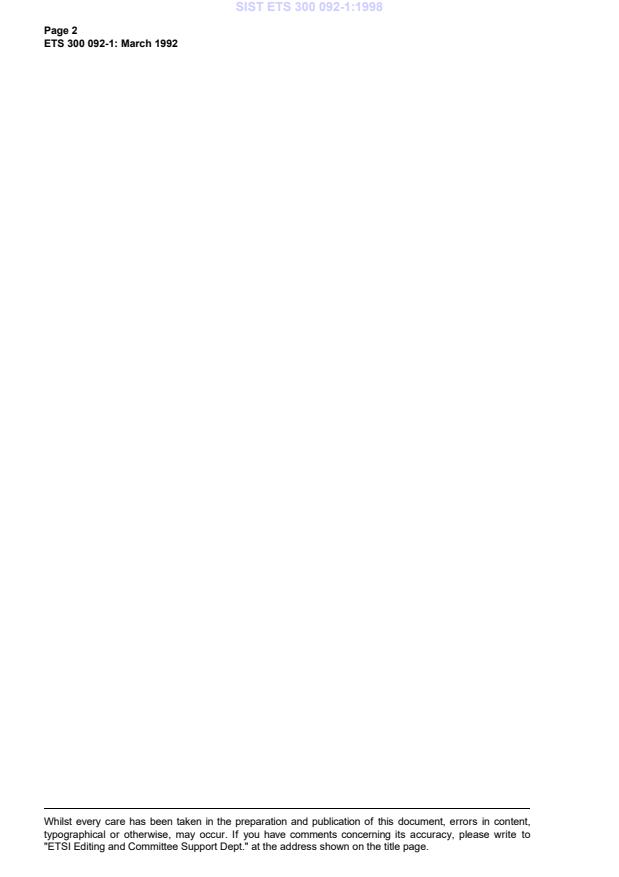

SIST ETS 300 092-1:1998
Page 2
ETS 300 092-1: March 1992
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.
---------------------- Page: 4 ----------------------
SIST ETS 300 092-1:1998
Page 3
ETS 300 092-1: March 1992
Contents
Foreword.5
1 Scope .7
2 Normative references .7
3 Definitions. 8
4 Symbols and abbreviations.9
5 Description .9
6 Operational requirements.9
6.1 Provision and withdrawal .9
6.2 Requirements on the originating network side.9
6.3 Requirements on the destination network side .9
7 Coding requirements. 10
8 State definitions . 10
9 Signalling procedures at the coincident S and T reference point . 10
9.1 Activation, deactivation and registration. 10
9.2 Actions at the originating user . 10
9.2.1 Normal operation. 10
9.2.2 Exceptional procedures. 10
9.3 Actions at the originating local exchange if a special arrangement does not apply. 11
9.3.1 Normal operation. 11
9.3.2 Exceptional procedures. 13
9.4 Actions at the originating local exchange if a special arrangement applies. 13
9.4.1 Normal operation. 13
9.4.2 Exceptional procedures. 14
9.5 Actions at the destination local exchange . 14
9.5.1 Normal operation. 14
9.5.2 Exceptional procedures. 15
10 Procedures for interworking with private ISDNs . 15
11 Interaction with other networks. 15
12 Interaction with other supplementary services. 16
13 Parameter values (timers). 16
14 Dynamic description (SDLs) . 17
Annex A (informative): Signalling flows. 20
---------------------- Page: 5 ----------------------
SIST ETS 300 092-1:1998
Page 4
ETS 300 092-1: March 1992
Annex B (normative): Two Calling party number information elements delivery option .21
B.1 Scope.21
B.2 Additional procedures at the destination network side. 21
B.2.1 Normal operation.21
B.2.2 Exceptional procedures.21
Annex C (informative): Terminal interchangeability between public and private ISDNs.22
Annex D (informative): Bibliography.23
History .24
---------------------- Page: 6 ----------------------
SIST ETS 300 092-1:1998
Page 5
ETS 300 092-1: March 1992
Foreword
This European Telecommunication Standard (ETS) has been produced by the Signalling Protocols and
Switching (SPS) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS is part 1 of a multi-part standard covering the Digital Subscriber Signalling System No. one
(DSS1) protocol specification for the Integrated Services Digital Network (ISDN) Calling Line Identification
Presentation (CLIP) supplementary service, as described below:
Part 1: "Protocol specification";
Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification";
Part 3: "Test Suite Structure and Test Purposes (TSS&TP) specification for the user";
Part 4: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing
(PIXIT) proforma specification for the user";
Part 5: "TSS&TP specification for the network";
Part 6: "ATS and partial PIXIT proforma specification for the network".
In accordance with CCITT Recommendation I.130, the following three level structure is used to describe
the supplementary telecommunications services as provided by European public telecommunications
operators under the pan-European Integrated Services Digital Network (ISDN):
- Stage 1: is an overall service description, from the user's standpoint;
- Stage 2: identifies the functional capabilities and information flows needed to support the service
described in stage 1; and,
- Stage 3: defines the signalling system protocols and switching functions needed to implement the
service described in stage 1.
This standard details the stage three aspects (signalling system protocols and switching functions) needed
to support the Calling Line Identification Presentation (CLIP) supplementary service. The stage 1 and
stage 2 aspects are detailed in ETS 300 089 (1992) and ETS 300 091 (1992), respectively.
This reprint includes all previous Corrigenda as shown in the History box at the last page.
---------------------- Page: 7 ----------------------
SIST ETS 300 092-1:1998
Page 6
ETS 300 092-1: March 1992
Blank page
---------------------- Page: 8 ----------------------
SIST ETS 300 092-1:1998
Page 7
ETS 300 092-1: March 1992
1 Scope
This first part of ETS 300 092 specifies the stage three of the Calling Line Identification Presentation
(CLIP) supplementary service for the pan-European Integrated Services Digital Network (ISDN) as
provided by European public telecommunications operators at the T reference point or coincident S and T
reference point (as defined in CCITT Recommendation I.411 [1]) by means of the Digital Subscriber
Signalling System No. one (DSS1) protocol. Stage three identifies the protocol procedures and switching
functions needed to support a telecommunication service (see CCITT Recommendation I.130 [2]).
In addition this standard specifies the protocol requirements at the T reference point where the service is
provided to the user via a private ISDN.
This standard does not specify the additional protocol requirements where the service is provided to the
user via a telecommunications network that is not an ISDN.
The CLIP supplementary service provides the called party with the possibility to receive identification of the
calling party, and is applicable to all telecommunication services.
Further parts of this standard specify the method of testing required to identify conformance to this
standard.
This standard is applicable to equipment supporting the CLIP supplementary service, to be attached at
either side of a T reference point or coincident S and T reference point when used as an access to the
public ISDN.
2 Normative references
This standard incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to, or revisions of any of these publications
apply to this standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies.
[1] CCITT Recommendation I.411 (1988): "ISDN user-network interfaces Reference
configurations".
[2] CCITT Recommendation I.130 (1988): "Method for characterisation of
telecommunications services supported by an ISDN and network capabilities of
an ISDN".
[3] CCITT Recommendation I.112 (1988): "Vocabulary of terms for ISDNs".
[4] CCITT Recommendation E.164 (1988): "Numbering plan for the ISDN era".
[5] CCITT Recommendation E.163 (1988): "Numbering plan for the international
telephone service".
[6] ETS 300 102-1 (1990): "Integrated Services Digital Network (ISDN); User-
network interface layer 3; Specifications for basic call control".
[7] ETS 300 195-1: "Integrated Services Digital Network (ISDN); Supplementary
service interactions; Digital Subscriber Signalling System No. one (DSS1)
protocol; Part 1: Protocol specification".
---------------------- Page: 9 ----------------------
SIST ETS 300 092-1:1998
Page 8
ETS 300 092-1: March 1992
[8] CCITT Recommendation I.210 (1988): "Principles of telecommunication services
supported by an ISDN and the means to describe them".
[9] ETS 300 089 (1992): "Integrated Services Digital Network (ISDN); Calling Line
Identification Presentation (CLIP) supplementary service; Service description".
[10] ETS 300 102-2 (1990): "Integrated Services Digital Network (ISDN); User
network interface layer 3; Specifications for basic call control - SDL diagrams".
[11] ETS 300 093-1 (1992): "Integrated Services Digital Network (ISDN); Calling Line
Identification Restriction (CLIR) supplementary service; Digital Subscriber
Signalling System No. one (DSS1) protocol; Part 1: Protocol specification".
[12] CCITT Recommendation Z.100 (1988): "Functional Specification and Description
Language (SDL)".
3 Definitions
For the purpose of this standard, the following definitions apply:
Integrated Services Digital Network (ISDN): see CCITT Recommendation I.112 [3], § 2.3,
definition 308.
Service; telecommunications service: see CCITT Recommendation I.112 [3], § 2.2, definition 201.
Supplementary service: see CCITT Recommendation I.210 [8], § 2.4.
Network: the DSS1 protocol entity at the network side of the user-network interface.
User: the DSS1 protocol entity at the user side of the user-network interface.
Served user: the user of a particular ISDN number who has subscribed to the presentation of the calling
line identification information in association with incoming calls. The served user is also known as the called
user.
Calling user: the user that initiated an incoming call at the served user. The calling user need not have
subscribed to the CLIP supplementary service.
Address: the ISDN number of the calling user, and a subaddress if provided by that user.
ISDN number: a number conforming to the numbering plan and structure specified in CCITT
Recommendation E.164 [4].
Subaddress: see CCITT Recommendation E.164 [4], § 11.2.
Calling subaddress: the subaddress of the calling user.
Calling number: the ISDN number of the calling user.
International number: an ISDN number structured as specified in § 3.2 (the paragraphs relating to
international number) of CCITT Recommendation E.164 [4].
National number; National significant number: an ISDN number structured as specified in § 3.2 (in the
paragraphs relating to national significant number) of CCITT Recommendation E.164 [4].
---------------------- Page: 10 ----------------------
SIST ETS 300 092-1:1998
Page 9
ETS 300 092-1: March 1992
Subscriber number: an ISDN number structured as specified in § 3.2 (the paragraphs relating to
subscriber number) of CCITT Recommendation E.164 [4].
Default number: an agreed ISDN number between the user, at the calling side, and the network provider.
Special arrangement: an agreement between a customer and a public network operator whereby
customer supplied calling party numbers are not screened by the public ISDN.
4 Symbols and abbreviations
CLIP Calling Line Identification Presentation
CLIR Calling Line Identification Restriction
DSS1 Digital Subscriber Signalling System No. one
ISDN Integrated Services Digital Network
5 Description
The CLIP supplementary service is a supplementary service offered to the called user. It provides the
calling user's ISDN number, possibly with the calling user's subaddress information, to the called user.
The information provided to the called user shall consist of the ISDN number of the calling user in a form
sufficient to allow the returning of the call (i.e. a subscriber number, a national number or an international
number and optionally a subaddress if provided by the calling user).
6 Operational requirements
6.1 Provision and withdrawal
See ETS 300 089 [9], subclause 6.1.
6.2 Requirements on the originating network side
All information pertaining to the CLIP supplementary service shall be inserted in the SETUP message sent
as part of the basic call procedures according to ETS 300 102-1 [6], Clause 5.
In the case where no information is provided by the calling user (as part of the basic call procedures) the
network shall provide the default number associated with the access (in which the call was generated) in
the originating local exchange.
When the calling number information is provided by the calling user, the network can only verify that the
number is within the set of numbers allocated to that user.
Where a special arrangement exists with the calling user, no verification shall be performed.
6.3 Requirements on the destination network side
See subclause 9.5.
---------------------- Page: 11 ----------------------
SIST ETS 300 092-1:1998
Page 10
ETS 300 092-1: March 1992
7 Coding requirements
ETS 300 102-1 [6], subclauses 4.5.10 and 4.5.11 give the coding for the calling party number and the
calling party subaddress information elements which are required to support this service.
The purpose of the calling party number information element is to identify the origin of a call.
The purpose of the calling party subaddress information element is to identify a subaddress associated
with the origin of the call.
8 State definitions
No specific state definitions are required.
9 Signalling procedures at the coincident S and T reference point
9.1 Activation, deactivation and registration
Not applicable.
9.2 Actions at the originating user
9.2.1 Normal operation
These procedures shall be provided as part of the basic service and the calling user need not have
subscribed to the CLIP supplementary service.
The numbering plan identifier, to be indicated within the calling party number information element, sent by
the calling user, shall be either "ISDN/telephony numbering plan (CCITT Recommendations E.164 [4] and
E.163 [5])" or "unknown".
NOTE: Either coding may be used and the treatment of both by the network is identical.
Where the calling number included by the calling user is complete, the type of number to be indicated
within the calling party number information element, sent by the calling user, shall be one of the following:
- "subscriber number", in the case where the complete subscriber number is sent;
- "national number", in the case where the complete national number is sent;
- "international number", in the case where the complete international number is sent.
Where a partial calling number is included by the calling user (e.g. to indicate digits specific to the direct
dialling in or the multiple subscriber number supplementary services) the user shall set the type of number
to be indicated within the calling party number information element to "unknown".
9.2.2 Exceptional procedures
Not applicable.
---------------------- Page: 12 ----------------------
SIST ETS 300 092-1:1998
Page 11
ETS 300 092-1: March 1992
9.3 Actions at the originating local exchange if a special arrangement does not apply
9.3.1 Normal operation
These procedures shall be provided as part of the basic service and the calling user need not have
subscribed to the CLIP supplementary service.
When a SETUP message is received from the calling user, the network shall check to see if the calling
party number and calling party subaddress information elements are included.
If the calling party number information element is received with a coding of the numbering plan identifier
field other than "ISDN/telephony numbering plan (CCITT Recommendations E.164 [4] and E.163 [5])" or
"unknown", then the network shall discard the calling party number information element and process the
call as if that information element was not received.
At the originating side, the network shall set the value of the screening indicator based on the outcome of
the screening of the calling number. The network shall disregard any value of the screening indicator, if
received from the calling user.
If the calling party number information element is included, the network shall perform the screening
function. If the calling number received from the calling user is determined to be correct, the network shall
set the screening indicator to "user-provided, verified and passed".
NOTE: Some networks may accept a full ISDN number in a calling party number information
element with the addition of a prefix or escape digits to the number digits field and the
type of number field set to "unknown".
If the SETUP message does not contain the calling party number information element or the screening
function has determined the provided calling number to be incorrect, the network shall use a default
number associated with the calling user. The network shall set the screening indicator to "network
provided".
In the case where the calling user provides partial calling number information and the number is a valid digit
sequence for the user access arrangement, the network shall complete the number as appropriate. The
network shall set the screening indicator to "user-provided, verified and passed".
NOTE: In some cases the network cannot guarantee that the completed number identifies an
end user.
If the calling party subaddress information element is available, it shall be passed transparently through the
network.
The number digits and the screening indicator, as determined by the procedures above, shall be forwarded
to the destination local exchange, in association with the basic call request.
The presentation indicator, as determined by the procedures of the CLIR supplementary service (see
ETS 300 093-1 [11]), shall be forwarded to the destination local exchange, in association with the basic
call request.
The actions at the originating local exchange are summarised in table 1.
---------------------- Page: 13 ----------------------
SIST ETS 300 092-1:1998
Page 12
ETS 300 092-1: March 1992
Table 1: Information provided by the calling user and by the network
�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¿
‡ Information provided ‡ Information provided ‡
‡ by the calling user ‡ by the network ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜·
‡ Calling user ‡ Type of ‡ Calling user ‡ Screening ‡ Type of ‡
‡ number ‡ number ‡ number ‡ Indicator ‡ number ‡
‡ received from ‡ (octet 3) ‡ forwarded to ‡ forwarded ‡ forwarded ‡
‡ the calling ‡ ‡ the called ‡ to the ‡ to the ‡
‡ user ‡ ‡ user if CLIR ‡ called user ‡ called ‡
‡ (octet 4) ‡ ‡ is not ‡ (octet 3) ‡ user ‡
‡ ‡ ‡ activated ‡ ‡ (octet3) ‡
‡ ‡ ‡ (octet 4) ‡ ‡ ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜·
‡ No calling ‡ ‡ Default ‡ Network- ‡ "Inter- ‡
‡ party number ‡ ‡ number ‡ provided ‡ national ‡
‡ information ‡ ‡ stored at ‡ ‡ number" or ‡
‡ element is ‡ ‡ the network ‡ ‡ "national ‡
‡ provided by ‡ ‡ side ‡ ‡ number" or ‡
‡ the calling ‡ ‡ ‡ ‡ "unknown" ‡
‡ user ‡ ‡ ‡ ‡ (NOTE 1,7) ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜·
‡ Valid part of ‡ "Unknown" ‡ Completion ‡ User- ‡ "Inter- ‡
‡ the number not ‡ ‡ of the ‡ provided ‡ national ‡
‡ sufficient for ‡ ‡ number ‡ verified, ‡ number" or ‡
‡ returning the ‡ ‡ (NOTE 3) ‡ and passed ‡ "national ‡
‡ call ‡ ‡ ‡ (NOTE 4) ‡ number" or ‡
‡ (NOTE 2) ‡ ‡ ‡ ‡ "unknown" ‡
‡ ‡ ‡ ‡ ‡ (NOTE 1,7) ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜·
‡ Correct ‡ "Subscriber ‡ Complete ‡ User- ‡ "Inter- ‡
‡ complete ‡ number" or ‡ calling ‡ provided, ‡ national ‡
‡ calling user ‡ "national ‡ user ‡ verified ‡ number" or ‡
‡ number ‡ number" or ‡ number ‡ and passed ‡ "national ‡
‡ (NOTE 5) ‡ "inter- ‡ ‡ ‡ number" or ‡
‡ ‡ national ‡ ‡ ‡ "unknown" ‡
‡ ‡ number" ‡ ‡ ‡ (NOTE 1,7) ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜˜˜·
‡ Incorrect ‡ Any type ‡ Default ‡ Network- ‡ "Inter- ‡
‡ number ‡ of number ‡ number ‡ provided ‡ national ‡
‡ (NOTE 6) ‡ ‡ stored at ‡ ‡ number" or ‡
‡ ‡ ‡ the network ‡ ‡ "national ‡
‡ ‡ ‡ side ‡ ‡ number" or ‡
‡ ‡ ‡ ‡ ‡ "unknown" ‡
‡ ‡ ‡ ‡ ‡ (NOTE 1,7) ‡
ˆ˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜˜˜·
‡NOTE 1: A national number shall be converted to an international number ‡
‡ at some point in the public network path where the destination ‡
‡ is in a different country. ‡
‡NOTE 2: This assumes that the user’s equipment provides that part of the‡
‡ number pertaining to its own (private) domain. This may be ‡
‡ multiple subscriber number digits provided by a terminal ‡
‡ equipment or an extension line number provided by a private ‡
‡ ISDN. The network shall interpret the number digits and check if‡
‡ it is a valid digit sequence according to the agreements ‡
‡ existing between the calling user and the network provider. ‡
‡NOTE 3: Completion means that the remaining part of the ISDN number ‡
‡ associated with the appropriate access is added to the user ‡
‡ provided part of the number. ‡
‡NOTE 4: The term "verified" implies matching of the user provided number‡
‡ or part of this number with the range(s) of numbers stored at ‡
‡ the network side and it implies at least a valid format of user ‡
‡ provided number information (e.g. a direct dialling in number). ‡
‡NOTE 5: The term "correct" implies from the network point of view ‡
‡ matching of the subscriber number provided by the user with one ‡
‡ of the numbers in the set of numbers stored at the network ‡
‡ side. This number may also contain direct dialling in and/or ‡
‡ multiple subscriber number digits. ‡
‡NOTE 6: The number provided by the user is discarded. ‡
‡NOTE 7: As a network option, the type of number may be coded "unknown", ‡
‡ in which case, the number is organised to the network dialling ‡
‡ plan, i.e. prefixes, or the absence of a prefix, shall be used ‡
‡ to distinguish international numbers and national numbers from ‡
‡ each other. ‡
�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜�
---------------------- Page: 14 ----------------------
SIST ETS 300 092-1:1998
Page 13
ETS 300 092-1: March 1992
9.3.2 Exceptional procedures
Not applicable.
9.4 Actions at the originating local exchange if a special arrangement applies
9.4.1 Normal operation
These procedures shall be provided as part of the basic service and the calling user need not have
subscribed to the CLIP supplementary service.
When a SETUP message is received from the calling user, the network shall check to see if the calling
party number and calling party subaddress information elements are included.
If the calling party number information element is received with a coding of the numbering plan identifier
field other than "ISDN/telephony numbering plan (CCITT Recommendations E.164 [4] and E.163 [5])" or
"unknown", then the network shall discard the calling party number information element and process the
call as if that information element was not received.
If the calling party number information element is received with the coding of the type of number field other
than "national number" or "international number", then the network shall discard the calling party number
information element and process the call as if that information element was not received.
The network shall disregard any value of the screening indicator, if received from the calling user.
If the SETUP message does not contain the calling party number information element, the network shall
use a default number associated with the calling user. The network shall set the screening indicator to
"network provided".
If the calling party number information element is included, the network shall set the screening indicator to
"user-provided, not screened".
If the calling party subaddress information element is available, it shall be passed transparently through the
network.
The number digits and the screening indicator, as
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.WRNRODIntegrated Services Digital Network (ISDN); Calling Line Identification Presentation (CLIP) supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 1: Protocol specification33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:ETS 300 092-1 E13SIST ETS 300 092-1:1998en01-DSrLO-19983SIST ETS 300 092-1:1998SLOVENSKI
STANDARD
SIST ETS 300 092-1:1998
EUROPEANETS 300 092-1TELECOMMUNICATIONMarch 1992STANDARDSource: ETSI TC-SPSReference: T/S 46-33CICS:33.080Key words:ISDN, supplementary serviceIntegrated Services Digital Network (ISDN);Calling Line Identification Presentation (CLIP)supplementary service;Digital Subscriber Signalling System No. one (DSS1) protocol;Part 1: Protocol specificationETSIEuropean Telecommunications Standards InstituteETSI SecretariatPostal address: F-06921 Sophia Antipolis CEDEX - FRANCEOffice address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCEX.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: secretariat@etsi.frTel.: +33 92 94 42 00 - Fax: +33 93 65 47 16Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and theforegoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1992. All rights reserved.SIST ETS 300 092-1:1998
Page 2ETS 300 092-1: March 1992Whilst every care has been taken in the preparation and publication of this document, errors in content,typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to"ETSI Editing and Committee Support Dept." at the address shown on the title page.SIST ETS 300 092-1:1998
Page 3ETS 300 092-1: March 1992ContentsForeword.51Scope.72Normative references.73Definitions.84Symbols and abbreviations.95Description.96Operational requirements.96.1Provision and withdrawal.96.2Requirements on the originating network side.96.3Requirements on the destination network side.97Coding requirements.108State definitions.109Signalling procedures at the coincident S and T reference point.109.1Activation, deactivation and registration.109.2Actions at the originating user.109.2.1Normal operation.109.2.2Exceptional procedures.109.3Actions at the originating local exchange if a special arrangement does not apply.119.3.1Normal operation.119.3.2Exceptional procedures.139.4Actions at the originating local exchange if a special arrangement applies.139.4.1Normal operation.139.4.2Exceptional procedures.149.5Actions at the destination local exchange.149.5.1Normal operation.149.5.2Exceptional procedures.1510Procedures for interworking with private ISDNs.1511Interaction with other networks.1512Interaction with other supplementary services.1613Parameter values (timers).1614Dynamic description (SDLs).17Annex A (informative):Signalling flows.20SIST ETS 300 092-1:1998
Page 4ETS 300 092-1: March 1992Annex B (normative):Two Calling party number information elements delivery option.21B.1Scope.21B.2Additional procedures at the destination network side.21B.2.1Normal operation.21B.2.2Exceptional procedures.21Annex C (informative):Terminal interchangeability between public and private ISDNs.22Annex D (informative):Bibliography.23History.24SIST ETS 300 092-1:1998
Page 5ETS 300 092-1: March 1992ForewordThis European Telecommunication Standard (ETS) has been produced by the Signalling Protocols andSwitching (SPS) Technical Committee of the European Telecommunications Standards Institute (ETSI).This ETS is part 1 of a multi-part standard covering the Digital Subscriber Signalling System No. one(DSS1) protocol specification for the Integrated Services Digital Network (ISDN) Calling Line IdentificationPresentation (CLIP) supplementary service, as described below:Part 1:"Protocol specification";Part 2:"Protocol Implementation Conformance Statement (PICS) proforma specification";Part 3:"Test Suite Structure and Test Purposes (TSS&TP) specification for the user";Part 4:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing(PIXIT) proforma specification for the user";Part 5:"TSS&TP specification for the network";Part 6:"ATS and partial PIXIT proforma specification for the network".In accordance with CCITT Recommendation I.130, the following three level structure is used to describethe supplementary telecommunications services as provided by European public telecommunicationsoperators under the pan-European Integrated Services Digital Network (ISDN):-Stage 1: is an overall service description, from the user's standpoint;-Stage 2: identifies the functional capabilities and information flows needed to support the servicedescribed in stage 1; and,-Stage 3: defines the signalling system protocols and switching functions needed to implement theservice described in stage 1.This standard details the stage three aspects (signalling system protocols and switching functions) neededto support the Calling Line Identification Presentation (CLIP) supplementary service. The stage 1 andstage 2 aspects are detailed in ETS 300 089 (1992) and ETS 300 091 (1992), respectively.This reprint includes all previous Corrigenda as shown in the History box at the last page.SIST ETS 300 092-1:1998
Page 6ETS 300 092-1: March 1992Blank pageSIST ETS 300 092-1:1998
Page 7ETS 300 092-1: March 19921ScopeThis first part of ETS 300 092 specifies the stage three of the Calling Line Identification Presentation(CLIP) supplementary service for the pan-European Integrated Services Digital Network (ISDN) asprovided by European public telecommunications operators at the T reference point or coincident S and Treference point (as defined in CCITT Recommendation I.411 [1]) by means of the Digital SubscriberSignalling System No. one (DSS1) protocol. Stage three identifies the protocol procedures and switchingfunctions needed to support a telecommunication service (see CCITT Recommendation I.130 [2]).In addition this standard specifies the protocol requirements at the T reference point where the service isprovided to the user via a private ISDN.This standard does not specify the additional protocol requirements where the service is provided to theuser via a telecommunications network that is not an ISDN.The CLIP supplementary service provides the called party with the possibility to receive identification of thecalling party, and is applicable to all telecommunication services.Further parts of this standard specify the method of testing required to identify conformance to thisstandard.This standard is applicable to equipment supporting the CLIP supplementary service, to be attached ateither side of a T reference point or coincident S and T reference point when used as an access to thepublic ISDN.2Normative referencesThis standard incorporates by dated and undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text and the publications are listedhereafter. For dated references, subsequent amendments to, or revisions of any of these publicationsapply to this standard only when incorporated in it by amendment or revision. For undated references thelatest edition of the publication referred to applies.[1]CCITT Recommendation I.411 (1988): "ISDN user-network interfaces Referenceconfigurations".[2]CCITT Recommendation I.130 (1988): "Method for characterisation oftelecommunications services supported by an ISDN and network capabilities ofan ISDN".[3]CCITT Recommendation I.112 (1988): "Vocabulary of terms for ISDNs".[4]CCITT Recommendation E.164 (1988): "Numbering plan for the ISDN era".[5]CCITT Recommendation E.163 (1988): "Numbering plan for the internationaltelephone service".[6]ETS 300 102-1 (1990): "Integrated Services Digital Network (ISDN); User-network interface layer 3; Specifications for basic call control".[7]ETS 300 195-1: "Integrated Services Digital Network (ISDN); Supplementaryservice interactions; Digital Subscriber Signalling System No. one (DSS1)protocol; Part 1: Protocol specification".SIST ETS 300 092-1:1998
Page 8ETS 300 092-1: March 1992[8]CCITT Recommendation I.210 (1988): "Principles of telecommunication servicessupported by an ISDN and the means to describe them".[9]ETS 300 089 (1992): "Integrated Services Digital Network (ISDN); Calling LineIdentification Presentation (CLIP) supplementary service; Service description".[10]ETS 300 102-2 (1990): "Integrated Services Digital Network (ISDN); Usernetwork interface layer 3; Specifications for basic call control - SDL diagrams".[11]ETS 300 093-1 (1992): "Integrated Services Digital Network (ISDN); Calling LineIdentification Restriction (CLIR) supplementary service; Digital SubscriberSignalling System No. one (DSS1) protocol; Part 1: Protocol specification".[12]CCITT Recommendation Z.100 (1988): "Functional Specification and DescriptionLanguage (SDL)".3DefinitionsFor the purpose of this standard, the following definitions apply:Integrated Services Digital Network (ISDN): see CCITT Recommendation I.112 [3], § 2.3,definition 308.Service; telecommunications service: see CCITT Recommendation I.112 [3], § 2.2, definition 201.Supplementary service: see CCITT Recommendation I.210 [8], § 2.4.Network: the DSS1 protocol entity at the network side of the user-network interface.User: the DSS1 protocol entity at the user side of the user-network interface.Served user: the user of a particular ISDN number who has subscribed to the presentation of the callingline identification information in association with incoming calls. The served user is also known as the calleduser.Calling user: the user that initiated an incoming call at the served user. The calling user need not havesubscribed to the CLIP supplementary service.Address: the ISDN number of the calling user, and a subaddress if provided by that user.ISDN number: a number conforming to the numbering plan and structure specified in CCITTRecommendation E.164 [4].Subaddress: see CCITT Recommendation E.164 [4], § 11.2.Calling subaddress: the subaddress of the calling user.Calling number: the ISDN number of the calling user.International number: an ISDN number structured as specified in § 3.2 (the paragraphs relating tointernational number) of CCITT Recommendation E.164 [4].National number; National significant number: an ISDN number structured as specified in § 3.2 (in theparagraphs relating to national significant number) of CCITT Recommendation E.164 [4].SIST ETS 300 092-1:1998
Page 9ETS 300 092-1: March 1992Subscriber number: an ISDN number structured as specified in § 3.2 (the paragraphs relating tosubscriber number) of CCITT Recommendation E.164 [4].Default number: an agreed ISDN number between the user, at the calling side, and the network provider.Special arrangement: an agreement between a customer and a public network operator wherebycustomer supplied calling party numbers are not screened by the public ISDN.4Symbols and abbreviationsCLIPCalling Line Identification PresentationCLIRCalling Line Identification RestrictionDSS1Digital Subscriber Signalling System No. oneISDNIntegrated Services Digital Network5DescriptionThe CLIP supplementary service is a supplementary service offered to the called user. It provides thecalling user's ISDN number, possibly with the calling user's subaddress information, to the called user.The information provided to the called user shall consist of the ISDN number of the calling user in a formsufficient to allow the returning of the call (i.e. a subscriber number, a national number or an internationalnumber and optionally a subaddress if provided by the calling user).6Operational requirements6.1Provision and withdrawalSee ETS 300 089 [9], subclause 6.1.6.2Requirements on the originating network sideAll information pertaining to the CLIP supplementary service shall be inserted in the SETUP message sentas part of the basic call procedures according to ETS 300 102-1 [6], Clause 5.In the case where no information is provided by the calling user (as part of the basic call procedures) thenetwork shall provide the default number associated with the access (in which the call was generated) inthe originating local exchange.When the calling number information is provided by the calling user, the network can only verify that thenumber is within the set of numbers allocated to that user.Where a special arrangement exists with the calling user, no verification shall be performed.6.3Requirements on the destination network sideSee subclause 9.5.SIST ETS 300 092-1:1998
Page 10ETS 300 092-1: March 19927Coding requirementsETS 300 102-1 [6], subclauses 4.5.10 and 4.5.11 give the coding for the calling party number and thecalling party subaddress information elements which are required to support this service.The purpose of the calling party number information element is to identify the origin of a call.The purpose of the calling party subaddress information element is to identify a subaddress associatedwith the origin of the call.8State definitionsNo specific state definitions are required.9Signalling procedures at the coincident S and T reference point9.1Activation, deactivation and registrationNot applicable.9.2Actions at the originating user9.2.1Normal operationThese procedures shall be provided as part of the basic service and the calling user need not havesubscribed to the CLIP supplementary service.The numbering plan identifier, to be indicated within the calling party number information element, sent bythe calling user, shall be either "ISDN/telephony numbering plan (CCITT Recommendations E.164 [4] andE.163 [5])" or "unknown".NOTE:Either coding may be used and the treatment of both by the network is identical.Where the calling number included by the calling user is complete, the type of number to be indicatedwithin the calling party number information element, sent by the calling user, shall be one of the following:-"subscriber number", in the case where the complete subscriber number is sent;-"national number", in the case where the complete national number is sent;-"international number", in the case where the complete international number is sent.Where a partial calling number is included by the calling user (e.g. to indicate digits specific to the directdialling in or the multiple subscriber number supplementary services) the user shall set the type of numberto be indicated within the calling party number information element to "unknown".9.2.2Exceptional proceduresNot applicable.SIST ETS 300 092-1:1998
Page 11ETS 300 092-1: March 19929.3Actions at the originating local exchange if a special arrangement does not apply9.3.1Normal operationThese procedures shall be provided as part of the basic service and the calling user need not havesubscribed to the CLIP supplementary service.When a SETUP message is received from the calling user, the network shall check to see if the callingparty number and calling party subaddress information elements are included.If the calling party number information element is received with a coding of the numbering plan identifierfield other than "ISDN/telephony numbering plan (CCITT Recommendations E.164 [4] and E.163 [5])" or"unknown", then the network shall discard the calling party number information element and process thecall as if that information element was not received.At the originating side, the network shall set the value of the screening indicator based on the outcome ofthe screening of the calling number. The network shall disregard any value of the screening indicator, ifreceived from the calling user.If the calling party number information element is included, the network shall perform the screeningfunction. If the calling number received from the calling user is determined to be correct, the network shallset the screening indicator to "user-provided, verified and passed".NOTE:Some networks may accept a full ISDN number in a calling party number informationelement with the addition of a prefix or escape digits to the number digits field and thetype of number field set to "unknown".If the SETUP message does not contain the calling party number information element or the screeningfunction has determined the provided calling number to be incorrect, the network shall use a defaultnumber associated with the calling user. The network
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
