EN 419212-5
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2018
EUROPÄISCHE NORM
ICS 35.240.15 Supersedes EN 419212-1:2014, EN 419212-2:2014
English Version
Application Interface for Secure Elements for Electronic
Identification, Authentication and Trusted Services - Part
5: Trusted eService
Interface applicative des éléments sécurités pour les Anwendungsschnittstelle für sichere Elemente zur
services électroniques d'identification, elektronischen Identifikation, Authentisierung und für
d'authentification et de confiance - Partie 5 : Services vertrauenswürdige Dienste - Teil 5:
électroniques de confiance Vertrauenswürdige elektronische Dienste
This European Standard was approved by CEN on 6 February 2017.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 419212-5:2018 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)

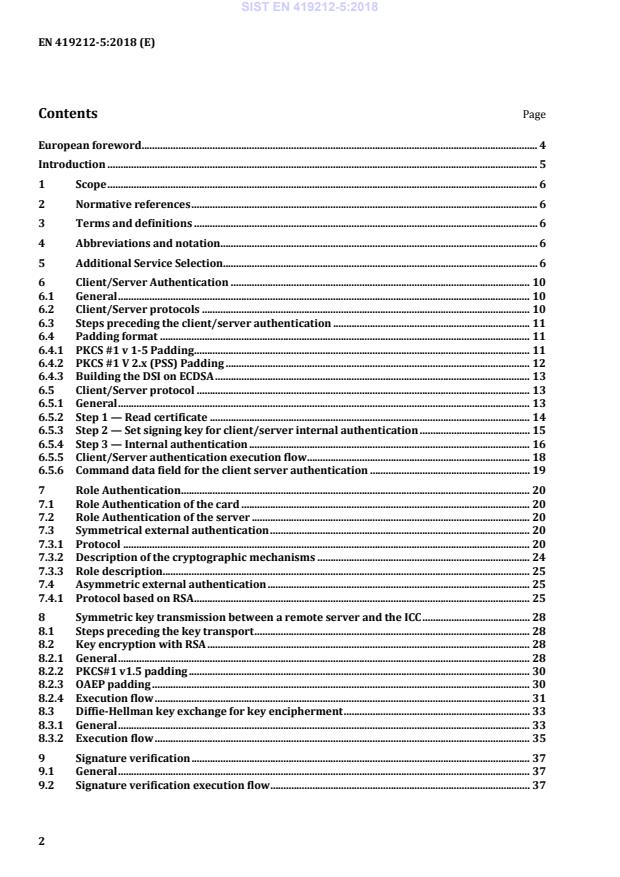

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Abbreviations and notation. 6
5 Additional Service Selection. 6
6 Client/Server Authentication . 10
6.1 General . 10
6.2 Client/Server protocols . 10
6.3 Steps preceding the client/server authentication . 11
6.4 Padding format . 11
6.4.1 PKCS #1 v 1-5 Padding . 11
6.4.2 PKCS #1 V 2.x (PSS) Padding . 12
6.4.3 Building the DSI on ECDSA . 13
6.5 Client/Server protocol . 13
6.5.1 General . 13
6.5.2 Step 1 — Read certificate . 14
6.5.3 Step 2 — Set signing key for client/server internal authentication . 15
6.5.4 Step 3 — Internal authentication . 16
6.5.5 Client/Server authentication execution flow . 18
6.5.6 Command data field for the client server authentication . 19
7 Role Authentication . 20
7.1 Role Authentication of the card . 20
7.2 Role Authentication of the server . 20
7.3 Symmetrical external authentication . 20
7.3.1 Protocol . 20
7.3.2 Description of the cryptographic mechanisms . 24
7.3.3 Role description . 25
7.4 Asymmetric external authentication . 25
7.4.1 Protocol based on RSA . 25
8 Symmetric key transmission between a remote server and the ICC . 28
8.1 Steps preceding the key transport . 28
8.2 Key encryption with RSA . 28
8.2.1 General . 28
8.2.2 PKCS#1 v1.5 padding . 30
8.2.3 OAEP padding . 30
8.2.4 Execution flow . 31
8.3 Diffie-Hellman key exchange for key encipherment . 33
8.3.1 General . 33
8.3.2 Execution flow . 35
9 Signature verification . 37
9.1 General . 37
9.2 Signature verification execution flow . 37
2
---------------------- Page: 4 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
9.2.1 General . 37
9.2.2 Step 1: Receive Hash . 37
9.2.3 Step 2: Select verification key . 39
9.2.4 Step 3: Verify digital signature . 39
10 Certificates for additional services . 40
10.1 File structure . 40
10.2 File structure . 41
10.3 EF.C_X509.CH.DS . 41
10.4 EF.C.CH.AUT . 41
10.5 EF.C.CH.KE. 42
10.6 Reading Certificates and the public key of CAs . 42
11 APDU data structures . 42
11.1 Algorithm Identifiers . 42
11.2 General . 42
11.3 CRTs . 43
11.3.1 General . 43
11.3.2 CRT DST for selection of ICC’s private client/server auth. key . 43
11.3.3 CRT AT for selection of ICC’s private client/server auth. key . 43
11.3.4 CRT CT for selection of ICC’s private key . 44
11.3.5 CRT DST for selection of IFD’s public key (signature verification) . 44
Annex A (informative) Security Service Descriptor Templates . 45
Annex B (informative) Example of DF.CIA . 51
Bibliography . 58
3
---------------------- Page: 5 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
European foreword
This document (EN 419212-5:2018) has been prepared by Technical Committee CEN/TC 224 “Personal
identification and related personal devices with secure element, systems, operations and privacy in a
multi sectorial environment”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2018, and conflicting national standards shall
be withdrawn at the latest by October 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 419212-1:2014 and EN 419212-2:2014.
This standard supports services in the context of electronic IDentification, Authentication and Trust
Services (eIDAS) including signatures.
In EN 419212 Part 2, the standard allows support of implementations of the European legal framework
for electronic signatures, defining the functional and security features for a Secure Elements (SE) (e.g.
smart cards) intended to be used as a Qualified electronic Signature Creation Device (QSCD) according
to the Terms of the “European Regulation on Electronic Identification and Trust Services for electronic
transactions in the internal market” [22].
A Secure Element (SE) compliant to the standard will be able to produce a “qualified electronic
signature” that fulfils the requirements of Article of the Electronic Signature Regulation ” [22] and
therefore can be considered equivalent to a hand-written signature.
This standard consists of five parts:
Part 1: “Introduction and common definitions” describes the history, application context, market
perspective and a tutorial about the basic understanding of electronic signatures. It also provides
common terms and references valid for the entire 419212 series.
Part 2: “Signature and Seal Services” describes the specifications for signature generation according to
the eIDAS regulation.
Part 3: “Device Authentication” describes the device authentication protocols and the related key
management services to establish a secure channel.
Part 4: “Privacy specific Protocols” describes functions and services to provide privacy to identification
services.
Part 5: “Trusted eServices” describes services that may be used in conjunction with signature services
described in Part 2.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
4
---------------------- Page: 6 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
Introduction
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent
rights of which they are aware and to provide supporting documentation.
The European Committee for Standardization (CEN) draws attention to the fact that it is claimed that
compliance with this document may involve the use of a patent concerning the mapping function given
in EN 419212-2:2017 8.2.
The patent relates to “Sagem, MorphoMapping Patents FR09-54043 and FR09-54053, 2009”.
CEN takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has ensured CEN that he/she is willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world. In this
respect, the statement of the holder of this patent right is registered with CEN. Information may be
obtained from:
Morpho
11, boulevard Galliéni
92445 Issy-les-Moulineaux Cedex
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those identified above. CEN shall not be held responsible for identifying any or
all such patent rights.
5
---------------------- Page: 7 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
1 Scope
Part 5 of this series contains Identification, Authentication and Digital Signature (IAS) services in
addition to the QSCD mechanisms already described in Part 2 to enable interoperability and usage for
IAS services on a national or European level.
It also specifies additional mechanisms like key decipherment, Client Server authentication, identity
management and privacy related services.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 7816-4:2013, Identification cards — Integrated circuit cards — Part 4: Organization, security
and commands for interchange
ISO/IEC 7816-8:2016, Integrated circuit(s) cards with contacts — Part 8: Commands for security
operations
ISO/IEC 9796-2:2010, Information technology — Security techniques — Digital signature schemes giving
message recovery — Part 2: Integer factorization based mechanisms
1
PKCS #1 v2.1:2002, RSA Cryptography Standard, RSA Laboratories
3 Terms and definitions
For the purposes of this document, the terms and definitions apply as described in EN 419212-1.
4 Abbreviations and notation
For the purposes of this document, the symbols and abbreviations apply as described in EN 419212-1.
5 Additional Service Selection
Additional services are typically used in the context of applications that use digital signatures.
A well-known additional service is the client/server authentication. In this case, the ICC is used as a
crypto toolbox, e.g. in order to encrypt a challenge with a private key, being stored in the ICC. This is
particularly helpful in applications, where a tamper resistant device is required for client/server
authentication. A secure ICC has the necessary tamper resistant quality and may therefore be used
efficiently to support the application in this context.
Document decryption is another known service which may be performed by the IFD. A terminal
application receives a document, typically encrypted with a symmetric key. The symmetric key is also
provided encrypted with a public key. The ICC contains the appropriate private key, deciphers the
symmetric key and returns it to the terminal application.
While the typical usage of a signature card is the generation of a digital signature, an application might
want to verify a signature with a public key, being stored in the ICC. In this case an additional service is
invoked for signature verification.
1
Available at www.rsasecurity.com/rsalabs/pkcs/pkcs-1/ http://www.rsa.com/rsalabs/node.asp?id=2125
6
---------------------- Page: 8 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
ICCs used as national identification cards, travel documents or driving licences generally provide
additional applications to enable eServices (e.g. eGovernment, eBusiness, …) including an ESIGN
application. In the eID card context new privacy issues are to be put into account, e.g. user tracking, data
minimizing, unlinkability of transactions or domain specific identifiers. This standard specifies privacy
preserving protocols and mechanisms as additional services.
Additional services provided in the ICC mandate the existence of an appropriate security environment.
Associated security environments are described in EN 419212-2:2017, Annex A.
In addition to the descriptive information found in DF.CIA (refer to EN 419212-2, clause 14)
information might be required that can be presented in Security Service Descriptors. The concept of
Security Service Descriptors is described in the Annex A.
A user verification may be required prior to the usage of additional services. The password for this user
verification shall be different from the password used for the signature generation. This is to maintain
the purpose of the signature generation password for the sole purpose of a ‘declaration of will’ in the
case of a signature generation.
Figure 1 shows an execution flow for an additional service. The corresponding technical
implementation is given in this document.
7
---------------------- Page: 9 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
Figure 1 — Interaction sequences between application and QSCD
As the standard specifies various mechanisms for device and user authentication with a number of
resulting combinations, Figure 2 shows execution flows for typical signature cards in different security
and privacy context.
8
---------------------- Page: 10 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
Figure 2 — Example of additional service selection
9
---------------------- Page: 11 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
Figure 2 shows the selection of additional services in the context of the ESIGN application. User
verification might be required for some of the additional services. The detailed access conditions are
described in the appropriate security environments.
For security reasons the cryptographic information objects shall not reveal any information which
could be used to associated the ICC to the password. If this cannot be guaranteed, the device
authentication shall be done prior to reading the cryptographic information objects to avoid that an
unauthorized IFD may later reuse that association for further attacks.
Alternatively other measures shall be taken to avoid such an attack. For contactless case in untrusted
environment, two choices are possible.
• Either the reading of CIA file (refer to 14) and the selection of application are done before device
authentication, in conformity with Figure 1
• or the device authentication is done first.
PKCS#15 takes into account privacy preserving measures involving EF.DIR so that to meet data
minimizing property requirements (new component enhanced CIODDO under EF.DIR ensures that the
IFD can access DF.CIA content only once security protocols i.e. PACE are fulfilled).
This prevents the leakage of user information from CIA file and preserves privacy.
6 Client/Server Authentication
6.1 General
For proving access rights to components such as servers, a PK based authentication procedure has to be
performed. Such client/server Authentication (refer to “C/S internal authentication”) is a process,
independent from the requirement of device authentication.
Figure 3 — Example of client/server authentication
In the above example client/server authentication establishes a secured channel between a remote
server and a PC. The ICC will be used as a cryptographic toolbox in order to provide the cryptographic
functionality to the PC.
This specification does not support the authentication of the server (“C/S external authentication”). The
server’s certificate as well as the server protocol is application specific and therefore out of the scope of
this document.
6.2 Client/Server protocols
This specification only covers the case, where the ICC performs a digital signature computation on the
authentication input contained in the data field of an INTERNAL AUTHENTICATE (COMPUTE DIGITAL
SIGNATURE) command. The input is formatted before the private key for authentication is used to form
the signature.
10
---------------------- Page: 12 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
The key pair used for client/server authentication shall be different from the device authentication keys
and signature generation keys respectively. The public part of this key pair, stored with the
distinguished name of the cardholder, is certified by a certificate (typically X.509 [8]). Such a certificate
is not interpreted by the ICC.
Relevant authentication procedures are e.g.:
— the PK Kerberos protocol (for logon authentication)
— the SSL/TLS protocol
— the SSH protocol
All the above protocols are based on the same cryptographic algorithms. In particular they all use PKCS
#1 padding format in the case of RSA. This specification describes the PKCS #1 padding and C/S
authentication based on ECDSA.
6.3 Steps preceding the client/server authentication
The steps preceding a client/server authentication are application specific. Hence this specification
does not mandate the existence of those steps.
The access conditions proposed in EN 419212-2:2017 Annex A specify a user verification as a
mandatory step prior to client/server authentication.
The reference to the password to be used for user verification in the context of client/server
authentication is described in the information of DF.CIA.
6.4 Padding format
6.4.1 PKCS #1 v 1-5 Padding
The DSI generation according to PKCS #1 v1.5 uses the padding scheme defined for the EMSA-PKCS-
v1_5 encoding defined in PKCS #1 Section 9.2 (starting with step 3 of the encoding method). The
padding is applied directly to the Authentication Input T.
Figure 4 shows an example for DSI generation according to PKCS #1 V1.5. In case of RSA, the
authentication input T is formatted according to PKCS #1, Version 2.1, Chapter 9.2 “EMSA-PKCS1-v1-5”.
For particular Authentication input T refer to 6.4.5.
Figure 4 — Example for 2048 bit DSI according to PKCS #1 V1.5
The padding is realized through an octet string consisting of octets with value ‘FF’ (length ≥ 8). Due to
security reasons the authentication input shall be smaller or equal to 33 % of the length of the modulus.
The formatted octet string shall consist of k octets where k is the length in octets of the modulus of the
private key for authentication.
11
---------------------- Page: 13 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
The digest info is described in EN 419212-2:2017, clause 12.3.3.
6.4.2 PKCS #1 V 2.x (PSS) Padding
The DSI generation according to PKCS1-PSS uses the padding scheme defined for the EMSA-PSS
encoding defined in PKCS #1 V 2.1, section 9.1. There are two modes of operation, each indicated by a
separate set of algorithm IDs see EN 419212-1:2017, Table A.17.
The DSI format according to PKCS #1 V 2.1 has the following structure. The message M represents the
authentication input T.
Figure 5 — Example for 2048 bit DSI according to PKCS #1 V2.1
Figure 5 shows an example for the DSI computation according to PKCS #1 V2.1. Building the first hash
in the IFD is an optional step and appropriate, if the message M is large and the transmission of this
large message M would require exhaustive data transmission to the ICC.
The hashing function used in MGF1 is the same as the one used to hash the authentication input. The [8
x Key.ModulusByteLength — (Key.ModulusBitLength — 1)] leftmost bits of the output of the MGF1
function are set to zero to provide a DSI input being arithmetically smaller than the modulus N. The
MGF1 function is described in PKCS #1 V2.1.
12
---------------------- Page: 14 ----------------------
SIST EN 419212-5:2018
EN 419212-5:2018 (E)
Figure 6 — Example for the mask generating function MGF1
Figure 6 shows an example for the mask generating
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
