SIST EN 301 264 V1.1.1:2005

• Abstract:

  Stage 3 of advice of charge supplementary service at Q ref pt. See DTR/ECMA-0002 (ECMA-TR/SVC) for service description. See ENV41005 for definition of stage 3. See ENV41004 for definition of Q reference point. To contain PICS proforma.

• Status: Published
• Publication Date: 30-Apr-2005
• ICS: 33.040.35 - Telephone networks
• Technical Committee: SPN - Services and Protocols for Networks
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-May-2005
• Due Date: 01-May-2005
• Completion Date: 01-May-2005
• Mandate: T-75C.3
• Ref Project: ETSI EN 301 264 V1.1.1 (1998-10) - Private Integrated Services Network (PISN); Inter-exchange signalling protocol; Advice of Charge (AoC) supplementary service [ISO/IEC 15050 (1997), modified]

SIST EN 301 264 V1.1.1:2005 is the Slovenian adoption of ETSI EN 301 264, a European telecommunications standard for Private Integrated Services Network (PISN) inter-exchange signalling. It specifies the stage 3 Advice of Charge (AoC) supplementary service at the Q reference point, using QSIG, and includes a PICS proforma for implementation conformance work.

What does SIST EN 301 264 V1.1.1:2005 specify?

SIST EN 301 264 V1.1.1:2005 specifies how AoC is signalled between PISN exchanges at the Q reference point. The scope points readers to DTR/ECMA-0002 for the service description and to ENV41005 and ENV41004 for the definitions of stage 3 and the Q reference point.

The document is based on ISO/IEC 15050 (1997) but is published as an EN with agreed modifications. In practice, that means the standard is meant for implementers who need the protocol details, not only the service description.

Annex	What it covers
A	PICS proforma items for SS-AOC and its interaction with ANF-CTMI

What are the key requirements of SIST EN 301 264 V1.1.1:2005?

SIST EN 301 264 V1.1.1:2005 mainly sets out protocol dependencies, interaction rules, and conformance-recording items. The most useful points for implementation are in clause 3, clause 6.9.14, clause 6.9.15, and Annex A.

Protocol dependencies and references

Clause 3 adds a set of ETSI references that the AoC protocol relies on, including EN 300 171, EN 300 172, ETS 300 239, ETS 300 257, ETS 300 260, ETS 300 261, ETS 300 387, ETS 300 475-1, ETS 300 696, EN 301 265, and EN 301 254. For a reader, this shows that AoC is not standalone - it sits on top of the PISN basic-service and supplementary-service framework.

Clause 3 also replaces several ISO/IEC references throughout the text with the corresponding ETSI documents listed in Table 1. In practice, that tells implementers which ETSI versions to consult when they need the linked signalling or service definitions.

Interaction with other services

Clause 6.9.14 states that AoC has no interaction with Cordless Terminal Location Registration (SS-CTLR). That matters because an implementation does not need extra coordination logic between those two functions.

Clause 6.9.15 covers interaction with Cordless Terminal Mobility Incoming Call (ANF-CTMI) when ANF-CTMI is supported in accordance with ETS 300 696. If an ANF-CTMI rerouting PINX executes the feature, it shall include a chargeRequest invoke APDU in the SETUP message to the visitor PINX when that APDU was included in the SETUP message to the CTMI-Detect PINX. This preserves the charge-request information across the rerouting path.

Conformance recording

Annex A adds PICS material for the interaction between SS-AOC and ANF-CTMI. For implementers and test teams, the PICS items provide a structured way to state whether ANF-CTMI is supported, whether the implementation can act as an ANF-CTMI rerouting PINX, and whether the required rerouting actions are implemented.

What terms does SIST EN 301 264 V1.1.1:2005 define?

Term	Meaning in this standard
PISN	Private Integrated Services Network, the private network environment to which the signalling protocol applies.
AoC	Advice of Charge, the supplementary service covered by the standard.
QSIG	The Q interface signalling protocol used at the Q reference point.
Q reference point	The interface point where the inter-exchange signalling protocol is used.
PICS proforma	The conformance statement form used to record supported features and interactions.
ANF-CTMI	Cordless Terminal Mobility Incoming Call additional network feature.
PINX	The exchange node that participates in the PISN signalling exchange.
SS-CTLR	Cordless Terminal Location Registration supplementary service.

Who uses SIST EN 301 264 V1.1.1:2005?

SIST EN 301 264 V1.1.1:2005 is used by people who design, implement, test, or buy PISN equipment that supports AoC. Typical users include switch and signalling engineers, PBX and PISN equipment vendors, interoperability test teams, and quality or procurement staff checking feature support.

It is especially relevant where AoC must work with other PISN features such as ANF-CTMI. The PICS proforma also makes it useful in product declarations and feature-comparison work.

Which standards are used with SIST EN 301 264 V1.1.1:2005?

The standard relies on related PISN and PTN documents for the surrounding service and signalling framework.

Standard	What it contributes
EN 300 171	Control aspects of circuit-mode basic services
EN 300 172	Circuit-mode basic services signalling
ETS 300 239	Generic functional protocol for supplementary services
ETS 300 257	Diversion supplementary services
ETS 300 260	Call transfer supplementary service specification
ETS 300 261	Call transfer supplementary service signalling
ETS 300 387	Method for specifying basic and supplementary services
ETS 300 475-1	PTN reference configuration for PTNX
ETS 300 696	Cordless Terminal Mobility Incoming Call feature
EN 301 254	AoC supplementary services specification
EN 301 265	Call interception additional network feature

What does the SIST EN 301 264 V1.1.1:2005 document contain?

The document contains a modified version of ISO/IEC 15050 with ETSI reference substitutions throughout the text. It also includes the protocol behavior for interactions, such as the ANF-CTMI case in clause 6.9.15, and the new PICS items in Annex A.

It therefore serves both as an implementation specification and as a conformance-recording document. The most practical parts are the reference mapping table, the interaction clauses, and the Annex A proforma used for declarations and testing.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zasebno omrežje z integriranimi storitvami (PISN) - Medcentralni signalizacijski protokol - Dopolnilne storitve: obvestilo o ceni (AoC) [ISO/IEC 15050 (1997), spremenjen]Private Integrated Services Network (PISN); Inter-exchange signalling protocol; Advice of Charge (AoC) supplementary service [ISO/IEC 15050 (1997), modified]33.040.35Telefonska omrežjaTelephone networksICS:Ta slovenski standard je istoveten z:EN 301 264 Version 1.1.1SIST EN 301 264 V1.1.1:2005en01-maj-2005SIST EN 301 264 V1.1.1:2005SLOVENSKI
STANDARD
EN 301 264 V1.1.1 (1998-10)European Standard (Telecommunications series)Private Integrated Services Network (PISN);Inter-exchange signalling protocol;Advice of Charge (AoC) supplementary services[ISO/IEC 15050 (1997), modified]SIST EN 301 264 V1.1.1:2005

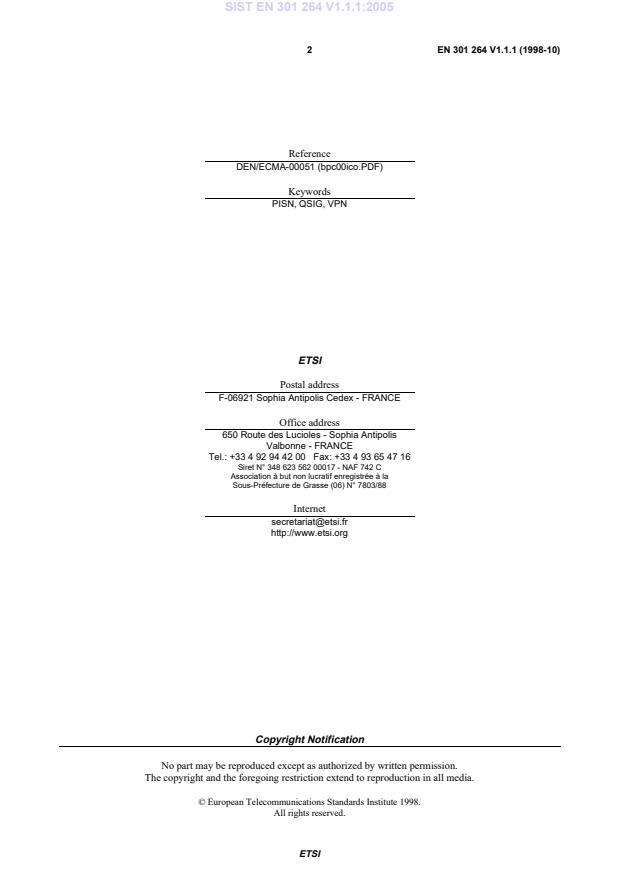

ETSIEN 301 264 V1.1.1 (1998-10)2ReferenceDEN/ECMA-00051 (bpc00ico.PDF)KeywordsPISN, QSIG, VPNETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
