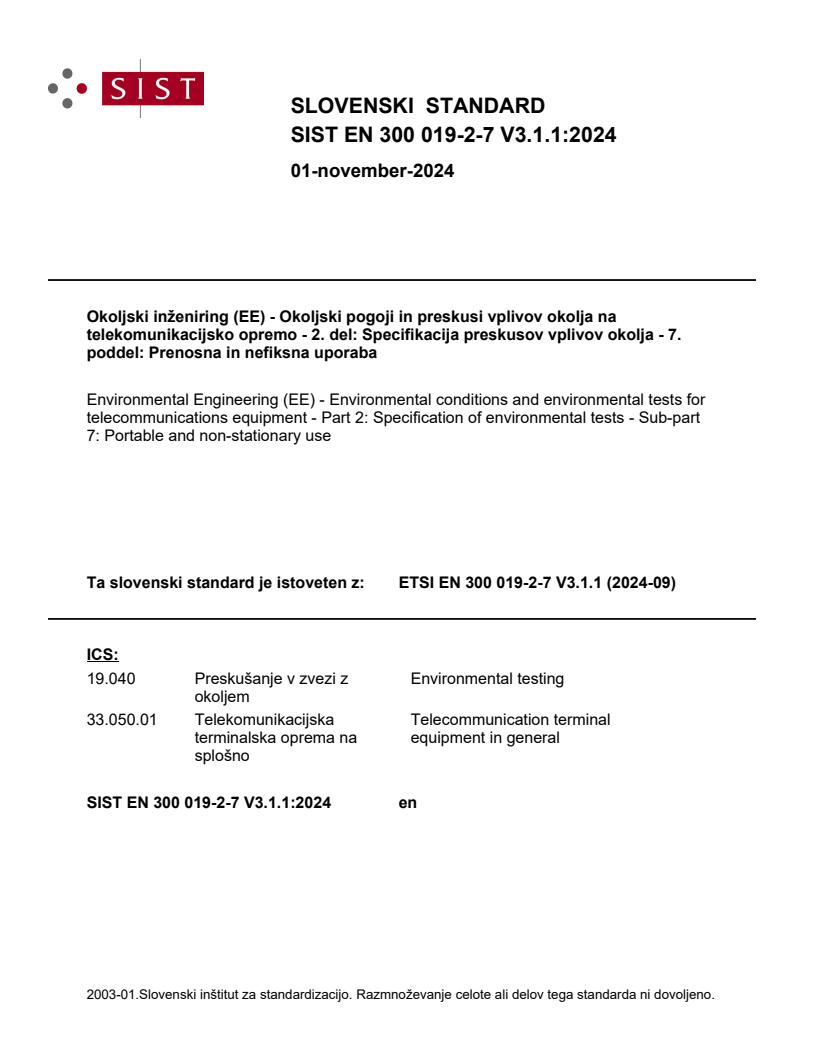

SIST EN 300 019-2-7 V3.1.1:2024
(Main)Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 2: Specification of environmental tests - Sub-part 7: Portable and non-stationary use
Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 2: Specification of environmental tests - Sub-part 7: Portable and non-stationary use
The present document specifies test methods and severities for the verification of the required resistibility of
telecommunication equipment according to the relevant environmental class.
The tests defined in the present document apply to portable and non-stationary use of equipment, covering the
environments stated in ETSI EN 300 019-1-7 [1].
Okoljski inženiring (EE) - Okoljski pogoji in preskusi vplivov okolja na telekomunikacijsko opremo - 2. del: Specifikacija preskusov vplivov okolja - 7. poddel: Prenosna in nefiksna uporaba
Ta dokument določa preskusne metode in stopnje zahtevnosti za preverjanje zahtevane odpornosti telekomunikacijske opreme glede na ustrezen okoljski razred.
Preskusi, opredeljeni v tem dokumentu, se uporabljajo za prenosno in nefiksno uporabo opreme v okoljih iz standarda ETSI EN 300 019-1-7 [1].
General Information
Standards Content (Sample)
Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
EUROPEAN STANDARD
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2: Specification of environmental tests;
Sub-part 7: Portable and non-stationary use
2 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)

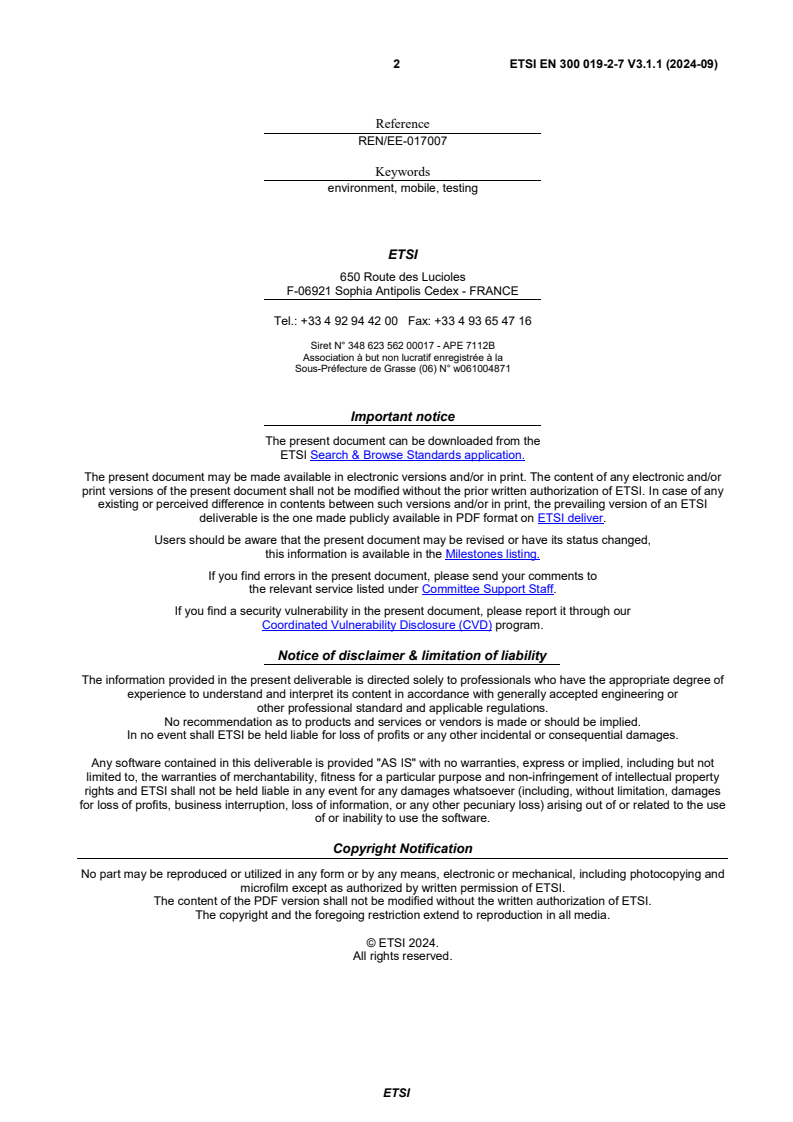

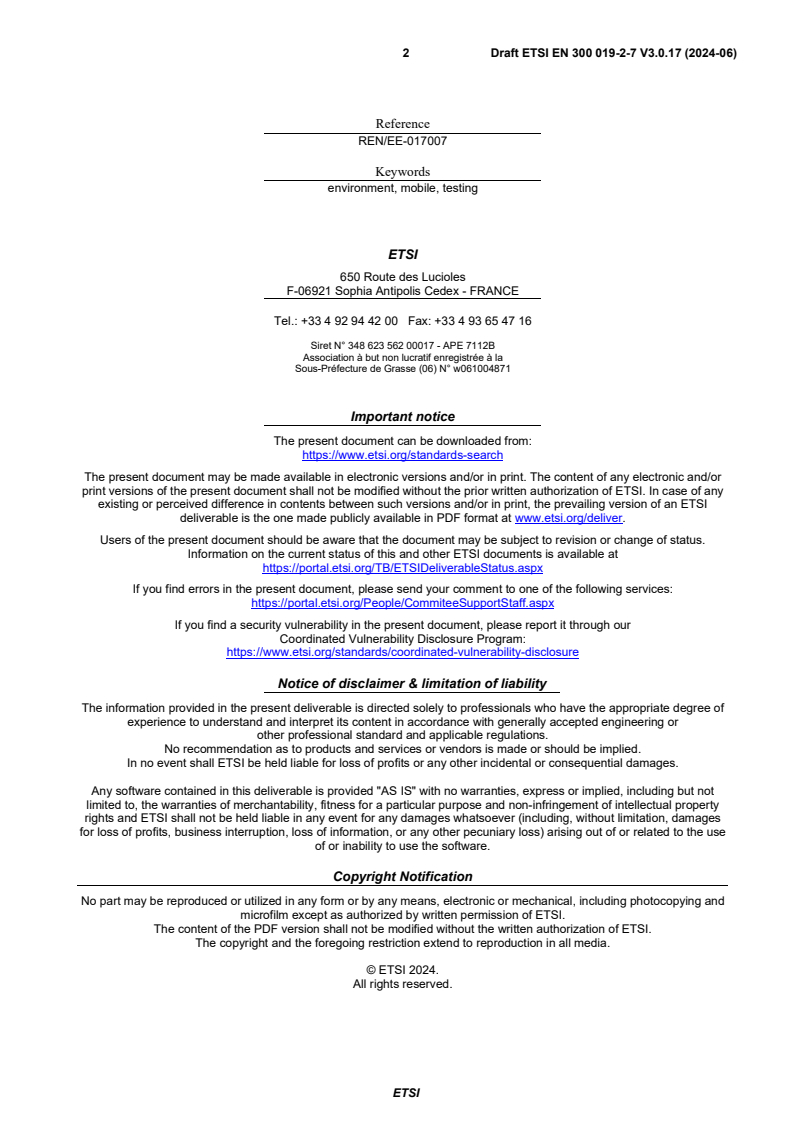

Reference
REN/EE-017007
Keywords
environment, mobile, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
https://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2024.
All rights reserved.
ETSI
3 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Environmental test specifications . 6
4.0 General . 6
4.1 Equipment setup and configuration . 7
4.2 Performance criteria . 7
4.3 Specification T 7.1: temperature-controlled locations . 7
4.4 Specification T 7.2: partly temperature-controlled locations . 7
4.5 Specification T 7.3: partly weatherprotected and non-weatherprotected locations . 8
4.6 Specification T 7.3E: partly weatherprotected and non-weatherprotected locations - extended . 8
4.7 Specification T 7.1: temperature-controlled locations - climatic test . 8
4.8 Specification T 7.2: partly temperature-controlled locations - climatic test . 11
4.9 Specification T 7.3: partly weatherprotected and non-weatherprotected - climatic test . 14
4.10 Specification T 7.3E: partly weatherprotected and non-weatherprotected locations - extended - climatic test 17
4.11 Specification T 7.1 to T 7.3E - mechanical tests . 20
Annex A (informative): Bibliography . 22
Annex B (informative): Change history . 23
History . 24
ETSI
4 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)

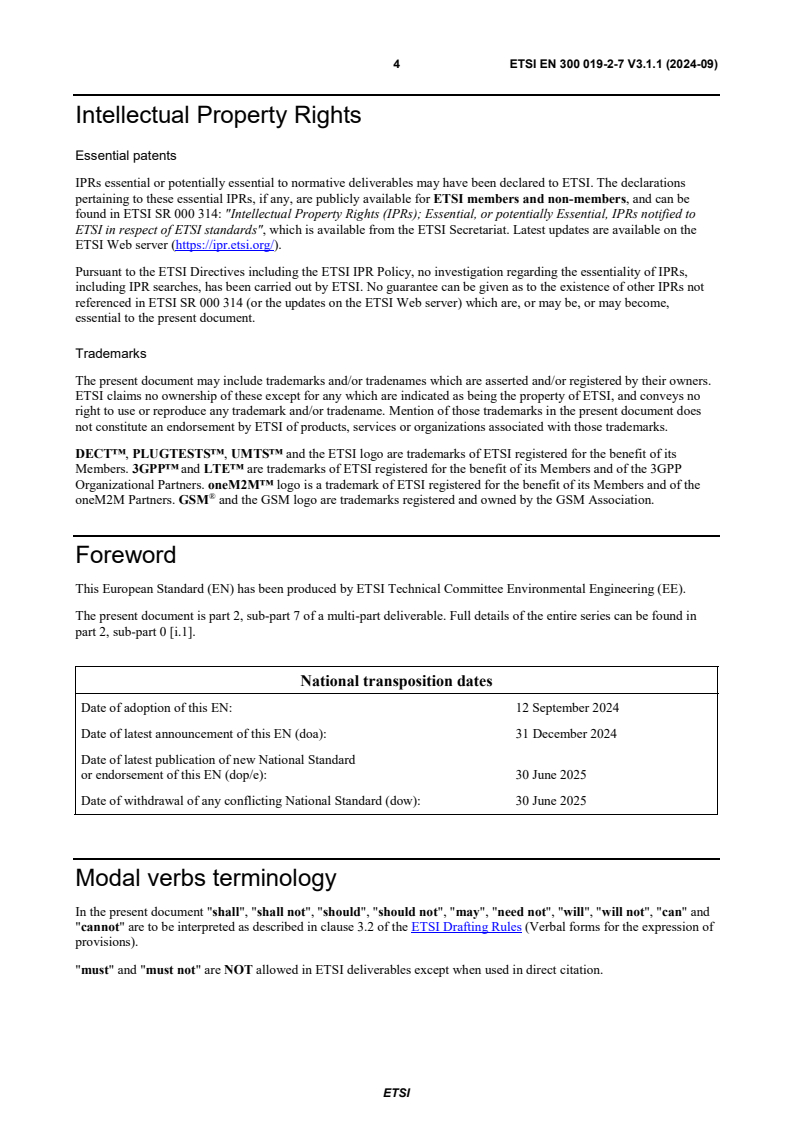

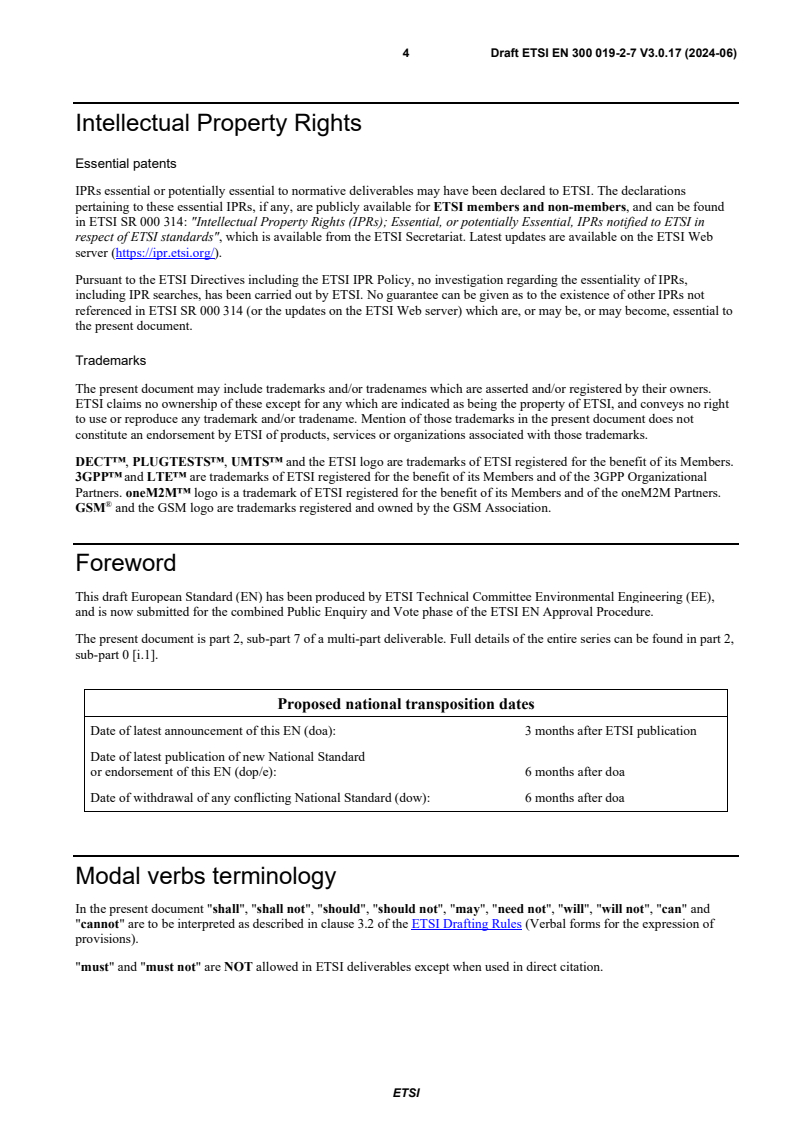

Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to
the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no right
to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does not
constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP Organizational
Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the oneM2M Partners. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This draft European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE),
and is now submitted for the combined Public Enquiry and Vote phase of the ETSI EN Approval Procedure.
The present document is part 2, sub-part 7 of a multi-part deliverable. Full details of the entire series can be found in part 2,
sub-part 0 [i.1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 6 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
5 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
1 Scope
The present document specifies test methods and severities for the verification of the required resistibility of
telecommunication equipment according to the relevant environmental class.
The tests defined in the present document apply to portable and non-stationary use of equipment, covering the
environments stated in ETSI EN 300 019-1-7 [1].
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or non-specific.
For specific references, only the cited version applies. For non-specific references, the latest version of the referenced
document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 019-1-7 (V2.1.4): "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-7: Classification of environmental
conditions; Portable and non-stationary use".
[2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[3] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[4] IEC 60068-2-14:2023: "Environmental testing - Part 2-14: Tests - Test N: Change of temperature".
[5] IEC 60068-2-78 (10-2012): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,
steady state".
[6] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)".
[7] IEC 60068-2-18 (03-2017): "Environmental testing - Part 2-18: Tests - Test R and guidance: Water".
[8] IEC 60068-2-64 (2008+A1:2019): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,
broadband random and guidance".
[9] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock".
[10] IEC 60068-2-31 (05-2008): "Environmental testing - Part 2-31: Tests - Test Ec: Rough handling
shocks, primarily for equipment-type specimens".
ETSI
6 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or non-specific.
For specific references, only the cited version applies. For non-specific references, the latest version of the referenced
document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the user
with regard to a particular subject area.
[i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 2: Specification of environmental tests;
Sub-part 0: Introduction".
[i.2] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-0: Classification of environmental
conditions; Introduction".
[i.3] IEC 60068-2-68 (08-1994): "Environmental testing - Part 2-68: Tests - Test L: Dust and sand".
[i.4] IEC 60721-3-7 (10-2002): "Classification of environmental conditions - Part 3-7: Classification of
groups of environmental parameters and their severities - Portable and non-stationary use".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 300 019-1-0 [i.2] apply.
3.2 Symbols
For the purposes of the present document, the symbols given in ETSI EN 300 019-1-0 [i.2] apply.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI EN 300 019-1-0 [i.2] apply.
4 Environmental test specifications
4.0 General
The equipment shall be tested in its operational state throughout the test conditions described in the present document. The
detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-7 [1].
ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable.
ETSI
7 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
4.1 Equipment setup and configuration
The equipment shall be tested in its operational state throughout the test conditions described in the present document
unless otherwise stated. Input and load conditions of the equipment shall be chosen to obtain full utilization of the
equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where it
shall be minimized.
4.2 Performance criteria
The following performance criteria shall apply in the tests defined by the present document.
Performance criterion A:
The equipment shall function according to the manufacturer specifications before, during and after the tests. No
degradation of performance or loss of function is allowed below the performance level specified by the manufacturer when
the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be
deduced from the product description and documentation and what the user may reasonably expect from the apparatus if
used as intended.
Performance criterion B:
The equipment shall function according to the manufacturer specifications before and after the tests. During the test it is not
required to monitor the equipment functionality. No degradation of performance or loss of function is allowed below the
performance level specified by the manufacturer when the apparatus is used as intended. If the minimum performance level
is not specified by the manufacturer, then this may be deduced from the product description and documentation and what
the user may reasonably expect from the apparatus if used as intended.
Performance criterion C:
The equipment shall function according to the manufacturer specifications before and after the tests. No degradation of
performance or loss of function is allowed below the performance level specified by the manufacturer when the apparatus
is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be deduced from
the product description and documentation and what the user may reasonably expect from the apparatus if used as intended.
During the application of the test, temporary loss of function is allowed but after the test the equipment shall restore to the
normal functionality without replacement of components, manual rebooting or human intervention.
The equipment shall sustain the test without permanent structural or mechanical damage.
Performance criterion D:
This performance criterion applies to the enclosure of the equipment. No corrosion traces (e.g. rust) or deterioration of the
enclosure shall occur at the end of the test.
4.3 Specification T 7.1: temperature-controlled locations
The tests specifications T 7.1 of the present document shall apply to equipment, depending on the selected IEC mechanical
class, used at, and direct transfer between, permanently temperature-controlled and enclosed locations. Humidity is usually
not controlled. See tables 1, 5 and 6.
4.4 Specification T 7.2: partly temperature-controlled locations
The tests specifications T 7.2 of the present document shall apply to equipment, depending on the selected IEC mechanical
class, used at , and direct transfer between, enclosed locations having neither temperature nor humidity control. See
tables 2, 5 and 6.
ETSI
8 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
4.5 Specification T 7.3: partly weatherprotected and non-
weatherprotected locations
The tests specifications T 7.3 of the present document shall apply to equipment, depending on the selected IEC mechanical
class, used at partly weatherprotected locations in buildings of such a construction that extremely low temperatures are
avoided. This class also applies to use at non-weatherprotected locations in a Warm Temperate climate
and to transfer between these locations. During cold seasons non-weatherprotected use and transfer is limited. See tables 3,
5 and 6.
4.6 Specification T 7.3E: partly weatherprotected and non-
weatherprotected locations - extended
The tests specifications T 7.3E of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at partly weatherprotected locations in buildings of any construction - except in extremely cold and
cold climates - where extremely low temperatures shall be avoided. This class also applies at non-weatherprotected
locations in moderate open-air climates and to transfer between these conditions (during extremely cold days use and
transfer is limited). See tables 4, 5 and 6.
4.7 Specification T 7.1: temperature-controlled locations - climatic
test
This specification in table 1 shall apply to use at, and direct transfer between, permanently temperature-controlled enclosed
locations where humidity is usually not controlled described in ETSI EN 300 019-1-7 [1]. See tables 1, 5 and 6.
ETSI
9 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
Table 1: Test specification T 7.1: Temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T7.1: Portable,
Class 7.1 Temperature - controlled location
Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes
severity severity criterion
Low (°C) +5 +5 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1
Air High (°C) +40 +40 or +50 16 h IEC 60068-2-2 [3] Bb/Bd/Be: Dry heat A 2
temperature
Change (°C) +5/+25 +5/+25 3 cycles IEC 60068-2-14 [4] Na: Change of A 3
t = 3 h temperature
low (%) 5 none 4
high (%) 85 93 96 h IEC 60068-2-78 [5] Cab: Damp heat A 5
Relative (°C) +30 +30 steady state
Humidity condensation (%) yes 90-100 2 cycles IEC 60068-2-30 [6] Db: Damp heat A 6
(°C) +30 Cyclic, variant 2
low (g/m) 1 none 4
Absolute
high (g/m) 25 7
low (kPa) 70 none 8
Pressure
Air high (kPa) 106 none 8
Speed (m/s) 5,0 none 4
intensity no
Rain
low temperature no
Other no
Water
sources
Icing & no
frosting
Solar (W/m) 700 9
Radiation
Heat (W/m) 600 10
Sulphur SO (mg/m) 0,3/1,0 none 11
HS (mg/m) 0,1/0,5 none 11
salt mist sea and road none 11
salt
Chlorine
Cl2 (mg/m) 0,1/0,3 none 11
Chemically
active HCI (mg/m) 0,1/0,5 none 11
substances
NOx (mg/m) 0,5/1,0 none 11
Nitrogen
NH (mg/m) 1,0/3,0 none 11
Hydrogen (mg/m) 0,01/0,03 none 11
fluoride HF
Ozone O3 (mg/m) 0,05/0,1 none 11
sedimentation 1,5 none 12
Dust
(mg/(m h))
ETSI
10 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
Environmental parameter Environmental Environmental test specification T7.1: Portable,
Class 7.1 Temperature - controlled location
Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes
severity severity criterion
Mechanically suspension (mg/m) 0,2 none 12
active Sand (mg/m) 30 none 12
substances
Flora and Micro organisms no
fauna Rodents, insects no
no: This condition does not occur in this class.
none: See corresponding note for detail on why test severity is not required.
NOTE 1: (Air temperature, low).
The characteristic severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product
specification. In this case, the cold start up test shall commence once low temperature stability is achieved.
NOTE 2: (Air temperature, high).
If two test temperatures are given, the lower test temperature applies if the equipment is protected against solar and heat radiation or the equipment is ventilated
(natural or forced). The higher test temperature includes the heating effects of solar and/or heat radiation. If a high temperature start up test is performed, the
characteristic severity should be used as a high start up temperature, but it may be modified (within the class characteristic severity range) by the product
specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved.
NOTE 3: (Air temperature, change).
The change of temperature test is normally used to check design tolerancing. IEC test Na is recommended with severities equal to characteristic severities.
Whenever possible, the equipment function shall be monitored throughout the test.
NOTE 4: (Relative humidity, low).
There is no IEC 60068-2 series test method for this parameter.
NOTE 5: (Humidity, relative, high).
IEC 60068-2-78 [5] Test Cab shall be used with test values not higher than climatogram limits for this class.
NOTE 6: (Condensation).
IEC 60068-2-30 [6] Test Db shall be used with test values not higher than climatogram limits for this class.
NOTE 7: (Humidity, absolute, high).
This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [5] Test Cab.
NOTE 8: (Air pressure, low and high).
No test is recommended for normal applications, because the effect of air pressure is evaluated at the component level.
NOTE 9: (Radiation, solar).
The higher test temperature as described in note 2 includes the heating effect of solar radiation. Photochemical tests can be made separately for components and
materials.
NOTE 10: (Radiation, heat).
The higher test temperature as described in note 2 includes the heating effect.
NOTE 11: (Chemically active substances).
The characteristic severities are given as mean/maximum values. These severities should be considered when designing the equipment and when choosing
components and materials. No test is recommended in the present document.
NOTE 12: (Mechanically active substances).
The characteristic severities are much lower than lowest test severity in IEC 60068-2-68 [i.3] Test Lb and therefore no test is recommended. This condition should
be considered when designing the equipment and when choosing components and materials.
ETSI
11 Draft ETSI EN 300 019-2-7 V3.0.17 (2024-06)
4.8 Specification T 7.2: partly temperature-controlled locations - climatic test
This specification applies to use at and direct transfer between, enclosed locations having neither temperature nor humidity control but where heating may be used to avoid low
temperatures. Building construction avoids extremely high temperatures. See tables 2, 5 and 6.
Table 2: Test specification T 7.2: Partly temperature-controlled locations - climatic tests
Environmental test specification T7.2: Portable,
Environmental parameter Environmental
Partly temperature - controlled locations
Class 7.2
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Performance Notes
severity criterion
Air (°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold A 1
Low
temperature
(°C) +45 +45 or +55 16 h IEC 60068-2-2 [3] Bb/Bd: Dry A 2
High
heat
(°C) -5/+25 -5/+25 3 cycles IEC 60068-2-14 [4] Na: Change of A 3
Change t1 = 3 h temperature
(°C/min)
Humidity low (%) 5 none 4
high (%) 95 93 96 h IEC 60068-2-78 [5] Cab: Damp A 5
(°C) +30 heat
Relative steady state
condensation yes 90-100 2 cycles IEC 60068-2-3
...
EUROPEAN STANDARD
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2: Specification of environmental tests;
Sub-part 7: Portable and non-stationary use
2 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Reference
REN/EE-017007
Keywords
environment, mobile, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2024.
All rights reserved.
ETSI
3 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Environmental test specifications . 6
4.0 General . 6
4.1 Equipment setup and configuration . 7
4.2 Performance criteria . 7
4.3 Specification T 7.1: temperature-controlled locations . 7
4.4 Specification T 7.2: partly temperature-controlled locations . 7
4.5 Specification T 7.3: partly weatherprotected and non-weatherprotected locations . 8
4.6 Specification T 7.3E: partly weatherprotected and non-weatherprotected locations - extended . 8
4.7 Specification T 7.1: temperature-controlled locations - climatic test . 8
4.8 Specification T 7.2: partly temperature-controlled locations - climatic test . 11
4.9 Specification T 7.3: partly weatherprotected and non-weatherprotected - climatic test . 14
4.10 Specification T 7.3E: partly weatherprotected and non-weatherprotected locations - extended - climatic
test . 17
4.11 Specification T 7.1 to T 7.3E - mechanical tests . 20
Annex A (informative): Bibliography . 22
Annex B (informative): Change history . 23
History . 24
ETSI
4 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE).
The present document is part 2, sub-part 7 of a multi-part deliverable. Full details of the entire series can be found in
part 2, sub-part 0 [i.1].
National transposition dates
Date of adoption of this EN: 12 September 2024
Date of latest announcement of this EN (doa): 31 December 2024
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 June 2025
Date of withdrawal of any conflicting National Standard (dow): 30 June 2025
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
5 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
1 Scope
The present document specifies test methods and severities for the verification of the required resistibility of
telecommunication equipment according to the relevant environmental class.
The tests defined in the present document apply to portable and non-stationary use of equipment, covering the
environments stated in ETSI EN 300 019-1-7 [1].
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 019-1-7 (V2.1.4): "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-7: Classification of environmental
conditions; Portable and non-stationary use".
[2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[3] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[4] IEC 60068-2-14:2023: "Environmental testing - Part 2-14: Tests - Test N: Change of temperature".
[5] IEC 60068-2-78 (10-2012): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,
steady state".
[6] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)".
[7] IEC 60068-2-18 (03-2017): "Environmental testing - Part 2-18: Tests - Test R and guidance:
Water".
[8] IEC 60068-2-64 (2008+A1:2019): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,
broadband random and guidance".
[9] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:
Shock".
[10] IEC 60068-2-31 (05-2008): "Environmental testing - Part 2-31: Tests - Test Ec: Rough handling
shocks, primarily for equipment-type specimens".
ETSI
6 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 2: Specification of environmental
tests; Sub-part 0: Introduction".
[i.2] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-0: Classification of environmental
conditions; Introduction".
[i.3] IEC 60068-2-68 (08-1994): "Environmental testing - Part 2-68: Tests - Test L: Dust and sand".
[i.4] IEC 60721-3-7 (10-2002): "Classification of environmental conditions - Part 3-7: Classification of
groups of environmental parameters and their severities - Portable and non-stationary use".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 300 019-1-0 [i.2] apply.
3.2 Symbols
For the purposes of the present document, the symbols given in ETSI EN 300 019-1-0 [i.2] apply.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI EN 300 019-1-0 [i.2] apply.
4 Environmental test specifications
4.0 General
The equipment shall be tested in its operational state throughout the test conditions described in the present document.
The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-7 [1].
ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable.
ETSI
7 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
4.1 Equipment setup and configuration
The equipment shall be tested in its operational state throughout the test conditions described in the present document
unless otherwise stated. Input and load conditions of the equipment shall be chosen to obtain full utilization of the
equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where
it shall be minimized.
4.2 Performance criteria
The following performance criteria shall apply in the tests defined by the present document.
Performance criterion A:
The equipment shall function according to the manufacturer specifications before, during and after the tests. No
degradation of performance or loss of function is allowed below the performance level specified by the manufacturer
when the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then
this may be deduced from the product description and documentation and what the user may reasonably expect from the
apparatus if used as intended.
Performance criterion B:
The equipment shall function according to the manufacturer specifications before and after the tests. During the test it is
not required to monitor the equipment functionality. No degradation of performance or loss of function is allowed
below the performance level specified by the manufacturer when the apparatus is used as intended. If the minimum
performance level is not specified by the manufacturer, then this may be deduced from the product description and
documentation and what the user may reasonably expect from the apparatus if used as intended.
Performance criterion C:
The equipment shall function according to the manufacturer specifications before and after the tests. No degradation of
performance or loss of function is allowed below the performance level specified by the manufacturer when the
apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be
deduced from the product description and documentation and what the user may reasonably expect from the apparatus if
used as intended.
During the application of the test, temporary loss of function is allowed but after the test the equipment shall restore to
the normal functionality without replacement of components, manual rebooting or human intervention.
The equipment shall sustain the test without permanent structural or mechanical damage.
Performance criterion D:
This performance criterion applies to the enclosure of the equipment. No corrosion traces (e.g. rust) or deterioration of
the enclosure shall occur at the end of the test.
4.3 Specification T 7.1: temperature-controlled locations
The tests specifications T 7.1 of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at, and direct transfer between, permanently temperature-controlled and enclosed locations.
Humidity is usually not controlled. See tables 1, 5 and 6.
4.4 Specification T 7.2: partly temperature-controlled locations
The tests specifications T 7.2 of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at , and direct transfer between, enclosed locations having neither temperature nor humidity
control. See tables 2, 5 and 6.
ETSI
8 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
4.5 Specification T 7.3: partly weatherprotected and non-
weatherprotected locations
The tests specifications T 7.3 of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at partly weatherprotected locations in buildings of such a construction that extremely low
temperatures are avoided. This class also applies to use at non-weatherprotected locations in a Warm Temperate climate
and to transfer between these locations. During cold seasons non-weatherprotected use and transfer is limited. See
tables 3, 5 and 6.
4.6 Specification T 7.3E: partly weatherprotected and non-
weatherprotected locations - extended
The tests specifications T 7.3E of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at partly weatherprotected locations in buildings of any construction - except in extremely cold
and cold climates - where extremely low temperatures shall be avoided. This class also applies at non-weatherprotected
locations in moderate open-air climates and to transfer between these conditions (during extremely cold days use and
transfer is limited). See tables 4, 5 and 6.
4.7 Specification T 7.1: temperature-controlled locations -
climatic test
This specification in table 1 shall apply to use at, and direct transfer between, permanently temperature-controlled
enclosed locations where humidity is usually not controlled described in ETSI EN 300 019-1-7 [1]. See tables 1, 5 and
6.
ETSI
9 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Table 1: Test specification T 7.1: Temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T7.1: Portable,
Class 7.1 Temperature - controlled location
Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes
severity severity criterion
Low (°C) +5 +5 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1
Air High (°C) +40 +40 or +50 16 h IEC 60068-2-2 [3] Bb/Bd/Be: Dry heat A 2
temperature
Change (°C) +5/+25 +5/+25 3 cycles IEC 60068-2-14 [4] Na: Change of A 3
t = 3 h temperature
low (%) 5 none 4
high (%) 85 93 96 h IEC 60068-2-78 [5] Cab: Damp heat A 5
Relative (°C) +30 +30 steady state
Humidity condensation (%) yes 90-100 2 cycles IEC 60068-2-30 [6] Db: Damp heat A 6
(°C) +30 Cyclic, variant 2
low (g/m) 1 none 4
Absolute
high (g/m) 25 7
low (kPa) 70 none 8
Pressure
Air high (kPa) 106 none 8
Speed (m/s) 5,0 none 4
intensity no
Rain
low temperature no
Other no
Water
sources
Icing & no
frosting
Solar (W/m) 700 9
Radiation
Heat (W/m) 600 10
Sulphur SO (mg/m) 0,3/1,0 none 11
HS (mg/m) 0,1/0,5 none 11
salt mist sea and road none 11
salt
Chlorine
Cl2 (mg/m) 0,1/0,3 none 11
Chemically
active HCI (mg/m) 0,1/0,5 none 11
substances
NOx (mg/m) 0,5/1,0 none 11
Nitrogen
NH (mg/m) 1,0/3,0 none 11
Hydrogen (mg/m) 0,01/0,03 none 11
fluoride HF
Ozone O3 (mg/m) 0,05/0,1 none 11
sedimentation 1,5 none 12
Dust
(mg/(m h))
ETSI
10 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Environmental parameter Environmental Environmental test specification T7.1: Portable,
Class 7.1 Temperature - controlled location
Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes
severity severity criterion
Mechanically suspension (mg/m) 0,2 none 12
active Sand (mg/m) 30 none 12
substances
Flora and Micro organisms no
fauna Rodents, insects no
no: This condition does not occur in this class.
none: See corresponding note for detail on why test severity is not required.
NOTE 1: (Air temperature, low).
The characteristic severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product
specification. In this case, the cold start up test shall commence once low temperature stability is achieved.
NOTE 2: (Air temperature, high).
If two test temperatures are given, the lower test temperature applies if the equipment is protected against solar and heat radiation or the equipment is ventilated
(natural or forced). The higher test temperature includes the heating effects of solar and/or heat radiation. If a high temperature start up test is performed, the
characteristic severity should be used as a high start up temperature, but it may be modified (within the class characteristic severity range) by the product
specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved.
NOTE 3: (Air temperature, change).
The change of temperature test is normally used to check design tolerancing. IEC test Na is recommended with severities equal to characteristic severities.
Whenever possible, the equipment function shall be monitored throughout the test.
NOTE 4: (Relative humidity, low).
There is no IEC 60068-2 series test method for this parameter.
NOTE 5: (Humidity, relative, high).
IEC 60068-2-78 [5] Test Cab shall be used with test values not higher than climatogram limits for this class.
NOTE 6: (Condensation).
IEC 60068-2-30 [6] Test Db shall be used with test values not higher than climatogram limits for this class.
NOTE 7: (Humidity, absolute, high).
This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [5] Test Cab.
NOTE 8: (Air pressure, low and high).
No test is recommended for normal applications, because the effect of air pressure is evaluated at the component level.
NOTE 9: (Radiation, solar).
The higher test temperature as described in note 2 includes the heating effect of solar radiation. Photochemical tests can be made separately for components and
materials.
NOTE 10: (Radiation, heat).
The higher test temperature as described in note 2 includes the heating effect.
NOTE 11: (Chemically active substances).
The characteristic severities are given as mean/maximum values. These severities should be considered when designing the equipment and when choosing
components and materials. No test is recommended in the present document.
NOTE 12: (Mechanically active substances).
The characteristic severities are much lower than lowest test severity in IEC 60068-2-68 [i.3] Test Lb and therefore no test is recommended. This condition should
be considered when designing the equipment and when choosing components and materials.
ETSI
11 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
4.8 Specification T 7.2: partly temperature-controlled locations - climatic test
This specification applies to use at and direct transfer between, enclosed locations having neither temperature nor humidity control but where heating may be used to avoid low
temperatures. Building construction avoids extremely high temperatures. See tables 2, 5 and 6.
Table 2: Test specification T 7.2: Partly temperature-controlled locations - climatic tests
Environmental test specification T7.2: Portable,
Environmental parameter Environmental
Partly temperature - controlled locations
Class 7.2
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Performance Notes
severity criterion
Air (°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold A 1
Low
temperature
(°C) +45 +45 or +55 16 h IEC 60068-2-2 [3] Bb/Bd: Dry A 2
High
heat
(°C) -5/+25 -5/+25 3 cycles IEC 60068-2-14 [4] Na: Change of A 3
Change t1 = 3 h temperature
(°C/min)
Humidity low (%) 5 none 4
high (%) 95 93 96 h IEC 60068-2-78 [5] Cab: Damp A 5
(°C) +30 heat
Relative steady state
condensation yes 90-100 2 cycles IEC 60068-2-30 [6] Db: Damp heat A 6
(°C) +30 Cyclic,
(%) variant 2
low (g/
...
SLOVENSKI STANDARD
01-november-2024
Okoljski inženiring (EE) - Okoljski pogoji in preskusi vplivov okolja na
telekomunikacijsko opremo - 2. del: Specifikacija preskusov vplivov okolja - 7.
poddel: Prenosna in nefiksna uporaba
Environmental Engineering (EE) - Environmental conditions and environmental tests for
telecommunications equipment - Part 2: Specification of environmental tests - Sub-part
7: Portable and non-stationary use
Ta slovenski standard je istoveten z: ETSI EN 300 019-2-7 V3.1.1 (2024-09)
ICS:
19.040 Preskušanje v zvezi z Environmental testing
okoljem
33.050.01 Telekomunikacijska Telecommunication terminal
terminalska oprema na equipment in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2: Specification of environmental tests;
Sub-part 7: Portable and non-stationary use
2 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Reference
REN/EE-017007
Keywords
environment, mobile, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2024.
All rights reserved.
ETSI
3 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Environmental test specifications . 6
4.0 General . 6
4.1 Equipment setup and configuration . 7
4.2 Performance criteria . 7
4.3 Specification T 7.1: temperature-controlled locations . 7
4.4 Specification T 7.2: partly temperature-controlled locations . 7
4.5 Specification T 7.3: partly weatherprotected and non-weatherprotected locations . 8
4.6 Specification T 7.3E: partly weatherprotected and non-weatherprotected locations - extended . 8
4.7 Specification T 7.1: temperature-controlled locations - climatic test . 8
4.8 Specification T 7.2: partly temperature-controlled locations - climatic test . 11
4.9 Specification T 7.3: partly weatherprotected and non-weatherprotected - climatic test . 14
4.10 Specification T 7.3E: partly weatherprotected and non-weatherprotected locations - extended - climatic
test . 17
4.11 Specification T 7.1 to T 7.3E - mechanical tests . 20
Annex A (informative): Bibliography . 22
Annex B (informative): Change history . 23
History . 24
ETSI
4 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE).
The present document is part 2, sub-part 7 of a multi-part deliverable. Full details of the entire series can be found in
part 2, sub-part 0 [i.1].
National transposition dates
Date of adoption of this EN: 12 September 2024
Date of latest announcement of this EN (doa): 31 December 2024
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 June 2025
Date of withdrawal of any conflicting National Standard (dow): 30 June 2025
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
5 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
1 Scope
The present document specifies test methods and severities for the verification of the required resistibility of
telecommunication equipment according to the relevant environmental class.
The tests defined in the present document apply to portable and non-stationary use of equipment, covering the
environments stated in ETSI EN 300 019-1-7 [1].
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 019-1-7 (V2.1.4): "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-7: Classification of environmental
conditions; Portable and non-stationary use".
[2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[3] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[4] IEC 60068-2-14:2023: "Environmental testing - Part 2-14: Tests - Test N: Change of temperature".
[5] IEC 60068-2-78 (10-2012): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,
steady state".
[6] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)".
[7] IEC 60068-2-18 (03-2017): "Environmental testing - Part 2-18: Tests - Test R and guidance:
Water".
[8] IEC 60068-2-64 (2008+A1:2019): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,
broadband random and guidance".
[9] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:
Shock".
[10] IEC 60068-2-31 (05-2008): "Environmental testing - Part 2-31: Tests - Test Ec: Rough handling
shocks, primarily for equipment-type specimens".
ETSI
6 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 2: Specification of environmental
tests; Sub-part 0: Introduction".
[i.2] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-0: Classification of environmental
conditions; Introduction".
[i.3] IEC 60068-2-68 (08-1994): "Environmental testing - Part 2-68: Tests - Test L: Dust and sand".
[i.4] IEC 60721-3-7 (10-2002): "Classification of environmental conditions - Part 3-7: Classification of
groups of environmental parameters and their severities - Portable and non-stationary use".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 300 019-1-0 [i.2] apply.
3.2 Symbols
For the purposes of the present document, the symbols given in ETSI EN 300 019-1-0 [i.2] apply.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI EN 300 019-1-0 [i.2] apply.
4 Environmental test specifications
4.0 General
The equipment shall be tested in its operational state throughout the test conditions described in the present document.
The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-7 [1].
ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable.
ETSI
7 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
4.1 Equipment setup and configuration
The equipment shall be tested in its operational state throughout the test conditions described in the present document
unless otherwise stated. Input and load conditions of the equipment shall be chosen to obtain full utilization of the
equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where
it shall be minimized.
4.2 Performance criteria
The following performance criteria shall apply in the tests defined by the present document.
Performance criterion A:
The equipment shall function according to the manufacturer specifications before, during and after the tests. No
degradation of performance or loss of function is allowed below the performance level specified by the manufacturer
when the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then
this may be deduced from the product description and documentation and what the user may reasonably expect from the
apparatus if used as intended.
Performance criterion B:
The equipment shall function according to the manufacturer specifications before and after the tests. During the test it is
not required to monitor the equipment functionality. No degradation of performance or loss of function is allowed
below the performance level specified by the manufacturer when the apparatus is used as intended. If the minimum
performance level is not specified by the manufacturer, then this may be deduced from the product description and
documentation and what the user may reasonably expect from the apparatus if used as intended.
Performance criterion C:
The equipment shall function according to the manufacturer specifications before and after the tests. No degradation of
performance or loss of function is allowed below the performance level specified by the manufacturer when the
apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be
deduced from the product description and documentation and what the user may reasonably expect from the apparatus if
used as intended.
During the application of the test, temporary loss of function is allowed but after the test the equipment shall restore to
the normal functionality without replacement of components, manual rebooting or human intervention.
The equipment shall sustain the test without permanent structural or mechanical damage.
Performance criterion D:
This performance criterion applies to the enclosure of the equipment. No corrosion traces (e.g. rust) or deterioration of
the enclosure shall occur at the end of the test.
4.3 Specification T 7.1: temperature-controlled locations
The tests specifications T 7.1 of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at, and direct transfer between, permanently temperature-controlled and enclosed locations.
Humidity is usually not controlled. See tables 1, 5 and 6.
4.4 Specification T 7.2: partly temperature-controlled locations
The tests specifications T 7.2 of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at , and direct transfer between, enclosed locations having neither temperature nor humidity
control. See tables 2, 5 and 6.
ETSI
8 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
4.5 Specification T 7.3: partly weatherprotected and non-
weatherprotected locations
The tests specifications T 7.3 of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at partly weatherprotected locations in buildings of such a construction that extremely low
temperatures are avoided. This class also applies to use at non-weatherprotected locations in a Warm Temperate climate
and to transfer between these locations. During cold seasons non-weatherprotected use and transfer is limited. See
tables 3, 5 and 6.
4.6 Specification T 7.3E: partly weatherprotected and non-
weatherprotected locations - extended
The tests specifications T 7.3E of the present document shall apply to equipment, depending on the selected IEC
mechanical class, used at partly weatherprotected locations in buildings of any construction - except in extremely cold
and cold climates - where extremely low temperatures shall be avoided. This class also applies at non-weatherprotected
locations in moderate open-air climates and to transfer between these conditions (during extremely cold days use and
transfer is limited). See tables 4, 5 and 6.
4.7 Specification T 7.1: temperature-controlled locations -
climatic test
This specification in table 1 shall apply to use at, and direct transfer between, permanently temperature-controlled
enclosed locations where humidity is usually not controlled described in ETSI EN 300 019-1-7 [1]. See tables 1, 5 and
6.
ETSI
9 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Table 1: Test specification T 7.1: Temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T7.1: Portable,
Class 7.1 Temperature - controlled location
Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes
severity severity criterion
Low (°C) +5 +5 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1
Air High (°C) +40 +40 or +50 16 h IEC 60068-2-2 [3] Bb/Bd/Be: Dry heat A 2
temperature
Change (°C) +5/+25 +5/+25 3 cycles IEC 60068-2-14 [4] Na: Change of A 3
t = 3 h temperature
low (%) 5 none 4
high (%) 85 93 96 h IEC 60068-2-78 [5] Cab: Damp heat A 5
Relative (°C) +30 +30 steady state
Humidity condensation (%) yes 90-100 2 cycles IEC 60068-2-30 [6] Db: Damp heat A 6
(°C) +30 Cyclic, variant 2
low (g/m) 1 none 4
Absolute
high (g/m) 25 7
low (kPa) 70 none 8
Pressure
Air high (kPa) 106 none 8
Speed (m/s) 5,0 none 4
intensity no
Rain
low temperature no
Other no
Water
sources
Icing & no
frosting
Solar (W/m) 700 9
Radiation
Heat (W/m) 600 10
Sulphur SO (mg/m) 0,3/1,0 none 11
HS (mg/m) 0,1/0,5 none 11
salt mist sea and road none 11
salt
Chlorine
Cl2 (mg/m) 0,1/0,3 none 11
Chemically
active HCI (mg/m) 0,1/0,5 none 11
substances
NOx (mg/m) 0,5/1,0 none 11
Nitrogen
NH (mg/m) 1,0/3,0 none 11
Hydrogen (mg/m) 0,01/0,03 none 11
fluoride HF
Ozone O3 (mg/m) 0,05/0,1 none 11
sedimentation 1,5 none 12
Dust
(mg/(m h))
ETSI
10 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
Environmental parameter Environmental Environmental test specification T7.1: Portable,
Class 7.1 Temperature - controlled location
Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes
severity severity criterion
Mechanically suspension (mg/m) 0,2 none 12
active Sand (mg/m) 30 none 12
substances
Flora and Micro organisms no
fauna Rodents, insects no
no: This condition does not occur in this class.
none: See corresponding note for detail on why test severity is not required.
NOTE 1: (Air temperature, low).
The characteristic severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product
specification. In this case, the cold start up test shall commence once low temperature stability is achieved.
NOTE 2: (Air temperature, high).
If two test temperatures are given, the lower test temperature applies if the equipment is protected against solar and heat radiation or the equipment is ventilated
(natural or forced). The higher test temperature includes the heating effects of solar and/or heat radiation. If a high temperature start up test is performed, the
characteristic severity should be used as a high start up temperature, but it may be modified (within the class characteristic severity range) by the product
specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved.
NOTE 3: (Air temperature, change).
The change of temperature test is normally used to check design tolerancing. IEC test Na is recommended with severities equal to characteristic severities.
Whenever possible, the equipment function shall be monitored throughout the test.
NOTE 4: (Relative humidity, low).
There is no IEC 60068-2 series test method for this parameter.
NOTE 5: (Humidity, relative, high).
IEC 60068-2-78 [5] Test Cab shall be used with test values not higher than climatogram limits for this class.
NOTE 6: (Condensation).
IEC 60068-2-30 [6] Test Db shall be used with test values not higher than climatogram limits for this class.
NOTE 7: (Humidity, absolute, high).
This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [5] Test Cab.
NOTE 8: (Air pressure, low and high).
No test is recommended for normal applications, because the effect of air pressure is evaluated at the component level.
NOTE 9: (Radiation, solar).
The higher test temperature as described in note 2 includes the heating effect of solar radiation. Photochemical tests can be made separately for components and
materials.
NOTE 10: (Radiation, heat).
The higher test temperature as described in note 2 includes the heating effect.
NOTE 11: (Chemically active substances).
The characteristic severities are given as mean/maximum values. These severities should be considered when designing the equipment and when choosing
components and materials. No test is recommended in the present document.
NOTE 12: (Mechanically active substances).
The characteristic severities are much lower than lowest test severity in IEC 60068-2-68 [i.3] Test Lb and therefore no test is recommended. This condition should
be considered when designing the equipment and when choosing components and materials.
ETSI
11 ETSI EN 300 019-2-7 V3.1.1 (2024-09)
4.8 Specification T 7.2: partly temperature-controlled locations - climatic test
This specification applies to use at and direct transfer between, enclosed locations having neither temperature nor humidity control but where heating may be used to avoid low
temperatures. Building construction avoids extremely high temperatures. See tables 2, 5 and 6.
Table 2: Test specification T 7.2: Partly temperature-controlled locations - climatic tests
Environmental test specification T7.2: Portable,
Environmental parameter Environmental
Partly temperature - controlled locations
Class 7.2
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Performance Notes
severity criterion
Air (°C) -5 -5 16 h IEC 60
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
