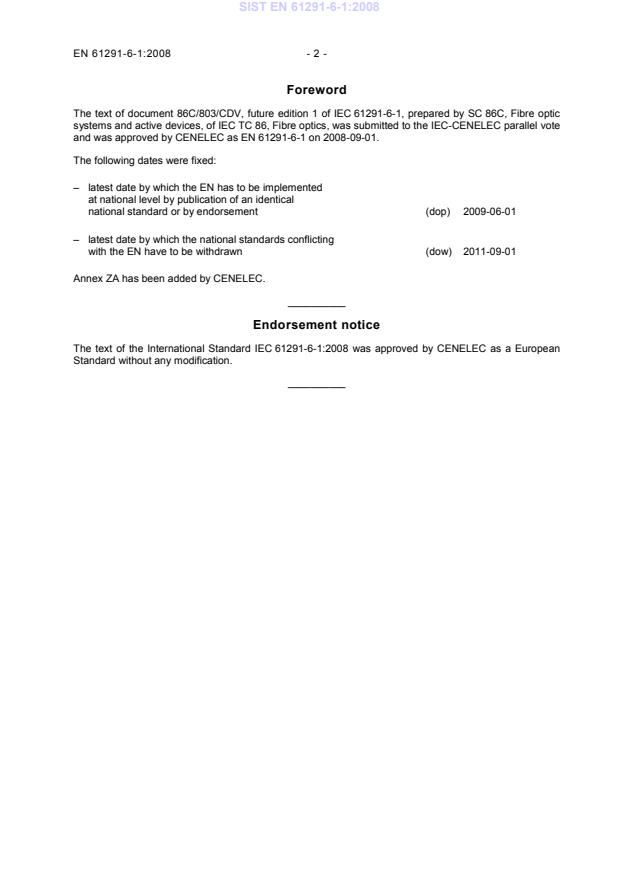

- 2 - Foreword The text of document 86C/803/CDV, future edition 1 of IEC 61291-6-1, prepared by SC 86C, Fibre optic systems and active devices, of IEC TC 86, Fibre optics, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61291-6-1 on 2008-09-01. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop) 2009-06-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow) 2011-09-01 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 61291-6-1:2008 was approved by CENELEC as a European Standard without any modification. __________ SIST EN 61291-6-1:2008
- 3 - EN 61291-6-1:2008
Annex ZA
(normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
ISO/IEC 8859-1 - 1) Information technology - 8-bit single-byte coded graphic character sets -
Part 1: Latin alphabet No.1 - -
1) Undated reference.
SIST EN 61291-6-1:2008
SIST EN 61291-6-1:2008
IEC 61291-6-1Edition 1.0 2008-08INTERNATIONAL STANDARD NORME INTERNATIONALEOptical amplifiers –
Part 6-1: Interfaces – Command set
Amplificateurs optiques –
Partie 6-1: Interfaces – Répertoire des commandes INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE TICS 33.180.30 PRICE CODECODE PRIXISBN 2-8318-9957-5
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale SIST EN 61291-6-1:2008
– 2 – 61291-6-1 © IEC:2008 CONTENTS FOREWORD.3 INTRODUCTION.5
1 Scope.6 2 Normative references.6 3 Abbreviations.6 4 General rules and concepts.7 4.1 Command set encoding language.7 4.2 Module initiated commands.7 4.3 Command set syntax structure.7 4.4 Command arguments.7 4.5 Command set terminators.7 4.6 Module response prompt.7 4.7 Echo mode.8 5 Supported commands.8 6 Universal command set.9 6.1 Command set I.10 6.2 Command set II.13 7 Optional command set (design dependant).16 7.1 Command set I.17 7.2 Command set II.20 Annex A (normative)
RST functionality.22 Annex B (informative)
Alarm functionality.23
Table 1 – Software commands.8 Table 2 – Universal software command set I.10 Table 3 – Universal software command set II.13 Table 4 – Optional software command set I.17 Table 5 – Optional software command set II
.......................................................................20 Table A.1 – Setpoint memory locations.................................................................................22 Table B.1 – Alarm status mode.............................................................................................23 Table B.2 – Alarm example...................................................................................................24 Table B.3 – Alarm action summary table...............................................................................25
SIST EN 61291-6-1:2008
61291-6-1 © IEC:2008 – 3 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
OPTICAL AMPLIFIERS –
Part 6-1: Interfaces –
Command set
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment declared to be in conformity with an IEC Publication. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 61291-6-1 has been prepared by subcommittee 86C: Fibre optic systems and active devices, of IEC technical committee 86: Fibre optics. The text of this standard is based on the following documents: CDV Report on voting 86C/803/CDV 86C/845/RVC
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. A list of all parts of the IEC 61291 series, published under the general title Optical amplifiers can be found on the IEC website. SIST EN 61291-6-1:2008
– 4 – 61291-6-1 © IEC:2008 The committee has decided that the contents of this publication will remain unchanged until the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.
SIST EN 61291-6-1:2008
61291-6-1 © IEC:2008 – 5 – INTRODUCTION Optical amplifiers are being developed and commercially deployed with an increasing degree of sophistication and functionality. Often, information is sent to the optical amplifier, or requested from it, in order to determine signal conditions, operating parameters, and to adjust the operational aspects of the optical amplifier. Currently, no International Standard exists in this area, yet the need for a common set of command statements to/from optical amplifiers has emerged.
This part of IEC 61291 proposes a set of command strings useful in controlling optical amplifiers. It is based on an existing set of commands widely used across the industry today. The standardization of this command set will result in broader market use of advanced designs of optical amplifiers, typically controlled by microprocessors. These advanced amplifier designs are needed for next generation optical networks, requiring adaptive provisioning of optical paths and intelligent configuration/reconfiguration for provision of telecommunications services in a dynamic environment.
This standard addresses the structure and content of the command set to control optical amplifiers. It does not cover the physical or hardware interface which is assumed to exist for communication of this command set to the optical amplifier. The specification of a physical interface will be the subject of a separate standard yet to be developed.
With the rapidly evolving technology, it is envisioned that this standard will be amended with additional commands and functionality as technology evolves, and will be updated on a periodic basis, incorporating all previous amendments and additions.
SIST EN 61291-6-1:2008
– 6 – 61291-6-1 © IEC:2008 OPTICAL AMPLIFIERS –
Part 6-1: Interfaces –
Command set
1 Scope This part of IEC 61291 describes the optical amplifier command set (OACS) for use in communicating with and controlling intelligent optical amplifiers. These amplifiers can receive and possibly respond to such commands by using resident firmware or may be optical amplifiers controlled by a microprocessor.
This standard addresses the structure and content of the command set to control optical amplifiers. It does not cover the physical or hardware interface, which is assumed to exist for communication of this command set to the optical amplifier. The specification of a physical interface will be the subject of a separate Part to be developed in the IEC 61291-6 series.
The command set described in this standard is intended to enable a user or host to retrieve the amplifier module’s status and/or adjust its settings.
This standard lists all of the commands currently defined and supported within the OACS framework. The commands described cover a wide range of applications, and not all commands will be applicable to every amplifier. To determine the supported commands on an OACS compliant amplifier, please refer to the product specification supplied by the manufacturer. All OACS compliant amplifiers support the full set of “universal” OACS commands. Other commands, usually specific to a design or implementation, may support some or all of the “optional” commands.
2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ISO/IEC 8859-1: Information technology – 8-bit single-byte coded graphic character sets – Part 1: Latin alphabet No. 1 3 Abbreviations The following abbreviations are used in this standard: ASCII
American standard character for information interchange DC
dispersion compensator EDFA
erbium doped fibre amplifier OACS
optical amplifier command set TEC
thermo-electric cooler VOA
variable optical attenuator SIST EN 61291-6-1:2008
61291-6-1 © IEC:2008 – 7 – 4 General rules and concepts 4.1 Command set encoding language All data sent to/from the module are encoded in 8-bit ASCII characters. Refer to ISO/IEC 8859-1.
4.2 Module initiated commands The optical amplifier never sends an unsolicited response. Asynchronous notifications may be made, for example, by raising the appropriate “alarm” output hardware signal. However, the module may be configurable to send a prompt on power-on reset. This initial prompt may be preceded by one or more start-up messages. 4.3 Command set syntax structure Commands consist of a command string, zero or more arguments, and end with a terminator. Command strings are case-insensitive. All commands have the following format: COMMAND ……… 4.4 Command arguments
Arguments may be strings of letters, integers or floating-point numbers. Floating-point numbers shall be entered in fixed notation (e.g. 0.023 not 2.3e-2). Command strings and arguments shall be separated by one or more separator characters. Separators shall be 8-bit ASCII space characters. 4.5 Command set terminators The command terminator is . In the case of , the command is executed on receipt of the character and the character is ignored. A successful command execution may be responded to with an “OK” Unacknowledged commands may be responded to with a “??”. Command response consists of an optional response or error message. Error messages always start with the “?” character and normal responses do not. If a command completes normally and has no useful information to report, its response will be empty (no characters). Contents of error messages are not specified within this standard. The following are examples of some of the types of errors that are possible (this list is not all-inclusive): ?Unknown command 'REBOOT' ?Argument ‘x’ invalid ?Argument ‘5’ out of range [1,4] ?Not implemented ?? 4.6 Module response prompt All responses are followed by a prompt, which indicates that the module is ready to process another command. The default prompt is “>”.
SIST EN 61291-6-1:2008
– 8 – 61291-6-1 © IEC:2008 4.7 Echo mode
By default, the module doesn’t echo characters sent to it. However, if echo mode is enabled, printable 8-bit ASCII characters are echoed. Also, echo mode enables command-line editing using the backspace key (the backspaces are echoed if there are characters to delete). 5 Supported commands Table 1 summarizes the software commands that are supported through the OACS interface. The description of software commands in Table 1 is normative while the commands are informative. There are two sets of commands that are currently being used in the industry. It is recommended that the user choose the commands from only one of the sets, i.e. either from set I or II, and not mix the commands from the two sets. For detailed command syntax and the corresponding response, see Clause 6 for the universal set of commands used by all OACS compliant optical amplifiers or Clause 7 for additional optional command sets.
Table 1 – Software commands (page 1/2) Normative Informative Description Type Applicability Command Set I Command Set II
Read Write Universal Optional
Set alarm setpoints
x x x
ALRM ALT, ALH Display activated alarms x
x
AST ALO Set alarm status mode x x x
ASTM ALS Set baud rate x x x
BAUD BPS Reboot firmware
x x
BOOT RBT Set dispersion compensator parameters x x
x DCM DCS Set command line echo x x x
ECHO ECH Display signal gain x
x
GAIN APG Set loss of signal mode x x x
LOS ASD Set control mode x x x
MODE APS Display module status x
x
MST AST Display module case temperature x
x
MT CST Display optimal flat gain setting x
x OFG N/A Display photodiode power x
x
PD PDP Display input power x
x
PIN PDP Display total output power x
x
POUT PDP Display signal output power x
x
PSIG APP Set pump power x x
x PSP LDP Display pump status, set pump current x x x
PUMP LDC,LDT,LTS Display pump power x
x PWR LDP Download protocol
x x
RECV UPD Display reflected power at output x
x RFL REF Restore default settings
x x
RST RFD Display per-stage signal gain x
x SGAIN APG SIST EN 61291-6-1:2008
61291-6-1 © IEC:2008 – 9 – Table 1 (continued, page 2/2) Normative Informative Description Type Applicability Command Set I Command Set II
Read Write Universal Optional
Set per-stage gain limit x x
x SGLIM GLM Set per-stage control mode x x
x SMODE APS Display per-stage status x
x SMST APS Display per-stage input power x
x SPIN PDP Set per-stage power limit x x
x SPLIM PLM Display per-stage total output power x
x SPOUT PDP Display per-stage signal output power x
x SPSIG APP Display reflected power at stage output x
x SRFL REF Set output tilt x x
x TILT TLT Display version information x
x
VER VER Set VOA attenuation x x
x VOA VAS
6 Universal command set This clause describes the syntax of commands in the two command sets I and II. The commands are informative. It is recommended that the user choose the commands from only one of the sets, i.e. either from set I or II, and not mix the commands from the two sets. Each command is shown with arguments in italics. All OACS compliant amplifiers shall support commands shown in this clause. Variations due to optional arguments are shown on separate lines. In the examples, a sample of communications is shown starting with the prompt from the module and ending with the prompt following the final command. Text sent to the module from the host is shown in bold (assumes echo mode is on). SIST EN 61291-6-1:2008
– 10 – 61291-6-1 © IEC:2008 6.1 Command set I
Table 2 – Universal software command set I (informative) (page 1/4) Sub- clause Command Description Example 6.1.1 ALRM x y ALRM x ALRM Displays information about alarms. The x parameter is the alarm name and can be one of the following: ILD: Pump overcurrent alarm TMP: Pump temperature alarm MTH: High module (case) temperature alarm MTL: Low module (case) temperature alarm CT: Coil temperature alarm LOS: Loss of signal (input) alarm (optional for Raman) LOP: Loss of output power (or gain) alarm RFL: Excessive reflected output power alarm (optional) LOSn: Loss of signal (input) alarm for stage n LOPn: Loss of output power (or gain) alarm for stage n RFLn: Excessive reflected output power alarm for stage n (optional) The y parameter specifies the alarm parameter to display and can be one of the following: STA: Current status SST: Set status THR: Threshold HYS: Hysteresis (relative to threshold) If y is omitted, all of the above parameters are displayed. If x is omitted, information for all alarms is displayed. If both x and y are omitted, all parameters for all alarms are displayed. NOTE See Annex B for additional comments on alarm functionality >alrm ild sta ALRM ILD STA: ON >alrm lop1 ALRM LOP1 STA: OFF ALRM LOP1 SST: ON ALRM LOP1 THR: 2.00 dB ALRM LOP1 HYS: 1.00 dB >alrm thr ALRM LOS1 THR: -31.00 dBm ALRM LOS2 THR: -22.00 dBm ALRM CT THR: 2.0 C ALRM LOP1 THR: 0.50 dB ALRM LOP2 THR: 0.50 dB ALRM RFL2 THR: -20.00 dB ALRM ILD THR: 95.0 % ALRM TMP THR: 5.0 C ALRM MTH THR: 65.0 C ALRM MTL THR: -5.0 C >
ALRM x THR y ALRM x HYS y ALRM x CLR Sets threshold or hysteresis level for the specified alarm. x specifies the alarm name and y specifies the threshold or hysteresis level. Specifying “CLR” resets the alarm’s set status. x can be omitted when “CLR” is specified; in this case, all alarms’ set status are cleared >alrm lop1 thr 1.5 >alrm lop1 hys 0.7 >alrm lop1 ALRM LOP1 STA: OFF ALRM LOP1 SST: ON ALRM LOP1 THR: 1.50 dB ALRM LOP1 HYS: 0.70 dB > 6.1.2 AST Lists all alarms whose status is on.
If alarm status mode is normal, alarms whose current status is on are listed. Alarms are not cleared until the alarming condition is cleared. If the alarm status mode is latching, alarms whose latching status is on are listed and their latching status is cleared if the alarming condition has cleared. If no alarms are on, the response is “OK” >ast AST: LOP2 ILD >ast AST: OK > 6.1.3 ASTM N ASTM S ASTM Sets alarm status mode to normal(N) or latching (S, for "set") mode. If the mode is omitted, the current mode is displayed >astm ASTM: S >astm n >astm ASTM: N > SIST EN 61291-6-1:2008
61291-6-1 © IEC:2008 – 11 – Table 2 (continued, page 2/4) Sub- clause Command Description Example 6.1.4 BAUD x BAUD Sets baud rate to x bits per second. Allowed values are 9 600, 19 200, 38 400, 57 600, and 115 200. If no argument is provided, the current rate is displayed. Note that the baud rate change takes effect after the prompt in response to the command is sent >baud BAUD: 9600 >baud 115200 > 6.1.5 BOOT Reboots the firmware >boot (startup messages) > 6.1.6 ECHO ON ECHO OFF ECHO Sets command line echoing to “ON” or “OFF”. If no argument is provided, the current setting is displayed >echo ECHO: ON >echo off >echo ECHO: OFF > 6.1.7 LOS x LOS Specifies behaviour when the LOS alarm is active. Parameter x is one of the following:
A: Pumps disabled in gain control, power control, and manual control modes. P: No effect in gain control mode, pumps disabled in power control and manual control modes. N: No effect in any mode. If x is not specified, the current LOS mode is displayed. For multistage EDFAs, the LOS mode applies to all stages in the same manner. >los LOS: A >los p >los LOS: P > 6.1.8 MODE x y MODE x MODE
Sets the control mode of the amplifier to x with setpoint y. Control modes are:
G: Gain control mode: y is the gain setpoint in dB. For fixed-gain modules, y may be specified as “OFG” to set the optimal flat gain. P: Output power control mode: y is the output power setpoint in dBm. S: Stage control mode: y is not supplied. Applies to multistage EDFAs only. P: Pump power control mode: y is not supplied. Each pump is driven to the optical power specified by the PSP command. M: Manual pump control: y is not supplied. In this mode, each pump is driven at a fixed current specified by the PUMP ISP command or automatically controlled if set to AUTO. See the PUMP ISP command for details.
D: Disable mode: y is not supplied. All pumps are shut off. NOTE Using MODE alone shows the current system mode and setpoint >mode MODE: G 23.00 dB >mode g ofg >mode MODE: G 22.65 dB >mode p 10.78 >mode MODE: P 10.78 dBm >mode d >mode MODE: D >mode s >mode MODE: S > SIST EN 61291-6-1:2008
– 12 – 61291-6-1 © IEC:2008 Table 2 (continued, page 3/4) Sub- clause Command Description Example 6.1.9 MST Displays module status which is one or more of the following keywords: DIS: Module disabled due to amplifier disable input or alarm ES: Module in eyesafe mode due to eyesafe input or alarm. Eyesafe mode is a mode in which the optical power level is limited for eye safety concerns. LIM: Module gain or output power limited by SGLIM/SPLIM OK: Module is operating normally. For multistage EDFAs, the module status is the union (logical OR) of the all of the stages' status indications (see SMST in 7.8) >mst MST: DIS ES >mst MST: OK > 6.1.10 MT Displays module case temperature in degrees °C >mt MT: 45.6 C > 6.1.11 PD x PD Displays power at photodiode x in dBm. Valid photodiode numbers range from 1 to the number of installed photodiodes. If the argument is omitted, all photodiode powers are displayed. Use of higher level commands such as PIN, SPOUT, VOA, etc. is recommended in lieu of the PD command. Photodiode numbering is not guaranteed to be consistent across designs. For example, on any given amplifier design the PIN command always reports input power whereas the “PD 1” command may report something else >pd 2 PD 2: -6.08 dBm >pd PD 1: -22.32 dBm PD 2: -6.08 dBm PD 3: -10.23 dBm PD 4: 11.01 dBm > 6.1.12 PIN POUT PSIG GAIN Displays input power, total output power, signal output power, and signal gain. Signal power is total power less estimated ASE power. >pin PIN: -20.00 dBm >pout POUT: 6.15 dBm >psig PSIG: 5.00 dBm >gain GAIN: 25.00 dB > 6.1.13 PUMP x ISP z PUMP x AUTO Sets fixed current of z milliamps for pump x. If x is not specified, all pumps are set to this current. Setting a fixed pump current overrides automatic control of the pump which may compromise control. The AUTO parameter restores automatic pump control. This command is permitted only when the module is in manual mode (MODE M). Manual pump settings are temporary and are not preserved across power-on reset (they revert to ISP 0 after reset) >pump 2 isp 25.0 >pump 2 isp PUMP 2 ISP: 25.0 mA >pump 2 auto >pump 2 isp PUMP 2 ISP: AUTO > SIST EN 61291-6-1:2008
61291-6-1 © IEC:2008 – 13 – Table 2 (continued, page 4/4) Sub- clause Command Description Example 6.1.14 PUMP x y PUMP x PUMP Displays status of pump x. Valid pump numbers range from 1 to the number of installed pumps. The y parameter specifies the information displayed and can be one of the following: ILD: Laser diode current in mA EOL: Laser diode end-of-life current in mA TMP: Pump temperature in degrees C ITC: TEC current in mA VTC: TEC voltage in V ISP: Pump current setpoint in mA >pump 2 ild PUMP 2 ILD: 102.7 mA >pump 1 PUMP 1 ILD: 167.5 mA PUMP 1 EOL: 350.0 mA PUMP 1 TMP: 25.1 C PUMP 1 ITC: 847.0 mA PUMP 1 VTC: 2.354 V PUMP 1 ISP: AUTO > 6.1.15 RECV x Downloads file from the host system using the XMODEM file transfer protocol. The XMODEM protocol can be XMODEM 128 byte data, 2 byte CRC or XMODEM 1K byte data, 2 byte CRC. Parameter x indicates the type of file, which is vendor specific. Examples: FW: Downloads new firmware for the microcontrollerS2: Download in S2 file f
...
