SIST EN 302 307 V1.3.1:2013
(Main)Digital Video Broadcasting (DVB) - Second generation framing structure, channel coding and modulation systems for Broadcasting, Interactive Services, News Gathering and other broadband satellite applications (DVB-S2)
Digital Video Broadcasting (DVB) - Second generation framing structure, channel coding and modulation systems for Broadcasting, Interactive Services, News Gathering and other broadband satellite applications (DVB-S2)
DVB-S (EN 300 421 [2]) was introduced as a standard in 1994 and DVB-DSNG (EN 301 210 [3]) in 1997. The DVB-S standard specifies QPSK modulation and concatenated convolutional and Reed-Solomon channel coding, and is now used by most satellite operators worldwide for television and data broadcasting services. DVB-DSNG specifies, in addition to DVB-S format, the use of 8PSK and 16QAM modulation for satellite news gathering and contribution services.
Digitalna videoradiodifuzija (DVB) - Druga generacija strukture okvirov, kodiranja kanalov in modulacijskih sistemov za radiodifuzijo, interaktivne storitve, novinarstvo in druge širokopasovne satelitske aplikacije (DVB-S2)
Standard DVB-S (EN 300 421 [2]) se je začel uporabljati kot standard leta 1994, standard DVB-DSNG (EN 301 210 [3]) pa leta 1997. Standard DVB-S določa modulacijo QPSK ter povezano konvolucijsko kodiranje in Reed-Solomonovo kodiranje kanalov, pri čemer ga zdaj uporablja večina satelitskih operaterjev po vsem svetu za storitve televizijske in podatkovne radiofuzije. Poleg formata DVB-S standard DVB-DSNG določa uporabo modulacije 8PSK in 16QAM za satelitsko zbiranje novic in prispevkov.
General Information
Standards Content (Sample)

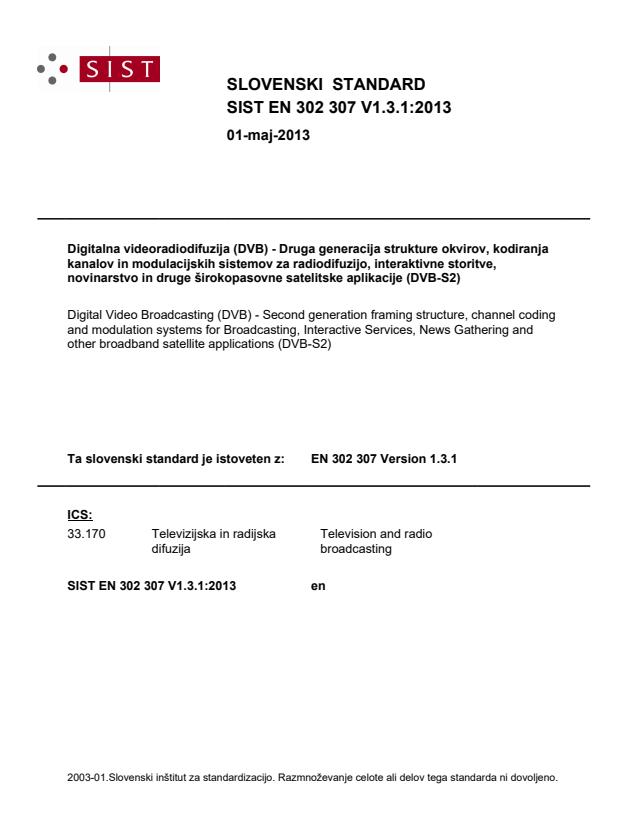

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digitalna videoradiodifuzija (DVB) - Druga generacija strukture okvirov, kodiranja kanalov in modulacijskih sistemov za radiodifuzijo, interaktivne storitve, novinarstvo in druge širokopasovne satelitske aplikacije (DVB-S2)Digital Video Broadcasting (DVB) - Second generation framing structure, channel coding and modulation systems for Broadcasting, Interactive Services, News Gathering and other broadband satellite applications (DVB-S2)33.170Televizijska in radijska difuzijaTelevision and radio broadcastingICS:Ta slovenski standard je istoveten z:EN 302 307 Version 1.3.1SIST EN 302 307 V1.3.1:2013en01-maj-2013SIST EN 302 307 V1.3.1:2013SLOVENSKI
STANDARD
SIST EN 302 307 V1.3.1:2013

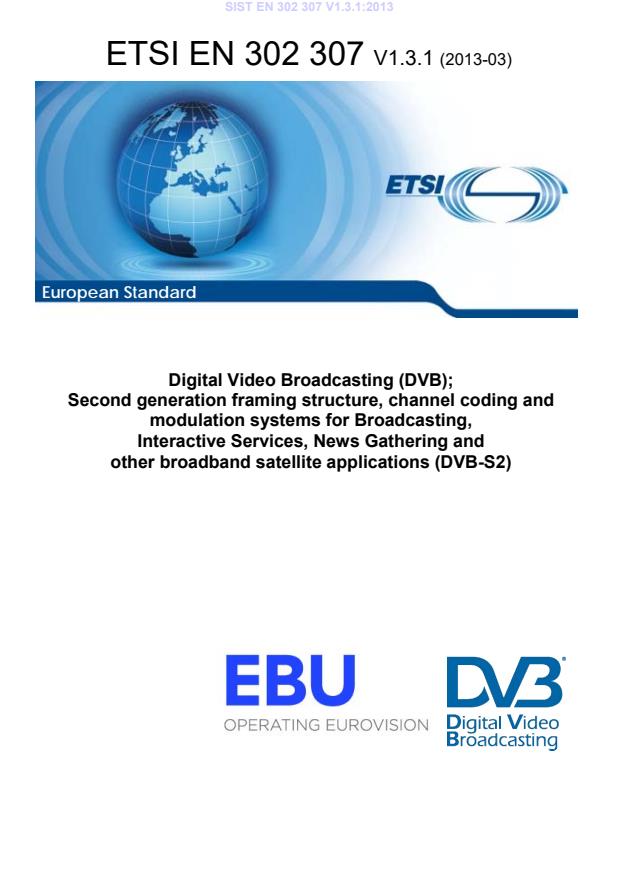

ETSI EN 302 307 V1.3.1 (2013-03) Digital Video Broadcasting (DVB); Second generation framing structure, channel coding and modulation systems for Broadcasting, Interactive Services, News Gathering and other broadband satellite applications (DVB-S2)
European Standard SIST EN 302 307 V1.3.1:2013
ETSI ETSI EN 302 307 V1.3.1 (2013-03) 2
Reference REN/JTC-DVB-319 Keywords BSS, digital, DVB, modulation, satellite, TV ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013. © European Broadcasting Union 2013. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 307 V1.3.1:2013
ETSI ETSI EN 302 307 V1.3.1 (2013-03) 3 Contents Intellectual Property Rights . 5 Foreword . 5 1 Scope . 6 2 References . 8 2.1 Normative references . 8 2.2 Informative references . 9 3 Symbols and abbreviations . 9 3.1 Symbols . 9 3.2 Abbreviations . 10 4 Transmission system description . 12 4.1 System definition . 12 4.2 System architecture . 13 4.3 System configurations . 14 5 Subsystems specification . 15 5.1 Mode adaptation . 15 5.1.1 Input interface . 16 5.1.2 Input stream synchronizer (optional, not relevant for single TS - BS) . 16 5.1.3 Null-Packet Deletion (ACM and Transport Stream only) . 16 5.1.4 CRC-8 encoder (for packetized streams only) . 17 5.1.5 Merger/Slicer . 17 5.1.6 Base-Band Header insertion . 18 5.2 Stream adaptation . 20 5.2.1 Padding . 20 5.2.2 BB scrambling . 20 5.3 FEC encoding . 21 5.3.1 Outer encoding (BCH) . 22 5.3.2 Inner encoding (LDPC) . 23 5.3.2.1 Inner coding for normal FECFRAME. 23 5.3.2.2 Inner coding for short FECFRAME . 24 5.3.3 Bit Interleaver (for 8PSK, 16APSK and 32APSK only) . 25 5.4 Bit mapping into constellation. 26 5.4.1 Bit mapping into QPSK constellation . 26 5.4.2 Bit mapping into 8PSK constellation . 27 5.4.3 Bit mapping into 16APSK constellation . 27 5.4.4 Bit mapping into 32APSK . 28 5.5 Physical Layer (PL) framing . 29 5.5.1 Dummy PLFRAME insertion . 30 5.5.2 PL signalling . 30 5.5.2.1 SOF field . 31 5.5.2.2 MODCOD field . 31 5.5.2.3 TYPE field . 31 5.5.2.4 PLS code . 31 5.5.3 Pilots insertion . 32 5.5.4 Physical layer scrambling . 32 5.6 Baseband shaping and quadrature modulation . 34 6 Error performance . 35 Annex A (normative): Signal spectrum at the modulator output . 36 Annex B (normative): Addresses of parity bit accumulators for nldpc = 64 800 . 38 Annex C (normative): Addresses of parity bit accumulators for nldpc = 16 200 . 48 Annex D (normative): Additional Mode Adaptation and ACM tools . 51 SIST EN 302 307 V1.3.1:2013
ETSI ETSI EN 302 307 V1.3.1 (2013-03) 4 D.1 "ACM Command" signalling interface . 51 D.2 Input stream synchronizer . 51 D.3 Null-packet Deletion (normative for input transport streams and ACM). 53 D.4 BBHEADER and Merging/slicing Policy for various application areas . 54 D.5 Signalling of reception quality via return channel (Normative for ACM) . 55 Annex E (normative): SI and signal identification for DSNG and contribution applications . 57 Annex F (normative): Backwards Compatible modes (optional) . 58 Annex G (informative): Supplementary information on receiver implementation . 61 G.1 Carrier recovery . 61 G.2 FEC decoding . 61 G.3 ACM: Transport Stream regeneration and clock recovery using ISCR . 64 G.4 Non linearity pre-compensation and Intersymbol Interference suppression techniques . 64 G.5 Interactive services using DVB-RCS return link: user terminal synchronization . 65 Annex H (informative): Examples of possible use of the System . 66 H.1 CCM digital TV broadcasting: bit rate capacity and C/N requirements . 66 H.2 Distribution of multiple TS multiplexes to DTT Transmitters (Multiple TS, CCM) . 68 H.3 SDTV and HDTV broadcasting with differentiated protection (VCM, Multiple TS) . 69 H.4 DSNG Services using ACM (Single transport Stream, information rate varying in time) . 69 H.5 IP Unicast Services (Non-uniform protection on a user-by-user basis) . 70 H.6 Example performance of BC modes. 72 H.7 Satellite transponder models for simulations . 73 H.8 Phase noise masks for simulations . 75 Annex I (normative): Mode Adaptation input interfaces (optional) . 76 I.1 Mode Adaptation input interface with separate signalling circuit (optional) . 76 I.2 Mode Adaptation input interface with in-band signalling (optional) . 77 Annex J (informative): Bibliography . 78 Annex K: For future use . 79 Annex L: For future use . 80 Annex M (normative): Transmission format for wideband satellite transponders using time-slicing (optional) . 81 M.1 Definition of Time-slicing receiver . 81 M.2 TIME SLICE MODE CODING . 82 M.2.1 PL signalling . 82 M.2.2 SOF field . 83 M.2.3 MODCOD field . 83 M.2.4 TYPE field. 83 M.2.5 TSN code . 83 M.3 Phase noise masks . 83 History . 84
SIST EN 302 307 V1.3.1:2013
ETSI ETSI EN 302 307 V1.3.1 (2013-03) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (EN) has been produced by Joint Technical Committee (JTC) Broadcast of the European Broadcasting Union (EBU), Comité Européen de Normalisation ELECtrotechnique (CENELEC) and the European Telecommunications Standards Institute (ETSI). The work of the JTC was based on the studies carried out by the European DVB Project under the auspices of the Ad Hoc Group on DVB-S2 of the DVB Technical Module. This joint group of industry, operators and broadcasters provided the necessary information on all relevant technical matters (see bibliography). NOTE: The EBU/ETSI JTC Broadcast was established in 1990 to co-ordinate the drafting of standards in the specific field of broadcasting and related fields. Since 1995 the JTC Broadcast became a tripartite body by including in the Memorandum of Understanding also CENELEC, which is responsible for the standardization of radio and television receivers. The EBU is a professional association of broadcasting organizations whose work includes the co-ordination of its members' activities in the technical, legal, programme-making and programme-exchange domains. The EBU has active members in about 60 countries in the European broadcasting area; its headquarters is in Geneva. European Broadcasting Union CH-1218 GRAND SACONNEX (Geneva) Switzerland Tel: +41 22 717 21 11 Fax: +41 22 717 24 81
The Digital Video Broadcasting Project (DVB) is an industry-led consortium of broadcasters, manufacturers, network operators, software developers, regulatory bodies, content owners and others committed to designing global standards for the delivery of digital television and data services. DVB fosters market driven solutions that meet the needs and economic circumstances of broadcast industry stakeholders and consumers. DVB standards cover all aspects of digital television from transmission through interfacing, conditional access and interactivity for digital video, audio and data. The consortium came together in 1993 to provide global standardisation, interoperability and future proof specifications.
National transposition dates Date of adoption of this EN: 1 March 2013 Date of latest announcement of this EN (doa): 30 June 2013 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 December 2013 Date of withdrawal of any conflicting National Standard (dow): 31 December 2013
SIST EN 302 307 V1.3.1:2013
ETSI ETSI EN 302 307 V1.3.1 (2013-03) 6 1 Scope DVB-S (EN 300 421 [2]) was introduced as a standard in 1994 and DVB-DSNG (EN 301 210 [3]) in 1997. The DVB-S standard specifies QPSK modulation and concatenated convolutional and Reed-Solomon channel coding, and is now used by most satellite operators worldwide for television and data broadcasting services. DVB-DSNG specifies, in addition to DVB-S format, the use of 8PSK and 16QAM modulation for satellite news gathering and contribution services. Since 1997, digital satellite transmission technology has evolved somewhat: • New channel coding schemes, combined with higher order modulation, promise more powerful alternatives to the DVB-S/DVB-DSNG coding and modulation schemes. The result is a capacity gain in the order of 30 % at a given transponder bandwidth and transmitted EIRP, depending on the modulation type and code rate. • Variable Coding and Modulation (VCM) may be applied to provide different levels of error protection to different service components (e.g. SDTV and HDTV, audio, multimedia). • In the case of interactive and point-to-point applications, the VCM functionality may be combined with the use of return channels, to achieve Adaptive Coding and Modulation (ACM). This technique provides more exact channel protection and dynamic link adaptation to propagation conditions, targeting each individual receiving terminal. ACM systems promise satellite capacity gains of up to 100 % to 200 %. In addition, service availability may be extended compared to a constant protection system (CCM) such as DVB-S or DVB-DSNG. Such gains are achieved by informing the satellite up-link station of the channel condition
(e.g. C/N+I) of each receiving terminal via the satellite or terrestrial return channels. • DVB-S and DVB-DSNG are strictly focused on a unique data format, the MPEG Transport Stream (ISO/IEC 13818-1 [1] or a reference to it). Extended flexibility to cope with other input data formats (such as multiple Transport Streams, or generic data formats) is now possible without significant complexity increase. The present document defines a "second generation" modulation and channel coding system (denoted the "System" or "DVB-S2" for the purposes of the present document) to make use of the improvements listed above. DVB-S2 is a single, very flexible standard, covering a variety of applications by satellite, as described below. It is characterized by: • a flexible input stream adapter, suitable for operation with single and multiple input streams of various formats (packetized or continuous); • a powerful FEC system based on LDPC (Low-Density Parity Check) codes concatenated with BCH codes, allowing Quasi-Error-Free operation at about 0,7 dB to 1 dB from the Shannon limit, depending on the transmission mode (AWGN channel, modulation constrained Shannon limit); • a wide range of code rates (from 1/4 up to 9/10); 4 constellations, ranging in spectrum efficiency from 2 bit/s/Hz to 5 bit/s/Hz, optimized for operation over non-linear transponders; • a set of three spectrum shapes with roll-off factors 0,35, 0,25 and 0,20; • Adaptive Coding and Modulation (ACM) functionality, optimizing channel coding and modulation on a frame-by-frame basis. The System has been optimized for the following broadband satellite applications: Broadcast Services (BS) Digital multi-programme Television (TV)/High Definition Television (HDTV) Broadcasting services to be used for primary and secondary distribution in the Fixed Satellite Service (FSS) and the Broadcast Satellite Service (BSS) bands. SIST EN 302 307 V1.3.1:2013
ETSI ETSI EN 302 307 V1.3.1 (2013-03) 7 DVB-S2 is intended to provide Direct-To-Home (DTH) services for consumer Integrated Receiver Decoder (IRD), as well as collective antenna systems (Satellite Master Antenna Television - SMATV) and cable television head-end stations (possibly with remodulation, see EN 300 429 [5]). DVB-S2 may be considered a successor to the current DVB-S standard EN 300 421 [2], and may be introduced for new services and allow for a long-term migration. BS services are transported in MPEG Transport Stream format. VCM may be applied on multiple transport stream to achieve a differentiated error protection for different services (TV, HDTV, audio, multimedia). Two modes are available: • NBC-BS (Non Backwards Compatible Broadcast Services) is not backwards-compatible with EN 300 421 [2]. • BC-BS (Backwards-Compatible Broadcast Services) is backwards-compatible to EN 300 421 [2] (see annex F). In fact, with a large number of DVB-S receivers already installed, backwards compatibility may be required for a period of time, where old receivers continue to receive the same capacity as before, while the new DVB-S2 receivers could receive additional capacity broadcasts. When the complete receiver population has migrated to DVB-S2, the transmitted signal can be modified to a non-backward compatible mode, thus exploiting the full potential of DVB-S2. To facilitate the reception of DVB-S services by DVB-S2 receivers, implementation of DVB-S in DVB-S2 chips is highly recommended. Interactive Services (IS) Interactive data services including Internet access DVB-S2 is intended to provide interactive services to consumer IRDs and to personal computers, where DVB-S2's forward path supersedes the current DVB-S standard EN 300 421 [2] for interactive systems. The return path can be implemented using various DVB interactive systems, such as DVB-RCS (EN 301 790 [6]), DVB-RCP (ETS 300 801 [7]), DVB-RCG (EN 301 195 [8]), DVB-RCC (ES 200 800 [9]). Data services are transported in (single or multiple) Transport Stream format according to EN 301 192 [4] (e.g. using Multiprotocol Encapsulation), or in (single or multiple) generic stream format. DVB-S2 can provide Constant Coding and Modulation (CCM), or Adaptive Coding and Modulation (ACM), where each individual satellite receiving station controls the protection mode of the traffic addressed to it. Input Stream Adaptation for ACM is specified in annex D. Digital TV Contribution and Satellite News Gathering (DTVC/DSNG) Digital television contribution applications by satellite consist of point-to-point or point-to-multipoint transmissions, connecting fixed or transportable uplink and receiving stations. They are not intended for reception by the general public. According to ITU-R Recommendation SNG.770-1 [10], SNG is defined as "Temporary and occasional transmission with short notice of television or sound for broadcasting purposes, using highly portable or transportable uplink earth stations .". Services are transported in single (or multiple) MPEG Transport Stream format. DVB-S2 can provide Constant Coding and Modulation (CCM), or Adaptive Coding and Modulation (ACM). In this latter case, a single satellite receiving station typically controls the protection mode of the full multiplex. Input Stream Adaptation for ACM is specified in annex D. Data content distribution/trunking and other professional applications (PS) These services are mainly point-to-point or point-to-multipoint, including interactive services to professional head-ends, which re-distribute services over other media. Services may be transported in (single or multiple) generic stream format. The system can provide Constant Coding and Modulation (CCM), Variable Coding and Modulation (VCM) or Adaptive Coding and Modulation (ACM). In this latter case, a single satellite receiving station typically controls the protection mode of the full TDM multiplex, or multiple receiving stations control the protection mode of the traffic addressed to each one. In either case, interactive or non-interactive, the present document is only concerned with the forward broadband channel. DVB-S2 is suitable for use on different satellite transponder bandwidths and frequency bands. The symbol rate is matched to given transponder characteristics, and, in the case of multiple carriers per transponder (FDM), to the frequency plan adopted. Examples of possible DVB-S2 use are given in clause H.1. Annex M specifies the implementation of a DVB-S2 profile suitable for operation in wide-band mode, without requiring a full-speed decoding of the total carrier capacity, by suitably mapping the transmitted services in time-slices. SIST EN 302 307 V1.3.1:2013
ETSI ETSI EN 302 307 V1.3.1 (2013-03) 8 Digital transmissions via satellite are affected by power and bandwidth limitations. Therefore DVB-S2 provides for many transmission modes (FEC coding and modulations), giving different trade-offs between power and spectrum efficiency (see clause H.1). For some specific applications (e.g. broadcasting) modes such as QPSK and 8PSK, with their quasi-constant envelope, are appropriate for operation with saturated satellite power amplifiers (in single carrier per transponder configuration). When higher power margins are available, spectrum efficiency can be further increased to reduce bit delivery cost. In these cases also 16APSK and 32APSK can operate in single carrier mode close to the satellite HPA saturation by pre-distortion techniques. All the modes are appropriate for operation in quasi-linear satellite channels, in multi-carrier Frequency Division Multiplex (FDM) type applications. DVB-S2 is compatible with Moving Pictures Experts Group (MPEG-2 and MPEG-4) coded TV services (see ISO/IEC 13818-1 [1]), with a Transport Stream packet multiplex. Multiplex flexibility allows the use of the transmission capacity for a variety of TV service configurations, including sound and data services. All service components are Time Division Multiplexed (TDM) on a single digital carrier. The present document: • gives a general description of the DVB-S2 system; • specifies the digitally modulated signal in order to allow compatibility between pieces of equipment developed by different manufacturers. This is achieved by describing in detail the signal processing principles at the modulator side, while the processing at the receive side is left open to different implementation solutions. However, it is necessary in the present document to refer to certain aspects of reception; • identifies the global performance requirements and features of the System, in order to meet the service quality targets. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which
...
