SIST EN 319 162-1 V1.1.1:2016
(Main)Electronic Signatures and Infrastructures (ESI) - Associated Signature Containers (ASiC) - Part 1: Building blocks and ASiC baseline containers
Electronic Signatures and Infrastructures (ESI) - Associated Signature Containers (ASiC) - Part 1: Building blocks and ASiC baseline containers
The present document specifies Associated Signature Containers (ASiC) which bind together into one single digital
container based on ZIP [5] either detached digital signatures or time assertions, with a number of file objects
(e.g. documents, XML structured data, spreadsheet, multimedia content) to which they apply.
The present document specifies general purpose ASiC containers building blocks and a limited set of baseline
containers.
ASiC supports the following signature and time assertion formats:
• CAdES object incorporating CAdES signatures (ETSI EN 319 122-1 [1] and ETSI EN 319 122-2 [11]);
• XAdES signatures (ETSI EN 319 132-1 [2] and ETSI EN 319 132-2 [12]);
• IETF RFC 3161 [3] and updated by IETF RFC 5816 [13] time-stamp tokens; and
• IETF RFC 4998 [8] or IETF RFC 6283 [9] evidence records.
NOTE 1: No restriction is placed on time assertions eventually used within CAdES signatures or XAdES
signatures.
The building blocks defined in the present document support additional features not supported by the aforementioned
formats, such as time-stamping and CAdES signing of multiple content and XAdES parallel signatures, that can be used
in other contexts.
The present document defines baseline containers which provide the basic features necessary for a wide range of
business and governmental use cases for electronic procedures and communications to be applicable to a wide range of
communities when there is a clear need for interoperability.
The present document aims at supporting associated signature containers in different regulatory frameworks.
NOTE 2: Specifically, but not exclusively, ASiC Associated Signature Containers specified in the present
document aim at supporting electronic signature and electronic seal as per Regulation (EU)
No 910/2014 [i.3].
The present document defines four levels of ASiC baseline containers addressing incremental requirements to maintain
the availability and integrity of the containers over the long term, suitably profiled for reducing the optionality as much
as possible, in a way that a certain level always addresses all the requirements already addressed at levels that are below
it.
The present document does not address the identification of the validation policy to be used for verifying a container
that contains time assertions.
Elektronski podpisi in infrastruktura (ESI) - Pripadajoči vsebniki podpisov (ASiC) - 1. del: Gradniki in izhodiščni vsebniki ASiC
Ta dokument določa pripadajoče vsebnike podpisov (ASiC), ki se povezujejo v en sam digitalni vsebnik na podlagi ZIP [5] (samostojni digitalni podpisi ali časovne izjave) s številom datotečnih objektov (npr. dokumenti, strukturirani podatki XML, preglednica, večpredstavnostna vsebina), za katere se uporabljajo.
Ta dokument določa gradnike vsebnikov ASiC za splošno uporabo in omejen nabor izhodiščnih vsebnikov.
Vsebnik ASiC podpira naslednje formate podpisov in časovnih izjav:
• objekt CAdES, ki vsebuje podpise CAdES (ETSI EN 319 122-1 [1] in ETSI EN 319 122-2 [11]);
• podpisi XAdES (ETSI EN 319 132-1 [2] in ETSI EN 319 132-2 [12]);
• standard IETF RFC 3161 [3] in posodobitev z žetoni časovnega žiga IETF RFC 5816 [13] ter
• evidenčni podatki IETF RFC 4998 [8] ali IETF RFC 6283 [9].
OPOMBA 1: časovne izjave, ki so uporabljene v podpisih CAdES ali XAdES, nimajo omejitev.
Gradniki, opredeljeni v tem dokumentu, podpirajo dodatne funkcije, ki jih navedeni formati ne podpirajo, kot so časovno žigosanje, podpisovanje več vsebin CAdES in vzporedni podpisi XAdES, ki jih je mogoče uporabiti v drugih kontekstih.
Ta dokument opredeljuje izhodiščne vsebnike, ki zagotavljajo osnovne funkcije, zaradi katerih se lahko različni poslovni in vladni primeri uporabe za elektronske postopke in komunikacijo uporabijo za širok nabor skupnosti, kadar obstaja jasna potreba po interoperabilnosti.
Namen tega dokumenta je zagotavljanje podpore za pripadajoče vsebnike podpisov v različnih regulativnih okvirjih.
OPOMBA 2: Namen pripadajočih vsebnikov podpisov ESiC, določenih v tem dokumentu, je zlasti (vendar ne izključno) zagotavljanje podpore za elektronske podpise in elektronske žige skladno z Uredbo (EU) št. 910/2014 [i.3].
V tem dokumentu so opredeljene štiri ravni izhodiščnih vsebnikov ASiC, ki obravnavajo naraščajoče zahteve po dolgoročnem ohranjanju razpoložljivosti in celovitosti vsebnikov ter ustrezno zmanjšujejo možnost izbire, pri čemer določena raven vedno obravnava vse zahteve, že obravnavane na njenih podravneh.
Ta dokument ne obravnava opredelitve politike potrjevanja za preverjanje vsebnika, ki vključuje časovne izjave.
General Information
Standards Content (Sample)
EUROPEAN STANDARD
Electronic Signatures and Infrastructures (ESI);
Associated Signature Containers (ASiC);
Part 1: Building blocks and ASiC baseline containers
�

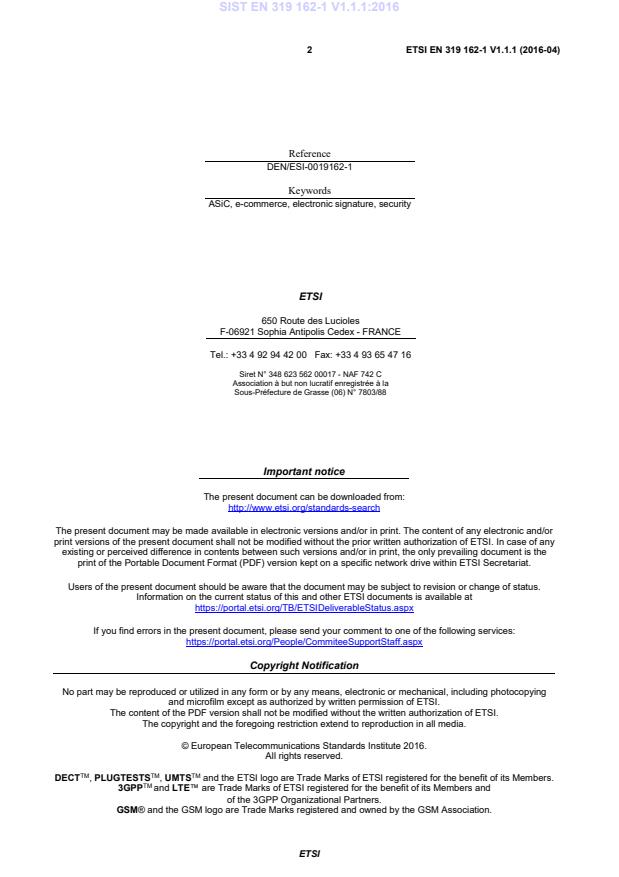

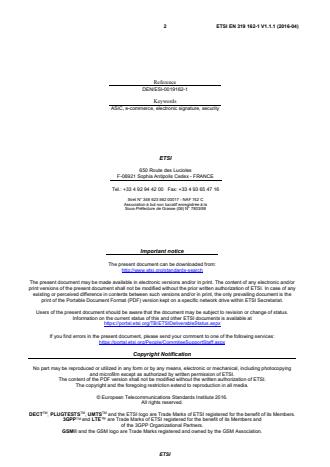

2 ETSI EN 319 162-1 V1.1.1 (2016-04)
Reference
DEN/ESI-0019162-1
Keywords
ASiC, e-commerce, electronic signature, security
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2016.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 319 162-1 V1.1.1 (2016-04)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions and abbreviations . 9
3.1 Definitions . 9
3.2 Abbreviations . 9
4 General Syntax . 10
4.1 Description of main features of Associated Signature Containers . 10
4.1.1 Basic container structure . 10
4.1.2 Container types . 10
4.2 General requirements . 11
4.3 Associated Signature Container Simple (ASiC-S) . 11
4.3.1 Introduction. 11
4.3.2 General requirements for ASiC-S . 11
4.3.3 Detailed format for ASiC-S . 12
4.3.3.1 Media type identification . 12
4.3.3.2 Contents of the container . 12
4.3.4 Long term availability and integrity of ASiC-S . 14
4.4 Associated Signature Container Extended (ASiC-E) . 15
4.4.1 Introduction. 15
4.4.2 General requirements of ASiC-E . 16
4.4.3 Detailed format for ASiC-E with XAdES . 16
4.4.3.1 Media type identification . 16
4.4.3.2 Contents of Container . 16
4.4.3.3 ASiC-E with XAdES example (informative) . 18
4.4.4 Detailed format for ASiC-E with CAdES - time assertions . 18
4.4.4.1 Media type identification . 18
4.4.4.2 Contents of Container . 18
4.4.5 Long term availability and integrity of ASiC-E . 21
5 ASiC baseline containers. 21
5.1 ASiC le vels . 21
5.2 General requirements . 22
5.2.1 Algorithm requirements . 22
5.2.2 Notation for requirements . 22
5.3 Requirements for ASiC baseline containers . 23
5.3.1 ASiC conformance . 23
5.3.2 Requirements for ASiC-S . 23
5.3.2.1 General requirements for ASiC-S . 23
5.3.2.2 Requirements for ASiC-S with CAdES signature . 23
5.3.2.3 Requirements for ASiC-S with XAdES signature . 24
5.3.3 Requirements for ASiC-E with XAdES signature . 24
Annex A (normative): ASiC metadata specification, data naming and referencing . 25
A.1 The mimetype file . 25
A.2 Media type registrations . 25
A.3 ASiC XML Schema . 26
ETSI

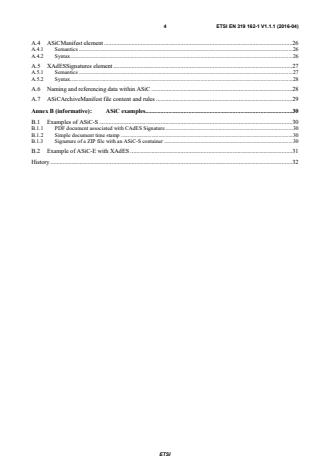

4 ETSI EN 319 162-1 V1.1.1 (2016-04)
A.4 ASiCManifest element . 26
A.4.1 Semantics . 26
A.4.2 Syntax . 26
A.5 XAdESSignatures element . 27
A.5.1 Semantics . 27
A.5.2 Syntax . 28
A.6 Naming and referencing data within ASiC . 28
A.7 ASiCArchiveManifest file content and rules . 29
Annex B (informative): ASiC examples. 30
B.1 Examples of ASiC-S . 30
B.1.1 PDF document associated with CAdES Signature . 30
B.1.2 Simple document time stamp . 30
B.1.3 Signature of a ZIP file with an ASiC-S container . 30
B.2 Example of ASiC-E with XAdES . 31
History . 32
ETSI
5 ETSI EN 319 162-1 V1.1.1 (2016-04)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (EN) has been produced by ETSI Technical Committee Electronic Signatures and
Infrastructures (ESI).
The present document is part 1 of a multi-part deliverable specifying Associated Signature Containers (ASiC), as
identified below:
Part 1: "Building blocks and ASiC baseline containers";
Part 2: "Additional ASiC containers".
National transposition dates
Date of adoption of this EN: 25 April 2016
Date of latest announcement of this EN (doa): 31 July 2016
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 2017
Date of withdrawal of any conflicting National Standard (dow): 31 January 2017
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
When signing data, the resultant signature needs to be associated with the data to which it applies. This can be achieved
either by creating a data set which combines the signature and the data that was signed (e.g. by enveloping the data with
the signature or including a signature element in the data set) or placing the (detached) signature in a separate resource
and have some external means for associating the signature with the data to which it applies. While there are some
advantages to the use of detached signatures, most significantly their non-modification of the original data objects, there
remains a risk that the signature becomes separated from the data to which it applies and so losing the association.
Therefore, many application systems have developed their own technique for combining a detached signature with the
signed object in some form of container so that they can be more easily distributed and guarantee that the correct
signature and any relevant metadata is used when validating. The same requirements apply to associate time assertions
(i.e. time-stamp tokens or evidence records) to their associated data.
ETSI
6 ETSI EN 319 162-1 V1.1.1 (2016-04)
The present document defines a standardized use of container types to establish a common way for associating files
containing data objects with files containing digital signatures and/or time assertions. Using a common container form
and associated information will facilitate data interchange and interoperability among various signing and validation
services.
Whilst ZIP [5] provides a basic container structure that can associate files containing data objects (file objects) and the
signature(s) that apply to them, there is a recognized need for additional structure and metadata about the association,
for example to link a particular signature with the file object to which it is applied. Other formats have already been
specified for the use of ZIP based structures to bind together a number of file objects with related metadata. This
includes OCF [4] which was originally designed for use by eBooks but has been adopted as the basis for other
containers, for example ODF [6]. The present document builds on this work specifically addressing the requirements of
associating a digital signature with any type of data, independent of the needs of any particular document or data type.
The present document is intended to cover containers including digital signatures and time assertions supported by PKI
and public key certificates, and aims to meet the general requirements of the international community to provide trust
and confidence in electronic transactions, including, amongst other, applicable requirements from Regulation (EU)
No 910/2014 [i.3].
The present document is part of a rationalized framework of standards (see ETSI TR 119 000 [i.9]). ETSI
TR 119 100 [i.1] provides guidance on how to use the present document within the aforementioned framework.
ETSI
7 ETSI EN 319 162-1 V1.1.1 (2016-04)
1 Scope
The present document specifies Associated Signature Containers (ASiC) which bind together into one single digital
container based on ZIP [5] either detached digital signatures or time assertions, with a number of file objects
(e.g. documents, XML structured data, spreadsheet, multimedia content) to which they apply.
The present document specifies general purpose ASiC containers building blocks and a limited set of baseline
containers.
ASiC supports the following signature and time assertion formats:
• CAdES object incorporating CAdES signatures (ETSI EN 319 122-1 [1] and ETSI EN 319 122-2 [11]);
• XAdES signatures (ETSI EN 319 132-1 [2] and ETSI EN 319 132-2 [12]);
• IETF RFC 3161 [3] and updated by IETF RFC 5816 [13] time-stamp tokens; and
• IETF RFC 4998 [8] or IETF RFC 6283 [9] evidence records.
NOTE 1: No restriction is placed on time assertions eventually used within CAdES signatures or XAdES
signatures.
The building blocks defined in the present document support additional features not supported by the aforementioned
formats, such as time-stamping and CAdES signing of multiple content and XAdES parallel signatures, that can be used
in other contexts.
The present document defines baseline containers which provide the basic features necessary for a wide range of
business and governmental use cases for electronic procedures and communications to be applicable to a wide range of
communities when there is a clear need for interoperability.
The present document aims at supporting associated signature containers in different regulatory frameworks.
NOTE 2: Specifically, but not exclusively, ASiC Associated Signature Containers specified in the present
document aim at supporting electronic signature and electronic seal as per Regulation (EU)
No 910/2014 [i.3].
The present document defines four levels of ASiC baseline containers addressing incremental requirements to maintain
the availability and integrity of the containers over the long term, suitably profiled for reducing the optionality as much
as possible, in a way that a certain level always addresses all the requirements already addressed at levels that are below
it.
The present document does not address the identification of the validation policy to be used for verifying a container
that contains time assertions.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 319 122-1: "Electronic Signatures and Infrastructures (ESI); CAdES digital signatures;
Part 1: Building blocks and CAdES baseline signatures".
ETSI
8 ETSI EN 319 162-1 V1.1.1 (2016-04)
[2] ETSI EN 319 132-1: "Electronic Signatures and Infrastructures (ESI); XAdES digital signatures;
Part 1: Building blocks and XAdES baseline signatures".
[3] IETF RFC 3161: "Internet X.509 Public Key Infrastructure Time-Stamp Protocol (TSP)".
[4] ISO/IEC TS 30135 (all parts): "Information technology -- Digital publishing -- EPUB3".
NOTE: Available at http://idpf.org/epub/30/spec/epub30-ocf.html.
[5] Application Note: "APPNOTE.TXT - .ZIP File Format Specification", PKWARE® Inc.,
September 2012.
NOTE: Available at http://www.pkware.com/documents/APPNOTE/APPNOTE-6.3.3.TXT.
[6] OASIS: "Open Document Format for Office Applications (OpenDocument) Version 1.2;
Part 3: Packages" 29 September 2011.
[7] IETF RFC 3986: "Uniform Resource Identifier (URI): Generic Syntax".
[8] IETF RFC 4998: "Evidence Record Syntax (ERS)".
[9] IETF RFC 6283: "Extensible Markup Language Evidence Record Syntax (XMLERS)".
[10] ISO/IEC 21320-1: "Information technology -- Document Container File -- Part 1: Core".
[11] ETSI EN 319 122-2: "Electronic Signatures and Infrastructures (ESI); CAdES digital signatures;
Part 2: Extended CAdES signatures".
[12] ETSI EN 319 132-2: "Electronic Signatures and Infrastructures (ESI); XAdES digital signatures;
Part 2: Extended XAdES signatures".
[13] IETF RFC 5816: "ESSCertIDv2 Update for RFC 3161".
[14] W3C recommendation: "XML Signature Syntax and Processing".
[15] ISO/IEC 10646: "Information technology - Universal Coded Character Set (UCS)".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 119 100: "Electronic Signatures and Infrastructures (ESI); Business Driven Guidance for
Signature Creation and Validation".
[i.2] ISO 15489-1: "Information and documentation - Records management - Part 1: General".
[i.3] Regulation (EU) No 910/2014 of the European Parliament and of the Council of 23 July 2014 on
electronic identification and trust services for electronic transactions in the internal market and
repealing Directive 1999/93/EC.
[i.4] ETSI TS 119 312: "Electronic Signatures and Infrastructures (ESI); Cryptographic Suites".
[i.5] IETF RFC 6838: "Media Type Specifications and Registration Procedures".
[i.6] IETF RFC 2045: "Multipurpose Internet Mail Extensions (MIME) Part One: Format of Internet
Message Bodies".
[i.7] ETSI EN 319 422: "Electronic Signatures and Infrastructures (ESI); Time-stamping protocol and
time-stamp token profiles".
ETSI
9 ETSI EN 319 162-1 V1.1.1 (2016-04)
[i.8] ETSI TS 101 533-1: "Electronic Signatures and Infrastructures (ESI); Data Preservation Systems
Security; Part 1: Requirements for Implementation and Management".
[i.9] ETSI TR 119 000: "Electronic Signatures and Infrastructures (ESI); The framework for
standardization of signatures: overview".
[i.10] ETSI TR 119 001: "Electronic Signatures and Infrastructures (ESI); The framework for
standardization of signatures; Definitions and abbreviations".
[i.11] IETF RFC 1951: "DEFLATE Compressed Data Format Specification version 1.3".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ETSI TR 119 001 [i.10] and the following
apply:
ASiCArchiveManifest file: container file whose name matches "*ASiCArchiveManifest*.xml" containing one
ASiCManifest element instance conforming to clause A.7 of the present document
ASiCEvidenceRecordManifest file: container file used in ASiC-E to reference a set of files to which an ER applies
whose name matches "META-INF/ASiCEvidenceRecordManifest*.xml" and containing one ASiCManifest element
instance conformant to clause A.4 of the present document
ASiCManifest file: file whose name matches "*ASiCManifest*.xml" containing one ASiCManifest element instance
conformant to clause A.4 of the present document
CAdES signature: digital signature that satisfies the requirements specified within ETSI EN 319 122-1 [1] or ETSI
EN 319 122-2 [11]
CAdES object: instance of ContentInfo with Signed-data Content as specified in CAdES [1] clause 4
including one or more CAdES signatures covering the same content
container: file created according to ZIP holding as internal elements files with related manifest, metadata and
associated signature(s), under a folder hierarchy
media type: method to label arbitrary content, carried by MIME [i.6] or other protocols
NOTE: Refer to IETF RFC 6838 [i.5], clause 1.
metadata: data describing context, content and structure of data objects and their management over time
NOTE: Refer to ISO 15489-1:2001 [i.2], definition 3.12 with modifications.
time assertion: time-stamp token or evidence record
NOTE: A time assertion can be used as a proof of existence and integrity in signature validation.
XAdES signature: digital signature that satisfies the requirements specified within ETSI EN 319 132-1 [2] or ETSI
EN 319 132-2 [12]
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in CAdES [1], XAdES [2] and the following apply:
ASiC Associated Signature Container
ER Evidence Record
NOTE: Refer to IETF RFC 4998 [8] and IETF RFC 6283 [9].
OCF Open Container Format
NOTE: As specified in ISO/IEC TS 30135 [4].
ETSI
10 ETSI EN 319 162-1 V1.1.1 (2016-04)
ODF Open Document Format
NOTE: Refer to [6].
4 General Syntax
4.1 Description of main features of Associated Signature
Containers
4.1.1 Basic container structure
The ASiC is a data container holding a set of file objects and associated digital signatures and/or time assertions using
the ZIP [5] format.
Any ASiC container has an internal structure including:
• a root folder, for all the container content possibly including folders reflecting the content structure; and
• a "META-INF" folder, in the root folder, for files containing metadata about the content, including associated
signature or time assertion files.
NOTE: The detached signatures or time assertions are applied in such a way that the integrity of the data is not
broken when the files are extracted from the ZIP container. Hence, the signatures and time assertions used
in ASiC can be verified against the file objects to which they apply when outside the container structure
(for example when placed in local storage).
4.1.2 Container types
Signatures and time assertions within ASiC containers are present within signature or time assertion files.
A signature file can contain either:
• one CAdES object; or
• one or more XAdES signatures.
A time assertion file can contain either:
• one time-stamp token conformant to IETF RFC 3161 [3] (which can be profiled as specified in ETSI
EN 319 422 [i.7]); or
• one Evidence Record conformant to IETF RFC 4998 [8] or IETF RFC 6283 [9].
The present document defines two types of containers.
The first type is ASiC Simple (ASiC-S) that associates one single file object with either:
• one signature file; or
• one time assertion file.
This type of container can also include a file named "mimetype" specifying the media type.
This type of container allows to add at a later time additional signatures signing the aforementioned file object and
additional ASiCArchiveManifest files to protect long term time-stamp tokens.
The second type is ASiC Extended (ASiC-E), a container that associates one or more file objects with either:
• one or more XAdES signatures present within one or more signature files and optionally one or more ERS
within one or more time assertion files; or
• one or more CAdES signatures present within one or more CAdES object files and/or one or more time
assertions within one or more time assertion files.
ETSI
11 ETSI EN 319 162-1 V1.1.1 (2016-04)
Each signature and/or time assertion is associated with all or part of the file objects in the container.
It is possible to add signature files, time assertion files and data files to an ASiC-E container. The additional signature
and time assertion files can apply to the same set of files or a different set, without invalidating previously applied
signatures or time assertions. Later signatures can also sign signatures applied previously.
NOTE: in ASiC-E with CAdES, use of Archive Time-stamp attributes possibly present in CAdES signatures does
not guarantee long term validation of signed file objects referenced using ASiCManifest.
4.2 General requirements
1) The container format shall comply with the ZIP [5] specification.
2) ZIP [5] limitations:
a) ASiC containers shall not use the multiple volumes split feature.
b) File names and comments shall be encoded with ISO/IEC 10646 [15] UNICODE UTF-8.
c) Only no compression or the deflated compression format specified in IETF RFC 1951 [i.11] should be
used; therefore, according to the ZIP specification [5] only 0 ("stored") or 8 ("deflated") values should be
used as ZIP compression method.
NOTE: ISO/IEC 21320-1 [10] specifies a format that is a profile of ZIP [5]. Compliance with
ISO/IEC 21320-1 [10] guarantees full compliance with items 1) and 2) of the present clause.
3) At least one container type specified in clauses 4.3 or 4.4 shall be supported.
4.3 Associated Signature Container Simple (ASiC-S)
4.3.1 Introduction
This clause defines the Associated Signature Container Simple (ASiC-S) that associates one data file with either:
• one signature file containing one or more detached digital signature(s) that apply to it; or
• one time assertion file containing a time assertion that apply to it.
Three ASiC-S container types are defined:
1) ASiC-S with XAdES: the data file is associated with signature(s) in XAdES format.
2) ASiC-S with CAdES: the data file is associated with signature(s) in CAdES format.
3) ASiC-S with time assertions: the data file is associated with a time assertion.
4.3.2 General requirements for ASiC-S
The ASiC-S container shall comply with clause 4.2 and with the file structure specified in clause 4.3.3.2 to bind the
constitutive files into a single container file.
The signed file object may be itself a container, for example ZIP, OCF, ODF or another ASiC. In this case the inner
container is associated with one or more signatures or a time assertion that applies to it.
In case of signing a ZIP container, the "file comment" field specified in ZIP [5] may be used to specify the media type
of each file present in the ZIP container with the value "mimetype= " followed by its media type.
Examples of the use of ASiC-S are given in clause B.1.
ETSI
12 ETSI EN 319 162-1 V1.1.1 (2016-04)
4.3.3 Detailed format for ASiC-S
4.3.3.1 Media type identification
1) In case the "mimetype" file defined in clause 4.3.3.2 point 1) is present, the media type shall be either:
a) "application/vnd.etsi.asic-s+zip" if one of the following cases is verified:
i) the file extension is as specified in item 2) c) of the present clause; or
ii) no specific media type is associated to the signed file object; or
b) the media type associated to the signed file object in all the other cases.
2) The container file extension shall be:
a) ".asics" unless one of the options b) or c) below applies;
b) ".scs" in case of operating systems and/or file systems not allowing more than 3 characters for file
extensions; or
c) ".zip" in the case the container content is to be handled manually; in this case item 1) a) of the present
clause shall apply.
3) The ".ZIP file comment" field of the container (defined in ZIP [5]) may contain the value "mimetype="
followed by the original media type of the signed file object.
NOTE: The media type can include parameters according to the media type definition, for example a "charset"
parameter can be used with "text/plain" media type (see IETF RFC 6838 [i.5], clause 4.2.1).
4.3.3.2 Contents of the container
The ASiC-S container:
1) May contain a "mimetype" file. It shall be at the root level and shall be encoded as specified in clause A.1. Its
content shall be the media type specified in clause 4.3.3.1, item 1.
2) Shall contain one data file at the root level. It shall be the only file object present at the container root level
besides the optional "mimetype" specified in item 1) above.
3) Shall contain one META-INF folder at the root level.
4) The META-INF folder shall contain only one of the following files:
a) "timestamp.tst" containing a time-stamp token as defined in IETF RFC 3161 [3] and updated by IETF
RFC 5816 [13] applying to the data file;
b) "signature.p7s" containing CAdES object incorporating one or more detached CAdES signatures
conformant to ETSI EN 319 122-1 [1] or ETSI EN 319 122-2 [11] applying to the data file;
c) "signatures.xml" containing the root element asic:XAdESSignatures as specified in clause A.5,
containing one or more detached ds:Signature elements conformant to XAdES baseline signatures [2]
or XAdES extended signatures [12] each applying to the whole data file content.
In case the URI attribute is present in the ds:Reference element [14] it shall be used to reference the
data file and the rules specified in clause A.6 shall apply.
In case the URI attribute is not present in ds:Reference element [14] then a reference to the data file is
implied. Any canonicalization computed on descendant elements of a ds:Signature shall be
performed keeping this ds:Signature element as a child of asic:XAdESSignatures (without
detaching it);
NOTE: In the case of use of implied reference the party verifying the signature is aware of the application context
and the expected relation between the file object and the signature. Use of implied reference gives greater
flexibility for the application's use of ASiC in positioning the signature relative to the data. Use of relative
references requires the relative positioning to be maintained when data is extracted from the container if
signatures are still to be verifiable.
ETSI
13 ETSI EN 319 162-1 V1.1.1 (2016-04)
Exclusive canonicalization may be used. In this case the canonicalization result shall not include the
ancestor's context (asic:XAdESSignatures element in this case).
d) "evidencerecord.ers" containing an ER in ERS [8] format that applies to the file object specified in
item 2); or
e) "evidencerecord.xml" containing an ER in XMLERS [9] format that applies to the file object specified in
item 2).
5) The META-INF folder may contain the following additional files:
a) One or more ASiCArchiveManifest file and the time-stamp tokens that apply to them.
b) Revocation status information or certificates referenced by CAdES extended signatures [11] or XAdES
extended signatures [12] allowing referencing of external information.
c) Other application specific information.
Figures 1 to 4 illustrate examples for the content of the ASiC-S container.
Figure 1: ASiC-S structure applied to a plain file object
Figure 2: ASiC-S structure applied to a nested container
ETSI
14 ETSI EN 319 162-1 V1.1.1 (2016-04)
4.3.4 Long term availability and integrity of ASiC-S
Long term availability and integrity of ASiC-S shall be achieved for the different container types as follows:
1) For ASiC-S containers with XAdES signatures and ASiC-S containers with CAdES signatures, the attributes
specified in ETSI EN 319 122-1 [1], ETSI EN 319 122-2 [11], ETSI EN 319 132-1 [2] and ETSI
EN 319 132-2 [12] shall be used for achieving long term availability and integrity. This shall apply to all the
signatures present in the containers.
2) For ASiC-S containers with time-stamp token one or more ASiCArchiveManifest files and one time-stamp
token for each ASiCArchiveManifest file applied to its content shall be added to the container following the
rules specified in clause A.7.
3) For ASiC-S containers with ER, the internal mechanism of IETF RFC 4998 [8] and IETF RFC 6283 [9] shall
be used.
Figure 3 shows an example of ASiC-S container with a time-stamp token with long term components.
Figure 3: ASiC-S with time-stamp token and long term components (example)
ETSI
15 ETSI EN 319 162-1 V1.1.1 (2016-04)
Figure 4 shows the same ASiC-S container with a new ASiCArchiveManifest file added at a later time to further extend
its availability and integrity; changes are marked in red.
Figure 4: Further availability and integrity extension of a container
with an additional ASiCArchiveManifest file
4.4 Associated Signature Container Extended (ASiC-E)
4.4.1 Introduction
The ASiC-E container supports one or more signature and time assertion files each applicable to its own set of one or
more file objects. Each file object can have associated additional information and metadata that can also be protected by
any of the signature(s) present in the container. The container packages all the mentioned elements. The container can
be designed to prevent any further modification or allowing that additional file objects, signatures and time assertions
can be included at a later time to the container without breaking the previous signatures.
Two ASiC-E container types are defined:
1) ASiC-E with XAdES: the data files are associated with signatures files, each one containing one or more
XAdES signatures. The container may also include one or more ERS files.
2) ASiC-E with CAdES - time assertions: the data files are associated with signature files, each one containing a
CAdES object, or with time assertion files, each one containing a time assertion.
All ASiC types allow container nesting (with inner containers being themselves ASiC or any type of container)
allowing arbitrary complex hierarchies to be represented.
ETSI
16 ETSI EN 319 162-1 V1.1.1 (2016-04)
4.4.2 General requirements of ASiC-E
1) ASiC-E containers shall comply with clause 4.2 items 1) and 2) with the file structure specified in
clauses 4.4.3.2 or 4.4.4.2 to bind the contained file objects into a single container.
2) One or more data files digitally signed or time asserted in the following detailed format for ASiC-E clauses
shall be present in the container in any folder structure outside the root META-INF folder.
NOTE: This does not preclude that signed or time-asserted file objects can be present in the META-INF folder,
provided that at least one signed or time-asserted file object is present outside the root META-INF folder
as specified in the item above.
4.4.3 Detailed format for ASiC-E with XAdES
4.4.3.1 Media type identification
1) The file extension shall be either:
a) ".asice"; or
b) ".sce" in case of operating systems and/or file systems not allowing more than 3 characters for file
extensions.
2) The "mimetype" file content shall be:
a) "application/vnd.etsi.asic-e+zip" to identify an ASiC-E container in case the container to be signed does
not have a specific media type; or
b) the original media type of the container.
EXAMPLE: One of the ODF media types when signing an ODF container.
3) The ".ZIP file comment" field specified in [5] may be present and may have the value
"mimetype=application/vnd.etsi.asic-e+zip".
4.4.3.2 Contents of Container
Signatures associated to data files are XAdES signatures. Clause A.6 shall apply on referencing signed file objects.
The content and internal structure is defined as follows:
1) A "mimetype" file may be present. It shall be as defined in clause A.1 with the content specified in
clause 4.4.3.1, item 2.
2) One or more "*signatures*.xml" files shall be present in a path beginning with "META-INF/" each containing
one or more XAdES signatures as specified in the following item conforming to XAdES baseline signatures
[2] or XAdES extended signatures [12] where signed data files shall either be directly referenced by each
signature with a set of ds:Reference elements [14] or be indirectly referenced using a signed ds:Manifest
object [14] that is pointed by a ds:Reference.
3) Each "*signatures*.xml" file shall contain as root element:
a) asic:XAdESSignatures element as specified in clause A.5;
b) document-signatures element as specified in ODF [6];
c) signatures element as specified in OCF [4];
d) any other element in any namespace only if its valid content is a sequence of one or more
ds:Signature sibling elements; or
e) ds:Signature element [14].
NOTE 1: When item e) applies, only a single XAdES Signature instance can be present in the signature file.
Item a) should be used.
ETSI
17 ETSI EN 319 162-1 V1.1.1 (2016-04)
The root elements in all the signatures files present in the same container should be the same.
When items from a) to d) apply, any canonicalization computed on descendant elements of one
ds:Signature element shall be performed keeping this ds:Signature element as a child of the root
element, without detaching it. Exclusive canonicalization may be used: in this case the canonicalization result
shall not include the ancestor's context.
NOTE 2: As specified in clause A.4 and in OCF [4] and ODF [6], in all the aforementioned cases except case e),
the child elements of the root element are one or more ds:Signature sibling elements as specified in
W3C recommendation: "XML Signature Syntax and Processing" [i.5].
NOTE 3: Item 3), d) allows migrating existing, legacy, detached and/or enveloped signatures that contain explicit
or implicit inclusive canonicalization into an ASiC-E container.
4) One or more ASiCEvidenceRecordManifest files may be present. They shall contain one ASiCManifest
element instance conformant to clause A.4 that shall reference in the SigReference element a file containing
an ER and the ds:DigestMethod element shall match the digest algorithm used to create the initial Archive
Time-stamp protecting the first ReducedHashTree element as defined in IETF RFC 4998 [8] or IETF
RFC 6283 [9]. The ER file shall:
a) be present in the "META-INF" folder;
b) apply to all the container files referenced by ASiCManifest with DataObjectReference elements;
and
c) be named:
"evidencerecord.ers" if in ERS [8] format; or
"evidencerecord.xml" if in XMLERS [9] format.
5) Other application specific files may be present in the META-INF folder as follows:
a) "container.xml" if present shall be as specified in OCF [4]. It shall identify the media type and full path
of all the root file objects in the container, as specified in OCF;
b) "manifest.xml" if present shall be as specified in ODF [6];
NOTE 4: according to ODF [6] specifications, inclusion of reference to other files within META-INF folder, such
as "*signatures*.xml", in manifest.xml is optional. In this way it is possible to protect the container's
content signing manifest.xml while allowing to add later
...
Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
EUROPEAN STANDARD
Electronic Signatures and Infrastructures (ESI);
Associated Signature Containers (ASiC);
Part 1: Building blocks and ASiC baseline containers
�

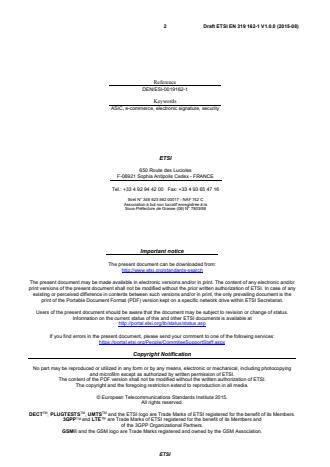

2 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
Reference
DEN/ESI-0019162-1
Keywords
ASiC, e-commerce, electronic signature, security
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2015.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions and abbreviations . 9
3.1 Definitions . 9
3.2 Abbreviations . 9
4 General Syntax . 9
4.1 Description of main features of Associated Signature Containers . 9
4.1.1 Basic container structure . 9
4.1.2 Container types . 10
4.2 General requirements . 11
4.3 Associated Signature Container Simple (ASiC-S) . 11
4.3.1 Introduction. 11
4.3.2 General Requirements for ASiC-S . 11
4.3.3 Detailed format for ASiC-S . 11
4.3.3.1 Media type identification . 11
4.3.3.2 Contents of the container . 12
4.3.4 Long term validity of ASiC-S . 13
4.4 Associated Signature Container Extended (ASiC-E) . 15
4.4.1 Introduction. 15
4.4.2 General Requirements of ASiC-E . 15
4.4.3 Detailed format for ASiC-E with XAdES . 16
4.4.3.1 Media type identification . 16
4.4.3.2 Contents of Container . 16
4.4.3.3 ASiC-E with XAdES example (informative) . 17
4.4.3.4 XAdES use in ASiC-E with XAdES . 18
4.4.4 Detailed format for ASiC-E with CAdES - time assertions . 18
4.4.4.1 Media type identification . 18
4.4.4.2 Contents of Container . 19
4.4.5 Long term validity of ASiC-E. 21
5 ASiC Baseline containers . 21
5.1 ASiC Levels . 21
5.2 General requirements . 22
5.2.1 Algorithm requirements . 22
5.2.2 Notation for requirements . 22
5.3 Requirements for ASiC baseline containers . 23
5.3.1 ASiC conformance . 23
5.3.2 Requirements for ASiC-S . 24
5.3.2.1 General requirements for ASiC-S . 24
5.3.2.2 Requirements for ASiC-S with CAdES signature . 24
5.3.2.3 Requirements for ASiC-S with XAdES signature . 24
5.3.3 Requirements for ASiC-E with XAdES signature . 25
Annex A (normative): ASiC metadata specification, data naming and referencing . 26
A.1 The mimetype file . 26
A.2 Media type registrations . 26
A.3 ASiC XML Schema . 27
ETSI

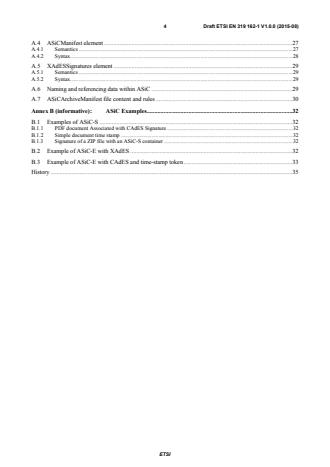

4 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
A.4 ASiCManifest element . 27
A.4.1 Semantics . 27
A.4.2 Syntax . 28
A.5 XAdESSignatures element . 29
A.5.1 Semantics . 29
A.5.2 Syntax . 29
A.6 Naming and referencing data within ASiC . 29
A.7 ASiCArchiveManifest file content and rules . 30
Annex B (informative): ASiC Examples . 32
B.1 Examples of ASiC-S . 32
B.1.1 PDF document Associated with CAdES Signature . 32
B.1.2 Simple document time stamp . 32
B.1.3 Signature of a ZIP file with an ASiC-S container . 32
B.2 Example of ASiC-E with XAdES . 32
B.3 Example of ASiC-E with CAdES and time-stamp token . 33
History . 35
ETSI
5 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft European Standard (EN) has been produced by ETSI Technical Committee Electronic Signatures and
Infrastructures (ESI), and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN
Approval Procedure.
The present document is part 1 of a multi-part deliverable specifying Associated Signature Containers (ASiC), as
identified below:
Part 1: "Building blocks and ASiC baseline containers";
Part 2: "Additional ASiC containers".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 6 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
When signing data, the resultant signature needs to be associated with the data to which it applies. This can be achieved
either by creating a data set which combines the signature and the data that was signed (e.g. by enveloping the data with
the signature or including a signature element in the data set) or placing the (detached) signature in a separate resource
and have some external means for associating the signature with the data to which it applies. While there are some
advantages to the use of detached signatures, most significantly their non-modification of the original data objects, there
remains a risk that the signature becomes separated from the data to which it applies and so losing the association.
Therefore, many application systems have developed their own technique for combining a detached signature with the
signed object in some form of container so that they can be more easily distributed and guarantee that the correct
signature and any relevant metadata is used when validating. The same requirements apply to associate time assertions
(i.e. time-stamp tokens or evidence records) to their associated data.
ETSI
6 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
The present document defines a standardized use of container types to establish a common way for associating files
containing data objects with files containing digital signatures and/or time-assertions. Using a common container form
and associated information will facilitate data interchange and interoperability among various signing and validation
services.
Whilst ZIP [5] provides a basic container structure that can associate files containing data objects (file objects) and the
signature(s) that apply to them, there is a recognized need for additional structure and metadata about the association,
for example to link a particular signature with the file object to which it is applied. Other formats have already been
specified for the use of ZIP based structures to bind together a number of file objects with related metadata. This
includes OCF [4] which was originally designed for use by eBooks but has been adopted as the basis for other
containers, for example ODF [6]. The present document builds on this work specifically addressing the requirements of
associating a digital signature with any type of data, independent of the needs of any particular document or data type.
The present document is intended to cover containers including digital signatures and time-assertions supported by PKI
and public key certificates, and aims to meet the general requirements of the international community to provide trust
and confidence in electronic transactions, including, amongst other, applicable requirements from Regulation (EU)
No 910/2014 [i.3].
The present document is part of a rationalized framework of standards (see ETSI TR 119 000 [i.9]). ETSI
TR 119 100 [i.1] provides guidance on how to use the present document within the aforementioned framework.
ETSI
7 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
1 Scope
The present document specifies Associated Signature Containers (ASiC) which bind together into one single digital
container based on ZIP [5] either detached digital signatures or time-assertions, with a number of file objects
(e.g. documents, XML structured data, spreadsheet, multimedia content) to which they apply.
The present document specifies general purpose ASiC containers building blocks and a limited set of baseline
containers.
ASiC supports the following signature and time assertion formats:
• CAdES digital signatures (ETSI EN 319 122-1 [1] and ETSI EN 319 122-2 [11]);
• XAdES digital signatures (ETSI EN 319 132-1 [2] and ETSI EN 319 132-2 [12]);
• IETF RFC 3161 [3] and updated by IETF RFC 5816 [13] time-stamp tokens; and
• IETF RFC 4998 [8] or IETF RFC 6283 [9] evidence records.
NOTE: No restriction is placed on time assertions eventually used within CAdES/XAdES.
The building blocks defined in the present document support additional features not supported by the aforementioned
formats, such as time-stamping and CAdES signing of multiple content and XAdES parallel signatures, that can be used
in other contexts.
The present document defines baseline containers which provide the basic features necessary for a wide range of
business and governmental use cases for electronic procedures and communications to be applicable to a wide range of
communities when there is a clear need for interoperability.
The present document defines four levels of ASiC baseline containres addressing incremental requirements to maintain
the validity of the containers over the long term, suitably profiled for reducing the optionality as much as possible, in a
way that a certain level always addresses all the requirements addressed at levels that are below it.
ASiC containers specified in the two parts of this multipart deliverable aim at supporting containers in different
regulatory frameworks.
The present document does not address the identification of the validation policy to be used for verifying a container
that contains time-stamp assertions.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 319 122-1: "Electronic Signatures and Infrastructures (ESI); CAdES digital signatures;
Part 1: Building blocks and CAdES baseline signatures".
[2] ETSI EN 319 132-1: "Electronic Signatures and Infrastructures (ESI); XAdES digital signatures;
Part 1: Building blocks and XAdES baseline signatures".
[3] IETF RFC 3161: "Internet X.509 Public Key Infrastructure Time-Stamp Protocol (TSP)".
ETSI
8 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
[4] ISO/IEC TS 30135 (all parts): "Information technology -- Digital publishing -- EPUB3".
NOTE: Available at http://idpf.org/epub/30/spec/epub30-ocf.html. ®
[5] PKWARE ".ZIP Application Note".
NOTE 1: If available in time a reference to ISO/IEC 21320-1 (now under development) will possibly be added.
NOTE 2: Available at http://www.pkware.com/support/zip-application-note.
[6] OASIS: "Open Document Format for Office Applications (OpenDocument) Version 1.2;
Part 3: Packages" 29 September 2011.
[7] IETF RFC 3986: "Uniform Resource Identifier (URI): Generic Syntax".
[8] IETF RFC 4998: "Evidence Record Syntax (ERS)".
[9] IETF RFC 6283: "Extensible Markup Language Evidence Record Syntax (XMLERS)".
[10] IETF RFC 1951: "DEFLATE Compressed Data Format Specification version 1.3".
[11] ETSI EN 319 122-2: "Electronic Signatures and Infrastructures (ESI); CAdES digital signatures;
Part 2: Extended CAdES signatures".
[12] ETSI EN 319 132-2: "Electronic Signatures and Infrastructures (ESI); XAdES digital signatures;
Part 2: Extended XAdES signatures".
[13] IETF RFC 5816: "ESSCertIDv2 Update for RFC 3161".
[14] W3C recommendation: "XML Signature Syntax and Processing".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 119 100: "Electronic Signatures and Infrastructures (ESI); Business Driven Guidance for
Signature Creation and Validation".
[i.2] ISO 15489-1: "Information and documentation - Records management - Part 1: General".
[i.3] Regulation (EU) No 910/2014 of the European Parliament and of the Council of 23 July 2014 on
electronic identification and trust services for electronic transactions in the internal market and
repealing Directive 1999/93/EC.
[i.4] ETSI TS 119 312: "Electronic Signatures and Infrastructures (ESI); Cryptographic Suites".
[i.5] IETF RFC 6838: "Media Type Specifications and Registration Procedures".
[i.6] IETF RFC 2045: "Multipurpose Internet Mail Extensions (MIME) Part One: Format of Internet
Message Bodies".
[i.7] ETSI EN 319 422: "Electronic Signatures and Infrastructures (ESI); Time-stamping protocol and
time-stamp profiles".
[i.8] ETSI TS 101 533-1: "Electronic Signatures and Infrastructures (ESI); Data Preservation Systems
Security; Part 1: Requirements for Implementation and Management".
[i.9] ETSI TR 119 000: "Electronic Signatures and Infrastructures (ESI); Rationalized structure for
Electronic Signature Standardization".
ETSI
9 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
[i.10] ETSI TR 119 001: "Electronic Signatures and Infrastructures (ESI); The framework for
standardization of signatures; Definitions and abbreviations".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ETSI TR 119 001 [i.10] and the following
apply:
ASiCArchiveManifest file: container file whose name matches "*ASiCArchiveManifest*.xml" containing one
ASiCManifest element instance conforming to clause A.7
ASiCEvidenceRecordManifest file: container file used in ASiC-E to reference a set of files to which an ER applies
whose name matches "META-INF/ASiCEvidenceRecordManifest*.xml" and containing one ASiCManifest element
instance conformant to clause A.4
ASiCManifest file: file whose name matches "*ASiCManifest*.xml" containing one ASiCManifest element instance
conformant to clause A.4
container: file created according to ZIP holding as internal elements files with related manifest, metadata and
associated signature(s), under a folder hierarchy
media type: method to label arbitrary content, carried by MIME [i.6] or other protocols
NOTE: Refer to IETF RFC 6838 [i.5] clause 1.
metadata: data describing context, content and structure of data objects and their management over time
NOTE: Refer to ISO 15489-1: 2001, definition 3.12 with modifications [i.2].
time assertion: time-stamp token or evidence record
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in CAdES [1], XAdES [2] and the following apply:
ASiC Associated Signature Container
ER Evidence Record
NOTE: Refer to [8] and [9].
OCF Open Container Format, as specified in [4].
ODF Open Document Format
NOTE: Refer to [6].
OEBPS Open eBook Publication Structure
TST Time Stamp Token
ZIP Format specified in [5].
4 General Syntax
4.1 Description of main features of Associated Signature
Containers
4.1.1 Basic container structure
The ASiC is a data container holding a set of file objects and associated digital signatures and/or time assertions using
the ZIP [5] format.
ETSI
10 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
Any ASiC container has an internal structure including:
• a root folder, for all the container content possibly including folders reflecting the content structure; and
• a "META-INF" folder, in the root folder, for files containing metadata about the content, including associated
signature or time assertion files.
NOTE: The detached signatures or time assertions are applied in such a way that the integrity of the data is not
broken when the files are extracted from the ZIP container. Hence, the signatures and time assertions used
in ASiC can be verified against the file objects to which they apply when outside the container structure
(for example when placed in local storage).
4.1.2 Container types
Signatures and time assertions within ASiC containers are present within signature or time assertion files.
A signature file can contain either:
• a detached CAdES signature instance, which contains one or more parallel signatures. Each CAdES signature
can be individually counter-signed; or
• one or more XAdES signatures. Each XAdES signatures can be individually counter-signed.
A time assertion file can contain either:
• one time-stamp token conformant to IETF RFC 3161 [3] (which can be profiled as specified in ETSI
EN 319 422 [i.7]); or
• one Evidence Record.
The present document defines two types of containers.
The first type is ASiC Simple (ASiC-S) that associates one single file object with either:
• one signature file; or
• one time assertion file.
This type of container can also include a file named "mimetype" specifying the media type.
This type of container allows to add at a later time additional signatures signing the aforementioned file object and
additional ASiCArchiveManifest files to protect long term time-stamp tokens.
The second type is ASiC Extended (ASiC-E), a container that associates one or more file objects with either:
• one or more XAdES signatures present within one or more signature files and optionally one or more ERS
within one or more time assertion files; or
• one or more CAdES signatures present within one or more signature files and/or one or more time assertions
within one or more time assertion files.
Each signature is associated with all or part of the files in the container.
It is possible to add signature files, time assertion files and data files to an ASiC-E container. The additional signature
and time assertion files can apply to the same set of files or a different set, without invalidating previously applied
signatures or time assertions. Later signatures can also sign signatures applied previously.
NOTE: CAdES and XAdES Archive Time-stamp attributes do not guarantee long term validation of signer files
referenced using ASiCManifest and ds:Manifest.
ETSI
11 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
4.2 General requirements
1) The container format shall comply with the ZIP [5] specification.
2) ZIP [5] limitations:
a) ASiC containers shall not use the multiple volumes split feature.
b) File names and comments shall be UNICODE UTF-8 encoded.
c) Only no compression or the Flate compression method specified in IETF RFC 1951 [10] based on the
public-domain zlib/deflate compression method should be used; therefore, according to the ZIP
specification [5] only 0 ("stored") or 8 ("deflated") values should be used as ZIP compression method.
3) At least one container type specified in clause 4.3 or 4.4 shall be supported.
4.3 Associated Signature Container Simple (ASiC-S)
4.3.1 Introduction
This clause defines the Associated Signature Container Simple (ASiC-S) that associates one data file with either:
• one signature file containaing one or more detached digital signature(s) that apply to it; or
• one time-assertion file containing a time assertion that apply to it.
Three ASiC-S container types are defined:
1) ASiC-S with XAdES: the data file is associated with signature(s) in XAdES format.
2) ASiC-E with CAdES: the data file is associated with signature(s) in CAdES format.
3) ASiC-E with time assertions: the data file is associated with a time assertion.
4.3.2 General Requirements for ASiC-S
The ASiC-S container shall comply with clause 4.2 and with the file structure specified in clause 4.3.3.2 to bind the
constitutive files into a single container file.
The signed file object can be itself a container, for example ZIP, OCF, ODF or another ASiC. In this case the inner
container is associated with one or more signatures or a time assertion that applies to it.
In case of signing a ZIP container, the file level comment may be used to specify the media type of each file with the
value "mimetype= " followed by its media type.
Examples of the use of ASiC-S are given in clause B.1.
4.3.3 Detailed format for ASiC-S
4.3.3.1 Media type identification
1) In case the "mimetype" file defined in clause 4.3.3.2 point 1) is present, the media type shall be either:
a) "application/vnd.etsi.asic-s+zip" if one of the following cases is verified:
i) the file extension is as specified in item 2) c) of the present clause;
ii) no specific media type is associated to the signed file object;
b) the media type associated to the signed file object in all the other cases.
2) The container file extension shall be:
a) ".asics";
ETSI
12 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
b) ".scs" in case of operating systems and/or file systems not allowing more than 3 characters for file
extensions; or
c) ".zip" in the case the container content is to be handled manually; in this case item 1) a) of the present
clause shall apply.
3) The archive level comment may contain the value "mimetype=" followed by the original media type of the
signed file object.
NOTE: The media type can include parameters according to the media type definition, for example a "charset"
parameter can be used with "text/plain" media type (see IETF RFC 6838 [i.5], clause 4.2.1).
4.3.3.2 Contents of the container
The ASiC-S container:
1) May contain a "mimetype" file. It shall comply with clause A.1 with the media type specified in clause 4.3.3.1,
item 1.
2) Shall contain one signed data file at the root level. It shall be the only file object present at the container root
level besides the optional "mimetype" specified in item 1) above.
3) Shall contain one META-INF folder at the root level.
4) The META-INF folder shall contain one of the following files:
a) "timestamp.tst" containing a time-stamp token as defined in IETF RFC 3161 [3] and updated by
IETF RFC 5816 [13] applying to the signed data file;
b) "signature.p7s" containing one detached CAdES digital signature conformant to CAdES baseline
signatures [1] or CAdES extended signatures [11] applying to the signed data file;
NOTE 1: The CAdES digital signature can contain one or more parallel signatures and each may be individually
counter-signed.
c) "signatures.xml" containing the root element asic:XAdESSignatures as specified in clause A.5,
containing one or more detached ds:Signature elements conformant to XAdES baseline signatures [2]
or XAdES extended signatures [12] each applying to the whole signed data file content.
In case the URI attribute is present in the ds:Reference element [14] it shall be used to reference the
signed data file and the rules specified in clause A.6 shall apply.
In case the URI attribute is not present in ds:Reference element [14] then a reference to the signed
data file is implied. Any canonicalization computed on descendant elements of a ds:Signature shall
be performed keeping this ds:Signature element as a child of asic:XAdESSignatures (without
detaching it);
NOTE 2: In the case of use of implied reference the party verifying the signature is aware of the application context
and the expected relation between the signed file object and the signature. Use of implied reference gives
greater flexibility for the application's use of ASiC in positioning the signature relative to the data. Use of
relative references requires the relative positioning to be maintained when data is extracted from the
container if signatures are still to be verifiable.
Exclusive canonicalization may be used. In this case the canonicalization result shall not include the
ancestor's context (asic:XAdESSignatures element in this case).
d) "evidencerecord.ers" containing an ER in ERS [8] format that applies to the file object specified in
item 2); or
e) "evidencerecord.xml" containing an ER in XMLERS [9] format that applies to the file object specified in
item 2).
ETSI
13 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
5) The META-INF folder may contain the following additional files:
a) one or more ASiCArchiveManifest file and the time-stamp tokens that apply to them.
b) Revocation status information or certificates, necessary for signature validation, referenced by CAdES or
XAdES extended formats ( [11] and [12]) allowing referencing of external information.
c) Other application specific information.
Figures 1 to 4 illustrate examples for the content of the ASiC-S container.
Figure 1: ASiC-S structure applied to a plain file object
Figure 2: ASiC-S structure applied to a nested container
4.3.4 Long term validity of ASiC-S
Long term validity of ASiC-S shall be achieved for the different container types as follows:
1) For ASiC-S containers with XAdES signatures and ASiC-S containers with CAdES signatures, the
mechanisms specified in their respective baseline and extended standards ETSI EN 319 122-1 [1],
ETSI EN 319 122-2 [11], ETSI EN 319 132-1 [2] and ETSI EN 319 132-2 [12] shall be used for achieving
long term validity. This shall apply to all the signatures present in the containers.
2) For ASiC-S containers with time-stamp token one or more ASiCArchiveManifest files and related time-stamp
tokens shall be added to the container following the rules specified in clause A.7.
3) For ASiC-S containers with ER, the internal mechanism of IETF RFC 4998 [8] and IETF RFC 6283 [9] shall
be used.
ETSI
14 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
Figure 3 shows an example of ASiC-S container with a time-stamp token with long term attributes.
Figure 3: ASiC-S with time-stamp token and long term attributes (example)
Figure 4 shows the same ASiC-S container with a new ASiCArchiveManifest added at a later time to further extend its
validity.
ETSI
15 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
Figure 4: Further validity extension of a container with an additional ASiCArchiveManifest
4.4 Associated Signature Container Extended (ASiC-E)
4.4.1 Introduction
The ASiC-E container supports one or more signature and time assertion files each applicable to its own set of one or
more file objects. Each file object can have associated additional information and metadata that can also be protected by
any of the signature(s) present in the container. The container packages all the mentioned elements. The container can
be designed to prevent any further modification or allowing that additional file objects, signatures and time assertions
can be included at a later time to the container without breaking the previous signatures.
Two ASiC-E container types are defined:
1) ASiC-E with XAdES: the data files are associated with signatures files containing each one or more XAdES
signatures. It may also contain one or more ERS files.
2) ASiC-E with CAdES - time assertions: the data files are associated with signature files containing each one or
more CAdES signatures or with time assertion files containing time assertions.
All ASiC types allow container nesting (with inner containers being themselves ASiC or any type of container)
allowing arbitrary complex hierarchies to be represented.
4.4.2 General Requirements of ASiC-E
1) ASIC-E containers shall use the ZIP format as per clause 4.2 with the file structures specified in
clauses 4.4.3.2 or 4.4.4.2 to bind the contained objects into a single container.
ETSI
16 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
2) One or more digitally signed files shall be present in the container in any folder structure outside the root
META-INF folder.
4.4.3 Detailed format for ASiC-E with XAdES
4.4.3.1 Media type identification
1) The file extension shall be either:
a) ".asice"; or
b) ".sce" in case of operating systems and/or file systems not allowing more than 3 characters for file
extensions.
2) The "mimetype" file content shall be:
a) "application/vnd.etsi.asic-e+zip" to identify an ASiC-E container in case the container to be signed do
not have a specific media type; or
b) the original media type of the container.
EXAMPLE: One of the ODF media types when signing an ODF container.
3) The archive level comment field in the ZIP header may be present and may have the value "mimetype=
application/vnd.etsi.asic-e+zip".
4.4.3.2 Contents of Container
Signatures associated to data files are XAdES signatures. Clause A.6 shall apply on referencing signed file objects.
The content and internal structure is defined as follows:
1) A "mimetype" file may be present. It shall be as defined in clause A.1 with the content specified in
clause 4.4.3.1, item 2.
2) One or more "*signatures*.xml" files shall be present in a path beginning with "META-INF/" each containing
one or more XAdES signatures as specified in the following item conforming to XAdES baseline signatures
[2] or XAdES extended signatures [12] where signed data files shall either be directly referenced by each
signature with a set of ds:Reference elements [14] or be indirectly referenced using a signed ds:Manifest
object [14] that is pointed by a ds:Reference, following the rules specified in clause 4.4.3.4.
3) Each "*signatures*.xml" file shall contain as root element:
a) asic:XAdESSignatures element as specified in clause A.5; or
b) document-signatures element as specified in ODF [6]; or
c) signatures element as specified in OCF [4]; or
d) any other element in any namespace only if its valid content is a sequence of one or more
ds:Signature sibling elements; or
e) ds:Signature element [14].
NOTE 1: When item e) applies, only a single XAdES Signature istance can be present in the signature file.
Item a) should be used.
The root elements in all the signatures files present in the same container should be the same.
When items from a) to d) apply, any canonicalization computed on descendant elements of one
ds:Signature element shall be performed keeping this ds:Signature element as a child of the root
element, without detaching it. Exclusive canonicalization may be used: in this case the canonicalization result
shall not include the ancestor's context.
ETSI
17 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
NOTE 2: As specified in clause A.4 and in OCF [4] and ODF [6], in all the aforementioned cases except case e),
the child elements of the root element are one or more ds:Signature sibling elements as specified in
W3C recommendation: "XML Signature Syntax and Processing" [i.5].
NOTE 3: Item 3), d) allows migrating existing, legacy, detached and/or enveloped signatures that contain explicit
or implicit inclusive canonicalization into an ASiC-E container.
4) One or more ASiCEvidenceRecordManifest files may be present . They shall contain one ASiCManifest
element instance conformant to clause A.4 that shall reference in the SigReference element a file containing
an ER that:
a) shall be present in the "META-INF" folder;
b) shall apply to all the container files referenced by ASiCManifest with DataObjectReference elements;
and
c) shall be named:
"evidencerecord.ers" if in ERS [8] format; or
"evidencerecord.xml" if in XMLERS [9] format.
5) Other application specific files may be present in the META-INF and shall be named:
a) "META-INF/container.xml" may be present and shall be as specified in OCF [4]. It shall identify the
media type and full path of all the root file objects in the container, as specified in OCF;
b) "META-INF/manifest.xml" may be present and shall be as specified in ODF [6];
NOTE 4: according to ODF [6] specifications, inclusion of reference to other files within META-INF folder, such
as "*signatures*.xml", in manifest.xml is optional. In this way it is possible to protect the container's
content signing manifest.xml while allowing to add later signatures;
c) "META-INF/metadata.xml" may be present and shall be as specified in OCF [4] and has a user defined
content.
4.4.3.3 ASiC-E with XAdES example (informative)
Figure 5 represents a typical structure for this container where the XMLDSig [i-5] element ds:Reference is used
directly to reference the signed objects.
NOTE: Use of ds:Manifest requires special attention and specific requirements as given in clause 4.4.3.4.
ETSI
18 Draft ETSI EN 319 162-1 V1.0.0 (2015-08)
Figure 5: ASiC-E with XAdES and direct ds:reference usage
4.4.3.4 XAdES use in ASiC-E with XAdES
For ASiC-E used with XAdES the rules specified in clause A.6 shall apply.
To reference the signed file objects ds:Reference should be used in preference to ds:Manifest.
In the case that ds:Manifest [14] element is used:
1) The following restrictions apply:
a) the ds:Manifest containing ds:Reference elements referencing the signed file objects shall be signed
(i.e. shall be referenced within ds:SignedInfo element and its contents contribute to the
ds:SignatureValue content);
b) the ds:Manifest elements shall not referenc
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electronic Signatures and Infrastructures (ESI) - Associated Signature Containers (ASiC) - Part 1: Building blocks and ASiC baseline containers35.040.01Kodiranje informacij na splošnoInformation coding in generalICS:Ta slovenski standard je istoveten z:ETSI EN 319 162-1 V1.1.1 (2016-04)SIST EN 319 162-1 V1.1.1:2016en01-julij-2016SIST EN 319 162-1 V1.1.1:2016SLOVENSKI
STANDARD
EUROPEAN STANDARD SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 2
Reference DEN/ESI-0019162-1 Keywords ASiC, e-commerce, electronic signature, security ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2016. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 3 Contents Intellectual Property Rights . 5 Foreword . 5 Modal verbs terminology . 5 Introduction . 5 1 Scope . 7 2 References . 7 2.1 Normative references . 7 2.2 Informative references . 8 3 Definitions and abbreviations . 9 3.1 Definitions . 9 3.2 Abbreviations . 9 4 General Syntax . 10 4.1 Description of main features of Associated Signature Containers . 10 4.1.1 Basic container structure . 10 4.1.2 Container types . 10 4.2 General requirements . 11 4.3 Associated Signature Container Simple (ASiC-S) . 11 4.3.1 Introduction. 11 4.3.2 General requirements for ASiC-S . 11 4.3.3 Detailed format for ASiC-S . 12 4.3.3.1 Media type identification . 12 4.3.3.2 Contents of the container . 12 4.3.4 Long term availability and integrity of ASiC-S . 14 4.4 Associated Signature Container Extended (ASiC-E) . 15 4.4.1 Introduction. 15 4.4.2 General requirements of ASiC-E . 16 4.4.3 Detailed format for ASiC-E with XAdES . 16 4.4.3.1 Media type identification . 16 4.4.3.2 Contents of Container . 16 4.4.3.3 ASiC-E with XAdES example (informative) . 18 4.4.4 Detailed format for ASiC-E with CAdES - time assertions . 18 4.4.4.1 Media type identification . 18 4.4.4.2 Contents of Container . 18 4.4.5 Long term availability and integrity of ASiC-E . 21 5 ASiC baseline containers. 21 5.1 ASiC levels . 21 5.2 General requirements . 22 5.2.1 Algorithm requirements . 22 5.2.2 Notation for requirements . 22 5.3 Requirements for ASiC baseline containers . 23 5.3.1 ASiC conformance . 23 5.3.2 Requirements for ASiC-S . 23 5.3.2.1 General requirements for ASiC-S . 23 5.3.2.2 Requirements for ASiC-S with CAdES signature . 23 5.3.2.3 Requirements for ASiC-S with XAdES signature . 24 5.3.3 Requirements for ASiC-E with XAdES signature . 24 Annex A (normative): ASiC metadata specification, data naming and referencing . 25 A.1 The mimetype file . 25 A.2 Media type registrations . 25 A.3 ASiC XML Schema . 26 SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 4 A.4 ASiCManifest element . 26 A.4.1 Semantics . 26 A.4.2 Syntax . 26 A.5 XAdESSignatures element . 27 A.5.1 Semantics . 27 A.5.2 Syntax . 28 A.6 Naming and referencing data within ASiC . 28 A.7 ASiCArchiveManifest file content and rules . 29 Annex B (informative): ASiC examples. 30 B.1 Examples of ASiC-S . 30 B.1.1 PDF document associated with CAdES Signature . 30 B.1.2 Simple document time stamp . 30 B.1.3 Signature of a ZIP file with an ASiC-S container . 30 B.2 Example of ASiC-E with XAdES . 31 History . 32
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (EN) has been produced by ETSI Technical Committee Electronic Signatures and Infrastructures (ESI). The present document is part 1 of a multi-part deliverable specifying Associated Signature Containers (ASiC), as identified below: Part 1: "Building blocks and ASiC baseline containers"; Part 2: "Additional ASiC containers".
National transposition dates Date of adoption of this EN: 25 April 2016 Date of latest announcement of this EN (doa): 31 July 2016 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 January 2017 Date of withdrawal of any conflicting National Standard (dow): 31 January 2017
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. Introduction When signing data, the resultant signature needs to be associated with the data to which it applies. This can be achieved either by creating a data set which combines the signature and the data that was signed (e.g. by enveloping the data with the signature or including a signature element in the data set) or placing the (detached) signature in a separate resource and have some external means for associating the signature with the data to which it applies. While there are some advantages to the use of detached signatures, most significantly their non-modification of the original data objects, there remains a risk that the signature becomes separated from the data to which it applies and so losing the association. Therefore, many application systems have developed their own technique for combining a detached signature with the signed object in some form of container so that they can be more easily distributed and guarantee that the correct signature and any relevant metadata is used when validating. The same requirements apply to associate time assertions (i.e. time-stamp tokens or evidence records) to their associated data. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 6 The present document defines a standardized use of container types to establish a common way for associating files containing data objects with files containing digital signatures and/or time assertions. Using a common container form and associated information will facilitate data interchange and interoperability among various signing and validation services. Whilst ZIP [5] provides a basic container structure that can associate files containing data objects (file objects) and the signature(s) that apply to them, there is a recognized need for additional structure and metadata about the association, for example to link a particular signature with the file object to which it is applied. Other formats have already been specified for the use of ZIP based structures to bind together a number of file objects with related metadata. This includes OCF [4] which was originally designed for use by eBooks but has been adopted as the basis for other containers, for example ODF [6]. The present document builds on this work specifically addressing the requirements of associating a digital signature with any type of data, independent of the needs of any particular document or data type. The present document is intended to cover containers including digital signatures and time assertions supported by PKI and public key certificates, and aims to meet the general requirements of the international community to provide trust and confidence in electronic transactions, including, amongst other, applicable requirements from Regulation (EU) No 910/2014 [i.3]. The present document is part of a rationalized framework of standards (see ETSI TR 119 000 [i.9]). ETSI TR 119 100 [i.1] provides guidance on how to use the present document within the aforementioned framework. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 7 1 Scope The present document specifies Associated Signature Containers (ASiC) which bind together into one single digital container based on ZIP [5] either detached digital signatures or time assertions, with a number of file objects (e.g. documents, XML structured data, spreadsheet, multimedia content) to which they apply. The present document specifies general purpose ASiC containers building blocks and a limited set of baseline containers. ASiC supports the following signature and time assertion formats: • CAdES object incorporating CAdES signatures (ETSI EN 319 122-1 [1] and ETSI EN 319 122-2 [11]); • XAdES signatures (ETSI EN 319 132-1 [2] and ETSI EN 319 132-2 [12]); • IETF RFC 3161 [3] and updated by IETF RFC 5816 [13] time-stamp tokens; and
• IETF RFC 4998 [8] or IETF RFC 6283 [9] evidence records. NOTE 1: No restriction is placed on time assertions eventually used within CAdES signatures or XAdES signatures. The building blocks defined in the present document support additional features not supported by the aforementioned formats, such as time-stamping and CAdES signing of multiple content and XAdES parallel signatures, that can be used in other contexts. The present document defines baseline containers which provide the basic features necessary for a wide range of business and governmental use cases for electronic procedures and communications to be applicable to a wide range of communities when there is a clear need for interoperability. The present document aims at supporting associated signature containers in different regulatory frameworks. NOTE 2: Specifically, but not exclusively, ASiC Associated Signature Containers specified in the present document aim at supporting electronic signature and electronic seal as per Regulation (EU) No 910/2014 [i.3]. The present document defines four levels of ASiC baseline containers addressing incremental requirements to maintain the availability and integrity of the containers over the long term, suitably profiled for reducing the optionality as much as possible, in a way that a certain level always addresses all the requirements already addressed at levels that are below it. The present document does not address the identification of the validation policy to be used for verifying a container that contains time assertions. 2 References 2.1 Normative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] ETSI EN 319 122-1: "Electronic Signatures and Infrastructures (ESI); CAdES digital signatures; Part 1: Building blocks and CAdES baseline signatures". SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 8 [2] ETSI EN 319 132-1: "Electronic Signatures and Infrastructures (ESI); XAdES digital signatures; Part 1: Building blocks and XAdES baseline signatures". [3] IETF RFC 3161: "Internet X.509 Public Key Infrastructure Time-Stamp Protocol (TSP)". [4] ISO/IEC TS 30135 (all parts): "Information technology -- Digital publishing -- EPUB3". NOTE: Available at http://idpf.org/epub/30/spec/epub30-ocf.html. [5] Application Note: "APPNOTE.TXT - .ZIP File Format Specification", PKWARE® Inc., September 2012. NOTE: Available at http://www.pkware.com/documents/APPNOTE/APPNOTE-6.3.3.TXT. [6] OASIS: "Open Document Format for Office Applications (OpenDocument) Version 1.2; Part 3: Packages" 29 September 2011. [7] IETF RFC 3986: "Uniform Resource Identifier (URI): Generic Syntax". [8] IETF RFC 4998: "Evidence Record Syntax (ERS)". [9] IETF RFC 6283: "Extensible Markup Language Evidence Record Syntax (XMLERS)". [10] ISO/IEC 21320-1: "Information technology -- Document Container File -- Part 1: Core". [11] ETSI EN 319 122-2: "Electronic Signatures and Infrastructures (ESI); CAdES digital signatures; Part 2: Extended CAdES signatures". [12] ETSI EN 319 132-2: "Electronic Signatures and Infrastructures (ESI); XAdES digital signatures; Part 2: Extended XAdES signatures". [13] IETF RFC 5816: "ESSCertIDv2 Update for RFC 3161". [14] W3C recommendation: "XML Signature Syntax and Processing". [15] ISO/IEC 10646: "Information technology - Universal Coded Character Set (UCS)". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI TR 119 100: "Electronic Signatures and Infrastructures (ESI); Business Driven Guidance for Signature Creation and Validation". [i.2] ISO 15489-1: "Information and documentation - Records management - Part 1: General". [i.3] Regulation (EU) No 910/2014 of the European Parliament and of the Council of 23 July 2014 on electronic identification and trust services for electronic transactions in the internal market and repealing Directive 1999/93/EC. [i.4] ETSI TS 119 312: "Electronic Signatures and Infrastructures (ESI); Cryptographic Suites". [i.5] IETF RFC 6838: "Media Type Specifications and Registration Procedures". [i.6] IETF RFC 2045: "Multipurpose Internet Mail Extensions (MIME) Part One: Format of Internet Message Bodies". [i.7] ETSI EN 319 422: "Electronic Signatures and Infrastructures (ESI); Time-stamping protocol and time-stamp token profiles". SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 9 [i.8] ETSI TS 101 533-1: "Electronic Signatures and Infrastructures (ESI); Data Preservation Systems Security; Part 1: Requirements for Implementation and Management". [i.9] ETSI TR 119 000: "Electronic Signatures and Infrastructures (ESI); The framework for standardization of signatures: overview". [i.10] ETSI TR 119 001: "Electronic Signatures and Infrastructures (ESI); The framework for standardization of signatures; Definitions and abbreviations". [i.11] IETF RFC 1951: "DEFLATE Compressed Data Format Specification version 1.3". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in ETSI TR 119 001 [i.10] and the following apply: ASiCArchiveManifest file: container file whose name matches "*ASiCArchiveManifest*.xml" containing one ASiCManifest element instance conforming to clause A.7 of the present document ASiCEvidenceRecordManifest file: container file used in ASiC-E to reference a set of files to which an ER applies whose name matches "META-INF/ASiCEvidenceRecordManifest*.xml" and containing one ASiCManifest element instance conformant to clause A.4 of the present document ASiCManifest file: file whose name matches "*ASiCManifest*.xml" containing one ASiCManifest element instance conformant to clause A.4 of the present document CAdES signature: digital signature that satisfies the requirements specified within ETSI EN 319 122-1 [1] or ETSI EN 319 122-2 [11] CAdES object: instance of ContentInfo with Signed-data Content as specified in CAdES [1] clause 4 including one or more CAdES signatures covering the same content container: file created according to ZIP holding as internal elements files with related manifest, metadata and associated signature(s), under a folder hierarchy media type: method to label arbitrary content, carried by MIME [i.6] or other protocols NOTE: Refer to IETF RFC 6838 [i.5], clause 1. metadata: data describing context, content and structure of data objects and their management over time NOTE: Refer to ISO 15489-1:2001 [i.2], definition 3.12 with modifications. time assertion: time-stamp token or evidence record NOTE: A time assertion can be used as a proof of existence and integrity in signature validation. XAdES signature: digital signature that satisfies the requirements specified within ETSI EN 319 132-1 [2] or ETSI EN 319 132-2 [12] 3.2 Abbreviations For the purposes of the present document, the abbreviations given in CAdES [1], XAdES [2] and the following apply: ASiC Associated Signature Container ER Evidence Record NOTE: Refer to IETF RFC 4998 [8] and IETF RFC 6283 [9]. OCF Open Container Format NOTE: As specified in ISO/IEC TS 30135 [4]. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 10 ODF Open Document Format NOTE: Refer to [6]. 4 General Syntax 4.1 Description of main features of Associated Signature Containers 4.1.1 Basic container structure The ASiC is a data container holding a set of file objects and associated digital signatures and/or time assertions using the ZIP [5] format. Any ASiC container has an internal structure including: • a root folder, for all the container content possibly including folders reflecting the content structure; and • a "META-INF" folder, in the root folder, for files containing metadata about the content, including associated signature or time assertion files. NOTE: The detached signatures or time assertions are applied in such a way that the integrity of the data is not broken when the files are extracted from the ZIP container. Hence, the signatures and time assertions used in ASiC can be verified against the file objects to which they apply when outside the container structure (for example when placed in local storage). 4.1.2 Container types Signatures and time assertions within ASiC containers are present within signature or time assertion files. A signature file can contain either: • one CAdES object; or • one or more XAdES signatures. A time assertion file can contain either: • one time-stamp token conformant to IETF RFC 3161 [3] (which can be profiled as specified in ETSI EN 319 422 [i.7]); or • one Evidence Record conformant to IETF RFC 4998 [8] or IETF RFC 6283 [9]. The present document defines two types of containers. The first type is ASiC Simple (ASiC-S) that associates one single file object with either: • one signature file; or • one time assertion file. This type of container can also include a file named "mimetype" specifying the media type. This type of container allows to add at a later time additional signatures signing the aforementioned file object and additional ASiCArchiveManifest files to protect long term time-stamp tokens. The second type is ASiC Extended (ASiC-E), a container that associates one or more file objects with either: • one or more XAdES signatures present within one or more signature files and optionally one or more ERS within one or more time assertion files; or • one or more CAdES signatures present within one or more CAdES object files and/or one or more time assertions within one or more time assertion files. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 11 Each signature and/or time assertion is associated with all or part of the file objects in the container.
It is possible to add signature files, time assertion files and data files to an ASiC-E container. The additional signature and time assertion files can apply to the same set of files or a different set, without invalidating previously applied signatures or time assertions. Later signatures can also sign signatures applied previously. NOTE: in ASiC-E with CAdES, use of Archive Time-stamp attributes possibly present in CAdES signatures does not guarantee long term validation of signed file objects referenced using ASiCManifest. 4.2 General requirements 1) The container format shall comply with the ZIP [5] specification. 2) ZIP [5] limitations: a) ASiC containers shall not use the multiple volumes split feature. b) File names and comments shall be encoded with ISO/IEC 10646 [15] UNICODE UTF-8. c) Only no compression or the deflated compression format specified in IETF RFC 1951 [i.11] should be used; therefore, according to the ZIP specification [5] only 0 ("stored") or 8 ("deflated") values should be used as ZIP compression method. NOTE: ISO/IEC 21320-1 [10] specifies a format that is a profile of ZIP [5]. Compliance with ISO/IEC 21320-1 [10] guarantees full compliance with items 1) and 2) of the present clause. 3) At least one container type specified in clauses 4.3 or 4.4 shall be supported. 4.3 Associated Signature Container Simple (ASiC-S) 4.3.1 Introduction This clause defines the Associated Signature Container Simple (ASiC-S) that associates one data file with either: • one signature file containing one or more detached digital signature(s) that apply to it; or • one time assertion file containing a time assertion that apply to it. Three ASiC-S container types are defined: 1) ASiC-S with XAdES: the data file is associated with signature(s) in XAdES format. 2) ASiC-S with CAdES: the data file is associated with signature(s) in CAdES format. 3) ASiC-S with time assertions: the data file is associated with a time assertion. 4.3.2 General requirements for ASiC-S The ASiC-S container shall comply with clause 4.2 and with the file structure specified in clause 4.3.3.2 to bind the constitutive files into a single container file. The signed file object may be itself a container, for example ZIP, OCF, ODF or another ASiC. In this case the inner container is associated with one or more signatures or a time assertion that applies to it.
In case of signing a ZIP container, the "file comment" field specified in ZIP [5] may be used to specify the media type of each file present in the ZIP container with the value "mimetype= " followed by its media type. Examples of the use of ASiC-S are given in clause B.1. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 12 4.3.3 Detailed format for ASiC-S 4.3.3.1 Media type identification 1) In case the "mimetype" file defined in clause 4.3.3.2 point 1) is present, the media type shall be either: a) "application/vnd.etsi.asic-s+zip" if one of the following cases is verified: i) the file extension is as specified in item 2) c) of the present clause; or ii) no specific media type is associated to the signed file object; or b) the media type associated to the signed file object in all the other cases.
2) The container file extension shall be: a) ".asics" unless one of the options b) or c) below applies; b) ".scs" in case of operating systems and/or file systems not allowing more than 3 characters for file extensions; or c) ".zip" in the case the container content is to be handled manually; in this case item 1) a) of the present clause shall apply. 3) The ".ZIP file comment" field of the container (defined in ZIP [5]) may contain the value "mimetype=" followed by the original media type of the signed file object. NOTE: The media type can include parameters according to the media type definition, for example a "charset" parameter can be used with "text/plain" media type (see IETF RFC 6838 [i.5], clause 4.2.1). 4.3.3.2 Contents of the container The ASiC-S container: 1) May contain a "mimetype" file. It shall be at the root level and shall be encoded as specified in clause A.1. Its content shall be the media type specified in clause 4.3.3.1, item 1. 2) Shall contain one data file at the root level. It shall be the only file object present at the container root level besides the optional "mimetype" specified in item 1) above. 3) Shall contain one META-INF folder at the root level. 4) The META-INF folder shall contain only one of the following files: a) "timestamp.tst" containing a time-stamp token as defined in IETF RFC 3161 [3] and updated by IETF RFC 5816 [13] applying to the data file; b) "signature.p7s" containing CAdES object incorporating one or more detached CAdES signatures conformant to ETSI EN 319 122-1 [1] or ETSI EN 319 122-2 [11] applying to the data file; c) "signatures.xml" containing the root element asic:XAdESSignatures as specified in clause A.5, containing one or more detached ds:Signature elements conformant to XAdES baseline signatures [2] or XAdES extended signatures [12] each applying to the whole data file content. In case the URI attribute is present in the ds:Reference element [14] it shall be used to reference the data file and the rules specified in clause A.6 shall apply. In case the URI attribute is not present in ds:Reference element [14] then a reference to the data file is implied. Any canonicalization computed on descendant elements of a ds:Signature shall be performed keeping this ds:Signature element as a child of asic:XAdESSignatures (without detaching it); NOTE: In the case of use of implied reference the party verifying the signature is aware of the application context and the expected relation between the file object and the signature. Use of implied reference gives greater flexibility for the application's use of ASiC in positioning the signature relative to the data. Use of relative references requires the relative positioning to be maintained when data is extracted from the container if signatures are still to be verifiable. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 13
Exclusive canonicalization may be used. In this case the canonicalization result shall not include the ancestor's context (asic:XAdESSignatures element in this case). d) "evidencerecord.ers" containing an ER in ERS [8] format that applies to the file object specified in item 2); or e) "evidencerecord.xml" containing an ER in XMLERS [9] format that applies to the file object specified in item 2). 5) The META-INF folder may contain the following additional files: a) One or more ASiCArchiveManifest file and the time-stamp tokens that apply to them. b) Revocation status information or certificates referenced by CAdES extended signatures [11] or XAdES extended signatures [12] allowing referencing of external information. c) Other application specific information. Figures 1 to 4 illustrate examples for the content of the ASiC-S container.
Figure 1: ASiC-S structure applied to a plain file object
Figure 2: ASiC-S structure applied to a nested container SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 14 4.3.4 Long term availability and integrity of ASiC-S Long term availability and integrity of ASiC-S shall be achieved for the different container types as follows: 1) For ASiC-S containers with XAdES signatures and ASiC-S containers with CAdES signatures, the attributes specified in ETSI EN 319 122-1 [1], ETSI EN 319 122-2 [11], ETSI EN 319 132-1 [2] and ETSI EN 319 132-2 [12] shall be used for achieving long term availability and integrity. This shall apply to all the signatures present in the containers. 2) For ASiC-S containers with time-stamp token one or more ASiCArchiveManifest files and one time-stamp token for each ASiCArchiveManifest file applied to its content shall be added to the container following the rules specified in clause A.7. 3) For ASiC-S containers with ER, the internal mechanism of IETF RFC 4998 [8] and IETF RFC 6283 [9] shall be used. Figure 3 shows an example of ASiC-S container with a time-stamp token with long term components.
Figure 3: ASiC-S with time-stamp token and long term components (example) SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 15 Figure 4 shows the same ASiC-S container with a new ASiCArchiveManifest file added at a later time to further extend its availability and integrity; changes are marked in red.
Figure 4: Further availability and integrity extension of a container with an additional ASiCArchiveManifest file 4.4 Associated Signature Container Extended (ASiC-E) 4.4.1 Introduction
The ASiC-E container supports one or more signature and time assertion files each applicable to its own set of one or more file objects. Each file object can have associated additional information and metadata that can also be protected by any of the signature(s) present in the container. The container packages all the mentioned elements. The container can be designed to prevent any further modification or allowing that additional file objects, signatures and time assertions can be included at a later time to the container without breaking the previous signatures.
Two ASiC-E container types are defined: 1) ASiC-E with XAdES: the data files are associated with signatures files, each one containing one or more XAdES signatures. The container may also include one or more ERS files.
2) ASiC-E with CAdES - time assertions: the data files are associated with signature files, each one containing a CAdES object, or with time assertion files, each one containing a time assertion. All ASiC types allow container nesting (with inner containers being themselves ASiC or any type of container) allowing arbitrary complex hierarchies to be represented.
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 16 4.4.2 General requirements of ASiC-E 1) ASiC-E containers shall comply with clause 4.2 items 1) and 2) with the file structure specified in clauses 4.4.3.2 or 4.4.4.2 to bind the contained file objects into a single container. 2) One or more data files digitally signed or time asserted in the following detailed format for ASiC-E clauses shall be present in the container in any folder structure outside the root META-INF folder. NOTE: This does not preclude that signed or time-asserted file objects can be present in the META-INF folder, provided that at least one signed or time-asserted file object is present outside the root META-INF folder as specified in the item above. 4.4.3 Detailed format for ASiC-E with XAdES 4.4.3.1 Media type identification 1) The file extension shall be either: a) ".asice"; or b) ".sce" in case of operating systems and/or file systems not allowing more than 3 characters for file extensions. 2) The "mimetype" file content shall be: a) "application/vnd.etsi.asic-e+zip" to identify an ASiC-E container in case the container to be signed does not have a specific media type; or b) the original media type of the container. EXAMPLE: One of the ODF media types when signing an ODF container. 3) The ".ZIP file comment" field specified in [5] may be present and may have the value "mimetype=application/vnd.etsi.asic-e+zip". 4.4.3.2 Contents of Container Signatures associated to data files are XAdES signatures. Clause A.6 shall apply on referencing signed file objects. The content and internal structure is defined as follows: 1) A "mimetype" file may be present. It shall be as defined in clause A.1 with the content specified in clause 4.4.3.1, item 2. 2) One or more "*signatures*.xml" files shall be present in a path beginning with "META-INF/" each containing one or more XAdES signatures as specified in the following item conforming to XAdES baseline signatures [2] or XAdES extended signatures [12] where signed data files shall either be directly referenced by each signature with a set of ds:Reference elements [14] or be indirectly referenced using a signed ds:Manifest object [14] that is pointed by a ds:Reference. 3) Each "*signatures*.xml" file shall contain as root element: a) asic:XAdESSignatures element as specified in clause A.5; b) document-signatures element as specified in ODF [6]; c) signatures element as specified in OCF [4]; d) any other element in any namespace only if its valid content is a sequence of one or more ds:Signature sibling elements; or
e) ds:Signature element [14]. NOTE 1: When item e) applies, only a single XAdES Signature instance can be present in the signature file.
Item a) should be used. SIST EN 319 162-1 V1.1.1:2016
ETSI ETSI EN 319 162-1 V1.1.1 (2016-04) 17
The root elements in all the signatures files present in the same container should be the same.
When items from a) to d) apply, any canonicalization computed on descendant elements of one ds:Signature element shall be performed keeping this ds:Signature element as a child of the root element, without detaching it. Exclusive canonicalization may be used: in this case the canonicalization result shall not include the ancestor's context. NOTE 2: As specified in clause A.4 and in OCF [4] and ODF [6], in all the aforementioned cases except case e), the child elements of the root element are one or more ds:Signature sibling elements as specified in W3C recommendation: "XML Signature Syntax and Processing" [i.5]. NOTE 3: Item 3), d) allows migrating existing, legacy, detached and/or enveloped signatures that contain explicit or implicit inclusive canonicalization into an ASiC-E container. 4) One or more ASiCEvidenceRecordManifest files may be present. They shall contain one ASiCManifest element instance conformant to clause A.4 that shall reference in the SigReference element a file containing an ER and the ds:DigestMethod element shall match the digest algorithm used to create the
initial Archive Time-stamp protecting the first ReducedHashTree element as defined in IETF RFC 4998 [8] or IETF RFC 6283 [9]. The ER file shall: a) be present in the "META-INF" folder; b) apply to all the container files referenced by ASiCManifest with DataObjectReference elements; and c) be named:
"evidencerecord.ers" if in ERS [8] format; or
"evidencerecord.xml" if in XMLERS [9] format. 5) Other application specific files may be present in the META-INF folder as follows: a) "container.xml" if present shall be as specified in OCF [4]. It shall identify the media type and full path of all the root file objects in the container, as specified in OCF; b) "manifest.xml" if present shall be as specified in ODF [6]; NOTE 4: according to ODF [6] specifications, inclusion of reference to other files within META-INF folder, such as "*signatures*.xml", in manifest.xml is optional. In this way it is possible to protect the container's content signing manifest.xml while allowing to add later signatures. c) "META-INF/metadata.xml" if present shall be as specified in OCF [4] and has a user defined content; d) any other file object provided that: i) their name shall not contain the string "signature" or "timestamp" or "manifest" or "container.xml", case insensitive; and ii) they shall not be required to validate the container. NOTE 5: The application specific files in items c) and d) need not be parsed and interpreted for the purpose of the ASiC container validat
...
