SIST EN 301 827 V1.1.1:2005

• Abstract:

  ANF-WTMI is a feature that directs incoming calls to a WTMI user within the PISN regardless of the WTMI user's geographical location within the PISN, provided that the WTMI user's location is known. Roaming outside the PISN is outside the scope of this edition of this standard. ANF-WTMO permits the PISN to process call requests from a WTMO user at the Home mocation, if required.

• Status: Published
• Publication Date: 28-Feb-2005
• ICS: 33.040.35 - Telephone networks
• Technical Committee: SPN - Services and Protocols for Networks
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2005
• Due Date: 01-Mar-2005
• Completion Date: 01-Mar-2005
• Ref Project: ETSI EN 301 827 V1.1.1 (2004-01) - Private Integrated Services Network (PISN); Inter-exchange signalling protocol; Wireless terminal call handling Additional Network Feature (ANF) [ISO/IEC 15431 (2003), modified]

SIST EN 301 827 V1.1.1:2005 is the Slovenian adoption of ETSI EN 301 827 V1.1.1, a European telecommunications standard for Private Integrated Services Network (PISN) inter-exchange signalling. It specifies the signalling protocol at the Q reference point for the Wireless Terminal Call Handling Additional Network Feature (ANF), supporting ANF-WTMI and ANF-WTMO in PISN environments. The document is based on ISO/IEC 15431 (2003) with ETSI modifications.

What does SIST EN 301 827 V1.1.1:2005 specify?

SIST EN 301 827 V1.1.1:2005 specifies how a PISN handles wireless terminal call handling through signalling between exchanges. Its scope is limited to operation inside the PISN, with roaming outside the PISN left out of this edition.

The document ties the feature to two cases:

• ANF-WTMI directs incoming calls to a WTMI user within the PISN when the user's location is known.
• ANF-WTMO lets the PISN process call requests from a WTMO user at the Home location when required.

The standard is organized as an endorsement of ISO/IEC 15431 (2003). The visible text shows the foreword, an endorsement notice, clause 3 on normative references, a replacement table for references used throughout the international standard, and a document history.

What are the key requirements of SIST EN 301 827 V1.1.1:2005?

SIST EN 301 827 V1.1.1:2005 defines the signalling protocol for the wireless terminal call handling ANF at the Q reference point. In practice, implementers need to support the signalling behavior that lets the network route and process calls for wireless terminal users according to their location.

• WTMI support inside the PISN - incoming calls are directed to the user when the location is known. This matters because the network must have location information available before it can route the call correctly.
• WTMO handling at the Home location - the PISN may process call requests from a WTMO user at the Home location when required. This matters for systems that treat the home location as the point where the network applies special call handling.
• Roaming outside the PISN is excluded - the scope limits this edition to the PISN itself. That means network design and conformance work should not assume support for external roaming scenarios.
• PSS1 / QSIG context - the protocol forms part of the PSS1 protocol, informally known as QSIG. This matters because the standard is intended for use with a defined family of PISN signalling protocols.
• ISDN and OSI basis - the series uses Integrated Services Digital Network (ISDN) concepts and conforms to the Open Systems Interconnection (OSI) framework. This places the feature within the wider telecommunications signalling model used by the series.
• Fixed normative references - clause 3 states that specific references do not follow later revisions. In practice, implementers and testers must use the named companion standards as referenced in this document.
• Reference replacements throughout the text - ISO/IEC references are replaced with ETSI EN and ETS references. This matters when reading the document together with companion PISN standards, because the cited documents are the ETSI editions listed here.
• Terminology replacement - the phrase “this International Standard” is replaced by “the present document”. This keeps the endorsement text aligned with ETSI wording.

What terms does SIST EN 301 827 V1.1.1:2005 define?

• PISN (Private Integrated Services Network) - a private telecommunications network environment for integrated services, which is the system in which the signalling applies.
• ANF (Additional Network Feature) - an added network feature on top of the base PISN signalling and service set.
• WTMI - the wireless terminal call handling case that directs incoming calls to a user when the location is known.
• WTMO - the wireless terminal call handling case that allows the PISN to process call requests from a user at the Home location.
• Q reference point - the signalling interface where this protocol is used.
• PSS1 - the PISN signalling protocol family that this document belongs to.
• QSIG - the informal name for PSS1 used in the foreword.
• ISDN (Integrated Services Digital Network) - the concept base used for the series.
• OSI (Open Systems Interconnection) - the framework used by the series.

Who uses SIST EN 301 827 V1.1.1:2005?

SIST EN 301 827 V1.1.1:2005 is used by telecom engineers, switch and PBX designers, and vendors working on PISN inter-exchange signalling. It is also relevant to network operators, integrators, test labs, and procurement or quality teams that need to confirm support for wireless terminal call handling in a private network.

In practice, users apply it when designing, implementing, or testing QSIG/PSS1 signalling for wireless terminal mobility features, and when checking compatibility with the companion PISN standards listed in clause 3.

What changed in SIST EN 301 827 V1.1.1:2005 from the previous edition?

SIST EN 301 827 V1.1.1:2005 endorses ISO/IEC 15431 (2003) with modifications. The changes stated in the document are:

• insertion of additional normative references in clause 3,
• replacement of ISO/IEC references throughout the text with the corresponding ETSI EN and ETS references,
• replacement of the wording “this International Standard” with “the present document”.

Which standards are used with SIST EN 301 827 V1.1.1:2005?

Clause 3 adds or substitutes companion standards that support addressing, bearer services, supplementary services, and related ANFs. The document points to these ETSI publications:

Reference	What it contributes
ETSI EN 300 189	Addressing
ETSI EN 300 172	Circuit-mode basic services
ETSI EN 300 171	Circuit-mode 64 kbit/s bearer services
ETSI ETS 300 475-1	Reference configuration for PTN eXchanges (PTNXs)
ETSI EN 300 239	Generic functional protocol for supplementary services
ETSI EN 300 238	Name identification supplementary service
ETSI EN 300 257	Call diversion supplementary service
ETSI EN 300 259	Path replacement ANF
ETSI EN 300 362	Call offer supplementary service
ETSI EN 300 364	Do not disturb and do not disturb override supplementary services
ETSI EN 300 426	Call intrusion supplementary service
ETSI EN 301 264	Advice of charge supplementary services
ETSI EN 301 265	Call interception ANF
ETSI EN 301 048	Transit counter ANF
ETSI EN 301 826	Wireless terminal call handling additional network features
ETSI EN 301 255	Message waiting indication supplementary service

What does the SIST EN 301 827 V1.1.1:2005 document contain?

The document contains the ETSI foreword, a copyright and IPR notice, national transposition dates, the endorsement notice for ISO/IEC 15431 (2003), and clause 3 material on normative references. It also includes the replacement table that maps ISO/IEC references to ETSI references, and a short document history showing the 2003 approval and 2004 publication steps.

It is therefore mainly a signalling-standard endorsement document with reference substitutions and publication metadata, rather than a document focused on test methods or worked examples.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VLJQDOL]DFLMVNLåLþQHJDPrivate Integrated Services Network (PISN); Inter-exchange signalling protocol; Wireless terminal call handling Additional Network Feature (ANF) [ISO/IEC 15431 (2003), modified]33.040.35Telefonska omrežjaTelephone networksICS:Ta slovenski standard je istoveten z:EN 301 827 Version 1.1.1SIST EN 301 827 V1.1.1:2005en01-marec-2005SIST EN 301 827 V1.1.1:2005SLOVENSKI
STANDARD

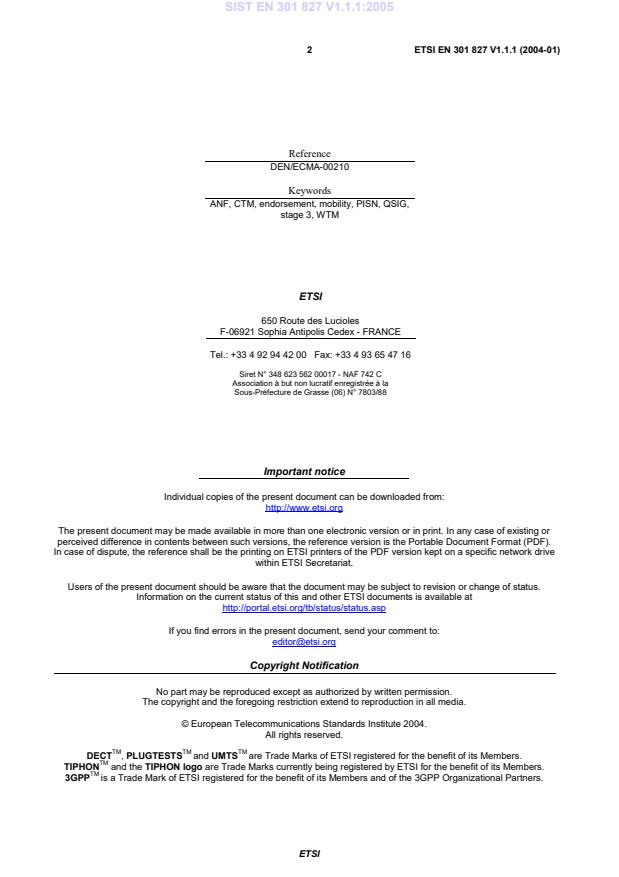

ETSI ETSI EN 301 827 V1.1.1 (2004-01) 2
Reference DEN/ECMA-00210 Keywords ANF, CTM, endorsement, mobility, PISN, QSIG, stage 3, WTM ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: [e-mail] Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2004. All rights reserved.
DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 301 827 V1.1.1:2005

ETSI ETSI EN 301 827 V1.1.1 (2004-01) 3
Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ECMA on behalf of its members and those of the European Telecommunications Standards Institute (ETSI). The present document is one of a series of standards defining services and signalling protocols applicable to Private Integrated Services Networks (PISN). The series uses the Integrated Services Digital Network (ISDN) concepts as developed by ITU-T and conforms to the framework of standards for Open Systems Interconnection (OSI) as defined by ISO/IEC. The present document specifies the signalling protocol for use at the Q reference point in support of the Wireless Terminal Call Handling additional network feature. The protocol defined in the present document forms part of the PSS1 protocol (informally known as QSIG). The present document endorses an International Standard, ISO/IEC 15431.
National transposition dates Date of adoption of this EN: 19 December 2003 Date of latest announcement of this EN (doa): 31 March 2004 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 September 2004 Date of withdrawal of any conflicting National Standard (dow): 30 September 2004
Endorsement notice
...
