Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 17: Specific conditions for
Broadband and Wideband Data Transmission Systems;
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Reference
REN/ERM-EMC-409
Keywords
EMC, harmonised standard, radio
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspxIf you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspxIf you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.© ETSI 2022.
All rights reserved.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Contents
Intellectual Property Rights ................................................................................................................................ 4
Foreword ............................................................................................................................................................. 4
Modal verbs terminology .................................................................................................................................... 5
1 Scope ........................................................................................................................................................ 6
2 References ................................................................................................................................................ 6
2.1 Normative references ......................................................................................................................................... 6
2.2 Informative references ........................................................................................................................................ 7
3 Definition of terms, symbols and abbreviations ....................................................................................... 7
3.1 Terms .................................................................................................................................................................. 7
3.2 Symbols .............................................................................................................................................................. 8
3.3 Abbreviations ..................................................................................................................................................... 8
4 Test conditions ......................................................................................................................................... 9
4.1 General ............................................................................................................................................................... 9
4.2 Arrangements for test signals ............................................................................................................................. 9
4.2.1 Arrangements for test signals at the input of transmitters ............................................................................. 9
4.2.2 Arrangements for test signals at the output of transmitters ........................................................................... 9
4.2.3 Arrangements for test signals at the input of receivers ................................................................................. 9
4.2.4 Arrangements for test signals at the output of receivers ............................................................................... 9
4.2.5 Arrangements for testing transmitter and receiver together (as a system) .................................................. 10
4.2.6 Equipment with an external antenna connector .......................................................................................... 10
4.2.7 Equipment without an external antenna connector (integral antenna) ........................................................ 10
4.2.8 Equipment with more than one antenna ...................................................................................................... 10
4.3 Exclusion bands ................................................................................................................................................ 10
4.3.1 General ........................................................................................................................................................ 10
4.3.2 Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz band ................ 11
4.3.3 5 GHz RLAN .............................................................................................................................................. 11
4.3.4 Wireless Access Systems (WAS); 5,8 GHz fixed broadband data transmitting systems ............................ 11
4.4 Void .................................................................................................................................................................. 11
4.5 Normal test modulation .................................................................................................................................... 11
5 Performance assessment ......................................................................................................................... 11
5.1 General ............................................................................................................................................................. 11
5.2 Arrangements for the assessment of host dependent equipment and plug-in cards .......................................... 12
5.3 Assessment procedures ..................................................................................................................................... 12
6 Performance criteria ............................................................................................................................... 12
6.1 General performance criteria ............................................................................................................................ 12
6.2 Performance table ............................................................................................................................................. 13
6.2.1 Performance criteria overview .................................................................................................................... 13
6.2.2 Minimum performance level....................................................................................................................... 13
6.3 Performance criteria for Continuous phenomena ............................................................................................. 13
6.4 Performance criteria for Transient phenomena ................................................................................................ 13
7 Requirements .......................................................................................................................................... 13
7.1 Emission ........................................................................................................................................................... 13
7.1.1 General ........................................................................................................................................................ 13
7.2 Immunity .......................................................................................................................................................... 14
7.2.1 General ........................................................................................................................................................ 14
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU ......................................................... 16
Annex B (informative): Change History .............................................................................................. 18
History .............................................................................................................................................................. 19
ETSI---------------------- Page: 3 ----------------------
4 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ForewordThis draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.12] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated
EFTA regulations.The present document is part 17 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Proposed national transposition datesDate of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
ETSI---------------------- Page: 4 ----------------------
5 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions)."must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI---------------------- Page: 5 ----------------------
6 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
1 Scope
The present document specifies technical characteristics and methods of measurements for broadband and wideband
data transmission system equipment including the associated ancillary equipment in respect of electromagnetic
compatibility, as detailed in table 1.Technical specifications related to the antenna port and emissions from the enclosure port of the radio equipment are
not included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum.The present document specifies the applicable test conditions, performance assessment and performance criteria for
broadband and wideband data transmission systems as detailed in table 1.NOTE: In the context of the present document, broadband and wideband are interchangeable.
Table 1: Radio Technologies in scope of the present documentTechnology ETSI Standard
Wideband transmission systems;
ETSI EN 300 328 [i.8]
Data transmission equipment operating in the 2,4 GHz band
5 GHz RLAN ETSI EN 301 893 [i.3]
6 GHz WAS/RLAN ETSI EN 303 687 [i.2]
Wireless Access Systems (WAS);
ETSI EN 302 502 [i.4]
5,8 GHz fixed broadband data transmitting systems;
Multi-Gigabit Wireless Systems (MGWS) in the 60 GHz band ETSI EN 302 567 [i.6]
Wideband Data Transmission Systems (WDTS) for Fixed Network Radio
ETSI EN 303 722 [i.5]
Equipment operating in the 57 GHz to 71 GHz band
Emissions requirements in the present document are specified for frequencies above 9 kHz.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or non-
specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for
ElectroMagnetic Compatibility".ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.[i.1] Directive 2014/53/EU of the European Parliament and of the council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.[i.2] ETSI EN 303 687: "6 GHz WAS/RLAN; Harmonised Standard for access to radio spectrum".
[i.3] ETSI EN 301 893: "5 GHz WAS/RLAN; Harmonised Standard for access to radio spectrum".
[i.4] ETSI EN 302 502 (V2.1.3): "Wireless Access Systems (WAS); 5,8 GHz fixed broadband data
transmitting systems; Harmonised Standard for access to radio spectrum".[i.5] ETSI EN 303 722: "Wideband Data Transmission Systems (WDTS) for Fixed Network Radio
Equipment operating in the 57 GHz to 71 GHz band; Harmonised Standard for access to radio
spectrum".[i.6] ETSI EN 302 567: "Multiple-Gigabit/s radio equipment operating in the 60 GHz band;
Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU".
[i.7] Void.[i.8] ETSI EN 300 328: "Wideband transmission systems; Data transmission equipment operating in the
2,4 GHz band; Harmonised Standard for access to radio spectrum".[i.9] Void.
[i.10] Void.
[i.11] Void.
[i.12] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:
ancillary equipment: electrical or electronic equipment, that is intended to be used with a receiver or transmitter
NOTE 1: It is considered as an ancillary equipment if: the equipment is intended for use with a receiver or transmitter to provide additional operational
and/or control features to the radio equipment, (e.g. to extend control to another position or
location); and the ancillary equipment cannot be used without being connected to radio equipment to provide user
functions independently of a receiver or transmitter; andETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
the receiver or transmitter, to which it is connected, is capable of providing some intended
operation such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a
sub-unit of the main equipment essential to the main equipment basic functions).NOTE 2: An example of ancillary equipment would be a docking station for radio equipment whose interface is
dedicated to a particular product or range of products.Equipment Under Test (EUT): equipment subject to the performance requirements of the present document
fixed equipment: equipment intended for use in a fixed location and fitted with one or more antennas
NOTE: The equipment may be fitted with either antenna socket(s) or integral antenna(s) or both.
host: any equipment which has complete user functionality when not connected to the radio equipment part and to
which the radio equipment part provides additional functionality and to which connection is necessary for the radio
equipment part to offer functionalityplug-in radio device: equipment, including slide-in radio cards, intended to be used with or within a variety of host
systems, using their control functions and power supplyportable equipment: radio equipment intended for portable use and powered by integral batteries or battery
NOTE: Devices will typically be handheld.stand-alone radio equipment: equipment that is intended primarily as communications equipment and that is normally
used on a stand-alone basisvehicular equipment: radio equipment intended for installation and use in a vehicle, and powered by the main battery
of the vehicle3.2 Symbols
For the purposes of the present document, the following symbols apply:
Pmin minimum power required to establish a communication link
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ACK ACKnowledgement
ARQ Automatic Retransmission reQuest
DC Direct Current
EMC ElectroMagnetic Compatibility
ERM EMC and Radio Spectrum Matters
EUT Equipment Under Test
FER Frame Error Rate
MGWS Multi-Gigabit Wireless Systems
NACK Not ACKnowledgement
PER Packet Error Rate
RF Radio Frequency
RLAN Radio Local Area Network
ETSI
---------------------- Page: 8 ----------------------
9 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
4 Test conditions
4.1 General
For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4, shall apply as
appropriate. Further product related test conditions for wideband data communications systems are specified in
clauses 4.2 to 4.5.The radio equipment may take forms which may require special software and/or test fixtures. Equipment which requires
connection to a host equipment to function shall use a test configuration representative of the EUT's intended use and
shall be recorded in the test report.4.2 Arrangements for test signals
4.2.1 Arrangements for test signals at the input of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.1 shall apply with the following modifications.
The wanted signals and/or controls required to establish a communication link and shall be representative of the EUTs
intended use.The transmitter shall be operated at maximum rated power.
4.2.2 Arrangements for test signals at the output of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modifications.
A suitable companion receiver shall be used to receive messages or to set up a communication link.
4.2.3 Arrangements for test signals at the input of receiversThe provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following modifications.
For radiated immunity tests, the level of the wanted signal at the input of the receiver or the enclosure port of the EUT,
shall be 30 dB (±6 dB) above the Pmin for the EUT. For all other tests the level of the wanted signal, required to
establish a communication link, shall be representative of the EUT intended use.NOTE: Simple method to establish the required communication link is establish link, reduce power to point of
link failure then increase by 30 dB (±6 dB).4.2.4 Arrangements for test signals at the output of receivers
The measuring equipment for the output signal from the receiver under test shall be located outside the test
environment.It shall be possible to assess the performance of the equipment by appropriately monitoring the receiver output.
If the receiver has an output connector or port providing the wanted output signal, then this port shall be used via a
cable, consistent with the standard cable used in normal operation, connected to the external measuring equipment
outside the test environment.A suitable companion transmitter shall be used to transmit messages or to set up a communication link.
ETSI---------------------- Page: 9 ----------------------
10 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
4.2.5 Arrangements for testing transmitter and receiver together
(as a system)
Standalone receivers and transmitters shall be tested separately. Transceivers shall be tested so that operation in each
direction is confirmed.A suitable companion transceiver or transmitter and receiver shall be used to send and receive messages or to set up a
communication link.Both the EUT and the companion equipment shall transmit the normal test modulation. Further, the output of the radio
equipment under test shall be monitored by the test system.4.2.6 Equipment with an external antenna connector
If access to the antenna connector involves modification or dismantling of the EUT then this clause does not apply.
The EUT may be tested with its antenna removed.In the case of testing with the antenna removed, the wanted RF input and output signals shall be delivered between the
EUT antenna connector and the measuring and/or test equipment by a shielded transmission line, such as a coaxial
cable.4.2.7 Equipment without an external antenna connector (integral antenna)
This clause applies to EUT to which clause 4.2.6 does not apply. Such EUT are generally known as integral antenna or
dedicated antenna equipment.The EUT shall be tested with its antenna fitted in a manner typical of intended use.
4.2.8 Equipment with more than one antennaIf the EUT has more than one antenna port, e.g. separate antennas for Tx and Rx or separate antennas for different
operating frequencies or diversity antennas, then:• If clause 4.2.6 applies to all the antenna ports, then the EUT may be tested according to clause 4.2.6, with all
antenna ports treated the same.• Otherwise it shall be tested according to clause 4.2.7.
NOTE: The reason is that replacing one antenna by a transmission line may affect the operation of any other
antennas.4.3 Exclusion bands
4.3.1 General
The frequencies on which the transmitter part of the EUT is intended to operate shall be excluded from radiated
emission measurements when performed in transmit mode of operation.There shall be no frequency exclusion band applied to emission measurements of the receiver part of transceivers or the
standalone receiver under test, and/or associated ancillary equipment.For EUT that operate above 6 GHz there is no exclusion band specified as test ranges stop at 6 GHz.
NOTE: All of the receiver exclusion band ranges detailed within clauses 4.3.2, 4.3.3 and 4.3.4 also cover the relevant
blocking test ranges specified in the relevant product standards for the effective use of the radio spectrum
(see table 1).ETSI
---------------------- Page: 10 ----------------------
11 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
4.3.2 Wideband transmission systems; Data transmission equipment
operating in the 2,4 GHz band
The exclusion band for immunity testing of equipment operating in the 2,4 GHz band shall be:
• lower limit of exclusion band = lowest allocated band edge frequency -120 MHz, i.e. 2 280 MHz;
• upper limit of exclusion band = highest allocated band edge frequency +120 MHz, i.e. 2 603,5 MHz.
NOTE: This is based upon a channel size of 40 MHz and a value of n = 3 from ETSI EN 301 489-1 [1],
clause 4.3.3.4.3.3 5 GHz RLAN
The exclusion band for immunity testing of equipment operating in the 5 GHz Wi-Fi band shall be:
• lower limit of exclusion band = lowest allocated band edge frequency -320 MHz, i.e. 4 830 MHz;
• as the immunity requirements have an upper frequency range of 6 GHz and any upper edge exclusion band
would be greater than this for both the 5 470 MHz to 5 725 MHz and 5 725 MHz to 5 850 MHz bands.
Therefore the test stops at the lower limit of exclusion band (i.e. 4 830 MHz).NOTE: This is based upon a channel size of 80 MHz and a value of n = 4 from ETSI EN 301 489-1 [1],
clause 4.3.3.4.3.4 Wireless Access Systems (WAS); 5,8 GHz fixed broadband data
transmitting systems
The exclusion
...

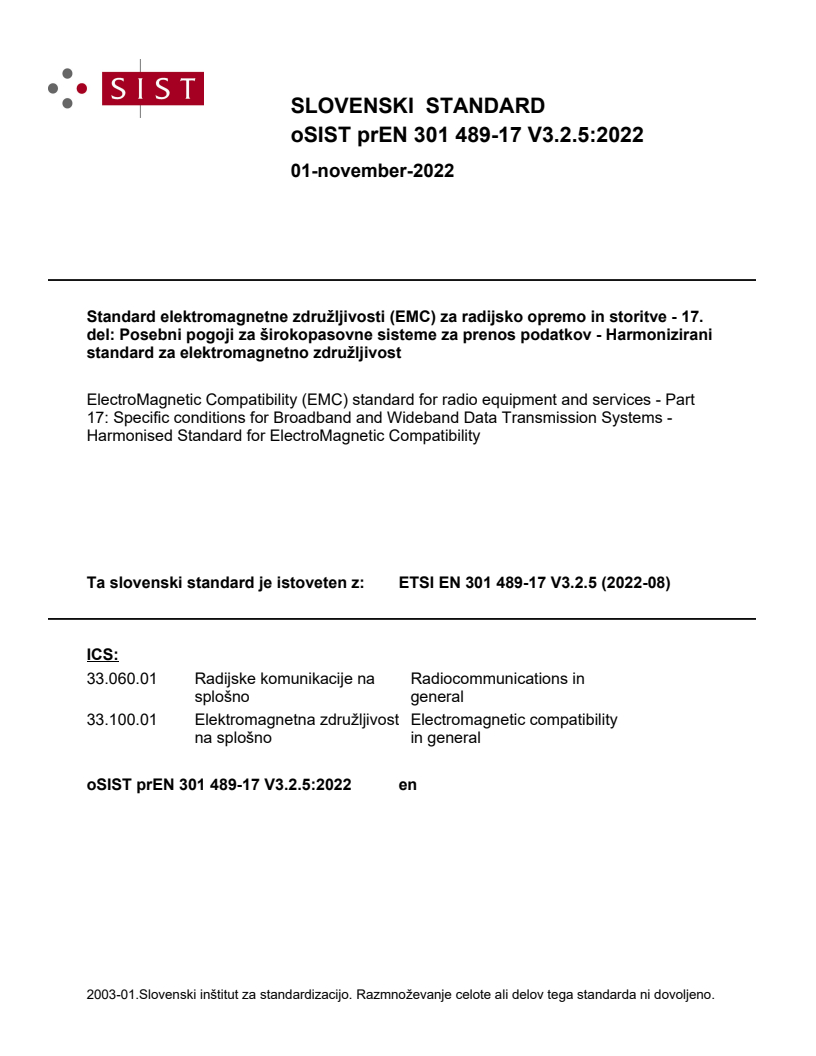

SLOVENSKI STANDARD
oSIST prEN 301 489-17 V3.2.5:2022
01-november-2022
Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 17.
del: Posebni pogoji za širokopasovne sisteme za prenos podatkov - Harmoniziranistandard za elektromagnetno združljivost
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part
17: Specific conditions for Broadband and Wideband Data Transmission Systems -Harmonised Standard for ElectroMagnetic Compatibility
Ta slovenski standard je istoveten z: ETSI EN 301 489-17 V3.2.5 (2022-08)
ICS:
33.060.01 Radijske komunikacije na Radiocommunications in
splošno general
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
oSIST prEN 301 489-17 V3.2.5:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------oSIST prEN 301 489-17 V3.2.5:2022
---------------------- Page: 2 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
Draft ETSI EN 301 489-17 V3.2.5 (2022-08)

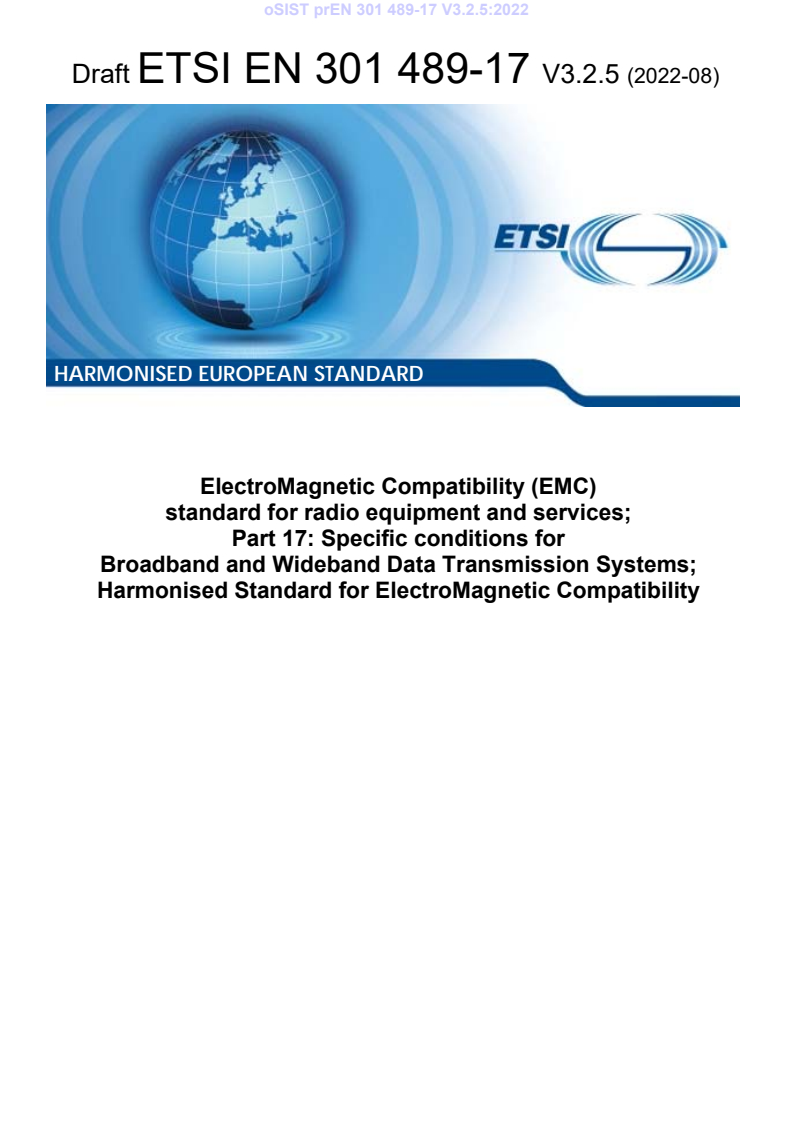

HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 17: Specific conditions for
Broadband and Wideband Data Transmission Systems;
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 3 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
2 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Reference
REN/ERM-EMC-409
Keywords
EMC, harmonised standard, radio
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspxIf you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspxIf you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.© ETSI 2022.
All rights reserved.
ETSI
---------------------- Page: 4 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
3 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Contents
Intellectual Property Rights ................................................................................................................................ 4
Foreword ............................................................................................................................................................. 4
Modal verbs terminology .................................................................................................................................... 5
1 Scope ........................................................................................................................................................ 6
2 References ................................................................................................................................................ 6
2.1 Normative references ......................................................................................................................................... 6
2.2 Informative references ........................................................................................................................................ 7
3 Definition of terms, symbols and abbreviations ....................................................................................... 7
3.1 Terms .................................................................................................................................................................. 7
3.2 Symbols .............................................................................................................................................................. 8
3.3 Abbreviations ..................................................................................................................................................... 8
4 Test conditions ......................................................................................................................................... 9
4.1 General ............................................................................................................................................................... 9
4.2 Arrangements for test signals ............................................................................................................................. 9
4.2.1 Arrangements for test signals at the input of transmitters ............................................................................. 9
4.2.2 Arrangements for test signals at the output of transmitters ........................................................................... 9
4.2.3 Arrangements for test signals at the input of receivers ................................................................................. 9
4.2.4 Arrangements for test signals at the output of receivers ............................................................................... 9
4.2.5 Arrangements for testing transmitter and receiver together (as a system) .................................................. 10
4.2.6 Equipment with an external antenna connector .......................................................................................... 10
4.2.7 Equipment without an external antenna connector (integral antenna) ........................................................ 10
4.2.8 Equipment with more than one antenna ...................................................................................................... 10
4.3 Exclusion bands ................................................................................................................................................ 10
4.3.1 General ........................................................................................................................................................ 10
4.3.2 Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz band ................ 11
4.3.3 5 GHz RLAN .............................................................................................................................................. 11
4.3.4 Wireless Access Systems (WAS); 5,8 GHz fixed broadband data transmitting systems ............................ 11
4.4 Void .................................................................................................................................................................. 11
4.5 Normal test modulation .................................................................................................................................... 11
5 Performance assessment ......................................................................................................................... 11
5.1 General ............................................................................................................................................................. 11
5.2 Arrangements for the assessment of host dependent equipment and plug-in cards .......................................... 12
5.3 Assessment procedures ..................................................................................................................................... 12
6 Performance criteria ............................................................................................................................... 12
6.1 General performance criteria ............................................................................................................................ 12
6.2 Performance table ............................................................................................................................................. 13
6.2.1 Performance criteria overview .................................................................................................................... 13
6.2.2 Minimum performance level....................................................................................................................... 13
6.3 Performance criteria for Continuous phenomena ............................................................................................. 13
6.4 Performance criteria for Transient phenomena ................................................................................................ 13
7 Requirements .......................................................................................................................................... 13
7.1 Emission ........................................................................................................................................................... 13
7.1.1 General ........................................................................................................................................................ 13
7.2 Immunity .......................................................................................................................................................... 14
7.2.1 General ........................................................................................................................................................ 14
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU ......................................................... 16
Annex B (informative): Change History .............................................................................................. 18
History .............................................................................................................................................................. 19
ETSI---------------------- Page: 5 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
4 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ForewordThis draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.12] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated
EFTA regulations.The present document is part 17 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Proposed national transposition datesDate of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
ETSI---------------------- Page: 6 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
5 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions)."must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI---------------------- Page: 7 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
6 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
1 Scope
The present document specifies technical characteristics and methods of measurements for broadband and wideband
data transmission system equipment including the associated ancillary equipment in respect of electromagnetic
compatibility, as detailed in table 1.Technical specifications related to the antenna port and emissions from the enclosure port of the radio equipment are
not included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum.The present document specifies the applicable test conditions, performance assessment and performance criteria for
broadband and wideband data transmission systems as detailed in table 1.NOTE: In the context of the present document, broadband and wideband are interchangeable.
Table 1: Radio Technologies in scope of the present documentTechnology ETSI Standard
Wideband transmission systems;
ETSI EN 300 328 [i.8]
Data transmission equipment operating in the 2,4 GHz band
5 GHz RLAN ETSI EN 301 893 [i.3]
6 GHz WAS/RLAN ETSI EN 303 687 [i.2]
Wireless Access Systems (WAS);
ETSI EN 302 502 [i.4]
5,8 GHz fixed broadband data transmitting systems;
Multi-Gigabit Wireless Systems (MGWS) in the 60 GHz band ETSI EN 302 567 [i.6]
Wideband Data Transmission Systems (WDTS) for Fixed Network Radio
ETSI EN 303 722 [i.5]
Equipment operating in the 57 GHz to 71 GHz band
Emissions requirements in the present document are specified for frequencies above 9 kHz.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or non-
specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for
ElectroMagnetic Compatibility".ETSI
---------------------- Page: 8 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
7 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.[i.1] Directive 2014/53/EU of the European Parliament and of the council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.[i.2] ETSI EN 303 687: "6 GHz WAS/RLAN; Harmonised Standard for access to radio spectrum".
[i.3] ETSI EN 301 893: "5 GHz WAS/RLAN; Harmonised Standard for access to radio spectrum".
[i.4] ETSI EN 302 502 (V2.1.3): "Wireless Access Systems (WAS); 5,8 GHz fixed broadband data
transmitting systems; Harmonised Standard for access to radio spectrum".[i.5] ETSI EN 303 722: "Wideband Data Transmission Systems (WDTS) for Fixed Network Radio
Equipment operating in the 57 GHz to 71 GHz band; Harmonised Standard for access to radio
spectrum".[i.6] ETSI EN 302 567: "Multiple-Gigabit/s radio equipment operating in the 60 GHz band;
Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU".
[i.7] Void.[i.8] ETSI EN 300 328: "Wideband transmission systems; Data transmission equipment operating in the
2,4 GHz band; Harmonised Standard for access to radio spectrum".[i.9] Void.
[i.10] Void.
[i.11] Void.
[i.12] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:
ancillary equipment: electrical or electronic equipment, that is intended to be used with a receiver or transmitter
NOTE 1: It is considered as an ancillary equipment if: the equipment is intended for use with a receiver or transmitter to provide additional operational
and/or control features to the radio equipment, (e.g. to extend control to another position or
location); and the ancillary equipment cannot be used without being connected to radio equipment to provide user
functions independently of a receiver or transmitter; andETSI
---------------------- Page: 9 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
8 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
the receiver or transmitter, to which it is connected, is capable of providing some intended
operation such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a
sub-unit of the main equipment essential to the main equipment basic functions).NOTE 2: An example of ancillary equipment would be a docking station for radio equipment whose interface is
dedicated to a particular product or range of products.Equipment Under Test (EUT): equipment subject to the performance requirements of the present document
fixed equipment: equipment intended for use in a fixed location and fitted with one or more antennas
NOTE: The equipment may be fitted with either antenna socket(s) or integral antenna(s) or both.
host: any equipment which has complete user functionality when not connected to the radio equipment part and to
which the radio equipment part provides additional functionality and to which connection is necessary for the radio
equipment part to offer functionalityplug-in radio device: equipment, including slide-in radio cards, intended to be used with or within a variety of host
systems, using their control functions and power supplyportable equipment: radio equipment intended for portable use and powered by integral batteries or battery
NOTE: Devices will typically be handheld.stand-alone radio equipment: equipment that is intended primarily as communications equipment and that is normally
used on a stand-alone basisvehicular equipment: radio equipment intended for installation and use in a vehicle, and powered by the main battery
of the vehicle3.2 Symbols
For the purposes of the present document, the following symbols apply:
Pmin minimum power required to establish a communication link
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ACK ACKnowledgement
ARQ Automatic Retransmission reQuest
DC Direct Current
EMC ElectroMagnetic Compatibility
ERM EMC and Radio Spectrum Matters
EUT Equipment Under Test
FER Frame Error Rate
MGWS Multi-Gigabit Wireless Systems
NACK Not ACKnowledgement
PER Packet Error Rate
RF Radio Frequency
RLAN Radio Local Area Network
ETSI
---------------------- Page: 10 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
9 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
4 Test conditions
4.1 General
For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4, shall apply as
appropriate. Further product related test conditions for wideband data communications systems are specified in
clauses 4.2 to 4.5.The radio equipment may take forms which may require special software and/or test fixtures. Equipment which requires
connection to a host equipment to function shall use a test configuration representative of the EUT's intended use and
shall be recorded in the test report.4.2 Arrangements for test signals
4.2.1 Arrangements for test signals at the input of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.1 shall apply with the following modifications.
The wanted signals and/or controls required to establish a communication link and shall be representative of the EUTs
intended use.The transmitter shall be operated at maximum rated power.
4.2.2 Arrangements for test signals at the output of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modifications.
A suitable companion receiver shall be used to receive messages or to set up a communication link.
4.2.3 Arrangements for test signals at the input of receiversThe provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following modifications.
For radiated immunity tests, the level of the wanted signal at the input of the receiver or the enclosure port of the EUT,
shall be 30 dB (±6 dB) above the Pmin for the EUT. For all other tests the level of the wanted signal, required to
establish a communication link, shall be representative of the EUT intended use.NOTE: Simple method to establish the required communication link is establish link, reduce power to point of
link failure then increase by 30 dB (±6 dB).4.2.4 Arrangements for test signals at the output of receivers
The measuring equipment for the output signal from the receiver under test shall be located outside the test
environment.It shall be possible to assess the performance of the equipment by appropriately monitoring the receiver output.
If the receiver has an output connector or port providing the wanted output signal, then this port shall be used via a
cable, consistent with the standard cable used in normal operation, connected to the external measuring equipment
outside the test environment.A suitable companion transmitter shall be used to transmit messages or to set up a communication link.
ETSI---------------------- Page: 11 ----------------------
oSIST prEN 301 489-17 V3.2.5:2022
10 Draft ETSI EN 301 489-17 V3.2.5 (2022-08)
4.2.5 Arrangements for testing transmitter and receiver together
(as a system)
Standalone receivers and transmitters shall be tested separately. Transceivers shall be tested so that operation in each
direction is confirmed.A suitable companion transceiver or transmitter and receiver shall be used to send and receive messages or to set up a
communication link.Both the EUT and the companion equipment shall transmit the normal test modulation. Further, the output of the radio
equipment under test shall be monitored by the test system.4.2.6 Equipment with an external antenna connector
If access to the antenna connector involves modification or dismantling of the EUT then this clause does not apply.
The EUT may be tested with its antenna removed.In the case of testing with the antenna removed, the wanted RF input and output signals shall be delivered between the
EUT antenna connector and the measuring and/or test equipment by a shielded transmission line, such as a coaxial
cable.4.2.7 Equipment without an external antenna connector (integral antenna)
This clause applies to EUT to which clause 4.2.6 does not apply. Such EUT are generally known as integral antenna or
dedicated antenna equipment.The EUT shall be tested with its antenna fitted in a manner typical of intended use.
4.2.8 Equipment with more than one antennaIf the EUT has more than one antenna port, e.g. separate antennas for Tx and Rx or separate antennas for different
operating frequencies or diversity antennas, then:• If clause 4.2.6 applies to all the antenna ports, then the EUT may be tested according to clause 4.2.6, with all
antenna ports treated the same.• Otherwise it shall be tested according to clause 4.2.7.
NOTE: The reason is that replacing one antenna by a transmission line may affect the operation of any other
antennas.4.3 Exclusion bands
4.3.1 General
The frequencies on which the transmitter part of the EUT is intended to operate shall be excluded from radiated
emission measurements when performed in transmit mode of operation.There shall be no frequency exclusion band applied to emission measurements of the receiver part of transceivers or the
standalone receiver under test, and/or associated ancillary equipment.For EUT that operate above 6 GHz there is no exclusion band specified as test ranges stop at 6 GHz.
NOTE: All of the receiver exclusion band ranges detailed within clauses 4.3.2, 4.3.3 and 4.3.4 also cover the relevant
blocking test ranges specified in the relevant produc...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
