SIST EN 301 489-19 V2.2.1:2022
(Main)ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part 19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band providing data communications and GNSS receivers operating in the RNSS band providing positioning, navigation, and timing data - Harmonised Standard for ElectroMagnetic Compatibility
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part 19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band providing data communications and GNSS receivers operating in the RNSS band providing positioning, navigation, and timing data - Harmonised Standard for ElectroMagnetic Compatibility
The present document covers the assessment of Receive Only Mobile Earth Stations (ROMES) and Global Navigation
Satellite System (GNSS) receivers in respect of electromagnetic compatibility.
ROMES operate in the Land Mobile Satellite Service (LMSS) space to earth bands, 1 518 MHz to 1 559 MHz,
allocated by the ITU Radio Regulations [i.3]. ROMES operate as part of a satellite system providing one way data
communications.
Global Navigation Satellite System (GNSS) receivers operate in either or both of the space to earth RNSS frequency
bands of 1 164 MHz to 1 300 MHz and 1 559 MHz to 1 610 MHz defined as "A radiodetermination-satellite service
used for the purpose of radionavigation" (article 1.43 of ITU Radio Regulations [i.3]) with the ability to receive any
GNSS (e.g. Galileo, Global Positioning System (GPS), BeiDou (BDS), GLObal NAvigation Satellite System
(GLONASS), Space Based Augmentation Systems (SBAS)).
Technical specifications related to the antenna port and emissions from the enclosure port of ROMES and GNSS are not
included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum in table 1.
Emissions requirements in the present document are specified for frequencies above 9 kHz.
The present document specifies the applicable test conditions, performance assessment and performance criteria for
ROMES, GNSS and associated ancillary equipment.
ROMESs and GNSS can have several configurations, including:
• vehicular equipment;
• portable equipment;
• fixed equipment;
• a number of modules including a display/control interface to the user.
The performance criteria used in the present document require that the satellite communications system of which the
ROMES and GNSS is a part provides reliable delivery of data or messages.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.
Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 19. del: Posebni pogoji za sprejemne mobilne zemeljske postaje (ROMES), ki delujejo v pasu 1,5 GHz in zagotavljajo podatkovne komunikacije, ter za sprejemnike GNSS, ki delujejo v pasu RNSS (ROGNSS) in zagotavljajo določanje položaja, navigacijo in časovne podatke - Harmonizirani standard za elektromagnetno združljivost
Ta dokument zajema oceno sprejemnih mobilnih zemeljskih postaj (ROMES) in sprejemnikov globalnega navigacijskega satelitskega sistema (GNSS) v zvezi z elektromagnetno združljivostjo.
Sprejemne mobilne zemeljske postaje delujejo v pasovih vesolje-Zemlja kopenskih mobilnih satelitskih storitev (LMSS), v območju od 1518 MHz do 1559 MHz, dodeljenih na podlagi Pravilnika o radiokomunikacijah ITU [i.3]. Sprejemne mobilne zemeljske postaje delujejo kot del satelitskega sistema, ki zagotavlja enosmerne podatkovne komunikacije.
Sprejemniki globalnega navigacijskega satelitskega sistema delujejo v enem ali obeh frekvenčnih pasovih vesolje-Zemlja RNSS, v območju od 1164 MHz do 1300 MHz in od 1559 MHz do 1610 MHz, opredeljenih kot »radiodeterminacijska satelitska storitev za radijsko navigacijo« (člen 1.43 Pravilnika o radiokomunikacijah ITU [i.13]), ki lahko sprejema signal katerega koli
globalnega navigacijskega satelitskega sistema (npr. Galileo, Global Positioning System (GPS), BeiDou (BDS), Global Navigation Satellite System
(GLONASS), Space Based Augmentation Systems (SBAS)).
Ta dokument ne vključuje tehničnih specifikacij v zvezi z antenskim vhodom in sevanjem iz vhoda na ohišju
sprejemne mobilne zemeljske postaje in globalnega navigacijskega satelitskega sistema. Takšne tehnične specifikacije so navedene v ustreznih standardih za izdelek na področju
učinkovite uporabe radijskega spektra (preglednica 1).
Zahteve glede sevanja v tem dokumentu so določene za frekvence nad 9 kHz.
Ta dokument določa veljavne preskusne pogoje, oceno zmogljivosti in merila zmogljivosti za
sprejemno mobilno zemeljsko postajo, globalni navigacijski satelitski sistem ter povezano pomožno opremo.
Sprejemne mobilne zemeljske postaje in globalni navigacijski satelitski sistem imajo lahko več konfiguracij, vključno s/z:
• opremo vozil;
• prenosno opremo;
• fiksno opremo;
• več moduli, vključno z zaslonom/krmilnim vmesnikom za uporabnika.
Kriteriji zmogljivosti v tem dokumentu zahtevajo, da satelitski komunikacijski sistem, katerega del sta sprejemna mobilna zemeljska postaja in globalni navigacijski satelitski sistem, zagotavlja zanesljivo dostavo podatkov ali sporočil.
Okoljska razvrstitev ter zahteve glede sevanja in odpornosti iz tega dokumenta so navedene v standardu ETSI EN 301 489-1 [1], razen posebnih pogojev iz tega dokumenta.
OPOMBA: Razmerje med tem dokumentom in bistvenimi zahtevami člena 3.1(b) Direktive 2014/53/EU [i.1] je podano v dodatku A.
General Information
Buy Standard
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 301 489-19 V2.2.1:2022
01-oktober-2022
Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 19.
del: Posebni pogoji za sprejemne mobilne zemeljske postaje (ROMES), ki delujejo
v pasu 1,5 GHz in zagotavljajo podatkovne komunikacije, ter za sprejemnike
GNSS, ki delujejo v pasu RNSS (ROGNSS) in zagotavljajo določanje položaja,
navigacijo in časovne podatke - Harmonizirani standard za elektromagnetno
združljivost
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part
19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the
1,5 GHz band providing data communications and GNSS receivers operating in the
RNSS band providing positioning, navigation, and timing data - Harmonised Standard for
ElectroMagnetic Compatibility
Ta slovenski standard je istoveten z: ETSI EN 301 489-19 V2.2.1 (2022-09)
ICS:
33.060.01 Radijske komunikacije na Radiocommunications in
splošno general
33.070.40 Satelit Satellite
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
SIST EN 301 489-19 V2.2.1:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 301 489-19 V2.2.1:2022
---------------------- Page: 2 ----------------------
SIST EN 301 489-19 V2.2.1:2022
ETSI EN 301 489-19 V2.2.1 (2022-09)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 19: Specific conditions for Receive Only Mobile
Earth Stations (ROMES) operating in the 1,5 GHz band
providing data communications and GNSS receivers operating
in the RNSS band providing positioning, navigation,
and timing data;
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 3 ----------------------
SIST EN 301 489-19 V2.2.1:2022
2 ETSI EN 301 489-19 V2.2.1 (2022-09)
Reference
REN/ERM-EMC-406
Keywords
data, earth station, EMC, GNSS,
harmonised standard, mobile, MSS, radio,
receiver, regulation, satellite, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2022.
All rights reserved.
ETSI
---------------------- Page: 4 ----------------------
SIST EN 301 489-19 V2.2.1:2022
3 ETSI EN 301 489-19 V2.2.1 (2022-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 8
3.1 Terms . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Test conditions . 9
4.1 General . 9
4.2 Arrangements for test signals . 9
4.2.0 General . 9
4.2.1 Arrangements for test signals at the input of ROMES and GNSS receivers . 9
4.2.2 Arrangements for test signals at the output of ROMES and GNSS receivers. 9
4.3 Exclusion bands . 10
4.3.0 General . 10
4.3.1 Receiver exclusion bands . 10
4.3.1.1 General . 10
4.3.1.2 GNSS exclusion bands . 10
4.3.1.3 ROMES Exclusion Bands . 10
4.3.1.4 Combined Equipment GNSS & ROMES . 11
4.3.1.5 Exclusion Bands Summary . 11
4.4 Narrow band responses of receivers . 11
4.5 Normal test modulation . 11
5 Performance assessment . 12
5.1 General . 12
5.2 Ancillary equipment . 12
6 Performance criteria . 12
6.0 Introduction . 12
6.1 Performance criteria for Continuous phenomena . 12
6.2 Performance criteria for Transient phenomena . 12
7 Applicability overview . 13
7.1 Emission . 13
7.1.1 General . 13
7.1.2 Special conditions . 13
7.2 Immunity . 13
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 15
Annex B (informative): Void . 17
Annex C (informative): Change history . 18
History . 19
ETSI
---------------------- Page: 5 ----------------------
SIST EN 301 489-19 V2.2.1:2022
4 ETSI EN 301 489-19 V2.2.1 (2022-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 19 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
National transposition dates
Date of adoption of this EN: 30 August 2022
Date of latest announcement of this EN (doa): 30 November 2022
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 May 2023
Date of withdrawal of any conflicting National Standard (dow): 31 May 2024
ETSI
---------------------- Page: 6 ----------------------
SIST EN 301 489-19 V2.2.1:2022
5 ETSI EN 301 489-19 V2.2.1 (2022-09)
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
---------------------- Page: 7 ----------------------
SIST EN 301 489-19 V2.2.1:2022
6 ETSI EN 301 489-19 V2.2.1 (2022-09)
1 Scope
The present document covers the assessment of Receive Only Mobile Earth Stations (ROMES) and Global Navigation
Satellite System (GNSS) receivers in respect of electromagnetic compatibility.
ROMES operate in the Land Mobile Satellite Service (LMSS) space to earth bands, 1 518 MHz to 1 559 MHz,
allocated by the ITU Radio Regulations [i.3]. ROMES operate as part of a satellite system providing one way data
communications.
Global Navigation Satellite System (GNSS) receivers operate in either or both of the space to earth RNSS frequency
bands of 1 164 MHz to 1 300 MHz and 1 559 MHz to 1 610 MHz defined as "A radiodetermination-satellite service
used for the purpose of radionavigation" (article 1.43 of ITU Radio Regulations [i.3]) with the ability to receive any
GNSS (e.g. Galileo, Global Positioning System (GPS), BeiDou (BDS), GLObal NAvigation Satellite System
(GLONASS), Space Based Augmentation Systems (SBAS)).
Technical specifications related to the antenna port and emissions from the enclosure port of ROMES and GNSS are not
included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum in table 1.
Table 1: Radio Technologies in Scope of the present document
Technology ETSI Standard
ROMES ETSI EN 300 487 [i.4]: "Satellite Earth Stations and Systems (SES); Harmonised Standard for
Receive-Only Mobile Earth Stations (ROMES) providing data communications operating in the 1,5 GHz
frequency band; Radio Frequency (RF) specifications covering the essential requirements of article 3.2
of the Directive 2014/53/EU".
GNSS ETSI EN 303 413 [i.5]: "Satellite Earth Stations and Systems (SES);Global Navigation Satellite System
(GNSS) receivers; Radio equipment operating in the 1 164 MHz to 1 300 MHz and 1 559 MHz to
1 610 MHz frequency bands; Harmonised Standard covering the essential requirements of article 3.2
of Directive 2014/53/EU".
Emissions requirements in the present document are specified for frequencies above 9 kHz.
The present document specifies the applicable test conditions, performance assessment and performance criteria for
ROMES, GNSS and associated ancillary equipment.
ROMESs and GNSS can have several configurations, including:
• vehicular equipment;
• portable equipment;
• fixed equipment;
• a number of modules including a display/control interface to the user.
The performance criteria used in the present document require that the satellite communications system of which the
ROMES and GNSS is a part provides reliable delivery of data or messages.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.
ETSI
---------------------- Page: 8 ----------------------
SIST EN 301 489-19 V2.2.1:2022
7 ETSI EN 301 489-19 V2.2.1 (2022-09)
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for
ElectroMagnetic Compatibility".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.3] ITU Radio Regulations (2016).
[i.4] ETSI EN 300 487 (V2.1.2) (11-2016): "Satellite Earth Stations and Systems (SES); Harmonised
Standard for Receive-Only Mobile Earth Stations (ROMES) providing data communications
operating in the 1,5 GHz frequency band; Radio Frequency (RF) specifications cove
...
ETSI EN 301 489-19 V2.2.1 (2022-09)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 19: Specific conditions for Receive Only Mobile
Earth Stations (ROMES) operating in the 1,5 GHz band
providing data communications and GNSS receivers operating
in the RNSS band providing positioning, navigation,
and timing data;
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 1 ----------------------
2 ETSI EN 301 489-19 V2.2.1 (2022-09)
Reference
REN/ERM-EMC-406
Keywords
data, earth station, EMC, GNSS,
harmonised standard, mobile, MSS, radio,
receiver, regulation, satellite, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2022.
All rights reserved.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 301 489-19 V2.2.1 (2022-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 8
3.1 Terms . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Test conditions . 9
4.1 General . 9
4.2 Arrangements for test signals . 9
4.2.0 General . 9
4.2.1 Arrangements for test signals at the input of ROMES and GNSS receivers . 9
4.2.2 Arrangements for test signals at the output of ROMES and GNSS receivers. 9
4.3 Exclusion bands . 10
4.3.0 General . 10
4.3.1 Receiver exclusion bands . 10
4.3.1.1 General . 10
4.3.1.2 GNSS exclusion bands . 10
4.3.1.3 ROMES Exclusion Bands . 10
4.3.1.4 Combined Equipment GNSS & ROMES . 11
4.3.1.5 Exclusion Bands Summary . 11
4.4 Narrow band responses of receivers . 11
4.5 Normal test modulation . 11
5 Performance assessment . 12
5.1 General . 12
5.2 Ancillary equipment . 12
6 Performance criteria . 12
6.0 Introduction . 12
6.1 Performance criteria for Continuous phenomena . 12
6.2 Performance criteria for Transient phenomena . 12
7 Applicability overview . 13
7.1 Emission . 13
7.1.1 General . 13
7.1.2 Special conditions . 13
7.2 Immunity . 13
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 15
Annex B (informative): Void . 17
Annex C (informative): Change history . 18
History . 19
ETSI
---------------------- Page: 3 ----------------------
4 ETSI EN 301 489-19 V2.2.1 (2022-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 19 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
National transposition dates
Date of adoption of this EN: 30 August 2022
Date of latest announcement of this EN (doa): 30 November 2022
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 May 2023
Date of withdrawal of any conflicting National Standard (dow): 31 May 2024
ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 301 489-19 V2.2.1 (2022-09)
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 301 489-19 V2.2.1 (2022-09)
1 Scope
The present document covers the assessment of Receive Only Mobile Earth Stations (ROMES) and Global Navigation
Satellite System (GNSS) receivers in respect of electromagnetic compatibility.
ROMES operate in the Land Mobile Satellite Service (LMSS) space to earth bands, 1 518 MHz to 1 559 MHz,
allocated by the ITU Radio Regulations [i.3]. ROMES operate as part of a satellite system providing one way data
communications.
Global Navigation Satellite System (GNSS) receivers operate in either or both of the space to earth RNSS frequency
bands of 1 164 MHz to 1 300 MHz and 1 559 MHz to 1 610 MHz defined as "A radiodetermination-satellite service
used for the purpose of radionavigation" (article 1.43 of ITU Radio Regulations [i.3]) with the ability to receive any
GNSS (e.g. Galileo, Global Positioning System (GPS), BeiDou (BDS), GLObal NAvigation Satellite System
(GLONASS), Space Based Augmentation Systems (SBAS)).
Technical specifications related to the antenna port and emissions from the enclosure port of ROMES and GNSS are not
included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum in table 1.
Table 1: Radio Technologies in Scope of the present document
Technology ETSI Standard
ROMES ETSI EN 300 487 [i.4]: "Satellite Earth Stations and Systems (SES); Harmonised Standard for
Receive-Only Mobile Earth Stations (ROMES) providing data communications operating in the 1,5 GHz
frequency band; Radio Frequency (RF) specifications covering the essential requirements of article 3.2
of the Directive 2014/53/EU".
GNSS ETSI EN 303 413 [i.5]: "Satellite Earth Stations and Systems (SES);Global Navigation Satellite System
(GNSS) receivers; Radio equipment operating in the 1 164 MHz to 1 300 MHz and 1 559 MHz to
1 610 MHz frequency bands; Harmonised Standard covering the essential requirements of article 3.2
of Directive 2014/53/EU".
Emissions requirements in the present document are specified for frequencies above 9 kHz.
The present document specifies the applicable test conditions, performance assessment and performance criteria for
ROMES, GNSS and associated ancillary equipment.
ROMESs and GNSS can have several configurations, including:
• vehicular equipment;
• portable equipment;
• fixed equipment;
• a number of modules including a display/control interface to the user.
The performance criteria used in the present document require that the satellite communications system of which the
ROMES and GNSS is a part provides reliable delivery of data or messages.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 301 489-19 V2.2.1 (2022-09)
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for
ElectroMagnetic Compatibility".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.3] ITU Radio Regulations (2016).
[i.4] ETSI EN 300 487 (V2.1.2) (11-2016): "Satellite Earth Stations and Systems (SES); Harmonised
Standard for Receive-Only Mobile Earth Stations (ROMES) providing data communications
operating in the 1,5 GHz frequency band; Radio Frequency (RF) specifications covering the
essential requirements of article 3.2 of the Directive 2014/53/EU".
[i.5] ETSI EN 303 413 (V1.2.1) (04-2021): "Satellite Earth Stations and Systems (SES); Global
Navigation Satellite System (GNSS) receivers; Radio equipment operating in the 1 164 MHz to
1 300 MHz and 1 559 MHz to 1 610 MHz frequency bands; Harmonised Standard for access to
radio spectrum".
ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 301 489-19 V2.2.1 (2022-09)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 301 489-1 [
...
Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 19: Specific conditions for Receive Only Mobile
Earth Stations (ROMES) operating in the 1,5 GHz band
providing data communications and GNSS receivers operating
in the RNSS band providing positioning, navigation,
and timing data;
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 1 ----------------------
2 Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
Reference
REN/ERM-EMC-406
Keywords
data, earth station, EMC, GNSS, harmonised
standard, mobile, MSS, radio, receiver, regulation,
satellite, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2022.
All rights reserved.
ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 8
3.1 Terms . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Test conditions . 9
4.1 General . 9
4.2 Arrangements for test signals . 9
4.2.0 General . 9
4.2.1 Arrangements for test signals at the input of ROMES and GNSS receivers . 9
4.2.2 Arrangements for test signals at the output of ROMES and GNSS receivers. 9
4.3 Exclusion bands . 10
4.3.0 General . 10
4.3.1 Receiver exclusion bands . 10
4.3.1.1 General . 10
4.3.1.2 GNSS exclusion bands . 10
4.3.1.3 ROMES Exclusion Bands . 10
4.3.1.4 Combined Equipment GNSS & ROMES . 11
4.3.1.5 Exclusion Bands Summary . 11
4.4 Narrow band responses of receivers . 11
4.5 Normal test modulation . 11
5 Performance assessment . 12
5.1 General . 12
5.2 Ancillary equipment . 12
6 Performance criteria . 12
6.0 Introduction . 12
6.1 Performance criteria for Continuous phenomena . 12
6.2 Performance criteria for Transient phenomena . 12
7 Applicability overview . 13
7.1 Emission . 13
7.1.1 General . 13
7.1.2 Special conditions . 13
7.2 Immunity . 13
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 15
Annex B (informative): Void . 17
Annex C (informative): Change history . 18
History . 19
ETSI
---------------------- Page: 3 ----------------------
4 Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This final draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Vote phase of the
ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation

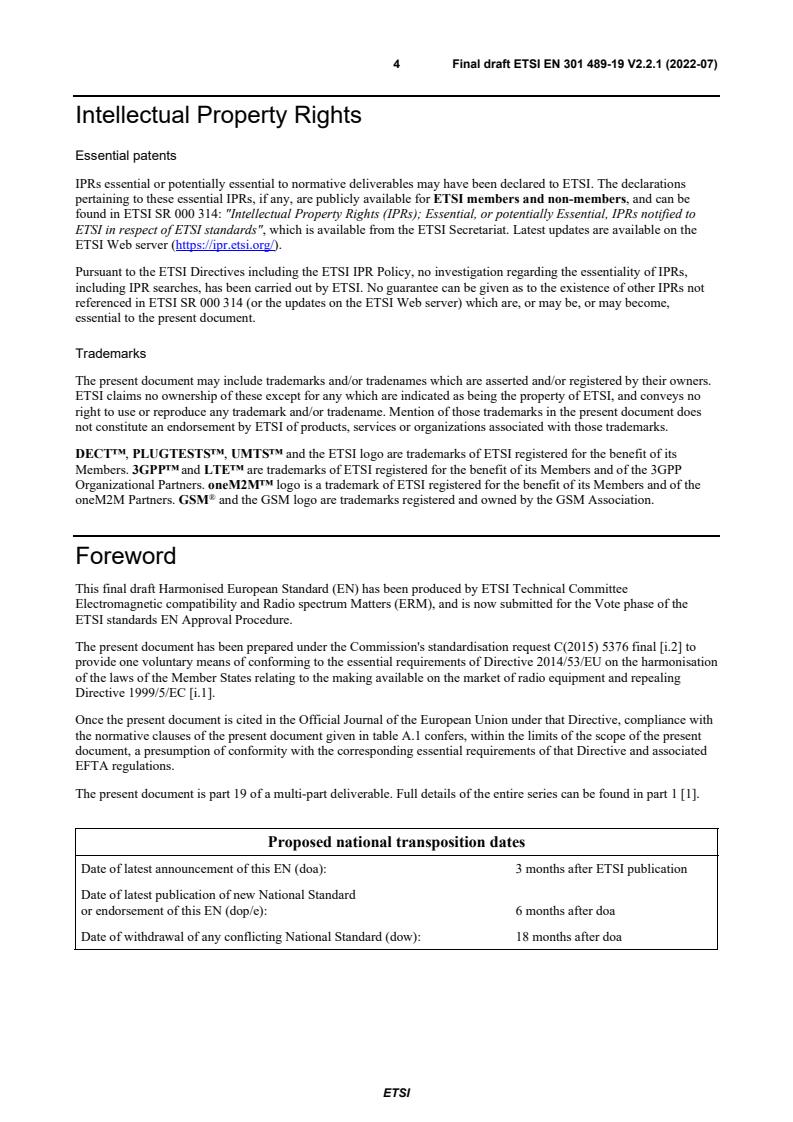

of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 19 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
1 Scope
The present document covers the assessment of Receive Only Mobile Earth Stations (ROMES) and Global Navigation
Satellite System (GNSS) receivers in respect of electromagnetic compatibility.
ROMES operate in the Land Mobile Satellite Service (LMSS) space to earth bands, 1 518 MHz to 1 559 MHz,
allocated by the ITU Radio Regulations [i.3]. ROMES operate as part of a satellite system providing one way data
communications.
Global Navigation Satellite System (GNSS) receivers operate in either or both of the space to earth RNSS frequency
bands of 1 164 MHz to 1 300 MHz and 1 559 MHz to 1 610 MHz defined as "A radiodetermination-satellite service
used for the purpose of radionavigation" (article 1.43 of ITU Radio Regulations [i.3]) with the ability to receive any
GNSS (e.g. Galileo, Global Positioning System (GPS), BeiDou (BDS), GLObal NAvigation Satellite System
(GLONASS), Space Based Augmentation Systems (SBAS)).
Technical specifications related to the antenna port and emissions from the enclosure port of ROMES and GNSS are not
included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum in table 1.
Table 1: Radio Technologies in Scope of the present document
Technology ETSI Standard
ROMES ETSI EN 300 487 [i.4]: "Satellite Earth Stations and Systems (SES); Harmonised Standard for
Receive-Only Mobile Earth Stations (ROMES) providing data communications operating in the 1,5 GHz
frequency band; Radio Frequency (RF) specifications covering the essential requirements of article 3.2
of the Directive 2014/53/EU".
GNSS ETSI EN 303 413 [i.5]: "Satellite Earth Stations and Systems (SES);Global Navigation Satellite System
(GNSS) receivers; Radio equipment operating in the 1 164 MHz to 1 300 MHz and 1 559 MHz to
1 610 MHz frequency bands; Harmonised Standard covering the essential requirements of article 3.2
of Directive 2014/53/EU".
Emissions requirements in the present document are specified for frequencies above 9 kHz.
The present document specifies the applicable test conditions, performance assessment and performance criteria for
ROMES, GNSS and associated ancillary equipment.
ROMESs and GNSS can have several configurations, including:
• vehicular equipment;
• portable equipment;
• fixed equipment;
• a number of modules including a display/control interface to the user.
The performance criteria used in the present document require that the satellite communications system of which the
ROMES and GNSS is a part provides reliable delivery of data or messages.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.
ETSI
---------------------- Page: 6 ----------------------
7 Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or non-
specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for
ElectroMagnetic Compatibility".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.3] ITU Radio Regulations (2016).
[i.4] ETSI EN 300 487 (V2.1.2) (11-2016): "Satellite Earth Stations and Systems (SES); Harmonised
Standard for Receive-Only Mobile Earth Stations (ROMES) providing data communications
operating in the 1,5 GHz frequency band; Radio Frequency (RF) specifications covering the
essential requirements of article 3.2 of the Directive 2014/53/EU".
[i.5] ETSI EN 303 413 (V1.2.1) (04-2021): "Satellite Earth Stations and Systems (SES); Global
Navigation Satellite System (GNSS) receivers; Radio equipment operating in the 1 164 MHz to
1 300 MHz and 1 559 MHz to 1 610 MHz frequency bands; Harmonised Standard for access to
radio spectrum".
ETSI
---------------------- Page: 7 ----------------------
8 Final draft ETSI EN 301 489-19 V2.2.1 (2022-07)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present docu
...
Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 19: Specific conditions for Receive Only Mobile
Earth Stations (ROMES) operating in the 1,5 GHz band
providing data communications and GNSS receivers operating
in the RNSS band providing positioning, navigation,
and timing data;
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
Reference
REN/ERM-EMC-406
Keywords
data, earth station, EMC, GNSS, harmonised
standard, mobile, MSS, radio, receiver,
regulation, satellite, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2020.
All rights reserved.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and
of the oneM2M Partners.
®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 6
3.3 Abbreviations . 7
4 Test conditions . 7
4.1 General . 7
4.2 Arrangements for test signals . 7
4.2.0 General . 7
4.2.1 Arrangements for test signals at the input of ROMES and GNSS receivers . 7
4.2.2 Arrangements for test signals at the output of ROMES and GNSS receivers. 8
4.3 Exclusion bands . 8
4.3.0 General . 8
4.3.1 Receiver exclusion bands . 8
4.3.1.1 General . 8
4.3.1.2 GNSS exclusion bands . 8
4.3.1.3 ROMES Exclusion Bands . 9
4.3.1.4 Combined Equipment GNSS & ROMES . 9
4.3.1.5 Exclusion Bands Summary . 9
4.4 Narrow band responses of receivers . 9
4.5 Normal test modulation . 10
5 Performance assessment . 10
5.1 General . 10
5.2 Ancillary equipment . 10
6 Performance criteria . 10
6.0 Introduction . 10
6.1 Performance criteria for Continuous phenomena . 10
6.2 Performance criteria for Transient phenomena . 10
7 Applicability overview . 11
7.1 Emission . 11
7.1.1 General . 11
7.2 Immunity . 11
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 13
Annex B (informative): Bibliography . 15
Annex C (informative): Change history . 16
History . 17
ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)

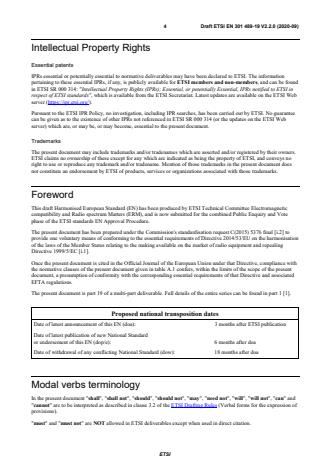

Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 19 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
1 Scope
The present document covers the assessment of Receive Only Mobile Earth Stations (ROMES) and Global Navigation
Satellite System (GNSS) receivers in respect of electromagnetic compatibility.
ROMES operate in the Land Mobile Satellite Service (LMSS) space to earth bands, 1 518 MHz - 1 559 MHz, allocated
by the ITU Radio Regulations [i.3]. ROMES operate as part of a satellite system providing one way data
communications.
Global Navigation Satellite System (GNSS) receivers operate in either or both of the space to earth RNSS frequency
bands of 1 164 MHz to 1 300 MHz and 1 559 MHz to 1 610 MHz defined as "A radiodetermination-satellite service
used for the purpose of radionavigation" (article 1.43 of ITU Radio Regulations [i.3]) with the ability to receive any
GNSS (e.g. Galileo, Global Positioning System (GPS), BeiDou (BDS), GLObal NAvigation Satellite System
(GLONASS), Space Based Augmentation Systems (SBAS)).
Technical specifications related to the antenna port and emissions from the enclosure port of ROMES and GNSS are not
included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum.
The present document specifies the applicable test conditions, performance assessment and performance criteria for
ROMES, GNSS and associated ancillary equipment.
ROMESs and GNSS can have several configurations, including:
• portable equipment;
• fixed equipment;
• a number of modules including a display/control interface to the user.
The performance criteria used in the present document require that the satellite communications system of which the
ROMES and GNSS is a part provides reliable delivery of data or messages.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or non-
specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.3): "ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements; Harmonised Standard for
ElectroMagnetic Compatibility".
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.3] ITU Radio Regulations (2016).
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:
ancillary equipment: electrical or electronic equipment that is intended to be used with a receiver
NOTE: It is considered as an ancillary equipment if:
the equipment is intended for use with a receiver to provide additional operational and/or control
features to the radio equipment (e.g. to extend control to another position or location); and
the ancillary equipment cannot be used without being connected to radio equipment to provide user
functions independently of a receiver; and
the receiver to which it is connected, is capable of providing some intended operation such as
receiving without the ancillary equipment (i.e. it is not a sub-unit of the main equipment essential
to the main equipment basic functions).
Equipment Under Test (EUT): equipment subject to the performance requirements of the present document
fixed equipment: equipment intended for use in a fixed location and fitted with one or more antennas
portable equipment: radio equipment intended for portable use and powered by integral batteries or battery
NOTE: Devices will typically be handheld.
stand-alone radio equipment: equipment that is intended primarily as communications equipment and that is normally
used on a stand-alone basis
vehicular equipment: radio eq
...
SLOVENSKI STANDARD
oSIST prEN 301 489-19 V2.2.0:2020
01-november-2020
Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 19.
del: Posebni pogoji za sprejemne mobilne zemeljske postaje (ROMES), ki delujejo
v pasu 1,5 GHz in zagotavljajo podatkovne komunikacije, ter za sprejemnike
GNSS, ki delujejo v pasu RNSS (ROGNSS) in zagotavljajo določanje položaja,
navigacijo in časovne podatke - Harmonizirani standard za elektromagnetno
združljivost
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part
19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the
1,5 GHz band providing data communications and GNSS receivers operating in the
RNSS band providing positioning, navigation, and timing data - Harmonised Standard for
ElectroMagnetic Compatibility
Ta slovenski standard je istoveten z: ETSI EN 301 489-19 V2.2.0 (2020-09)
ICS:
33.060.01 Radijske komunikacije na Radiocommunications in
splošno general
33.070.40 Satelit Satellite
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
oSIST prEN 301 489-19 V2.2.0:2020 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 301 489-19 V2.2.0:2020
---------------------- Page: 2 ----------------------
oSIST prEN 301 489-19 V2.2.0:2020
Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 19: Specific conditions for Receive Only Mobile
Earth Stations (ROMES) operating in the 1,5 GHz band
providing data communications and GNSS receivers operating
in the RNSS band providing positioning, navigation,
and timing data;
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 3 ----------------------
oSIST prEN 301 489-19 V2.2.0:2020
2 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
Reference
REN/ERM-EMC-406
Keywords
data, earth station, EMC, GNSS, harmonised
standard, mobile, MSS, radio, receiver,
regulation, satellite, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2020.
All rights reserved.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and
of the oneM2M Partners.
®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
---------------------- Page: 4 ----------------------
oSIST prEN 301 489-19 V2.2.0:2020
3 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 6
3.3 Abbreviations . 7
4 Test conditions . 7
4.1 General . 7
4.2 Arrangements for test signals . 7
4.2.0 General . 7
4.2.1 Arrangements for test signals at the input of ROMES and GNSS receivers . 7
4.2.2 Arrangements for test signals at the output of ROMES and GNSS receivers. 8
4.3 Exclusion bands . 8
4.3.0 General . 8
4.3.1 Receiver exclusion bands . 8
4.3.1.1 General . 8
4.3.1.2 GNSS exclusion bands . 8
4.3.1.3 ROMES Exclusion Bands . 9
4.3.1.4 Combined Equipment GNSS & ROMES . 9
4.3.1.5 Exclusion Bands Summary . 9
4.4 Narrow band responses of receivers . 9
4.5 Normal test modulation . 10
5 Performance assessment . 10
5.1 General . 10
5.2 Ancillary equipment . 10
6 Performance criteria . 10
6.0 Introduction . 10
6.1 Performance criteria for Continuous phenomena . 10
6.2 Performance criteria for Transient phenomena . 10
7 Applicability overview . 11
7.1 Emission . 11
7.1.1 General . 11
7.2 Immunity . 11
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 13
Annex B (informative): Bibliography . 15
Annex C (informative): Change history . 16
History . 17
ETSI
---------------------- Page: 5 ----------------------
oSIST prEN 301 489-19 V2.2.0:2020
4 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 19 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
---------------------- Page: 6 ----------------------
oSIST prEN 301 489-19 V2.2.0:2020
5 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
1 Scope
The present document covers the assessment of Receive Only Mobile Earth Stations (ROMES) and Global Navigation
Satellite System (GNSS) receivers in respect of electromagnetic compatibility.
ROMES operate in the Land Mobile Satellite Service (LMSS) space to earth bands, 1 518 MHz - 1 559 MHz, allocated
by the ITU Radio Regulations [i.3]. ROMES operate as part of a satellite system providing one way data
communications.
Global Navigation Satellite System (GNSS) receivers operate in either or both of the space to earth RNSS frequency
bands of 1 164 MHz to 1 300 MHz and 1 559 MHz to 1 610 MHz defined as "A radiodetermination-satellite service
used for the purpose of radionavigation" (article 1.43 of ITU Radio Regulations [i.3]) with the ability to receive any
GNSS (e.g. Galileo, Global Positioning System (GPS), BeiDou (BDS), GLObal NAvigation Satellite System
(GLONASS), Space Based Augmentation Systems (SBAS)).
Technical specifications related to the antenna port and emissions from the enclosure port of ROMES and GNSS are not
included in the present document. Such technical specifications are found in the relevant product standards for the
effective use of the radio spectrum.
The present document specifies the applicable test conditions, performance assessment and performance criteria for
ROMES, GNSS and associated ancillary equipment.
ROMESs and GNSS can have several configurations, including:
• portable equipment;
• fixed equipment;
• a number of modules including a display/control interface to the user.
The performance criteria used in the present document require that the satellite communications system of which the
ROMES and GNSS is a part provides reliable delivery of data or messages.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive
2014/53/EU [i.1] is given in annex A.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or non-
specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.2.3): "ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements; Harmonised Standard for
ElectroMagnetic Compatibility".
ETSI
---------------------- Page: 7 ----------------------
oSIST prEN 301 489-19 V2.2.0:2020
6 Draft ETSI EN 301 489-19 V2.2.0 (2020-09)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.3] ITU Radio Regulations (2016).
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:
ancillary equipment: electrical or electronic equipment that is intended to be used with a receiver
NOTE: It is considered as an ancillary equipment if:
the equipment is intended for use with a receiver to provide additional operational and/or control
features to the radio equipment (e.g. to extend control to another position or location); and
the ancillary equipment cannot be used without being connected to radio equipment to provide user
functions independently of a receiver; and
the receiver to which it is connected, is capable of providing some intended operation such as
receiving without the ancillary equipment (i.e. it is no
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
