SIST EN 300 171 V1.2.1:2005

• Abstract:

  This European Telecommunication Standard (ETS) specifies the service description and control aspects, including functional capabilities and information flows, of standardised circuit-mode bearer services which may be supported by a Private Integrated Services Network (PISN).

• Status: Published
• Publication Date: 30-Apr-2005
• ICS: 33.040.35 - Telephone networks
• Technical Committee: SPN - Services and Protocols for Networks
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-May-2005
• Due Date: 01-May-2005
• Completion Date: 01-May-2005
• Mandate: IT-74
• Ref Project: ETSI EN 300 171 V1.2.1 (1997-09) - Private Integrated Services Network (PISN); Specification, functional models and information flows; Control aspects of circuit-mode basic services [ISO/IEC 11574 (1994) modified]

Overview

SIST EN 300 171 V1.2.1:2005 is a European standard that provides specifications, functional models, and information flows for the control aspects of circuit-mode basic services within Private Integrated Services Networks (PISN). Developed by the Slovenski inštitut za standardizacijo (SIST) and harmonized with ISO/IEC 11574 (1994) with amendments, this standard supports the standardized implementation of telecommunication services in private networks. It establishes the necessary guidelines for describing, managing, and supporting basic bearer and teleservices such as telephony, telefax, and videotex within PISN environments.

Key Topics

• Service Specification: Defines standardized descriptions for circuit-mode basic services such as telephony, telefax group 4, and syntax-based videotex.
• Control Aspects: Details the necessary control mechanisms required to support bearer services, including call establishment, information flow, and compatibility.
• Functional Models: Provides models representing the interaction between network components, supporting seamless service integration.
• Information Flows: Specifies how information is exchanged between PISN users and network entities, ensuring interoperability and service reliability.
• Modifications and Corrections: Incorporates updates and technical corrections to ensure clarity and alignment with related international standards.
• Teleservice Support: Addresses optional support for multiple teleservices with requirements for compatibility and communication attributes.
• Integration with ISDN/OSI Frameworks: Aligns PISN service concepts with Integrated Services Digital Network (ISDN) and Open Systems Interconnection (OSI) standards.

Applications

Implementing SIST EN 300 171 is crucial for organizations seeking to deploy reliable, feature-rich private telecommunication networks. Its applications include:

• Private Corporate Networks: Streamlining voice and data services over internal PISNs, facilitating seamless business communications.
• Virtual Private Networks (VPNs): Enhancing the management of circuit-mode services within enterprise VPN settings.
• Telephony and Fax Solutions: Ensuring standardized, high-quality support for telephone calls and group 4 telefax transmissions in private environments.
• Interoperability: Supporting integration and compatibility across vendors and systems by adhering to agreed protocols and information flows.
• Service Provider Networks: Helping telecommunication service providers build compliant, modular solutions for their private network clients.

Related Standards

SIST EN 300 171 is closely linked with several other key standards in private and integrated service networks:

• ISO/IEC 11574 (1994): International reference for PISN circuit-mode basic services, forming the base document for SIST EN 300 171.
• ETS 300 189: Defines addressing schemes for Private Telecommunication Networks.
• ETS 300 387: Provides methods for specifying basic and supplementary services in private networks.
• ETS 300 475-1: Outlines the reference configuration for PISN exchanges.
• ETS 300 111 / ETS 300 120 / ETS 300 262: Offer detailed service descriptions and requirements for specific teleservices such as 3.1 kHz telephony, group 4 telefax, and videotex.
• ETR 018 / ETR 076: Give additional guidance on ISDN service compatibility and standards application.

---

By adhering to SIST EN 300 171 V1.2.1:2005, organizations ensure robust, standards-compliant operation within private integrated services networks, supporting reliable circuit-mode communications and a foundation for advanced telecommunication services. This document is integral for streamlining network operations, achieving interoperability, and future-proofing private telecommunication infrastructure.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zasebno omrežje z integriranimi storitvami (PISN) - Specifikacija, funkcijski modeli in informacijski pretoki – Vidiki krmiljenja za vodovne osnovne storitve [ISO/IEC 11574 (1994), spremenjen]Private Integrated Services Network (PISN); Specification, functional models and information flows; Control aspects of circuit-mode basic services [ISO/IEC 11574 (1994) modified]33.040.35Telefonska omrežjaTelephone networksICS:Ta slovenski standard je istoveten z:EN 300 171 Version 1.2.1SIST EN 300 171 V1.2.1:2005en01-maj-2005SIST EN 300 171 V1.2.1:2005SLOVENSKI
STANDARD
European Telecommunications Standards Institute EN 300 171 V1.2.1 (1997-09)European Standard (Telecommunications series)Private Integrated Services Network (PISN);Specification, functional models and information flows;Control aspects of circuit-mode basic services[ISO/IEC 11574 (1994) modified]SIST EN 300 171 V1.2.1:2005

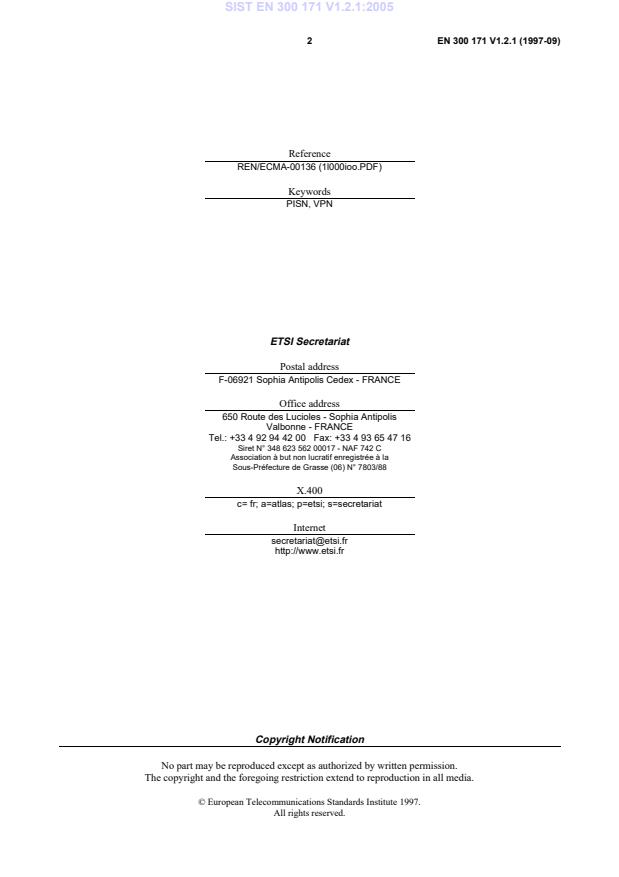

EN 300 171 V1.2.1 (1997-09)2ReferenceREN/ECMA-00136 (1l000ioo.PDF)KeywordsPISN, VPNETSI SecretariatPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88X.400c= fr; a=atlas; p=etsi; s=[e-mail]://www.etsi.frCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1997.All rights reserved.SIST EN 300 171 V1.2.1:2005

EN 300 171 V1.2.1 (1997-09)3ForewordThis European Standard (EN) has been produced by ECMA on behalf of its members and those of the EuropeanTelecommunications Standards Institute (ETSI).The present document is one of a series of standards defining services and signalling protocols applicable to PrivateIntegrated Services Networks (PISN). The series uses the Integrated Services Digital Network (ISDN) concepts asdeveloped by ITU-T and conforms to the framework of standards for Open Systems Interconnection (OSI) as defined byISO/IEC.The present document contains specifications of basic services.The previous (first) edition of the present document contained a "standalone" specification of the basic services. Thisedition endorses an International Standard, ISO/IEC 11574 and an amendment to that International Standard, publishedsince the publication of the first edition of the present document.National transposition datesDate of adoption of this ENDate of latest announcement of this EN (doa):5 September 199731 December 1997Date of latest publication of new National Standardor endorsement of this EN (dop/e):30 June 1998Date of withdrawal of any conflicting National Standard (dow):30 June 1998Endorsement noticeThe text of International Standard ISO/IEC 11574 (1994), together with Amendment 1 (1997) to that text, was approvedby ETSI as an EN with agreed modifications as given below.NOTE:New or modified text is indicated using sidebars. In addition, underlining and/or strike-out are used tohighlight detailed modifications where necessary.SIST EN 300 171 V1.2.1:2005

EN 300 171 V1.2.1 (1997-09)4Clause 2Replace the first paragraph by:The present document incorporates by dated and undated reference, provisions from other publications. These normativereferences are cited at the appropriate places in the text and the publications are listed hereafter. For dated references,subsequent amendments to or revisions of any of these publications apply to the present document only whenincorporated in it by amendment or revision. For undated references the latest edition of the publication referred toapplies.Insert the following new subclause at the end of clause 2:2.3
European Standards[15]
ETS 300 189 (1992): "Private Telecommunication Network (PTN); Addressing".[16]
ETS 300 387 (1994): "Private Telecommunication Network (PTN); Method for the specificationof basic and supplementary services".[17]
ETS 300 475-1 (1995): "Private Integrated Services Network (PISN); Reference configuration -Part 1: Reference configuration for PISN eXchanges (PINXs)".Throughout the text of ISO/IEC 11574Throughout the text of ISO/IEC 11574, replace references as shown in the table below:Reference in ISO/IEC 11574Modified referenceITU-T Recommendation I.130ETS 300 387 [16]ISO/IEC 11571ETS 300 189 [15]ISO/IEC 11579-1ETS 300 475-1 [17]Throughout the text of ISO/IEC 11574Throughout the text of ISO/IEC 11574, replace the term "International Standard" by "EN".Subclause 5.2Replace the last paragraph (beginning "Annex B provides …") with:"Annex B provides guidelines for, and additional information about, teleservices.".SIST EN 300 171 V1.2.1:2005

EN 300 171 V1.2.1 (1997-09)5Annex BReplace the existing annex B (normative) "Telephony teleservice" with the following annex B (normative):Annex B (normative):TeleservicesB.1
GeneralA PISN can support teleservices requiring the same bearer capabilities as the bearer services specified in the presentdocument. These teleservices include, for example:-
Telephony 3,1 kHz teleservice;-
Telefax group 4 teleservice; and-
Circuit-mode syntax-based videotex teleservice.The support by a PISN of one or more of these teleservices is optional. However, if a PISN supports one or more ofthese teleservices then it shall comply with this annex.The bearer capabilities and other special requirements used to support these teleservices are specified below. Otherwise,the impact of these teleservices on the network is the same as for the corresponding bearer service.The PISN shall convey an indication of the teleservice being used as High Layer Compatibility (HLC) information, fromthe calling PISN user to the called PISN user. Any use of this indication by the PISN is outside the scope of the presentdocument.A PISN may reject a request for a teleservice if the requested bearer capabilities are not those specified in this annex.NOTE 1:
Additional information can be found in the following ETSs:ETS 300 111 (Telephony 3,1 kHz);ETS 300 120 (Telefax group 4); andETS 300 262 (Circuit-mode syntax-based videotex).NOTE 2:
The support of other teleservices is not precluded. ETR 018 and ETR 076 contain guidance regardingother teleservices that can be supported using the bearer capabilities defined by the present document.High layer functions for interworking between these teleservices and non-ISDN networks are beyond the scope of thepresent document.SIST EN 300 171 V1.2.1:2005

EN 300 171 V1.2.1 (1997-09)6B.2
Telephony 3,1 kHz teleserviceWhen this teleservice is required, the bearer capability requested shall comply with the low layer attributes specified intable B.1 below.Table B.1: Low layer attributes for telephony 3,1 kHz teleserviceLow layer attributeAttribute value1)Information transfer mode:circuit2)Information transfer rate:64 kbit/s3)Information transfer capability:speech (see note 1)4)Structure:8 kHz integrity5)Establishment of communication:demand6)Symmetry:bi-directional symmetric7)Communication configuration:point-to-point8)Access channel (see note 2):B9)Access protocol (see note 2):ITU-T Recommendation G.711 (A-lawor m-law).NOTE 1:
In interworking situations the information transfer capability can default to3,1 kHz audio.NOTE 2:
Attribute refers only to the user information and not to the signallinginformation.B.3
Telefax group 4 teleserviceWhen this teleservice is required, the bearer capability requested shall comply with the low layer attributes specified intable B.2 below.Table B.2: Low layer attributes for telefax group 4 teleserviceLow layer attributeAttribute value1)Information transfer mode:circuit2)Information transfer rate:64 kbit/s3)Information transfer capability:unrestricted4)Structure:unstructured (see note 1)5)Establishment of communication:demand6)Symmetry:bi-directional symmetric7)Communication configuration:point-to-point8)Access channel (see note 2):B9)Access protocol (see note 2):ISO/IEC 7776 and ISO/IEC 8208(see note 3)NOTE 1:
Even if no structure is required, the network may provide 8 kHz integrity.NOTE 2:
Attribute refers only to the user information and not to the signallinginformation.NOTE 3:
The use of a packet-mode bearer capability to support this teleservice isoutside the scope of this edition of the present document.SIST EN 300 171 V1.2.1:2005

EN 300 171 V1.2.1 (1997-09)7B.4
Circuit-mode syntax-based videotex teleserviceWhen this teleservice is required, the bearer capability requested shall comply with the low layer attributes specified intable B.3 below.Table B.3: Low layer attributes for circuit-mode syntax-based videotex teleserviceLow layer attributeAttribute value1)Information transfer mode:circuit2)Information transfer rate:64 kbit/s3)Information transfer capability:unrestricted4)Structure:unstructured (see note 1)5)Establishment of communication:demand6)Symmetry:bi-directional symmetric7)Communication configuration:point-to-point8)Access channel (see note 2):B9)Access protocol (see note 2):ISO/IEC 7776 and ISO/IEC 8208(see note 3)NOTE 1:
Even if no structure is required, the network may provide 8 kHz integrity.NOTE 2:
Attribute refers only to the user information and not to the signallinginformation.NOTE 3:
The use of a packet-mode bearer capability to support this teleservice isoutside the scope of this edition of the present document.Annex CAdd the following bibliographic references to annex C:[10]
ETR 018 (1995): "Integrated Services Digital Network (ISDN); Application of the BearerCapability (BC), High Layer Compatibility (HLC) and
...
