ASTM F3419-22

Standard Test Method for Mineral Characterization of Equine Surface Materials by X-Ray Diffraction (XRD) Techniques

SIGNIFICANCE AND USE
5.1 Petrographic examinations are made for the following purposes:
5.1.1 To determine the mineralogy of the material that may be observed by petrographic methods (in this method, by use of XRD) and that may have a bearing on the performance of the material in its intended use.
5.1.2 To determine the relative amounts of the constituents of the sample which is essential for proper evaluation of the sample when the constituents may differ significantly in properties that have a bearing on the performance of the material in its intended use.
5.1.3 This method helps to evaluate mineral aggregate sources for suitability as a material to be used for construction, renovation, or modification of equine surfaces. The information gathered will allow for the comparison of the composition of new mineral sources with samples of other mineral aggregate from one or more sources, for which test data or performance records are available.
5.2 This method may be used by a petrographer employed directly by those for whom the examination is made. The employer should tell the petrographer, in as much detail as necessary, the purposes and objectives of the examination, the kind of information needed, and the extent of examination desired. Pertinent background information, including results of prior testing, should be made available. The petrographer’s advice and judgment should be sought regarding the extent of the examination.
5.3 This method may form the basis for establishing arrangements between a purchaser of consulting petrographic service and the petrographer. In such a case, the purchaser and the consultant should together determine the kind, extent, and objectives of the examination and analyses to be made and should record their agreement in writing. The agreement may stipulate specific determinations to be made, observations to be reported, funds to be obligated, or a combination of these or other conditions.
SCOPE
1.1 X-Ray diffraction (XRD) is a tool for identifying minerals, such as quartz and feldspar, and types of clay present in bulk samples of equine surfaces. Determining the mineralogy of a given bulk sample provides insight into surface properties, such as abrasion resistance by comparing the relative differences of hardness of the various mineral fractions such as quartz or feldspar or the plasticity differences in clay minerals such as smectite or kaolinite. XRD techniques are qualitative in nature and only semi-quantitative.
1.2 Particle size distribution analyses methods including hydrometer tests to determine proportions of sand, silt, and clay fractions based upon particle size but are not able to distinguish particles by shape or mineralogy of materials. In addition to a qualitative detection of minerals present in a sample, XRD methods are also semi-quantitative and also yield important data on the relative proportion of particular minerals present.
1.3 XRD techniques are generally semi-quantitative in nature. Even so, such semiquantitative data is useful in determining relative proportions of each mineral type. This method is also semi-qualitative in nature as it is geared for the determination or mineral groups. For example, it will determine the relative amount of alkali feldspars (such as K-feldspar or Nafeldspar) from Plagioclase-feldspar but not necessarily if the Plagioclase-feldspar is albite or anorthite nor whether the K-feldspar is orthoclase of microcline. Likewise, it will differentiate smectite from mica from kaolinite but not whether the smectite is montmorillonite or saponite. More precise determination of mineral species by XRD is possible but involves more advanced preparation and treatment methods than what is within the scope of this standard.
1.4 The XRD method herein primarily makes use of “Glass Slide Method” but may be subject to modification depending on the user’s needs.
1.5 This standard does not purport to address all of the safety c...

General Information

• Status: Published
• Publication Date: 31-Aug-2022
• ICS: 07.060 - Geology. Meteorology. Hydrology
• Technical Committee: F08 - Sports Equipment, Playing Surfaces, and Facilities
• Drafting Committee: F08.28 - Equestrian Surfaces

Relations

• Refers: ASTM F3401-19 - Standard Test Method for Wax Binder Removal from Equestrian Synthetic Track Surfaces
• Effective Date: 01-Oct-2019
• Refers: ASTM D75-03 - Standard Practice for Sampling Aggregates
• Effective Date: 10-Jul-2003
• Refers: ASTM D75-97 - Standard Practice for Sampling Aggregates
• Effective Date: 10-Oct-1997

Overview

ASTM F3419-22: Standard Test Method for Mineral Characterization of Equine Surface Materials by X-Ray Diffraction (XRD) Techniques establishes a standardized procedure for identifying and semi-quantitatively analyzing the mineralogical composition of materials used in equine surfaces. Developed by ASTM International, this standard supports informed evaluation and comparison of mineral aggregate sources for the construction, renovation, or modification of equestrian facilities. Employing X-Ray Diffraction (XRD) testing, the standard allows for rigorous mineralogical assessments, helping ensure optimal performance characteristics for equine surfaces, such as durability and abrasion resistance.

Key Topics

• Mineral Identification: Utilizes XRD techniques to detect minerals such as quartz, feldspar, and clay types in equine surface materials.
• Semi-Quantitative Analysis: Provides data on the relative proportions of mineral groups present within a bulk sample, guiding assessments related to performance and suitability.
• Limitations: XRD is effective for distinguishing major mineral groups but may not identify specific mineral species without advanced preparation. Results reflect the composition of the crystalline fraction only, not organic or non-crystalline material.
• Petrographic Examinations: Enables detailed evaluation for determining mineralogy, assessing the influence of different constituents on equine surface performance, and comparing new sources against established benchmarks.
• Sample Preparation: Recommends systematic procedures, such as grinding, micronizing, and oven-drying, to produce homogenous test samples suitable for XRD analysis.

Applications

ASTM F3419-22 has significant practical value across several sectors in the equestrian industry and related fields where mineralogical composition impacts surface performance:

• Equestrian Surface Design and Maintenance: Facilities can use this method to select or validate aggregates based on surface properties such as hardness, abrasion resistance, or plasticity, ensuring the safety and performance of riding surfaces.
• Material Sourcing and Quality Control: Suppliers and contractors can benchmark new material sources against established performance criteria, minimizing the risk of unsuitable materials in installations.
• Research and Development: Scientists and petrographers can use the standard as a foundation for advanced mineralogical research, or to customize test protocols according to specific project needs.
• Consultancy Arrangements: The method underpins contracts for petrographic services, clarifying the scope of analyses, data to be reported, and the allocation of costs or deliverables.

Related Standards

• ASTM D75 – Practice for Sampling Aggregates: Guidance for collecting representative samples, referenced for sample management in this standard.
• ASTM F3401 – Test Method for Wax Binder Removal from Equestrian Synthetic Track Surfaces: Describes preparatory steps for samples containing synthetic binders prior to mineralogical analysis.
• General XRD Standards: Complements widely recognized XRD methods for phase identification and analysis of soils, minerals, and aggregate materials.

Practical Value

Implementing ASTM F3419-22 aids stakeholders in the equine industry and construction sectors to make data-driven decisions regarding the selection and application of mineral materials. By using rigorous XRD-based mineral analysis, equestrian surface designers, material suppliers, and facility managers can optimize surface durability, performance, and consistency while supporting compliance with industry best practices. The standard supports robust quality assurance processes and enables clear communication of mineralogical findings in procurement, consultancy, and research contexts.

Keywords: ASTM F3419-22, X-ray diffraction, mineral characterization, equine surface materials, petrography, aggregate analysis, surface performance, mineralogy analysis, equestrian facility standards, mineral aggregate suitability.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

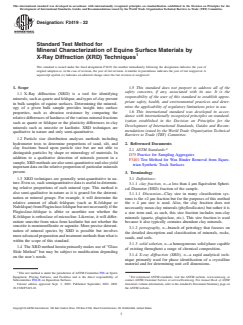

Designation: F3419 − 22
Standard Test Method for
Mineral Characterization of Equine Surface Materials by
X-Ray Diffraction (XRD) Techniques
This standard is issued under the fixed designation F3419; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 1.5 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
1.1 X-Ray diffraction (XRD) is a tool for identifying
responsibility of the user of this standard to establish appro-
minerals, such as quartz and feldspar, and types of clay present
priate safety, health, and environmental practices and deter-
in bulk samples of equine surfaces. Determining the mineral-
mine the applicability of regulatory limitations prior to use.
ogy of a given bulk sample provides insight into surface
1.6 This international standard was developed in accor-
properties, such as abrasion resistance by comparing the
dance with internationally recognized principles on standard-
relative differences of hardness of the various mineral fractions
ization established in the Decision on Principles for the
such as quartz or feldspar or the plasticity differences in clay
Development of International Standards, Guides and Recom-
minerals such as smectite or kaolinite. XRD techniques are
mendations issued by the World Trade Organization Technical
qualitative in nature and only semi-quantitative.
Barriers to Trade (TBT) Committee.
1.2 Particle size distribution analyses methods including
hydrometer tests to determine proportions of sand, silt, and
2. Referenced Documents
clay fractions based upon particle size but are not able to 2
2.1 ASTM Standards:
distinguish particles by shape or mineralogy of materials. In
D75 Practice for Sampling Aggregates
addition to a qualitative detection of minerals present in a
F3401 Test Method for Wax Binder Removal from Eques-
sample,XRDmethodsarealsosemi-quantitativeandalsoyield
trian Synthetic Track Surfaces
important data on the relative proportion of particular minerals
present.
3. Terminology
1.3 XRD techniques are generally semi-quantitative in na-
3.1 Definitions:
ture. Even so, such semiquantitative data is useful in determin-
3.1.1 clay fraction, n—a less than 4 µm Equivalent Spheri-
ing relative proportions of each mineral type. This method is
cal Diameter (ESD) fraction of the sample.
also semi-qualitative in nature as it is geared for the determi-
3.1.1.1 Discussion—Clay size in many classification sys-
nation or mineral groups. For example, it will determine the
tems is the <2 µm fraction but for the purposes of this method
relative amount of alkali feldspars (such as K-feldspar or
the<4µm size is used. Also, the clay fraction does not
Nafeldspar)fromPlagioclase-feldsparbutnotnecessarilyifthe
necessarily mean clay minerals (phyllosilicates) but rather it is
Plagioclase-feldspar is albite or anorthite nor whether the
a size term and, as such, this size fraction includes non-clay
K-feldspar is orthoclase of microcline. Likewise, it will differ-
minerals (quartz, plagioclase, etc.). This size fraction is used
entiate smectite from mica from kaolinite but not whether the
because it also typically contains abundant clay minerals.
smectite is montmorillonite or saponite. More precise determi-
3.1.2 petrography, n—branch of petrology that focuses on
nation of mineral species by XRD is possible but involves
the detailed description and classification of minerals, rocks,
moreadvancedpreparationandtreatmentmethodsthanwhatis
sands, and soils.
within the scope of this standard.
3.1.3 solid solution, n—a homogeneous solid phase capable
1.4 The XRD method herein primarily makes use of “Glass
of existing throughout a range of chemical composition.
Slide Method” but may be subject to modification depending
3.1.4 X-ray diffraction (XRD), n—a rapid analytical tech-
on the user’s needs.
nique primarily used for phase identification of a crystalline
material and for determining unit cell dimensions.
This test method is under the jurisdiction of ASTM Committee F08 on Sports
Equipment, Playing Surfaces, and Facilities and is the direct responsibility of For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Subcommittee F08.28 on Equestrian Surfaces. contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Current edition approved Sept. 1, 2022. Published September 2022. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/F3419-22. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

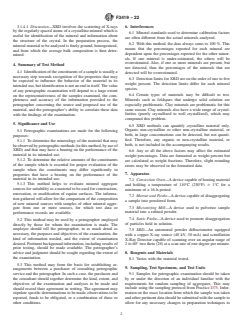

F3419 − 22
3.1.4.1 Discussion—XRD involves the scattering of X-rays 6. Interferences
by the regularly spaced atoms of a crystalline mineral which is
6.1 Mineral standards used to determine calibration factors
useful for identification of the mineral and information about
are often different from the actual minerals analyzed.
the structure of the crystal. In the preparation process, the
6.2 With this method, the data always sums to 100 %. This
mineralmaterialtobeanalyzedisfinelyground,homogenized,
means that the percentages reported for each mineral are
and from which the average bulk composition is then deter-
dependent upon the percentages reported for the other miner-
mined.
als. If one mineral is under-estimated, the others will be
overestimated. Also, if one or more minerals are present, but
4. Summary of Test Method
not detected, then the percentages of the minerals that are
4.1 Identification of the constituents of a sample is usually a
detected will be overestimated.
necessary step towards recognition of the properties that may
6.3 Detection limits for XRD are on the order of one to five
be expected to influence the behavior of the material in its
weight percent. The detection limits differ for each mineral
intendeduse,butidentificationisnotanendinitself.Thevalue
species.
of any petrographic examination will depend to a large extent
6.4 Certain types of materials may be difficult to test.
on the representativeness of the samples examined, the com-
Minerals such as feldspars that undergo solid solution are
pleteness and accuracy of the information provided to the
especially problematic. Clay minerals are problematic for this
petrographer concerning the source and proposed use of the
material, and the petrographer’s ability to correlate these data same reason. Clay minerals also have a wide range of crystal-
linities (poorly crystallized to well crystallized), which may
with the findings of the examination.
compound this problem.
5. Significance and Use
6.5 XRD methods can quantify crystalline material only.
Organic non-crystalline or other non-crystalline material, or
5.1 Petrographic examinations are made for the following
both, in large concentrations can be detected, but not quanti-
purposes:
fied. Therefore, any organic or non-crystalline material, or
5.1.1 To determine the mineralogy of the material that may
both, is not included in the accompanying results.
beobservedbypetrographicmethods(inthismethod,byuseof
XRD) and that may have a bearing on the performance of the
6.6 Any or all the above factors may affect the estimated
material in its intended use.
weight percentages. Data are formatted as weight percent but
5.1.2 To determine the relative amounts of the constituents
are calculated as weight fractions. Therefore, slight rounding
of the sample which is essential for proper evaluation of the
errors may be observed in the formatted data.
sample when the constituents may differ significantly in
7. Apparatus
properties that have a bearing on the performance of the
material in its intended use.
7.1 Convection Oven—Adevice capable of heating material
5.1.3 This method helps to evaluate mineral aggregate
and holding a temperature of 110°C (230°F) 6 1°C for a
sources for suitability as a material to be used for construction,
minimum of a 16-h period.
renovation, or modification of equine surfaces. The informa-
7.2 Mortar and Pestle—Adevice capable of disaggregating
tion gathered will allow for the comparison of the composition
a sample into powdered form.
of new mineral sources with samples of other mineral aggre-
7.3 Micronizing Mill—A device used to pulverize sample
gate from one or more sources, for which test data or
material into a refined powder.
performance records are available.
7.4 Sonic Probe—A device used to promote disaggregation
5.2 This method may be used by a petrographer employed
of particles held in solution.
directly by those for whom the examination is made. The
employer should tell the petrographer, in as much detail as
7.5 XRD—An automated powder diffractometer equipped
necessary, the purposes and objectives of the examination, the
with a copper X-ray source (40 kV, 30 mA) and scintillation
kind of information needed, and the extent of examination
X-Ray Detector capable of scanning over an angular range of
desired. Pertinen
...
