ASTM D5102-04

Standard Test Method for Unconfined Compressive Strength of Compacted Soil-Lime Mixtures

SIGNIFICANCE AND USE
Compression testing of soil-lime specimens is performed to determine unconfined compressive strength of the cured soil-lime-water mixture to determine the suitability of the mixture for uses such as in pavement bases and subbases, stabilized subgrades, and structural fills.
Compressive strength data are used in soil-lime mix design procedures: (a) to determine if a soil will achieve a significant strength increase with the addition of lime; (b) to group soil-lime mixtures into strength classes; (c) to study the effects of variables such as lime percentage, unit weight, water content, curing time, curing temperature, etc.; and (d) to estimate other engineering properties of soil-lime mixtures.
Lime is generally classified as calcitic or dolomitic. Usually in soil stabilization, high-calcium hydrated lime [Ca(OH)2] or monohydrated dolomitic lime [Ca(OH)2 + MgO] are used. Lime may increase the strength of cohesive soil. The type of lime in combination with soil type influences the resulting compressive strength.
Note 2—The agency performing this test method can be evaluated in accordance with Practice D 3740. Not withstanding statements on precision and bias contained in this method: The precision of this test method is dependent on the competence of the personnel performing it and the suitability of the equipment and facility used. Agencies that meet the criteria of Practice D 3740 are generally considered capable of competent and objective testing. Users of this test method are cautioned that compliance with Practice D 3740 does not, in itself, ensure reliable testing. Reliable testing depends on many factors; Practice D 3740 provides a means of evaluating some of these factors.
SCOPE
1.1 This test method covers procedures for preparing, curing, and testing laboratory-compacted specimens of soil-lime and other lime-treated materials (Note 0) for determining unconfined compressive strength. This test method can be used for specimens prepared at the maximum unit weight and optimum water content, or for specimens prepared at other target unit weight and water content levels. Other applications are given in Section on Significance and Use.
Note 1—Lime-based products other than commercial quicklime and hydrated lime are also used in the lime treatment of fine-grained cohesive soils. Lime kiln dust (LKD) is collected from the kiln exhaust gases by cyclone, electrostatic, or baghouse-type collection systems. Some lime producers hydrate various blends of LKD plus quicklime to produce a lime-based product.
1.2 Cored specimens of soil-lime should be tested in accordance with Test Methods D 2166.
1.3 Two alternative procedures are provided:
1.3.1 Procedure A describes procedures for preparing and testing compacted soil-lime specimens having height-to-diameter ratios between 2.00 and 2.50. This test method provides the standard measure of compressive strength.
1.3.2 Procedure B describes procedures for preparing and testing compacted soil-lime specimens using Test Methods D 698 compaction equipment and molds commonly available in most soil testing laboratories. Procedure B is considered to provide relative measures of individual specimens in a suite of test specimens rather than standard compressive strength values. Because of the lesser height-to-diameter ratio (1.15) of the cylinders, compressive strength determined by Procedure B will normally be greater than that by Procedure A.
1.3.3 Results of unconfined compressive strength tests using Procedure B should not be directly compared to those obtained using Procedure A.
1.4 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D 6026.
1.4.1 The method used to specify how data are collected, calculated, or recorded in this standard is not directly related to the accuracy to which the data can be applied in design or other uses, or both. How one applies the result...

General Information

• Status: Historical
• Publication Date: 31-Jul-2004
• ICS: 93.020 - Earthworks. Excavations. Foundation construction. Underground works
• Technical Committee: D18 - Soil and Rock
• Drafting Committee: D18.15 - Stabilization With Admixtures

Relations

• Replaces: ASTM D5102-96 - Standard Test Method for Unconfined Compressive Strength of Compacted Soil-Lime Mixtures
• Effective Date: 01-Aug-2004
• Referred By: ASTM D7762-18e1 - Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly Ash
• Effective Date: 01-Aug-2004

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

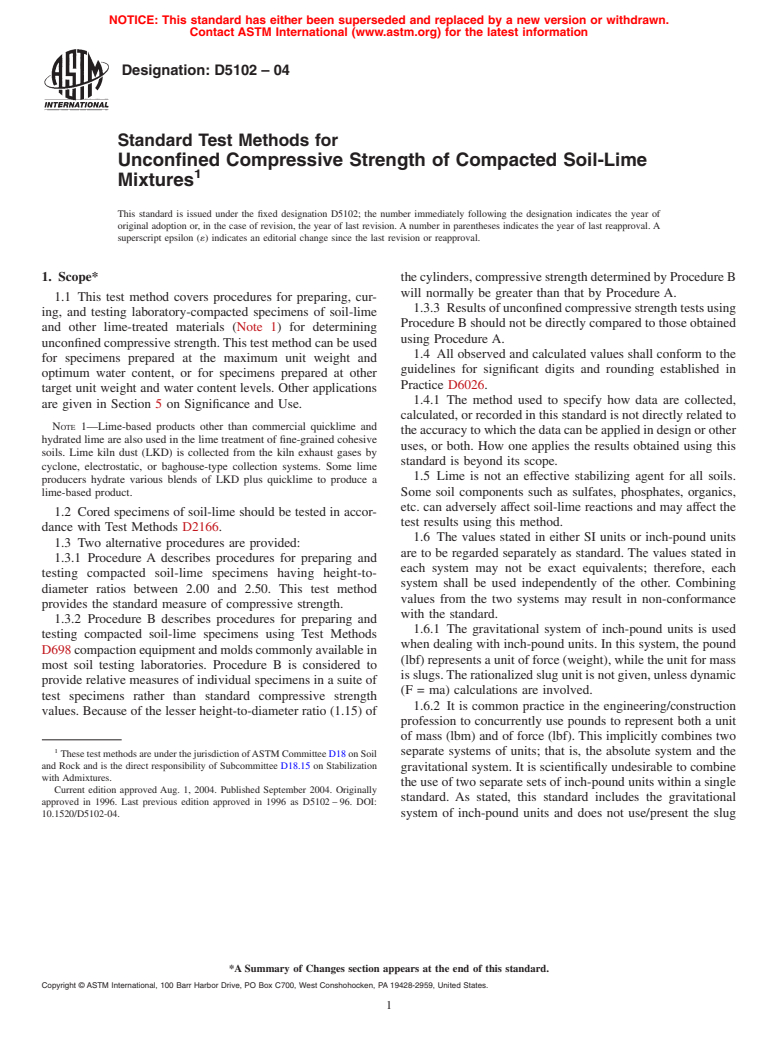

Designation: D5102 – 04
Standard Test Methods for
Unconfined Compressive Strength of Compacted Soil-Lime
1
Mixtures
This standard is issued under the fixed designation D5102; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* thecylinders,compressivestrengthdeterminedbyProcedureB
will normally be greater than that by Procedure A.
1.1 This test method covers procedures for preparing, cur-
1.3.3 Resultsofunconfinedcompressivestrengthtestsusing
ing, and testing laboratory-compacted specimens of soil-lime
Procedure B should not be directly compared to those obtained
and other lime-treated materials (Note 1) for determining
using Procedure A.
unconfined compressive strength.This test method can be used
1.4 All observed and calculated values shall conform to the
for specimens prepared at the maximum unit weight and
guidelines for significant digits and rounding established in
optimum water content, or for specimens prepared at other
Practice D6026.
target unit weight and water content levels. Other applications
1.4.1 The method used to specify how data are collected,
are given in Section 5 on Significance and Use.
calculated, or recorded in this standard is not directly related to
NOTE 1—Lime-based products other than commercial quicklime and
theaccuracytowhichthedatacanbeappliedindesignorother
hydrated lime are also used in the lime treatment of fine-grained cohesive
uses, or both. How one applies the results obtained using this
soils. Lime kiln dust (LKD) is collected from the kiln exhaust gases by
standard is beyond its scope.
cyclone, electrostatic, or baghouse-type collection systems. Some lime
1.5 Lime is not an effective stabilizing agent for all soils.
producers hydrate various blends of LKD plus quicklime to produce a
lime-based product. Some soil components such as sulfates, phosphates, organics,
etc. can adversely affect soil-lime reactions and may affect the
1.2 Cored specimens of soil-lime should be tested in accor-
test results using this method.
dance with Test Methods D2166.
1.6 The values stated in either SI units or inch-pound units
1.3 Two alternative procedures are provided:
are to be regarded separately as standard. The values stated in
1.3.1 Procedure A describes procedures for preparing and
each system may not be exact equivalents; therefore, each
testing compacted soil-lime specimens having height-to-
system shall be used independently of the other. Combining
diameter ratios between 2.00 and 2.50. This test method
values from the two systems may result in non-conformance
provides the standard measure of compressive strength.
with the standard.
1.3.2 Procedure B describes procedures for preparing and
1.6.1 The gravitational system of inch-pound units is used
testing compacted soil-lime specimens using Test Methods
when dealing with inch-pound units. In this system, the pound
D698compactionequipmentandmoldscommonlyavailablein
(lbf) represents a unit of force (weight), while the unit for mass
most soil testing laboratories. Procedure B is considered to
isslugs.Therationalizedslugunitisnotgiven,unlessdynamic
provide relative measures of individual specimens in a suite of
(F = ma) calculations are involved.
test specimens rather than standard compressive strength
1.6.2 It is common practice in the engineering/construction
values. Because of the lesser height-to-diameter ratio (1.15) of
profession to concurrently use pounds to represent both a unit
of mass (lbm) and of force (lbf). This implicitly combines two
1
separate systems of units; that is, the absolute system and the
These test methods are under the jurisdiction ofASTM Committee D18 on Soil
and Rock and is the direct responsibility of Subcommittee D18.15 on Stabilization
gravitational system. It is scientifically undesirable to combine
with Admixtures.
the use of two separate sets of inch-pound units within a single
Current edition approved Aug. 1, 2004. Published September 2004. Originally
standard. As stated, this standard includes the gravitational
approved in 1996. Last previous edition approved in 1996 as D5102 – 96. DOI:
10.1520/D5102-04. system of inch-pound units and does not use/present the slug
*A Summary of Changes section appears at the end of this standard.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1

---------------------- Page: 1 ----------------------
D5102 – 04
unit for mass. However, the use of balances or scales recording 3.2.3 carbonation—partial or complete destruction of mag-
3
pounds of mass (lbm) or recording density in lbm/ft s
...
