iTeh StandardsiTeh Standards
EURUSD
Your shopping cart is empty.
ASTM

ASTM B480-88(2010)

(Guide)

Standard Guide for Preparation of Magnesium and Magnesium Alloys for Electroplating

Standard Guide for Preparation of Magnesium and Magnesium Alloys for Electroplating

SIGNIFICANCE AND USE
Metals are electroplated on magnesium for various purposes: solderability, RF grounding, hermetic sealing, wear resistance, corrosion resistance, appearance, and electrical conductivity, for example. Because magnesium is covered with a naturally occurring oxide film, usual procedures for the preparation of metals for autocatalytic or electrolytic plating cannot be used.
SCOPE
1.1 This guide describes two processes used for plating on magnesium and magnesium alloys: direct electroless nickel plating and zinc immersion. Some users report that the direct electroless nickel procedure does not produce quite as high a level of adhesion as zinc immersion.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.  For specific hazard statements, see 5.1.1 and 5.2.9.2.

General Information

Status
Historical
Publication Date
31-Oct-2010
ICS
25.220.10 - Surface preparation
Technical Committee
B08 - Metallic and Inorganic Coatings
Drafting Committee
B08.02 - Pre Treatment
Current Stage
Ref Project

Relations

Replaces
ASTM B480-88(2006) - Standard Guide for Preparation of Magnesium and Magnesium Alloys for Electroplating
Effective Date
01-Nov-2010
Referred By
ASTM B689-97(2023) - Standard Specification for Electroplated Engineering Nickel Coatings
Effective Date
01-Nov-2010
Referred By
ASTM B905-00(2021) - Standard Test Methods for Assessing the Adhesion of Metallic and Inorganic Coatings by the Mechanized Tape Test
Effective Date
01-Nov-2010

Buy Standard

ASTM B480-88(2010) - Standard Guide for Preparation of Magnesium and Magnesium Alloys for ElectroplatingASTM B480-88(2010) - Standard Guide for Preparation of Magnesium and Magnesium Alloys for Electroplating
PreviousNext
Guide
ASTM B480-88(2010) - Standard Guide for Preparation of Magnesium and Magnesium Alloys for Electroplating
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

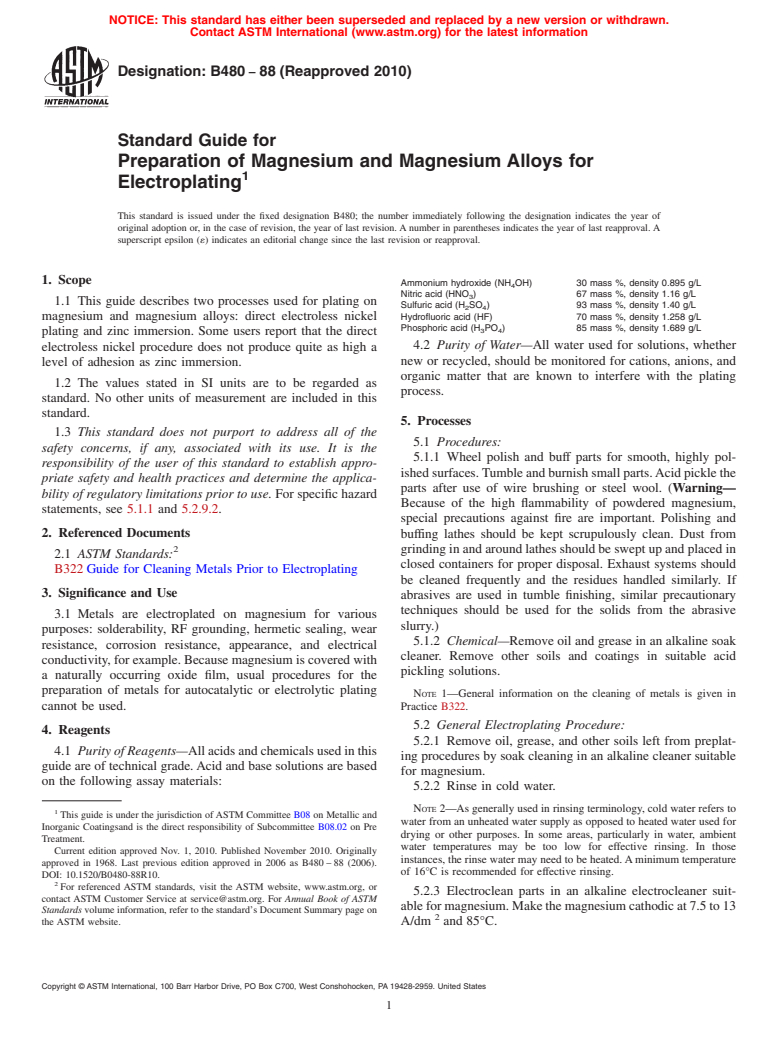

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
Designation: B480 − 88 (Reapproved 2010)
Standard Guide for
Preparation of Magnesium and Magnesium Alloys for
Electroplating
This standard is issued under the fixed designation B480; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
Ammonium hydroxide (NH OH) 30 mass %, density 0.895 g/L
Nitric acid (HNO ) 67 mass %, density 1.16 g/L
1.1 This guide describes two processes used for plating on
Sulfuric acid (H SO ) 93 mass %, density 1.40 g/L
2 4
magnesium and magnesium alloys: direct electroless nickel Hydrofluoric acid (HF) 70 mass %, density 1.258 g/L
Phosphoric acid (H PO ) 85 mass %, density 1.689 g/L
3 4
plating and zinc immersion. Some users report that the direct
4.2 Purity of Water—All water used for solutions, whether
electroless nickel procedure does not produce quite as high a
new or recycled, should be monitored for cations, anions, and
level of adhesion as zinc immersion.
organic matter that are known to interfere with the plating
1.2 The values stated in SI units are to be regarded as
process.
standard. No other units of measurement are included in this
standard.
5. Processes
1.3 This standard does not purport to address all of the
5.1 Procedures:
safety concerns, if any, associated with its use. It is the
5.1.1 Wheel polish and buff parts for smooth, highly pol-
responsibility of the user of this standard to establish appro-
ished surfaces.Tumble and burnish small parts.Acid pickle the
priate safety and health practices and determine the applica-
parts after use of wire brushing or steel wool. (Warning—
bility of regulatory limitations prior to use. For specific hazard
Because of the high flammability of powdered magnesium,
statements, see 5.1.1 and 5.2.9.2.
special precautions against fire are important. Polishing and
2. Referenced Documents buffing lathes should be kept scrupulously clean. Dust from
grinding in and around lathes should be swept up and placed in
2.1 ASTM Standards:
closed containers for proper disposal. Exhaust systems should
B322 Guide for Cleaning Metals Prior to Electroplating
be cleaned frequently and the residues handled similarly. If
3. Significance and Use
abrasives are used in tumble finishing, similar precautionary
techniques should be used for the solids from the abrasive
3.1 Metals are electroplated on magnesium for various
slurry.)
purposes: solderability, RF grounding, hermetic sealing, wear
5.1.2 Chemical—Remove oil and grease in an alkaline soak
resistance, corrosion resistance, appearance, and electrical
cleaner. Remove other soils and coatings in suitable acid
conductivity,forexample.Becausemagnesiumiscoveredwith
pickling solutions.
a naturally occurring oxide film, usual procedures for the
preparation of metals for autocatalytic or electrolytic plating
NOTE 1—General information on the cleaning of metals is given in
cannot be used.
Practice B322.
5.2 General Electroplating Procedure:
4. Reagents
5.2.1 Remove oil, grease, and other soils left from preplat-
4.1 PurityofReagents—Allacidsandchemicalsusedinthis
ing procedures by soak cleaning in an alkaline cleaner suitable
guide are of technical grade.Acid and base solutions are based
for magnesium.
on the following assay materials:
5.2.2 Rinse in cold water.
NOTE 2—As generally used in rinsing terminology, cold water refers to
This guide is under the jurisdiction of ASTM Committee B08 on Metallic and
water from an unheated water supply as opposed to heated water used for
Inorganic Coatingsand is the direct responsibility of Subcommittee B08.02 on Pre
drying or other purposes. In some areas, particularly in water, ambient
Treatment.
water temperatures may be too low for effective rinsing. In those
Current edition approved Nov. 1, 2010. Published November 2010. Originally
instances, the rinse water may need to be heated.Aminimum temperature
approved in 1968. Last previous edition approved in 2006 as B480 – 88 (2006).
of 16°C is recommended for effective rinsing.
DOI: 10.1520/B0480-88R10.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
5.2.3 Electroclean parts in an alkaline electrocleaner suit-
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
ableformagnesium.Makethemagnesiumcathodicat7.5to13
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. A/dm and 85°C.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B480 − 88 (2010)
5.2.4 Rinse in cold water. ion. Colorimetric (paper) methods may be used. However, the
5.2.5 Pickle in one of the following solutions: colorimetric readings may vary 60.5 pH units.)
5.2.10 Rinse thoroughly in cold water.
5.2.5.1 Ferric Nitrate Pickle:
Chromic acid (CrO ) 180 g/L
NOTE 6—For alloys M1660, M13120, M13312, or M13310, a double
Ferric nitrate (Fe(NO )·9H O) 40 g/L
3 2
zinc immersion is required. After step 5.2.10, steps 5.2.7-5.2.10 are
Potassium fluoride (KF) 3.5 g/L
repeated followed by step 5.2.11. It is advisable to use separate solutions
Temperature 16 to 38°C
for steps 5.2.7 and 5.2.9 when the double zinc immersion technique is
Time 15sto3min
practiced.
NOTE 3—This pickle removes metal from a surface at the rate of 3
5.2.11 Copper strike in either of the following:
µm/minat38°C.Wherenodimensionalchangecanbetolerated,useofthe
chromic acid pickle in 5.2.5.2 is recommended. Bath 1:
5.2.5.2 Chromic Acid Pickle:
Copper cyanide (CuCN) 38 to 42 g/L
Potassium cyanide (KCN) 64.5 to 71.5 g/L
Chromic acid (CrO ) 180 g/L
Potassium fluoride (KF) 28.5 to 31.5 g/L
Temperature 16 to 93°C
Free potassium cyanide 7 to 8 g/L
Time 2to10min
pH 9.6 to 10.4
NOTE 4—The use of chromic acid pickles may leave chromate films on Temperature 54 to 60°C
the surface that will reduce the adhesion of the subsequently deposited
Bath 2:
coating.
5.2.6 Rinse in cold water. Copper cyanide (CuCN) 38 to 42 g/L
Sodium cyanide (NaCN) 50 to 55 g/L
5.2.7 Activate in the following solution:
Rochelle salt (KNaC H O ·4H O) 40 to 48 g/L
4 4 6 2
Phosphoric acid, (H PO ) 20 % by vol Free sodium cyanide 7 to 8 g/L
3 4
Ammonium bifluoride (NH HF ) 105 g/L
pH 9.6 to 10.4
4 2
Temperature 16 to 38°C
Temperature 54 to 60°C
Time 15sto2min
5.2.11.1 Platethepartsabout6min.Cathoderodagitationis
5.2.8 Rinse in cold water.
suggested. With either bath make electrical contact quickly
5.2.9 Zinc coat in the following solution:
withinitialcurrent5to10A/dm ,thenlowercurrentto1to2.5
Zinc sulfate (ZnSO ·H O) 30 g/L
4 2 A/dm .
Tetrasodium pyrophosphate (Na P O ) 120 g/L
4 2 7
5.2.12 Rinse thoroughly in cold water.
Sodium fluoride (NaF) or 5 g/L or
5.2.13 Dip in diluted acid (1 % by vol sulfuric acid + 99 %
Lithium fluoride (LiF) 2 g/L
Sodium carbonate (Na CO)5g/L
by vol water).
2 3
5.2.14 Rinse in cold water.
5.2.9.1 Because of the low solubility of the tetrasodium
5.2.15 Apply subsequent electrodeposits or autocatalytic
pyrophosphate, it is generally necessary to mix this solution in
nickel in accordance with standard commercial electroplating
an elevated temperature from 70 to 85°C. It is also advanta-
practice. Use plastisol-coated racks that are fitted with stain-
geous to alternately add portions of the zinc sulfate and
less steel or phosphor-bronze rack tips.
pyrophosphate. When these ingredients are completely
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM B183-18(2022)(Practice)
Standard Practice for Preparation of Low-Carbon Steel for Electroplating

ABSTRACT
This practice provides an aid for setting up a suitable cleaning cycle preparatory to electroplating of low-carbon steel and indicates some of the precautions that must be taken to maintain this cycle in good operating condition. The preparatory procedure involves three basic steps in the following order: (1) removal of oils, grease, and caked-on dirt; (2) removal of scale and oxide films by pickling; and (3) removal of any smut left on the surface and activation of the steel. The cleaning of racked parts, which shall subsequently be electroplated in still tanks, agitated tanks, and semi- and full-automatic equipment, should be performed following this cycle: (1) precleaning; (2) electrocleaning; (3) water rinse; (4) acid pickling; (5) alkaline descaling; and (6) water rinse. Parts in bulk, which shall subsequently be electroplated in hand-operated or automatic barrels, should follow this cleaning cycle: (1) alkaline cleaning; (2) water rinse; (3) acid pickling; and (4) water rinse.
SCOPE
1.1 This practice is intended as an aid to electroplaters in setting up a suitable cleaning cycle preparatory to electroplating of low-carbon steel (Note 1) containing less than 0.35 mass % of carbon and to indicate some of the precautions that must be taken to maintain this cycle in good operating condition.
Note 1: The preparation of high-carbon steel for electroplating is covered in Guide B242.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM B253-11(2022)(Guide)
Standard Guide for Preparation of Aluminum Alloys for Electroplating

SIGNIFICANCE AND USE
3.1 Various metals are deposited on aluminum alloys to obtain a decorative or engineering finish. The electroplates applied are usually chromium, nickel, copper, brass, silver, tin, lead, cadmium, zinc, gold, and combinations of these. Silver, tin, or gold is applied to electrical equipment to decrease contact resistance or to improve surface conductivity; brass, copper, nickel, or tin for assembly by soft soldering; chromium to reduce friction and obtain increased resistance to wear; zinc for threaded parts where organic lubricants are not permissible; tin or lead is frequently employed to reduce friction on bearing surfaces. Nickel plus chromium or copper plus nickel plus chromium is used in decorative applications. Nickel plus brass plus lacquer or copper plus nickel plus brass plus lacquer is also used for decorative finishes, sometimes with the brass oxidized and relieved in various ways.
3.1.1 Electroless nickel may be applied as a barrier layer prior to other deposits, or for engineering purposes.
3.2 The preparation of aluminum and aluminum alloy mandrels for electroforming is described in Practice B432.
SCOPE
1.1 This guide covers cleaning and conditioning treatments used before metal deposition (Section 5), and immersion deposit/strike procedures (Section 6) that enhance the adhesion of metals that are subsequently applied to aluminum products by electrodeposition or by autocatalytic chemical reduction.
1.2 The following immersion deposit/strike procedures are covered:
1.2.1 Zinc immersion with optional copper strike (6.3).
1.2.2 Zinc immersion with neutral nickel strike (6.4).
1.2.3 Zinc immersion with acetate-buffered, nickel glycolate strike (6.5).
1.2.4 Zinc immersion with acid or alkaline electroless nickel strike.
1.2.5 Tin immersion with bronze strike (6.6).
1.3 From the processing point of view, these procedures are expected to give deposits on aluminum alloys that are approximately equivalent with respect to adherence. Corrosion performance is affected by many factors, however, including the procedure used to prepare the aluminum alloy for electroplating.
1.4 This guide is intended to aid electroplaters in preparing aluminum and its alloys for electroplating.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific precautionary statements see Section 7 and Appendix X1.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    7 pages
    English language
    sale 15% off
ASTM
ASTM B480-88(2022)(Guide)
Standard Guide for Preparation of Magnesium and Magnesium Alloys for Electroplating

SIGNIFICANCE AND USE
3.1 Metals are electroplated on magnesium for various purposes: solderability, RF grounding, hermetic sealing, wear resistance, corrosion resistance, appearance, and electrical conductivity, for example. Because magnesium is covered with a naturally occurring oxide film, usual procedures for the preparation of metals for autocatalytic or electrolytic plating cannot be used.
SCOPE
1.1 This guide describes two processes used for plating on magnesium and magnesium alloys: direct electroless nickel plating and zinc immersion. Some users report that the direct electroless nickel procedure does not produce quite as high a level of adhesion as zinc immersion.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.  For specific hazard statements, see 5.1.1 and 5.2.9.2.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM B727-04(2020)(Practice)
Standard Practice for Preparation of Plastics Materials for Electroplating

SIGNIFICANCE AND USE
3.1 A variety of metals can be electrodeposited on plastics for decorative or engineering purposes. The most widely used coating consists of three layers—copper plus nickel plus chromium—for decorative applications. However, brass, silver, tin, lead, cadmium, zinc, gold, other metals, and combinations of these are used for special purposes. The key to producing electroplated plastics of high quality lies in the care taken in preparing plastics for electroplating. The information contained in this practice is useful in controlling processes for the preparation of plastics for electroplating.
SCOPE
1.1 This practice is a guide to the surface preparation of plastic materials for decorative and functional electroplating, where the sequence of chemical treatments may include: cleaning, conditioning, etching, neutralizing, catalyzing, accelerating, and autocatalytic metal deposition. Surface preparation also includes electrodeposition of metallic strike coatings immediately after autocatalytic metal deposition. These treatments result in the deposition of thin conductive metal films on the surface of molded-plastic materials, and are described in this practice.
1.2 Once molded-plastics materials have been made conductive, they may be electroplated with a metal or combination of metals in conventional electroplating solutions. The electroplating solutions and their use are beyond the scope of this practice.
1.3 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. (See Section 4.)
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM B281-88(2019)e1(Practice)
Standard Practice for Preparation of Copper and Copper-Base Alloys for Electroplating and Conversion Coatings

SIGNIFICANCE AND USE
3.1 The proper preparation of copper and copper alloy surfaces for electroplating, conversion coating, or autocatalytic plating is often critical to the performance of the coatings.
3.2 This practice outlines procedures required to produce satisfactory coatings on surfaces of copper and copper alloy surfaces.
SCOPE
1.1 This practice is intended to serve as a guide for the proper preparation of copper and its alloys for electroplating and conversion coating. This practice is also suitable for use before autocatalytic plating. Only alloys containing at least 50 mass % copper are considered within the scope of this practice.
1.2 The wide variety of methods of mechanical finishing are not considered strictly as preparation for electroplating or conversion coating and consequently are described only briefly.
1.3 Details of electroplating and subsequent treatments for applying conversion coatings are not within the scope of this practice.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For a specific hazard statement, see 6.5.2.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D4579-00(2023)(Practice)
Standard Practice for Handling an Acid Degreaser or Still

SIGNIFICANCE AND USE
4.1 This practice describes the symptoms and causes of an acid degreaser as well as methods for correcting the problem.
4.2 This practice is intended as a reference for use by persons responsible for the operation or maintenance of vapor degreasers or stills.4
4.3 This practice is not intended to cover every possible situation.
SCOPE
1.1 This practice covers the procedures required for recognizing and handling an acid vapor degreaser or still.
1.2 If the degreaser(s) is equipped with a still, follow the procedure in this practice for all of the equipment.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM D7120/D7120M-10(2022)(Guide)
Standard Guide for Evaluation and Preparation of Roof Membranes for Coating Application

SIGNIFICANCE AND USE
3.1 This guide outlines the general procedures necessary to evaluate and prepare a roof membrane for the application of a liquid surface coating.
3.2 This guide is not all inclusive; this guide is intended to supplement detailed instructions from manufacturers and safety requirements required by law.
SCOPE
1.1 This guide covers the procedures for evaluating and preparing non-aggregate surfaced membranes for the application of a coating. It does not address design, construction, or installation issues regarding the roof assembly or the roof membrane. It is not an application guide for roof coatings.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM B183-18(2022)(Practice)
Standard Practice for Preparation of Low-Carbon Steel for Electroplating

ABSTRACT
This practice provides an aid for setting up a suitable cleaning cycle preparatory to electroplating of low-carbon steel and indicates some of the precautions that must be taken to maintain this cycle in good operating condition. The preparatory procedure involves three basic steps in the following order: (1) removal of oils, grease, and caked-on dirt; (2) removal of scale and oxide films by pickling; and (3) removal of any smut left on the surface and activation of the steel. The cleaning of racked parts, which shall subsequently be electroplated in still tanks, agitated tanks, and semi- and full-automatic equipment, should be performed following this cycle: (1) precleaning; (2) electrocleaning; (3) water rinse; (4) acid pickling; (5) alkaline descaling; and (6) water rinse. Parts in bulk, which shall subsequently be electroplated in hand-operated or automatic barrels, should follow this cleaning cycle: (1) alkaline cleaning; (2) water rinse; (3) acid pickling; and (4) water rinse.
SCOPE
1.1 This practice is intended as an aid to electroplaters in setting up a suitable cleaning cycle preparatory to electroplating of low-carbon steel (Note 1) containing less than 0.35 mass % of carbon and to indicate some of the precautions that must be taken to maintain this cycle in good operating condition.
Note 1: The preparation of high-carbon steel for electroplating is covered in Guide B242.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM B253-11(2022)(Guide)
Standard Guide for Preparation of Aluminum Alloys for Electroplating

SIGNIFICANCE AND USE
3.1 Various metals are deposited on aluminum alloys to obtain a decorative or engineering finish. The electroplates applied are usually chromium, nickel, copper, brass, silver, tin, lead, cadmium, zinc, gold, and combinations of these. Silver, tin, or gold is applied to electrical equipment to decrease contact resistance or to improve surface conductivity; brass, copper, nickel, or tin for assembly by soft soldering; chromium to reduce friction and obtain increased resistance to wear; zinc for threaded parts where organic lubricants are not permissible; tin or lead is frequently employed to reduce friction on bearing surfaces. Nickel plus chromium or copper plus nickel plus chromium is used in decorative applications. Nickel plus brass plus lacquer or copper plus nickel plus brass plus lacquer is also used for decorative finishes, sometimes with the brass oxidized and relieved in various ways.
3.1.1 Electroless nickel may be applied as a barrier layer prior to other deposits, or for engineering purposes.
3.2 The preparation of aluminum and aluminum alloy mandrels for electroforming is described in Practice B432.
SCOPE
1.1 This guide covers cleaning and conditioning treatments used before metal deposition (Section 5), and immersion deposit/strike procedures (Section 6) that enhance the adhesion of metals that are subsequently applied to aluminum products by electrodeposition or by autocatalytic chemical reduction.
1.2 The following immersion deposit/strike procedures are covered:
1.2.1 Zinc immersion with optional copper strike (6.3).
1.2.2 Zinc immersion with neutral nickel strike (6.4).
1.2.3 Zinc immersion with acetate-buffered, nickel glycolate strike (6.5).
1.2.4 Zinc immersion with acid or alkaline electroless nickel strike.
1.2.5 Tin immersion with bronze strike (6.6).
1.3 From the processing point of view, these procedures are expected to give deposits on aluminum alloys that are approximately equivalent with respect to adherence. Corrosion performance is affected by many factors, however, including the procedure used to prepare the aluminum alloy for electroplating.
1.4 This guide is intended to aid electroplaters in preparing aluminum and its alloys for electroplating.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific precautionary statements see Section 7 and Appendix X1.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    7 pages
    English language
    sale 15% off
ASTM
ASTM B480-88(2022)(Guide)
Standard Guide for Preparation of Magnesium and Magnesium Alloys for Electroplating

SIGNIFICANCE AND USE
3.1 Metals are electroplated on magnesium for various purposes: solderability, RF grounding, hermetic sealing, wear resistance, corrosion resistance, appearance, and electrical conductivity, for example. Because magnesium is covered with a naturally occurring oxide film, usual procedures for the preparation of metals for autocatalytic or electrolytic plating cannot be used.
SCOPE
1.1 This guide describes two processes used for plating on magnesium and magnesium alloys: direct electroless nickel plating and zinc immersion. Some users report that the direct electroless nickel procedure does not produce quite as high a level of adhesion as zinc immersion.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.  For specific hazard statements, see 5.1.1 and 5.2.9.2.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
