ASTM D7762-18

(Practice)

Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly Ash

Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly Ash

SIGNIFICANCE AND USE
4.1 Self-cementing coal fly ashes are suitable materials for the stabilization of soils, recycled pavement materials and road surface gravel. Fly ash stabilization can result in improved properties, including increased stiffness, strength and freeze-thaw durability; reduced hydraulic conductivity, plasticity, and swelling; and increased control of soil compressibility and moisture. Fly ash stabilized materials (FASM) may be used in roadway construction, such as working platforms during construction, stabilized subgrade, subbase, and base layers. Fly ash stabilization can also be used in limiting settlement of fills below buildings.
4.2 This practice is intended for use with self-cementing fly ash that can be used individually or along with other stabilizing admixtures to improve soil properties.
4.3 The practice describes the unique design considerations that may apply to stabilization of soils and soil-like materials with self-cementing coal fly ash. The requirements for stabilization of specific materials may vary due to local conditions or the intended use of the stabilized material, or both.
4.3.1 This practice is not intended to limit the flexibility of design in stabilization. The degree of success attained in stabilization with coal fly ash is highly dependent on the particular combination of soil, fly ash, and other additives and the construction procedure used. The selection of appropriate materials, applicable tests, acceptance criteria, and specification is the responsibility of the design engineer.
4.4 The test methods in this practice are intended for the determination of mechanical properties of FASM. The characterization of mechanical property improvement with self-cementing fly ash will assist in the evaluation of the fly ash stabilized materials.
4.5 The use of self-cementing fly ash in geotechnical engineering applications may be regulated by state and local codes. The codes should be consulted.
SCOPE
1.1 This practice covers procedures for the design of stabilization of soil and soil-like materials using self-cementing coal fly ash for roadway applications, treatment of expansive subgrade or organic subgrade, and limiting settlement of fills below buildings. The coal fly ash covered in this method includes self-cementing fly ashes described in Specification D5239.
1.2 The testing and engineering practices for self-cementing coal fly ash are similar to generally accepted practices for soil stabilization with fly ash and other pozzolans that require lime.
1.3 The test methods in this practice are applicable to the characterization of mechanical properties of in situ mixed self-cementing fly ash stabilized materials. Follow Practice D75 for sampling purposes. There are other related fly ash stabilization standards. Practice D5239 can be used to characterize the general types of fly ash for use in soil stabilization. Specification C593 can be used to evaluate the performance of fly ash and other pozzolans that require lime soil stabilization. Guide E2277 can be used to characterize properties of fly ash and bottom ash in structural fills and related design and construction considerations.
1.4 The standard units are the SI units, unless other units are specified.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This practice offers a set of instructions for performing one or more specific operations. This document cannot replace education or experience and should be used in conjunction with professional judgment. Not all aspects of this practice may be applicable in all circumstances. This ASTM standard is not intended to represent or replace the standard of care by which the adequacy of a given ...

General Information

Status
Historical
Publication Date
31-Dec-2017
ICS
93.020 - Earthworks. Excavations. Foundation construction. Underground works
Technical Committee
D18 - Soil and Rock
Drafting Committee
D18.14 - Geotechnics of Sustainable Construction
Current Stage
Ref Project

Buy Standard

ASTM D7762-18 - Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly AshASTM D7762-18 - Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly Ash
PreviousNext
Standard
ASTM D7762-18 - Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly Ash
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM D7762-18 - Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly AshREDLINE ASTM D7762-18 - Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly Ash
PreviousNext
Standard
REDLINE ASTM D7762-18 - Standard Practice for Design of Stabilization of Soil and Soil-Like Materials with Self-Cementing Fly Ash
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
Designation: D7762 − 18
Standard Practice for
Design of Stabilization of Soil and Soil-Like Materials with
1
Self-Cementing Fly Ash
This standard is issued under the fixed designation D7762; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope the adequacy of a given professional service must be judged,
nor should this document be applied without consideration of
1.1 This practice covers procedures for the design of stabi-
a project’s many unique aspects. The word “Standard” in the
lizationofsoilandsoil-likematerialsusingself-cementingcoal
title of this document means only that the document has been
fly ash for roadway applications, treatment of expansive
approved through the ASTM consensus process.
subgrade or organic subgrade, and limiting settlement of fills
1.7 This international standard was developed in accor-
below buildings. The coal fly ash covered in this method
dance with internationally recognized principles on standard-
includes self-cementing fly ashes described in Specification
ization established in the Decision on Principles for the
D5239.
Development of International Standards, Guides and Recom-
1.2 The testing and engineering practices for self-cementing
mendations issued by the World Trade Organization Technical
coal fly ash are similar to generally accepted practices for soil
Barriers to Trade (TBT) Committee.
stabilization with fly ash and other pozzolans that require lime.
2. Referenced Documents
1.3 The test methods in this practice are applicable to the
2
characterization of mechanical properties of in situ mixed
2.1 ASTM Standards:
self-cementing fly ash stabilized materials. Follow Practice
C593 Specification for FlyAsh and Other Pozzolans for Use
D75 for sampling purposes. There are other related fly ash
With Lime for Soil Stabilization
stabilization standards. Practice D5239 can be used to charac-
C597 Test Method for Pulse Velocity Through Concrete
terize the general types of fly ash for use in soil stabilization.
D75 Practice for Sampling Aggregates
Specification C593 can be used to evaluate the performance of
D653 Terminology Relating to Soil, Rock, and Contained
fly ash and other pozzolans that require lime soil stabilization.
Fluids
Guide E2277 can be used to characterize properties of fly ash
D698 Test Methods for Laboratory Compaction Character-
3
and bottom ash in structural fills and related design and
istics of Soil Using Standard Effort (12,400 ft-lbf/ft (600
3
construction considerations.
kN-m/m ))
D1557 Test Methods for Laboratory Compaction Character-
1.4 The standard units are the SI units, unless other units are
3
istics of Soil Using Modified Effort (56,000 ft-lbf/ft
specified.
3
(2,700 kN-m/m ))
1.5 This standard does not purport to address all of the
D1883 Test Method for California Bearing Ratio (CBR) of
safety concerns, if any, associated with its use. It is the
Laboratory-Compacted Soils
responsibility of the user of this standard to establish appro-
D4609 GuideforEvaluatingEffectivenessofAdmixturesfor
priate safety, health, and environmental practices and deter-
3
Soil Stabilization (Withdrawn 2017)
mine the applicability of regulatory limitations prior to use.
D5102 Test Methods for Unconfined Compressive Strength
1.6 This practice offers a set of instructions for performing
of Compacted Soil-Lime Mixtures
one or more specific operations. This document cannot replace
D5239 Practice for Characterizing Fly Ash for Use in Soil
education or experience and should be used in conjunction
Stabilization
withprofessionaljudgment.Notallaspectsofthispracticemay
D5918 Test Methods for Frost Heave and Thaw Weakening
be applicable in all circumstances. This ASTM standard is not
Susceptibility of Soils
intended to represent or replace the standard of care by which
1 2
This practice is under the jurisdiction of ASTM Committee D18 on Soil and For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Rock and is the direct responsibility of Subcommittee D18.14 on Geotechnics of contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Sustainable Construction. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Jan. 1, 2018. Published February 2018. Originally the ASTM website.
3
approved in 2011. Last previous edition approved in 2011 as D7762–11. DOI: The last approved version of this historical standard is referenced on
10.1520/D7762-18 www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Pag
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

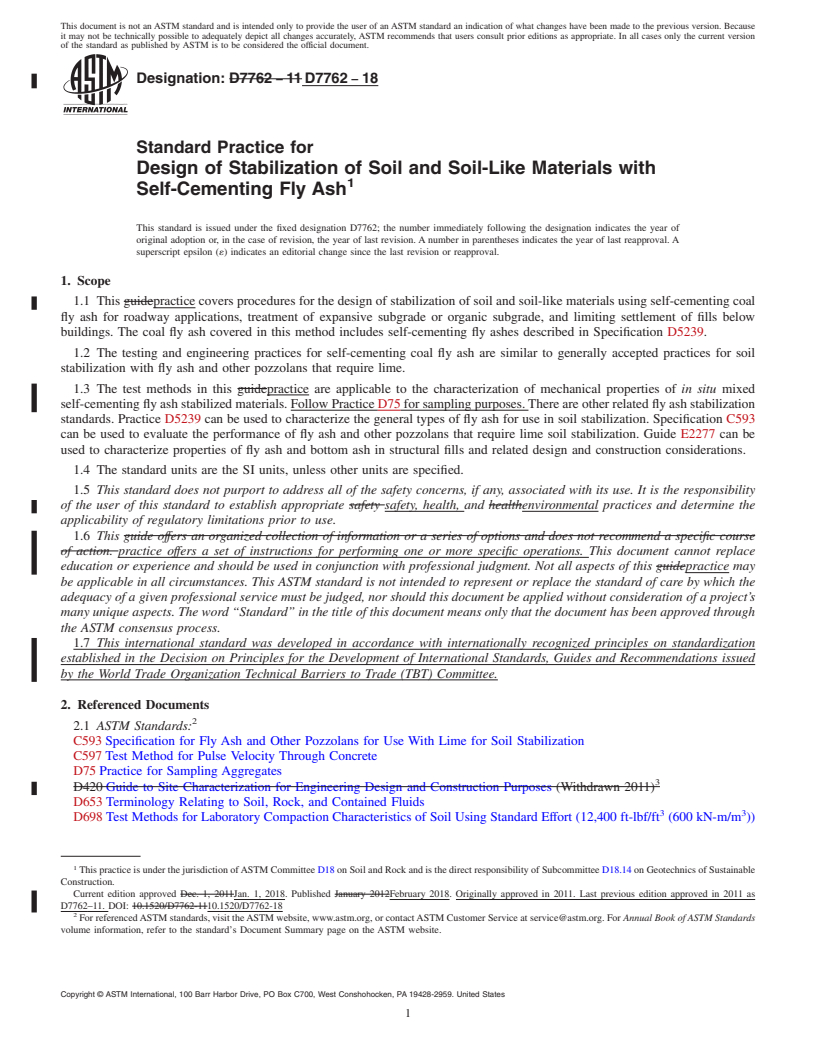

Designation: D7762 − 11 D7762 − 18
Standard Practice for
Design of Stabilization of Soil and Soil-Like Materials with
1
Self-Cementing Fly Ash
This standard is issued under the fixed designation D7762; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This guidepractice covers procedures for the design of stabilization of soil and soil-like materials using self-cementing coal
fly ash for roadway applications, treatment of expansive subgrade or organic subgrade, and limiting settlement of fills below
buildings. The coal fly ash covered in this method includes self-cementing fly ashes described in Specification D5239.
1.2 The testing and engineering practices for self-cementing coal fly ash are similar to generally accepted practices for soil
stabilization with fly ash and other pozzolans that require lime.
1.3 The test methods in this guidepractice are applicable to the characterization of mechanical properties of in situ mixed
self-cementing fly ash stabilized materials. Follow Practice D75 for sampling purposes. There are other related fly ash stabilization
standards. Practice D5239 can be used to characterize the general types of fly ash for use in soil stabilization. Specification C593
can be used to evaluate the performance of fly ash and other pozzolans that require lime soil stabilization. Guide E2277 can be
used to characterize properties of fly ash and bottom ash in structural fills and related design and construction considerations.
1.4 The standard units are the SI units, unless other units are specified.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.6 This guide offers an organized collection of information or a series of options and does not recommend a specific course
of action. practice offers a set of instructions for performing one or more specific operations. This document cannot replace
education or experience and should be used in conjunction with professional judgment. Not all aspects of this guidepractice may
be applicable in all circumstances. This ASTM standard is not intended to represent or replace the standard of care by which the
adequacy of a given professional service must be judged, nor should this document be applied without consideration of a project’s
many unique aspects. The word “Standard” in the title of this document means only that the document has been approved through
the ASTM consensus process.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
C593 Specification for Fly Ash and Other Pozzolans for Use With Lime for Soil Stabilization
C597 Test Method for Pulse Velocity Through Concrete
D75 Practice for Sampling Aggregates
3
D420 Guide to Site Characterization for Engineering Design and Construction Purposes (Withdrawn 2011)
D653 Terminology Relating to Soil, Rock, and Contained Fluids
3 3
D698 Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort (12,400 ft-lbf/ft (600 kN-m/m ))
1
This practice is under the jurisdiction of ASTM Committee D18 on Soil and Rock and is the direct responsibility of Subcommittee D18.14 on Geotechnics of Sustainable
Construction.
Current edition approved Dec. 1, 2011Jan. 1, 2018. Published January 2012February 2018. Originally approved in 2011. Last previous edition approved in 2011 as
D7762–11. DOI: 10.1520/D7762-1110.1520/D7762-18
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D7762 − 1
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM D559/D559M-15(2023)(Test Method)
Standard Test Methods for Wetting and Drying Compacted Soil-Cement Mixtures

SIGNIFICANCE AND USE
4.1 These test methods are used to determine the resistance of compacted soil-cement specimens to repeated wetting and drying. These test methods were developed to be used in conjunction with Test Methods D560/D560M and criteria given in the Soil-Cement Laboratory Handbook4 to determine the minimum amount of cement required in soil-cement to achieve a degree of hardness adequate to resist field weathering.
Note 1: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself ensure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
SCOPE
1.1 These test methods cover procedures for determining the soil-cement losses, water content changes, and volume changes (swell and shrinkage) produced by repeated wetting and drying of hardened soil-cement specimens. The specimens are compacted in a mold, before cement hydration, to maximum density at optimum water content using the compaction procedure described in Test Methods D558/D558M.
1.2 Two test methods, depending on soil gradation, are covered for preparation of material for molding specimens and for molding specimens as follows:
Sections
Test Method A, using soil material passing a 4.75-mm [No. 4] sieve.
This method shall be used when 100 % of the soil sample passes the 4.75-mm [No. 4] sieve.
7
Test Method B, using soil material passing a 19.0 mm [0.75-in.] sieve.
This method shall be used when part of the soil sample is retained on the 4.75-mm [No. 4] sieve.
This test method may be used only on materials with 30 % or less retained on the 19.0-mm [0.75-in.] sieve.
8
1.3 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026, unless superseded by this test method.
1.3.1 The procedures used to specify how data are collected/recorded and calculated in the standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of these test methods to consider significant digits used in analysis methods for engineering data.
1.4 Units—The values stated in either SI units or inch-pound units [presented in brackets] are to be regarded separately as standard. The values stated in each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Sieve size is identified by its standard designation in Specification E11. The alternative designation given in parentheses is for information only and does not represent a different standard sieve size.
1.4.1 The gravitational system of inch-pound units is used when dealing with inch-pound units. In this system, the pound (lbf) represents a unit of force (weight), while the unit for mass is slugs. The rationalized slug unit is not given, unless dynamic (F = ma) calculations are involved.
1.4.2 It is common practice in the engineering/construction profession to use pounds to represent both a unit of mass (lbm) and of force (lbf). This implicitly combines two separate systems of units; that is, the absolute system and the gravitational system. It is scientifically undesirable to combine the use of tw...

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D4718/D4718M-15(2023)(Practice)
Standard Practice for Correction of Unit Weight and Water Content for Soils Containing Oversize Particles

SIGNIFICANCE AND USE
4.1 Compaction tests on soils performed in accordance with Test Methods D698, D1557, D4253, and D7382 place limitations on the maximum size of particles that may be used in the test. If a soil contains cobbles or gravel, or both, test options may be selected which result in particles retained on a specific sieve being discarded (for example the 4.75-mm [No. 4], the 19-mm [3/4-in.] or other appropriate size) and the test performed on the finer fraction. The unit weight-water content relations determined by the tests reflect the characteristics of the actual material tested, and not the characteristics of the total soil material from which the test specimen was obtained.
4.2 It is common engineering practice to use laboratory compaction tests for the design, specification, and construction control of soils used in earth construction. If a soil used in construction contains large particles, and only the finer fraction is used for laboratory tests, some method of correcting the laboratory test results to reflect the characteristics of the total soil is needed. This practice provides a mathematical equation for correcting the unit weight and water content of the finer fraction of a soil, tested to determine the unit weight and water content of the total soil.
4.3 Similarly, as utilized in Test Methods D1556/D1556M, D2167, D6938, D7698, and D7830/D7830M, this practice provides a means for correcting the unit weight and water content of field compacted samples of the total soil, so that values can be compared with those for a laboratory compacted finer fraction.
Note 2: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in i...
SCOPE
1.1 This practice presents a procedure for calculating the unit weights and water contents of soils containing oversize particles when the data are known for the soil fraction with the oversize particles removed.
1.2 This practice also can be used to calculate the unit weights and water contents of soil fractions when the data are known for the total soil sample containing oversize particles.
1.3 This practice is based on tests performed on soils and soil-rock mixtures in which the portion considered oversize is that fraction of the material retained on the 4.75-mm [No. 4] sieve. Based on these tests, this practice is applicable to soils and soil-rock mixtures in which up to 40 % of the material is retained on the 4.75-mm [No. 4] sieve. The practice also is considered valid when the oversize fraction is that portion retained on some other sieve, but the limiting percentage of oversize particles for which the correction is valid may be lower. However, the practice is considered valid for materials having up to 30 % oversize particles when the oversize fraction is that portion retained on the 19-mm [3/4-in.] sieve.
1.4 The factor controlling the maximum permissible percentage of oversize particles is whether interference between the oversize particles affects the unit weight of the finer fraction. For some gradations, this interference may begin to occur at lower percentages of oversize particles, so the limiting percentage must be lower for these materials to avoid inaccuracies in the computed correction. The person or agency using this practice shall determine whether a lower percentage is to be used.
1.5 This practice may be applied to soils with any percentage of oversize particles subject to the limitations given in 1.3 and 1.4. However, the correction may not be of practical significance for soils with only small percentages of oversize particles. The person or agency specifying this practice shall specif...

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D3967-23(Test Method)
Standard Test Method for Splitting Tensile Strength of Intact Rock Core Specimens with Flat Loading Platens

SIGNIFICANCE AND USE
5.1 By definition, the tensile strength is obtained by the direct tensile test. However, the direct tensile test is difficult and expensive for routine application. The splitting tensile test appears to offer a desirable alternative because it is much simpler and inexpensive. Furthermore, engineers involved in rock mechanics design usually deal with complex stress fields, including various combinations of compressive and tensile stress fields. Under such conditions, the tensile strength should be obtained with the presence of compressive stresses to be representative of the field conditions.
5.2 The splitting tensile strength test is one of the simplest tests in which such stress fields occur. Also, by testing across different diametral directions, any variations in tensile strength for anisotropic rocks can be determined. Since it is widely used in practice, a uniform test method is needed for data to be comparable. A uniform test is also needed to make sure that the disk specimens break diametrically due to tensile stresses perpendicular to the loading axis.
Note 2: The quality of the results produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself assure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
SCOPE
1.1 This test method covers testing apparatus, specimen preparation, and testing procedures for determining the splitting tensile strength of rock by diametral line compression of disk shaped specimens.
Note 1: The tensile strength of rock determined by tests other than the straight pull test is designated as the “indirect” tensile strength and, specifically, the value obtained in Section 9 of this test is termed the “splitting” tensile strength. This test method is also sometimes referred to as the Brazilian test method.
1.2 Units—The values stated in SI units are to be regarded as standard. The values given in parentheses are mathematical conversions to inch-pound units, which are provided for information only and are not considered standard. Reporting of test results in units other than SI shall not be regarded as nonconformance with this test method.
1.3 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.3.1 The procedures used to specify how data are collected/recorded or calculated, in this standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, the purpose for obtaining the data, special purpose studies, or any considerations for the user's objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of this standard to consider significant digits used in analysis methods for engineering design.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D8459-23(Test Method)
Standard Test Methods for Detecting Water Soluble Sulfates in Construction Soils

SIGNIFICANCE AND USE
5.1 Where sulfates are suspected, subgrade soils should be tested as an integral part of a geotechnical evaluation because the possibility that sulfate induced heave may occur if calcium containing stabilizers are used to improve the soils and sulfate reactions may also cause deterioration in concrete structures. When planning to treat a soil used in construction with lime, testing the soil for water soluble sulfates prior to treatment becomes very important (Note 2).
5.2 When sulfate containing cohesive soils are treated with calcium-based stabilizers for foundation improvements, sulfates and free alumina in natural soils react with calcium and free hydroxide to form crystalline minerals, such as ettringite and thaumasite.4 Thaumasite forms when ettringite undergoes changes in the presence of carbonates at low temperatures.5 The sulfate minerals expand considerably when they are hydrated.
Note 2: For more information on the effect of treating soils containing water soluble sulfates, refer to the following publication: Little, D.N., Stabilization of Pavement Subgrades and Base Course with Lime, Kendal/Hunt Publishing Co., Dubuque, IA, 1995.
Note 3: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself assure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
SCOPE
1.1 These methods determine the water soluble sulfate content of cohesive soils used in construction by using the colorimetric technique. Two methods are presented in this standard. Method A is for use in the field and Method B is for use in the laboratory. The colorimetric technique involves measuring the scattering of a light beam through a solution that contains suspended particulate matter. Measurements of sulfate concentrations in construction soils can be used to guide professionals in the selection of appropriate stabilization methods and to assist in assessment of potential deterioration in concrete structures.
Note 1: These test methods are partially based on the research conducted by Texas A & M University.
1.2 The field method, Method A, is used as a screening test for the presence of sulfates and their concentration. The laboratory method, Method B, provides better resolution than the field method.
1.3 Ion chromatography is also an acceptable alternative method that can be used to evaluate results, however, it is outside the scope of this standard.
1.4 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026, unless superseded by this test method.
1.5.1 The procedures used to specify how data are collected/recorded and calculated in the standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of these test methods to consider significant digits used in analysis methods for engineering data.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropri...

  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM D2850-23(Test Method)
Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils

SIGNIFICANCE AND USE
5.1 In this test method, the compressive strength of a soil is determined in terms of the total stress, therefore, the resulting strength depends on the pressure developed in the pore fluid during loading. In this test method, fluid flow is not permitted from or into the soil specimen as the load is applied, therefore the resulting pore pressure, and hence strength, differs from that developed in the case where drainage can occur.
5.2 If the test specimens is 100 % saturated, consolidation cannot occur when the confining pressure is applied nor during the shear portion of the test since drainage is not permitted. Therefore, if several specimens of the same material are tested, and if they are all at approximately the same water content and void ratio when they are tested, they will have approximately the same unconsolidated-undrained shear strength.
5.3 If the test specimens are partially saturated, or compacted/reconstituted specimens, where the degree of saturation is less than 100 %, consolidation may occur when the confining pressure is applied and during application of axial load, even though drainage is not permitted. Therefore, if several partially saturated specimens of the same material are tested at different confining stresses, they will not have the same unconsolidated-undrained shear strength.
5.4 Mohr failure envelopes may be plotted from a series of unconsolidated undrained triaxial tests. The Mohr’s circles at failure based on total stresses are constructed by plotting a half circle with a radius of half the principal stress difference (deviator stress) beginning at the axial stress (major principal stress) and ending at the confining stress (minor principal stress) on a graph with principal stresses as the abscissa and shear stress as the ordinate and equal scale in both directions. The failure envelopes will usually be a horizontal line for saturated specimens and a curved line for partially saturated specimens.
5.5 The unconsolidated-u...
SCOPE
1.1 This test method covers determination of the strength and stress-strain relationships of a cylindrical specimen of either intact, compacted, or remolded cohesive soil. Specimens are subjected to a confining fluid pressure in a triaxial chamber. No drainage of the specimen is permitted during the application of the confining fluid pressure or during the compression phase of the test. The specimen is axially loaded at a constant rate of axial deformation (strain controlled).
1.2 This test method provides data for determining undrained strength properties and stress-strain relations for soils. This test method provides for the measurement of the total stresses applied to the specimen, that is, the stresses are not corrected for pore-water pressure.
Note 1: The determination of the unconfined compressive strength of cohesive soils is covered by Test Method D2166/D2166M.
Note 2: The determination of the consolidated, undrained strength of cohesive soils with pore pressure measurement is covered by Test Method D4767.
1.3 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.3.1 The procedures used to specify how data are collected/recorded or calculated in this standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of this standard to consider significant digits used in analysis methods for engineering design.
1.4 Units—The values stated in SI units are to be regarded as the standard. The values given in parentheses are mathemat...

  • Standard
    7 pages
    English language
    sale 15% off
  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM D4219-22(Test Method)
Standard Test Method for Short-Term Unconfined Compressive Strength Index of Chemically Grouted Soils

SIGNIFICANCE AND USE
5.1 The purpose of this test method is to obtain values for comparison with other test values to verify uniformity of materials or the effects of controllable variables, in grout-soil compositions.
5.2 This test method is similar, in principle, to Test Method D2166/D2166M, but is not intended for determination of strength parameters to be used in design. Such values are more properly obtained from long-term triaxial tests.
Note 1: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself assure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
SCOPE
1.1 This test method covers the determination of the short-term unconfined compressive strength index of chemically grouted soils, using displacement-controlled application of test load.
1.2 Units—The values stated in SI units are to be regarded as standard. The values given in parentheses are provided for information only and are not considered standard. Reporting of test results in units other than SI shall not be regarded as nonconformance with this standard.
1.2.1 It is common practice in the engineering/construction profession to concurrently use pounds to represent both a unit of mass (lbm) and of force (lbf). This practice implicitly combines two separate systems of units; the absolute and the gravitational systems. It is scientifically undesirable to combine the use of two separate sets of inch-pound units within a single standard. As stated, this standard includes the gravitational system of inch-pound units and does not use/present the slug unit of mass. However, the use of balances and scales recording pounds of mass (lbm) or recording density in lbm/ft3 shall not be regarded as nonconformance with this standard.
1.3 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026, unless superseded by this test method.
1.3.1 For purposes of comparing a measured or calculated value(s) with specified limits, the measured or calculated value(s) shall be rounded to the nearest decimal of significant digits in the specified limit.
1.3.2 The procedures used to specify how data are collected/recorded or calculated in the standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of this standard to consider significant digits used in analysis methods for engineering design.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D5102/D5102M-22(Test Method)
Standard Test Methods for Unconfined Compressive Strength of Compacted Soil-Lime Mixtures

SIGNIFICANCE AND USE
5.1 Compression testing of soil-lime specimens is performed to determine unconfined compressive strength of the cured soil-lime-water mixture to determine the suitability of the mixture for uses such as in pavement bases and subbases, stabilized subgrades, and structural fills.
5.2 Compressive strength data are used in soil-lime mix design procedures: (a) to determine if a soil will achieve a significant strength increase with the addition of lime; (b) to group soil-lime mixtures into strength classes; (c) to study the effects of variables such as lime percentage, unit weight, water content, curing time, curing temperature, etc.; and (d) to estimate other engineering properties of soil-lime mixtures.
5.3 Lime is generally classified as calcitic or dolomitic. Usually in soil stabilization, high-calcium lime [CaO] or dolomitic lime [CaO + MgO] are used. The lime is transformed from oxide to hydroxide form [[Ca(OH)2 or [Ca(OH)2 + Mg(OH)2]] by the addition of water in the soil, a slurry tank, or at a manufacturing facility. Lime may increase the strength of cohesive soil. The type of lime in combination with soil type influences the resulting compressive strength.
Note 2: The agency performing this test method can be evaluated in accordance with Practice D3740. Notwithstanding statements on precision and bias contained in this method: The precision of this test method is dependent on the competence of the personnel performing it and the suitability of the equipment and facility used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing. Users of this test method are cautioned that compliance with Practice D3740 does not, in itself, ensure reliable testing. Reliable testing depends on many factors; Practice D3740 provides a means of evaluating some of these factors.
SCOPE
1.1 This test method covers procedures for preparing, curing, and testing laboratory-compacted specimens of soil-lime and other lime-treated materials (Note 1) for determining unconfined compressive strength. Depending on the diameter to height ratio, two procedures for determining the unconfined compressive strength of compacted soil-lime mixtures have been developed for specimens prepared at the maximum unit weight and optimum water content, or for specimens prepared at other target unit weight and water content levels. Other applications are given in Section 5 on Significance and Use.
Note 1: Lime-based products other than commercial quicklime and hydrated lime are also used in the lime treatment of fine-grained cohesive soils. Lime kiln dust (LKD) is collected from the kiln exhaust gases by cyclone, electrostatic, or baghouse-type collection systems. Some lime producers hydrate various blends of LKD plus quicklime to produce a lime-based product.
1.2 Cored specimens of soil-lime should be tested in accordance with Test Methods D2166/D2166M.
1.3 Two alternative procedures are provided:
1.3.1 Procedure A describes procedures for preparing and testing compacted soil-lime specimens having height-to-diameter ratios between 2.00 and 2.50. This test method provides the standard measure of compressive strength.
1.3.2 Procedure B describes procedures for preparing and testing compacted soil-lime specimens using Test Methods D698 compaction equipment and molds commonly available in most soil testing laboratories. Procedure B is considered to provide relative measures of individual specimens in a suite of test specimens rather than standard compressive strength values. Because of the lesser height-to-diameter ratio (1.15) of the cylinders, compressive strength determined by Procedure B will normally be greater than that by Procedure A.
1.3.3 Results of unconfined compressive strength tests using Procedure B should not be directly compared to those obtained using Procedure A.
1.4 All observed and calculated values shall conform to the guideline...

  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM D4452/D4452M-22(Practice)
Standard Practice for X-Ray Radiography of Soil Samples

SIGNIFICANCE AND USE
5.1 Many geotechnical tests require the utilization of intact, representative samples of soil. The quality of these samples depends on many factors. Many of the samples obtained by intact sampling methods have inherent anomalies. Sampling procedures cause disturbances of varying types and intensities. These anomalies and disturbances, however, are not always readily detectable by visual inspection of the intact samples before or after testing. Often test results would be enhanced if the presence and the extent of these anomalies and disturbances are known before testing or before destruction of the sample by testing. Such determinations assist the user in detecting flaws in sampling methods, the presence of natural or induced shear planes, and the presence of natural intrusions, such as gravels or shells at critical regions in the samples, the presence of sand and silt seams, and the intensity of disturbances caused by sampling.
5.2 X-ray radiography provides the user with a picture of the internal massive structure of the soil sample, regardless of whether the soil is X-rayed within or without the sampling tube. X-ray radiography assists the user in identifying the following:
5.2.1 Appropriateness of sampling methods used.
5.2.2 Effects of sampling in terms of the disturbances caused by the turning of the edges of various thin layers in varved soils, large disturbances caused in soft soils, shear planes induced by sampling, or extrusion, or both, effects of overdriving of samplers, the presence of cuttings in sampling tubes, or the effects of using bent, corroded, or nonstandard tubes for sampling.
5.2.3 Naturally occurring fissures, shear planes, etc.
5.2.4 The presence of intrusions within the sample, such as calcareous nodules, gravel, or shells.
5.2.5 Sand and silt seams, organic matter, large voids, and channels developed by natural or artificial leaching of soil components.
Note 1: The quality of the results produced by this standard is de...
SCOPE
1.1 This practice covers the determination of the quality of soil samples in thin wall tubes or of extruded soil cores by X-ray radiography.
1.2 This practice enables the user to determine the effects of sampling and natural variations within samples as identified by the extent of the relative penetration of X-rays through soil samples.
1.3 This practice can be used to X-ray soil cores (or observe their features on a fluoroscope) in thin wall tubes or liners ranging from approximately 50 to 150 mm [2 to 6 in.] in diameter. X-rays of samples in the larger diameter tubes provide a radiograph of major features of soils and disturbances, such as large scale bending of edges of varved clays, shear planes, the presence of large concretions, silt and sand seams thicker than 6 mm [1/4 in.], large lumps of organic matter, and voids or other types of intrusions. X-rays of the smaller diameter cores provide higher resolution of soil features and disturbances, such as small concretions (3 mm [1/8 in.] diameter or larger), solution channels, slight bending of edges of varved clays, thin silt or sand seams, narrow solution channels, plant root structures, and organic matter. The X-raying of samples in thin wall tubes or liners requires minimal preparation.
1.4 Greater detail and resolution of various features of the soil can be obtained by X-raying extruded soil cores, as compared to samples in metal tubes. The method used for X-raying soil cores is the same as that for tubes and liners, except that extruded cores have to be handled with extreme care and have to be placed in sample troughs (similar to Fig. 2) before X-raying. This practice should be used only when natural water content or other intact soil characteristics are irrelevant to the end use of the sample.
1.4.1 Often it is necessary to obtain greater resolution of features to determine the propriety of sampling methods, the representative nature of soil samples,...

  • Standard
    17 pages
    English language
    sale 15% off
  • Standard
    17 pages
    English language
    sale 15% off
ASTM
ASTM D4381/D4381M-22(Test Method)
Standard Test Method for Sand Content by Volume of Construction Slurries

SIGNIFICANCE AND USE
5.1 This test method is used to determine the percentage of sand by volume in construction slurry. The significance of this test method mainly relates to construction slurries used for concrete wall and drilled piers construction. The range of measurement is too limited for use in applications where the sand content is intended to be greater than 20 %, such as in the cases of cement bentonite or soil bentonite walls.
5.2 A high sand content in the construction slurry is abrasive for construction plant such as pumps, and is furthermore adverse to the formation of a filter cake in applications where bentonite fluid is used to stabilize an excavation.
Note 1: The quality of the result produced by this standard depends on the competence of the personnel performing it and the suitability of the equipment and facilities being used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing, sampling, inspection, etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself ensure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
SCOPE
1.1 This test method covers the determination of the sand content of bentonitic slurries used in slurry construction techniques. This test method has been modified from API Recommended Practice 13B.
1.2 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.3 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. Except, the sieve designation is identified using the “alternative” system in accordance with Practice E11 instead of the “standard system,” such that the sieve used is referred to as a No. 200 sieve, instead of a 75 µm sieve.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D2434-22(Test Method)
Standard Test Methods for Measurement of Hydraulic Conductivity of Coarse-Grained Soils

ABSTRACT
This test method covers the determination of the coefficient of permeability by a constant-head method for the laminar flow of water through granular soils. The procedure is to establish representative values of the coefficient of permeability of granular soils that may occur in natural deposits as placed in embankments, or when used as base courses under pavements. The different apparatus used in determining the granular soil permeability are presented. The methods in preparing the test specimen are presented in details. The testing and calculation procedure for granular soil permeability determination are presented.
SIGNIFICANCE AND USE
5.1 These test methods are used to measure one-dimensional vertical flow of water through initially saturated coarse-grained, pervious (that is, free-draining) soils under an applied hydraulic gradient. Hydraulic conductivity of coarse-grained soils is used in various civil engineering applications. These test methods are suitable for determination of hydraulic conductivity for soils with k > 10–7 m/s.
Note 2: Clean coarse-grained soils that are classified using Practice D2487-17 as GP, GW, SP, and SW can be tested using these test methods. Depending on fraction and characteristics of fine-grained particles present in soils, these test methods may be suitable for testing other soil types with fines content greater than 5 % (for example, GP-GC, SP-SM).
5.2 Coarse-grained soils are to be tested at a void ratio representative of field conditions. For engineered fills, compaction specification can be used to provide target test conditions, whereas for natural soils, field testing of in-situ density can be used to provide target test conditions.
5.3 Use of a dual-ring permeameter is included in these test methods in addition to a single-ring permeameter for the rigid wall test apparatus. The dual-ring permeameter allows for reducing potential adverse effects of sidewall leakage on measured hydraulic conductivity of the test specimens. The use of a plate at the outflow end of the specimen that contains a ring with a diameter smaller than the diameter of the permeameter and the presence of two outflow ports (one from the inner ring, one from the annular space between the inner ring and the permeameter wall) allows for separating the flow from the central region of the test specimen from the flow near the sidewall of the permeameter.
Note 3: Sidewall leakage has been reported to have significant influence on flow conditions for coarse-grained soils due to presence of larger voids at the boundary and higher void ratio in this region of the specimen. Three modificat...
SCOPE
1.1 These test methods cover laboratory measurement of the hydraulic conductivity (also referred to as coefficient of permeability) of water-saturated coarse-grained soils (for example, sands and gravels) with k > 10–7 m/s. The test methods utilize low hydraulic gradient conditions.
1.2 This standard describes two methods (A and B) for determining hydraulic conductivity of coarse-grained soils. Method A incorporates use of a rigid wall permeameter and Method B incorporates the use of a flexible wall permeameter. A single- or dual-ring rigid wall permeameter may be used in Method A. A dual-ring permeameter may be preferred over a single-ring permeameter when adverse effects from short-circuiting of permeant water along the sidewalls of the permeameter (that is, prevent sidewall leakage) are suspected by the user of this standard.
1.3 The test methods are used under constant head conditions.
1.4 The test methods are used under saturated soil conditions.
1.5 Water is used to permeate the test specimen with these test methods.
1.6 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
Note 1: Hydraulic conductivity has traditionally been reported in cm/s in the US, even though the official SI unit for hydraul...

  • Standard
    16 pages
    English language
    sale 15% off
  • Standard
    16 pages
    English language
    sale 15% off
