ASTM D6614/D6614M-20

(Test Method)

Standard Test Method for Stretch Properties of Textile Fabrics – CRE Method

Standard Test Method for Stretch Properties of Textile Fabrics – CRE Method

SIGNIFICANCE AND USE
5.1 This method is used to determine the stretch and growth properties which a garment made of the fabric may be expected to exhibit during use.
5.2 This is a new method and therefore the history of data is very small, however the excellent agreement of between-laboratory data suggest this method may be considered for acceptance testing of commercial shipments.
5.2.1 If there are differences of practical significance between reported test results for two laboratories (or more), comparative test should be performed to determine if there is a statistical bias between them, using competent statistical assistance. As a minimum, samples used for such comparative tests should be as homogeneous as possible, drawn from the same lot of material as the samples that resulted in disparate results during initial testing, and randomly assigned in equal numbers to each laboratory. Other fabrics with established test values may also be used for these comparative tests. The test results from the laboratories involved should be compared using a statistical test for unpaired data, at a probability level chosen prior to the testing series. If bias is found, either its cause must be found and corrected, or future test results must be adjusted in consideration of the known bias.
SCOPE
1.1 This test method covers the determination of the amount of fabric stretch and fabric growth after a specified extension and held for a specified time.
1.2 While this test method can be used for any fabric, knit fabrics having high stretch are better measured by Test Method D2594.
1.3 This test method should not be used to measure the breaking strength and elongation of woven fabrics, which is covered in Test Methods D5034 and D5035.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
30-Jun-2020
ICS
59.080.30 - Textile fabrics
Technical Committee
D13 - Textiles
Drafting Committee
D13.59 - Fabric Physical Test Methods A
Current Stage
Ref Project

Relations

Referred By
ASTM D4850-23 - Standard Terminology Relating to Fabrics and Fabric Test Methods
Effective Date
01-Jul-2020

Buy Standard

ASTM D6614/D6614M-20 - Standard Test Method for Stretch Properties of Textile Fabrics – CRE MethodASTM D6614/D6614M-20 - Standard Test Method for Stretch Properties of Textile Fabrics – CRE Method
PreviousNext
Standard
ASTM D6614/D6614M-20 - Standard Test Method for Stretch Properties of Textile Fabrics – CRE Method
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM D6614/D6614M-20 - Standard Test Method for Stretch Properties of Textile Fabrics – CRE MethodREDLINE ASTM D6614/D6614M-20 - Standard Test Method for Stretch Properties of Textile Fabrics – CRE Method
PreviousNext
Standard
REDLINE ASTM D6614/D6614M-20 - Standard Test Method for Stretch Properties of Textile Fabrics – CRE Method
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

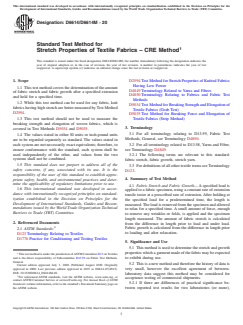

Designation: D6614/D6614M − 20
Standard Test Method for
1
Stretch Properties of Textile Fabrics – CRE Method
This standard is issued under the fixed designation D6614/D6614M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D2594 Test Method for Stretch Properties of Knitted Fabrics
Having Low Power
1.1 This test method covers the determination of the amount
D4849 Terminology Related to Yarns and Fibers
of fabric stretch and fabric growth after a specified extension
D4850 Terminology Relating to Fabrics and Fabric Test
and held for a specified time.
Methods
1.2 While this test method can be used for any fabric, knit
D5034 TestMethodforBreakingStrengthandElongationof
fabrics having high stretch are better measured byTest Method
Textile Fabrics (Grab Test)
D2594.
D5035 Test Method for Breaking Force and Elongation of
1.3 This test method should not be used to measure the Textile Fabrics (Strip Method)
breaking strength and elongation of woven fabrics, which is
3. Terminology
covered in Test Methods D5034 and D5035.
3.1 For all terminology relating to D13.59, Fabric Test
1.4 The values stated in either SI units or inch-pound units
Methods, General, see Terminology D4850.
are to be regarded separately as standard. The values stated in
each system are not necessarily exact equivalents; therefore, to 3.2 For all terminology related to D13.58, Yarns and Fiber,
ensure conformance with the standard, each system shall be
see Terminology D4849.
used independently of the other, and values from the two 3.2.1 The following terms are relevant to this standard:
systems shall not be combined.
fabric stretch, fabric growth, stretch yarn.
1.5 This standard does not purport to address all of the
3.3 FordefinitionsofallothertextiletermsseeTerminology
safety concerns, if any, associated with its use. It is the
D123.
responsibility of the user of this standard to establish appro-
4. Summary of Test Method
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use.
4.1 Fabric Stretch and Fabric Growth—Aspecified load is
1.6 This international standard was developed in accor-
applied to a fabric specimen, using a constant rate of extension
dance with internationally recognized principles on standard-
tensile tester at a prescribed rate of extension.After holding at
ization established in the Decision on Principles for the
the specified load for a predetermined time, the length is
Development of International Standards, Guides and Recom-
measured.The load is removed from the specimen and allowed
mendations issued by the World Trade Organization Technical
to relax for a specified time. A small amount of force, enough
Barriers to Trade (TBT) Committee.
to remove any wrinkles or folds, is applied and the specimen
length measured. The amount of fabric stretch is calculated
2. Referenced Documents
from the difference in length prior to load and under load.
2
Fabric growth is calculated from the difference in length prior
2.1 ASTM Standards:
to loading and after relaxation.
D123 Terminology Relating to Textiles
D1776 Practice for Conditioning and Testing Textiles
5. Significance and Use
5.1 This method is used to determine the stretch and growth
propertieswhichagarmentmadeofthefabricmaybeexpected
1
This test method is under the jurisdiction ofASTM Committee D13 on Textiles
to exhibit during use.
and is the direct responsibility of Subcommittee D13.59 on Fabric Test Methods,
General.
5.2 This is a new method and therefore the history of data is
Current edition approved July 1, 2020. Published August 2020. Originally
very small, however the excellent agreement of between-
approved in 2000. Last previous edition approved in 2015 as D6614–07(2015).
DOI: 10.1520/D6614_D6614M-20.
laboratory data suggest this method may be considered for
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
acceptance testing of commercial shipments.
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
5.2.1 If there are differences of practical significance be-
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. tween reported test results for two laboratories (or more),
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D6614
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

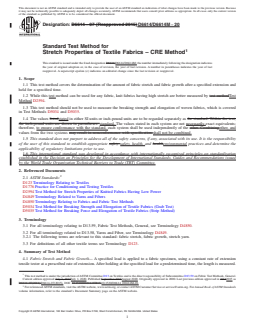

Designation: D6614 − 07 (Reapproved 2015) D6614/D6614M − 20
Standard Test Method for
1
Stretch Properties of Textile Fabrics – CRE Method
This standard is issued under the fixed designation D6614;D6614/D6614M; the number immediately following the designation indicates
the year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method covers the determination of the amount of fabric stretch and fabric growth after a specified extension and
held for a specified time.
1.2 While this test method can be used for any fabric, knit fabrics having high stretch are better measured by test methodTest
Method D2594.
1.3 This test method should not be used to measure the breaking strength and elongation of woven fabrics, which is covered
in Test Methods D5034 and D5035.
1.4 The values listedstated in either SI units or inch-pound units are to be regarded separately as the standard. Within the text,
the inch-pound units are shown in parentheses. standard. The values stated in each system are not necessarily exact equivalents;
therefore, to ensure conformance with the standard, each system shall be used independently of the other. Combiningother, and
values from the two systems may result in nonconformance with specification.shall not be combined.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D123 Terminology Relating to Textiles
D1776 Practice for Conditioning and Testing Textiles
D2594 Test Method for Stretch Properties of Knitted Fabrics Having Low Power
D4849 Terminology Related to Yarns and Fibers
D4850 Terminology Relating to Fabrics and Fabric Test Methods
D5034 Test Method for Breaking Strength and Elongation of Textile Fabrics (Grab Test)
D5035 Test Method for Breaking Force and Elongation of Textile Fabrics (Strip Method)
3. Terminology
3.1 For all terminology relating to D13.59, Fabric Test Methods, General, see Terminology D4850.
3.2 For all terminology related to D13.58, Yarns and Fiber, see Terminology D4849.
3.2.1 The following terms are relevant to this standard: fabric stretch, fabric growth, stretch yarn.
3.3 For definitions of all other textile terms see Terminology D123.
4. Summary of Test Method
4.1 Fabric Stretch and Fabric Growth— A specified load is applied to a fabric specimen, using a constant rate of extension
tensile tester at a prescribed rate of extension. After holding at the specified load for a predetermined time, the length is measured.
1
This test method is under the jurisdiction of ASTM Committee D13 on Textiles and is the direct responsibility of Subcommittee D13.59 on Fabric Test Methods, General.
Current edition approved July 1, 2015July 1, 2020. Published September 2015August 2020. Originally approved in 2000. Last previous edition approved in 20112015 as
D6614–07(2011).D6614–07(2015). DOI: 10.1520/D6614-07R15.10.1520/D6614_D6614M-20.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

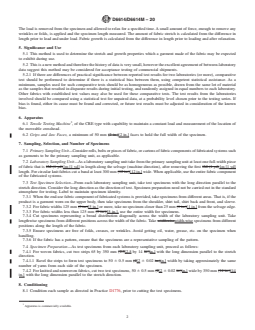

D6614/D6614M − 20
The load is removed from the specimen and allowed to relax for a specified time. A small amount of force, enough to remove any
wrinkles or folds, is applied and the specimen length measured. The amount of fabric stretch is calculated from the difference in
length prior to load and under load. Fabric growth is calculated from the difference in length prior to loading and after relaxation.
5. Significance and Use
5.1 This method is used to determine the stretch and growt
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM D1388-23(Test Method)
Standard Test Method for Stiffness of Fabrics

SIGNIFICANCE AND USE
5.1 In general, these procedures are more suitable for testing woven fabrics than knit fabrics.
5.2 Both test options in this test method are considered satisfactory for acceptance testing of commercial shipments since current estimates of between-laboratory precision are acceptable and the method is used extensively in the trade for acceptance testing.
5.2.1 In case of a dispute arising from differences in reported test results when using this test method for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens that are as homogeneous as possible and that are from a lot of material of the type in question. Test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using the appropriate statistical analysis and an acceptable probability level chosen by the two parties before testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the supplier must agree to interpret future test results with consideration to the known bias.
5.3 The stiffness of a fabric may change with storage.
5.4 No evidence has been found showing that bending length is dependent on the width of the test specimen. The tendency for specimens to curl or twist will affect the result, because of the rigidity provided at the edge of the specimen. Consequently, the wider the strip, the less important is the edge effect. For fabrics having only a slight tendency to curl, a 2.5 cm wide strip has been found to be satisfactory. As the tendency to curl increases, this width may be increased (see Note 10).
5.5 This method differs from Test Method F3260 which requires tracking of...
SCOPE
1.1 This test method covers the measurement of stiffness properties of fabrics. Bending length is measured and flexural rigidity is calculated. Two procedures are provided.
1.1.1 Option A—Cantilever Test, employing the principle of cantilever bending of the fabric under its own mass.
1.1.2 Option B—Heart Loop Test, employing the principle of a loop formed in a fabric strip and hung vertically.
1.2 This test method applies to most fabrics including woven fabrics, air bag fabrics, blankets, napped fabrics, knitted fabrics, layered fabrics, pile fabrics. The fabrics may be untreated, heavily sized, coated, resin-treated, or otherwise treated.
1.2.1 This method may be used to determine the stiffness of nonwoven materials (for example, hydroentangled, dry laid, needlepunch, resin bonded, thermal, and wet laid) or refer to Test Method D5732. To determine the stiffness of medical textiles (for example, surgical mesh, films, and membranes), refer to Test Method F3260.
Note 1: The formula to calculate flexural rigidity in D5732-95 (2001) is incorrect and should not be used. Utilize the formula presented in 11.5 of Test Method D1388.
1.3 Units—The values stated in SI units are to be regarded as the standard. The values given in parentheses after SI units are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers...

  • Standard
    8 pages
    English language
    sale 15% off
  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM D737-18(2023)(Test Method)
Standard Test Method for Air Permeability of Textile Fabrics

SIGNIFICANCE AND USE
5.1 This test method is considered satisfactory for acceptance testing of commercial shipments since current estimates of between-laboratory precision are acceptable, and this test method is used extensively in the trade for acceptance testing.
5.1.1 If there are differences of practical significance between reported test results for two laboratories (or more), comparative tests should be performed to determine if there is a statistical bias between them, using competent statistical assistance. As a minimum, ensure the test samples to be used are as homogeneous as possible, are drawn from the material from which the disparate test results were obtained, and are randomly assigned in equal number to each laboratory for testing. The test results from the two laboratories should be compared using a statistical test for unpaired data, at a probability level chosen prior to the testing series. If bias is found, either its cause must be found and corrected, or future test results for that material must be adjusted in consideration of the known bias.
5.2 Air permeability is an important factor in the performance of such textile materials as gas filters, fabrics for air bags, clothing, mosquito netting, parachutes, sails, tentage, and vacuum cleaners. In filtration, for example, efficiency is directly related to air permeability. Air permeability also can be used to provide an indication of the breathability of weather-resistant and rainproof fabrics, or of coated fabrics in general, and to detect changes during the manufacturing process.
5.3 Performance specifications, both industrial and military, have been prepared on the basis of air permeability and are used in the purchase of fabrics where permeability is of interest.
5.4 Construction factors and finishing techniques can have an appreciable effect upon air permeability by causing a change in the length of airflow paths through a fabric. Hot calendaring can be used to flatten fabric components, thus reducing...
SCOPE
1.1 This test method covers the measurement of the air permeability of textile fabrics.
1.2 This test method applies to most fabrics including woven fabrics, nonwoven fabrics, air bag fabrics, blankets, napped fabrics, knitted fabrics, layered fabrics, and pile fabrics. The fabrics may be untreated, heavily sized, coated, resin-treated, or otherwise treated.
1.3 The values stated in SI units are to be regarded as the standard. The values stated in inch-pound units may be approximate.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D3786/D3786M-18(2023)(Test Method)
Standard Test Method for Bursting Strength of Textile Fabrics—Diaphragm Bursting Strength Tester Method

SIGNIFICANCE AND USE
5.1 This method for the determination of diaphragm bursting strength of knitted, nonwoven and woven fabrics is being used by the textile industry for the evaluation of a wide variety of end uses.
5.2 In cases where test results obtained using the procedures in Test Method D3786 have not been correlated with actual performance, Test Method D3786 is considered satisfactory for acceptance testing of commercial shipments of textile fabrics for bursting strength since the method has been used extensively in the trade for acceptance testing. In cases where disagreement arising from differences in values reported by the purchaser and the supplier when using Test Method D3786 for acceptance testing, the statistical bias, if any, between the laboratory of the purchaser and the laboratory of the supplier should be determined with comparison based on testing specimens randomly drawn from one sample of material of the type being evaluated.
Note 2: The kind of load transfer and stretch that occur when knitted goods and nonwoven fabrics are worn are prevented by clamping them as described in this method.
SCOPE
1.1 This test method describes the measurement of the resistance of textile fabrics to bursting using a hydraulic or pneumatic diaphragm bursting tester. This test method is generally applicable to a wide variety of textile products.
1.2 This test method may also be applicable for stretch woven and woven industrial fabrics such as inflatable restraints. As new materials that may exceed the range of the instrument are developed, please refer to the reporting section and consider using Test Methods D3787 or D6797 instead.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
Note 1: For the measurement of the bursting strength by means of a ball burst mechanism, refer to Test Method D3787.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D4850-23(Terminology)
Standard Terminology Relating to Fabrics and Fabric Test Methods

SCOPE
1.1 This terminology covers definitions of technical terms used in the industry related to textile fabrics. Terms that are generally understood or adequately defined in other readily available sources are not included. Other terminology standards that have terms related to textile fabrics are shown in 2.1
1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    11 pages
    English language
    sale 15% off
  • Standard
    11 pages
    English language
    sale 15% off
ASTM
ASTM D7507-23(Specification)
Standard Specification for Woven High Stretch Fabrics Used in Apparel

SIGNIFICANCE AND USE
4.1 Upon mutual agreement between the purchaser and the supplier, woven high stretch fabrics used in apparel should meet all of the requirements listed in Table 1 of this specification. (A) See Note 3.
4.2 It is recognized that, for purposes of fashion or aesthetics, the ultimate consumer of articles made from these fabrics may find acceptable products that do not conform to all of the requirements listed in Table 1. Therefore, one or more of the requirements in Table 1 may be modified by mutual agreement between the purchaser and the supplier.
4.2.1 In such cases, any references to the specifications should specify that: “This product meets ASTM specifications XXXX except for the following characteristic(s).”
4.3 Where no pre-purchase agreement has been reached between the purchaser and supplier, and in case of controversy, the requirements listed in Table 1 are intended to be used as a guide only. As noted in 4.2, ultimate consumer demands dictate varying performance parameters for a particular product.
4.4 The uses and significance of particular properties and test methods are discussed in the appropriate sections of the specified test methods.
SCOPE
1.1 This specification covers the performance requirements for woven high stretch fabrics used in apparel.
1.2 The following safety hazards caveat pertains only to the test methods described in this performance specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    3 pages
    English language
    sale 15% off
  • Technical specification
    3 pages
    English language
    sale 15% off
ASTM
ASTM D3775-17(2023)(Test Method)
Standard Test Method for End (Warp) and Pick (Filling) Count of Woven Fabrics

SIGNIFICANCE AND USE
5.1 This test method is considered satisfactory for acceptance testing of commercial shipments because it has been used extensively in the trade for that purpose.
5.1.1 If there are differences of practical significance between reported test results for two laboratories (or more), comparative test should be performed to determine if there is a statistical bias between them, using competent statistical assistance. As a minimum, use the samples for such a comparative test that are as homogeneous as possible, drawn from the same lot of material as the samples that resulted in disparate results during initial testing and randomly assigned in equal numbers to each laboratory. The test results from the laboratories involved should be compared using a statistical test for unpaired data, a probability level chosen prior to the testing series. If bias is found, either its cause must be found and corrected, or future test results for that material must be adjusted in consideration of the known bias.
5.1.2 This test method is suitable for use with narrow fabrics when the count across the total width is measured in the narrow direction and extrapolated to the number of yarns per centimeter (inch).
SCOPE
1.1 This test method covers the measurement of end (warp) and pick (filling) count and is applicable to all types of woven fabrics.
Note 1: Historically, the term fabric count has been used to describe the end and pick count of woven fabrics. The terms end count and pick count are replacing the term fabric count, to provide clarity.
1.2 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.2.1 Throughout this document, there will be some instances in which the units do not convert 1:1. This is to acknowledge that this is a global document and that different parts of the world use different units of measurement. Organizations using the metric system wil report the count per 1 cm. Organizations using the English system will report the count per 1 in.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
Note 2: For a current test method for the wale and course count of weft knitted fabrics, refer to Test Method D8007.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D4970/D4970M-22(Test Method)
Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Martindale Tester

SIGNIFICANCE AND USE
5.1 Acceptance Testing—This method of testing fabrics resistance to pilling is not recommended for acceptance testing. If it is used for acceptance testing, it should be used with caution because interlaboratory data are not available. In some cases the purchaser or supplier may have to test a commercial shipment of one or more specific materials by the best available method even though the method has not been recommended for acceptance testing. Although this test method is not recommended for acceptance testing, it is useful because it is used widely outside the United States.
5.2 If there is a disagreement arising from differences in values reported by the purchaser and the supplier when using this test method, the statistical bias, if any, between the laboratory of the purchaser and the laboratory of the supplier should be determined with comparison being based on testing specimens randomly drawn from one sample of material of the type being evaluated. Competent statistical assistance is recommended for the investigation of bias. A minimum of two parties should take a group of test specimens, which are as homogeneous as possible and which are from a lot of material of the type in question. The test specimens then should be assigned randomly in equal numbers to each laboratory for testing. The average test results from the two laboratories should be compared using an acceptable statistical protocol and probability level chosen by the two parties before the testing is started. Appropriate statistical disciplines for comparing data must be used when the purchaser and supplier cannot agree. If a bias is found, either its cause must be found and corrected, or the purchaser and the supplier must agree to interpret future results with consideration for the known bias.
5.3 The pilling of textile fabrics is a very complex property because it is affected by many factors that include type of fiber or blends, fiber dimensions, yarn and fabric construction, and fabric f...
SCOPE
1.1 This test method covers the determination of the resistance to the formation of pills and other related surface changes on textile fabrics using the Martindale tester.
Note 1: For other methods, if testing the pilling resistance of textiles, refer to Test Methods D3511/D3511M, D3512/D3512M, and D3514.
1.2 This test method is generally applicable to knit, woven, and nonwoven fabrics; however, material thickness may limit suitability for testing due to specimen holder capacity.
1.3 The fabric may be laundered or dry cleaned before testing as agreed upon among interested parties.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D3512/D3512M-22(Test Method)
Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Random Tumble Pilling Tester

SIGNIFICANCE AND USE
5.1 Acceptance Testing—This method of testing fabrics for resistance to pilling is not recommended for acceptance testing. If it is used for acceptance testing, it should be used with caution because the between-laboratory precision is poor. In some cases the purchaser and the supplier may have to test a commercial shipment of one or more specific materials by the best available test method, even though the test method is not recommended for acceptance testing.
5.1.1 If there are differences or practical significance between reported test results for two laboratories (or more), comparative tests should be performed to determine if there is a statistical bias between them, using competent statistical assistance. As a minimum, the test samples should be used that are as homogeneous as possible, drawn from the material from which the disparate test results were obtained, and randomly assigned in equal numbers to each laboratory for testing. Other materials with established test values may be used for this purpose. The test results from the two laboratories should be compared using a statistical test for unpaired data, at a probability level chosen prior to the testing series. If a bias is found, either its cause must be found and corrected, or future test results must be adjusted in consideration of the known bias.
5.2 The pilling of textile fabrics is a very complex property because it is affected by many factors which may include type of fiber or blends, fiber dimensions, yarn and fabric construction, fabric finishing treatments and refurbishing method. Testing before refurbishing may be adviseable. The pilling resistance of a specific fabric in actual wear varies more with general conditions of use and individual wearers than in replicate fabric specimens subjected to controlled laboratory tests. This experience should be borne in mind when adopting levels of acceptability for any series of standards.
5.3 Pills vary appreciably in size and appearance and de...
SCOPE
1.1 This test method covers the determination of the propensity of a fabric to form pills and other related surface changes on textiles using the random tumble pilling tester. The procedure is generally applicable to all types of woven and knitted apparel fabrics.
Note 1: For other test methods for the pilling resistance of textiles, refer to Test Methods D3511/D3511M, D3514/D3514M, and D4970/D4970M.
1.2 Some fabrics that have been treated with a silicone resin may not be satisfactorily tested by this procedure because the silicone resin may transfer onto the cork liners in the test chamber and cause erroneous results.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D4157-13(2022)(Test Method)
Standard Test Method for Abrasion Resistance of Textile Fabrics (Oscillatory Cylinder Method)

SIGNIFICANCE AND USE
5.1 The measurement of the resistance to abrasion of textile and other materials is very complex. The resistance to abrasion is affected by many factors, such as the inherent mechanical properties of the fibers; the dimensions of the fibers; the structure of the yarns; the construction of the fabrics; and the type, kind, and amount of finishing material added to the fibers, yarns, or fabric.
5.2 The resistance to abrasion is also greatly affected by the conditions of the tests, such as the nature of abradant; variable action of the abradant over the area of specimen abraded, the tension of the specimen, the pressure between the specimen and abradant, and the dimensional changes in the specimen.
5.3 Abrasion tests are all subject to variation due to changes in the abradant during specific tests. The abradant must accordingly be changed at frequent intervals or checked periodically against a standard. With disposable abradants, the abradant is used only once or changed after limited use. With permanent abradants that use hardened metal or equivalent surfaces, it is assumed that the abradant will not change appreciably in a specific series of tests, but obviously similar abradants used in different laboratories will not likely change at the same rate due to differences in usage. Permanent abradants may also change due to pick up of finishing or other material from test fabrics and must accordingly be cleaned at frequent intervals. The measurement of the relative amount of abrasion may also be affected by the method of evaluation and may be influenced by the judgment of the operator.
5.4 The resistance of textile materials to abrasion as measured on a testing machine in the laboratory is generally only one of several factors contributing to wear performance or durability as experienced in the actual use of the material. While “abrasion resistance” (often stated in terms of the number of cycles on a specified machine, using a specified technique to produce a spe...
SCOPE
1.1 This test method covers the determination of the abrasion resistance of woven textile fabrics using the oscillatory cylinder tester. This test method may not be usable for some fabric constructions.
Note 1: Other procedures for measuring the abrasion resistance of textile fabrics are given in: Guides D3884 and D4158, and Test Methods D3885, D3886, and AATCC 93.
1.2 The values stated in SI units are to be regarded as standard. The values given in parentheses after SI units are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM D4966-22(Test Method)
Standard Test Method for Abrasion Resistance of Textile Fabrics (Martindale Abrasion Tester Method)

SIGNIFICANCE AND USE
5.1 Acceptance Testing—this test method is not considered satisfactory for acceptance testing of commercial shipments of fabric. The between-laboratory precision of this test method is poor and, because of the nature of abrasion testing itself, technicians frequently fail to obtain results in agreement on the same type of testing instrument, both within and between laboratories. Although this test method is not recommended for acceptance testing, it is useful because it is used widely, especially outside the United States.
5.1.1 In case of a dispute arising from differences in reported test results when using this test method for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens that are as homogeneous as possible and that are from a lot of material of the type in question. The test specimens then should be assigned randomly in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using Students t-test for unpaired data and an acceptable probability level chosen by the two parties before the testing is begun. If a bias is found, either its cause must be found and corrected or the purchaser and the supplier must agree to interpret future test results in light of the known bias.
5.2 The resistance to abrasion also is affected greatly by the conditions of the tests, such as the nature of abradant; variable action of the abradant over the area of specimen abraded, the tension on the specimen, the pressure between the specimen and abradant, and the dimensional changes in the specimen.
5.3 Abrasion tests are all subject to variation due to changes in the abradant during specific tests. The abradant must be changed accordingly at freque...
SCOPE
1.1 This test method covers the determination of the abrasion resistance of textile fabrics using the Martindale abrasion tester. The method is generally applicable to knit, woven, and nonwoven fabrics; however, material thickness may limit suitability for testing due to specimen holder capacity.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
Note 1: For other current test methods of testing the abrasion resistance of textiles refer to Test Methods D3884, D3885, D3886, D4157, D4158, and AATCC TM93.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
