1.1 This specification covers the requirements for Halon 1211 as a fire-fighting medium.
1.2 This specification does not address the fire-fighting equipment or hardware that employs Halon 1211 or the conditions of employing such equipment (for example, handhelds, fixed installations, etc.).
1.3 This specification does not address the storage or transportation of Halon 1211. Storage, handling, and transportation issues may be addressed in future ASTM standards.
1.4 The values stated in both inch-pound and SI units are to be regarded separately as the standard. The values given in parentheses are for information only.
1.5 The following safety hazards caveat pertains only to the test methods portion, Section 6, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. Specific hazards statements are given in 4.5.
General Information
Relations
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

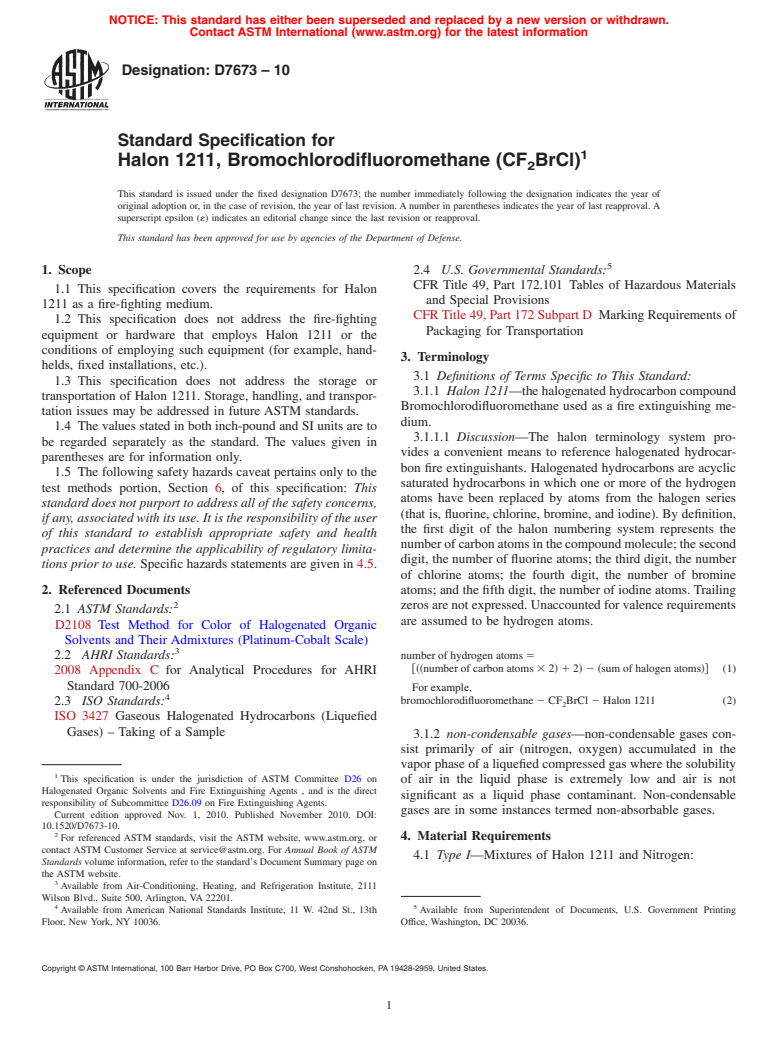

Designation: D7673 – 10
Standard Specification for
Halon 1211, Bromochlorodifluoromethane (CF BrCl)
This standard is issued under the fixed designation D7673; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope 2.4 U.S. Governmental Standards:
CFR Title 49, Part 172.101 Tables of Hazardous Materials
1.1 This specification covers the requirements for Halon
and Special Provisions
1211 as a fire-fighting medium.
CFRTitle49,Part172SubpartD MarkingRequirementsof
1.2 This specification does not address the fire-fighting
Packaging for Transportation
equipment or hardware that employs Halon 1211 or the
conditions of employing such equipment (for example, hand-
3. Terminology
helds, fixed installations, etc.).
3.1 Definitions of Terms Specific to This Standard:
1.3 This specification does not address the storage or
3.1.1 Halon 1211—thehalogenatedhydrocarboncompound
transportation of Halon 1211. Storage, handling, and transpor-
Bromochlorodifluoromethane used as a fire extinguishing me-
tation issues may be addressed in future ASTM standards.
dium.
1.4 The values stated in both inch-pound and SI units are to
3.1.1.1 Discussion—The halon terminology system pro-
be regarded separately as the standard. The values given in
vides a convenient means to reference halogenated hydrocar-
parentheses are for information only.
bon fire extinguishants. Halogenated hydrocarbons are acyclic
1.5 The following safety hazards caveat pertains only to the
saturated hydrocarbons in which one or more of the hydrogen
test methods portion, Section 6, of this specification: This
atoms have been replaced by atoms from the halogen series
standard does not purport to address all of the safety concerns,
(that is, fluorine, chlorine, bromine, and iodine). By definition,
if any, associated with its use. It is the responsibility of the user
the first digit of the halon numbering system represents the
of this standard to establish appropriate safety and health
numberofcarbonatomsinthecompoundmolecule;thesecond
practices and determine the applicability of regulatory limita-
digit, the number of fluorine atoms; the third digit, the number
tions prior to use. Specific hazards statements are given in 4.5.
of chlorine atoms; the fourth digit, the number of bromine
2. Referenced Documents atoms; and the fifth digit, the number of iodine atoms.Trailing
zerosarenotexpressed.Unaccountedforvalencerequirements
2.1 ASTM Standards:
are assumed to be hydrogen atoms.
D2108 Test Method for Color of Halogenated Organic
Solvents and Their Admixtures (Platinum-Cobalt Scale)
2.2 AHRI Standards: numberofhydrogenatoms 5
@~~numberofcarbonatoms 32!12!2~sumofhalogenatoms!# (1)
2008 Appendix C for Analytical Procedures for AHRI
Standard 700-2006
Forexample,
bromochlorodifluoromethane 2CF BrCl 2Halon1211 (2)
2.3 ISO Standards:
ISO 3427 Gaseous Halogenated Hydrocarbons (Liquefied
Gases) – Taking of a Sample
3.1.2 non-condensable gases—non-condensable gases con-
sist primarily of air (nitrogen, oxygen) accumulated in the
vapor phase of a liquefied compressed gas where the solubility
This specification is under the jurisdiction of ASTM Committee D26 on
of air in the liquid phase is extremely low and air is not
Halogenated Organic Solvents and Fire Extinguishing Agents , and is the direct
significant as a liquid phase contaminant. Non-condensable
responsibility of Subcommittee D26.09 on Fire Extinguishing Agents.
gases are in some instances termed non-absorbable gases.
Current edition approved Nov. 1, 2010. Published November 2010. DOI:
10.1520/D7673-10.
4. Material Requirements
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
4.1 Type I—Mixtures of Halon 1211 and Nitrogen:
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website.
Available from Air-Conditioning, Heating, and Refrigeration Institute, 2111
Wilson Blvd., Suite 500, Arlington, VA 22201.
4 5
Available from American National Standards Institute, 11 W. 42nd St., 13th Available from Superintendent of Documents, U.S. Government Printing
Floor, New York, NY 10036. Office, Washington, DC 20036.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
D7673 – 10
4.1.1 The nitrogen (N ) partial pressure shall be such that 5.1.1 The sampling vessel shall be capable of safely resist-
the safe working pressure of the receiving vessel is not ingthevaporpressureofthesampleatthehighesttemperature
exceeded. To prevent excessive pressure, the fill density of that could be encountered during handling, storage, or trans-
Halon1211withinacontainershouldnotexceedthatneededto port.
achieve complete filling of the container at the maximum
5.2 TheHalon1211selectedinaccordancewith5.1shallbe
envisaged storage temperature. For example, for a U.S. DOT
tested for quality conformance in accordance with Section 6.
4W260 cylinder, the nitrogen partial pressure shall not exceed
The presence of one or more defects shall be cause for
3 3
129psigat70°F(9.9barat21°C)fora100lb/ft (1602kg/m )
rejection.
fill density, which yields a total pressure of 150 psig at 70°F
(11.4barat21°C).Forthisexample,thesafeworkingpressure
6. Test Methods
of the 4BW260 cylinder is not exceeded for temperatures
6.1 Purity:
below 55°C (131°F).
6.1.1 Determinethepuritybygaschromatographyinaccor-
4.1.2 Halon 1211 shall conform to the requirements pre-
dance with the technique described in 6.1.2-6.1.5 or by gas
scribed in Table 1 when tested by the appropriate test meth-
chromatography/mass spectrometry (GC/MS) in accordance
od(s) listed in Section 6.
with 6.2.2-6.2.5.
4.1.3 When a material analysis is required, by agreement
6.1.1.1 Priortosampleintroduction,astandardizationofthe
betweenthepurchaserandthesupplier,thetotalpressureinthe
GC must be performed using a known bromochlorodifluo-
Halon1211container,partialpressureoftheN ,thefilldensity
romethane purity standard.
of the Halon 1211 within the container, and the maximum safe
6.1.2 Apparatus—The following special apparatus is re-
storage temperature shall be part of the material analysis
quired to determine the percent of Halon 1211 by GC:
(certification). The pressure shall be reported in pound-force
6.1.2.1 Gas Chromatograph System (GC System), equipped
per square inch gauge (preferred) or bar. The fill density shall
with a flame ionization detector (FID), capillary column split
be reported in pounds per cubic foot at 70°F (preferred) or
injector, subambient (liquid nitrogen) cooling valve and an
kilograms per cubic metre at 21°C.The maximum safe storage
electronic integrator or suitable computer data gathering and
temperature of the Halon 1211 container shall be reported in
reduction system.
degrees Fahrenheit (preferred) or in degrees Celsius and shall
6.1.2.2 Chromatographic Column—210m(connectthetwo
conformtoapplicableregulationsfortheHalon1211container
columns below together with the first column end attached to
design and use.
the injection port):
4.2 Type II—Halon 1211 shall conform to the requirements
(a) 105 m RTx-1701 (14 % cyanopropylphenyl-86 %
ofTypeI,aslistedin4.1,andshallcontainnomorethan1.5%
methylpolysiloxane), 0.25 mm, 1µm.
by volume non-condensable gases in the vapor phase, ex-
pressed as air when tested by the appropriate test method(s) (b) 105 m RTx-200 (5 % diphenyl-95 % dimethyl polysi-
listed in Section 6. loxane), 0.25 mm, 1µm.
4.3 By agreement between the purchaser and the supplier,
The two columns are attached together, with the first
analysismayberequiredandlimitsestablishedforelementsor
(column a) attached to the injection port of the GC system.
compounds not specified in Table 1.
Columns are available from several chromatographic supply
4.4 Unless otherwise specified, Type I is assumed.
vendors.
4.5 Warning—ExposuretoconcentrationsofHalon1211in
6.1.2.3 Sample Introduction—Take sample from the liquid
excess of 1.0% by volume in air during periods of elevated
phase employing the procedure described in 5.1 of this
adrenaline could produce cardiac arrhythmia in some person-
specification; us
...
