ASTM C1347-08

(Practice)

Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis

Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis

SIGNIFICANCE AND USE
The materials covered that must meet ASTM specifications are uranium metal and uranium oxide.
Uranium materials are used as nuclear reactor fuel. For this use, these materials must meet certain criteria for uranium content, uranium-235 enrichment, and impurity content, as described in Specifications C 753 and C 776. The material is assayed for uranium to determine whether the content is as specified.
Uranium alloys, refractory uranium materials, and uranium containing scrap and ash are unique uranium materials for which the user must determine the applicability of this practice. In general, these unique uranium materials are dissolved with various acid mixtures or by fusion with various fluxes.
SCOPE
1.1 This practice covers dissolution treatments for uranium materials that are applicable to the test methods used for characterizing these materials for uranium elemental, isotopic, and impurities determinations. Dissolution treatments for the major uranium materials assayed for uranium or analyzed for other components are listed.
1.2 The treatments, in order of presentation, are as follows:
Procedure TitleSection Dissolution of Uranium Metal and Oxide with Nitric Acid8.1 Dissolution of Uranium Oxides with Nitric Acid and Residue
Treatment8.2 Dissolution of Uranium-Aluminum Alloys in Hydrochloric Acid
with Residue Treatment8.3 Dissolution of Uranium Scrap and Ash by Leaching with Nitric
Acid and Treatment of Residue by Carbonate Fusion8.4 Dissolution of Refractory Uranium-Containing Material by
Carbonate Fusion8.5 Dissolution of Uranium—Aluminum Alloys
Uranium Scrap and Ash, and Refractory
Uranium-Containing Materials by
Microwave Treatment8.6
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. Specific hazards statements are given in Section 7.

General Information

Status
Historical
Publication Date
30-Nov-2008
ICS
27.120.30 - Fissile materials and nuclear fuel technology
Technical Committee
C26 - Nuclear Fuel Cycle
Drafting Committee
C26.05 - Methods of Test
Current Stage
Ref Project

Relations

Replaces
ASTM C1347-02 - Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis
Effective Date
01-Dec-2008
Referred By
ASTM E321-20 - Standard Test Method for Atom Percent Fission in Uranium and Plutonium Fuel (Neodymium-148 Method)
Effective Date
01-Dec-2008
Referred By
ASTM D7876-13(2018) - Standard Practice for Practice for Sample Decomposition Using Microwave Heating (With or Without Prior Ashing) for Atomic Spectroscopic Elemental Determination in Petroleum Products and Lubricants
Effective Date
01-Dec-2008
Referred By
ASTM C1462-21 - Standard Specification for Uranium Metal Enriched to Less Than 20 % <sup> 235</sup >U
Effective Date
01-Dec-2008
Referred By
ASTM C1832-23 - Standard Test Method for Determination of Uranium Isotopic Composition by Modified Total Evaporation (MTE) Method Using Thermal Ionization Mass Spectrometer
Effective Date
01-Dec-2008
Referred By
ASTM C1411-20 - Standard Practice for The Ion Exchange Separation of Uranium and Plutonium Prior to Isotopic Analysis
Effective Date
01-Dec-2008
Referred By
ASTM C1845-16 - Standard Practice for The Separation of Lanthanide Elements from Uranium Matrices Using High Pressure Ion Chromatography (HPIC) for Isotopic Analyses by Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
Effective Date
01-Dec-2008
Referred By
ASTM C1625-19 - Standard Test Method for Uranium and Plutonium Concentrations and Isotopic Abundances by Thermal Ionization Mass Spectrometry
Effective Date
01-Dec-2008
Referred By
ASTM C696-19 - Standard Test Methods for Chemical, Mass Spectrometric, and Spectrochemical Analysis of Nuclear-Grade Uranium Dioxide Powders and Pellets
Effective Date
01-Dec-2008
Referred By
ASTM C1672-17 - Standard Test Method for Determination of Uranium or Plutonium Isotopic Composition or Concentration by the Total Evaporation Method Using a Thermal Ionization Mass Spectrometer
Effective Date
01-Dec-2008
Referred By
ASTM C1267-17(2022) - Standard Test Method for Uranium by Iron (II) Reduction in Phosphoric Acid Followed by Chromium (VI) Titration in the Presence of Vanadium
Effective Date
01-Dec-2008
Referred By
ASTM C1590-21 - Standard Practice for Alternate Actinide Calibration for Inductively Coupled Plasma-Mass Spectrometry
Effective Date
01-Dec-2008
Referred By
ASTM C1871-22 - Standard Test Method for Determination of Uranium Isotopic Composition by the Double Spike Method Using a Thermal Ionization Mass Spectrometer
Effective Date
01-Dec-2008
Referred By
ASTM C1413-18 - Standard Test Method for Isotopic Analysis of Hydrolyzed Uranium Hexafluoride and Uranyl Nitrate Solutions by Thermal Ionization Mass Spectrometry
Effective Date
01-Dec-2008
Referred By
ASTM C1287-18 - Standard Test Method for Determination of Impurities in Nuclear Grade Uranium Compounds by Inductively Coupled Plasma Mass Spectrometry
Effective Date
01-Dec-2008

Buy Standard

ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for AnalysisASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis
PreviousNext
Standard
ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis
English language
8 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for AnalysisREDLINE ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis
PreviousNext
Standard
REDLINE ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis
English language
8 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for AnalysisREDLINE ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis
PreviousNext
Standard
REDLINE ASTM C1347-08 - Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis
English language
8 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

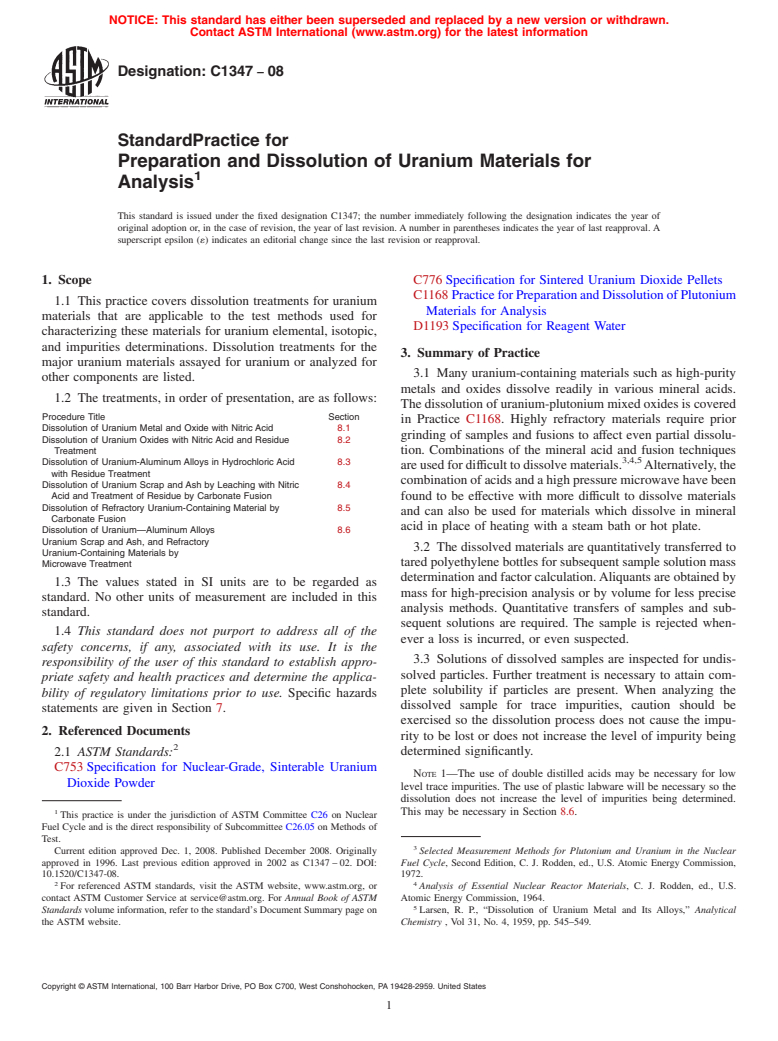

Designation: C1347 − 08
StandardPractice for
Preparation and Dissolution of Uranium Materials for
1
Analysis
This standard is issued under the fixed designation C1347; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope C776 Specification for Sintered Uranium Dioxide Pellets
C1168 PracticeforPreparationandDissolutionofPlutonium
1.1 This practice covers dissolution treatments for uranium
Materials for Analysis
materials that are applicable to the test methods used for
D1193 Specification for Reagent Water
characterizing these materials for uranium elemental, isotopic,
and impurities determinations. Dissolution treatments for the
3. Summary of Practice
major uranium materials assayed for uranium or analyzed for
3.1 Many uranium-containing materials such as high-purity
other components are listed.
metals and oxides dissolve readily in various mineral acids.
1.2 The treatments, in order of presentation, are as follows:
The dissolution of uranium-plutonium mixed oxides is covered
Procedure Title Section
in Practice C1168. Highly refractory materials require prior
Dissolution of Uranium Metal and Oxide with NitricAcid 8.1
grinding of samples and fusions to affect even partial dissolu-
Dissolution of Uranium Oxides with NitricAcid and Residue 8.2
Treatment tion. Combinations of the mineral acid and fusion techniques
3,4,5
Dissolution of Uranium-AluminumAlloys in HydrochloricAcid 8.3
areusedfordifficulttodissolvematerials. Alternatively,the
with Residue Treatment
combinationofacidsandahighpressuremicrowavehavebeen
Dissolution of Uranium Scrap andAsh by Leaching with Nitric 8.4
Acid and Treatment of Residue by Carbonate Fusion
found to be effective with more difficult to dissolve materials
Dissolution of Refractory Uranium-Containing Material by 8.5
and can also be used for materials which dissolve in mineral
Carbonate Fusion
acid in place of heating with a steam bath or hot plate.
Dissolution of Uranium—AluminumAlloys 8.6
Uranium Scrap andAsh, and Refractory
3.2 The dissolved materials are quantitatively transferred to
Uranium-Containing Materials by
tared polyethylene bottles for subsequent sample solution mass
Microwave Treatment
determination and factor calculation.Aliquants are obtained by
1.3 The values stated in SI units are to be regarded as
mass for high-precision analysis or by volume for less precise
standard. No other units of measurement are included in this
analysis methods. Quantitative transfers of samples and sub-
standard.
sequent solutions are required. The sample is rejected when-
1.4 This standard does not purport to address all of the
ever a loss is incurred, or even suspected.
safety concerns, if any, associated with its use. It is the
3.3 Solutions of dissolved samples are inspected for undis-
responsibility of the user of this standard to establish appro-
solved particles. Further treatment is necessary to attain com-
priate safety and health practices and determine the applica-
plete solubility if particles are present. When analyzing the
bility of regulatory limitations prior to use. Specific hazards
dissolved sample for trace impurities, caution should be
statements are given in Section 7.
exercised so the dissolution process does not cause the impu-
2. Referenced Documents
rity to be lost or does not increase the level of impurity being
2
determined significantly.
2.1 ASTM Standards:
C753 Specification for Nuclear-Grade, Sinterable Uranium
NOTE 1—The use of double distilled acids may be necessary for low
Dioxide Powder
level trace impurities. The use of plastic labware will be necessary so the
dissolution does not increase the level of impurities being determined.
1 This may be necessary in Section 8.6.
This practice is under the jurisdiction of ASTM Committee C26 on Nuclear
Fuel Cycle and is the direct responsibility of Subcommittee C26.05 on Methods of
Test.
3
Current edition approved Dec. 1, 2008. Published December 2008. Originally Selected Measurement Methods for Plutonium and Uranium in the Nuclear
approved in 1996. Last previous edition approved in 2002 as C1347 – 02. DOI: Fuel Cycle, Second Edition, C. J. Rodden, ed., U.S. Atomic Energy Commission,
10.1520/C1347-08. 1972.
2 4
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Analysis of Essential Nuclear Reactor Materials, C. J. Rodden, ed., U.S.
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Atomic Energy Commission, 1964.
5
Standards volume information, refer to the standard’s Document Summary page on Larsen, R. P., “Dissolution of Uranium Metal and Its Alloys,” Analyti
...

This document is not anASTM standard and is intended only to provide the user of anASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

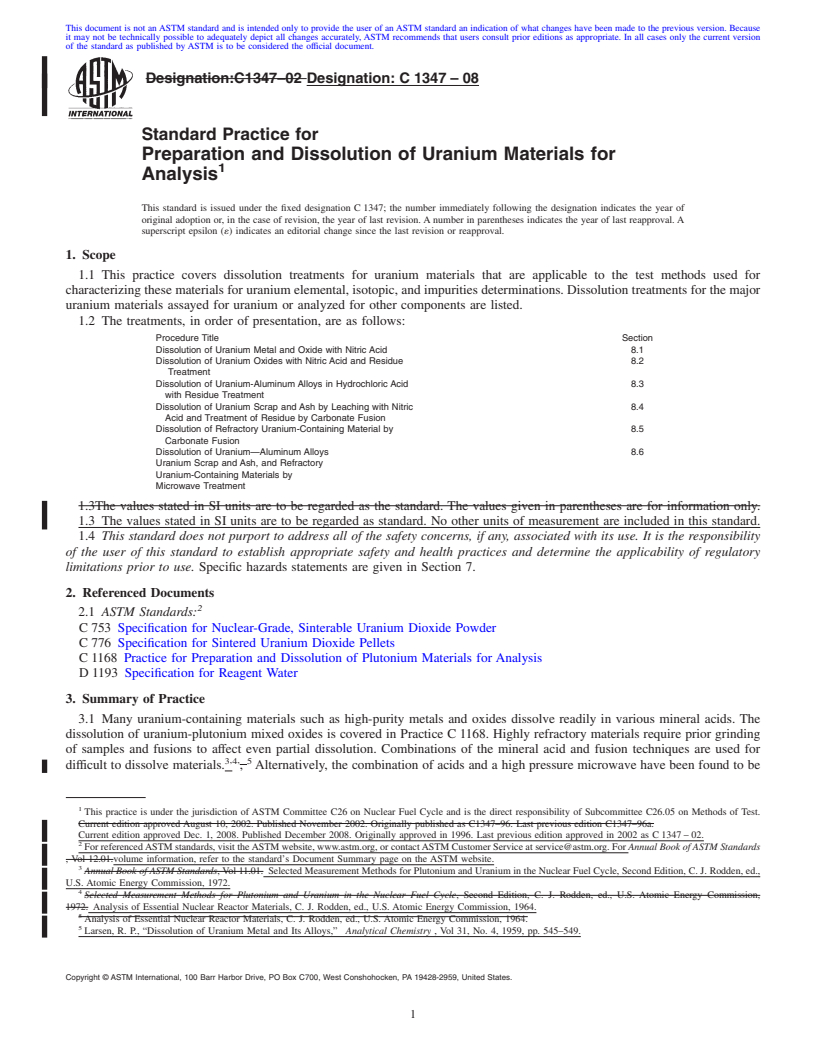

Designation:C1347–02 Designation:C1347–08
Standard Practice for
Preparation and Dissolution of Uranium Materials for
1
Analysis
This standard is issued under the fixed designation C 1347; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice covers dissolution treatments for uranium materials that are applicable to the test methods used for
characterizing these materials for uranium elemental, isotopic, and impurities determinations. Dissolution treatments for the major
uranium materials assayed for uranium or analyzed for other components are listed.
1.2 The treatments, in order of presentation, are as follows:
Procedure Title Section
Dissolution of Uranium Metal and Oxide with NitricAcid 8.1
Dissolution of Uranium Oxides with NitricAcid and Residue 8.2
Treatment
Dissolution of Uranium-AluminumAlloys in HydrochloricAcid 8.3
with Residue Treatment
Dissolution of Uranium Scrap andAsh by Leaching with Nitric 8.4
Acid and Treatment of Residue by Carbonate Fusion
Dissolution of Refractory Uranium-Containing Material by 8.5
Carbonate Fusion
Dissolution of Uranium—AluminumAlloys 8.6
Uranium Scrap andAsh, and Refractory
Uranium-Containing Materials by
Microwave Treatment
1.3The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use. Specific hazards statements are given in Section 7.
2. Referenced Documents
2
2.1 ASTM Standards:
C 753 Specification for Nuclear-Grade, Sinterable Uranium Dioxide Powder
C 776 Specification for Sintered Uranium Dioxide Pellets
C 1168 Practice for Preparation and Dissolution of Plutonium Materials for Analysis
D 1193 Specification for Reagent Water
3. Summary of Practice
3.1 Many uranium-containing materials such as high-purity metals and oxides dissolve readily in various mineral acids. The
dissolution of uranium-plutonium mixed oxides is covered in Practice C 1168. Highly refractory materials require prior grinding
of samples and fusions to affect even partial dissolution. Combinations of the mineral acid and fusion techniques are used for
3,4, 5
difficult to dissolve materials. , Alternatively, the combination of acids and a high pressure microwave have been found to be
1
This practice is under the jurisdiction of ASTM Committee C26 on Nuclear Fuel Cycle and is the direct responsibility of Subcommittee C26.05 on Methods of Test.
Current edition approved August 10, 2002. Published November 2002. Originally published as C1347–96. Last previous edition C1347–96a.
Current edition approved Dec. 1, 2008. Published December 2008. Originally approved in 1996. Last previous edition approved in 2002 as C 1347 – 02.
2
For referencedASTM standards, visit theASTM website, www.astm.org, or contactASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
, Vol 12.01.volume information, refer to the standard’s Document Summary page on the ASTM website.
3
Annual Book of ASTM Standards, Vol 11.01.Selected Measurement Methods for Plutonium and Uranium in the Nuclear Fuel Cycle, Second Edition, C. J. Rodden, ed.,
U.S. Atomic Energy Commission, 1972.
4
Selected Measurement Methods for Plutonium and Uranium in the Nuclear Fuel Cycle, Second Edition, C. J. Rodden, ed., U.S. Atomic Energy Commission,
1972.Analysis of Essential Nuclear Reactor Materials, C. J. Rodden, ed., U.S. Atomic Energy Commission, 1964.
5
Analysis of Essential Nuclear Reactor Materials, C. J. Rodden, ed., U.S. Atomic Energy Commission, 1964.
5
Larsen, R. P., “Dissolution of Uranium Metal and Its Alloys,” Analytical Chemistry , Vol 31, No. 4, 1959, pp. 545–549.
Copyright ©ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA19428-2959, United States.
1

---------------------- Page: 1 ----------------------
C1347–08
effective with more difficult to dissolve materials and can also be used for materials which dissolve in mineral
...

This document is not anASTM standard and is intended only to provide the user of anASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation:C1347–02 Designation:C1347–08
Standard Practice for
Preparation and Dissolution of Uranium Materials for
1
Analysis
This standard is issued under the fixed designation C 1347; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice covers dissolution treatments for uranium materials that are applicable to the test methods used for
characterizing these materials for uranium elemental, isotopic, and impurities determinations. Dissolution treatments for the major
uranium materials assayed for uranium or analyzed for other components are listed.
1.2 The treatments, in order of presentation, are as follows:
Procedure Title Section
Dissolution of Uranium Metal and Oxide with NitricAcid 8.1
Dissolution of Uranium Oxides with NitricAcid and Residue 8.2
Treatment
Dissolution of Uranium-AluminumAlloys in HydrochloricAcid 8.3
with Residue Treatment
Dissolution of Uranium Scrap andAsh by Leaching with Nitric 8.4
Acid and Treatment of Residue by Carbonate Fusion
Dissolution of Refractory Uranium-Containing Material by 8.5
Carbonate Fusion
Dissolution of Uranium—AluminumAlloys 8.6
Uranium Scrap andAsh, and Refractory
Uranium-Containing Materials by
Microwave Treatment
1.3The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use. Specific hazards statements are given in Section 7.
2. Referenced Documents
2
2.1 ASTM Standards:
C 753 Specification for Nuclear-Grade, Sinterable Uranium Dioxide Powder
C 776 Specification for Sintered Uranium Dioxide Pellets
C 1168 Practice for Preparation and Dissolution of Plutonium Materials for Analysis
D 1193 Specification for Reagent Water
3. Summary of Practice
3.1 Many uranium-containing materials such as high-purity metals and oxides dissolve readily in various mineral acids. The
dissolution of uranium-plutonium mixed oxides is covered in Practice C 1168. Highly refractory materials require prior grinding
of samples and fusions to affect even partial dissolution. Combinations of the mineral acid and fusion techniques are used for
3,4, 5
difficult to dissolve materials. , Alternatively, the combination of acids and a high pressure microwave have been found to be
1
This practice is under the jurisdiction of ASTM Committee C26 on Nuclear Fuel Cycle and is the direct responsibility of Subcommittee C26.05 on Methods of Test.
Current edition approved August 10, 2002. Published November 2002. Originally published as C1347–96. Last previous edition C1347–96a.
Current edition approved Dec. 1, 2008. Published December 2008. Originally approved in 1996. Last previous edition approved in 2002 as C 1347 – 02.
2
For referencedASTM standards, visit theASTM website, www.astm.org, or contactASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
, Vol 12.01.volume information, refer to the standard’s Document Summary page on the ASTM website.
3
Annual Book of ASTM Standards, Vol 11.01. Selected Measurement Methods for Plutonium and Uranium in the Nuclear Fuel Cycle, Second Edition, C. J. Rodden, ed.,
U.S. Atomic Energy Commission, 1972.
4
Selected Measurement Methods for Plutonium and Uranium in the Nuclear Fuel Cycle, Second Edition, C. J. Rodden, ed., U.S. Atomic Energy Commission,
1972. Analysis of Essential Nuclear Reactor Materials, C. J. Rodden, ed., U.S. Atomic Energy Commission, 1964.
5
Analysis of Essential Nuclear Reactor Materials, C. J. Rodden, ed., U.S. Atomic Energy Commission, 1964.
5
Larsen, R. P., “Dissolution of Uranium Metal and Its Alloys,” Analytical Chemistry , Vol 31, No. 4, 1959, pp. 545–549.
Copyright ©ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA19428-2959, United States.
1

---------------------- Page: 1 ----------------------
C1347–08
effective with more difficult to dissolve materials and can also be used for materials which dissolve in miner
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM C1268-23(Test Method)
Standard Test Method for Quantitative Determination of 241Am in Plutonium by Gamma-Ray Spectrometry

SIGNIFICANCE AND USE
5.1 This test method allows the determination of 241Am in a plutonium solution without separation of the americium from the plutonium. It is generally applicable to any solution containing 241Am.
5.2 The 241Am in solid plutonium materials may be determined when these materials are dissolved (see Practice C1168).
5.3 When the plutonium solution contains unacceptable levels of fission products or other materials, this method may be used following a tri-n-octylphosphine oxide (TOPO) extraction, ion exchange or other similar separation techniques (see Test Methods C758 and C759).
5.4 This test method is less subject to interferences from plutonium than alpha counting since the energy of the gamma ray used for the analysis is better resolved from other gamma rays than the alpha particle energies used for alpha counting.
5.5 The minimal sample preparation reduces the amount of sample handling and exposure to the analyst.
5.6 This test method is applicable only to homogeneous solutions. This test method is not suitable for solutions containing solids.
5.7 Solutions containing 241Am at concentrations as little as 1 × 10−5 g/L may be analyzed using this method. The lower limit depends on the detector used and the counting geometry. Solutions containing high concentrations may be analyzed following an appropriate dilution.
SCOPE
1.1 This test method covers the quantitative determination of 241Am by gamma-ray spectrometry in plutonium nitrate solution samples that do not contain significant amounts of radioactive fission products or other high specific activity gamma-ray emitters.
1.2 This test method can be used to determine the 241Am in samples of plutonium metal, oxide and other solid forms, when the solid is appropriately sampled and dissolved.
1.3 The values stated in SI units are to be regarded as standard. Additionally, the non-SI units of electron volts, kiloelectron volts, and liters are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM C1168-23(Practice)
Standard Practice for Preparation and Dissolution of Plutonium Materials for Analysis

SIGNIFICANCE AND USE
5.1 Plutonium and uranium mixtures are used as nuclear reactor fuels. For use as a nuclear reactor fuel, the material must meet certain criteria for combined uranium and plutonium content, effective fissile content, and impurity content as described in Specifications C757 and C833. After dissolution using one of the procedures described in this practice, the material is assayed for plutonium and uranium to determine if the content is correct as specified by the purchaser.
5.2 Unique plutonium materials, such as alloys, compounds, and scrap metals, are typically dissolved with various acid mixtures or by fusion with various fluxes. Many plutonium salts are soluble in hydrochloric acid. One or more of the procedures included in this practice may be effective for some of these materials; however their applicability to a particular plutonium material shall be verified by the user.
SCOPE
1.1 This practice is a compilation of dissolution techniques for plutonium materials that are applicable to the test methods used for characterizing these materials. Dissolution treatments for the major plutonium materials assayed for plutonium or analyzed for other components are listed. Aliquots of the dissolved materials are dispensed on a mass basis when one of the analyses must be of high precision, such as plutonium assay; otherwise they are dispensed on a volume basis.
1.2 Procedures in this practice are intended for the dissolution of plutonium metal, plutonium oxide, and uranium-plutonium mixed oxides. Aliquots of dissolved materials are analyzed using test methods, such as those developed by Subcommittee C26.05 on Methods of Test, to demonstrate compliance with applicable requirements. These may include product specifications such as Specifications C757 and C833.
1.3 One or more of the procedures in this practice may be applicable to unique plutonium materials, such as alloys, compounds, and scrap materials. The user must determine the applicability of this practice to such materials.
1.4 The treatments, in order of presentation, are as follows:
Procedure Number
Procedure Title
Section
1
Dissolution of Plutonium Metal with Hydrochloric Acid at Room Temperature
9
2
Dissolution of Plutonium Metal with Hydrochloric Acid and Heating
10
3
Dissolution of Plutonium Metal with Sulfuric Acid
11
4
Dissolution of Plutonium Oxide and Uranium-Plutonium Mixed
Oxide by the Sealed-Reflux Technique
12
5
Dissolution of Plutonium Oxide and Uranium-Plutonium Mixed Oxides by Sodium Bisulfate Fusion
13
6
Dissolution of Uranium-Plutonium Mixed Oxides and Low-Fired Plutonium Oxide in Beakers
14
7
Open-Vessel (with Reflux Condenser) Dissolution of Plutonium Oxide Powder
15
8
Open-Vessel (with Reflux Condenser) Dissolution of Mixed Oxide Powder
16
9
Closed-Vessel Hot Block Dissolution of Plutonium Oxide Powder
17
10
Open-Vessel (with Reflux Condenser) Dissolution of Mixed Oxide Pellets
18
1.5 The values stated in SI units are to be regarded as standard. The non-SI unit of molarity (M) is also to be regarded as standard. Values in parentheses (non-SI units), where provided, are for information only and are not considered standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    10 pages
    English language
    sale 15% off
  • Standard
    10 pages
    English language
    sale 15% off
ASTM
ASTM C833-23(Specification)
Standard Specification for Sintered (Uranium-Plutonium) Dioxide Pellets for Light Water Reactors

ABSTRACT
This specification covers finished sintered and ground (uranium-plutonium) dioxide pellets for use in thermal reactors. It applies to uranium-plutonium dioxide pellets containing plutonium additions up to 15 % weight. The diversity of manufacturing methods shall be recognized by which uranium-plutonium dioxide pellets are produced and the many special requirements for chemical and physical characterization that may be imposed by the operating conditions to which the pellets will be subjected in specific reactor systems. The following are different chemical requirements that shall be determined: uranium content, plutonium content, impurity content, stoichiometry, moisture content, gas content, and americium-241 content. Nuclear requirements such as isotopic content, plutonium equivalent at a given date, equivalent boron content, and reactivity shall also be determined. Physical properties of the pellets like dimensions, density, grain size, pore morphology, plutonium-oxide homogeneity, plutonium-oxide particle size, plutonium-oxide particle distribution, integrity, and surface cracks shall be determined as well. The surfaces of finished pellets shall be visually free of loose chips, oil, macroscopic inclusions, and foreign materials. An estimate of the fuel pellet irradiation stability shall be obtained unless adequate allowance for such effects are factored into the fuel rod design. The estimate of the stability shall consist of either conformance to the thermal stability test as specified in the or by adequate correlation of manufacturing process or microstructure to in-reactor behavior, or both.
SCOPE
1.1 This specification covers finished sintered and ground (U, Pu)O2 pellets for use in light water reactors. It applies to (U, Pu)O2 pellets containing a plutonium mass fraction up to 15 % (that is, mass of Pu divided by the sum of masses U, Pu, and Am yielding 0.15 or less).
1.2 Pellets produced under this specification are available in four grades.
1.2.1 Grade R—240Pu / (Pu + Am) isotope mass fraction is at least 19 %.
1.2.2 Grade F—240Pu / (Pu + Am) isotope mass fraction is at least 7 % and less than 19 %.
1.2.3 Grade N1—240Pu / (Pu + Am) isotope mass fraction is less than 7 %.
1.2.4 Grade N2—240Pu /239Pu isotope mass fraction does not exceed 0.10 (10 %).
1.3 There is no discussion of or provision for preventing criticality incidents, nor are health and safety requirements, the avoidance of hazards, or shipping precautions and controls discussed. Observance of this specification does not relieve the user of the obligation to be aware of and conform to all applicable international, federal, state, and local regulations pertaining to possessing, processing, shipping, or using source or special nuclear material. Examples of U.S. government documents are Code of Federal Regulations Title 10, Part 50—Domestic Licensing of Production and Utilization Facilities; Code of Federal Regulations Title 10, Part 71—Packaging and Transportation of Radioactive Material; and Code of Federal Regulations Title 49, Part 173—General Requirements for Shipments and Packaging.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 The following safety hazards caveat pertains only to the technical requirements portion, Section 4, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technic...

  • Technical specification
    5 pages
    English language
    sale 15% off
  • Technical specification
    5 pages
    English language
    sale 15% off
ASTM
ASTM C1428-18(2023)(Test Method)
Standard Test Method for Isotopic Analysis of Uranium Hexafluoride by Single–Standard Gas Source Multiple Collector Mass Spectrometer Method

SIGNIFICANCE AND USE
5.1 Uranium hexafluoride is a basic material used to produce nuclear reactor fuel. To be suitable for this purpose, the material must meet criteria for isotopic composition. This test method is designed to determine whether the material meets the requirements described in Specifications C787 and C996.
SCOPE
1.1 This test method is applicable to the isotopic analysis of uranium hexafluoride (UF6) with  235U concentrations less than or equal to 5 % and 234U,  236U concentrations of 0.0002 to 0.1 %.
1.2 This test method may be applicable to the analysis of the entire range of 235U isotopic compositions providing that adequate Certified Reference Materials (CRMs or traceable standards) are available.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM C1062-23(Guide)
Standard Guide for Design, Fabrication, and Installation of Nuclear Fuel Dissolution Facilities

SIGNIFICANCE AND USE
4.1 The purpose of this guide is to provide information that will help to ensure that nuclear fuel dissolution facilities are conceived, designed, fabricated, constructed, and installed in an economic and efficient manner. This guide will help facilities meet the intended performance functions, eliminate or minimize the possibility of nuclear criticality and provide for the protection of both the operator personnel and the public at large under normal and abnormal (emergency) operating conditions as well as under credible failure or accident conditions.
SCOPE
1.1 It is the intent of this guide to set forth criteria and procedures for the design, fabrication and installation of nuclear fuel dissolution facilities. This guide applies to and encompasses all processing steps or operations beyond the fuel shearing operation (not covered), up to and including the dissolving accountability vessel.
1.2 Applicability and Exclusions:
1.2.1 Operations—This guide does not cover the operation of nuclear fuel dissolution facilities. Some operating considerations are noted to the extent that these impact upon or influence design.
1.2.1.1 Dissolution Procedures—Fuel compositions, fuel element geometry, and fuel manufacturing methods are subject to continuous change in response to the demands of new reactor designs and requirements. These changes preclude the inclusion of design considerations for dissolvers suitable for the processing of all possible fuel types. This guide will only address equipment associated with dissolution cycles for those fuels that have been used most extensively in reactors as of the time of issue (or revision) of this guide. (See Appendix X1.)
1.2.2 Processes—This guide covers the design, fabrication and installation of nuclear fuel dissolution facilities for fuels of the type currently used in Pressurized Water Reactors (PWR). Boiling Water Reactors (BWR), Pressurized Heavy Water Reactors (PHWR) and Heavy Water Reactors (HWR) and the fuel dissolution processing technologies discussed herein. However, much of the information and criteria presented may be applicable to the equipment for other dissolution processes such as for enriched uranium-aluminum fuels from typical research reactors, as well as for dissolution processes for some thorium and plutonium-containing fuels and others. The guide does not address equipment design for the dissolution of high burn-up or mixed oxide fuels.
1.2.2.1 This guide does not address special dissolution processes that may require substantially different equipment or pose different hazards than those associated with the fuel types noted above. Examples of precluded cases are electrolytic dissolution and sodium-bonded fuels processing. The guide does not address the design and fabrication of continuous dissolvers.
1.2.3 Ancillary or auxiliary facilities (for example, steam, cooling water, electrical services) are not covered. Cold chemical feed considerations are addressed briefly.
1.2.4 Dissolution Pretreatment—Fuel pretreatment steps incidental to the preparation of spent fuel assemblies for dissolution reprocessing are not covered by this guide. This exclusion applies to thermal treatment steps such as “Voloxidation” to drive off gases prior to dissolution, to mechanical decladding operations or process steps associated with fuel elements disassembly and removal of end fittings, to chopping and shearing operations, and to any other pretreatment operations judged essential to an efficient nuclear fuels dissolution step.
1.2.5 Fundamentals—This guide does not address specific chemical, physical or mechanical technology, fluid mechanics, stress analysis or other engineering fundamentals that are also applied in the creation of a safe design for nuclear fuel dissolution facilities.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI unit...

  • Guide
    17 pages
    English language
    sale 15% off
  • Guide
    17 pages
    English language
    sale 15% off
ASTM
ASTM C859-23(Terminology)
Standard Terminology Relating to Nuclear Materials

SCOPE
1.1 This terminology standard contains terms, definitions, descriptions of terms, nomenclature, and explanations of acronyms and symbols specifically associated with standards under the jurisdiction of Committee C26 on Nuclear Fuel Cycle. The content of this terminology standard may also be applicable to documents not under the jurisdiction of Committee C26, in which case this terminology standard may be referenced in those documents.
1.2 While subcommittees within Committee C26 are free to only provide terms and definitions within individual standards, each subcommittee may request the addition of utilized terms and definitions to this terminology standard if it believes that such serves the broader interest of Committee C26 and the nuclear fuel cycle profession. Therefore, terms and definitions proposed for inclusion in Terminology C859 need not be used in more than one committee standard before being considered.
1.3 In general, technical terms that are defined in common dictionaries would not also be defined in this terminology standard unless there is a need to emphasize a specific definition in making appropriate use of a Committee C26 standard.
1.4 Subcommittee C26.10 (Nondestructive Assay) also has a terminology standard applicable to its standards: Terminology C1673.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM C1554-18(2023)(Guide)
Standard Guide for Materials Handling Equipment for Hot Cells

SIGNIFICANCE AND USE
4.1 Materials handling equipment operability and long-term integrity are concerns that originate during the design and fabrication sequences. Such concerns are most efficiently addressed during one or the other of these stages. Equipment operability and integrity can be compromised during handling and installation sequences. For this reason, the subject equipment should be handled and installed under closely controlled and supervised conditions.
4.2 This guide is intended as a supplement to other standards (Section 2, Referenced Documents), and to federal and state regulations, codes, and criteria applicable to the design of equipment intended for this use.
4.3 This guide is intended to be generic and to apply to a wide range of types and configurations of materials handling equipment.
4.4 The term materials handling equipment is used herein in a generic sense. It includes manipulators, cranes, carts or bogies, and special equipment for handling tools and material in hot cells.
4.5 This service imposes stringent requirements on the quality and the integrity of the equipment, as follows:
4.5.1 Boots and similar protective covers should not restrict movement of the equipment, should be properly sealed to the equipment and should withstand the radiation, cell atmosphere, dust, cell temperatures, chemical exposures, and cleaning and decontamination reagents, and also resist snags and tearing.
4.5.2 Materials handling equipment should be capable of withstanding rigorous chemical cleaning and decontamination procedures.
4.5.3 Materials handling equipment should be designed and fabricated to remain dimensionally stable throughout its life cycle.
4.5.4 Attention to fabrication tolerances is necessary to allow the proper fit-up between components for the proper installation and mounting of materials handling equipment in hot cells, for example, when parts or components are being replaced. Fabrication tolerances should be controlled to provide sufficie...
SCOPE
1.1 Intent:
1.1.1 This guide covers materials handling equipment used in hot cells (shielded cells) for the processing and handling of nuclear and radioactive materials. The intent of this guide is to aid in the selection and design of materials handling equipment for hot cells in order to minimize equipment failures and maximize the equipment utility.
1.1.2 It is intended that this guide record the principles and caveats that experience has shown to be essential to the design, fabrication, installation, maintenance, repair, replacement, and decontamination and decommissioning of materials handling equipment capable of meeting the stringent demands of operating, dependably and safely, in a hot cell environment where operator visibility is limited due to the radiation exposure hazards.
1.1.3 This guide may apply to materials handling equipment in other radioactive remotely operated facilities such as suited entry repair areas and canyons, but does not apply to materials handling equipment used in commercial power reactors.
1.1.4 This guide covers mechanical master-slave manipulators and electro-mechanical manipulators, but does not cover electro-hydraulic manipulators.
1.2 Applicability:
1.2.1 This guide is intended to be applicable to equipment used under one or more of the following conditions:
1.2.1.1 The materials handled or processed constitute a significant radiation hazard to man or to the environment.
1.2.1.2 The equipment will generally be used over a long-term life cycle (for example, in excess of two years), but equipment intended for use over a shorter life cycle is not excluded.
1.2.1.3 The equipment can neither be accessed directly for purposes of operation or maintenance, nor can the equipment be viewed directly, for example, without shielded viewing windows, periscopes, or a video monitoring system.
1.3 User Caveats:
1.3.1 This standard is not a substitute for applied engin...

  • Guide
    10 pages
    English language
    sale 15% off
ASTM
ASTM C1108-23(Test Method)
Standard Test Method for Plutonium by Controlled-Potential Coulometry

SIGNIFICANCE AND USE
5.1 Factors governing selection of a method for the determination of plutonium include available quantity of sample, sample purity, desired level of reliability, and equipment.
5.1.1 This test method determines 5 mg to 20 mg of plutonium with prior dissolution using Practice C1168.
5.1.2 This test method calculates plutonium mass fraction in solutions and solids using an electrical calibration based upon Ohm’s Law and the Faraday Constant.
5.1.3 Chemical standards are used for quality control. When prior chemical separation of plutonium is necessary to remove interferences, the quality control standards should be included with each chemical separation batch (9).
5.2 Fitness for Purpose of Safeguards and Nuclear Safety Application—Methods intended for use in safeguards and nuclear safety applications shall meet the requirements specified by Guide C1068 for use in such applications.
SCOPE
1.1 This test method describes the determination of dissolved plutonium from unirradiated nuclear-grade (that is, high-purity) materials by controlled-potential coulometry. Controlled-potential coulometry may be performed in a choice of supporting electrolytes, such as 0.9 mol/L (0.9 M) HNO3, 1 mol/L (1 M) HClO4, 1 mol/L (1 M) HCl, 5 mol/L (5 M) HCl, and 0.5 mol/L (0.5 M) H2SO4. Limitations on the use of selected supporting electrolytes are discussed in Section 6. Optimum quantities of plutonium for this procedure are 5 mg to 20 mg.
1.2 Plutonium-bearing materials are radioactive and toxic. Adequate laboratory facilities, such as gloved boxes, fume hoods, controlled ventilation, etc., along with safe techniques must be used in handling specimens containing these materials.
1.3 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    10 pages
    English language
    sale 15% off
  • Standard
    10 pages
    English language
    sale 15% off
ASTM
ASTM C1204-14(2023)(Test Method)
Standard Test Method for Uranium in Presence of Plutonium by Iron(II) Reduction in Phosphoric Acid Followed by Chromium(VI) Titration

SIGNIFICANCE AND USE
4.1 Factors governing selection of a method for the determination of uranium include available quantity of sample, sample purity, desired level of reliability, and equipment availability.
4.2 This test method is suitable for samples between 20 mg to 300 mg of uranium, is applicable to fast breeder reactor (FBR)-mixed oxides having a uranium to plutonium ratio of 2.5 and greater, is tolerant towards most metallic impurity elements usually specified for FBR-mixed oxide fuel, and uses no special equipment.
4.3 The ruggedness of the titration method has been studied for both the volumetric (6) and the weight (7) titration of uranium with dichromate.
SCOPE
1.1 This test method covers unirradiated uranium-plutonium mixed oxide having a uranium to plutonium ratio of 2.5 and greater. The presence of larger amounts of plutonium (Pu) that give lower uranium to plutonium ratios may give low analysis results for uranium (U) (1)2, if the amount of plutonium together with the uranium is sufficient to slow the reduction step and prevent complete reduction of the uranium in the allotted time. Use of this test method for lower uranium to plutonium ratios may be possible, especially when 20 mg to 50 mg quantities of uranium are being titrated rather than the 100 mg to 300 mg in the study cited in Ref (1). Confirmation of that information should be obtained before this test method is used for ratios of uranium to plutonium less than 2.5.
1.2 The amount of uranium determined in the data presented in Section 12 was 20 mg to 50 mg. However, this test method, as stated, contains iron in excess of that needed to reduce the combined quantities of uranium and plutonium in a solution containing 300 mg of uranium with uranium to plutonium ratios greater than or equal to 2.5. Solutions containing up to 300 mg uranium with uranium to plutonium ratios greater than or equal to 2.5 have been analyzed (1) using the reagent volumes and conditions as described in Section 10.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific hazard statements, see Section 8.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM C1347-08(2023)(Practice)
Standard Practice for Preparation and Dissolution of Uranium Materials for Analysis

SIGNIFICANCE AND USE
4.1 The materials covered that must meet ASTM specifications are uranium metal and uranium oxide.
4.2 Uranium materials are used as nuclear reactor fuel. For this use, these materials must meet certain criteria for uranium content, uranium-235 enrichment, and impurity content, as described in Specifications C753 and C776. The material is assayed for uranium to determine whether the content is as specified.
4.3 Uranium alloys, refractory uranium materials, and uranium containing scrap and ash are unique uranium materials for which the user must determine the applicability of this practice. In general, these unique uranium materials are dissolved with various acid mixtures or by fusion with various fluxes.
SCOPE
1.1 This practice covers dissolution treatments for uranium materials that are applicable to the test methods used for characterizing these materials for uranium elemental, isotopic, and impurities determinations. Dissolution treatments for the major uranium materials assayed for uranium or analyzed for other components are listed.
1.2 The treatments, in order of presentation, are as follows:
Procedure Title
Section
Dissolution of Uranium Metal and Oxide with Nitric Acid
8.1
Dissolution of Uranium Oxides with Nitric Acid and Residue
Treatment
8.2
Dissolution of Uranium-Aluminum Alloys in Hydrochloric Acid
with Residue Treatment
8.3
Dissolution of Uranium Scrap and Ash by Leaching with Nitric
Acid and Treatment of Residue by Carbonate Fusion
8.4
Dissolution of Refractory Uranium-Containing Material by
Carbonate Fusion
8.5
Dissolution of Uranium—Aluminum Alloys
Uranium Scrap and Ash, and Refractory
Uranium-Containing Materials by
Microwave Treatment
8.6
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific hazards statements are given in Section 7.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
